This document summarizes a presentation about smart water networks. It discusses how smart water networks use information technology to optimize water utility management with minimum capital expenditures. Examples are provided of smart water network implementations in Belo Horizonte, Brazil and Qatar that have helped reduce non-revenue water and improve maintenance practices. The conclusions emphasize that smart water networks can improve both operational and business benefits by maximizing existing IT systems and integrating data from different platforms through a centralized GIS system.
Smart Water Networks
- 1. Smart Information for a Sustainable World Smart Water Networks Integrated Solutions for an optimal utility management Jokin Larrauri Water Vice President – Telvent Visit us at stand #20 Esri European User Conference October 26–28, 2011 | Madrid, Spain
- 2. Smart Information for a Sustainable World Agenda 1. Introduction 5 min 2. Smart Water Networks 10 min 3. Some examples 10 min 4. Conclusions 5 min
- 3. Smart Information for a Sustainable World Framework Main Drivers Ensure water Ensure water Ensure water Ensure business supply quality efficiency efficiency Regulation compliance Accurate planning Reduce leakages Replace/upgrade infrastructures Reduce GHG emissions Increase distribution efficiency Energy optimization Develop new source water supply Retain workforce knowledge Ensure infrastructure security Reduce operational costs Etc…. Improved decision making Increase customer satisfaction
- 4. Smart Information for a Sustainable World Do we need to increase efficiency? The total energy consumption of US water utilities is estimated to be 56 billion kWh equating to $4 billion annually in OPEX (EPA) Between 5-10 billion Kw/h of power generated in the US is spent in water that is either leaked or not paid for by customers (AwwA) In developing countries, about 45 million cubic meters are lost daily through water leakage in the distribution networks — enough to serve nearly 200 million people (WB). Energy prices increase at a faster rate than water tariffs meaning reduced margins for water utilities.
- 5. Smart Information for a Sustainable World Framework: Improving efficiency ↑ CAPEX for improving efficiency: i.e. pipe replacement, installation of VSP,… Fine, but: • High amounts • Approval periods • Budgetary • Implementation constraints periods Current IT capacity is not used at a 100% • Projects are not • Not getting the best aligned out of the • Data silos investments
- 6. Smart Information for a Sustainable World Agenda 1. Introduction 5 min 2. Smart Water Networks 10 min 3. Some examples 10 min 4. Conclusions 5 min
- 7. Smart Information for a Sustainable World Smart Water Networks Smart Water Networks solutions improve the efficiency, longevity, and reliability of the underlying physical water network by better measuring, collecting, analyzing, and acting upon a wide range of network events. Source: SWAN – Smart Water Networks Forum Use of information technology to optimize the utility’s capacity at a minimum CAPEX cost Data Information Decisions Actions Smart Water Networks Solutions More Better Accurate Smarter
- 8. Smart Information for a Sustainable World SWN: Fundamentals Smart Water Network’s fundamentals - The 3 I’s: Information: Realizing your full potential - SWN makes use of information that you might not know you have Integration: Make the best of your investments - SWN are able to make the best of the current IT installed base: your current investments Innovation: The constant future – SWN are flexible enough to take over the utility’s challenges as they come. Phase 1 Phase 2 Phase 3 Information Integration Innovation

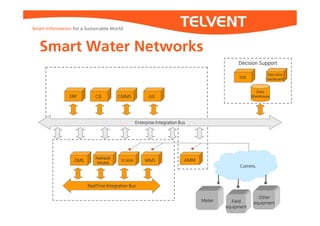

- 9. Smart Information for a Sustainable World Smart Water Networks Decision Support Executive DSS Dashboard Data ERP CIS CMMS GIS Warehouse Enterprise Integration Bus Hydraulic OMS Models SCADA WMS AMM Comms. RealTime Integration Bus Other Meter Field equipment equipment
- 10. Smart Information for a Sustainable World Benefits (or what you might be missing) Operational More accurate information for carrying out O&M activities New functionalities not available otherwise Optimization of the existing infrastructure and resources Business Improved decision making Streamlining OPEX and reduction / better planning of CAPEX needs Better ROI (existing investments)

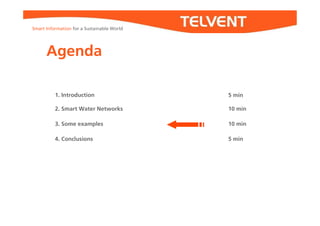

- 11. Smart Information for a Sustainable World Agenda 1. Introduction 5 min 2. Smart Water Networks 10 min 3. Some examples 10 min 4. Conclusions 5 min
- 12. Smart Information for a Sustainable World Example 1 – Belo Horizonte - Brazil - Utility Name: Copasa - 12.1 million people served (5.6 Belo Horizonte) - Improved response on - Over 40000 km of distribution pipes outage events - (↓14% outage times) 14% SCADA Maintenance - Improved maintenance policies Operational data - (↓33% repair times) 33% - Improved network control Data Maintenance Real time data Simulated data Predicted data - Improved planning GIS Hydraulic Model - Improved public image Geodata - Increased ROI on all these investments
- 13. Smart Information for a Sustainable World Example 2 – Qatar’s Water & Electricity Corporation - Utility Name : Kahramaa - NRW is the result of a - 1,4 million people served water balance that takes - Over 2500 km of water supply pipes into consideration data - Produces 360 Mm3/year coming from CRM/Billing, Metering, GIS, SCADA, Leak Billed Water Exported Detection systems Billed Authorized Billed Metered Revenue Consumption Consumption Water Authorized Billed Unmetered Consumption - Telvent has helped KM to Consumption Unbilled Metered Consumption reduce KM’s NRW to more Unbilled Authorized Consumption Unbilled Unmetered than half in 4 years, Consumption resulting in water savings Unauthorized Consumption System Input Volume Apparent Losses Customer Meter up to 57 M€ (14M€/year) Inaccuracies Non Leakage on Transmission Revenue and Distribution Lines Water - KM as most efficient water Water Losses Leakage and Overflows at utility in GCC area Storage Tanks Real Losses Leakage on Service - Only 3pp behing USA Connections up to point of Customer Meter average
- 14. Smart Information for a Sustainable World Example 3 – Service level compliance 25 Pa. Code § 109.708. Planned service interruptions: The public water supplier shall give reasonable notice to the affected customers prior to a planned service interruption affecting quantity or quality of the water delivered to the customer. If the interruption is scheduled to exceed 8 hours and affect 15 or more service connections the water supplier shall also notify the Department. 52 Pa. Code 67.1 (b) All electric, gas, water, and telephone utilities shall notify the Commission when 2,500 or 5.0%, whichever is less, of their total customers have an unscheduled service interruption in a single incident for six or more projected consecutive hours. CIS GIS Hydraulic Model 1.- Customer notification 2.- Identification of unnplanned & collateral effects in advance
- 15. Smart Information for a Sustainable World Example 3 – Service level compliance Tracing Tool Valve Isolation Affected area CIS Information for notification
- 16. Smart Information for a Sustainable World Example 3- Service level compliance Valve isolation Simulation runs Hydraulic Results 2 Valves There are implications in the short-medium term No customers directly affected Results after 9 Results after 1h hours
- 17. Smart Information for a Sustainable World Example 3 – Service level compliance 25 Pa. Code § 109.708. Planned service interruptions: The public water supplier shall give reasonable notice to the affected customers prior to a planned service interruption affecting quantity or quality of the water delivered to the customer. If the interruption is scheduled to exceed 8 hours and affect 15 or more service connections the water supplier shall also notify the Department. 52 Pa. Code 67.1 (b) All electric, gas, water, and telephone utilities shall notify the Commission when 2,500 or 5.0%, whichever is less, of their total customers have an unscheduled service interruption in a single incident for six or more projected consecutive hours. CIS GIS Hydraulic Model 1.- Customer notification 2.- Identification of unnplanned & collateral effects in advance 1 + 2 = Risk avoidance
- 18. Smart Information for a Sustainable World We are not alone AWWA’s ACE’10 – Workshop on «Distribution System Model Integration – Pulling the Various Data Silos Together (Model-SCADA-GIS-CMMS-CIS)» AWWA’s ACE’11 – Session: «Smart Water Networks: Integrated Solutions for an Optimized Utility Management» SWAN: Smart Water Networks International Forum Launching event, Paris May 2011 European SWAN Event, London Sep 2011
- 19. Smart Information for a Sustainable World Agenda 1. Introduction 5 min 2. Smart Water Networks 10 min 3. Some examples 10 min 4. Conclusions 5 min
- 20. Smart Information for a Sustainable World Conclusions SWN solutions complements CAPEX GIS as centric system to integrate and display utility key information coming from different IT platforms Planned implementation is key: Remember the 3 I’s Your utility already has some of the tools – Use them! You will get benefits and features not available otherwise Systems integration provides both operational and business management oriented benefits Better ROI by maximizing your existing IT systems
- 21. Smart Information for a Sustainable World Let’s get smart because… …there is no substitute for water Visit us at stand #20 for a live demo on Smart Water Networks
- 22. Smart Information for a Sustainable World Thank You Jokin Larrauri Water Vice President - Telvent jokin.larrauri@telvent.com Esri European User Conference October 26–28, 2011 | Madrid, Spain
