PRODUCT CATALOG
AKCPro Server
Containment Mapping
As an extension to the rack mapping desktops, complete hot/cold aisle
containment maps can be generated automatically from a data center
floorplan. Create the floorplan by entering the number of cabinets and rows,
and then assign the sensors to each rack. When drilling down the containment
view will show a section through the aisle with rack maps, and the hot/cold aisle
containment temperatures. Rack Map arrows indicate direction of airflow based
on differential pressure readings, front to rear temperature differential status
and airflow speed.
With Containment Mapping you can :-
- View thermal map sensors front, rear and temperature differentials
- Track assets in your cabinets
- View the status of rack equipment
- View security status with RFID Swing Handle Cabinet Locks
- View hot and cold aisle temperatures
- View differential pressures
Containment views are best used together with Wired or Wireless Cabinet
Analysis Sensor which includes thermal mapping and differential pressure in
one sensor.

PRODUCT CATALOG
AKCPro Server
Customized Desktops
AKCPro Server desktops are customized for each user to show the information
relevant to them. Desktops display sensor data, gauges, drill down maps,
cabinet rack maps, graphs and video feeds. Arrange the windows yourself, or
choose from predetermined layouts for easy setup.
Desktops show a live view, or can be switched to playback for review of histori-
cal data, with sensor events synchronized with video on the playback timeline.
Graphing Desktops
Desktops can be arranged with
graphs to show historical sensor
data. Desktops can be
customized to combine graphs
with other sensor data and
status indicators and/or gauges.
Sensor Gauges
A selection of gauges can be
used to display sensor data,
specially designed with battery
and engine monitoring in mind,
they simulate the real world
engine gauges.

PRODUCT CATALOG
AKCPro Server
Drilldown Mapping Desktops
Drill-down mapping allows you to go from a worldview to localized with a
zoomable map. Further levels of drill-down can be added with uploaded
floorplans of your sites, or create simple floorplans with our built in drawing
tools.
Ideal for monitoring multiple sites over a wide geographic area, or giving a
sensor overview of your data center or building floorplan.
Drill down from worldmap to floorplans

PRODUCT CATALOG
AKCPro Server
Video Integration
AKCPro Server integrates with IP based ONVIF compatible video cameras.
Sensor events from AKCP and virtual sensors are synchronized in the playback
window. This allows for easy visual reference of critical events or security
breaches.
Desktops show live video, together with sensor status, and can be switched to
playback, giving you an easy way to go back to specific sensor events and au-
tomatically recall and playback video from that time. Great for integration with
access control systems, to have a visual reference for every access event.

PRODUCT CATALOG
AKCPro Server
Access Control
From AKCPro Server you can administer access control schedules and
privileges, view access logs and reports on a per door, or per user basis. Know
who accessed, what time and synchronize with video systems in the playback
window to review actual video footage of the events.
Receive alerts if doors are left open, if unauthorized access attempts are made,
setup anti passback features such as card expiration dates.
For the data center install AKCP RFID Swing Handle Cabinet Locks to protect
your rack assets, and view the security status of the cabinets from the rack map
desktops.

PRODUCT CATALOG
AKCPro Server
Tablet View
Use any Android or iOS tablet or cellphone to monitor your data center at ground
level. No apps to install, just access using your google Chrome web browser. Now
your technicians on the data center floor can be kept up to date and be alerted
instantly to critical situations as they arise.
www.serverroomenvironments.co.uk

PRODUCT CATALOG
Dual Temp & Humidity Sensor
Dual Temp and Humidity Sensors (THS00 / THS01)
www.akcp.com
Accurate and responsive measurement of temperature and humidity. Available
in fixed length or extendable version, the sensor is housed in a metal tube that is
thermally conductive and perforated to still provide accurate readings.
THS00
The THS00 is supplied with a free 5ft
cable, it can be extended using standard
CAT5 up to 300 meters (1,000ft) from the
AKCP base unit. The sensor can be
mounted with screws, adhesive or with
optional DIN rail clips
THS01
A short 1ft fixed cable with a dual
temperature and humidity sensor on the
end. Custom lengths can be ordered to
suit your needs. Product code for custom
lengths is THSxx where xx is replaced by
the cable length in feet.*
*Water resistant version can be ordered on request, product code is THSWxx, where xx is the
length of fixed cable in feet.
Wireless Tunnel™

Calibration Check with Fail-over
2 NIST certified, calibrated temperature sensors are compared
once a second for accuracy, with a second backup pair (NIST4).
The NIST4 sensors feature a built in calibration check. Each unit has two pairs
of NIST calibrated and certified temperature sensors. The primary sensor
value is checked by the secondary sensor, and if we detect a range of greater
than the stated accuracy we will alert that the sensor is out of calibration. The
sensor will then automatically fail-over to the second pair and continue
monitoring with a seamless graph of data.
Suitable for situations where a high accuracy, calibrated sensors are needed,
with backup for critical monitoring applications.
Note: NIST2/4 sensors are compatible with sensorProbe+ series of base units only
PRODUCT CATALOG
Dual Temp and Humidity Sensors (THSxx-NIST2 / NIST4)
www.akcp.com
If you’re spending money for monitoring, wouldn’t
you want to know the sensors are calibrated?
2 NIST certified, calibrated temperature sensors are compared
once a second for accuracy. (NIST2)
The NIST2 sensors feature a built in calibration check. Each unit has 2x NIST
calibrated and certified temperature sensors. The primary sensor value is
checked by the secondary sensor, and if we detect a range of greater than the
stated accuracy we will alert that the sensor is out of calibration.
This makes these sensors ideal for situations where a high degree of
accuracy is required and assurance of the calibration state
Wireless Tunnel™

Temperature
Measurement Range -55°C to +75°C
-67°F to +167°F
Measurement Resolution sensorProbe+ series
0.1°C increments
0.2°F increments
securityProbe series
0.5ºC increments
0.9ºF increments
sensorProbe series
1ºC increments
1ºF increments
Measurement Accuracy sensorProbe+ series and securityProbe series
±0.5°C accuracy from -10°C to +75°C
±0.9°F accuracy from +14°F to +167°F
sensorProbe series
±1°C accuracy from -10°C to +75°C
±1°F accuracy from +14°F to +167°F
Humidity
Measurement range 0 to 100% Relative humidity
Resolution 1%RH increments, 0.01%RH sensor reading
Accuracy at At 25°C
Min : ±2%RH
Max : ±5% RH
Interface
Communications cable RJ-45 jack to sensor using UTP CAT5e/6 cable
Power source Powered by the base units. No additional power needed
Power Consumption Typical 17.25mWatt, 1.45mA
Maximum Cable Length Run length is 1000 feet (300 meters) with approved low capacitance shielded cable or UTP
Sensor type Semiconductor, microprocessor controlled
Dimensions 56 x 55 x 33.3 mm
Mounting DIN rail mounting
Screw mounting
Sensor count 2
Important Note The fixed one foot type or THS01 are not designed to be extended. If you need to extend
these sensors then you need to use the THS00 (remote type). We also do not recommend
you trying to connect any of our AKCP sensors including the temperature and dual temp
humidity sensors though patch panels or using the RJ-45 couplers to extend them. Please
see the temperature sensors product manual or FAQ in our knowledge base for more
details regarding this.
PRODUCT CATALOG
THS00 / THS01 / NIST2 / NIST4 - Technical Specifications
www.akcp.com
Wireless Tunnel™

PRODUCT CATALOG
THS00 / THS01 /NIST2 / NIST4 - Technical Drawing
www.akcp.com
Wireless Tunnel™

PRODUCT CATALOG
Power Monitoring Sensor
Power Monitoring Sensor (PMS)
www.akcp.com
The AKCP Power Monitor Sensor gives
vital information and allows you to remotely
monitor power eliminating the need for
manual power audits as well as providing
immediate alerts to potential problems.
It has been integrated into the base unit
web interface with its own “Power
Management” menu, allowing up to six
three phase and fourteen single phase
Power Monitor Sensors to be set up on a
single securityProbe or SPX+. More PMS
can be connected to a single base unit
depending on what readings are required.
Data collected over time using the Power Monitor sensor can also be viewed
using the built in graphing tool. Combining this durable Power Monitor Sensor
with the SPX+ or securityProbe base unit creates an IP-enabled power
monitoring capable of monitoring:
• Phase Line Voltages
• Current
• Power Factor
• Active Energy
• Active Power
Technical Diagram
Wireless Tunnel™

PRODUCT CATALOG
PMS - Technical Specification
www.akcp.com
Wireless Tunnel™

PRODUCT CATALOG

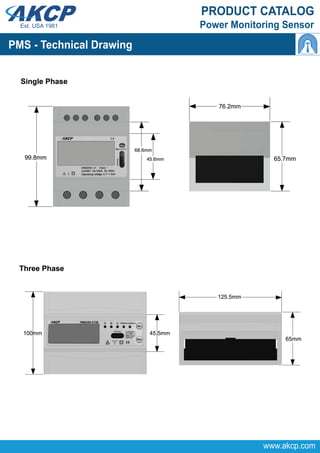

PMS - Technical Drawing
www.akcp.com
Wireless Tunnel™

PRODUCT CATALOG
Programmable display of sensor values
LCD Display (LCD-TMP)
www.akcp.com
The AKCP LCD Sensor Display plugs into any sensorProbe+ (SP2+, SPX+)
base unit and can be programmed to display the data from any AKCP
Intelligent or virtual sensor. Mount a single display on the end of an aisle, on the
door of every cabinet, or the wall of the room. LED indicators will alert if a
sensor is in critical condition, as well as the on screen display of the critical or
warning status.
Features
- Easy to read, high quality backlit LCD display
- Connects to available sensor port on sensorProbe+
- Program to display specific sensors
- Keyhole mounting
- LED Status indicator
LCD Display

PRODUCT CATALOG
LCD-TMP - Technical Specifications
www.akcp.com
LCD Display
Temperature
Measurement Range -40°C to +75°C
-40°F to +167°F
Measurement Resolution 0.1°C increments
0.2°F increments
Measurement Accuracy Maximum ±0.3 at -40ºC, minimum ±0.3 at +25ºC and ±0.3 at +75ºC
Maximum ±0.6 at -40ºF, minimum ±0.6 at +25ºC and ±0.6 at +167ºF
DISPLAY
LCD Display data Continuous embedded temperature display
Display up to 8 sensors in standard rotation list, configured via SP+ web interface with
preview.
Display sensor status, Warning or Critical
Display sensor units: °C, °F, %rh, %, V, (m)A, (k)W, (k)Wh
Display unit’s IP address when plugged in
Display swing handle lock status: Open, Closed
Blue backlight
LCD size 88.95 x 53.42 mm
LED Indicator 2 global status LEDs : Warning and Critical status
Interface
Communications cable RJ-45 jack to sensor using UTP CAT5e/6 cable
Power source Powered by the sensorProbe+ familiy units. No additional power needed
Power Consumption Typical 220 mWatt, 40 mA
Maximum Cable Length Run length is 30 feet (10 meters) with approved low capacitance shielded cable or UTP
Dimensions 169.67 x 97.1 x 31.18 mm
Mounting Keyhole mounting
Important Note - The Programmable LCD Sensor Display is only compatible with the sensorProbe+
platform units.
- When plugging the first time or after upgrading a sensorProbe+ unit, the sensor firmware
might be upgraded by the unit and not be available right away.
- On the sensorProbeX+, the sensor firmware can be upgraded only on the main module
sensor ports
Sensor count 1

PRODUCT CATALOG
LCD Display
LCD Display - Technical Drawing
www.akcp.com

Specs.pdf

More Related Content

Similar to Specs.pdf (20)

Recently uploaded (20)

Specs.pdf
