Spring Batch Performance Tuning
- 1. Spring Batch Performance Tuning By Chris Schaefer & Gunnar Hillert © 2014 SpringOne 2GX. All rights reserved. Do not distribute without permission.
- 2. Agenda • Spring Batch • Spring Integration • Spring Batch Integration • Scaling Spring Batch • Spring XD 2
- 3. Spring Batch 3 http://projects.spring.io/spring-batch/
- 4. Batch processing ... is defined as the processing of data without interaction or interruption. 4 “ Michael T. Minella, Pro Spring Batch
- 5. Batch Jobs • Generally long-running • Non-interactive • Often include logic for handling errors and restartability options • Process large volumes of data • More than what may fit in memory or a single transaction 5
- 6. Batch and offline processing • Close of business processing • Order processing, Business reporting, Account reconciliation, Payroll • Import / export handling • a.k.a. ETL jobs (Extract-Transform-Load) • Data warehouse synchronization • Large-scale output jobs • Loyalty program emails, Bank statements • Hadoop job orchestration 6
- 7. Features • Transaction management • Chunk based processing • Schema and Java Config support • Annotations for callback type scenarios such as Listeners • Start/Restart/Skip capabilities • Based on the Spring framework • JSR 352: Batch Applications for the Java Platform 7
- 8. Concepts • Job • Step • Chunk • Item 8 Repeat | Retry | Skip | Restart
- 9. Chunk-Oriented Processing • Read data, optionally process and write out the “chunk” within a transaction boundary. 9
- 10. JobLauncher 10
- 11. ItemReaders and ItemWriters • Flat File • XML (StAX) • Multi-File Input • Database • JDBC, JPA/Hibernate, Stored Procedures, Spring Data • JMS • AMQP • Email • Implement your own... 11
- 12. Simple File Load Job 12
- 14. Spring Integration 14 http://projects.spring.io/spring-integration/
- 15. Integration Styles • File Transfer • Shared Database • Remoting • Messaging 15
- 16. Integration Styles • Business to Business Integration (B2B) • Inter Application Integration (EAI) • Intra Application Integration 16 JVM JVM EAI Core Messaging B2B External Business Partner
- 17. Common Patterns 17 Retrieve Parse Transform Transmit
- 18. Enterprise Integration Patterns • By Gregor Hohpe & Bobby Woolf • Published 2003 • Collection of well-known patterns • Icon library provided 18 http://www.eaipatterns.com/eaipatterns.html
- 19. Spring Integration provides an extension of the Spring programming model to support the well-known enterprise integration patterns. 19 “ Spring Integration Website
- 20. Adapters 20 AMQP/RabbitMQ AWS File/Resource FTP/FTPS/SFTP GemFire HTTP (REST) JDBC JMS JMX JPA MongoDB POP3/IMAP/SMTP Print Redis RMI RSS/Atom SMB Splunk Spring Application Events Stored Procedures TCP/UDP Twitter Web Services XMPP XPath XQuery ! Custom Adapters
- 21. Samples • https://github.com/spring-projects/spring-integration-samples • Contains 50 Samples and Applications • Several Categories: • Basic • Intermediate • Advanced • Applications 21
- 22. Spring Batch Integration 22
- 23. Launching batch jobs through messages • Event-Driven execution of the JobLauncher • Spring Integration retrieves the data (e.g. file system, FTP, ...) • Easy to support separate input sources simultaneously 23 D C FTP Inbound Channel Adapter JobLauncher Transformer File JobLaunchRequest
- 24. JobLaunchRequest 24 public class FileMessageToJobRequest {! private Job job;! private String fileParameterName;! ...! @Transformer! public JobLaunchRequest toRequest(Message<File> message) {! JobParametersBuilder jobParametersBuilder = new JobParametersBuilder();! jobParametersBuilder.addString(fileParameterName,! message.getPayload().getAbsolutePath());! return new JobLaunchRequest(job, jobParametersBuilder.toJobParameters());! }! }!
- 25. JobLaunchRequest 25 <batch-int:job-launching-gateway request-channel="requestChannel"! reply-channel="replyChannel"! job-launcher="jobLauncher"/>!
- 26. Get feedback with informational messages ! • Spring Batch provides support for listeners: • StepExecutionListener • ChunkListener • JobExecutionListener 26
- 27. Get feedback with informational messages 27 <batch:job id="importPayments"> ... <batch:listeners> <batch:listener ref="notificationExecutionsListener"/> </batch:listeners> </batch:job> ! <int:gateway id="notificationExecutionsListener" service-interface="o.s.batch.core.JobExecutionListener" default-request-channel="jobExecutions"/>
- 28. Launching and information messages demo in next section 28
- 29. Scaling Spring Batch 29
- 30. Scaling and externalizing batch process execution • Utilization of Spring Integration for multi process communication • Distribute complex processing • Single process o Multi-threaded steps o Parallel steps o Local partitioning • Multi process o Remote chunking o Remote partitioning • Asynchronous Item processing support • AsyncItemProcessor • AsyncItemWriter 30
- 31. Single Thread 31 Reader Item Result Gateway Output Input Processor Writer Item Result
- 32. Single Thread - Demo 32
- 33. Multi-threaded 33 • Simply add a TaskExecutor to your Tasklet configuration Reader Item Result Gateway Output Input Processor Writer Item Result
- 34. Multi-Threaded - Demo 34
- 35. Asynchronous Processors • AsyncItemProcessor • Dispatches ItemProcessor logic on new thread, returning a Future to the AsyncItemWriter • AsyncItemWriter • Writes the processed items after processing is complete 35
- 36. Asynchronous Processors - Demo 36
- 37. Remote Chunking 37 Step 2a ItemReader ItemProcessor ItemWriter Step 1 ItemReader ItemProcessor ItemWriter Step 2 ItemReader ItemWriter Step 3 ItemReader ItemProcessor ItemWriter Step 2b ItemReader ItemProcessor ItemWriter Step 2c ItemReader ItemProcessor ItemWriter
- 38. Remote Chunking - Demo 38
- 39. Remote Partitioning 39 Slave 1 ItemReader ItemProcessor ItemWriter Step 1 ItemReader ItemProcessor ItemWriter Master Step 3 ItemReader ItemProcessor ItemWriter Slave 2 ItemReader ItemProcessor ItemWriter Slave 3 ItemReader ItemProcessor ItemWriter Partitioner
- 40. Remote Partitioning - Demo 40
- 41. Demo - Launching via messages & informational messages 41 Does not provide scaling but demonstrates how launch job via messages and send information messages to integration points
- 42. Spring XD 42 http://projects.spring.io/spring-xd/
- 43. Tackling Big Data Complexity ! • Data Ingestion • Real-time Analytics • Workflow Orchestration • Data Export 43
- 44. Tackling Big Data Complexity cont. ! • Built on existing Spring assets • Spring Integration • Spring Batch • Spring Data • Spring Boot • Spring for Apache Hadoop • Spring Shell • Redis, GemFire, Hadoop 44
- 45. Data Ingestion Streams • DSL based on Unix pipes and filters syntax ! • Modules are parameterizable ! • Simple logic can be added via expressions or scripts 45 http | file twittersearch --query=spring | file --dir=/spring http | filter --expression=payload=='Spring' | hdfs
- 46. Hadoop workflow managed by Spring Batch • Reuse Batch infrastructure and features to manage Hadoop workflows • Job state management, launching, monitoring, restart/retry policies, etc. • Step can be any Hadoop job type or HDFS script • Can mix and match with other Batch readers/ writers, e.g. JDBC for import/export use-cases 46

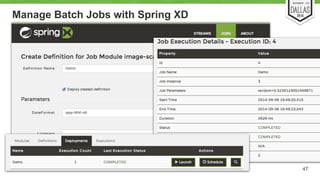

- 47. Manage Batch Jobs with Spring XD 47
- 48. 48 Spring XD - Demo
- 49. Books 49
- 50. Learn More. Stay Connected. ! ! ! Demo code and slides: https://github.com/SpringOne2GX-2014/spring-batch-performance-tuning 50 THANK YOU!
