This document summarizes SQL Azure, Microsoft's cloud-based relational database service. It describes the multi-tenant architecture with accounts, servers, and databases. It explains concepts like replication for high availability and reconfiguration to handle failures. The document also discusses the hardware and software deployment methods used to provide a reliable cloud database platform at scale.
SQL Azure in deep
- 1. SQL Azure Database. Under the hood What, how and why Cloud is different Kirill Bezpalyi, MSP, VNTU 12/25/2011

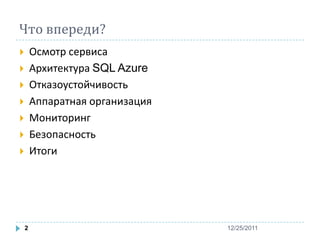

- 2. Что впереди? Осмотр сервиса Архитектура SQL Azure Отказоустойчивость Аппаратная организация Мониторинг Безопасность Итоги 2 12/25/2011
- 3. SQL Azure model Each account has zero or more servers Account Azure wide, provisioned in a common portal Billing instrument Each server has one or more databases Zone for authentication: userId+password Zone for administration and billing Server Metadata about the databases and usage Network access control based on client IP Has unique DNS name and unit of geo-location Each database has standard SQL objects Unit of consistency and high availability (autonomous replication) Database Contains Users, Tables, Views, Indices, etc… Most granular unit of usage reports Three SKUs available (1GB, 10GB and 50GB) 3 12/25/2011

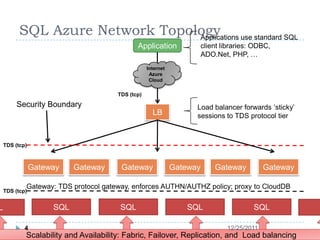

- 4. SQL Azure Network Topology use standard SQL Applications Application client libraries: ODBC, ADO.Net, PHP, … Internet Azure Cloud TDS (tcp) Security Boundary Load balancer forwards „sticky‟ LB sessions to TDS protocol tier TDS (tcp) Gateway Gateway Gateway Gateway Gateway Gateway Gateway: TDS protocol gateway, enforces AUTHN/AUTHZ policy; proxy to CloudDB TDS (tcp) L SQL SQL SQL SQL 4 12/25/2011 Scalability and Availability: Fabric, Failover, Replication, and Load balancing
- 5. Replication All reads are completed at the primary Ack Read Write Writes Value Ack replicated to Ack write quorum of replicas Ack P Ack Commit on secondaries S Write Write S first then primary S Write Write S Each transaction has a commit 5 sequence 12/25/2011 number (epoch,
- 6. Reconfiguration Types of reconfiguration Primary failover Removing a failed secondary Failed Adding recovered replica Building a new secondary S B P Assumes S Failed Failure detector Leader election Safe in the presence Both services provided by of cascading failures Fabric layer 6 12/25/2011
- 7. Partition Management Partition Manager (PM) is a highly available service running in the Master cluster Ensures all partitions are operational Places replicas across failure domains (rack/switch/server) Ensures all partitions have target replica count Balances the load across all the nodes Each node manages multiple partitions Global state maintained by the PM can be recreated from the local node state in event of disaster (GPM rebuild) 7 12/25/2011
- 8. System in Operation Primary master node SQL Server Partition Manager Partition Global Load Balancer Managemen Partition t Partition Placement map Advisor Leader Fabric Elector Data Node Data Node Data Node Data Node Data Node Data Node 100 101 102 103 104 105 P S P P S P S S S S S S S P S S S S S S S S S Fabric Secondary Primary Secondary 8 12/25/2011
- 9. SQL node Architecture Single physical DB for entire Machine SQL node Instance DB files and log shared master across every logical database/partition tempdb Allows better logging msdb throughput with sequential IO/group commits CloudNode No auto-growth on demand stalls DB1 DB2 master Uniform manageability and DB5 DB1 DB7 backup Each partition is a “silo” with DB3 DB4 DB7 its own independent schema Local SQL backup guards against software bugs 9 12/25/2011
- 10. Recap Two kinds of nodes: Data nodes store application data Master nodes store cluster metadata Node failures are reliably detected On every node, SQL and Fabric processes monitor each other Fabric processes monitor each other across nodes Local failures cause nodes to fail-fast Failures cause reconfiguration and placement changes 10 12/25/2011
- 11. Hardware Architecture Each rack hosts 2 pods of L2 Switch 20 machines each Each pod has a TOR mini- switch 10GB uplink to L2 switch Each SQL Azure machine runs on commodity box Example: 8 cores 32 GB RAM 1TB+ SATA drives Programmable power 1Gb NIC Machine spec changes as hardware (pricing) evolves 11 12/25/2011
- 12. Hardware Challenges SATA drives On-disk cache and lack of true "write through" results in Write Ahead Logging violations DB requires in-order writes to be honored Can force flush cache, but causes performance degradation Disk failures happen daily (at scale), fail-fast on those Bit-flips (enabled page checksums) Drives just disappear IOs are misdirected Faulty NIC Encountered message corruption 12 Enabled message signing and checksums 12/25/2011
- 13. Software Deployment OS is automatically imaged via deployment All the services are setup using file copy Guarantees on which version is running Provides fast switch to new version Minimal global state allows running side by side Yes, that includes the SQL Server DB engine Rollout is monitored to ensure high availability Knowledge of replica state health ensure SLA is met Two phase rollouts for data or protocol changes Leverages internal Autopilot technologies with SQL Azure extensions 13 12/25/2011

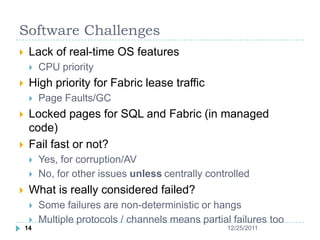

- 14. Software Challenges Lack of real-time OS features CPU priority High priority for Fabric lease traffic Page Faults/GC Locked pages for SQL and Fabric (in managed code) Fail fast or not? Yes, for corruption/AV No, for other issues unless centrally controlled What is really considered failed? Some failures are non-deterministic or hangs Multiple protocols / channels means partial failures too 14 12/25/2011
- 15. Monitoring Health model w/repair actions Reboot -> Re-deploy -> Re-image (OS) -> RMA cycle Additional monitoring for SQL tier Connect / network probes Memory leaks / hung worker processes Database corruption detection Trace and performance stats capture Sourced from regular SQL trace and support mechanisms Stored locally and pushed to a global cluster wide store Global cluster used for service insight and problem tracking 15 12/25/2011
- 16. SQL Azure Login Process 7 1 TDS Gateway Front-end Node TDS Session Protocol Parser 6 2 Gateway Logic Global Partition Map Master Node 8 3 Master Node Components 4 5 Backend Node 1 Backend Node 2 Backend Node 3 SQL Instance SQL Instance SQL Instance SQL DB SQL DB SQL DB 16 Scalability and and Availability: Fabric,Failover,Replication, and Load balancing Scalability Availability: Fabric, Failover, Replication, and Load balancing 12/25/2011
- 17. Security/Attack Considerations Service Secure channel required (SSL) Denial Of Service trend tracking Packet Inspection Server IP allow list (Firewall) Idle connection culling Generated server names Database Disallow the most commonly attacked user id‟s (SA, Admin, root, guest, etc) Standard SQL Authn/Authz mode 17 12/25/2011
- 18. Set up a server... 18 12/25/2011
- 19. SQL Azure Compatibility Currently Supported Not Currently Supported Tables, indexes and Data Types views Sparse Columns, Filestream Stored Procedures Partitions Triggers Full-text indexes Constraints SQL-CLR Table variables, session temp tables (#t) Spatial types, HierarchyId 19 12/25/2011
- 20. Size Matters 20 12/25/2011
- 21. Pricing 21 12/25/2011
- 22. Summary Cloud is different Not a different place to host code SQL Azure IS SQL Server…a TDS endpoint Create DB‟s and manage using what we already know Considerations and futures paint exciting picture of what to expect looking forward Opportunities are great Customers want a utility approach to storage New businesses and abilities in scale, availability, etc But the price must be paid Which is a good thing, otherwise everyone would be 22 12/25/2011 doing it!
- 23. Materials SQL Azure http://www.microsoft.com/windowsazure/sqlazure/ SQL Azure “under the hood” http://www.microsoftpdc.com/sessions/tags/sqlazure SQL Azure Fabric http://channel9.msdn.com/pdc2008/BB03/ General Guidelines & Limitations http://msdn.microsoft.com/en-us/library/ee336245.aspx 23 12/25/2011
- 24. Q&A Ask your questions… 24 12/25/2011
