- 1. Surgical Instrument Prepared by Mr.Abhay Rajpoot HOD (Dep. of Medical Surgical) abhayrajpoot5591@gmail.com
- 2. RAMPLEY’S SWAB HOLDING FORCEPS ⚫ Used forcleansing the skin with swab ⚫ It is used for removing laminated membraneand daughtercysts from Hydatid cyst. ⚫ Used to hold fundus and Hartman’s pouch during cholecystectomy.

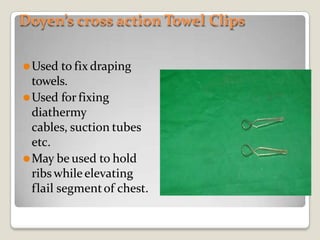

- 3. Doyen’s cross action Towel Clips ⚫Used to fix draping towels. ⚫Used for fixing diathermy cables, suction tubes etc. ⚫May be used to hold ribs whileelevating flail segmentof chest.
- 4. Bard Parker’s Handles ⚫Blades 10,11,12 and 15 fit in B.P handle 3. ⚫Blades18,19,20,21,22, 23 and 24 fit in B.P handle 4.

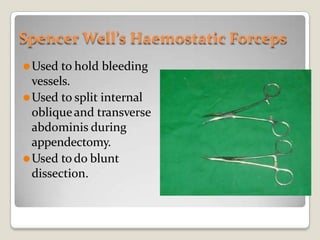

- 5. Spencer Well’s Haemostatic Forceps ⚫Used to hold bleeding vessels. ⚫Used to split internal obliqueand transverse abdominis during appendectomy. ⚫Used todo blunt dissection.
- 6. Kocher’s Haemostatic Forceps ⚫Used to crush the base of the appendix during appendectomy. ⚫Used to hold meniscus during menisectomy. ⚫Used to do sub total thyroidectomy.
- 7. Mosquito Haemostatic Forceps ⚫Used to hold fine bleeding vessels. ⚫Used to puncture the mesoappendix at an avascularsite. ⚫Used in operations of infants.

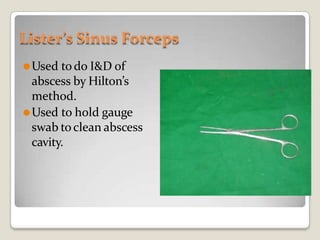

- 8. Lister’s Sinus Forceps ⚫Used todo I&D of abscess by Hilton’s method. ⚫Used to hold gauge swab toclean abscess cavity.
- 9. Allis’ Tissue Forceps ⚫Used to hold skin while raising skin flaps. ⚫Used to pick up a fold of peritoneum during laparotomy. ⚫Used to hold lineaalba while closing midline incisions.

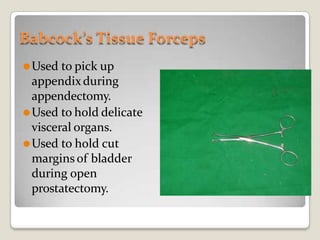

- 10. Babcock’s Tissue Forceps ⚫Used to pick up appendixduring appendectomy. ⚫Used to hold delicate visceral organs. ⚫Used to hold cut margins of bladder during open prostatectomy.
- 11. Plain Dissecting Forceps ⚫Used to hold delicate visceral organs ⚫Used to hold blood vessels and nerves whiledissecting. ⚫Used to hold the hernial sac in hernia repair.
- 12. Toothed Dissecting Forceps ⚫Used to hold tough structures like skin while suturing. ⚫Used to hold scalp whilescalp suturing. ⚫Used to hold rectus sheath whileclosureof abdomen.
- 13. Needle Holders ⚫Used to hold needles while suturing.
- 14. Mayo’s Scissors ⚫ Used to tough structures like lineaalba,rectus sheath during entry in to the abdomen. ⚫ Used tocut delicate structures like hollow viscus, investing layerof deep fasciaof the neck in thyroid surgery. ⚫ Used to raiseskin flaps by sharpdissection.
- 15. Heath’s Suture Cutting scissors ⚫Used tocut sutures on skin and mucous membrane.
- 16. Langenbach’s Retractor ⚫They are used to help better visualization of theoperative field, tissue handling is minimized and bleeding betterseen and controlled.
- 17. Morris Retractor ⚫Used while making and closing abdominal incisions foreaseof working in the deeper layers. ⚫Used to retract Pectoralis major in MRM for better visualizationduring axillary dissection.
- 18. Deaver’s Retractor ⚫Used in Cholecystectomy for retractionof right lobe of liver. ⚫Used in Truncal vagotomy for retractionof left lobe of liver. ⚫Used in kidney operations to retract the anterior abdominal wall.
- 19. Joll’s Thyroid Retractor ⚫It is a self retaining retractor used in thyroid surgeries to retract the skin.
- 20. Metallic Probe ⚫Used in fistulectomies. ⚫Used to assess the depth of penetrating injuries. ⚫Used toassess the length of sinus.
- 21. Lahey’s Right Angled Forceps ⚫ Used todissect thecystic duct and artery in cholecystectomy. ⚫ Used in Vagotomies to dissect thevagus nerveand pass ligaturesaround them beforedivision. ⚫ Used in thyroid surgeries to dissect and ligate middle thyroid vein,superiorthyroid pedicle,etc.
- 22. Desjardin’s Choledocholithotomy Forceps ⚫Used to removestones from common bile duct. ⚫Used to remove stone from kidney, bladder stone.
- 23. Metallic Bougie ⚫Used todilate urethra in urethral strictures. ⚫Used todilate urethra beforecystoscopy . ⚫Used to repair ruptured urethra by railroad technique.
- 24. Bakes’ Dilator ⚫ Used in Choledocholithotomy, after removing the stones from the bile duct, it is used to sound the bileduct forany retained stones. ⚫ The patencyof theampulla can checked, In impacted stones or ampullary stenosis,it is not possible to pass the dilator in to the duodenum
- 25. Doyen’s Intestinal Clamps ⚫Used in gut resection and anastomosis.
- 26. Suprapubic Cystolithotomy Forceps ⚫Used in suprapubic cystolithotomy to extract the stone from the bladder.
- 27. Red Rubber Catheter ⚫ Itcomes in sizesof 6,8,10etc.the size of the catheter isexpressed in mm as numberof size/2 +1. ⚫ Used todrain urine. ⚫ Used to measureamountof residual volumeof urine. ⚫ Used toadminister chemotherapydrugs for Ca bladder.
- 28. Foley’s Self Retaining Catheter ⚫ Diameterof thecatheter in mm is calculated by no. of catheter in frenchscale/3. ⚫ Used todrain urine. ⚫ Used in suprapubic cystostomy. ⚫ Used for urethral catheterization following prostatectomy.
- 29. Malaecot’s Catheter ⚫Used in suprapubic cystostomy. ⚫Used todrain abscess cavities. ⚫Used as intercostal tubedrain.
- 30. Kelly’s rectal Speculum ⚫Used todiagnose haemorroids,anal polyps, internal opening of the perianal fistula. ⚫Used to take biopsy from anal, rectal growth. ⚫Used in polypectomy.
- 31. Flatus tube ⚫Used to relieve gaseous distension of large gut due to paralytic ileus. ⚫Used todecompress sigmoid volvulus non operatively.
- 32. Fuller’s Metallic Tracheaostomy tube ⚫ Indications: ⚫ FB impacted in larynx. ⚫ B/L recurrent nervepalsy. ⚫ Acute laryngeal edema. ⚫ In respiratory paralysis requiring mechanical ventilation for longer periods.
- 33. Disposable Corrugated Drain ⚫Used as a drain to drain pus ,blood,etc
- 34. Mayo’s Vein stripper ⚫Used todo stripping of varicoseveins.
- 35. Giglie’s Saw ⚫Used tocut bones in amputations. ⚫Used to do craniotomies.
- 36. Bladder wash Syringe ⚫Used to give bladder wash with antiseptic solution. ⚫Used to clear blocked foley’scatheter.
- 37. Suprapubic Cystostomy Trocar and Cannula ⚫Used to perform suprapubic cystostomy secondary urethral rupture to relieve urinary retention. ⚫Used to perform suprapubic cystostomy secondary to distal urethral obstruction.
- 38. Disposable Core Biopsy Trocar and Needle ⚫Used to takecore biopsy from breast, liver fortissue diagnosis.
- 39. Vim Silverman’s Liver biopsy Trocar and Needle ⚫Used to take liver biopsy.
- 40. Bone cutter and Bone Nibbler ⚫Used to reshape the bone during osteotomies, amputati ons.

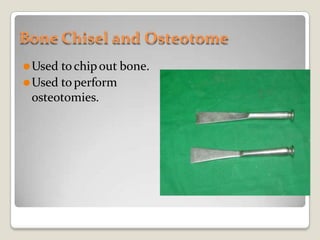

- 41. Bone Chisel and Osteotome ⚫Used tochipout bone. ⚫Used toperform osteotomies.
- 42. Rib Cutter ⚫Used tocut ribs in case of draining empyema thoracis. ⚫Use to resecta partof the rib.
- 43. Bone Saw ⚫Used tocut bone in caseamputation. ⚫Tocutcasts.
- 44. Periosteum Elevator ⚫Used to elevate the periosteum during amputations.
- 45. Kidney Tray ⚫Used tocollect specimens. ⚫Used tosafely transfer sharp instruments.
