UNIT 2 -QUEUE

Queue ADT
Dr. USHA M
Associate Professor
Dept of CSE
Velammal Engineering College
VELAMMAL ENGINEERING COLLEGE
An Autonomous Institution, Affiliated to Anna University Chennai, & Approved by AICTE Delhi

Dept of CSE, Velammal Engineering College,
Chennai
3
Agenda
• Queue ADT
• Array implementation of queue
• Linked list implementation of queue
• Types
– Circular Queue
– Double Ended Queue
– Priority Queue
• Applications of Queue
26/5/2020

Chennai
4
Queue ADT
• Linear data structure
• Insertion occurs only at one end called rear
• Deletion occurs only at one end called front
• Element that is inserted first is deleted (FIFO
principle)
26/5/2020

Chennai
5
Operations in queue:
• Enqueue: Inserting an element into the queue (at
rear)
• Dequeue: Deleting an element from the queue (at
front)
Exceptional Conditions:
• Overflow: Attempting to insert an element into
queue when it is full
• Underflow: Attempting to delete an element from
queue when it is empty
Queue ADT
26/5/2020

Chennai
6
Array Implementation of Queue
Enqueue operation
Void Enqueue (int num) //Let num = 12 and max=5
{
if (rear==max-1)
print(“Queue Overlfow”);
else if (front == -1 && rear == -1)
{
front = rear = 0;
Q[rear] = num;
}
else
{
rear++;
Q[rear] = num;
}
}
12 25 18
26/5/2020

Chennai
7
Dequeue Operation
Void Dequeue()
{
int val;
if (front == -1 || front > rear)
print(“Queue Underflow”);
else
{
val= Q[front];
front++;
}
}
10 20 30
26/5/2020

Chennai
8
Display Operation
void Display ()
{
int i;
if (front == -1 || front > rear)
print (“Queue Underflow”);
else
{
for(i=front; i<=rear; i++)
print(Q[i]);
}
}
26/5/2020

Chennai
9
Linked List Implementation of Queue
Enqueue operation
void Enqueue (int num) // Insert at end of linked list
{
n=(struct node *) malloc (sizeof (struct node));
ndata=num;
nnext=NULL;
if(rear == NULL)
front = rear= n;
else
{
rearnext = n;
rear = n;
}
}
26/5/2020

Chennai
10
Dequeue Operation
Void Dequeue() // Delete at beginning of linked list
{
struct node *t;
if (front == NULL)
print(“Underflow”);
else
{
t = front;
front = front  next;
free(t);
}
}
26/5/2020

Chennai
11
Circular Queue
• Type of queue
• Last position of the queue is connected to the first
position in a circular fashion
• Overcome the disadvantage of wastage of front end
memory space after performing dequeue operation
in linear queue
26/5/2020

Chennai
12
• In linear queue, after performing dequeue, the
memory space at the front end remains
unused
• This situation does not occur in circular queue
Need for Circular Queue
26/5/2020

Chennai
13
Enqueue Operation
void Cir_Enqueue (int num) // Let max=6
{
if((front == 0 && rear == max-1) || (rear ==(front-1)))
print(“Queue Overflow”);
else if (front == -1 && rear == -1)
{ front = rear = 0;
Q[rear] = num;
}
else if (rear == max-1 && front != 0)
{ rear = 0;
Q[rear] = num;
}
else
{ rear ++;
Q[rear] = num;
}
}
30
40
50 60
70
50
26/5/2020

Chennai
14
Dequeue Operation
Void Cir_Dequeue()
{
int val;
if (front ==-1)
print (“Queue Underflow”);
val = Q[front];
if (front == rear)
front = rear = – 1;
else if (front == max – 1)
front = 0;
else
front ++;
}
20
40
20
30
20
30
40
front
26/5/2020

Chennai
15
Double Ended Queue (DEQUE)
DEQUE is of two types
• Input restricted DEQUE
– Insertion at only one end
– Deletion at both ends
• Output restricted DEQUE
– Deletion at only one end
– Insertion at both ends
26/5/2020

Chennai
16
Priority Queue
• Every item has a priority associated with it
• Element with higher priority is served first
• If two elements have same priority then they served
according to the order in the queue
• Generally, the value of the element itself is
considered as higher priority
• Applications:
– CPU scheduling
– Graph algorithms like Dijkstra’s shortest path, Prim’s
minimum spanning tree, etc,.
26/5/2020

Chennai
17

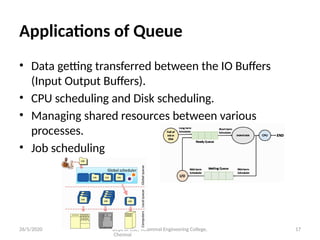

Applications of Queue
• Data getting transferred between the IO Buffers
(Input Output Buffers).
• CPU scheduling and Disk scheduling.
• Managing shared resources between various
processes.
• Job scheduling
26/5/2020

Chennai
18
• Traffic light functioning is the best example
for circular queues . The colors in the traffic light
follow a circular pattern.
• In page replacement algorithms, a circular list of
pages is maintained and when a page needs to be
replaced, the page in the front of the queue will be
chosen.
Applications of Circular Queue
26/5/2020

UNIT 2
STACK IN DATA STRUCTURES

STACK:DEFINITION
Stack is a linear data structure which follows a particular order in
which the operations are performed. The order may be LIFO(Last
In First Out) or FILO(First In Last Out).

WHY STACK?
Stack in PL:
• The return address (when the function is complete it returns back to the function
call)
• Arguments passed to the function
• Local variables of the function
Hardware Implementation of stack:
 consists of reserved contiguous region of memory with a stack pointer into that
memory.
 The stack has a fixed location in memory at which it begins.
 The stack pointer is a hardware register that points to the current extents of the
stack.
 There are stacks that grow downwards and ones that grow upwards.
 The stack can technically be located anywhere in memory, depending on the system.

WHY STACK?
Usage in Microprocessors
The stack shares the available RAM memory with the heap
and the static memory area.
The C runtime library takes care of things that need to be defined
before the main() function can be executed.
One of those things is setting up the stack by loading the stack
pointer register with the start address of the stack.
The CPU has special instructions for pushing values onto the
stack and popping them back.

Implementation of stack
The stack implementation can be done using
(i)Array :Array is a static data structure so the collection of data must be fixed
in size.
The only problem with this implementation is array size must be specified initially.
struct stack
{
int stk[MAXSIZE];
int top;
};

• Implementation using Linked List :Linked List is a dynamic data
structure. So collection of data can be used which are variable in size
and structure. The program executes can grow and shrink to
accommodate the data being stored.
struct Node {
int data;
struct Node* link;
};
struct Node* top;

Drawback of Linked List implementation
• All the operations take constant time
• Calls to malloc and free are expensive especially in comparison to
the pointer manipulation routines.
Limitation of Array Implementation:
The stack cannot grow and shrink dynamically as per the requirement.

Operations on Stack
The basic operations on stack are
1.Push()
2.Pop()

Push() operation
• push() function is used to insert an element at the top of the stack.
• The element is added to the stack container and the size of the stack is increased by 1.
Before Performing Push() operation the stack condition to be checked for overflow.
int isfull()
{
if(top == MAXSIZE)
return 1;
else
return 0;
}

tack Data Structure with Array and Linked List Implementation, Push and Pop Operations, and Applications,"Queue Data Structure with Array and Linked List Implementation, Enqueue and Dequeue Operations, and Applications"

• Step 1 − Checks if the stack is empty.
• Step 2 − If the stack is empty, produces an error and exit.
• Step 3 − If the stack is not empty, accesses the data element at which top is
pointing.
• Step 4 − Decreases the value of top by 1.
• Step 5 − Returns success. int pop()
{
int data;
if(!isempty())
{
data = stack[top];
top = top - 1;
return data;} else
{printf("Could not retrieve data, Stack is empty.n"); }}

Pop() operation
 Deletion of an element from the top of the stack is called pop operation. The value of the
variable top will be incremented by 1 whenever an item is deleted from the stack.
 The top most element of the stack is stored in an another variable and then the top is
decremented by 1.
 The operation returns the deleted value that was stored in another variable as the result.
 Before performing pop() operation the stack condition must be checked for underflow.
int isempty()
{
if(top == -1)
return 1;
else
return 0;
}

Program Execution
• https://www.tutorialspoint.com/data_structures_algorithms/stack_p
rogram_in_c.htm

Applications of Stack
• Evaluating Arithmetic Expression
• Conversion of infix to Postfix expression
• Backtracking Procedure
• During Function call and return Procedure

Evaluating Arithmetic Expression
• Stack organized computers are better suited for post-fix notation than
the traditional infix notation. Thus the infix notation must be
converted to the post-fix notation.
• Expressions are usually represented in what is known as Infix
notation, in which each operator is written between two operands
(i.e., A + B).
• we must distinguish between ( A + B )*C and A + ( B * C ) by using
either parentheses or some operator-precedence convention.
• Polish notation (prefix notation) –
It refers to the notation in which the operator is placed before
its two operands . Here no parentheses are required, i.e.,
+AB

• Reverse Polish notation(postfix notation) –
It refers to the analogous notation in which the operator is
placed after its two operands. Again, no parentheses is required in
Reverse Polish notation,
i.e., AB+
There are 3 levels of precedence for 5 binary operators
Highest: Exponentiation (^)
Next highest: Multiplication (*) and division (/)
Lowest: Addition (+) and Subtraction (-)

For ex:
Infix notation: (A-B)*[C/(D+E)+F]
Post-fix notation: AB- CDE +/F +*
• We first perform the arithmetic inside the parentheses (A-B) and (D+E).
• The division of C/(D+E) must done prior to the addition with F
• After that multiply the two terms inside the parentheses and bracket.
The procedure for getting the result is:
• Convert the expression in Reverse Polish notation( post-fix notation).
• Push the operands into the stack in the order they are appear.
• When any operator encounter then pop two topmost operands for executing the
operation.
• After execution push the result obtained into the stack.
• After the complete execution of expression the final result remains on the top
of the stack.

Infix notation: (2+4) * (4+6)
Post-fix notation: 2 4 + 4 6 + *
Result: 60

Conversion of infix to postfix
• Infix expression:The expression of the form a op b. When an operator
is in-between every pair of operands.
• Postfix expression:The expression of the form a b op. When an
operator is followed for every pair of operands.
• Why postfix representation of the expression?
The compiler scans the expression either from left to right or
from right to left.

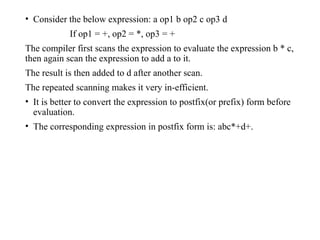

• Consider the below expression: a op1 b op2 c op3 d
If op1 = +, op2 = *, op3 = +
The compiler first scans the expression to evaluate the expression b * c,
then again scan the expression to add a to it.
The result is then added to d after another scan.
The repeated scanning makes it very in-efficient.
• It is better to convert the expression to postfix(or prefix) form before
evaluation.
• The corresponding expression in postfix form is: abc*+d+.

Algorithm
• 1. Scan the infix expression from left to right.
• 2. If the scanned character is an operand, output it.
• 3. Else,
…..3.1 If the precedence of the scanned operator is greater than the precedence of the operator in the
stack(or the stack is empty or the stack contains a ‘(‘ ), push it.
…..3.2 Else, Pop all the operators from the stack which are greater than or equal to in precedence than
that of the scanned operator. After doing that Push the scanned operator to the stack. (If you encounter
parenthesis while popping then stop there and push the scanned operator in the stack.)
• 4. If the scanned character is an ‘(‘, push it to the stack.
• 5. If the scanned character is an ‘)’, pop the stack and and output it until a ‘(‘ is encountered, and
discard both the parenthesis.
• 6. Repeat steps 2-6 until infix expression is scanned.
• 7. Print the output
• 8. Pop and output from the stack until it is not empty.

Linked List Implementation - Initial Stack

Linked List Implementation-Push()

void pop()
{
struct Node* temp;
if (top == NULL) {
printf("nStack Underflow“);
exit(1);
}
else {
temp = top;
top = top->link;
temp->link = NULL;
free(temp);
}
}

tack Data Structure with Array and Linked List Implementation, Push and Pop Operations, and Applications,"Queue Data Structure with Array and Linked List Implementation, Enqueue and Dequeue Operations, and Applications"

More Related Content

Similar to tack Data Structure with Array and Linked List Implementation, Push and Pop Operations, and Applications,"Queue Data Structure with Array and Linked List Implementation, Enqueue and Dequeue Operations, and Applications" (20)

More from usham61 (12)

Recently uploaded (20)

tack Data Structure with Array and Linked List Implementation, Push and Pop Operations, and Applications,"Queue Data Structure with Array and Linked List Implementation, Enqueue and Dequeue Operations, and Applications"

Editor's Notes
