10 features do Oracle que você não conhecia #1 CONNECT BY CLAUSE TechDay 2019 - @rponte
describe tb_funcionarios;
Name Null? Type ---------- -------- ------------- ID NOT NULL NUMBER(38) NOME NOT NULL VARCHAR2(200) CARGO NOT NULL VARCHAR2(100) GERENTE_ID NUMBER(38) describe tb_funcionarios;
Name Null? Type ---------- -------- ------------- ID NOT NULL NUMBER(38) NOME NOT NULL VARCHAR2(200) CARGO NOT NULL VARCHAR2(100) GERENTE_ID NUMBER(38) describe tb_funcionarios;
Name Null? Type ---------- -------- ------------- ID NOT NULL NUMBER(38) NOME NOT NULL VARCHAR2(200) CARGO NOT NULL VARCHAR2(100) GERENTE_ID NUMBER(38) describe tb_funcionarios; (FOREIGN KEY)
Name Null? Type ---------- -------- ------------- ID NOT NULL NUMBER(38) NOME NOT NULL VARCHAR2(200) CARGO NOT NULL VARCHAR2(100) GERENTE_ID NUMBER(38) describe tb_funcionarios; (FOREIGN KEY)
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … Hierarquia
Sabe aquele relatório?
select f.nome as funcionario from tb_funcionarios f order by f.nome ;
select f.nome as funcionario from tb_funcionarios f order by f.nome ;
E o gerente?
select f1.nome as funcionario ,f2.nome as gerente from tb_funcionarios f1 ,tb_funcionarios f2 where f1.gerente_id = f2.id order by f.nome ;
select f1.nome as funcionario ,f2.nome as gerente from tb_funcionarios f1 ,tb_funcionarios f2 where f1.gerente_id = f2.id order by f.nome ;
E o gerente do gerente?
select f1.nome as funcionario ,f2.nome as gerente ,f3.nome as gerente_do_gerente from tb_funcionarios f1 ,tb_funcionarios f2 ,tb_funcionarios f3 where f1.gerente_id = f2.id and f2.gerente_id = f3.id order by f.nome ;
select f1.nome as funcionario ,f2.nome as gerente ,f3.nome as gerente_do_gerente from tb_funcionarios f1 ,tb_funcionarios f2 ,tb_funcionarios f3 where f1.gerente_id = f2.id and f2.gerente_id = f3.id order by f.nome ;
E o gerente do gerente do gerente … do gerente?
Qual a profundidade dessa hierarquia?
Ou faz na aplicação, né?
TechDay: 10 Features do Oracle que voce nao conhecia - CONNECT BY CLAUSE
CONNECT BY CLAUSE
CONNECT BY CLAUSE Oracle

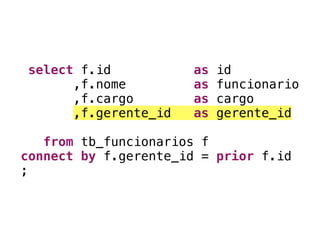

select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
TechDay: 10 Features do Oracle que voce nao conhecia - CONNECT BY CLAUSE
PRIOR(acessando informações do parent-node)
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,????? as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,????? as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,prior f.nome as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,prior f.nome as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,prior f.nome as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
Mas tem algo estranho…
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
Stevens?
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto …
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto …
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto …
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … Root Node
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … Root Node
Mas como chego na raiz?
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
Então vamos começar a hierarquia por ele…
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
E se houver muitas raizes?
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id in (3, 45, 104) ;
Mas o ID vem de uma sequence, e agora?
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.* from tb_funcionarios f ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id in (3, 45, 104) ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
Como visualizar melhor essa hierarquia?
Profundidade
Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto …
Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … 1
Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … 1 2
Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … 1 2 3
Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … 1 2 3 4 5 6
Profundidade
 (level)
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
Stevens Thaio Principe Victor Aldeir
Stevens Thaio Principe Victor Aldeir .Stevens ..Thaio ...Principe ...Victor ...Aldeir
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
Ordenando…
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ; ????
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ; x
Outra forma de apresentar...
 (path)
Outra forma de apresentar...
 (path) Chris Chris->Ricardo Chris->Ricardo->Plauto Chris->Ricardo->Plauto->Stevens Chris->Ricardo->Plauto->Stevens->Thaio Chris->Ricardo->Plauto->Stevens->Thaio->Aldeir Chris->Ricardo->Plauto->Stevens->Thaio->Principe Chris->Ricardo->Plauto->Stevens->Thaio->Victor Chris->Ricardo->Plauto->Stevens->Thaio->… Chris->Ricardo->Plauto->Guto …
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
Loop infinito?
UPDATE tb_funcionarios SET gerente_id = 1 -- Plauto WHERE id = 3 -- Chris ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ; ERROR: ORA-01436: CONNECT BY loop in user data
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_cycle as is_cycle from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_cycle as is_cycle from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_cycle as is_cycle from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
Tem mais?
UPDATE tb_funcionarios SET gerente_id = null WHERE id = 3 -- Chris ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
Dá pra fazer mais?
SELECT level FROM DUAL CONNECT BY level <= 100 ;
SELECT level FROM DUAL CONNECT BY level <= 100 ;
SELECT level FROM DUAL CONNECT BY level <= 100 ;
INSERT INTO t(seq) SELECT level FROM DUAL CONNECT BY level <= 100 ;
INSERT INTO tb(seq) SELECT level FROM DUAL CONNECT BY level <= 100 ;
SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ;
SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ;
SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ;
SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ;
SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ; x está incluindo hoje, 2019-01-31
Concluindo
Obrigado! TechDay 2019 - @rponte

More Related Content

PDF
TechDay Retrospectiva 2018
Rafael Ponte

PDF
Arquitetura Java - Escalando além do Hype
Rafael Ponte

PDF
Como treinar seu estagiario
Rafael Ponte

PDF
Lidando com o Caos: Testando Código PLSQL em um Projeto Critico
Rafael Ponte

PDF
Como Apresentar Codigo em Slides - Javou #7 - 2016
Rafael Ponte

PDF
Migrations for Java (Javou #4 - JavaCE)
Rafael Ponte

PDF
Importancia dos Testes Automatizados no dia a dia FIC-Estacio 2015
Rafael Ponte

PDF
Hibernate efetivo (IA-2014 / Disturbing the Mind)
Rafael Ponte

TechDay Retrospectiva 2018
Rafael Ponte

Arquitetura Java - Escalando além do Hype
Rafael Ponte

Como treinar seu estagiario
Rafael Ponte

Lidando com o Caos: Testando Código PLSQL em um Projeto Critico
Rafael Ponte

Como Apresentar Codigo em Slides - Javou #7 - 2016
Rafael Ponte

Migrations for Java (Javou #4 - JavaCE)
Rafael Ponte

Importancia dos Testes Automatizados no dia a dia FIC-Estacio 2015
Rafael Ponte

Hibernate efetivo (IA-2014 / Disturbing the Mind)
Rafael Ponte


More from Rafael Ponte (16)

PDF
Hibernate efetivo (COALTI-2014 / ALJUG)
Rafael Ponte

PDF
Migrations for Java (QCONSP2013)
Rafael Ponte

PDF
Importancia dos Testes Automatizados no dia a dia (Don't Panic)
Rafael Ponte

PDF
Importância dos testes automatizados no dia a dia
Rafael Ponte

PDF
Hibernate Efetivo (QCONSP-2012)
Rafael Ponte

PDF
Migrations for Java
Rafael Ponte

PDF
Os 10 maus habitos dos desenvolvedores jsf (JustJava e CCT)
Rafael Ponte

PDF
Importância dos testes automatizadoss
Rafael Ponte

KEY
Greenbar - Testes automatizados na sua empresa
Rafael Ponte

PDF
Desafios de um desenvolvedor JSF
Rafael Ponte

PDF
Curso de Java server faces (JSF)
Rafael Ponte

PDF
Os 10 maus hábitos dos desenvolvedores JSF
Rafael Ponte

PDF
Boas Práticas com JavaServer Faces (Jsf)
Rafael Ponte

PDF
JavaServer Faces - Desenvolvendo aplicações web com produtividade
Rafael Ponte

PDF
Entendendo Domain-Driven Design
Rafael Ponte

PPT
Anatomia do JSF, JavaServer Faces
Rafael Ponte

Hibernate efetivo (COALTI-2014 / ALJUG)
Rafael Ponte

Migrations for Java (QCONSP2013)
Rafael Ponte

Importancia dos Testes Automatizados no dia a dia (Don't Panic)
Rafael Ponte

Importância dos testes automatizados no dia a dia
Rafael Ponte

Hibernate Efetivo (QCONSP-2012)
Rafael Ponte

Migrations for Java
Rafael Ponte

Os 10 maus habitos dos desenvolvedores jsf (JustJava e CCT)
Rafael Ponte

Importância dos testes automatizadoss
Rafael Ponte

Greenbar - Testes automatizados na sua empresa
Rafael Ponte

Desafios de um desenvolvedor JSF
Rafael Ponte

Curso de Java server faces (JSF)
Rafael Ponte

Os 10 maus hábitos dos desenvolvedores JSF
Rafael Ponte

Boas Práticas com JavaServer Faces (Jsf)
Rafael Ponte

JavaServer Faces - Desenvolvendo aplicações web com produtividade
Rafael Ponte

Entendendo Domain-Driven Design
Rafael Ponte

Anatomia do JSF, JavaServer Faces
Rafael Ponte

Ad

Recently uploaded (20)

PPTX
Final SEM Unit 1 for mit wpu at pune .pptx
anishtilekar08

PDF
A review of recent deep learning applications in wood surface defect identifi...
IAESIJAI

PDF
Hybrid model detection and classification of lung cancer
IAESIJAI

PPT
What is a Computer? Input Devices /output devices
GulJan8

PDF
Video forgery: An extensive analysis of inter-and intra-frame manipulation al...
IAESIJAI

PDF
Microsoft Solutions Partner Drive Digital Transformation with D365.pdf
Microsoft Dynamics

PDF
Getting started with AI Agents and Multi-Agent Systems
Maxim Salnikov

PDF
Developing a website for English-speaking practice to English as a foreign la...
IAESIJAI

PPTX
Chapter 5: Probability Theory and Statistics
RandyFin

PDF
Getting Started with Data Integration: FME Form 101
Safe Software

PPTX
observCloud-Native Containerability and monitoring.pptx
anupsingh76937

PDF
A Late Bloomer's Guide to GenAI: Ethics, Bias, and Effective Prompting - Boha...
Mindy Bohannon

PDF
STKI Israel Market Study 2025 version august
Dr. Jimmy Schwarzkopf

PDF
NewMind AI Weekly Chronicles – August ’25 Week III
NewMind AI

PPT
Module 1.ppt Iot fundamentals and Architecture
nanditha7766

PDF
Five Habits of High-Impact Board Members
OnBoard

PDF
Taming the Chaos: How to Turn Unstructured Data into Decisions
Safe Software

PPTX
Tartificialntelligence_presentation.pptx
ry7r52mzb4

PPTX
MicrosoftCybserSecurityReferenceArchitecture-April-2025.pptx
SilvioHayashi

PDF
A novel scalable deep ensemble learning framework for big data classification...
IAESIJAI

Final SEM Unit 1 for mit wpu at pune .pptx
anishtilekar08

A review of recent deep learning applications in wood surface defect identifi...
IAESIJAI

Hybrid model detection and classification of lung cancer
IAESIJAI

What is a Computer? Input Devices /output devices
GulJan8

Video forgery: An extensive analysis of inter-and intra-frame manipulation al...
IAESIJAI

Microsoft Solutions Partner Drive Digital Transformation with D365.pdf
Microsoft Dynamics

Getting started with AI Agents and Multi-Agent Systems
Maxim Salnikov

Developing a website for English-speaking practice to English as a foreign la...
IAESIJAI

Chapter 5: Probability Theory and Statistics
RandyFin

Getting Started with Data Integration: FME Form 101
Safe Software

observCloud-Native Containerability and monitoring.pptx
anupsingh76937

A Late Bloomer's Guide to GenAI: Ethics, Bias, and Effective Prompting - Boha...
Mindy Bohannon

STKI Israel Market Study 2025 version august
Dr. Jimmy Schwarzkopf

NewMind AI Weekly Chronicles – August ’25 Week III
NewMind AI

Module 1.ppt Iot fundamentals and Architecture
nanditha7766

Five Habits of High-Impact Board Members
OnBoard

Taming the Chaos: How to Turn Unstructured Data into Decisions
Safe Software

Tartificialntelligence_presentation.pptx
ry7r52mzb4

MicrosoftCybserSecurityReferenceArchitecture-April-2025.pptx
SilvioHayashi

A novel scalable deep ensemble learning framework for big data classification...
IAESIJAI

Ad

TechDay: 10 Features do Oracle que voce nao conhecia - CONNECT BY CLAUSE

  • 1. 10 features do Oracle que você não conhecia #1 CONNECT BY CLAUSE TechDay 2019 - @rponte
  • 3. Name Null? Type ---------- -------- ------------- ID NOT NULL NUMBER(38) NOME NOT NULL VARCHAR2(200) CARGO NOT NULL VARCHAR2(100) GERENTE_ID NUMBER(38) describe tb_funcionarios;
  • 4. Name Null? Type ---------- -------- ------------- ID NOT NULL NUMBER(38) NOME NOT NULL VARCHAR2(200) CARGO NOT NULL VARCHAR2(100) GERENTE_ID NUMBER(38) describe tb_funcionarios;
  • 5. Name Null? Type ---------- -------- ------------- ID NOT NULL NUMBER(38) NOME NOT NULL VARCHAR2(200) CARGO NOT NULL VARCHAR2(100) GERENTE_ID NUMBER(38) describe tb_funcionarios; (FOREIGN KEY)
  • 6. Name Null? Type ---------- -------- ------------- ID NOT NULL NUMBER(38) NOME NOT NULL VARCHAR2(200) CARGO NOT NULL VARCHAR2(100) GERENTE_ID NUMBER(38) describe tb_funcionarios; (FOREIGN KEY)
  • 19. select f.nome as funcionario from tb_funcionarios f order by f.nome ;
  • 20. select f.nome as funcionario from tb_funcionarios f order by f.nome ;
  • 22. select f1.nome as funcionario ,f2.nome as gerente from tb_funcionarios f1 ,tb_funcionarios f2 where f1.gerente_id = f2.id order by f.nome ;
  • 23. select f1.nome as funcionario ,f2.nome as gerente from tb_funcionarios f1 ,tb_funcionarios f2 where f1.gerente_id = f2.id order by f.nome ;
  • 24. E o gerente do gerente?
  • 25. select f1.nome as funcionario ,f2.nome as gerente ,f3.nome as gerente_do_gerente from tb_funcionarios f1 ,tb_funcionarios f2 ,tb_funcionarios f3 where f1.gerente_id = f2.id and f2.gerente_id = f3.id order by f.nome ;
  • 26. select f1.nome as funcionario ,f2.nome as gerente ,f3.nome as gerente_do_gerente from tb_funcionarios f1 ,tb_funcionarios f2 ,tb_funcionarios f3 where f1.gerente_id = f2.id and f2.gerente_id = f3.id order by f.nome ;
  • 27. E o gerente do gerente do gerente … do gerente?
  • 29. Ou faz na aplicação, né?
  • 33. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 34. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 35. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 36. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 37. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 38. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 39. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 40. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 41. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 42. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio
  • 43. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 44. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
  • 45. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
  • 46. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
  • 47. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
  • 48. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Stevens Thaio Principe Victor Aldeir
  • 51. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,????? as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 52. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,????? as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 53. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,prior f.nome as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 54. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,prior f.nome as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 55. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,prior f.nome as gerente_nome from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 57. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ;
  • 59. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto …
  • 60. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto …
  • 61. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto …
  • 62. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … Root Node
  • 63. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id ; Chris Rafael Plauto Ricardo Stevens Thaio Principe Guto … Victor Aldeir Maia Pimentel Roberto … Root Node
  • 64. Mas como chego na raiz?
  • 69. Então vamos começar a hierarquia por ele…
  • 70. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 71. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 72. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 73. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 74. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 75. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 76. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 77. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 78. E se houver muitas raizes?
  • 79. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id = 3 ;
  • 80. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id in (3, 45, 104) ;
  • 81. Mas o ID vem de uma sequence, e agora?
  • 86. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.id in (3, 45, 104) ;
  • 87. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 88. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 89. Como visualizar melhor essa hierarquia?
  • 97. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 98. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 99. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 100. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 103. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 104. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 105. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 106. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 107. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 108. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || id as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 109. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 110. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null ;
  • 112. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 113. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ;
  • 114. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ;
  • 115. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ; ????
  • 116. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ;
  • 117. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order by f.nome ;
  • 118. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 119. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 120. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ; x
  • 123. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 124. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 125. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 126. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 127. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 128. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 130. UPDATE tb_funcionarios SET gerente_id = 1 -- Plauto WHERE id = 3 -- Chris ;
  • 131. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 132. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 133. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
  • 134. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ; ERROR: ORA-01436: CONNECT BY loop in user data
  • 135. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
  • 136. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
  • 137. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 138. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_cycle as is_cycle from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
  • 139. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
  • 140. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_cycle as is_cycle from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
  • 141. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_cycle as is_cycle from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id = 3 order siblings by f.nome ;
  • 143. UPDATE tb_funcionarios SET gerente_id = null WHERE id = 3 -- Chris ;
  • 144. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 145. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 146. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 147. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 148. select f.id as id ,f.nome as funcionario ,f.cargo as cargo ,f.gerente_id as gerente_id ,level ,lpad('.', (level-1), '.') || f.nome as tree ,sys_connect_by_path(f.nome, '->') as path ,connect_by_iscycle as is_cycle
 ,connect_by_isleaf as is_leaf ,connect_by_root f.id as root_id from tb_funcionarios f connect by nocycle f.gerente_id = prior f.id start with f.gerente_id is null order siblings by f.nome ;
  • 149. Dá pra fazer mais?
  • 150. SELECT level FROM DUAL CONNECT BY level <= 100 ;
  • 151. SELECT level FROM DUAL CONNECT BY level <= 100 ;
  • 152. SELECT level FROM DUAL CONNECT BY level <= 100 ;
  • 153. INSERT INTO t(seq) SELECT level FROM DUAL CONNECT BY level <= 100 ;
  • 154. INSERT INTO tb(seq) SELECT level FROM DUAL CONNECT BY level <= 100 ;
  • 155. SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ;
  • 156. SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ;
  • 157. SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ;
  • 158. SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ;
  • 159. SELECT add_months(input, (level-1) * 12) as start_date ,add_months(input, level * 12) as end_date FROM ( -- Set the input date here SELECT DATE'2012-02-01' as input FROM DUAL ) CONNECT BY add_months(input, (level-1) * 12) < Sysdate ; x está incluindo hoje, 2019-01-31
