- 1. The SMD Code Book 1st character of code 0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z Bases A-F G-K L-P Q-V W-Z AQ-FQ GQ-LQ MQ-SQ TQ-ZQ ZA-ZF CS-CZ DA-DF DG-DL DM-DS DT-DZ Other Info Codebook Introduction Abbreviations HP diode coding SOD-80 (Melf) diodes Plastic Melf/mini- Melf Coloured SOD- 123/323 diodes SMD Electrolytics SMD Ceramic Capacitors SMD Resistors Package Equivalents Date coding Package dimensions SOT-23, SOT346 SOT-323, SOT-416 SOT-223, SOT-89 SOT-143, SOT-363 Diodes The SMD Codebook © R P Blackwell, GM4PMK To look up a coded device, click on the first character of the device code in the table on the left. http://www.marsport.org.uk/smd/mainframe.htm (1 of 2)27/5/2007 18:18:25
- 2. The SMD Code Book back to Wmoarrmsphoorlte back to Marsport http://www.marsport.org.uk/smd/mainframe.htm (2 of 2)27/5/2007 18:18:25
- 3. SMD Codebook Page 0 GM4PMK's SMD Codebook Codes beginning with '0' be sure to check the 'O' (letter O) table as well Code Device Manf Base Package Leaded Equivalent/Data 0 2SC3603 Nec CX SOT173 Npn RF fT 7GHz 005 SSTPAD5 Sil J PAD-5 5pA leakage diode p01 PDTA143ET Phi N SOT23 pnp dtr 4k7+4k7 t01 PDTA143ET Phi N SOT23 pnp dtr 4k7+4k7 01 Gali-1 MC AZ SOT89 DC-8GHz MMIC amp 12dB gain 010 SSTPAD10 Sil J PAD-10 10pA leakage diode 011 SO2369R SGS R SOT23R 2N2369 02 BST82 Phi M n-ch mosfet 80V 175mA 02 MRF5711L Mot X SOT143 npn RF MRF571 02 GDZ2.0B Vis I SOD323 zener 200mW 2.0V 02 DTCC114T Roh N 50V 100mA npn sw + 10k base res 02 Gali-2 MC AZ SOT89 DC-8GHz MMIC amp 16dB gain p02 PDTC143ET Phi N SOT23 npn 4k7+4k7 bias res t02 PDTC143ET Phi N SOT23 npn 4k7+4k7 bias res 03 Gali-3 MC AZ SOT89 DC-3GHz MMIC amp 22dB gain 03 DTC143TE Roh N EMT3 npn dtr R1 4k7 50V 100mA 03 DTC143TUA Roh N SC70 npn dtr R1 4k7 50V 100mA 03 DTC143TKA Roh N SC59 npn dtr R1 4k7 50V 100mA 04 DTC114TCA Roh N SOT23 npn dtr R1 10k 50V 100mA 04 DTC114TE Roh N EMT3 npn dtr R1 10k 50V 100mA 04 DTC114TUA Roh N SC70 npn dtr R1 10k 50V 100mA 04 DTC114TKA Roh N SC59 npn dtr R1 10k 50V 100mA 04 MRF5211L Mot X SOT143 pnp RF MRF521 04 Gali-4 MC AZ SOT89 DC-4GHz MMIC amp 17.5 dBm -04 PMSS3904 Phi N SOT323 2N3904 t04 PMBS3904 Phi N SOT23 2N3904 http://www.marsport.org.uk/smd/smd0.htm (1 of 3)27/5/2007 18:18:30
- 4. SMD Codebook Page 0 05 Gali-4 MC AZ SOT89 DC-4GHz MMIC amp 18 dBm o/p 05 DTC124TE Roh N EMT3 npn dtr R1 22k 50V 100mA 05 DTC124TUA Roh N SC70 npn dtr R1 22k 50V 100mA 05 DTC124TKA Roh N SC59 npn dtr R1 22k 50V 100mA 05 EDZ10B Roh I EMD2 150mW zener 10V 05 VDZ10B Roh I VMD2 150mW zener 10V 05F TSDF1205R Vis WQ SOT143R fT12GHz npn 4V 12mA 06 Gali-6 MC AZ SOT89 DC-4GHz MMIC amp 115 dBm o/ p 06 DTC144TE Roh N EMT3 npn dtr R1 47k 50V 100mA 06 DTC144TUA Roh N SC70 npn dtr R1 47k 50V 100mA 06 DTC144TKA Roh N SC59 npn dtr R1 47k 50V 100mA -06 PMSS3906 Phi N SOT323 2N3906 t06 PMBS3906 Phi N SOT23 2N3906 p08 PMBFJ108 Phi F SOT23 n-ch jfet J108 p09 PMBFJ109 Phi F SOT23 n-ch jfet J109 020 SSTPAD20 Sil J PAD-20 20pA leakage diode 050 SSTPAD50 Sil J PAD-50 50pA leakage diode 081 SO2369AR SGS R SOT23R 2N2369A 09 DTC115TUA Roh N SC70 npn dtr R2 100k 50V 100mA 09 DTC115TKA Roh N SC59 npn dtr R2 100k 50V 100mA 0A MUN5111DW1 Mot DO SOT363 dual pnp dtr 10k+10k 0A DTC125TUA Roh N SC70 npn dtr R2 100k 50V 100mA 0A DTC125TKA Roh N SC59 npn dtr R2 100k 50V 100mA 0B MUN5112DW1 Mot DO SOT363 dual pnp dtr 22k+22k 0C MUN5113DW1 Mot DO SOT363 dual pnp dtr 47k+47k 0D MUN5114DW1 Mot DO SOT363 dual pnp dtr 10k+47k 0E MUN5115DW1 Mot DO SOT363 dual pnp dtr R1 10k 0F MUN5116DW1 Mot DO SOT363 dual pnp dtr R1 4k7 0G MUN5130DW1 Mot DO SOT363 dual pnp dtr 1k0+1k0 0H MUN5131DW1 Mot DO SOT363 dual pnp dtr 2k2+2k2 0J MUN5132DW1 Mot DO SOT363 dual pnp dtr 4k7+4k7 0K MUN5133DW1 Mot DO SOT363 dual pnp dtr 4k7+47k 0L MUN5134DW1 Mot DO SOT363 dual pnp dtr 22k+47k 0M MUN5135DW1 Mot DO SOT363 dual pnp dtr 2k2+47k http://www.marsport.org.uk/smd/smd0.htm (2 of 3)27/5/2007 18:18:30
- 5. SMD Codebook Page 0 Last modified 01/06/2006 by GM4PMK http://www.marsport.org.uk/smd/smd0.htm (3 of 3)27/5/2007 18:18:30
- 6. SMD Codebook Page 1 GM4PMK's SMD Codebook Codes beginning with '1' be sure to check the 'I' (letter i) table as well Code Device Manf Base Package Leaded Equivalent/Data 1 2SC3587 Nec CX npn RF fT10GHz 1 BA277 Phi I SOD523 VHF Tuner band switch diode 1 BB669 Sie I SOD323 56-2.7 pF varicap (red) 10 MRF9411L Mot X SOT143 npn Rf 8GHz MRF941 10 1PS59SB10 Phi C SOT346 30V 0.2A schottky diode 10A PZM10NB2A Phi A SOT346 dual ca 10V 0.3W zener 10V PZM10NB Phi C SOT346 10V 0.3W zener 10Y BZV49-C10 Phi O SOT89 10V 1W zener p10 PMBFJ110 Phi F SOT23 n-ch jfet J110 11 MRF9511L Mot X SOT143 npn RF 8GHz MRF951 11 MUN5311DW1 Mot DP SOT363 npn/pnp dtr 10k+10k 11 PDTA114EU Phi N SOT416 pnp dtr p11 PDTA114TT Phi N SOT23 pnp dtr p11 PMBFJ111 Phi F SOT23 n-ch jfet J111 t11 PDTA114TT Phi N SOT23 pnp dtr 11A PZM11NB2A Phi A SOT346 dual ca 11V 0.3W zener 11A MMBD1501A Nat C SOT23 Si diode 200V 100mA 11V PZM11NB Phi C SOT346 11V 0.3W zener 11Y BZV49-C11 Phi O SOT89 11V 1W zener 12 MUN5312DW1 Mot DP SOT363 npn/pnp dtr 22k+22k 12 DTA123EUA Rho N SC70 pnp dtr 2k2+2k2 50V 100ma 12 DTA123EKA Rho N SC59 pnp dtr 2k2+2k2 res 50V 100ma 12 GDZ2.2B Vis I SOD323 zener 200mW 2.2V p12 PDTC114TT Phi N SOT23 npn dtr p12 PMBFJ112 Phi F SOT23 n-ch jfet J112 t12 PDTC114TT Phi N SOT23 npn dtr 12A MMBD1502A Nat K SOT23 Si diode 200V 100mA http://www.marsport.org.uk/smd/smd1.htm (1 of 10)27/5/2007 18:18:38
- 7. SMD Codebook Page 1 12A PZM12NB2A Phi A SOT346 dual ca 12V 0.3W zener 12E ZC2812E Zet D SOT23 dual series RF schottky15V 20mA 12V PZM12NB Phi C SOT346 12V 0.3W zener 12Y BZV49-C12 Phi O SOT89 12V 1W zener 13 DTA143EUA Rho N SC70 pnp dtr 4k7+4k7 50V 100ma 13 DTA143EKA Rho N SC59 pnp dtr 4k7+4k7 50V 100ma 13 DTA143ECA Rho N SOT23 pnp dtr 4k7+4k7 50V 100ma 13t BC846BPN Phi N SOT363 BC546B 13s BAS125 Sie C SOT23 Schottky sw 24V 100mA 13s BAS125W Sie C SOT323 Schottky sw 24V 100mA 13 MA4CS103A M/A C SOT23 Schottky RF 20V 100mA 13 MUN5313DW1 Mot DP SOT363 npn/pnp dtr 47k+47k p13 PMBFJ113 Phi F SOT23 n-ch jfet J113 13A MMBD1503A Nat D SOT23 dual Si diode 200V 100mA 13A PZM13NB2A Phi A SOT346 dual ca 13V 0.3W zener 13E ZC2813E Zet A SOT23 dual ca RF schottky15V 20mA 13R S913TR Vis UQ SOT143R dg mosfet MOSIC 9V uhf tv tuners 13V PZM13NB Phi C SOT346 13V 0.3W zener 13Y BZV49-C13 Phi O SOT89 13V 1W zener 14s BAS125-04 Sie D SOT23 Dual series Schottky 25V 100mA 14s BAS125-04W Sie D SOT323 Dual series Schottky 25V 100mA 14 BAT114-099R Sie DQ Quad Schottky crossover ring 14 DTA114EUA Roh N SC70 pnp dtr 10k + 10k 14 DTA114EKA Roh N SC59 pnp dtr 10k + 10k 14 MUN5314DW1 Mot DP SOT363 npn/pnp dtr 10k R1 14 DTA114ECA Roh N SOT23 pnp dtr 10k + 10k 14 1PS59SB14 Phi D SOT346 dual series 30V 0.2A schottky diode 14A MMBD1504A Nat B dual cc Si diode 200V 100mA 15s BAS125-05 Sie B SOT23 dual cc Schottky 25V 100mA 15s BAS125-05W Sie B SOT323 dual cc Schottky 25V 100mA 15 DTA124EUA Roh N SC70 pnp dtr 30V 50mA 22k+22k 15 DTA124EKA Roh N SC59 pnp dtr 30V 50mA 22k+22k 15 DTA124ECA Roh N SOT23 pnp dtr 30V 50mA 22k+22k 15 MUN5315DW1 Mot DP SOT363 npn/pnp dtr 10k R1 15 MMBT3960 Mot N 2N3960 http://www.marsport.org.uk/smd/smd1.htm (2 of 10)27/5/2007 18:18:38
- 8. SMD Codebook Page 1 15 1PS59SB15 Phi B SOT346 dual cc 30V 0.2A schottky diode 15 EDZ11B Roh I EMD2 150mW zener 11V 15 VDZ11B Roh I VMD2 150mW zener 11V 15A MMBD1505A Nat A dual ca Si diode 200V 100mA 15A PZM15NB2A Phi A SOT346 dual ca 15V 0.3W zener 15V PZM15NB Phi C SOT346 15V 0.3W zener 15Y BZV49-C15 Phi O SOT89 15V 1W zener p16 PDTC114ET Phi N SOT23 npn dtr t16 PDTC114EU Phi N SOT323 npn dtr 16s BAS125-06 Sie A SOT23 dual ca Schottky 25V 100mA 16s BAS125-06W Sie A SOT323 dual ca Schottky 25V 100mA 16 MUN5316DW1 Mot DP SOT363 npn/pnp dtr 4k7 R1 16 DTA144EUA Roh N SC70 pnp dtr 30V 50mA 47k+47k 16 DTA144EKA Roh N SC59 pnp dtr 30V 50mA 47k+47k 16 1PS59SB16 Phi A SOT346 dual ca 30V 0.2A schottky diode 16V PZM16NB Phi C SOT346 16V 0.3W zener 16Y BZV49-C16 Phi O SOT89 16V 1W zener 17s BAS125-07 Sie S SOT143 dual Schottky 25V 100mA 17s BAS125-07W Sie S SOT343 dual Schottky 25V 100mA p17 PDTC124ET Phi N SOT23 npn dtr t17 PDTC124EU Phi N SOT323 npn dtr 18 BFP181T Tfk X npn Rf fT 7.8GHz 10V 20mA 18 PDTC143ZK Phi N SOT346 npn dtr 4k7+47k p18 PDTC143ZT Phi N SOT23 npn dtr 4k7+47k t18 PDTC143ZT Phi N SOT23 npn dtr 4k7+47k 18E MMBZ5225B Vis C SOT23 zener 300mW 3.0V 18F MMBZ5260B Vis C SOT23 zener 300mW 43V 18V PZM18NB Phi C SOT346 18V 0.3W zener 18Y BZV49-C18 Phi O SOT89 18V 1W zener 19 PDTA143ZK Phi N SOT346 pnp dtr 4k7+47k 19 DTA115EUA Rho N SC70 pnp dtr 100k+100k 50V 100ma 19 DTA115EKA Rho N SC59 pnp dtr 100k+100k 50V 100ma p19 PDTA143ZT Phi N SOT23 pnp dtr 4k7+47k t19 PDTA143ZT Phi N SOT23 pnp dtr 4k7+47k 100 SSTPAD100 Sil J SOT23 PAD-100 100pA leakage diode http://www.marsport.org.uk/smd/smd1.htm (3 of 10)27/5/2007 18:18:38
- 9. SMD Codebook Page 1 101 PZM10NB1 Phi C SOT346 10V 0.3W zener 102 PZM10NB2 Phi C SOT346 10V 0.3W zener 103 PZM10NB3 Phi C SOT346 10V 0.3W zener 111 PZM11NB1 Phi C SOT346 11V 0.3W zener 111 DTA113ZUA Roh N SC70 pnp dtr 1k+10k 50V 100mA 112 PZM11NB2 Phi C SOT346 11V 0.3W zener 113 PZM11NB3 Phi C SOT346 11V 0.3W zener 113 DTA143ZUA Roh N SC70 pnp dtr 4k7+47k 50V 100mA 121 PZM12NB1 Phi C SOT346 12V 0.3W zener 121 DTC113ZUA Roh N SC70 npn dtr 1k+10k 50V 100mA 122 PZM12NB2 Phi C SOT346 12V 0.3W zener 123 PZM12NB3 Phi C SOT346 12V 0.3W zener 123 DTC143ZUA Roh N SC70 npn dtr 4k7+47k 50V 100mA 131 PZM13NB1 Phi C SOT346 13V 0.3W zener 132 PZM13NB2 Phi C SOT346 13V 0.3W zener 132 DTA123JUA Roh N SC70 pnp dtr 2k2+47k 50V 100mA 133 PZM13NB3 Phi C SOT346 13V 0.3W zener 142 DTA123JUA Roh N SC70 npn dtr 2k2+47k 50V 100mA 151 PZM15NB1 Phi C SOT346 15V 0.3W zener 152 PZM15NB2 Phi C SOT346 15V 0.3W zener 153 PZM15NB3 Phi C SOT346 15V 0.3W zener 156 DTA144VUA Roh N SC70 pnp dtr 47k+10k 50V 100mA 161 PZM16NB1 Phi C SOT346 16V 0.3W zener 162 PZM16NB2 Phi C SOT346 16V 0.3W zener 163 PZM16NB3 Phi C SOT346 16V 0.3W zener 166 DTC144VUA Roh N SC70 npn dtr 47k+10k 50V 100mA 179 FMMT5179 Zet N 2N5179 181 PZM18NB1 Phi C SOT346 18V 0.3W zener 182 PZM18NB2 Phi C SOT346 18V 0.3W zener 183 PZM18NB3 Phi C SOT346 18V 0.3W zener 1A BC846A Phi N SOT23 BC546A 1A BC846AT Phi N SOT416 BC546A 1Ap BC846A Phi N SOT23 BC546A 1At BC846A Phi N SOT23 BC546A 1At BC846AW Phi N SOT323 BC546A http://www.marsport.org.uk/smd/smd1.htm (4 of 10)27/5/2007 18:18:38
- 10. SMD Codebook Page 1 1A- BC846AW Phi N SOT323 BC546A 1A FMMT3904 Zet N SOT23 2N3904 1A MMBT3904 Mot N SOT23 2N3904 1A IRLML2402 IR F SOT23 n-ch mosfet 20V 0.9A p1A PMMT3904 Phi N SOT23 2N3904 p1A PXT3904 Phi N SOT89 2N3904 t1A PMMT3904 Phi N SOT23 2N3904 t1A PMST3904 Phi N SOT323 2N3904 -1A PMST3904 Phi N SOT323 2N3904 1AM MMBT3904L Mot N SOT23 2N3904 1B BC846B Phi N SOT23 BC546B 1B BC846BT Phi N SOT416 BC546B 1Bp BC846B Phi N SOT23 BC546B 1Bt BC846B Phi N SOT23 BC546B 1Bt BC846BW Phi N SOT323 BC546B 1B- BC846BW Phi N SOT323 BC546B 1B FMMT2222 Zet N SOT23 2N2222 1B MMBT2222 Mot N SOT23 2N2222 1B IRLML2803 IR F SOT23 n-ch mosfet 30V 0.9A p1B PMBT2222 Phi N SOT23 2N2222 t1B PMBT2222 Phi N SOT23 2N2222 t1B PMST2222 Phi N SOT233 2N2222 -1B PMST2222 Phi N SOT323 2N2222 1Bs BC817UPN Sie N SC74 1Cp BAP50-05 Phi B SOT23 dual cc GP RF pin diode 1C FMMT-A20 Zet N SOT23 MPSA20 1C MMBTA20L Mot N SOT23 MPS3904 1C IRLML6302 IR F SOT23 p-ch mosfet 20V 0.6A 1Cs BC847S Sie SOT363 BC457 1Dp BC846 Phi N SOT23 BC456 1Dt BC846 Phi N SOT23 BC456 1Dt BC846W Phi N SOT323 BC456 1D- BC846W Phi N SOT323 BC456 1D MMBTA42 Mot N SOT23 MPSA42 300V npn 1D IRLML5103 IR F SOT23 p-ch mosfet 30V 0.6A http://www.marsport.org.uk/smd/smd1.htm (5 of 10)27/5/2007 18:18:38
- 11. SMD Codebook Page 1 p1D PMBTA42 Phi N SOT23 MPSA42 300V npn p1D PXTA42 Phi N SOT89 MPSA42 300V npn t1D PMBTA42 Phi N SOT23 MPSA42 300V npn t1D PMSTA42 Phi N SOT323 MPSA42 300V npn 1Ds BC846U Sie N SC74 BC456 1Ds BC846U Sie SOT363 BC456 1DN 2SC4083 Roh N npn 11V 3.2GHz TV tuners 1DR MSD1328R Mot N SOT346 npn gp 25V 500mA 1E BC847A Phi N SOT23 BC547A 1E BC847AT Phi N SOT416 BC547A 1E BC847AT Dio N SOT523 BC547A 1Ep BC847A Phi N SOT23 BC547A 1Et BC847A Phi N SOT23 BC547A 1Et BC847A Phi N SOT323 BC547A 1E- BC847A Phi N SOT323 BC547A 1ER BC847AR Phi R SOT23R BC547A 1E FMMT-A43 Zet N MPSA43 1E MMBTA43 Mot N SOT23 MPSA43 200V npn t1E PMBTA43 Mot N SOT23 MPSA43 200V npn t1E PMSTA43 Mot N SOT323 MPSA43 200V npn 1Es BC847A Sie N SOT23 BC457 1Es BC847AW Sie N SOT323 BC457 1EN 2SC4084 Roh N npn 20V 2.0GHz TV tuners 1F BC847B Phi N SOT23 BC547B 1F BC847BT Phi N SOT416 BC547B 1F BC847BT Dio N SOT523 BC547B 1Fs BC847B Sie N SOT23 BC547B 1Fs BC847BT Sie N SC75 BC547B 1Fs BC847BW Sie N SOT323 BC547B 1Fp BC847B Phi N SOT23 BC547B 1Ft BC847B Phi N SOT23 BC547B 1Ft BC847BW Phi N SOT323 BC547B 1F- BC847BW Phi N SOT323 BC547B 1FR BC847BR Phi R SOT23R BC547B 1F MMBT5550 Mot N SOT23 2N5550 140V npn http://www.marsport.org.uk/smd/smd1.htm (6 of 10)27/5/2007 18:18:38
- 12. SMD Codebook Page 1 p1F PMBT5550 Phi N SOT23 2N5550 140V npn t1F PMBT5550 Phi N SOT23 2N5550 140V npn t1F PMST5550 Phi N SOT323 2N5550 140V npn 1FZ FMBT5550 Zet N SOT23 2N5550 140V npn 1G BC847C Phi N SOT23 BC547C 1G BC847CT Phi N SOT416 BC547C 1Gp BC847C Phi N SOT23 BC547C 1Gt BC847CW Phi N SOT323 BC547C 1G- BC847CW Phi N SOT323 BC547C 1Gs BC847C Sie N SOT23 BC547C 1Gs BC847CW Sie N SOT323 BC547C 1GR BC847CR Phi R SOT23R BC547C 1GT SOA06 SGS N SOT23 MPSA06 1G FMMT-A06 Zet N SOT23 MPSA06 1G MMBTA06 Mot N SOT23 MPSA06 p1G PMMTA06 Phi N SOT23 MPSA06 t1G PMMTA06 Phi N SOT23 MPSA06 t1G PMMTA06 Phi N SOT323 MPSA06 1GM MMBTA06 Mot N SOT23 MPSA06 1Hp BC847 Phi N SOT23 BC547 1Ht BC847 Phi N SOT23 BC547 1Ht BC847W Phi N SOT323 BC547 1H- BC847W Phi N SOT323 BC547 1H FMMT-A05 Zet N MPSA05 1H MMBTA05 Mot N SOT23 MPSA05 t1H MMBTA05 Phi N SOT323 MPSA05 1HT SOA05 SGS N SOT23 MPSA05 1J BC848A Phi N SOT23 BC548A 1Js BC848A Sie N SOT23 BC548A 1Js BC848AW Sie N SOT323 BC548A 1J FMMT2369 Zet N SOT23 2N2369 1J MMBT2369 Mot N SOT23 MPS2369 1Js BCV61A Sie VQ SOT143 npn current mirror hFe 180 1Jp BCV61A Phi VQ SOT143 npn current mirror hFe 180 p1J PMBT2369 Phi N SOT23 2N2369 http://www.marsport.org.uk/smd/smd1.htm (7 of 10)27/5/2007 18:18:38
- 13. SMD Codebook Page 1 t1J PMBT2369 Phi N SOT23 2N2369 t1J PMBT2369 Phi N SOT323 2N2369 1JA MMBT2369A Mot N SOT23 MPS2369A 1JR BC848AR Phi R SOT23R BC548A 1JZ BC848A Zet N SOT23 BC548A 1K BC848B ITT N SOT23 BC548B 1Kp BC848B Phi N SOT23 BC548B 1Ks BC848B Sie N SOT23 BC548B 1Ks BC848BW Sie N SOT323 BC548B 1K MMBT6428 Mot N SOT23 MPSA18 50V p1K PMBT6428 Phi N SOT23 MPSA18 50V t1K PMBT6428 Phi N SOT23 MPSA18 50V t1K PMBT6428 Phi N SOT323 MPSA18 50V 1K FMMT4400 Zet N SOT23 2N4400 1Ks BCV61B Sie VQ SOT143B npn current mirror hFe 290 1Kp BCV61B Phi VQ SOT143B npn current mirror hFe 290 1KR BC848BR Phi R SOT23R BC548B 1KM MMBT6428L Mot N SOT23 MPSA18 50V 1KZ FMMT4400 Zet N SOT23 2N4400 1L BC848C ITT N SOT23 BC548C 1Lp BC848C Phi N SOT23 BC548C 1Ls BC848C Sie N SOT23 BC548C 1Ls BC848CW Sie N SOT323 BC548C 1L MMBT6429 Mot N MPSA18 45V 1L FMMT4401 Zet N 2N4401 1L BCV61C Sie VQ SOT143B npn current mirror hFe 520 1Lp BCV61C Phi VQ SOT143B npn current mirror hFe 520 p1L PMBT6429 Phi N SOT23 MPSA18 45V t1L PMBT6429 Phi N SOT23 MPSA18 45V t1L PMBT6429 Phi N SOT323 MPSA18 45V 1LR BC848CR Phi R SOT23R BC548C 1Mp BC848 Phi N SOT23 BC548 1M MMBTA13 Mot N SOT23 MPSA13 darlington 1M BC848C Dio N SOT523 BC548 1Mp BCV61 Phi VQ SOT143B npn current mirror http://www.marsport.org.uk/smd/smd1.htm (8 of 10)27/5/2007 18:18:38
- 14. SMD Codebook Page 1 1M FMMT-A13 Zet N SOT23 MPSA13 p1M PXTA13 Phi N SOT89 MPSA13 darlington p1M PMBTA13 Phi N SOT23 MPSA13 darlington t1M PMBTA13 Phi N SOT23 MPSA13 darlington 1N FMMT-A14 Zet N SOT23 MPSA14 1N MMBTA14 Mot N SOT23 MPSA14 darlington 1N5 ZTX11N15DF Zet N SOT23 npn 15V 3A low saturation V p1N PMBTA14 Mot N SOT23 MPSA14 darlington p1N PXTA14 Mot N SOT89 MPSA14 darlington t1N PMBTA14 Mot N SOT23 MPSA14 darlington 1P FMMT2222A Zet N 2N2222A 1P MMBT2222A Mot N SOT23 2N2222A 1P BC847PN Sie DI pnp/npn separate pair gp AF 1P CMDZ18L CSC I SOD323 zener 250mW Iz 0.5mA 18V p1P PMBT2222A Phi N SOT23 2N2222A p1P PXT2222A Phi N SOT89 2N2222A t1P PMBT2222A Phi N SOT23 2N2222A t1P PMST2222A Phi N SOT323 2N2222A 1Q MMBT5088 Mot N SOT23 MPSA18 Vce 30V p1Q PMBT5088 Phi N SOT23 MPSA18 Vce 30V t1Q PMBT5088 Phi N SOT23 MPSA18 Vce 30V t1Q PMST5088 Phi N SOT323 MPSA18 Vce 30V 1R MMBT5089 Mot N SOT23 MPSA18 Vce 25V t1R PMST5089 Phi N SOT323 MPSA18 Vce 25V 1S MMBT2369A Nat N SOT23 2N2369A 500MHz sw npn 1S MSC3130 Mot H SOT346 npn RF fT 1.4GHz 10V 1T MMBT3960A Mot N 2N3960A 1U MMBT2484L Mot N SOT23 MPSA18 1V MMBT6427 Mot H SOT23 2N6426/7 darlington npn 1Vp BF820 Phi N SOT23 npn 300V 50mA BF420 1Vt BF820 Phi N SOT23 npn 300V 50mA BF420 1Vt BF820W Phi N SOT323 npn 300V 50mA BF420 1V- BF820W Phi N SOT323 npn 300V 50mA BF420 1W FMMT3903 Zet N SOT23 2N3903 1Wp BF821 Phi N SOT23 pnp 300V 50mA BF421 http://www.marsport.org.uk/smd/smd1.htm (9 of 10)27/5/2007 18:18:38
- 15. SMD Codebook Page 1 1Wt BF821 Phi N SOT23 pnp 300V 50mA BF421 1W t BF822W Phi N SOT323 pnp 300V 50mA BF421 1W - BF822W Phi N SOT323 pnp 300V 50mA BF421 1X MMBT930L Mot N SOT23 MPS3904 1Xp BF822 Phi N SOT23 npn 250V 50mA BF422 1Xt BF822 Phi N SOT23 npn 250V 50mA BF422 1Y MMBT3903 Mot N SOT23 2N3903 1Yp BF823 Phi N SOT23 pnp 250V 50mA BF423 1Yt BF823 Phi N SOT23 pnp 250V 50mA BF423 1Z BAS70-06 Zet A SOT23 dual RF CA schottky diode 1Z MMBT6517 Mot N SOT23 2N6517 npn Vce 350V Last Updated on 01/06/2006 By GM4PMK http://www.marsport.org.uk/smd/smd1.htm (10 of 10)27/5/2007 18:18:38
- 16. SMD Codebook Page 2 GM4PMK's SMD Codebook Codes beginning with '2' Code Device Manf Base Package Leaded Equivalent/Data 2 BAT62-02W Sie I SCD80 BAT16 schottky diode 2 BB182 Phi I SOD523 varicap 2.5-23pF 2 (blue) BAR64-03W Sie I SOD323 pin diode 2 2SC3604 Nec CX npn RF fT8GHz 12dB@2GHz 2 (white) BB439 Sie I SOD323 29-5 pF varicap 20 MRF5811 Mot X SOT143 npn Rf fT 5GHz 0.2A -20 PDTC114WU Phi N SOT323 npn dtr 20F TSDF1220R Vis WQ SOT143R fT 12GHz npn 6V 20mA 20V PZM20NB Phi C SOT346 20V 300mW zener 20Y BZV49-C20 Phi O SOT89 20V 1W zener 21 Gali-21 MC AZ SOT89 DC-8GHz MMIC amp 14 dB gain 21 1PS59SB21 Phi C SOT346 schottky diode 40V 0.2A 22 MMBT4209 Nat N SOT23 pnp sw 850MHz 2N4209 22 DTC123EUA Rho N SC70 npn dtr 2k2+2k2 50V 100ma 22 DTC123EKA Rho N SC59 npn dtr 2k2+2k2 50V 100ma 22 GDZ2.4B Vis I SOD323 zener 200mW 2.4V 22V PZM22NB Phi C SOT346 22V 300mW zener 22Y BZV49-C22 Phi O SOT89 22V 1W zener 23 MMBT3646 Nat N SOT23 npn sw 350MHz 2N3646 23 DTC143EUA Roh N SC70 pnp dtr 50V 100mA 4k7+ 4k7 23 DTC143EKA Roh N SC59 pnp dtr 50V 100mA 4k7+ 4k7 -23 PDTA114TU Phi N SOT323 pnp dtr R1 10k t23 PDTA114TU Phi N SOT323 pnp dtr R1 10k 24 RR264M-400 Roh I PMDU hi-rel 400V 0.7A diode 24 MMBD2101 Nat C SOT23 Si diode 100V 200mA 24 DTC114ECA Roh N SOT23 npn dtr 50V 100mA 10k + 10k 24 DTC114EUA Roh N SC70 npn dtr 50V 100mA 10k + 10k 24 DTC114EKA Roh N SC59 npn dtr 50V 100mA 10k + 10k http://www.marsport.org.uk/smd/smd2.htm (1 of 6)27/5/2007 18:18:44
- 17. SMD Codebook Page 2 24 2SC5006 Nec N npn RF fT 4.5GHz @3V 7mA -24 PDTC114TU Phi N SOT323 npn dtr R1 10k t24 PDTC114TU Phi N SOT323 npn dtr R1 10k 24V PZM24NB Phi C SOT346 24V 300mW Zener 24Y BZV49-C24 Phi O SOT89 24V 1W zener 25 MMBD2102 Nat K SOT23 Si diode 100V 200mA 25 DTC124ECA Roh N SOT23 npn dtr 50V 100mA 22k + 22k 25 DTC124EKA Roh N SC59 npn dtr 50V 100mA 22k + 22k 25 DTC124EUA Roh N SC70 npn dtr 50V 100mA 22k + 22k 25 EDZ12B Roh I EMD2 150mW zener 12V 25 VDZ12B Roh I VMD2 150mW zener 12V 26 MMBD2103 Nat D SOT23 dual MMBD1201 26 DTC144EKA Roh N SC59 npn dtr 50V 30mA 47k + 47k 26 DTC144EUA Roh N SC70 npn dtr 50V 30mA 47k + 47k 27 MMBD2104 Nat B SOT23 dual cc MMBD1201 27V PZM27NB Phi C SOT346 27V 300mW Zener 27Y BZV49-C27 Phi O SOT89 27V 1W zener 28 BFP280T Tfk W npn RF fT 7GHz 8V 10mA 28 MMBD2105 Nat A SOT23 dual ca MMBD1201 -28 PDTA114WU Phi N SOT323 pnp dtr 29 MMBD1401 Nat C SOT23 Si diode 200V 100mA 29 DTC115EE Roh N EMT3 npn dtr 100k +100k 50V 20mA 29 DTC115EUA Roh N SC70 npn dtr 100k +100k 50V 20mA 29 DTC115EKA Roh N SC59 npn dtr 100k +100k 50V 20mA 200 SSTPAD200 Sil J PAD-200 200pA leakage diode 201 PZM20NB1 Phi C SOT346 20V 300mW Zener 202 PZM20NB2 Phi C SOT346 20V 300mW Zener 203 PZM20NB3 Phi C SOT346 20V 300mW Zener 221 PZM22NB1 Phi C SOT346 22V 300mW Zener 222 PZM22NB2 Phi C SOT346 22V 300mW Zener 223 PZM22NB3 Phi C SOT346 22V 300mW Zener 241 PZM24NB Phi C SOT346 24V 300mW Zener 242 PZM24NB Phi C SOT346 24V 300mW Zener 243 PZM20NB Phi C SOT346 24V 300mW Zener 271 PZM2.7NB1 Phi C SOT346 2.7V 300mW Zener http://www.marsport.org.uk/smd/smd2.htm (2 of 6)27/5/2007 18:18:44
- 18. SMD Codebook Page 2 272 PZM2.7NB2 Phi C SOT346 2.7V 300mW Zener 2A MMBT3906L Mot N SOT23 2N3906 2A MMBT3906W Mot N SOT323 2N3906 2A FMMT3906 Zet N SOT23 2N3906 t2A PMBT3906 Phi N SOT23 2N3906 t2A PMST3906 Phi N SOT323 2N3906 p2A PMBT3906 Phi N SOT23 2N3906 p2A PXT3906 Phi O SOT89 2N3906 2A4 PZM2.4NB2A Phi A SOT346 dual 2.4V cc Zener 2A7 PZM2.7NB2A Phi A SOT346 dual 2.7V cc Zener 2B BC849B ITT N SOT23 BC549B 2Bs BC849B Sie N SOT23 BC549B 2Bs BC849BW Sie N SOT323 BC549B 2Bp BC849B Phi N SOT23 BC549B 2Bt BC849BW Phi N SOT323 BC549B 2B- BC849BW Phi N SOT323 BC549B 2B FMMT2907 Zet N SOT23 2N2907 2B MMBT2907 Mot N SOT23 MPS2907 p2B PMBT2907 Phi N SOT23 2N2907 t2B PMBT2907 Phi N SOT23 2N2907 2BR BC849BR Phi R SOT23R BC549B 2BZ FMMT2907 Zet N SOT23 2N2907 2C BC849C ITT N SOT23 BC549C 2Cs BC849C Sie N SOT23 BC549C 2Cs BC849CW Sie N SOT323 BC549C 2Cp BC849C Phi N SOT23 BC549C 2Ct BC849C Phi N SOT23 BC549C 2Ct BC849CW Phi N SOT323 BC549C 2C- BC849CW Phi N SOT323 BC549C 2C MMBTA70 Mot N SOT23 MPSA70 2CR BC849CR Phi R SOT23R BC549C 2CZ FMMTA70 Zet N SOT23 MPSA70 2D MMBTA92 Mot N SOT23 MPSA92 pnp Vce 300V p2D PMBTA92 Phi N SOT23 MPSA92 pnp Vce 300V p2D PXTA92 Phi O SOT89 MPSA92 pnp Vce 300V http://www.marsport.org.uk/smd/smd2.htm (3 of 6)27/5/2007 18:18:44
- 19. SMD Codebook Page 2 t2D PMBTA92 Phi N SOT23 MPSA92 pnp Vce 300V t2D PMSTA92 Phi N SOT323 MPSA92 pnp Vce 300V 2E MMBTA93 Mot N SOT23 MPSA93 pnp Vce 200V 2E FMMT-A93 Zet N SOT23 MPSA93 t2E PMBTA93 Phi N SOT23 MPSA93 pnp Vce 200V t2E PMSTA93 Phi N SOT323 MPSA93 pnp Vce 200V 2F BC850B ITT N SOT23 BC550B 2Fs BC850B Sie N SOT23 BC550B 2Fs BC850BW Sie N SOT323 BC550B 2Fp BC850B Phi N SOT23 BC550B 2Ft BC850B Phi N SOT23 BC550B 2Ft BC850BW Phi N SOT323 BC550B 2F- BC850BW Phi N SOT323 BC550B 2F FMMT2907A Zet N SOT23 2N2907A 2F MMBT2907A Mot N SOT23 MPS2907A 2F MMBT2907AW Mot N SOT323 MPS2907A p2F PMBT2907A Phi N SOT23 2N2907A p2F PXT2907A Phi O SOT89 2N2907A t2F PMBT2907A Phi N SOT23 2N2907A t2F PMBT2907A Phi N SOT323 2N2907A 2FR BC850BR Phi R SOT23R BC550B 2G BC850C ITT N SOT23 BC550C 2Gs BC850C Sie N SOT23 BC550C 2Gp BC850C Phi N SOT23 BC550C 2Gt BC850C Phi N SOT323 BC550C 2Gt BC850CW Phi N SOT323 BC550C 2G- BC850CW Phi N SOT323 BC550C 2G FMMT-A56 Zet N SOT23 MPSA56 2G MMBTA56 Mot N SOT23 MPSA56 2G* ATF52189 Agi ZF SOT89 2GHz 4.5V 0.2A PHEMT p2G PMBTA56 Phi N SOT23 MPSA56 t2G PMBTA56 Phi N SOT23 MPSA56 t2G PMSTA56 Phi N SOT323 MPSA56 2GM MMBTA56 Mot N SOT23 MPSA56 2GR BC850CR Phi R SOT23R BC550C http://www.marsport.org.uk/smd/smd2.htm (4 of 6)27/5/2007 18:18:44
- 20. SMD Codebook Page 2 2GT SOA56 SGS N SOT23 MPSA56 2H FMMT-A55 Zet N SOT23 MPSA55 2HT SOA55 SGS N SOT23 MPSA55 2H MMBTA55 Mot N SOT23 MPSA55 t2H PMBTA55 Phi N SOT23 MPSA55 t2H PMSTA55 Phi N SOT323 MPSA55 2J MMBT3640 Mot N SOT23 MPS3640 pnp sw 2K FMMT4402 Zet N SOT23 2N4402 2K MMBT8598 Mot N 2N4125 pnp 60V 2Kp BAT754 Phi C SOT23 30V 200mA schottky 2Kt BAT754 Phi C SOT23 30V 200mA schottky 2KW BAT754 Phi C SOT23 30V 200mA schottky 2L MMBT5401 Mot N SOT23 2N5401 pnp 150V 2L FMMT4403 Zet N SOT23 2N4403 p2L PMBT5401 Phi N SOT23 2N5401 pnp 150V t2L PMBT5401 Phi N SOT23 2N5401 pnp 150V t2L PMST5401 Phi N SOT323 2N5401 pnp 150V 2Lp BAT754A Phi A SOT23 30V 200mA dual schottky ca 2Lt BAT754A Phi A SOT23 30V 200mA dual schottky ca 2LW BAT754A Phi A SOT23 30V 200mA dual schottky ca 2M FMMT5087 Zet N SOT23 2N5087 2M MMBT404 Mot N SOT23 pnp-chopper 24V 150mA 2Mp BAT754C Phi B SOT23 30V 200mA dual schottky cc 2Mt BAT754C Phi B SOT23 30V 200mA dual schottky cc 2MW BAT754C Phi B SOT23 30V 200mA dual schottky cc 2N MMBT404A Mot N SOT23 pnp-chopper 35V 150mA 2Np BAT754S Phi D SOT23 30V 200mA dual schottky series 2Nt BAT754S Phi D SOT23 30V 200mA dual schottky series 2NW BAT754S Phi D SOT23 30V 200mA dual schottky series 2N0 ZXT11N20DF Zet N SOT23 npn 20V 2.5A low sat switch 2P FMMT2222R Zet R SOT23R 2N2222 2P MMBT5086 Mot N SOT23 2N5086 2P CMDZ20L CSC I SOD323 zener 250mW Iz 0.5mA 20V 2Q MMBT5087 Mot N SOT23 2N5087 2R HSMS-8102 HP Z SOT23 10-14GHz schottky mixer pair http://www.marsport.org.uk/smd/smd2.htm (5 of 6)27/5/2007 18:18:44
- 21. SMD Codebook Page 2 2T SO4403 SGS N SOT23 2N4403 2T MMBT4403 Mot N SOT23 2N4403 p2T PMBT4403 Phi N SOT23 2N4403 p2T PXT4403 Phi O SOT89 2N4403 t2T PMBT4403 Phi N SOT23 2N4403 t2T PMST4403 Phi N SOT323 2N4403 2T HT2 Zet N SOT23 pnp 80V 100mA 2U MMBTA63 Mot N SOT23 MPSA63 darlington t2U PMBTA63 Phi N SOT23 MPSA63 darlington 2V MMBTA64 Mot N SOT23 MPSA64 darlington p2V PXTA64 Phi O SOT89 MPSA64 darlington t2V PMBTA64 Phi H SOT23 MPSA64 darlington 2V4 PZM2.4NB Phi C SOT346 2.4V 300mW Zener 2V7 PZM2.7NB Phi C SOT346 2.7V 300mW Zener 2W FMMT3905 Zet N SOT23 2N3905 2W MMBT8599 Mot N 2N4125 Vce 80V pnp 2X SO4401 SGS N SOT23 2N4401 2X MMBT4401 Mot N SOT23 2N4401 p2X PMBT4401 Phi N SOT23 2N4401 p2X PxT4401 Phi O SOT89 2N4401 t2X PMBT4401 Phi N SOT23 2N4401 t2X PMST4401 Phi N SOT323 2N4401 2Y4 BZV49-C2V4 Phi O SOT89 2.4V 1W zener 2Y7 BZV49-C2V7 Phi O SOT89 2.7V 1W zener 2Z MMBT6520 Mot N SOT23 2N6520 pnp Vce 350V 2Z BAS70-04 Zet D SOT23 dual series RF schottky 70V 15mA 2Z5 BAS70-05 Zet B SOT23 dual cc RF Schottky 70V 15mA Last Updated on 01/06/2006 By GM4PMK http://www.marsport.org.uk/smd/smd2.htm (6 of 6)27/5/2007 18:18:44

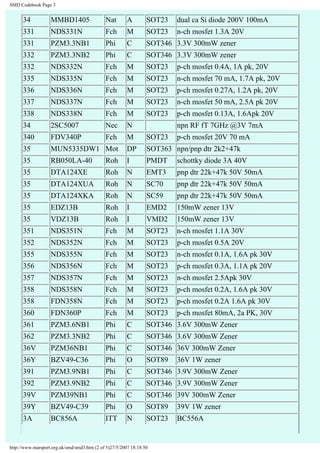

- 22. SMD Codebook Page 3 GM4PMK's SMD Codebook Codes beginning with '3' Code Device Manf Base Package Leaded Equivalent/Data 3 (white) BAT60A Sie I SOD323 10V 3A sw schottky 3 BAT62-02W Sie I SCD80 30 MUN5330DW1 Mot DP SOT363 npn/pnp dtr 1k0+1k0 30V PZM30NB1 Phi C SOT346 30V 300mW zener 30Y BZV49-C30 Phi O SOT89 30V 1W zener 301 FDV301N Fch M SOT23 n-ch 'digital' fet 25V 0.22A 302 FDV302P Fch M SOT23 p-ch 'digital' fet 25V 0.13A 303 FDV303N Fch M SOT23 n-ch 'digital' fet 25V 0.68A 304 FDV304P Fch M SOT23 p-ch 'digital' fet 25V 0.46A 31 MUN5331DW1 Mot DP SOT363 npn/pnp dtr 2k2+2k2 31 MMBD1402 Nat K SOT23 Si diode 200V 100mA p31 PDTA143XT Phi N SOT23 pnp dtr 4k7+10k t31 PDTA143XT Phi N SOT23 pnp dtr4k7+10k 32 MUN5332DW1 Mot DP SOT363 npn/pnp dtr 4k7+4k7 32 MMBD1403 Nat D SOT23 dual Si diode 200V 100mA 32 BAT32 Sie CS 18GHz zero-bias schottky 32 GDZ2.7B Vis I SOD323 zener 200mW 2.7V p32 PDTC143XT Phi N SOT23 pnp dtr 4k7+10k t32 PDTC143XT Phi N SOT23 pnp dtr 4k7+10ks 33 MUN5333DW1 Mot DP SOT363 npn/pnp dtr 4k7+47k 33 DTA143XE Roh N EMT3 pnp dtr 4k7+10k 50V 100mA 33 DTA143XUA Roh N SC70 pnp sw 4k7+10k bias res 50V 100mA 33 DTA143XKA Roh N SC59 pnp sw 4k7+10k bias res 50V 100mA 33 MMBD1404 Nat B SOT23 dual cc Si diode 200V 100mA 33 Gali-33 MC AZ SOT89 DC-4GHz MMIC amp 19dB gain 33V PZM33NB1 Phi C SOT346 33 300mW zener 33Y BZV49-C33 Phi O SOT89 33V 1W zener 34 MUN5334DW1 Mot DP SOT363 npn/pnp dtr 22k+47k http://www.marsport.org.uk/smd/smd3.htm (1 of 5)27/5/2007 18:18:50
- 23. SMD Codebook Page 3 34 MMBD1405 Nat A SOT23 dual ca Si diode 200V 100mA 331 NDS331N Fch M SOT23 n-ch mosfet 1.3A 20V 331 PZM3.3NB1 Phi C SOT346 3.3V 300mW zener 332 PZM3.3NB2 Phi C SOT346 3.3V 300mW zener 332 NDS332N Fch M SOT23 p-ch mosfet 0.4A, 1A pk, 20V 335 NDS335N Fch M SOT23 n-ch mosfet 70 mA, 1.7A pk, 20V 336 NDS336N Fch M SOT23 p-ch mosfet 0.27A, 1.2A pk, 20V 337 NDS337N Fch M SOT23 n-ch mosfet 50 mA, 2.5A pk 20V 338 NDS338N Fch M SOT23 p-ch mosfet 0.13A, 1.6Apk 20V 34 2SC5007 Nec N npn RF fT 7GHz @3V 7mA 340 FDV340P Fch M SOT23 p-ch mosfet 20V 70 mA 35 MUN5335DW1 Mot DP SOT363 npn/pnp dtr 2k2+47k 35 RB050LA-40 Roh I PMDT schottky diode 3A 40V 35 DTA124XE Roh N EMT3 pnp dtr 22k+47k 50V 50mA 35 DTA124XUA Roh N SC70 pnp dtr 22k+47k 50V 50mA 35 DTA124XKA Roh N SC59 pnp dtr 22k+47k 50V 50mA 35 EDZ13B Roh I EMD2 150mW zener 13V 35 VDZ13B Roh I VMD2 150mW zener 13V 351 NDS351N Fch M SOT23 n-ch mosfet 1.1A 30V 352 NDS352N Fch M SOT23 p-ch mosfet 0.5A 20V 355 NDS355N Fch M SOT23 n-ch mosfet 0.1A, 1.6A pk 30V 356 NDS356N Fch M SOT23 p-ch mosfet 0.3A, 1.1A pk 20V 357 NDS357N Fch M SOT23 n-ch mosfet 2.5Apk 30V 358 NDS358N Fch M SOT23 p-ch mosfet 0.2A, 1.6A pk 30V 358 FDN358N Fch M SOT23 p-ch mosfet 0.2A 1.6A pk 30V 360 FDN360P Fch M SOT23 p-ch mosfet 80mA, 2a PK, 30V 361 PZM3.6NB1 Phi C SOT346 3.6V 300mW Zener 362 PZM3.3NB2 Phi C SOT346 3.6V 300mW Zener 36V PZM36NB1 Phi C SOT346 36V 300mW Zener 36Y BZV49-C36 Phi O SOT89 36V 1W zener 391 PZM3.9NB1 Phi C SOT346 3.9V 300mW Zener 392 PZM3.9NB2 Phi C SOT346 3.9V 300mW Zener 39V PZM39NB1 Phi C SOT346 39V 300mW Zener 39Y BZV49-C39 Phi O SOT89 39V 1W zener 3A BC856A ITT N SOT23 BC556A http://www.marsport.org.uk/smd/smd3.htm (2 of 5)27/5/2007 18:18:50
- 24. SMD Codebook Page 3 3A BC856AT Phi N SOT416 BC556A 3Ap BC856A Phi N SOT23 BC556A 3At BC856A Phi N SOT23 BC556A 3As BC856A Sie N SOT23 BC556A 3At BC856AW Phi N SOT323 BC556A 3A- BC856AW Phi N SOT323 BC556A 3A MMBTH24 Mot N SOT23 VHF mixer npn fT 600MHz 3A0 PZM3.0NB2A Phi C SOT346 dual 3.0V Zener 3A3 PZM3.3NB2A Phi C SOT346 dual 3.3V Zener 3A6 PZM3.6NB2A Phi C SOT346 dual 3.6V Zener 3A9 PZM3.9NB2A Phi C SOT346 dual 3.9V Zener 3AR BC856AR Phi R SOT23R BC556A 3B BC856B ITT N SOT23 BC556B 3B BC856BT Phi N SOT416 BC556B 3Bp BC856B Phi N SOT23 BC556B 3Bs BC856B Sie N SOT23 BC556B 3Bt BC856B Phi N SOT23 BC556B 3Bt BC856BW Phi N SOT323 BC556B 3B- BC856BW Phi N SOT323 BC556B 3B FMMT918 Zet N SOT23 2N918 3B MMBT918 Mot N SOT23 2N918 3BR BC856BR Phi R SOT23 BC556B 3C FMMTA20R Zet R SOT23R MPSA20 3C BC857 Sie DO pnp separate pair gp AF 3D BC856 Phi N SOT23 BC556 hfe 75 min 3Dp BC856 Phi N SOT23 BC556 hfe 75 min 3Dt BC856 Phi N SOT23 BC556 hfe 75 min 3Dt BC856W Phi N SOT323 BC556 hfe 75 min 3D- BC856W Phi N SOT323 BC556 hfe 75 min 3D MMBTH81L Mot N SOT23 UHF pnp fT 600MHz 3D BC856S Sie DO pnp separate pair gp AF 3E BC857A Phi N SOT23 BC557A 3E BC857AT Phi N SOT416 BC557A 3Ep BC857A Phi N SOT23 BC557A 3Et BC857A Phi N SOT23 BC557A http://www.marsport.org.uk/smd/smd3.htm (3 of 5)27/5/2007 18:18:50
- 25. SMD Codebook Page 3 3Et BC857A Phi N SOT323 BC557A 3E- BC857A Phi N SOT323 BC557A 3E MMBTH10 Mot N SOT23 MPSH10 fT 650MHz 3E FMMT-A42 Zet N SOT23 MPSA42 3EM MMBTH10L Mot N SOT23 VHF amp 650MHz fT 3ER BC857AR Phi R SOT23R BC557A 3EZ FMMTH10 Zet N SOT23 npn fT 650MHz 3F BC857B Phi N SOT23 BC557B 3F BC857BT Phi N SOT416 BC557B 3Fp BC857B Phi N SOT23 BC557B 3Fs BC857B Sie N SOT23 BC557B 3Ft BC857B Phi N SOT23 BC557B 3Ft BC857BW Phi N SOT323 BC557B 3Ft BC857BS Phi N SOT363 BC557B 3F- BC857BW Phi N SOT323 BC557B 3FR BC857BR Phi R SOT23R BC557B 3G BC857C Phi N SOT23 BC557C 3Gp BC857C Phi N SOT23 BC557C 3G BC857C Phi N SOT23 BC557C 3Gs BC857C Sie N SOT23 BC557C 3Gt BC857C Phi N SOT23 BC557C 3Gt BC857CW Phi N SOT323 BC557C 3G- BC857CW Phi N SOT323 BC557C 3G MMBTH11 NS N SOT23 3G BC857CT Dio N SOT523 BC557C 3G MGSF3454X Mot DK TSOP6 n-ch enh tmosfet 1.75A 3GR BC857CR Phi R SOT23R BC557CR 3Hp BC857C Phi N SOT23 BC557 3Ht BC857C Phi N SOT23 BC557 3Ht BC857CW Phi N SOT323 BC557 3H MMBTH30 NS N SOT23 3H- BC857CW Phi N SOT323 BC557 3J MMBTH69 Mot N SOT23 pnp UHF fT 2GHz 3J BC858A Phi N SOT23 BC558A 3Js BC858A Sie N SOT23 BC558A http://www.marsport.org.uk/smd/smd3.htm (4 of 5)27/5/2007 18:18:50
- 26. SMD Codebook Page 3 3JR BC858AR Phi R SOT23R BC558A 3Js BCV62A Sie VQ SOT143 pnp current mirror hFe 180 3Jp BCV62A Phi VQ SOT143 pnp current mirror hFe 180 3K BC858B Phi N SOT23 BC558B 3Ks BCV62B Sie VQ SOT143 npn current mirror hFe 290 3Kp BCV62B Phi VQ SOT143 npn current mirror hFe 290 3KR BC858BR Phi R SOT23R BC558B 3L BC858C Phi N SOT23 BC558C 3LR BC858CR Phi R SOT23R BC558C 3Ls BCV62C Sie VQ SOT143 pnp current mirror hFe 520 3Lp BCV62C Phi VQ SOT143 pnp current mirror hFe 520 3M BC858 Phi N SOT23 BC558 3M FMMT5087R Zet R SOT23R 2N5087 BC322 3Ms BCV62 Sie VQ SOT143 pnp current mirror 3Mp BCV62 Phi VQ SOT143 pnp current mirror 3N MMBT4402 Nat N SOT23 2N4402 pnp 3P FMT2222AR Zet R SOT23R 2N2222A 3P CMDZ22L CSC I SOD323 zener 250mW Iz 0.5mA 22V 3R MMBT5571 Nat N SOT23 pnp sw 850MHz 3S MMBT5551 Nat N SOT23 npn 160V 3T HT3 Zet N SOT23 npn 80V 100mA 3V BC857AT Dio N SOT523 BC557A 3V0 PZM3.0NB Phi C SOT346 3.0V 300mW Zener 3V3 PZM3.3NB Phi C SOT346 3.3V 300mW Zener 3V6 PZM3.6NB Phi C SOT346 3.6V 300mW Zener 3V9 PZM3.9NB Phi C SOT346 3.9V 300mW Zener 3W FMMT-A12 Zet N MPSA12 3W BC857BT Dio N SOT523 BC557B 3Y3 BZV49-C3V3 Phi O SOT89 3.3V 1W zener 3Y6 BZV49-C3V6 Phi O SOT89 3.6V 1W zener 3Y9 BZV49-C3V9 Phi O SOT89 3.9V 1W zener Last Updated on 01/06/2006 By GM4PMK http://www.marsport.org.uk/smd/smd3.htm (5 of 5)27/5/2007 18:18:50
- 27. SMD Codebook Page 4 GM4PMK's SMD Codebook Codes beginning with '4' Code Device Manf Base Package Leaded Equivalent/Data 4 BAS140W Sie I SOD323 40V 120mA sw schottky (white) 4 (yellow) BB644 Sie I SOD323 Varicap 42-2.5pF 4( red) BB57-03W Sie I SOD323 Varicap 4 BB664 Sie I SCD80 Varicap 42-2.5pF 4 BB679-02V Inf I SC79 varicap wide range 47pF 28V 40 ZLLS400 Zet C SOT23 schottky 40V 1A 41 BAT14-115S Sie CS SOT173 40GHz schottky diode 41 BAT14-115R Sie CZ SOT173 40GHz schottky ring quad 41A FMMT491A Zet N SOT23 npn 40v 1A max 41D BAT14-115D Sie CY SOT173 40GHz schottky dual 42 BAT14-025S Sie CS SOT173 4GHz schottky diode 42 BAT14-025R Sie CZ SOT173 4GHz schottky ring quad 42 GDZ3.0B Vis I SOD323 zener 200mW 3.0V 42 BAT54AW Phi A SOT323 dual ca BAT85 schottky 30V 0.2A 42D BAT14-025D Sie CY SOT173 4GHz schottky dual 43 BAS40 Sie C SOT23 schottky diode 40V 100mA 43 DTA143EE Mot N SOT416 pnp dtr 4k7 + 4k7 43 DTC143XE Roh N EMT3 npn dtr 4k7+10k 50V 100mA 43 DTC143XUA Roh N SC70 npn dtr 4k7+10k 50V 100mA 43 DTC143XKA Roh N SC59 npn dtr 4k7+10k 50V 100mA 43 BAT54CW Phi B SOT323 dual cc BAT85 schottky 30V 0.2A 43V PZM43NB Phi C SOT346 43V 0.3W zener 43Y BZV49-C43 Phi O SOT89 43V 1W zener 44 BAS40-04 Sie D SOT23 dual series BAS40 44 BAS40-04W Sie D SOT323 dual series BAS40 44 2SC5009 Nec N npn RF fT 12GHz @3V 5mA 44 BAT54SW Phi D SOT323 dual seires BAT85 schottky 30V 0.2A http://www.marsport.org.uk/smd/smd4.htm (1 of 5)27/5/2007 18:18:56
- 28. SMD Codebook Page 4 45 BAS40-05 Sie A SOT23 dual ca BAS40 45 BAS40-05W Sie A SOT323 dual ca BAS40 45 BAT14-055S Sie CS SOT173 8GHz schottky diode 45 BAT14-055R Sie CZ SOT173 8GHz schottky ring quad 45 DTC124XE Roh N EMT3 npn dtr 22k+47k 50V 50mA 45 DTC124XUA Roh N SC70 npn dtr 22k+47k 50V 50mA 45 DTC124XKA Roh N SC59 npn dtr 22k+47k 50V 50mA 45 EDZ15B Roh I EMD2 150mW zener 15V 45 VDZ15B Roh I VMD2 150mW zener 15V 45D BAT14-055D Sie CY SOT173 8GHz schottky dual 46 BAS40-06 Sie B SOT23 dual cc BAS40 46 BAS40-06W Sie B SOT323 dual cc BAS40 46 MBT3946DW Mot DP 2N3904/2N3906 pair 47 BAS40-07 Sie S SOT143 dual BAS40 47 BAS40-07W Sie S SOT343 dual BAS40 47V PZM47NB Phi C SOT346 47V 0.3W zener 47Y BZV49-C47 Phi O SOT89 47V 1W zener 49 BAT14-095S Sie CS SOT173 18GHz shottky diode 49 BAT14-095R Sie CZ SOT173 18GHz schottky ring quad 49D BAT14-095D Sie CY SOT173 18GHz schottky dual 49R S849TR Vis UQ SOT143R MOSIC: biased n-ch dg uhf mosfet for TV 12V 413 FMMT413 Zet N SOT23 npn avalanche 150v 0.1A 415 FMMT415 Zet N SOT23 npn avalanche 260v 0.1A 417 FMMT417 Zet N SOT23 npn avalanche 320v 0.1A 431 PZM4.3NB1 Phi C SOT346 4.3V 0.3W zener 432 PZM4.3NB2 Phi C SOT346 4.3V 0.3W zener 433 PZM4.3NB3 Phi C SOT346 4.3V 0.3W zener 449 FMMT449 Zet N SOT23 npn 50V 1A low Vce sat 451 FMMT451 Zet N SOT23 npn 60V 1A 455 FMMT455 Zet N SOT23 NPN 140V 1A 458 FMMT458 Zet N SOT23 npn 400V 0.4A 471 PZM4.7NB1 Phi C SOT346 4.7V 0.3W zener 472 PZM4.7NB2 Phi C SOT346 4.7V 0.3W zener 473 PZM4.7NB3 Phi C SOT346 4.7V 0.3W zener 491 FMMT491 Zet N SOT23 ZTX 450/451 http://www.marsport.org.uk/smd/smd4.htm (2 of 5)27/5/2007 18:18:56
- 29. SMD Codebook Page 4 493 FMMT493 Zet N SOT23 ZTX 453 494 FMMT494 Zet N SOT23 npn 120V 1A 495 FMMT495 Zet N SOT23 npn 170V 1A 497 FMMT497 Zet N SOT23 npn 300V 0.5A 4A MMBV109 Mot C SOT23 MV209 varicap 4A FMMV109 Zet C SOT23 MV209 varicap 4A HD3A Zet C 75V 100mA sw diode 4A BC859A ITT N SOT23 BC559A 4Ap BC859A Phi N SOT23 BC559A 4As BC859AW Sie N SOT323 BC559A 4As BC859A Sie N SOT23 BC559A 4A3 PZM4.3NB2A Phi A SOT346 dual ca 4.3V Zener 4A7 PZM4.7NB2A Phi A SOT346 dual ca 4.7V Zener 4AR BC859AR Phi R SOT23R BC559A 4B MMBV432 Mot B dual cc varicap 1.5-45pF 4B BC859B ITT N SOT23 BC559B 4Bs BC859B Sie N SOT23 BC559B 4Bs BC859BW Sie N SOT323 BC559B 4Bp BC859B Phi N SOT23 BC559B 4Bt BC859B Phi N SOT23 BC559B 4Bt BC859BW Phi N SOT323 BC559B 4B- BC859BW Phi N SOT323 BC559B 4BR BC859BR Phi R SOT23R BC559B 4C BC859C ITT N SOT23 BC559C 4Cs BC859C Sie N SOT23 BC559C 4Cs BC859CW Sie N SOT323 BC559C 4Cp BC859C Phi N SOT23 BC559C 4Ct BC859C Phi N SOT23 BC559C 4Ct BC859CW Phi N SOT323 BC559C 4C- BC859CW Phi N SOT323 BC559C 4C MMVB3102 Mot C SOT23 varicap 6-35pF 4C BC859C Phi N SOT23 BC559C 4CR BC859CR Phi R SOT23R BC559C 4D BC859B Phi N SOT23 BC559B 4Dt BC859W Phi N SOT323 BC559B http://www.marsport.org.uk/smd/smd4.htm (3 of 5)27/5/2007 18:18:56
- 30. SMD Codebook Page 4 4D- BC859W Phi N SOT323 BC559B 4D MMBV3401 Mot C SOT23 VHF pin diode 4D HD3A Zet C SOT23 sw diode 75V 100mA 4E BC860A Phi N SOT23 BC560A 4E FMMT-A92 Zet N SOT23 MPSA92 4E MMBV105G Mot C SOT23 MV105 varicap 4ER BC860AR Phi R SOT23R BC560A 4F MMBD353 Mot Z SOT23 dual MBD101 4F BC860B Phi N SOT23 BC560B 4F Gali-4F MC AZ SOT89 DC-4GHz MMIC amp 15 dBm o/p 4Fs BC860B Sie N SOT23 BC560B 4Fs BC860BW Sie N SOT323 BC560B 4Fp BC860B Phi N SOT23 BC560B 4Ft BC860B Phi N SOT23 BC560B 4Ft BC860BW Phi N SOT323 BC560B 4F- BC860BW Phi N SOT323 BC560B 4FR BC860BR Phi R SOT23 BC560B 4G MMBV2101 Mot C SOT23 MV2101 varicap 4G BC860C Phi N SOT23 BC560C 4Gs BC860C Sie N SOT23 BC560C 4Gs BC860CW Sie N SOT323 BC560C 4Gp BC860C Phi N SOT23 BC560C 4Gt BC860C Phi N SOT23 BC560C 4Gt BC860CW Phi N SOT323 BC560C 4G- BC860CW Phi N SOT323 BC560C 4GR BC860CR Phi R SOT23 BC560CR 4H MMBV2103 Mot C SOT23 MV2103 varicap 4Hp BC860 Phi N SOT23 BC560 4Ht BC860W Phi N SOT323 BC560 4H- BC860W Phi N SOT323 BC560 4J FMMT38A Zet N SOT23 BCX38A 4J MMBV2109 Mot C SOT23 MV2109 varicap 4K BAP64-04 Phi D dual series 3GHz pin diode 4K MMSB3000 Mot I SOD123 Si diode 30V 0.2A 4L BAP50-04 Phi D dual series GP RF pin diode http://www.marsport.org.uk/smd/smd4.htm (4 of 5)27/5/2007 18:18:56
- 31. SMD Codebook Page 4 4M MMBD101 Mot C SOT23 MBD101 schottky diode 4Ms BAT240A Sie EQ SOT143 dual schottky 250V 0.4A 4P CMDZ24L CSC I SOD323 zener 250mW Iz 0.5mA 24V 4R MMBV3700 Mot C SOT23 200V vhf pin diode 4S MMBD201 Mot C SOT23 MBD201 4T MMBD301 Mot C SOT23 MBD301 UHF schottky diode 4U MMBV2105 Mot C SOT23 MV2105 varicap 4V MMBV2106 Mot C SOT23 MV2106 varicap 4V BCW65AR Zet R SOT23R npn 32V 0.8A 4V3 PZM4.3NB Phi C SOT346 4.3V 0.3W zener 4V7 PZM4.7NB Phi C SOT346 4.7V 0.3W zener 4W MMBV2107 Mot C SOT23 MV2107 varicap 4W BCW67AR Zet R SOT23R pnp 32V 0.8A 4Y MMBV2102 Mot C SOT23 MV2102 varicap 4Y3 BZV49-C4V3 Phi O SOT89 4.3V 1W zener 4Y7 BZV49-C4V7 Phi O SOT89 4.7V 1W zener 4X MMBV2108 Mot C SOT23 MV2108 varicap 4Z MMBV2104 Mot C SOT23 MV2104 varicap Last Updated on 01/06/2006 http://www.marsport.org.uk/smd/smd4.htm (5 of 5)27/5/2007 18:18:56
- 32. SMD Codebook Page 5 GM4PMK's SMD Codebook Codes beginning with '5' Code Device Manf Base Package Leaded Equivalent/Data 5 (white) BAT60B Sie I 10V 3A sw Schottky 5 (red) BBY57-03W Sie I SOD323 varicap 500 SSTPAD500 Sil J PAD-500 500pA leakage diode 51 BAT15-115S Sie CS SOT173 40GHz schottky diode 51 BAT15-115R Sie CZ SOT173 40GHz schottky ring quad 51D BAT15-115D Sie CY SOT173 40GHz schottky dual 51V PZM51NB Phi C SOT346 51V 0.3W zener 51Y BZV49-C51 Phi O SOT89 51V 1W zener 52 BAT15-025S Sie CS SOT173 4GHz schottky diode 52 BAT15-025R Sie CZ SOT173 4GHz schottky ring quad 52 Gali-52 MC AZ SOT89 DC-2GHz MMIC amp 23 dB gain 52 BAS52-02V Inf I SC79 Schottky diode 45V 750mA 52 DTA123YE Roh N EMT3 pnp dtr 2k2 +10k 50V 100mA 52 DTA123YUA Roh N SC70 pnp dtr 2k2 +10k 50V 100mA 52 DTA123YKA Roh N SC59 pnp dtr 2k2 +10k 50V 100mA 52 GDZ3.3B Vis I SOD323 zener 200mW 3.3V 52D BAT15-025D Sie CY SOT173 4GHz schottky dual 53 CDZ4.7B Roh I VMN2 zener 4.7V 0.15W 53s BAT17 Sie C SOT23 schottky diode 4V 100mA 53R S503TR Vis UQ SOT143R dg mosfet MOSIC 5V uhf tv tuners 54 DTA114YE Roh N EMT3 pnp dtr 10k + 47k 50V 100mA 54 DTA114YUA Roh N SC70 pnp dtr 10k + 47k 50V 100mA 54 DTA114YKA Roh N SC59 pnp dtr 10k + 47k 50V 100mA 54 RSX201L-30 Roh I PMDS schottky diode 2A 30V 54s BAT17-04 Sie D SOT23 dual series BAT17 54s BAT17-04W Sie D SOT323 dual series BAT17 http://www.marsport.org.uk/smd/smd5.htm (1 of 5)27/5/2007 18:19:02
- 33. SMD Codebook Page 5 54R S504TR Vis UQ SOT143R dg mosfet MOSIC 5V uhf tv tuners 55 BAT15-055S Sie CS SOT173 8GHz schottky diode 55 BAT15-055R Sie CZ SOT173 8GHz schottky ring quad 55 Gali-55 MC AZ SOT89 DC-4GHz MMIC amp 21 dB gain 55 EDZ16B Roh I EMD2 150mW zener 16V 55 VDZ16B Roh I VMD2 150mW zener 16V 55 CDZ5.1B Roh I VMN2 zener 5.1V 0.15W 55D BAT15-055D Sie CY SOT173 8GHz schottky dual 55R S505TR Vis UQ SOT143R dg mosfet MOSIC 5V uhf tv tuners 55s BAT17-05 Sie A SOT23 dual ca BAT17 55s BAT17-05W Sie A SOT323 dual ca BAT17 56 RSX301L-30 Roh I PMDS schottky diode 3A 30V 56 RSX301LA-30 Roh I PMDT schottky diode 3A 30V 56s BAT17-06 Sie B SOT23 dual cc BAT17 56s BAT17-06W Sie B SOT323 dual cc BAT17 56V PZM56NB Phi C SOT346 56V 0.3W zener 56Y BZV49-C56 Phi O SOT89 56V 1W zener 57s BAT17-07 Sie S SOT143 dual BAT17 57 BFQ57 Sie CX SOT173 npn 6.5GHz 16V/35mA 57 RSX501L-20 Roh I PMDS schottky diode 5A 20V 57 CDZ5.6B Roh I VMN2 zener 5.6V 0.15W 58 BFQ58 Sie CX SOT173 npn 6.5GHz 16V/30mA 59 BAT15-095S Sie CS SOT173 18GHz schottky diode 59 BAT15-095R Sie CZ SOT173 18GHz schottky ring quad 59D BAT15-095D Sie CY SOT173 18GHz schottky dual 503 S503T Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners 504 S504T Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners 505 S505T Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners 511 PZM5.1NB1 Phi C SOT346 5.1V 0.3W zener 512 PZM5.1NB2 Phi C SOT346 5.1V 0.3W zener http://www.marsport.org.uk/smd/smd5.htm (2 of 5)27/5/2007 18:19:02
- 34. SMD Codebook Page 5 513 PZM5.1NB3 Phi C SOT346 5.1V 0.3W zener 561 PZM5.1NB1 Phi C SOT346 5.6V 0.3W zener 562 PZM5.1NB2 Phi C SOT346 5.6V 0.3W zener 563 PZM5.1NB3 Phi C SOT346 5.6V 0.3W zener 558 FMMT558 Zet N SOT23 pnp 400V 0.15A 589 FMMT589 Zet N SOT23 pnp 30V 1A 591 FMMT591 Zet N SOT23 ZTX550/551 593 FMMT593 Zet N SOT23 ZTX 553 pnp 100V 1A 593 S593T Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners 594 S594T Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners 595 S595T Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners 596 FMMT596 Zet N SOT23 pnp 200V 0.3A 5A BC807-16 Phi N SOT23 BC327-16 5As BC807-16 Sie N SOT23 BC327-16 5As BC807-16W Sie N SOT323 BC327-16 5Ap BC807-16 Phi N SOT23 BC327-16 5At BC807-16 Phi N SOT23 BC327-16 5At BC807-16W Phi N SOT323 BC327-16 5A- BC807-16W Phi N SOT323 BC327-16 5A BSS123 Mot M SOT23 n-ch tmosfet Vds 100V 5A MMBD6050 Mot C SOT23 sw diode 70V 0.2A 5A FMMD6050 Zet C SOT23 sw diode 70V 100mA 5A1 PZM5.1NB2A Phi A SOT346 dual ca 5.1V 0.3W zener 5A6 PZM5.6NB2A Phi A SOT346 dual ca 5.6V 0.3W zener 5AR BC807-16R Phi R SOT23R BC327-16 5B MMBT4123 Mot N SOT23 2N4123 5B BC807-25 SGS N SOT23 BC327-25 5Bs BC807-25 Sie N SOT23 BC327-25 5Bs BC807-25W Sie N SOT323 BC327-25 5Bs BC807-25U Sie N SC74 BC327-25 5Bp BC807-25 Phi N SOT23 BC327-25 5Bt BC807-25 Phi N SOT23 BC327-25 http://www.marsport.org.uk/smd/smd5.htm (3 of 5)27/5/2007 18:19:02
- 35. SMD Codebook Page 5 5Bt BC807-25W Phi N SOT323 BC327-25 5B- BC807-25W Phi N SOT323 BC327-25 5B MMBD6100 Mot B SOT23 cc dual diode 70V 0.2A 5B FMMD6100 Zet B SOT23 cc dual diode 70V 0.2A 5BM MMBD6100 Mot B SOT23 cc dual diode 70V 0.2A 5BR BC807-25R Phi R SOT23R BC327-25 5C BC807-40 SGS N SOT23 BC327-40 5C CDZ6.2B Roh I VMN2 zener 6.2V 0.15W 5Cs BC807-40 Sie N SOT23 BC327-40 5Cs BC807-40W Sie N SOT323 BC327-40 5Cp BC807-40 Phi N SOT23 BC327-40 5Ct BC807-40 Phi N SOT23 BC327-40 5Ct BC807-40W Phi N SOT323 BC327-40 5C- BC807-40W Phi N SOT323 BC327-40 5C MMBD7000 Mot D SOT23 2 ser diodes 100V 0.2A 5C FMMD7000 Zet D SOT23 2 ser diodes 70V 200mA 5CR BC807-40R Phi R SOT23E BC327-40 5D FMMD914 Zet C SOT23 1N914 5D MMBD914 Mot C SOT23 1N914 5D MMSD914 Mot I SOD123 1N914 5D HD2A Zet B dual cc HD2 75V 100mA 5Dp BC807 Phi N SOT23 BC327 5Dt BC807 Phi N SOT23 BC327 5Dt BC807W Phi N SOT323 BC327 5D- BC807W Phi N SOT323 BC327 5E BC808-16 Phi N SOT23 BC328-16 5E CDZ6.8B Roh I VMN2 zener 6.8V 0.15W 5Es BC808-16 Sie N SOT23 BC328-16 5Es BC808-16W Sie N SOT323 BC328-16 5E FMMT-A43R Zet R SOT23R MPSA43 5E BC808-16 Phi N SOT23 BC328-16 5ER BC808-16R Phi R SOT23R BC328-16 5F BC808-25 Phi N SOT23 BC328-25 5F CDZ7.5B Roh I VMN2 zener 7.5V 0.15W http://www.marsport.org.uk/smd/smd5.htm (4 of 5)27/5/2007 18:19:02
- 36. SMD Codebook Page 5 5Fs BC808-25 Sie N SOT23 BC328-25 5Fs BC808-25W Sie N SOT323 BC328-25 5F MMBD501 Mot C SOT23 MBD501 hot carrier diode 5F Gali-5F MC AZ SOT89 DC-4GHz MMIC amp 20 dB gain 5FR BC808-25R Phi R SOT23R BC328-25 5G BC808-40 Phi N SOT23 BC328-40 5Gs BC808-40 Sie N SOT23 BC328-40 5Gs BC808-40W Sie N SOT323 BC328-40 5G MMBD353 Mot D dual series MBD101 5GR BC808-40R Phi R SOT23R BC328-40 5H MMBD701 Mot C SOT23 MBD701 UHF schottky diode 5Hp BC808 Phi N SOT23 BC328 5HZ BC808 Zet N SOT23 BC328 5H MMBD4148 Nat C SOT23 1N4148 5I MMSD4148 Mot C 1N4148 5J FMMT38B Zet N BCX38B 5K MMBV809 Mot C SOT23 Hyperabrupt varicap 5Kp BAP64-05 Phi B dual cc 3GHz RF pin diode 5L MMBV609 Mot B SOT23 dual cc Hyperabrupt varicap 5N MMBD452L Mot D SOT23 series UHF schottky diodes 5P FMMT2907AR Zet R SOT23R 2N2907A 5P CMDZ27L CSC I SOD323 zener 250mW Iz 0.5mA 27V 5T BCW66GR Sie R SOT23R npn 45V 0.8A 350mW 5V BCW65BR Zet R SOT23R npn 32V 0.8A 5V1 PZM5.1NB Phi C SOT346 5.1V 0.3W zener 5V6 PZM5.6NB Phi C SOT346 5.6V 0.3W zener 5W BCW67BR Zet R SOT23R pnp 32V 0.8A 5Y1 BZV49-C5V1 Phi O SOT89 5.1V 1W zener 5Y6 BZV49-C5V6 Phi O SOT89 5.6V 1W zener Last Updated on 01/06/2006 By GM4PMK http://www.marsport.org.uk/smd/smd5.htm (5 of 5)27/5/2007 18:19:02
- 37. SMD Codebook Page 6 GM4PMK's SMD Codebook Codes beginning with '6' Code Device Manf Base Package Leaded Equivalent/Data 6 (red) BBY56-03W Sie I SOD323 varicap 60s BAR60 Sie QQ SOT143 3 pin diodes 605 NDS0605 Fch M SOT23 P-ch mosfet 60V 180mA 61s BAR61 Sie PQ SOT143 3 pin diodes pi atten 61A MMBF4117 Nat F n-ch jfet ultra low i/p Ig 61C MMBF4118 Nat F n-ch jfet ultra low i/p Ig 61A MMBF4119 Nat F n-ch jfet ultra low i/p Ig 61J MMBF4091 Nat F n-ch jfet sw/chopper 61K MMBF4092 Nat F n-ch jfet sw/chopper 61L MMBF4093 Nat F n-ch jfet sw/chopper 61M MMBF4859 Nat F n-ch jfet sw/chopper 61N MMBF5514 Nat F p-ch jfet sw/chopper 61P MMBF5115 Nat F p-ch jfet sw/chopper 61Q MMBF5516 Nat F p-ch jfet sw/chopper 61S MMBF5458 Nat F n-ch jfet gp 2N5458 61T MMBF5459 Nat F n-ch jfet gp 2N5459 61U MMBF5461 Nat F p-ch jfet gp 2N5461 61V MMBF5462 Nat F p-ch jfet gp 2N5462 62 EDZ3.6B Roh I EMD2 150mW zener 3.6V 62 VDZ3.6B Roh I VMD2 150mW zener 3.6V 62 DTC123YE Roh N EMT3 npn dtr 2k2 +10k 50V 100mA 62 DTC123YUA Roh N SC70 npn dtr 2k2 +10k 50V 100mA 62 DTC123YKA Roh N SC59 npn dtr 2k2 +10k 50V 100mA 62 GDZ3.6B Vis I SOD323 zener 200mW 3.6V 62P MMBFJ201 Nat F n-ch jfet gp J201 62Q MMBFJ202 Nat F n-ch jfet gp J202 62R MMBFJ203 Nat F n-ch jfet gp J203 62S MMBFJ270 Nat F p-ch jfet gp J270 http://www.marsport.org.uk/smd/smd6.htm (1 of 7)27/5/2007 18:19:09
- 38. SMD Codebook Page 6 62T MMBFJ271 Nat F p-ch jfet gp J271 62V PZM62NB1 Phi C SOT346 62V 0.3W zener 62Y BZV49-C62 Phi O SOT89 62V 1W zener 63s BAT64 Sie C SOT23 Schottky 40V 250mA gp 63s BAT64W Sie C SOT323 Schottky 40V 250mA gp 63Q MMBFJ304 Nat F n-ch jfet vhf J304 6-3 1PS70SB40 Phi C SOT323 gp Schottky 40V 120mA 6t3 1PS70SB40 Phi C SOT323 gp Schottky 40V 120mA 64 DTC114YE Roh N EMT3 npn dtr 10k + 47k 50V 100mA 64 DTC114YUA Roh N SC70 npn dtr 10k + 47k 50V 100mA 64 DTC114YKA Roh N SC59 npn dtr 10k + 47k 50V 100mA 64s BAT64-04 Sie D SOT23 dual ser gp Schottky 40V 250mA 64s BAT64-04W Sie D SOT323 dual ser gp Schottky 40V 250mA 6-4 1PS70SB44 Phi D SOT323 dual series gp Schottky 40V 120mA 6t4 1PS70SB44 Phi D SOT323 dual series gp Schottky 40V 120mA 65 RF071M2S Roh I PMDU diode 200V 0.7A HF rectifier 65 EDZ18B Roh I EMD2 150mW zener 18V 65 VDZ18B Roh I VMD2 150mW zener 18V 65s BAT64-05 Sie B SOT23 dual cc gp Schottky 40V 250mA 65s BAT64-05W Sie B SOT323 dual cc gp Schottky 40V 250mA 6-5 1PS70SB45 Phi B SOT323 dual cc gp Schottky 40V 120mA 6t5 1PS70SB45 Phi B SOT323 dual cc gp Schottky 40V 120mA 66 RF101ML2S Roh I PMDS diode 200V 1A HF rectifier 66s BAT64-06 Sie A SOT23 dual ca gp Schottky 40V 250mA 66s BAT64-06W Sie A SOT323 dual ca gp Schottky 40V 250mA 6-6 1PS70SB40 Phi A SOT323 dual ca gp Schottky 40V 120mA 6t6 1PS70SB40 Phi A SOT323 dual ca gp Schottky 40V 120mA 67s BAT64-07 Sie S SOT143 dual gp Schottky 40V 250mA 67s BAT64-07W Sie S SOT343 dual gp Schottky 40V 250mA 67 BFP67 Tfk X npn Rf fT 7.5GHz 10V 50mA 67R BFP67R Tfk WQ npn Rf fT 7.5GHz 10V 50mA 68 RF073M2S Roh I PMDU diode 200V 1A HF rectifier 68Y BZV49-C68 Phi O SOT89 68V 1W zener 68V PZM68NB1 Phi C SOT346 68V 0.3W zener http://www.marsport.org.uk/smd/smd6.htm (2 of 7)27/5/2007 18:19:09
- 39. SMD Codebook Page 6 69 RF103L2S Roh I PMDS HF rectifier diode 200V 1A 69 DTA114YE Mot N SOT416 pnp dtr 10k +47k 69 DTC115EE Roh N EMT3 npn dtr 100k+100k 50V 20mA 69 DTC115EUA Roh N SC70 npn dtr 100k+100k 50V 20mA 69 DTC115EKA Roh N SC59 npn dtr 100k+100k 50V 20mA 605 NDS0605 Fch M p-ch sw mosfet 60V 610 NDS0610 Fch M p-ch sw mosfet 60V 614 FMMT614 Zet N SOT23 sw 617 FMMT617 Zet N SOT23 npn sw 15V 3A 618 FMMT618 Zet N SOT23 npn sw 20V 2.5A 619 FMMT619 Zet N SOT23 npn sw 50V 2A 621 PZM6.2NB1 Phi C SOT346 6.2V 0.3W zener 622 PZM6.2NB2 Phi C SOT346 6.2V 0.3W zener 623 PZM6.2NB3 Phi C SOT346 6.2V 0.3W zener 624 FMMT624 Zet N SOT23 625 FMMT625 Zet N SOT23 634 FMMT634 Zet N SOT23 100V 0.9A darlington npn 651 PZT651 Mot N SOT223 npn 60V 1A 681 PZM6.8NB1 Phi C SOT346 6.8V 0.3W zener 682 PZM6.8NB2 Phi C SOT346 6.8V 0.3W zener 683 PZM6.8NB1 Phi C SOT346 6.8V 0.3W zener 6A MMBF4416 Mot ZC SOT23 2N4416 n-ch vhf jfet p6A PMBF4416 Phi ZC SOT23 2N4416 n-ch vhf jfet 6A MUN2111 Mot N SOT23 pnp dtr with 10k+10k 6A MUN5111 Mot N SOT323 pnp dtr with 10k+10k 6A BC817-16 Phi N SOT23 BC337-16 6As BC817-16 Sie N SOT23 BC337-16 6As BC817-16 Sie N SOT323 BC337-16 6Ap BC817-16W Phi N SOT23 BC337-16 6At BC817-16 Phi N SOT23 BC337-16 6At BC817-16W Phi N SOT323 BC337-16 6A- BC817-16W Phi N SOT323 BC337-16 6A2 PZM6.2NB2A Phi A SOT346 dual ca 6.2V 0.3W zener 6A8 PZM6.8NB2A Phi A SOT346 dual ca 6.8V 0.3W zener http://www.marsport.org.uk/smd/smd6.htm (3 of 7)27/5/2007 18:19:09
- 40. SMD Codebook Page 6 6AR BC817-16R Phi R SOT23 BC337-16 6AZ BC817-16 Zet N SOT23 BC337-16 6B MMBF5484 Mot ZC SOT23 n-ch jfet 2N5484 p6B PMBF5484 Phi ZC SOT23 n-ch jfet 2N5484 6B BC817-25 Phi N SOT23 BC337-25 6Bs BC817-25 Sie N SOT23 BC337-25 6Bs BC817-25W Sie N SOT323 BC337-25 6Bp BC817-25 Phi N SOT23 BC337-25 6Bt BC817-25 Phi N SOT23 BC337-25 6Bt BC817-25W Phi N SOT323 BC337-25 6B- BC817-25W Phi N SOT323 BC337-25 6B MUN2112 Mot N SOT23 pnp dtr 22k+22k 6B MUN5112 Mot N SOT323 MUN2112 6BR BC817-25R Phi R SOT23R BC337-25 6BZ BC817-25 Zet N SOT23 BC337-25 6C BC817-40 Phi N SOT23 BC337-40 6Cs BC817-40 Sie N SOT23 BC337-40 6Cs BC817-40W Sie N SOT323 BC337-40 6Cp BC817-40 Phi N SOT23 BC337-40 6Ct BC817-40 Phi N SOT23 BC337-40 6Ct BC817-40W Phi N SOT323 BC337-40 6C- BC817-40W Phi N SOT323 BC337-40 6C MMBFU310 Mot F SOT23 n-ch jfet U310 6C MUN2113 Mot N SOT23 pnp dtr 47k+47k 6C MUN5113 Mot N SOT323 MUN2113 6CR BC817-40R Phi R SOT23R BC337-40 6CZ BC817-40 Zet N SOT23 BC337-40 6Dp BC817 Phi N SOT23 BC337 6Dt BC817 Phi N SOT23 BC337 6Dt BC817W Phi N SOT323 BC337 6D- BC817W Phi N SOT323 BC337 6D MMBF5457 Mot F SOT23 2N5457 n-ch jfet 6D MUN2114 Mot N SOT23 pnp dtr 10k+47k 6D MUN5114 Mot N SOT323 MUN21141 http://www.marsport.org.uk/smd/smd6.htm (4 of 7)27/5/2007 18:19:09
- 41. SMD Codebook Page 6 6DZ BC817 Zet N SOT23 BC337 6E FMMT-A93R Zet R SOT23R MPSA93 6E MMBF5460 Mot F SOT23 p-ch jfet 2N5460 6E BC818-16 Phi N SOT23 BC338-16 6Es BC818-16 Sie N SOT23 BC338-16 6Es BC818-16W Sie N SOT323 BC338-16 6E MUN2115 Mot N SOT23 pnp dtr R1 10k 6E MUN5115 Mot N SOT323 MUN2115 6ER BC818-16R Phi R SOT23 BC338-16 6EZ BC818-16 Zet N SOT23 BC338-16 6F MMBF4860 Mot F SOT23 2N4860 n-ch jfet 6F BC818-25 Phi N SOT23 BC338-25 6Fs BC818-25 Sie N SOT23 BC338-25 6Fs BC818-25W Sie N SOT323 BC338-25 6F MUN2116 Mot N SOT23 pnp dtr R1 4k7 6F MUN5116 Mot N SOT323 MUN2116 6F Gali-6F MC AZ SOT89 DC-4GHz MMIC amp 12 dB gain 6FR BC818-25R Phi R SOT23R BC338-25 6FZ BC818-25 Zet N SOT23 BC338-25 6G BC818-40 Phi N SOT23 BC338-40 6Gs BC818-40 Sie N SOT23 BC338-40 6Gs BC818-40W Sie N SOT323 BC338-40 6G MMBF4393 Mot ZC SOT23 n-ch jfet 2N4393 6G MUN2130 Mot N SOT23 pnp dtr 1k0+1k0 6G MUN5130 Mot N SOT323 ial">MUN2130 6GR BC818-40R Phi R SOT23 BC338-40 6GZ BC818-40 Zet N SOT23 BC338-40 p6G PMBF4393 Phi ZC SOT23 n-ch jfet 2N4393 6Hp BC818 Phi N SOT23 BC338 6HZ BC818 Zet N SOT23 BC338 6H MMBF5486 Mot ZC SOT23 n-ch jfet 2N5486 p6H PMBF5486 Phi ZC SOT23 n-ch jfet 2N5486 6H MUN2131 Mot N SOT23 pnp dtr 2k2 +2k2 6H MUN5131 Mot N SOT323 MUN2121 http://www.marsport.org.uk/smd/smd6.htm (5 of 7)27/5/2007 18:19:09
- 42. SMD Codebook Page 6 6J MMBF4391 Mot F SOT23 n-ch jfet 2N4391 6J MUN2132 Mot N SOT23 pnp dtr 4k7+ 4k7 6J MUN5132 Mot N SOT323 MUN2132 p6J PMBF4391 Phi F SOT23 n-ch jfet 2N4391 6K MMBF4932 Mot F SOT23 n-ch jfet 2N4932 6K MUN2133 Mot N SOT23 pnp dtr 4k7+ 47k 6K MUN5133 Mot N SOT323 MUN2133 p6K PMBF4932 Phi F SOT23 n-ch jfet 2N4932 6L MMBF5459 Mot F SOT23 n-ch jfet 2N5459 6L MUN2134 Mot N SOT23 pnp dtr 22k+47k 6L MUN5134 Mot N SOT323 MUN2134 6M MMBF5485 Nat ZC SOT23 n-ch jfet vhf 2N5485 p6M PMBF5485 Nat ZC SOT23 n-ch jfet vhf 2N5485 6N MMBF4861 Nat F SOT23 n-ch jfet sw/chopper 6Q MMBFJ305 Nat F n-ch jfet vhf J305 6P MMBFJ111 Nat F J111 n-ch jfet 6P BCX71HR Phi R SOT23R BCX79 6R MMBFJ112 Nat F J112 n-ch jfet 6P MMBFJ113 Nat F J113 n-ch jfet 6P CMDZ30L CSC I SOD323 zener 250mW Iz 0.5mA 30V 6S MMBFJ176 Nat F J176 n-ch jfet 6S MMSD71 Mot C gp Si diode p6S PMBFJ176 Phi F J176 n-ch jfet 6T BCW68GR Sie R pnp 45V 0.8A 350mW 6T MMBFJ310 Mot F SOT23 uhf n-ch jfet J310 6U MMBFJ309 Nat F SOT23 uhf n-ch jfet J309 6V BCW65CR Zet R SOT23R npn 32V 0.8A 6V MMBFJ174 Nat F J174 p-ch jfet sw/chopper 6V2 PZM6.2NB Phi C SOT346 6.2V 0.3W zener 6V8 PZM6.8NB Phi C SOT346 6.8V 0.3W zener 6W BCW67CR Zet R SOT23R pnp32V 0.8A 6W MMBFJ175 Mot F SOT23 J175 p-ch jfet p6W PMBFJ175 Phi F SOT23 J175 p-ch jfet 6X MMBFJ174 Nat F J174 p-ch jfet sw/chopper http://www.marsport.org.uk/smd/smd6.htm (6 of 7)27/5/2007 18:19:09
- 43. SMD Codebook Page 6 p6X PMBFJ174 Phi F J174 p-ch jfet sw/chopper 6Y MMBFJ177 Mot F SOT23 J177 p-ch jfet p6Y PMBFJ177 Phi F SOT23 J177 p-ch jfet 6Y2 BZV49-C6V2 Phi O SOT89 6.2V 1W zener 6Y8 BZV49-C6V8 Phi O SOT89 6.8V 1W zener 6Z MMBF170 Mot M SOT23 tmosfet n-ch Vds 60V Last Updated on 01/06/2006 By GM4PMK http://www.marsport.org.uk/smd/smd6.htm (7 of 7)27/5/2007 18:19:09
- 44. SMD Codebook Page 7 GM4PMK's SMD Codebook Codes beginning with '7' Code Device Manf Base Package Leaded Equivalent/Data 7 BBY55-02W Sie I SCD80 UHF Varicap (white) 70 BFQ70 Sie CX SOT173 npn fT 5.2GHz 15V 35mA 7-0 1PS70SB10 Phi C SOT323 schottky diode 30V 0.2A 7t0 1PS70SB10 Phi C SOT323 schottky diode 30V 0.2A 71 BFQ71 Sie CX SOT173 npn fT 5.2GHz 15V 30mA 72 BFQ72 Sie CX SOT173 npn fT 5.1GHz 15V 50mA 72 2N7002 Sil M SOT23 n-ch mosfet 60V 170mA 72 GDZ3.9B Vis I SOD323 zener 200mW 3.9V 72 EDZ3.9B Roh I EMD2 150mW zener 3.9V 72 VDZ3.9B Roh I VMD2 150mW zener 3.9V 72 RB161M-20 Roh I PMDU schottky diode 1A 25V 73s BAS70 Sie C SOT23 schottky diode 70V 50mA 73p BAS70 Phi C SOT23 schottky diode 70V 50mA 73t BAS70 Phi C SOT23 schottky diode 70V 50mA 73t BAS70W Phi C SOT323 schottky diode 70V 50mA 73- BAS70W Phi C SOT323 schottky diode 70V 50mA 73 MA4CS101A M/A C SOT23 schottky diode 70V 50mA 73 BFQ73 Sie CX SOT173 npn fT 4.9GHz 15V 75mA 73 2SC5004 Nec N npn RF 5GHz @5V 5mA 73 RB161M-30 Roh I PMDU schottky diode 1A 30V 73S BFQ73S Sie CX SOT173 npn fT 5.3GHz 15V 100mA 74 BFQ74 Sie CX SOT173 npn fT 6GHz 16V 35mA 74s BAS70-04 Sie D SOT23 dual series BAS70 74p BAS70-04 Phi D SOT23 dual series BAS70 74t BAS70-04 Phi D SOT23 dual series BAS70 74t BAS70-04W Phi D SOT323 dual series BAS70 74t BAS70-04W Phi D SOT323 dual series BAS70 74 MA4CS101B M/A D SOT23 dual series MA4CS101A (73) http://www.marsport.org.uk/smd/smd7.htm (1 of 4)27/5/2007 18:19:15
- 45. SMD Codebook Page 7 74 DTA114WE Rho N EMT3 pnp dtr 10k + 4k7 50V 100mA 74 DTA114WUA Rho N SC70 pnp dtr 10k + 4k7 50V 100mA 74 DTA114WKA Rho N SC59 pnp dtr 10k + 4k7 50V 100mA 74 2SC5005 Nec N npn RF 5.5GHz @5V 5mA 74 RB160M-40 Roh I PMDU schottky diode 1A 40V 7-4 1PS70SB14 Phi D SOT323 dual series schottky diode 30V 0.2A 7t4 1PS70SB14 Phi D SOT323 dual series schottky diode 30V 0.2A 75 RSX101M-30 Roh I PMDU schottky diode 1A 30V 75s BAS70-05 Sie B SOT23 dual cc BAS70 75s BAS70-05W Sie B SOT323 dual cc BAS70 75p BAS70-05 Phi B SOT23 dual cc BAS70 75t BAS70-05W Phi B SOT323 dual cc BAS70 75t BAS70-05 Phi B SOT23 dual cc BAS70 75- BAS70-05W Phi B SOT323 dual cc BAS70 75 BFQ75 Sie CX SOT173 pnp fT 5GHz 12V 50mA 75 EDZ20B Roh I EMD2 150mW zener 20V 75 VDZ20B Roh I VMD2 150mW zener 20V 7-5 1PS70SB15 Phi B SOT323 dual cc schottky diode 30V 0.2A 7t5 1PS70SB15 Phi B SOT323 dual cc schottky diode 30V 0.2A 75Y BZV49-C75 Phi O SOT89 75V 1W zener 76 RB160M-60 Roh I PMDU schottky diode 1A 60V 76s BAS70-06 Sie A SOT23 dual ca BAS70 76p BAS70-06 Phi A SOT23 dual ca BAS70 76t BAS70-06 Phi A SOT23 dual ca BAS70 76t BAS70-06W Phi A SOT323 dual ca BAS70 76- BAS70-06W Phi A SOT323 dual ca BAS70 76 BFQ76 Sie CX SOT173 pnp fT 5GHz 15V 30mA 76 DTA144WE Rho N EMT3 pnp dtr 47k + 22k 50V 30mA 76 DTA144WUA Rho N SC70 pnp dtr 47k + 22k 50V 30mA 76 DTA144WKA Rho N SC59 pnp dtr 47k + 22k 50V 30mA 7-6 1PS70SB16 Phi A SOT323 dual ca schottky diode 30V 0.2A 7t6 1PS70SB16 Phi A SOT323 dual ca schottky diode 30V 0.2A 77s BAS70-07 Sie S SOT143 dual BAS70 77s BAS70-07 Sie S SOT343 dual BAS70 77 MA4CS101E M/A S SOT143 dual MA4CS101A (73) http://www.marsport.org.uk/smd/smd7.htm (2 of 4)27/5/2007 18:19:15
- 46. SMD Codebook Page 7 77 BFQ77 Sie CX SOT173 npn fT 7GHz 15V 20mA 78 MMBT4258 Nat N SOT23 pnp sw fT 700MHz 79 RB1070M-30 Roh I PMDU schottky diode 1.5A 30V 701 2N7001 Mot M SOT23 n-ch mosfet 702 2N7002 Mot M SOT23 n-ch mosfet 60V 0.11A 703 2N7003 Mot M SOT23 n-ch mosfet 712 NDS7002A Nat M SOT23 n-ch mosfet 60V 0.28A 717 FMMT717 Zet N SOT23 pnp sw 0.625W 2.5A 12V 718 FMMT718 Zet N SOT23 pnp sw 0.625W 1.5A 20V 720 FMMT720 Zet N SOT23 pnp sw 0.625W 1.5A 722 FMMT722 Zet N SOT23 pnp sw 723 FMMT723 Zet N SOT23 pnp sw 751 PZM7.5NB1 Phi C SOT346 7.5V 0.3W zener 752 PZM7.5NB2 Phi C SOT346 7.5V 0.3W zener 753 PZM7.5NB3 Phi C SOT346 7.5V 0.3W zener 7A MMBR901 Mot N SOT23 npn RF MRF901 7A MUN5211DW1 Mot DN SOT363 dual npn dtr 10k+10k 7A5 PZM7.5NB2A Phi A SOT346 dual ca 7.5V 0.3W zener 7B MMBR920 Mot N SOT23 npn RF ?MRF920 7B UMZC6.8N Roh A UMD3 dual ESDca zener 6.8V 0.2W 7B STZC6.8N Roh A SMD3 dual ESDca zener 6.8V 0.2W 7B MUN5212DW1 Mot DN SOT363 dual npn dtr 22k+22k 7C MMBR930 Mot N SOT23 npn RF ?MRF930 7C MUN5213DW1 Mot DN SOT363 dual npn dtr 47k+47k 7D MMBR931 Mot N SOT23 npn RF ?MRF931 7D HD4A Zet A ca dual HD3A 7D UMZC6.2N Roh A UMD3 dual ESDca zener 6.82V 0.2W 7D MUN5214DW1 Mot DN SOT363 dual npn dtr 10k+47k 7E FMMT-A42R Zet R MPSA42 7E MMBR2060 Mot N npn RF fT 1GHz Vce 30V 50mA 7E MUN5215DW1 Mot DN SOT363 dual npn 10k base res 7F MMBR4957 Mot N npn RF fT 1.2GHz 30V 30mA 7F MUN5211DW1 Mot DN SOT363 dual npn dtr R1 4k7 7G MMBR5031 Mot N SOT23 npn RF fT 1GHz 10V 20mA 7G MUN5230DW1 Mot DN SOT363 dual npn dtr 1k0+1k0 http://www.marsport.org.uk/smd/smd7.htm (3 of 4)27/5/2007 18:19:15
- 47. SMD Codebook Page 7 7H MMBR5179 Mot N SOT23 npn RF 2N5179/BFY90 7H MUN5231DW1 Mot DN SOT363 dual npn dtr 2k2+2k2 7J FMMT38C Zet N SOT23 BCX38C 7J MUN5232DW1 Mot DN SOT363 dual npn dtr 4k7+4k7 7K MMBR2857 Mot N npn RF fT 1GHz Vce 15V 40mA 7K MUN5233DW1 Mot DN SOT363 dual npn dtr 4k7+47k bias 7L MUN5234DW1 Mot DN SOT3636 dual npn dtr 22k+47k bias 7M MUN5235DW1 Mot DN SOT363 dual npn dtr 2k2+47k bias 7M MMBR521L Mot N SOT23 pnp RF MRF521 7M BCW66HR Zet R SOT23R npn 45V 0.8A 7N MMBR941BL Mot N SOT23 npn RF fT 8GHx MRF941 7N BCW68HR Zet R SOT23 pnp 45V 0.8A 7N CMDZ1L8 CSC I SOD323 zener 250mW Iz 0.5mA 1.8V 7P BCW66FR SGS R SOT23R npn 45V 0.8A 350mW 7P MMBR911L Mot N SOT23 npn RF fT 6GHz MRF911 7P CMDZ33L CSC I SOD323 zener 250mW Iz 0.5mA 33V 7R MMBR536 Mot N npn RF MRF536 7T BCW68FR Zet R SOT23R pnp 45V 0.8A 7V5 PZM7.5NB Phi C SOT346 7.5V 0.3W zener 7X MMBR571L Mot N SOT23 npn RF fT 8GHz MRF571 7Y MMBR941L Mot N SOT23 npn RF fT 8GHz MRF941 7Y5 BZV49-C7V5 Phi O SOT89 7.5V 1W zener 7Z MMBR951L Mot N SOT23 npn RF fT7.5GHz MRF951 Last Updated on 01/06/2006 By G4PMK http://www.marsport.org.uk/smd/smd7.htm (4 of 4)27/5/2007 18:19:15
- 48. SMD Code Book Page 8 GM4PMK's SMD Codebook Codes beginning with '8' Code Device Manf Base Package Leaded Equivalent/Data 8 (yellow) BBY58-03W Sie I SOD323 varicap 8 BB178 Phi I SOD523 VHF varicap 2.5-16pf 81 ZMV831BV2 Zet I SOD523 28V hyperabrupt varicap 15pF @2V 81A MMBZ5250B Mot C SOT23 20V zener 0.225W 81A PMBZ5250B Phi C SOT23 20V zener 0.225W 81B MMBZ5251B Mot C SOT23 22V zener 0.225W 81B PMBZ5251B Phi C SOT23 22V zener 0.225W 81C MMBZ5252B Mot C SOT23 24V zener 0.225W 81C PMBZ5252B Phi C SOT23 24V zener 0.225W 81D MMBZ5253B Mot C SOT23 25V zener 0.225W 81D PMBZ5253B Phi C SOT23 25V zener 0.225W 81E MMBZ5254B Mot C SOT23 27V zener 0.225W 81E PMBZ5254B Mot C SOT23 27V zener 0.225W 81F MMBZ5255B Mot C SOT23 28V zener 0.225W 81F PMBZ5255B Sie C SOT23 28V zener 0.225W 81G MMBZ5256B Mot C SOT23 30V zener 0.225W 81G PMBZ5256B Phi C SOT23 30V zener 0.225W 81H MMBZ5257B Mot C SOT23 33V zener 0.225W 81H PMBZ5257B Phi C SOT23 33V zener 0.225W 81J MMBZ5258B Vis C SOT23 36V zener 300mW 81K MMBZ5259B Vis C SOT23 39V zener 300mW 81M MMBZ5261B Vis C SOT23 47V zener 300mW 81N MMBZ5262B Vis C SOT23 51V zener 300mW 81P MMBZ5263B Vis C SOT23 56V zener 300mW 81Q MMBZ5264B Vis C SOT23 60V zener 300mW 81R MMBZ5265B Vis C SOT23 62V zener 300mW 81S MMBZ5266B Vis C SOT23 68V zener 300mW 81T MMBZ5267B Vis C SOT23 75V zener 300mW http://www.marsport.org.uk/smd/smd8.htm (1 of 5)27/5/2007 18:19:21
- 49. SMD Code Book Page 8 82 2SC5009 Nec N npn RF fT 12GHz @ 3V 5mA 82 ZMV832BV2 Zet I SOD523 28V hyperabrupt varicap 22pF @2V 82 GDZ4.3B Vis I SOD323 zener 200mW 4.3V 82 EDZ4.3B Roh I EMD2 150mW zener 4.3V 82 VDZ4.3B Roh I VMD2 150mW zener 4.3V 82R S886TR Vis UQ SOT143R biased n-ch dg uhf mosfet for TV 12V 82P BFP182T Tfk X npn RF fT 7.5GHz 10V 35mA 83 MMBT4400 Nat N npn 2N4400 83 RB160M-90 Roh I PMDU schottky diode 1A 90V 83s BAT68 Sie C SOT23 gp Schottky 8V 130mA 83s BAT68W Sie C SOT323 gp Schottky 8V 130mA 83 2SC5010 Nec N npn RF fT 12GHz 3V 10mA 83 MA4CS102A M/A C SOT23 schottky diode 8V 30mA 83P BFP183T Tfk X npn RF fT 7.4GHz 10V 65mA 84s BAT68-04 Sie D SOT23 dual ser gp Schottky 8V 130mA 84s BAT68-04W Sie D SOT323 dual ser gp Schottky 8V 130mA 84 MA4CS102B M/A D SOT23 dual ser schottky diode 8V 30mA 84 DTC114WE Rho N EMT3 npn dtr 10k + 4k7 50V 100mA 84 DTC114WUA Rho N SC70 npn dtr 10k + 4k7 50V 100mA 84 DTC114WKA Rho N SC59 npn dtr 10k + 4k7 50V 100mA 85 MMBD1701 Nat C Fast Si diode 30V 50mA 85 MA4CS102A M/A B SOT23 dual cc schottky diode 8V 30mA 85 EDZ22B Roh I EMD2 150mW zener 22V 85 VDZ22B Roh I VMD2 150mW zener 22V 85s BAT68-05 Sie B SOT23 gp dual cc Schottky 8V 130mA 85s BAT68-05W Sie B SOT323 gp dual cc Schottky 8V 130mA 86 MMBD1702 Nat K Fast Si diode 30V 50mA 86 DTC144WE Rho N EMT3 npn dtr 47k + 22k 50V 30mA 86 DTC144WUA Rho N SC70 npn dtr 47k + 22k 50V 30mA 86 DTC144WKA Rho N SC59 npn dtr 47k + 22k 50V 30mA 86s BAT68-06 Sie A SOT23 gp dual ca Schottky 8V 130mA 86s BAT68-06W Sie A SOT323 gp dual ca Schottky 8V 130mA 87 MMBD1703 Nat D dual ser MMBD1701 http://www.marsport.org.uk/smd/smd8.htm (2 of 5)27/5/2007 18:19:21
- 50. SMD Code Book Page 8 87 MA4CS102A M/A S SOT143 dual schottky diode 8V 30mA 87s BAT68-07 Sie S SOT143 gp dual schottky 8V 130mA 88 MMBD1704 Nat B dual cc MMBD1701 89 MMBD1705 Nat A dual ca MMBD1701 821 PZM8.2NB1 Phi C SOT23 8.2V 0.3W zener 822 PZM8.2NB2 Phi C SOT23 8.2V 0.3W zener 822 S822T Tfk X npn RF fT 5.2GHz 6V 8mA 823 PZM8.2NB3 Phi C SOT23 8.2V 0.3W zener 849 S849T Vis W SOT143 biased n-ch dg uhf mosfet for TV 12V 852 S852T Tfk N SOT23 npn RF fT 5.2GHz 6V 8mA 887 S887T Tfk W SOT143 n-ch dg uhf mosfet 888 S888T Tfk W SOT142 n-ch dg uhf mosfet 8A NJM78L02A NJR KQ SOT89 78L 2.0V 0.1A regulator 8A MMBZ5226B Mot C SOT23 3.3V zener 0.225W 8A MUN2211 Mot N SOT23 npn dtr 10k +10k 8A MUN5211 Mot N SOT323 npn dtr 10k +10k 8A 2DA1774Q Dio N SOT523 gp pnp 60V 150mA hfe 120-270 8A2 PZM8.2NB2A Phi C SOT23 dual ca 8.2V 0.3W zener 8B NJM78L03A NJR KQ SOT89 78L 3.0V 0.1A regulator 8B MMBZ5227B Mot C SOT23 3.6V zener 0.225W 8B MUN2212 Mot N SOT23 npn dtr 22k+22k 8B MUN5212 Mot N SOT323 npn dtr 22k+22k 8B 2DA1774Q Dio N SOT523 gp pnp 60V 150mA hfe 180-390 8C NJM78L05A NJR KQ SOT89 78L 5.0V 0.1A regulator 8C MMBZ5228B Mot C SOT23 3.9V zener 0.225W 8C MUN2213 Mot N SOT23 npn dtr 47k + 47k 8C MUN5213 Mot N SOT323 npn dtr 47k + 47k 8C 2DA1774S Dio N SOT523 gp pnp 60V 150mA hfe 270-560 8D MUN2214 Mot N SOT23 npn dtr 10k + 47k 8D MUN5214 Mot N SOT323 MUN2214 8D 2DC4617Q Dio N SOT523 gp npn 60V 150mA hfe 120-270 8E NJM78L06A NJR KQ SOT89 78L 6.0V 0.1A regulator 8E FMMT-A92R Zet R SOT23R MPSA92 8E MMBZ5230B Mot C SOT23 4.7V zener 0.225W 8E MUN2215 Mot N SOT23 npn dtr R1 10k http://www.marsport.org.uk/smd/smd8.htm (3 of 5)27/5/2007 18:19:21
- 51. SMD Code Book Page 8 8E MUN5215 Mot N SOT323 npn dtr R1 10k 8E 2DC4617R Dio N SOT523 gp npn 60V 150mA hfe 180-390 8F NJM78L07A NJR KQ SOT89 78L 7.0V 0.1A regulator 8F MMBZ5231B Mot C SOT23 5.1V zener 0.225W 8F MUN2216 Mot N SOT23 npn dtr R1 4k7 8F MUN5216 Mot N SOT323 MUN2216 8F 2DC4617S Dio N SOT523 gp npn 60V 150mA hfe 270-560 8G NJM78L08A NJR KQ SOT89 78L 8.0V 0.1A regulator 8G MMBZ5232B Mot C SOT23 5.6V zener 0.225W 8G MUN2230 Mot N SOT23 npn dtr 1k0+1k0 8G MUN5230 Mot N SOT323 npn dtr 1k0+1k0 8H NJM78L09A NJR KQ SOT89 78L 9.0V 0.1A regulator 8H MMBZ5233B Mot C SOT23 6.0V zener 0.225W 8H MUN2231 Mot N SOT23 npn dtr 2k2+2k2 8H MUN5231 Mot N SOT323 npn dtr 2k2+2k2 8J NJM78L10A NJR KQ SOT89 78L 10V 0.1A regulator 8J MMBZ5234B Mot C SOT23 6.2V zener 0.225W 8J MUN2232 Mot N SOT23 npn dtr 4k7+ 4k7 8J MUN5232 Mot N SOT323 npn dtr 4k7+ 4k7 8K NJM78L12A NJR KQ SOT89 78L 12V 0.1A regulator 8K MMBZ5235B Mot C SOT23 6.8V zener 0.225W 8K MUN2233 Mot N SOT23 npn dtr 4k7+ 47k 8K MUN5233 Mot N SOT323 npn dtr 4k7+ 47k 8L NJM78L15A NJR KQ SOT89 78L 15V 0.1A regulator 8L MMBZ5236B Mot C SOT23 7.5V zener 0.225W 8L MUN2234 Mot N SOT23 npn dtr 22k + 47k 8L MUN5234 Mot N SOT323 npn dtr 22k + 47k 8M NJM78L18A NJR KQ SOT89 78L 18V 0.1A regulator 8M MMBZ5237B Mot C SOT23 8.2V zener 0.225W 8N NJM78L20A NJR KQ SOT89 78L 20V 0.1A regulator 8N MMBZ5238B Mot C SOT23 8.7V zener 0.225W 8N CMDZ2L0 CSC I SOD323 zener 250mW Iz 0.5mA 2.0V 8P NJM78L24A NJR KQ SOT89 78L 24V 0.1A regulator 8P MMBZ5239B Mot C SOT23 9.1V zener 0.225W 8P CMDZ36L CSC I SOD323 zener 250mW Iz 0.5mA 36V http://www.marsport.org.uk/smd/smd8.htm (4 of 5)27/5/2007 18:19:21
- 52. SMD Code Book Page 8 8Q MMBZ5240B Mot C SOT23 10V zener 0.225W 8R MMBZ5241B Mot C SOT23 11V zener 0.225W 8S MMBZ5242B Mot C SOT23 12V zener 0.225W 8T MMBZ5243B Mot C SOT23 13V zener 0.225W 8U MMBZ5244B Mot C SOT23 14V zener 0.225W 8V MMBZ5245B Mot C SOT23 15V zener 0.225W 8V2 PZM8.2NB Phi C SOT23 8.2V 0.3W zener 8W MMBZ5246B Mot C SOT23 16V zener 0.225W 8X MMBZ5247B Mot C SOT23 17V zener 0.225W 8Y MMBZ5248B Mot C SOT23 18V zener 0.225W 8Y2 BZV49-C8V2 Phi O SOT89 8.2V 1W zener 8Z NJM78L62A NJR KQ SOT89 78L 6.2V 0.1A regulator 8Z MMBZ5249B Mot C SOT23 19V zener 0.225W Last Updated on 01/06/2006 By GM4PMK http://www.marsport.org.uk/smd/smd8.htm (5 of 5)27/5/2007 18:19:21
- 53. SMD Code Book Page 9 GM4PMK's SMD Codebook Codes beginning with '9' Code Device Manf Base Package Leaded Equivalent/Data 9 BC849 Mot N SOT23 BC 549B 9 BB179 Phi I SOD523 UHF varicap 2-11.5pf 91 ZV931V2 Zet I SOD523 4-13.5pF hyperabrupt varicap 91 DTA113TKA Roh N SC59 pnp dtr R11k0 50V 100mA 91A FMMT591A Zet N SOT23 pnp 40V 1A 0.5W fT 150 MHz 92 ZV932V2 Zet I SOD523 5.5-17pF hyperabrupt varicap 92 GDZ4.7B Vis I SOD323 zener 200mW 4.7V 92 EDZ4.7B Roh I EMD2 150mW zener 4.7V 92 VDZ4.7B Roh I VMD2 150mW zener 4.7V 92V BFP92A Tfk W npn RF 6GHz 16V 30mA 93 ZV933V2 Zet I SOD523 12-42pF hyperabrupt varicap 93 DTA143TE Roh N EMT3 pnp dtr R1 4k7 50V 100mA 93 DTA143TUA Roh N SC70 pnp dtr R1 4k7 50V 100mA 93 DTA143TKA Roh N SC59 pnp dtr R1 4k7 50V 100mA 93R S593TR Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners 94 DTA114TE Roh N EMT3 pnp dtr R1 10k 50V 100mA 94 DTA114TUA Roh N SC70 pnp dtr R1 10k 50V 100mA 94 DTA114TKA Roh N SC59 pnp dtr R1 10k 50V 100mA 94R S594TR Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners 95 DTA124TE Roh N EMT3 pnp dtr R1 22k 50V 100mA 95 DTA124TCA Roh N SOT23 pnp dtr R1 22k 50V 100mA 95 DTA124TKA Roh N SC59 pnp dtr R1 22k 50V 100mA 25 EDZ24B Roh I EMD2 150mW zener 24V 25 VDZ24B Roh I VMD2 150mW zener 24V 95R S595TR Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners 96 DTA144TE Roh N EMT3 pnp dtr R1 47k 50V 100mA 96 DTA144TUA Roh N SC70 pnp dtr R1 47k 50V 100mA http://www.marsport.org.uk/smd/smd9.htm (1 of 3)27/5/2007 18:19:25
- 54. SMD Code Book Page 9 96 DTA144TKA Roh N SC59 pnp dtr R1 47k 50V 100mA 99 DTA115TE Roh N EMT3 pnp dtr R1 100k 50V 100mA 99 DTA115TUA Roh N SC70 pnp dtr R1 100k 50V 100mA 99 DTA115TKA Roh N SC59 pnp dtr R1 100k 50V 100mA 99R S949TR Vis UQ SOT143R biased dg uhf mosfet MOSIC for TV tuners 9V 911 PZM9.1NB1 Phi C SOT346 9.1V 0.3W zener 912 PZM9.1NB2 Phi C SOT346 9.1V 0.3W zener 913 PZM9.1NB3 Phi C SOT346 9.1V 0.3W zener 913 S913T Vis W SOT143 biased dg mosfet MOSIC 9V uhf tv tuners 949 S949T Vis W SOT143 biased dg uhf mosfet MOSIC for TV tuners 9V 982 S886T Vis W SOT143 biased dg uhf mosfet MOSIC for TV tuners 12V 9A FMMT2369AR Zet R SOT23 2N2369A 9A DTA125TUA Roh N SC70 pnp dtr R1 200k 50V 100mA 9A DTA125TKA Roh N SC59 pnp dtr R1 200k 50V 100mA 9A PLVA650A Phi C SOT23 5.0V avalanche reg diode 9A1 PZM9.1NB2A Phi A SOT346 dual ca 9.1V 0.3W zener 9B NJM79L03UA NJR KQR SOT89 79L reg 3.0V 0.1A 9B PLVA653A Phi C SOT23 5.3V avalanche reg diode 9C NJM79L05UA NJR KQR SOT89 79L reg 5.0V 0.1A 9C PLVA656A Phi C SOT23 5.6V avalanche reg diode 9D PLVA659A Phi C SOT23 5.9V avalanche reg diode 9E NJM79L06UA NJR KQR SOT89 79L reg 6.0V 0.1A 9E PLVA662A Phi C SOT23 6.2V avalanche reg diode 9F PLVA665A Phi C SOT23 6.5V avalanche reg diode 9G NJM79L08UA NJR KQR SOT89 79L reg 8.0V 0.1A 9G PLVA668A Phi C SOT23 6.8V avalanche reg diode 9H NJM79L09UA NJR KQR SOT89 79L reg 9.0V 0.1A 9J PLVA2650A Phi A SOT23 dual ca 5.0V reg diode 9K NJM79L12UA NJR KQR SOT89 79L reg 12V 0.1A 9K PLVA2653A Phi A SOT23 dual ca 5.3V reg diode 9L NJM79L15UA NJR KQR SOT89 79L reg 15V 0.1A 9L PLVA2656A Phi A SOT23 dual 5.60V reg diode http://www.marsport.org.uk/smd/smd9.htm (2 of 3)27/5/2007 18:19:25
- 55. SMD Code Book Page 9 9M NJM79L18UA NJR KQR SOT89 79L reg 18V 0.1A 9M PLVA2659A Phi A SOT23 dual ca 5.9V reg diode 9N PLVA2662A Phi A SOT23 dual ca 6.2V reg diode 9N CMDZ2L2 CSC I SOD323 zener 250mW Iz 0.5mA 2.2V 9O PLVA2665A Phi A SOT23 dual ca 6.5V reg diode 9P NJM79L24UA NJR KQR SOT89 79L reg 24V 0.1A 9P PLVA2668A Phi A SOT23 dual ca 6.8V reg diode 9P BCX70HR Zet R SOT23 BCX70H 9P CMDZ39L CSC I SOD323 zener 250mW Iz 0.5mA 39V 9R FMMT2369R Zet R SOT23 2N2369 9V1 PZM9.1NB Phi C SOT346 9.1V 0.3W zener 9Y1 BZV49-C9V1 Phi O SOT89 9.1V 1W zener Last Updated on 01/06/2006 By GM4PMK http://www.marsport.org.uk/smd/smd9.htm (3 of 3)27/5/2007 18:19:25
- 56. SMD Codebook Page A GM4PMK's SMD Codebook Codes beginning with 'A' Code Device Manf Base Package Leaded Equivalent/Data A BA892 Sie I SCD80 35V 100mA pin A 1SS355 Roh I USM 100V 50mA sw A MRF947 Mot N SOT323 npn RF 8 GHz A0 HSMS-2800 HP C SOT23 HP2800 schottky A0 HSMS-280B HP C SOT323 HP2800 schottky A03 VAM-03 MC AQ modamp MAR 3 Similar A06 VAM-06 MC AQ modamp MAR 6 Similar A07 VAM-07 MC AQ modamp MAR 7 Similar A1 HSMS-2801 HP K HP2800 schottky A1 BAW56W Phi A SOT323 dual ca BAW62 (1N4148) A1 BAW56 Phi A SOT23 dual ca BAW62 (1N4148) A1 BAW56 Phi A SOT23 dual ca BAW62 (1N4148) A1p BAW56 Phi A SOT23 dual ca BAW62 (1N4148) A1t BAW56T Phi A SOT416 dual ca BAW62 (1N4148) A1t BAW56S Phi SOT363 dual ca BAW62 (1N4148) A1s BAW56W Sie A SOT323 dual ca BAW62 (1N4148) A1s BAW56 Sie A SOT23 dual ca BAW62 (1N4148) A1s BAW56U Sie A SC74 dual ca BAW62 (1N4148) A1X MBAW56 Mot A ditto A2 HSMS-2802 HP D SOT23 dual HP2800 A2 HSMS-280C HP D SOT323 dual HP2800 A2 1N4148W CSC I SOD123 1N4148 A2 BAT18 Phi C SOT23 BA482 A2s BAT18 Sie C SOT23 BA482 A2 MMBD2836 Mot A SOT23 dual ca sw diode 75V A2 CFY30 Sie CQ SOT143 n-ch GaAsfet 6 GHz A2 MBT3906DW1 Mot DO SOT363 dual 2N3906 A2 EDZ5.1B Roh I EMD2 150mW zener 5.1V A2 VDZ5.1B Roh I VMD2 150mW zener 5.1V http://www.marsport.org.uk/smd/smda.htm (1 of 11)27/5/2007 18:19:35
- 57. SMD Codebook Page A A22 BAS21 Phi C SOD27 BAV21 A2X MMBD2836 Mot A SOT23 dual ca sw 75V 100mA 15ns A3 BAP64-03 Phi I SOD323 3 GHz pin diode A3 HSMS-2803 HP D SOT23 HP2800 ser pair A3 MMBD1005 Mot A SOT23 dual ca Si diode low leakage A3 BAS16 Zet C Si sw 75V 100mA A3 BAT17 Phi C SOT23 BA481 A3 1N4448W CSC I SOD123 1N4448 A3p BAT17 Phi C SOT23 BA481 A3t BAT17 Phi C SOT23 BA481 A3 MBT3906DW Mot N SOT363 dual 2N3906 A3X MMBD2835 Mot A SOT23 dual ca sw 35V 100mA 15nS A4 HSMS-2804 HP B SOT23 dual cc HP2800 schottky A4 1SS383 Tosh DT USQ 2 x 40V 0.1A schottky A4 1SS383 Tosh DT SMQ/ SC61 2 x 40V 0.1A schottky A4 1N4150W CSC I SOD123 1N4150 A4s BAV70W Sie B SOT323 dual cc BAW62 A4s BAV70 Sie B SOT23 dual cc BAW62 A4s BAV70T Sie B SOT416 dual cc BAW62 A4s BAV70U Sie B SC74 dual cc BAW62 A4 BAV70W Phi B SOT323 dual cc BAW62 A4p BAV70 Phi B SOT23 dual cc BAW62 A4t BAV70 Phi B SOT23 dual cc BAW62 A4t BAV70 Phi B SOT363 dual cc BAW62 A4X MBAV70 Mot B ditto A5 BAP51-03 Phi I SOD323 GP RF pin diode A5p BRY61 Phi SOT143 A5t BRY61 Phi SOT143 A5 HSMS-2805 HP S SOT143 dual HP2800 schottky A5 1SS384 Tosh DT USM dua 10V/100ma Schottky A5 1SS391 Tosh DT SC61 dua 10V/100ma Schottky A5 MMBD1010 Mot B SOT23 dual cc Si diodes A5 MMBD2837 Mot B SOT23 dual cc diodes 30V 150mA A5 1N4151W CSC I SOD123 1N4151 A5 EDZ27B Roh I EMD2 150mW zener 27V http://www.marsport.org.uk/smd/smda.htm (2 of 11)27/5/2007 18:19:35
- 58. SMD Codebook Page A A5 VDZ27B Roh I VMD2 150mW zener 27V A6s BAS16W Sie C SOT323 BAW62 (1N4148) A6s BAS16 Sie C SOT23 BAW62 (1N4148) A6s BAS16U Sie C SC74 BAW62 (1N4148) A6 BAS16W Phi C SOT323 BAW62 (1N4148) A6p BAS16 Phi C SOT23 BAW62 (1N4148) A6t BAS16 Phi C SOT23 BAW62 (1N4148) A6 BAS16T Phi C SOT416 BAW62 (1N4148) A6 BAS216 Phi I SOD110 BAW62 (1N4148) A6 BAS16D CSC I SOD123 BAW62 A6p BAS316 Phi I SOD323 BAW62 (1N4148) A6 MMBD2836 Mot B SOT23 dual sw diode cc 75V A6 HN2S01FU Tosh DV US6 3 x 10V 0.1A schottky A6 HN2S01F Tosh DV SM6 3 x 10V 0.1A schottky A6A MMUN2111 Mot N SOT23 pnp dtr 10k+10k A6B MMUN2112 Mot N SOT23 pnp dtr 22k+22k A6C MMUN2113 Mot N SOT23 pnp dtr 47k+47k A6D MMUN2114 Mot N SOT23 pnp dtr 100k+100k A6E MMUN2115 Mot N SOT23 pnp dtr R1 10k A6F MMUN2116 Mot N SOT23 pnp dtr R1 4k7 A6G MMUN2130 Mot N SOT23 pnp dtr 1k0+1k0 A6H MMUN2131 Mot N SOT23 pnp dtr 2k2+2k2 A6J MMUN2132 Mot N SOT23 pnp dtr 4k7+4k7 A6K MMUN2133 Mot N SOT23 pnp dtr 4k7+47k A6L MMUN2134 Mot N SOT23 pnp dtr 22k+47k A6X MMBD2838 Mot B SOT23 dual sw 50V 100mA A7s BAV99 Sie D SOT23 dual ser BAW92 A7s BAV99W Sie D SOT323 dual ser BAW92 A7s BAV99T Sie D SC75 dual ser BAW92 A7s BAV99U Sie D SC74 dual ser BAW92 A7 BAV99W Phi D SOT323 dual ser BAW92 A7 BAV99 Phi D SOT23 dual ser BAW92 A7 HSMS-2807 HP RQ SOT143 HP2800 ring quad A7 1SS402 Tosh DT USM 2 x 20V 50mA schottky A8 HSMS-2808 HP BQ SOT143 HP2800 bridge quad http://www.marsport.org.uk/smd/smda.htm (3 of 11)27/5/2007 18:19:35
- 59. SMD Codebook Page A A8 BAP50-03 Phi I SOD323 GP RF pin diode A8 BAV19W CSC I SOD123 sw diode BAV19 A8 BAS19 Phi C SOT23 BAV19 A7 HN2S03FU Tosh DT US6 3 x 20V 50mA schottky A7p BFG310W/XR Phi WQ SOT343R npn RF ft 14 GHz 6V 60mW A8 SI2308DS Sil M SOT23 N-ch mosfet, 60V 0.1A A8A MMUN2211 Mot N SOT23 npn dtr 10k +10k A8B MMUN2212 Mot N SOT23 npn dtr 22k +22k A8C MMUN2213 Mot N SOT23 npn dtr 47k+47k A8D MMUN2214 Mot N SOT23 npn dtr 100k+100k A8E MMUN2215 Mot N SOT23 npn dtr R1 10k A8F MMUN2216 Mot N SOT23 npn dtr R1 4k7 A8G MMUN2230 Mot N SOT23 npn dtr 1k0 +1k0 A8H MMUN2231 Mot N SOT23 npn dtr 2k2+2k2 A8J MMUN2232 Mot N SOT23 npn dtr 4k7+4k7 A8K MMUN2233 Mot N SOT23 npn dtr 4k7+47k A8L MMUN2234 Mot N SOT23 npn dtr 22k+47k A9 SI2309DS Sil M SOT23 P-ch mosfet, 60V 0.1A A9 BAV20W CSC I SOD123 sw diode BAV20 A9 HN2S02FU Tosh DV US6 3 x 40 V 0.1A schottky A9 1SS322 Tosh C SC70 40V 0.1A schottky A9 1SS294 Tosh C SC59 40V 0.1A schottky A11 MMBD1501A Fch C SOT23 180V 200mA diode A13 MMBD1503A Fch D SOT23 180V 200mA dual diode series A14 MMBD1504A Fch B SOT23 180V 200mA dual diode cc A15 MMBD1505A Fch A SOT23 180V 200mA dual diode ca A16 ZC934A Zet C SOT23 25-95pF hyperabrupt varicap A17 ZC933A Zet C SOT23 12-42pF hyperabrupt varicap A51 BRY62 Phi SOT143 A61 BAS28 CSC S SOT143 dual fast sw diodes A81 BAS20 Phi C SOT23 BAV20 A82 BAS21 Phi C SOT23 BAV21 A91 BAS17 Phi C SOT23 BA314 AA BCX51 Sie P SOT89 pnp 45V audio comp BCX54 AA BCW60A TT N SOT23 BCY58-vii http://www.marsport.org.uk/smd/smda.htm (4 of 11)27/5/2007 18:19:35
- 60. SMD Codebook Page A AA ZMV829A Zet I SOD323 varicap hyperabrupt 28V 8.2pF@2V AA BAV21W CSC I SOD123 sw diode BAV21 AAs BCW60A Sie N SOT23 BCY58-vii AAA MMBF4856 Mot F SOT23 2N4856 n-ch chopper jfet AAG MMBR951AL Mot N SOT23 npn RF 8GHz AAH MAX6326_R22- T Max ZB SC70 microproc -ve reset gen 2.200V AAI MAX6327_R22- T Max ZB SC70 microproc +ve reset gen 2.200V AAJ MAX6328_R22- T Max ZB SC70 microproc -ve reset gen 2.200V AAN MAX809LXR Max ZB SC70 microproc -ve reset gen 5.0V AAO MAX809MXR Max ZB SC70 microproc -ve reset gen 5.0V AAP MAX809TXR Max ZB SC70 microproc -ve reset gen 3.3V AAQ MAX809SXR Max ZB SC70 microproc -ve reset gen 3.3V AAR MAX809RXR Max ZB SC70 microproc -ve reset gen 3.0V AAS MAX803ZXR Max ZB SC70 microproc -ve reset gen 2.5V AAT MAX810LXR Max ZB SC70 microproc +ve reset gen 5.0V AAU MAX810MXR Max ZB SC70 microproc +-ve reset gen 5.0V AAV MAX810TXR Max ZB SC70 microproc +ve reset gen 3.3V AAW MAX810RXR Max ZB SC70 microproc +ve reset gen 3.0V AAX MAX810SXR Max ZB SC70 microproc +ve reset gen 3.3V AAY MAX810ZXR Max ZB SC70 microproc +ve reset gen 2.5V AAZ MAX803LXR Max ZB SC70 microproc -ve reset gen 5.0V AB BCW60B ITT N SOT23 BCY58-viii AB ZMV830A Zet I SOD323 varicap hyperabrupt 28V 10pF@2V AB 2SC4213 N ABs BCW60B Sie N SOT23 BCY58-viii ABp BCW60B Phi N SOT23 BCY58-viii ABt BCW60B Phi N SOT23 BCY58-viii ABA MAX803TXR Max ZB SC70 microproc -ve reset gen 5.0V ABB MAX803MXR Max ZB SC70 microproc -ve reset gen 3.3V ABC MAX803SXR Max ZB SC70 microproc -ve reset gen 3.3V ABD MAX803RXR Max ZB SC70 microproc -ve reset gen 3.0V http://www.marsport.org.uk/smd/smda.htm (5 of 11)27/5/2007 18:19:35
- 61. SMD Codebook Page A ABE MAX803ZXR Max ZB SC70 microproc -ve reset gen 2.5V ABF LM4041AIX3- 1.2 Max L SC70 1.225V 0.1% shunt V ref ABG LM4041BIX3- 1.2 Max L SC70 1.225V 0.2% shunt V ref ABH LM4041DIX3- 1.2 Max L SC70 1.225V 0.5% shunt V ref ABI LM4041DIX3- 1.2 Max L SC70 1.225V 1.5% shunt V ref ABJ LM4040AIX3- 2.1 Max L SC70 2.048V 0.1% shunt V ref ABK LM4040BIX3- 2.1 Max L SC70 2.048V 0.2% shunt V ref ABL LM4040CIX3- 2.1 Max L SC70 2.048V 0.5% shunt V ref ABM LM4040DIX3- 2.1 Max L SC70 2.048V 1% shunt V ref ABN LM4040AIX3- 2.5 Max L SC70 2.5001% shunt V ref ABO LM4040BIX3- 2.5 Max L SC70 2.500V 0.2% shunt V ref ABP LM4040CIX3- 2.5 Max L SC70 2.500V 0.5% shunt V ref ABQ LM4040DIX3- 2.5 Max L SC70 2.500V 1% shunt V ref ABR LM4040AIX3- 3.0 Max L SC70 3.000V 0.1% shunt V ref ABS LM4040BIX3- 3.0 Max L SC70 3.000V 0.2% shunt V ref ABT LM4040CIX3- 3.0 Max L SC70 3.000V 0.5% shunt V ref ABU LM4040DIX3- 3.0 Max L SC70 3.000V 1% shunt V ref ABV LM4040AIX3- 4.1 Max L SC70 4.096V 0.1% shunt V ref ABW LM4040BIX3- 4.1 Max L SC70 4.096V 0.2% shunt V ref ABX LM4040CIX3- 4.1 Max L SC70 4.096V 0.5% shunt V ref http://www.marsport.org.uk/smd/smda.htm (6 of 11)27/5/2007 18:19:35
- 62. SMD Codebook Page A ABY LM4040DIX3- 4.1 Max L SC70 4.096V 1% shunt V ref ABZ LM4040AIX3- 5.0 Max L SC70 5.000V 0.1% shunt V ref AC BCX51-100 Sie P SOT89 45V pnp audio hfe 100 AC BCX51-10 Phi P SOT89 45V pnp audio hfe 100 AC BCW60C Phi N SOT23 BCY58-ix AC ZMV831A Zet I SOD323 varicap hyperabrupt 28V 15pF@2V ACs BCW60C Sie N SOT23 BCY58-ix ACp BCW60C Phi N SOT23 BCY58-ix ACt BCW60C Phi N SOT23 BCY58-ix ACA LM4040BIX3- 5.0 Max L SC70 5.000V 0.2% shunt V ref ACB LM4040CIX3- 5.0 Max L SC70 5.000V 0.5% shunt V ref ACC LM4040DIX3- 5.0 Max L SC70 5.000V 1% shunt V ref ACE MAX6326_R31- T Max ZB SC70 microproc -ve reset gen 3.080V ACF MAX6347_R46- T Max ZB SC70 microproc +ve reset gen 4.630V ACH MAX6326_R23- T Max ZB SC70 microproc -ve reset gen 2.320V ACI MAX6326_R26- T Max ZB SC70 microproc -ve reset gen 2.630V ACJ MAX6328_R26- T Max ZB SC70 microproc -ve reset gen 2.630V ACK MAX6346_R44- T Max ZB SC70 microproc -ve reset gen 4.380V ACL MAX6347_R44- T Max ZB SC70 microproc +ve reset gen 4.380V ACM MAX6348_R46- T Max ZB SC70 microproc -ve reset gen 4.630V ACN MAX6348_R44- T Max ZB SC70 microproc -ve reset gen 4.380V ACN 2SC5661 Roh N VMT3 npn HF 18V 50mA 1.5GHz ACN 2SC4725 Roh N EMT3 npn HF 18V 50mA 1.5GHz ACN 2SC4082 Roh N UMT3 npn HF 18V 50mA 1.5GHz http://www.marsport.org.uk/smd/smda.htm (7 of 11)27/5/2007 18:19:35
- 63. SMD Codebook Page A ACN 2SC3837K Roh N SMT3 npn HF 18V 50mA 1.5GHz ACO MAX6346_R46- T Max ZB SC70 microproc -ve reset gen 4.630V ACP MAX6326_R29- T Max ZB SC70 microproc -ve reset gen 2.930V ACP 2SC5661 Roh N VMT3 npn HF 18V 50mA 1.5GHz ACP 2SC4725 Roh N EMT3 npn HF 18V 50mA 1.5GHz ACP 2SC4082 Roh N UMT3 npn HF 18V 50mA 1.5GHz ACP 2SC3837K Roh N SMT3 npn HF 18V 50mA 1.5GHz ACQ MAX6327_R23- T Max ZB SC70 microproc +ve reset gen 2.320V ACR MAX6327_R26- T Max ZB SC70 microproc +ve reset gen 2.630V ACS MAX6327_R29- T Max ZB SC70 microproc +ve reset gen 2.930V ACT MAX6327_R31- T Max ZB SC70 microproc +ve reset gen 3.080V ACU MAX6328_R23- T Max ZB SC70 microproc -ve reset gen 2.320V ACV MAX6328_R29- T Max ZB SC70 microproc -ve reset gen 2.930V ACW MAX6326_R31- T Max ZB SC70 microproc -ve reset gen 3.080V AD BCX51-160 Sie P SOT89 45V pnp audio hfe 160 AD BCX51-16 Phi P SOT89 45V pnp audio hfe 160 AD BCW60D Phi N SOT23 BCY58-x AD ZMV832A Zet I SOD323 varicap hyperabrupt 28V 22pF@2V ADs BCW60D Sie N SOT23 BCY58-x ADp BCW60D Phi N SOT23 BCY58-x ADt BCW60D Ph N SOT23 BCY58-x ADN 2SC3838K Roh N SMT3 npn 11V 3.2GHz TV tuners ADN 2SC4083 Roh N UMT3 npn 11V 3.2GHz TV tuners ADN 2SC4726 Roh N EMT3 npn 11V 3.2GHz TV tuners ADN 2SC5662 Roh N VMT3 npn 11V 3.2GHz TV tuners ADN 2SC3838K Roh N SMT3 npn 11V 3.2GHz TV tuners ADP 2SC3838K Roh N SMT3 npn 11V 3.2GHz TV tuners ADP 2SC4043S Roh N SPT npn 11V 3.2GHz TV tuners http://www.marsport.org.uk/smd/smda.htm (8 of 11)27/5/2007 18:19:35
- 64. SMD Codebook Page A ADP 2SC3838K Roh N SMT3 npn 11V 3.2GHz TV tuners ADP 2SC4083 Roh N UMT3 npn 11V 3.2GHz TV tuners ADP 2SC4726 Roh N EMT3 npn 11V 3.2GHz TV tuners ADP 2SC5662 Roh N VMT3 npn 11V 3.2GHz TV tuners AE BCX52 Sie P SOT89 pnp 60V audio comp BCX55 AE ZMV833A Zet I SOD323 varicap hyperabrupt 28V 33pF@2V AEN 2SC3839K Roh N npn 20V 2.0GHz TV tuners AF ZMV834A Zet I SOD323 varicap hyperabrupt 28V 47pF@2V AFs BCW60FF Sie N SOT23 BCY58 AG ZMV835A Zet I SOD323 varicap hyperabrupt 28V 68pF@2V AG BCX70G Phi N SOT23 BCY59-vii BC107 AGs BCX70G Sie N SOT23 BCY59-vii BC107 AGp BCX70G Phi N SOT23 BCY59-vii BC107 AGt BCX70G Phi N SOT23 BCY59-vii BC107 AG BCX52-10 Sie P SOT89 60V pnp BCX52 hfe 100 AH BCX70H Phi N SOT23 BCY59-viii BC107B AHs BCX70H Sie N SOT23 BCY59-viii BC107B AHp BCX70H Phi N SOT23 BCY59-viii BC107B AHt BCX70H Phi N SOT23 BCY59-viii BC107B AH BCP53 Mot P SOT223 pnp amp 80V 150mA AH BCX53 Sie P SOT89 pnp 80V audio comp BCX56 AH ZMV930 Zet I SOD323 2.9-8.3pF hyperabrupt varicap AJ BCX70J Phi N SOT23 BCY59-ix BC107 AJ s BCX70J Sie N SOT23 BCY59-ix BC107 AJp BCX70J Phi N SOT23 BCY59-ix BC107 AJt BCX70J Phi N SOT23 BCY59-ix BC107 AJ ZMV931 Zet I SOD323 4 -13.5pF hyperabrupt varicap AK BCX70K Phi N SOT23 BCY59-x BC107 AK ZMV932 Zet I SOD323 5.5-17pF hyperabrupt varicap AKs BCX70K Sie N SOT23 BCY59-x BC107 AKp BCX70K Phi N SOT23 BCY59-x BC107 AKp BCX70K Phi N SOT23 BCY59-x BC107 AK BCX53-10 Sie P SOT89 pnp 80V BCX53 hfe 100 http://www.marsport.org.uk/smd/smda.htm (9 of 11)27/5/2007 18:19:35
- 65. SMD Codebook Page A AL BCX53-16 Sie P SOT89 80V pnp BCX53 hfe 100 AL MMBTA55L Mot N SOT23 pnp 25V (MPSA55) AL ZMV933 Zet I SOD323 12-42pF hyperabrupt varicap ALs BFP405 Sie MQ SOT343 AM MMBT3904W Mot N SOT323 2N3904 AM BCX52-16 Sie P SOT89 pnp 60V BCX52 hfe 160 AMs BFP420 Sie MQ SOT343 npn fT 25GHz 4.5V 35mA AM BSS64 Mot N SOT23 npn 80V 0.1A fT 60MHz AMs BSS64 Sie N SOT23 npn 80V 0.1A fT 60MHz AMp BSS64 Phi N SOT23 npn 80V 0.1A fT 60MHz AMt BSS64 Phi N SOT23 npn 80V 0.1A fT 60MHz AM ZMV933A Zet I SOD323 12-42pF hyperabrupt varicap AN BCW60FN Sie N SOT23 gp npn 35V 0.2A ANs BFP450 Sie MQ SOT343 npn fT 25GHz 4.5V 100mA AN ZMV934 Zet I SOD323 25-95pF hyperabrupt varicap AN 2SC5659 Roh N VMT3 npn HF 25V 50mA 300MHz AN 2SC4618 Roh N EMT3 npn HF 25V 50mA 300MHz AN 2SC4098 Roh N UMT3 npn HF 25V 50mA 300MHz AN 2SC2413K Roh N SMT3 npn HF 25V 50mA 300MHz AO BCW60AR ITT R SOT23R BCY58-vii AO ZMV934A Zet I SOD323 25-95pF hyperabrupt varicap AP BCW60BR ITT R SOT23R BCY58-viii AP CMDZ2L4 CSC I SOD323 zener 250mW Iz 0.5mA 2.4V AP 2SC5659 Roh N VMT3 npn HF 25V 50mA 300MHz AP 2SC4618 Roh N EMT3 npn HF 25V 50mA 300MHz AP 2SC4098 Roh N UMT3 npn HF 25V 50mA 300MHz AP 2SC2413K Roh N SMT3 npn HF 25V 50mA 300MHz AP 2SC2058S Roh N SPT npn HF 25V 50mA 300MHz APs BFP520 Sie MQ SOT343 npn fT 40GHz 2.5V 40mA A-Q 2PD1820AQ Phi N SOT323 gp sw amp 50V npn hfe 85-170 AtQ 2PD1820AQ Phi N SOT323 gp sw amp 50V npn hfe 85-170 AR BCW60CR ITT R SOT23R BCY58-ix AR MSD709R Mot N pnp gp 25V AR CMDZ43L CSC I SOD323 zener 250mW Iz 0.5mA 43V AR1 BSR40 Phi P SOT89 npn 70V 1A 1.35W hfe 40-120 http://www.marsport.org.uk/smd/smda.htm (10 of 11)27/5/2007 18:19:35
- 66. SMD Codebook Page A AR2 BSR41 Phi P SOT89 npn 70V 1A 1.35W hfe 100-300 AR3 BSR42 Phi P SOT89 npn 90V 1A 1.35W hfe 40-120 AR4 BSR43 Phi P SOT89 npn 90V 1A 1.35W hfe 100-300 AQ 2SC5659 Roh N VMT3 npn HF 25V 50mA 300MHz AQ 2SC4618 Roh N EMT3 npn HF 25V 50mA 300MHz AQ 2SC4098 Roh N UMT3 npn HF 25V 50mA 300MHz AQ 2SC2413K Roh N SMT3 npn HF 25V 50mA 300MHz A-Q 2PD1820AR Phi N SOT323 gp sw amp 50V npn hfe 120- 240 AtQ 2PD1820AR Phi N SOT323 gp sw amp 50V npn hfe 120- 240 A-S 2PD1820AS Phi N SOT323 gp sw amp 50V npn hfe 170- 340 AtS 2PD1820AS Phi N SOT323 gp sw amp 50V npn hfe 170- 340 AS BCW60DR ITT R SOT23R BCY58-x AS MSD709S Mot N pnp gp 25V ASs BAT18-05 Sie B SOT23 dual BAT18 RF pin AS1 BST50 Mot P SOT89 npn darlington 0.5A 60V AS2 BST51 Mot P SOT89 npn darlington 0.5A 80V AS3 BST52 Mot P SOT89 npn darlington 0.5A 90V AS3 BSP52 Mot P SOT223 npn darlington 0.5A hfe 2000 ATs BAT18-06 Sie A SOT23 dual ca BAT18 RF pin ATs BFP540 Sie MQ SOT343 npn microwave AUs BAT18-04 Sie D SOT23 dual BAT18 RF pin AU BCW60GR ITT R SOT23R BCY58 AV DAN212K Roh C 80V 100mA sw AW BCW60HR ITT R SOT23R BCY58 AX BCX70JR ITT R SOT23R BCY59-ix AY BCX70KR ITT R SOT23R BCY59-x AY MMBD1000 Mot C SOT23 Si sw diode 30V 0.2A Last Updated on 10/07/2006 by GM4PMK http://www.marsport.org.uk/smd/smda.htm (11 of 11)27/5/2007 18:19:35
- 67. SMD Codebook Page B GM4PMK's SMD Codebook Codes beginning with 'B' Code Device Manf Base Package Leaded Equivalent/Data B MRF957 Mot N SOT323 npn RF fT 9GHz B BAS16-03W Sie I SOD323 Varicap 18pF 1V B BB555 Sie I SCD80 Varicap 18pF 1V B0 BZX399C4V3 Phi I SOD323 4.3V 0.3W zener B0 HSMS-2810 HP C SOT23 HP2810 schottky B0 HSMS-281B HP C SOT323 HP2810 schottky B08 SST6908 Sil ZQ 2N6908 prot n-ch jfet B09 SST6909 Sil ZQ 2N6909 prot n-ch jfet B1 BZX399C1V8 Phi I SOD323 1.8V 0.3W zener B1 HSMS-2811 HP K SOT23 HP2811 schottky B1 BAS40 Mot C SOT23 schottky sw diode B10 SST6910 Sil ZQ 2N6910 prot n-ch jfet B2 BZX399C2V0 Phi I SOD323 2.0V 0.3W zener B2 BSV52 Phi N SOT23 BSX20 12V fT 400MHz sw B2p BSV52 Phi N SOT23 BSX20 12V fT 400MHz sw B2t BSV52 Phi N SOT23 BSX20 12V fT 400MHz sw B2 HSMS-2812 HP D SOT23 dual HP2810 schottky B2 HSMS-281C HP D SOT323 dual HP2810 schottky B3 BZX399C2V2 Phi I SOD323 2.2V 0.3W zener B3 HSMS-2813 HP A SOT23 dual ca HP2810 schottky B3 MMBD717L Mot A SOT323 dual ca schottky B4 BZX399C2V4 Phi I SOD323 2.4V 0.3W zener B4 BSV52R Phi R SOT23R BSX20 B4 HSMS-2814 HP B SOT23 dual cc HP2810 schottky B5 BZX399C2V7 Phi I SOD323 2.7V 0.3W zener B5 HSMS-2815 HP S SOT143 dual HP2810 schottky B6 BZX399C3V0 Phi I SOD323 3.0V 0.3W zener B6 BAT54A Mot A SOT23 dual ca 30V schottky http://www.marsport.org.uk/smd/smdb.htm (1 of 6)27/5/2007 18:19:40
- 68. SMD Codebook Page B B7 BZX399C3V3 Phi I SOD323 3.3V 0.3W zener B7 HSMS-2817 HP RQ SOT143 HP2810 ring quad B8 BZX399C3V6 Phi I SOD323 3.6V 0.3W zener B8 HSMS-2818 HP BQ SOT143 HP2810 bridge quad B9 BZX399C3V9 Phi I SOD323 3.9V 0.3W zener B9 2SC4617 Mot N SC90 npn gp B26 BF570 Phi SOT23 BA BCX54 Sie P SOT89 npn AF 45V comp BCX51 BA BCW61A Phi N SOT23 BCY78-vii BAp BCW61A Phi N SOT23 BCY78-vii BAt BCW61A Phi N SOT23 BCY78-vii BA DAN217 Roh D 80V 100mA dual BA BZX399C4V7 Phi I SOD323 4.7V 0.3W zener BA 2SB1132 Roh P SC62 pnp sw 0.5A 40V BA 1SS154 Tosh C SC59 UHF to S-Band mixer BB BCW61B Phi N SOT23 BCY78-viii BBs BCW61B Sie N SOT23 BCY78-viii BBp BCW61B Phi N SOT23 BCY78-viii BBt BCW61B Phi N SOT23 BCY78-viii BB BAR81 Sie NQ SOT143 Dual pin shunt switch BB BZX399C5V1 Phi I SOD323 5.1V 0.3W zener BBs BAR81W Sie NQ SOT343 Dual pin shunt switch BB 1SV128 Tosh C SC59 pin attenuator BC BCW61C Phi N SOT23 BCY78-ix BCs BCW61C Sie N SOT23 BCY78-ix BC BCX54-10 Sie Phi P SOT89 npn hfe100 BC BZX399C5V6 Phi I SOD323 5.6V 0.3W zener BCp BCW61C Phi N SOT23 BCY78-ix BCt BCW61C Phi N SOT23 BCY78-ix BD BCW61D Phi N SOT23 BCY78-x BDs BCW61D Sie N SOT23 BCY78-x BDp BCW61D Phi N SOT23 BCY78-x BDt BCW61D Phi N SOT23 BCY78-x http://www.marsport.org.uk/smd/smdb.htm (2 of 6)27/5/2007 18:19:40
- 69. SMD Codebook Page B BD BCX54-16 Sie P SOT89 npn hfe160 comp BCX51-16 BD BZX399C6V2 Phi I SOD323 6.2V 0.3W zener BD ZHCS400 Zet C SOT23 40V 0.4A schottky diode BD 1SS271 Tosh D SC59 dual series mixer/detector UHF to S-band BE BAS70 Mot C SOT23 schottky sw diode BE BCX55 Sie P SOT89 npn AF 60V comp BCX52 BE BZX399C6V8 Phi I SOD323 6.8V 0.3W zener BE 1SV252 Tosh D SC59 dual series pin diode attenuator BF BCW61FF Sie N SOT23 low noise BCW61 BF BZX399C7V5 Phi I SOD323 7.5V 0.3W zener BF 2SB1132T P SC62 pnp sw BF 1SS268 Tosh B SC59 dual cc pin sw BF 1SS312 Tosh B SC70 dual cc pin sw BF 1SS364 Tosh B SSM dual cc pin sw BG BCX71G Phi N SOT23 BCY79-vii BGs BCX71G Sie N SOT23 BCY79-vii BGp BCX71G Phi N SOT23 BCY79-vii BGt BCX71G Phi N SOT23 BCY79-vii BG BCX55-10 Sie Phi P SOT89 npn hfe 100 BG BZX399C8V2 Phi I SOD323 8.2V 0.3W zener BG 1SS269 Tosh A SC59 dual ca pin sw BG 1SS313 Tosh A SC70 dual ca pin sw BH BCX71H Phi N SOT23 BCY79-viii BHs BCX71H Sie N SOT23 BCY79-viii BHp BCX71H Phi N SOT23 BCY79-viii BHt BCX71H Phi N SOT23 BCY79-viii BH BCP56 Mot P SOT223 npn amp 80V 150mA BH BCX56 Sie P SOT89 npn AF 80V BH BZX399C9V1 Phi I SOD323 9.1V 0.3W zener i BH 1SS295 Tosh D SC59 dual series mixer/detector UHF BJ BCX71J Phi N SOT23 BCY79-ix BJs BCX71J Sie N SOT23 BCY79-ix http://www.marsport.org.uk/smd/smdb.htm (3 of 6)27/5/2007 18:19:40
- 70. SMD Codebook Page B BJp BCX71J Phi N SOT23 BCY79-ix BJt BCX71J Phi N SOT23 BCY79-ix BJ BZX399C10 Phi I SOD323 10V 0.3W zener BK BCP56-10 Mot P SOT223 npn amp 80V 150mA BK BCX71K Phi N SOT23 BCY79 BKs BCX71K Sie N SOT23 BCY79 BKp BCX71K Phi N SOT23 BCY79 BKt BCX71K Phi N SOT23 BCY79 BK BCX56-10 Sie P SOT89 npn hfe 100 BK BZX399C11 Phi I SOD323 11V 0.3W zener BL MBD54DW Mot DL SOT363 2x schottky detector diodes BL BCP56-16 Mot P SOT223 npn amp 80V 150mA BL BCX56-16 Sie P SOT89 npn hfe 160 BL BZX399C12 Phi I SOD323 12V 0.3W zener BL BGA310 Sie GQ SOT143 MMIC amp 9dB @1GHz BLs BGA420 Sie HQ SOT343 MMIC amp 13 dB @1.8GHz BM BSS63L Mot N SOT23 100v pnp comp BSS64 BMp BSS63 Phi N SOT23 100v pnp comp BSS64 BMt BSS63 Phi N SOT23 100v pnp comp BSS64 BM BCX55-16 Sie P SOT89 npn hfe 160 BM BGA312 Sie GQ SOT143 MMIC amp 11dB @1GHz BM BZX399C13 Phi I SOD323 13V 0.3W zener BMs BG427 Sie HQ SOT343 MMIC amp 18 dB @1.8GHz BNs BCW61FN Sie N SOT23 low noise BCW61 BN BZX399C15 Phi I SOD323 15V 0.3W zener BN BGA318 Sie GQ SOT143 MMIC amp 16dB @1GHz BO BCW61AR Phi N SOT23 BCX78, BCY78-vii BP BCW61BR Phi N SOT23 BCY78-viii BP BZX399C16 Phi I SOD323 16V 0.3W zener BP CMDZ2L5 CSC I SOD323 zener 250mW Iz 0.5mA 2.5V BQ BZX399C18 Phi I SOD323 18V 0.3W zener in SOD323 BQ 2PB709AQ Phi N SC-59 PNP 45V 0.1A hfe 160-260 BQ 2SC2412K Roh N SMT3 npn gp 50V 0.15A hfe 120-270 BQ 2SC4081 Roh N UMT3 see 2SC2412K above http://www.marsport.org.uk/smd/smdb.htm (4 of 6)27/5/2007 18:19:40
- 71. SMD Codebook Page B BQ 2SC4617 Roh N EMT3 see 2SC2412K above BQ 2SC5658 Roh N VMT3 see 2SC2412K above BR BCW61CR Phi N SOT23 BCY78-ix BQ 2SC2412K Roh N SMT3 npn gp 50V 0.15A hfe 180-390 BQ 2SC4081 Roh N UMT3 see 2SC2412K above BQ 2SC4617 Roh N EMT3 see 2SC2412K above BQ 2SC5658 Roh N VMT3 see 2SC2412K above BR MSB1218A Mot N SOT323 gp pnp 45V BR BZX399C20 Phi I SOD323 20V 0.3W zener BR 2PB709AR Phi N SC-59 pnp45V 0.1A hfe 210-340 BR CMDZ47L CSC I SOD323 zener 250mW Iz 0.5mA 47V BR1 BSR30 Phi P SOT89 pnp 70V 1A 1.35W hfe 40-120 BR2 BSR31 Phi P SOT89 pnp 70V 1A 1.35W hfe 100-300 BR4 BSR33 Phi P SOT89 pnp 90V 1A 1.35W hfe 100-300 BS BCW61DR Phi R SOT23 BCY78-x BS BZX399C22 Phi I SOD323 22V 0.3W zener BS 2SC2412K Roh N SMT3 npn gp 50V 0.15A hfe 270-560 BS 2SC4081 Roh N UMT3 see 2SC2412K above BS 2SC4617 Roh N EMT3 see 2SC2412K above BS 2SC5658 Roh N VMT3 see 2SC2412K above BS 2PB709AS Phi N SC-59 pnp 45V 0.1A hfe 290-460 BS1 BST60 Mot P SOT89 pnp darlington 0.5A 60V BS2 BST61 Mot P SOT89 pnp darlington 0.5A 80V BS3 BST62 Mot P SOT89 pnp darlington 0.5A 90V BS3 BSP62 Mot P SOT89 pnp darlington 0.5A hfe 2000 BT BZX399C24 Phi I SOD323 24V 0.3W zener BT2 BSP16 Mot P SOT223 pnp –300V 1A BT2 BST16 Phi P SOT89 pnp –300V 1A BU BCX71GR Phi N SOT23 BCX79-vii BU BZX399C27 Phi I SOD323 27V 0.3W zener BV BZX399C30 Phi I SOD323 30V 0.3W zener BW BCW71HR Phi N SOT23R BCX79-viii BW BZX399C33 Phi I SOD323 33V 0.3W zener BX BCW71JR Phi N SOT23R BCX79-ix http://www.marsport.org.uk/smd/smdb.htm (5 of 6)27/5/2007 18:19:40
- 72. SMD Codebook Page B BX BZX399C36 Phi I SOD323 36V 0.3W zener BY BCW71KR Phi N SOT23R BCX79-x BY BZX399C39 Phi I SOD323 39V 0.3W zener BZ BZX399C43 Phi I SOD323 43V 0.3W zener Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdb.htm (6 of 6)27/5/2007 18:19:40
- 73. SMD Codebook Page C GM4PMK's SMD Codebook Codes beginning with 'C' Code Device Manf Base Package Leaded Equivalent/Data C BB565 Sie I SCD80 uhf varicap 2-20pF C BB179B Phi I SOD 523 UHF Varicap 2-11pF C white BAT165 Sie I 40V 750mA sw Schottky C RN262CS Roh I VMN2 HF pin diode C KV1832E Tok I URD uhf varicap 4-17pf C0 HSMS-2820 HP C SOT23 HP2835 schottky C0 HSMS-282B HP C SOT323 HP2835 schottky C06 DDX123JU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A 2k2/47k C06 DDX123JK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A 2k2/47k C07 DDX143TU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A R1 4k7 C07 DDX143TK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A R1 4k7 C1 HSMS-2821 HP K SOT23 HP2835 schottky C1 BCW29 Phi N SOT23 BC178A C1p BCW29 Phi N SOT23 BC178A C1t BCW29 Phi N SOT23 BC178A C1 BFQ51C Phi CX SOT173 pnp BFR90A complement C2 BCW30 Phi N SOT23 BC178B C2p BCW30 Phi N SOT23 BC178B C2t BCW30 Phi N SOT23 BC178B C2 BFQ32C Phi CX SOT173 pnp 4.5GHz 15V 100mA C2 HSMS-2822 HP D SOT23 dual HP2835 schottky C2 HSMS-282C HP D SOT323 dual HP2835 schottky C2 SST112 Tem F SOT23 J112 analog sw n-ch jfet C2 EDZ5.6B Roh I EMD2 150mW zener 5.6V C2 VDZ5.6B Roh I VMD2 150mW zener 5.6V C2A ZDC833A Zet B SOT23 dual cc 28V varicap 15pF @2V C3 HSMS-2823 HP A SOT23 dual HP2835 schottky http://www.marsport.org.uk/smd/smdc.htm (1 of 8)27/5/2007 18:19:47
- 74. SMD Codebook Page C C3 BFQ23C Phi CX SOT173 pnp complement BFP91A C3 SMBT4126 Sie N 2N4126 C3 1SS302 B dual cc diode C3 SST113 Tem F SOT23 J113 analog sw jfet C3T 1PS226 Phi D SOT346 dual series 80V high seed diode C4 BCW29R Phi R SOT23R BC178A C4 HSMS-2824 HP B SOT23 dual HP2835 schottky C5 MMBA811C5 Mot N 2N5086 pnp hfe 135-270 C5 BCW30R Phi R SOT23R BC178B C5 HSMS-2825 HP S SOT143 dual HP2835 schottky C5 MMSZ5225 Vis I SOD123 zener 300mW 5% 3.0V C5 EDZ30B Roh I EMD2 150mW zener 30V C5 VDZ30B Roh I VMD2 150mW zener 30V C5A ZDC834A Zet B SOT23 dual cc 28V varicap 47pF @2V C6 MMBA811C6 Mot N 2N5086 pnp hfe 200-400 C7 MMBA811C7 Mot N 2N5086 pnp hfe 300-600 C7 HSMS-2827 HP RQ SOT143 HP2835 ring quad C8 HSMS-2828 HP BQ SOT143 HP2835 bridge quad C8 BCF30 SGS N SOT23 BC559B C8 MMBA811C8 Mot N 2N5086 pnp hfe 450-900 C11 SST111 Sil F SOT23 J111 n-ch fet C12 SST112 Sil F SOT23 J112 n-ch fet C12 DDX114TU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A R1 10k C12 DDX114TK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A R1 10k C13 SST113 Sil F SOT23 J113 n-ch fet C13 DDX114EU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A 10k/10k C13 DDX114EK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A 10k/10k C14 DDX114YU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A 10k/47k C14 DDX114YK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A 10k/47k C17 DDX124EU Dio DP SOT363 dual dtr pnp/npn 50V 0.1A 22k/22k C17 DDX124EK Dio DP SOT26 dual dtr pnp/npn 50V 0.1A 22k/22k C20 DDX144EU Dio DO SOT363 dual dtr pnp/npn 50V 0.1A 47k/47k C20 DDX144EK Dio DO SOT26 dual dtr pnp/npn 50V 0.1A 47k/47k C38 SST5638 Sil F SOT23 2N5638 http://www.marsport.org.uk/smd/smdc.htm (2 of 8)27/5/2007 18:19:47
- 75. SMD Codebook Page C C39 SST5639 Sil F SOT23 2N5639 C40 SST5640 Sil F SOT23 2N5640 C41 SST4091 Sil F SOT23 2N4091 C42 SST4092 Sil F SOT23 2N4092 C43 SST4093 Sil F SOT23 2N4093 C48 CMHD4448TR Vis I SOD123 1N4448 sw diode C56 SST4856 Sil F SOT23 2N4856 C57 SST4857 Sil F SOT23 2N4857 C58 SST4858 Sil F SOT23 2N4858 C59 SST4859 Sil F SOT23 2N4859 C60 SST4860 Sil F SOT23 2N4860 C61 SST4861 Sil F SOT23 2N4861 C91 SST4391 Sil F SOT23 2N4391 C92 SST4392 Sil F SOT23 2N4392 C93 SST4393 Sil F SOT23 2N4393 CA BCW61AR Phi R SOT23R BCY78-vii CA BCP68 Mot P SOT223 20V 1A npn CA ZMV829B Zet I SOD323 varicap hyperab 28V 8.2pF@2V CA MMSZ4691 Vis I SOD123 zener 350mW 5% 6.2V CA MMBZ4691 Vis C SOT23 zener 350mW 5% 6.2V CB BCX68-10 Sie P SOT89 npn AF 20V 2A hfe 100 CB BCW61BR Phi R SOT23R BCY78-viii CB ZMV830B Zet I SOD323 varicap hyperabrupt 28V 10pF@2V CC BCW61CR Phi R SOT23R BCY78-ix CC BCX68-16 Sie P SOT89 npn AF 20V 2A hfe 160 CC ZMV831B Zet I SOD323 varicap hyperabrupt 28V 15pF@2V CC ZMDC831B Zet B SOT323 dual cc ZMV831B (above) CC1 CMHZ5221B CSC I SOD123 zener 500mW 5% 2.4V CC2 CMHZ5222B CSC I SOD123 zener 500mW 5% 2.5V CC3 CMHZ5223B CSC I SOD123 zener 500mW 5% 2.7V CC4 CMHZ5224B CSC I SOD123 zener 500mW 5% 2.8V CC5 CMHZ5225B CSC I SOD123 zener 500mW 5% 3.0V CC10 CMPZDC27V CSC B SOT23 zener dual cc 350mW 27V CC11 CMPZDC30V CSC B SOT23 zener dual cc 350mW 30V http://www.marsport.org.uk/smd/smdc.htm (3 of 8)27/5/2007 18:19:47
- 76. SMD Codebook Page C CC12 CMPZDC33V CSC B SOT23 zener dual cc 350mW 33V CC13 CMPZDC36V CSC B SOT23 zener dual cc 350mW 36V CC14 CMPZDC39V CSC B SOT23 zener dual cc 350mW 39V CC15 CMPZDC43V CSC B SOT23 zener dual cc 350mW 43V CC16 CMPZDC47V CSC B SOT23 zener dual cc 350mW 47V CCW3 CMPZDC2V4 CSC B SOT23 zener dual cc 350mW 2.4V CCW4 CMPZDC2V7 CSC B SOT23 zener dual cc 350mW 2.7V CCW5 CMPZDC3V0 CSC B SOT23 zener dual cc 350mW 3.0V CCW6 CMPZDC3V3 CSC B SOT23 zener dual cc 350mW 3.3V CCW7 CMPZDC3V6 CSC B SOT23 zener dual cc 350mW 3.6V CCW8 CMPZDC3V9 CSC B SOT23 zener dual cc 350mW 3.9V CCW9 CMPZDC4V3 CSC B SOT23 zener dual cc 350mW 4.3V CCY1 CMPZDC11V CSC B SOT23 zener dual cc 350mW 11V CCY2 CMPZDC12V CSC B SOT23 zener dual cc 350mW 12V CCY3 CMPZDC13V CSC B SOT23 zener dual cc 350mW 13V CCY4 CMPZDC15V CSC B SOT23 zener dual cc 350mW 15V CCY5 CMPZDC16V CSC B SOT23 zener dual cc 350mW 16V CCY6 CMPZDC18V CSC B SOT23 zener dual cc 350mW 18V CCY7 CMPZDC20V CSC B SOT23 zener dual cc 350mW 20V CCY8 CMPZDC22V CSC B SOT23 zener dual cc 350mW 22V CCY9 CMPZDC24V CSC B SOT23 zener dual cc 350mW 24V CCZ1 CMPZDC4V7 CSC B SOT23 zener dual cc 350mW 4.7V CCZ2 CMPZDC5V1 CSC B SOT23 zener dual cc 350mW 5.1V CCZ3 CMPZDC5V6 CSC B SOT23 zener dual cc 350mW 5.6V CCZ4 CMPZDC6V2 CSC B SOT23 zener dual cc 350mW 6.2V CCZ5 CMPZDC6V8 CSC B SOT23 zener dual cc 350mW 6.8V CCZ6 CMPZDC7V5 CSC B SOT23 zener dual cc 350mW 7.5V CCZ7 CMPZDC8V2 CSC B SOT23 zener dual cc 350mW 8.2V CCZ8 CMPZDC9V1 CSC B SOT23 zener dual cc 350mW 9.1V CCZ9 CMPZDC10V CSC B SOT23 zener dual cc 350mW 10V CD BCW61DR Phi R SOT23R BCY78-x CD BCX68-25 Sie P SOT89 npn AF 20V 2A hfe 250 CD ZMV832B Zet I SOD323 varicap hyperabrupt 28V 22pF@2V CD ZMDC832B Zet B SOT323 dual cc ZMV832B (above) http://www.marsport.org.uk/smd/smdc.htm (4 of 8)27/5/2007 18:19:47
- 77. SMD Codebook Page C CDs BSS81B Sie N SOT23 npn sw 35V 0.8A CD1 CMHZ5226B CSC I SOD123 zener 500mW 5% 3.3V CD2 CMHZ5227B CSC I SOD123 zener 500mW 5% 3.6V CD3 CMHZ5228B CSC I SOD123 zener 500mW 5% 3.9V CD4 CMHZ5229B CSC I SOD123 zener 500mW 5% 4.3V CD5 CMHZ5230B CSC I SOD123 zener 500mW 5% 4.7V CE BCP69 Mot P SOT223 20V 1A pnp CE ZMV833B Zet I SOD323 varicap hyperabrupt 28V 33pF@2V CEs BSS79B Sie N SOT23 npn 40V 0.8A hfe 40-120 CE1 CMHZ5231B CSC I SOD123 zener 500mW 5% 5.1V CE2 CMHZ5232B CSC I SOD123 zener 500mW 5% 5.6V CE3 CMHZ5233B CSC I SOD123 zener 500mW 5% 6.0V CE4 CMHZ5234B CSC I SOD123 zener 500mW 5% 6.2V CE5 CMHZ5235B CSC I SOD123 zener 500mW 5% 6.8V CEC BC860 Phi P SOT89 BC369 npn 20V 1A CF BSS79C Sie N SOT23 npn 40V 0.8A hfe 100 min CF BCX69-10 Sie P SOT89 pnp AF 20V 2A hfe 100 CF ZMV834B Zet I SOD323 varicap hyperabrupt 28V 47pF@2V CF MMSZ4681 Vis I SOD123 zener 350mW 5% 2.4V CF MMSZ4681 Vis C SOT23 zener 350mW 5% 2.4V CF1 CMHZ5236B CSC I SOD123 zener 500mW 5% 7.5V CF2 CMHZ5237B CSC I SOD123 zener 500mW 5% 8.2V CF3 CMHZ5238B CSC I SOD123 zener 500mW 5% 8.7V CF4 CMHZ5239B CSC I SOD123 zener 500mW 5% 9.1V CF5 CMHZ5240B CSC I SOD123 zener 500mW 5% 10V CG BCX71GR Phi R SOT23R BCY79-vii CG BCX69-16 Sie P SOT89 pnp AF 20V 2A hfe 160 CG ZMV835B Zet I SOD323 varicap hyperabrupt 28V 68pF@2V CGs BSS81C Sie N SOT23 npn sw 35V 1A CH MMSZ4682 Vis I SOD123 zener 350mW 5% 2.7V CH MMBZ4682 Vis C SOT23 zener 350mW 5% 2.7V CHs BSS80B Sie N SOT23 pnp 40V 0.8A hfe 40-120 CH BSS82BL Mot N SOT23 pnp 60V CH BCX69-25 Sie N SOT89 pnp AF 20V 2A hfe 250 http://www.marsport.org.uk/smd/smdc.htm (5 of 8)27/5/2007 18:19:47
- 78. SMD Codebook Page C CH1 CMHZ5241B CSC I SOD123 zener 500mW 5% 11V CH2 CMHZ5242B CSC I SOD123 zener 500mW 5% 12V CH3 CMHZ5243B CSC I SOD123 zener 500mW 5% 13V CH4 CMHZ5244B CSC I SOD123 zener 500mW 5% 14V CH5 CMHZ5245B CSC I SOD123 zener 500mW 5% 15V CJ MMSZ4683 Vis I SOD123 zener 350mW 5% 3.0V CJ MMBZ4683 Vis C SOT23 zener 350mW 5% 3.0V CJs BSS80C Sie N SOT23 pnp 40V 0.8A hfe 100 min CJ1 CMHZ5246B CSC I SOD123 zener 500mW 5% 16V CJ2 CMHZ5247B CSC I SOD123 zener 500mW 5% 17V CJ3 CMHZ5248B CSC I SOD123 zener 500mW 5% 18V CJ4 CMHZ5249B CSC I SOD123 zener 500mW 5% 19V CJ5 CMHZ5250B CSC I SOD123 zener 500mW 5% 20V CK BCX71JR Phi R SOT23R BCY79-viii CK MMSZ4684 Vis I SOD123 zener 350mW 5% 3.3V CK MMBZ4684 Vis C SOT23 zener 350mW 5% 3.3V CK1 CMHZ5251B CSC I SOD123 zener 500mW 5% 22V CK2 CMHZ5252B CSC I SOD123 zener 500mW 5% 24V CK3 CMHZ5253B CSC I SOD123 zener 500mW 5% 25V CK4 CMHZ5254B CSC I SOD123 zener 500mW 5% 27V CK5 CMHZ5255B CSC I SOD123 zener 500mW 5% 28V CLs BSS82B Sie N SOT23 pnp 60V 0.8A hfe 40-120 CM MMSZ4685 Vis I SOD123 zener 350mW 5% 3.6V CM MMBZ4685 Vis C SOT23 zener 350mW 5% 3.6V CMs BSS82C Sie N SOT23 pnp 60V 0.8A hfe 100 min CM1 CMHZ5256B CSC I SOD123 zener 500mW 5% 30V CM2 CMHZ5257B CSC I SOD123 zener 500mW 5% 33V CM3 CMHZ5258B CSC I SOD123 zener 500mW 5% 36V CM4 CMHZ5259B CSC I SOD123 zener 500mW 5% 39V CM5 CMHZ5260B CSC I SOD123 zener 500mW 5% 43V CN MMSZ4686 Vis I SOD123 zener 350mW 5% 3.9V CN MMBZ4686 Vis C SOT23 zener 350mW 5% 3.9V CN1 CMHZ5261B CSC I SOD123 zener 500mW 5% 47V CN2 CMHZ5262B CSC I SOD123 zener 500mW 5% 51V http://www.marsport.org.uk/smd/smdc.htm (6 of 8)27/5/2007 18:19:47
- 79. SMD Codebook Page C CN3 CMHZ5263B CSC I SOD123 zener 500mW 5% 56V CN4 CMHZ5264B CSC I SOD123 zener 500mW 5% 60V CN5 CMHZ5265B CSC I SOD123 zener 500mW 5% 62V CO3 CMHD2003TR Vis I SOD123 sw CP MMSZ4687 Vis I SOD123 zener 350mW 5% 4.3V CP MMBZ4687 Vis C SOT23 zener 350mW 5% 4.3V CP CMDZ2L7 CSC I SOD323 zener 250mW Iz 0.5mA 2.7V CP1 CMHZ5266B CSC I SOD123 zener 500mW 5% 68V CP2 CMHZ5267B CSC I SOD123 zener 500mW 5% 75V CP3 CMHZ5268B CSC I SOD123 zener 500mW 5% 82V CP4 CMHZ5269B CSC I SOD123 zener 500mW 5% 87V CP5 CMHZ5270B CSC I SOD123 zener 500mW 5% 91V CQ 2SC2411K Roh N npn darlington CQ MSD710Q Mot N SOT346 pnp gp 25V 150mA CR MSD701R Mot N SOT346 pnp gp 25V 150mA CR1 CMHZ5271B CSC I SOD123 zener 500mW 5% 100V CR2 CMHZ5272B CSC I SOD123 zener 500mW 5% 110V CR3 CMHZ5273B CSC I SOD123 zener 500mW 5% 120V CR4 CMHZ5274B CSC I SOD123 zener 500mW 5% 130V CR5 CMHZ5275B CSC I SOD123 zener 500mW 5% 140V CS1 CMHZ5276B CSC I SOD123 zener 500mW 5% 150V CS2 CMHZ5277B CSC I SOD123 zener 500mW 5% 160V CS3 CMHZ5278B CSC I SOD123 zener 500mW 5% 170V CS4 CMHZ5279B CSC I SOD123 zener 500mW 5% 180V CS5 CMHZ5280B CSC I SOD123 zener 500mW 5% 190V CT MMSZ4688 Vis I SOD123 zener 350mW 5% 4.7V CT MMBZ4688 Vis C SOT23 zener 350mW 5% 4.7V CT1 CMHZ5281B CSC I SOD123 zener 500mW 5% 200V CU MMSZ4689 Vis I SOD123 zener 350mW 5% 5.1V CU MMBZ4689 Vis CI SOT23 zener 350mW 5% 5.1V CV MMSZ4690 Vis I SOD123 zener 350mW 5% 5.6V CV MMBZ4690 Vis C SOT23 zener 350mW 5% 5.6V CX MMSZ4692 Vis I SOD123 zener 350mW 5% 6.8V CX MMBZ4692 Vis C SOT23 zener 350mW 5% 6.8V http://www.marsport.org.uk/smd/smdc.htm (7 of 8)27/5/2007 18:19:47
- 80. SMD Codebook Page C CY MMSZ4693 Vis I SOD123 zener 350mW 5% 7.5V CY MMBZ4693 Vis C SOT23 zener 350mW 5% 7.5V CZ MMSZ4694 Vis I SOD123 zener 350mW 5% 8.2V CZ MMBZ4694 Vis C SOT23 zener 350mW 5% 8.2V Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdc.htm (8 of 8)27/5/2007 18:19:47
- 81. SMD Codebook Page D GM4PMK's SMD Codebook Codes beginning with 'D' Code Device Manf Base Package Leaded Equivalent/Data D BB659 Sie I SCD80 2-38p varicap D BAS21-03W Sie I SOD323 D 1SS376 Roh I USM 300V 50mA sw D MRF577 Mot N SOT323 npn RF fT 7GHz D0 HSMP-3800 HP C SOT23 HP3800 pin atten diode D1 BCW31 Phi N SOT23 BC108A D1p BCW31 Phi N SOT23 BC108A D1t BCW31 Phi N SOT23 BC108A D1 HSMP-3801 HP K HP3800 pin atten diode D1 SST211 Tem XQ n-ch mosfet 30V 1nS D1 AZ23C2V7 Dio A SOT23 dual ca zener 2.7V 0.3W D1 MMSZ5226 Vis I SOD123 zener 300mW 5% 3.3V D2 BCW32 Phi N SOT23 BC108B D2 MMSZ5227 Vis I SOD123 zener 300mW 5% 3.6V D2p BCW32 Phi N SOT23 BC108B D2t BCW32 Phi N SOT23 BC108B D2 HSMP-3802 HP D dual HP3800 pin atten diode D2 AZ23C3V0 Dio A SOT23 dual ca zener 3.0V 0.3W D3 MMSZ5228 Vis I SOD123 zener 300mW 5% 3.9V D3 BCW33 Phi N SOT23 BC108C D3 AZ23C3V3 Dio A SOT23 dual ca zener 3.3V 0.3W D3p BCW33 Phi N SOT23 BC108C D3t BCW33 Phi N SOT23 BC108C D3B RB420D Roh C 25V 100mA schottky D3E RB411D Roh C SOT23 20V 500mA schottky D3J RB420D Roh C 25V 100mA schottky D3L RB706D-40 Roh B dual 45V 30mA schottky D4 BCW31R Phi R SOT23R BC108A http://www.marsport.org.uk/smd/smdd.htm (1 of 5)27/5/2007 18:19:53
- 82. SMD Codebook Page D D4 HSMP-3804 HP B SOT23 dual cc HP3800 pin atten diode D4 AZ23C3V6 Dio A SOT23 dual ca zener 3.6V 0.3W D4 MMSZ5229 Vis I SOD123 zener 300mW 5% 4.3V D5 SST215 Tem XQ n-ch mosfet 20V 1nS D5 BCW32R Phi R SOT23R BC108B D5 AZ23C3V9 Dio A SOT23 dual ca zener 3.9V 0.3W D1 MMSZ5230 Vis I SOD123 zener 300mW 5% 4.7V D6 BCW33R Phi R SOT23R BC108C D6 MMBC1622D6 Mot N MPS3904 hfe 200-400 D6 AZ23C4V3 Dio A SOT23 dual ca zener 4.3V 0.3W D7p BCF32 Phi N SOT23 D7t BCF32 Phi N SOT23 D7 MMBC1622D7 Mot N MPS3904 hfe 300-600 D7 AZ23C4V7 Dio A SOT23 dual ca zener 4.7V 0.3W D7C FTZC6.2N Roh DZ SMD5 quad ESD ca zener 6.82V 0.2W D8 AZ23C5V1 Dio A SOT23 dual ca zener 5.1V 0.3W D8p BCF33 Phi N SOT23 BC146/03 D9 AZ23C5V6 Dio A SOT23 dual ca zener 5.6V 0.3W D9 1SS401 Tosh C USC schottky 20V 0.5A D10 AZ23C6V2 Dio A SOT23 dual ca zener 6.2V 0.3W D11 SST211 Sil XQ n-ch mosfet sw D11 AZZ23C6V8 Dio A SOT23 dual ca zener 6.8V 0.3W D12 AZZ23C7V5 Dio A SOT23 dual ca zener 7.5V 0.3W D13 SST213 Sil XQ n-ch mosfet sw D13 AZZ23C8V2 Dio A SOT23 dual ca zener 8.2V 0.3W D14 AZZ23C9V1 Dio A SOT23 dual ca zener 9.1V 0.3W D15 AZZ23C10 Dio A SOT23 dual ca zener 10V 0.3W D15 SST215 Sil XQ n-ch mosfet sw D16 AZZ23C11 Dio A SOT23 dual ca zener 11V 0.3W D17 AZZ23C12 Dio A SOT23 dual ca zener 12V 0.3W D18 AZZ23C13 Dio A SOT23 dual ca zener 13V 0.3W D19 AZZ23C15 Dio A SOT23 dual ca zener 15V 0.3W D20 AZZ23C16 Dio A SOT23 dual ca zener 16V 0.3W D21 AZZ23C18 Dio A SOT23 dual ca zener 18V 0.3W http://www.marsport.org.uk/smd/smdd.htm (2 of 5)27/5/2007 18:19:53
- 83. SMD Codebook Page D D22 AZZ23C20 Dio A SOT23 dual ca zener 20V 0.3W D23 AZZ23C22 Dio A SOT23 dual ca zener 22V 0.3W D24 AZZ23C24 Dio A SOT23 dual ca zener 24V 0.3W D25 AZZ23C27 Dio A SOT23 dual ca zener 27V 0.3W D26 AZZ23C30 Dio A SOT23 dual ca zener 30V 0.3W D27 AZZ23C33 Dio A SOT23 dual ca zener 33V 0.3W D28 AZZ23C36 Dio A SOT23 dual ca zener 36V 0.3W D29 AZZ23C39 Dio A SOT23 dual ca zener 39V 0.3W D30 AZZ23C43 Dio A SOT23 dual ca zener 43V 0.3W D31 AZZ23C47 Dio A SOT23 dual ca zener 47V 0.3W D32 AZZ23C51 Dio A SOT23 dual ca zener 51V 0.3W D58 FLLD261 Zet B SOT23 low leakage dual cc Si diode D63 FLLD263 Zet A SOT23 low leakage dual ca Si diode D76 BAR18J SGS I SOD232 schottky 70V 15mA D76 BAR18 SGS C SOT23 schottky 70V 30mA D85 BAT17DS SGS D 2xBA481 D86 BAT54J ST I SOD232 schottky 30V 300mA D86 BAT54 ST C SOT23 schottky 30V 300mA D87 BAT54C ST B SOT23 dual cc schottky 30V 300mA D88 BAT54S ST D SOT23 dual series schottky 30V 300mA D94 BAR42 SGS C SOT23 schottky 30V 100mA D95 BAR43 SGS C SOT23 schottky 30V 100mA D96 BAS70-04 SGS D SOT23 2xBAR18 D97 BAS70-05 SGS B SOT23 2xBAR18 D98 BAS70-06 SGS A SOT23 2xBAR18 DA BCW67A SGS N SOT23 pnp 32V 0.8A hfe 100 min DA BF622 Sie P SOT89 npn 250V video o/p DA MMSZ4708 Vis I SOD123 zener 350mW 5% 22V DA MMBZ4708 Vis C SOT23 zener 350mW 5% 22V DA5 BAR43S SGS D SOT23 2xBAR43 DB BCW67B SGS N SOT23 pnp 32V 0.8A hfe 160 min DB BF623 Sie P SOT89 pnp 250V video o/p DB1 BAR43A SGS A SOT23 2xBAR43 DB2 BAR43C SGS B SOT23 2xBAR43 http://www.marsport.org.uk/smd/smdd.htm (3 of 5)27/5/2007 18:19:53
- 84. SMD Codebook Page D DC BCW67C SGS N SOT23 pnp 32V 0.8A hfe 250 min DC BF720 Mot P SOT223 npn 1.5W 300V DC BFN20 Sie P SOT89 npn video o/p 300V comp BFN21 DC MMSZ4695 Vis I SOD123 zener 350mW 5% 8.7V DC MMBZ4695 Vis C SOT23 zener 350mW 5% 8.7V DD BFN16 Sie P SOT89 npn video o/p 250V comp BFN17 DD MMSZ4696 Vis I SOD123 zener 350mW 5% 9.1V DD MMBZ4696 Vis C SOT23 zener 350mW 5% 9.1V DE BFN18 Sie P SOT89 npn video o/p 300Vcomp BFN19 DE MMSZ4697 Vis I SOD123 zener 350mW 5% 10V DE MMBZ4697 Vis C SOT23 zener 350mW 5% 10V DF BCW68F SGS N SOT23 pnp 45V 0.8A hfe 100 min DF BF721 Mot P SOT223 pnp 1.5W 300V DF BFN21 Sie P SOT89 pnp 300V video o/p comp BFN20 DF MMSZ4698 Vis I SOD123 zener 350mW 5% 11V DF MMBZ4698 Vis C SOT23 zener 350mW 5% 11V DG BCW68G SGS N SOT23 pnp 45V 0.8A hfe 160 min DG BFN17 Sie P SOT89 pnp video o/p 250V comp BFN16 DH BCW68H SGS N SOT23 pnp 45V 0.8A hfe 250 min DH BCW68G Mot N SOT23 pnp 45V 0.8A hfe 160 min DH MMBD2000 Mot C SOT323 Si sw diode 20V 0.2A SOT323 DH BFN19 Sie P SOT89 pnp video o/p 300V comp BFN18 DH MMSZ4699 Vis I SOD123 zener 350mW 5% 12V DH MMBZ4699 Vis C SOT23 zener 350mW 5% 12V DJ MMSZ4700 Vis I SOD123 zener 350mW 5% 13V DJ MMBZ4700 Vis C SOT23 zener 350mW 5% 13V DK BCX42 Sie N SOT23 gp audio pnp 125V comp BCX41 DK MMSZ4701 Vis I SOD123 zener 350mW 5% 14V DK MMBZ4701 Vis C SOT23 zener 350mW 5% 14V DM MMSZ4702 Vis I SOD123 zener 350mW 5% 15V DM MMBZ4702 Vis C SOT23 zener 350mW 5% 15V DN MMSZ4703 Vis I SOD123 zener 350mW 5% 16V DN MMBZ4703 Vis CI SOT23 zener 350mW 5% 16V DP MMBD2010 Mot B SOT323 dual cc MMBD2000 http://www.marsport.org.uk/smd/smdd.htm (4 of 5)27/5/2007 18:19:53
- 85. SMD Codebook Page D DP MMSZ4704 Vis I SOD123 zener 350mW 5% 17V DP MMBZ4704 Vis C SOT23 zener 350mW 5% 17V DP CMDZ2L8 CSC I SOD323 zener 250mW Iz 0.5mA 2.8V DQ 2P710AQ Phi N SOT346 gp pnp hfe 85-170 DR 2P710AR Phi N SOT346 gp pnp hfe 120-240 DS 2P710AS Phi N SOT346 gp pnp hfe 170-340 DT BCW67AR SGS R SOT23R pnp 32V 0.8A hfe 100 min DT MMSZ4705 Vis I SOD123 zener 350mW 5% 18V DT MMBZ4705 Vis C SOT23 zener 350mW 5% 18V DU BCW67BR SGS R SOT23R pnp 32V 0.8A hfe 160 min DU MMSZ4706 Vis I SOD123 zener 350mW 5% 19V DU MMBZ4706 Vis C SOT23 zener 350mW 5% 19V DV MMSZ4707 Vis I SOD123 zener 350mW 5% 20V DV MMBZ4707 Vis C SOT23 zener 350mW 5% 20V DW BCW67CR SGS R SOT23R pnp 32V 0.8A hfe 250 min DX BCW68FR SGS R SOT23R pnp 45V 0.8A hfe 100 min DY BCW68GR SGS R SOT23R pnp 45V 0.8A hfe 160 min DY MMSZ4710 Vis I SOD123 zener 350mW 5% 25V DY MMBZ4710 Vis C SOT23 zener 350mW 5% 25V DZ MMSZ4709 Vis I SOD123 zener 350mW 5% 24V DZ MMBZ4709 Vis C SOT23 zener 350mW 5% 24V DZ BCW68HR SGS R SOT23R pnp 45V 0.8A hfe 250 min Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdd.htm (5 of 5)27/5/2007 18:19:53
- 86. SMD Codebook page E GM4PMK's SMD Codebook Codes beginning with 'E' Code Device Manf Base Package Leaded Equivalent/Data e BAT64-02W Sie I SCD80 E 1SS780 Roh I USM 40V 100mA lo leakage E BB689 Sie I SCD80 2-55pF varicap E0 HSMP-3810 HP C SOT23 HP3810 pin atten diode E0 HSMP-381B HP C SOT323 HP3810 pin atten diode E01 DTDG14EP Roh P SOT89 npn dtr 60V 1A R2 10k, + c to b zener E02 DTDG23YP Roh P SOT89 npn dtr 60V 1A 2k2+ 10k, + c to b zener E1p BFS17 Phi N SOT23 BFY90 BFW92 E1p BFS17W Phi N SOT323 BFY90 BFW92 E1 HSMP-3811 HP K SOT23 HP3810 pin atten diode E1 MMSZ5231 Vis I SOD123 zener 300mW 5% 5.1V E2 BFS17A Phi N SOT23 npn RF 3GHz 25mA E2 BAL99 Zet C sw diode 75V 100mA E2 HSMP-3812 HP D SOT23 dual series HP3810 pin atten diode E2 MMSZ5232 Vis I SOD123 zener 300mW 5% 5.6V E2 EDZ6.2B Roh I EMD2 150mW zener 6.2V E2 VDZ6.2B Roh I VMD2 150mW zener 6.2V E3 BAR99 Zet C sw diode 75V 100mA E3 HSMP-3813 HP A SOT23 dual HP3810 pin atten diode E3 MMSZ5233 Vis I SOD123 zener 300mW 5% 6.0V E4 BFS17R Phi R BFY90 BFW92 E4 HSMP-3814 HP B SOT23 dual cc HP3810 pin atten diode E4 MMSZ5234 Vis I SOD123 zener 300mW 5% 6.2V E5 BFS17AR Tfk R npn rf 3 GHz 25mA E5 MMSZ52353 Vis I SOD123 zener 300mW 5% 6.8V E5 EDZ33B Roh I EMD2 150mW zener 33V http://www.marsport.org.uk/smd/smde.htm (1 of 4)27/5/2007 18:19:57
- 87. SMD Codebook page E E5 VDZ33B Roh I VMD2 150mW zener 33V E6 ZC2800E Zet C HP2800 E8 ZC2811E Zet C HP2811 E9 ZC5800E Zet C HP5800 E11 DTA113ZE Roh N EMT3 pnp dtr 1k0 + 10k 50V 100mA E11 DTA113ZKA Roh N SC59 pnp dtr 1k0 + 10k 50V 100mA E13 DTA143ZE Roh N EMT3 pnp dtr 4k7 + 47k 50V 100mA E13 DTA143ZKA Roh N SC59 pnp dtr 4k7 + 47k 50V 100mA E23 DTC143ZCA Roh N SOT23 npn dtr 4k7 + 47k 50V 100mA E23 DTC143ZE Roh N EMT3 npn dtr 4k7 + 47k 50V 100mA E23 DTC143ZKA Roh N SC59 npn dtr 4k7 + 47k 50V 100mA E32 DTA123JE Roh N EMT3 pnp dtr 2k2 + 47k 50V 100mA E32 DTA123JKA Roh N SC59 pnp dtr 2k2 + 47k 50V 100mA E42 DTC123JE Roh N EMT3 npn dtr 2k2 + 47k 50V 100mA E42 DTC123JKA Roh N SC59 npn dtr 2k2 + 47k 50V 100mA E56 DTA144VKA Roh N SC59 pnp dtr 47k + 10k 50V 100mA E66 DTC144VKA Roh N SC59 npn dtr 47k + 10k 50V 100mA EA MMSZ4711 Vis I SOD123 zener 350mW 5% 27V EA MMBZ4711 Vis IC SOT23 zener 350mW 5% 27V EAxx EGF1A Vis I DO214 rectifier ultrafast 50V 1A xx date code EAs BCW65A Sie N SOT23 npn 32V 800mA hfe 100 min EBs BCW65B Sie N SOT23 npn 32V 800mA hfe 160 min EB HSMP-4810 HP J SOT23 0.5-3GHz pin 2 cathode connections EB MSC1022-B Mot H pnp RF 150MHz fT 20V xx date code EBxx EGF1B Vis I DO214 rectifier ultrafast 100V 1A EC MSC1022-C Mot H pnp RF 150MHz fT 20V EC MMSZ4712 Vis I SOD123 zener 350mW 5% 28V EC MMBZ4712 Vis C SOT23 zener 350mW 5% 28V ECxx EGF1C Vis I DO214 rectifier ultrafast 150V 1A xx date code ECs BCW65C Sie N SOT23 npn 32V 800mA hfe 250 min ED BCV28 Sie P SOT89 pnp darlington 30V 0.8A comp BCV29 ED MMSZ4713 Vis I SOD123 zener 350mW 5% 30V http://www.marsport.org.uk/smd/smde.htm (2 of 4)27/5/2007 18:19:57
- 88. SMD Codebook page E ED MMBZ4713 Vis C SOT23 zener 350mW 5% 30V EDxx EGF1D Vis I DO214 rectifier ultrafast 200V 1A xx date code EE BCV48 Sie P SOT89 pnp darlington 60V 0.8A comp BCV49 EE MMSZ4714 Vis I SOD123 zener 350mW 5% 33V EE MMBZ4714 Vis C SOT23 zener 350mW 5% 33V EF BCV29 Sie P SOT89 npn darlington 30V 0.8A comp BCV28 EF BCW66F Sie N SOT23 npn 45V 800mA hfe 100 min EF MMSZ4715 Vis I SOD123 zener 350mW 5% 36V EF MMBZ4715 Vis C SOT23 zener 350mW 5% 36V EG BCV49 Sie P SOT89 npn darlington 60V 0.8A comp BCV48 EGs BCW66G Sie N SOT23 npn 45V 800mA hfe 160 min EHs BCW66H Sie N SOT23 npn 45V 800mA hfe 240 min EH MMSZ4716 Vis I SOD123 zener 350mW 5% 39V EH MMVZ4716 Vis C SOT23 zener 350mW 5% 39V EHAA MAX6326_R22- T Max ZB SOT23 microproc -ve reset gen 2.200V EIAA MAX6327_R22- T Max ZB SOT23 microproc +ve reset gen 2.200V EJ MMSZ4717 Vis I SOD123 zener 350mW 5% 43V EJ MMBZ4717 Vis C SOT23 zener 350mW 5% 43V EJAA MAX6328_R22- T Max ZB SOT23 microproc -ve reset gen 2.200V EKs BCX41 Sie N SOT23 gp npn 125V 1A comp BCX42 EP CMDZ3L0 CSC I SOD323 zener 250mW Iz 0.5mA 3.0V ET BCW65AR Sie R SOT23R npn 32V 800mA hfe 100 min EU BCW65BR Sie R SOT23R npn 32V 800mA hfe 160 min EW BCW65CR Sie R SOT23R npn 32V 800mA hfe 240 min EWAA MAX6326_R23- T Max ZB SOT23 microproc -ve reset gen 2.320V EX BCW65FR Sie R SOT23R npn 45V 800mA hfe 100 min EXAA MAX6326_R24- T Max ZB SOT23 microproc -ve reset gen 2.400V http://www.marsport.org.uk/smd/smde.htm (3 of 4)27/5/2007 18:19:57
- 89. SMD Codebook page E EY BCW65GR Sie R SOT23R npn 45V 800mA hfe 160 min EYAA MAX6326_R25- T Max ZB SOT23 microproc -ve reset gen 2.500V EZ BCW65HR Sie R SOT23R npn 45V 800mA hfe 240 min EZAA MAX6326_R26- T Max ZB SOT23 microproc -ve reset gen 2.630V Last Updated on 10/07/2006 by GM4PMK http://www.marsport.org.uk/smd/smde.htm (4 of 4)27/5/2007 18:19:57
- 90. SMD Codebook page F GM4PMK's SMD Codebook Codes beginning with 'F' Code Device Manf Base Package Leaded Equivalent/Data f BAS20-02W Sie I SCD80 F KV1831E Tok I URD uhf varicap 2.5-22pf F MRF927 Mot N SOT323 npn RF fT 8GHz F0 HSMP-3820 HP C SOT23 35V RF pin sw diode F0 CMOZ5V6 CSC I SOD523 zener 350mW 5% 5.6V F02 DTD123TK Roh N SC59 npn dtr R1 2k2 40V 100mA F03 DTD143TK Roh N SC59 npn dtr R1 4k7 40V 100mA F05 TSDF1205 Vis X SOT143 fT 12GHz npn RF 4V 12mA F1 HSMP-3821 HP K SOT23 35V RF pin sw diode F1 BFS18 Phi N SOT23 BF495 F1 MMBC1009F1 Mot N RF npn fT 150MHz hfe30-60 F1 MMSZ52336 Vis I SOD123 zener 300mW 5% 7.5V F1 CMOZ2V4 CSC I SOD523 zener 350mW 5% 2.4V F1A CMOZ2V6 CSC I SOD523 zener 350mW 5% 2.6V F2 HSMP-3822 HP D SOT23 dual series HP3820 pin sw diode F2 BFS19 SGS N SOT23 BF184 BF494 F2 MMSZ52337 Vis I SOD123 zener 300mW 5% 8.2V F2 CMOZ2V7 CSC I SOD523 zener 350mW 5% 2.7V F2 EDZ6.8B Roh I EMD2 150mW zener 6.8V F2 VDZ6.8B Roh I VMD2 150mW zener 6.8V F2p BFS19 Phi N SOT23 BF184 BF494 F2t BFS19 Phi N SOT23 BF184 BF494 F3 MMBC1009F3 Mot N RF npn fT150MHz hfe60-120 F3 MMSZ52338 Vis I SOD123 zener 300mW 5% 8.7V F3 CMOZ3V0 CSC I SOD523 zener 350mW 5% 3.0V F4 BFS18R Phi N BF495 F4 HSMP-3824 HP B SOT23 dual cc HP3820 pin sw diode F4 MMSZ52339 Vis I SOD123 zener 300mW 5% 9.1V http://www.marsport.org.uk/smd/smdf.htm (1 of 10)27/5/2007 18:20:03
- 91. SMD Codebook page F F4 CMOZ3V3 CSC I SOD523 zener 350mW 5% 3.3V F5 BFS19R Phi N BF184 BF494 F5 MMSZ52340 Vis I SOD123 zener 300mW 5% 10V F5 EDZ36B Roh I EMD2 150mW zener 36V F5 VDZ36B Roh I VMD2 150mW zener 36V F5 CMOZ3V6 CSC I SOD523 zener 350mW 5% 3.6V F6 CMOZ3V9 CSC I SOD523 zener 350mW 5% 3.9V F7 CMOZ4V3 CSC I SOD523 zener 350mW 5% 4.3V F8 CMOZ4V7 CSC I SOD523 zener 350mW 5% 4.7V F8p BF824 Phi N SOT23 F8t BF824 Phi N SOT23 F8t BF824W Phi N SOT323 F9 CMOZ5V1 CSC I SOD523 zener 350mW 5% 5.1V F9 1SS321 Tosh B SC59 dualcc schottky 10V 50mA low leakage F11 DTB113EK Roh N SC59 pnp dtr 1k + 1k 50V 500mA F12 DTB123EK Roh N SC59 pnp dtr 2k2 + 2k2 50V 500mA F13 DTB143EC Roh N SOT23 pnp dtr 4k7+ 4k7 50V 500mA F13 DTB143EK Roh N SC59 pnp dtr 4k7+ 4k7 50V 500mA F14 DTB114EK Roh N SC59 pnp dtr 10k + 10k 50V 500mA F20 TSDF1220 Vis X SOT143 fT 12GHz npn 6V 20mA F21 DTD113EK Roh N SC59 npn dtr 1k + 1k 50V 500mA F22 DTD123EK Roh N SC59 npn dtr 2k2 + 2k2 50V 500mA F23 DTD143EC Roh N SOT23 npn dtr 4k7 + 4k7 50V 500mA F23 DTD143EK Roh N SC59 npn dtr 4k7 + 4k7 50V 500mA F24 DTD114EK Roh N SC59 npn dtr 10k + 10k 50V 500mA F50 TSDF1250 Vis X SOT143 fT 12GHz npn RF 6V 60mA F52 DTB123YC Roh N SOT23 pnp dtr 2k2 + 10k 50V 100mA F52 DTB123YK Roh N SC59 pnp dtr 2k2 + 10k 50V 100mA F62 DTD123YK Roh N SC59 npn dtr 2k2 + 10k 50V 100mA F92 DTB123TK Roh N SC59 pnp dtr R1 2k2 40V 100mA F93 DTB143TK Roh N SC59 pnp dtr R1 4k7 40V 100mA F94 DTB114TK Roh N SC59 pnp dtr R110k 40V 100mA FA HSMP-4820 HP B SOT23 0.5-3GHz cc pin dual anode http://www.marsport.org.uk/smd/smdf.htm (2 of 10)27/5/2007 18:20:03
- 92. SMD Codebook page F FA BFQ17 Phi P SOT89 npn RF 1.5GHz 300mA FA BFP81 Sie X BFQ69 FA BFQ19 Phi P SOT89 npn RF Ft 5.5GHz 100mA FAAA MAX6326_R27- T Max ZB SOT23 microproc -ve reset gen 2.700V FB BFP17 Sie X BFW92 FB EDZC6.8B Roh I EMD2 6.8V 150mW zener low c usb surge prot FBAA MAX6328_R31- T Max ZB SOT23 microproc -ve reset gen 2.800V FC BFQ64 Sie P BFT98T FC BFP29 Sie X BFT97 FCAA MAX6326_R29- T Max ZB SOT23 microproc -ve reset gen 2.930V FD BCV26 SGS N SOT23 pnp darlington FDp BCV26 Phi N SOT23 pnp darlington FDt BCV26 Phi N SOT23 pnp darlington FD BFQ17P Sie P SOT89 BFW16A FD BFP35A Sie X BFR34A FDAA MAX6326_R31- T Max ZB SOT23 microproc -ve reset gen 3.080V FE BCV46 SGS N SOT23 pnp darlington FEp BCV46 Phi N SOT23 pnp darlington FEt BCV46 Phi N SOT23 pnp darlington FEs BFQ19P Sie P SOT89 BFR96 FE BFP93A Sie X SOT143 BFR91A FEAA MAX6326_R30- T Max ZB SOT23 microproc -ve reset gen 3.000V FF BCV27 SGS N SOT23 npn darlington FF BBY65-02V Inf I SC79 hyperabrupt varicap 2.7-30pF FF JDV3C11 Tosh DT SMINI 2 x VHF varicap 70pF FFp BCV27 Phi N SOT23 npn darlington FFt BCV27 Phi N SOT23 npn darlington FFAA MAX6327_R23- T Max ZB SOT23 microproc +ve reset gen 2.320V FG BCV47 Phi N SOT23 npn darlington http://www.marsport.org.uk/smd/smdf.htm (3 of 10)27/5/2007 18:20:03
- 93. SMD Codebook page F FGp BCV47 Phi N SOT23 npn darlington FGt BCV47 Phi N SOT23 npn darlington FG BFQ19S Sie P SOT89 BFR96S FGAA MAX6327_R24- T Max ZB SOT23 microproc +ve reset gen 2.400V FHs BFN24 Sie N SOT23 npn 250V comp to BFN25 FHAA MAX6327_R25- T Max ZB SOT23 microproc +ve reset gen 2.500V FIAA MAX6327_R26- T Max ZB SOT23 microproc +ve reset gen 2.630V FJ BFN26 Sie N SOT23 npn 300V comp to BFN27 FJAA MAX6327_R27- T Max ZB SOT23 microproc +ve reset gen 2.700V FK BFN25 Sie N SOT23 pnp 250V comp to BFN24 FKAA MAX6327_R28- T Max ZB SOT23 microproc +ve reset gen 2.800V FL BFN27 Sie N SOT23 pnp 300V comp to BFN26 FLAA MAX6327_R29- T Max ZB SOT23 microproc +ve reset gen 2.930V FFMA MAX6327_R31- T Max ZB SOT23 microproc +ve reset gen 3.080V FFNA MAX6327_R30- T Max ZB SOT23 microproc +ve reset gen 3.000V FOAA MAX6328_R23- T Max ZB SOT23 microproc -ve reset gen 2.320V FP CMDZ3L3 CSC I SOD323 zener 250mW Iz 0.5mA 3.3V FPAA MAX6328_R24- T Max ZB SOT23 microproc -ve reset gen 2.400V FQ 2SA1037AK Roh N SMT3 hfe 150@1ma preamp gp pnp hfe 120-270 FQ 2SA1576A Roh N UMT3 see 2SA1037 above FQ 2SA1774 Roh N EMT3 see 2SA1037 above FQ 2SA2029 Roh N VMT3 see 2SA1037 above F-Q 2PA1576Q Phi N SOT323 gp pnp SC70 hfe 120-270 equ 2SA1037 above FtQ 2PA1576Q Phi N SOT323 gp pnp SC70 hfe 120-270 http://www.marsport.org.uk/smd/smdf.htm (4 of 10)27/5/2007 18:20:03
- 94. SMD Codebook page F FQAA MAX6328_R25- T Max ZB SOT23 microproc -ve reset gen 2.500V FR 2SA1037AK Roh N hfe 150@1ma preamp gp pnp hfe 180-390 FR 2SA1576A Roh N UMT see 2SA1037K above FR 2SA1577Q N see 2SA1037K above FR 2SA1774 Roh N EM3 see 2SA1037K above F-R 2PA1576R Phi N SOT323 gp pnp hfe 180-390 FtR 2PA1576R Phi N SOT323 gp pnp hfe 180-390 FRAA MAX6328_R26- T Max ZB SOT23 microproc -ve reset gen 2.630V FS 2SA1037AK Roh N SMT3 hfe 150@1ma preamp gp pnp hfe 270-550 FS 2SA1576A Roh N UMT3 see 2SA1037 above FS 2SA1774 Roh N EMT3 see 2SA1037 above FS 2SA2029 Roh N VMT3 see 2SA1037 above F-S 2PA1576S Phi N SOT323 gp pnp hfe 270-560 FtS 2PA1576S Phi N SOT323 gp pnp hfe 270-560 FSAA MAX6328_R27- T Max ZB SOT23 microproc -ve reset gen 2.700V FTAA MAX6328_R28- T Max ZB SOT23 microproc -ve reset gen 2.800V FUAA MAX6328_R29- T Max ZB SOT23 microproc -ve reset gen 2.930V FVAA MAX6328_R31- T Max ZB SOT23 microproc -ve reset gen 3.080V FWAA MAX6328_R30- T Max ZB SOT23 microproc -ve reset gen 3.000V FZAP MAX6012A Max ZC SOT23 precision reference 1.247V FZAQ MAX6025A Max ZC SOT23 precision reference 2.500V FZAR MAX6041A Max ZC SOT23 precision reference 4.096V FZAS MAX6045A Max ZC SOT23 precision reference 4.500V FZAT MAX6050A Max ZC SOT23 precision reference 5.000V FZAU MAX6021A Max ZC SOT23 precision reference 2.048V FZAV MAX6346_R33- T Max ZB SOT23 micrproc -ve reset gen 3.300V http://www.marsport.org.uk/smd/smdf.htm (5 of 10)27/5/2007 18:20:03
- 95. SMD Codebook page F FZAW MAX6346_R34- T Max ZB SOT23 micrproc -ve reset gen 3.400V FZAX MAX6346_R35- T Max ZB SOT23 micrproc -ve reset gen 3.500V FZAY MAX6346_R36- T Max ZB SOT23 micrproc -ve reset gen 3.600V FZAZ MAX6346_R37- T Max ZB SOT23 micrproc -ve reset gen 3.700V FZBA MAX6346_R38- T Max ZB SOT23 micrproc -ve reset gen 3.800V FZBB MAX6346_R39- T Max ZB SOT23 micrproc -ve reset gen 3.900V FZBC MAX6346_R40- T Max ZB SOT23 micrproc -ve reset gen 4.0800V FZBD MAX6346_R41- T Max ZB SOT23 micrproc -ve reset gen 4.100V FZBE MAX6346_R42- T Max ZB SOT23 micrproc -ve reset gen 4.200V FZBF MAX6346_R43- T Max ZB SOT23 micrproc -ve reset gen 4.300V FZBG MAX6346_R44- T Max ZB SOT23 micrproc -ve reset gen 4.380V FZBH MAX6346_R45- T Max ZB SOT23 micrproc -ve reset gen 4.500V FZBI MAX6346_R46- T Max ZB SOT23 micrproc -ve reset gen 4.630V FZBJ MAX6347_R33- T Max ZB SOT23 micrproc +ve reset gen 3.300V FZBK MAX6347_R34- T Max ZB SOT23 micrproc +ve reset gen 3.400V FZBL MAX6347_R35- T Max ZB SOT23 micrproc +ve reset gen 3.500V FZBM MAX6347_R36- T Max ZB SOT23 micrproc +ve reset gen 3.600V FZBN MAX6347_R37- T Max ZB SOT23 micrproc +-ve reset gen 3.700V FZBO MAX6347_R38- T Max ZB SOT23 micrproc +ve reset gen 3.800V http://www.marsport.org.uk/smd/smdf.htm (6 of 10)27/5/2007 18:20:03
- 96. SMD Codebook page F FZBP MAX6347_R39- T Max ZB SOT23 micrproc +ve reset gen 3.900V FZBQ MAX6347_R40- T Max ZB SOT23 micrproc +ve reset gen 4.0800V FZBR MAX6347_R41- T Max ZB SOT23 micrproc +-ve reset gen 4.100V FZBS MAX6347_R42- T Max ZB SOT23 micrproc +ve reset gen 4.200V FZBT MAX6347_R43- T Max ZB SOT23 micrproc +ve reset gen 4.300V FZBU MAX6347_R44- T Max ZB SOT23 micrproc +-ve reset gen 4.380V FZBV MAX6347_R45- T Max ZB SOT23 micrproc +ve reset gen 4.500V FZBW MAX6347_R46- T Max ZB SOT23 micrproc +-ve reset gen 4.630V FZBX MAX6348_R33- T Max ZB SOT23 microproc -ve reset gen 3.300V FZBY MAX6348_R34- T Max ZB SOT23 microproc -ve reset gen 3.400V FZBZ MAX6348_R35- T Max ZB SOT23 microproc -ve reset gen 3.500V FZCA MAX6348_R36- T Max ZB SOT23 microproc -ve reset gen 3.600V FZCB MAX6348_R37- T Max ZB SOT23 microproc -ve reset gen 3.700V FZCC MAX6348_R38T Max ZB SOT23 microproc -ve reset gen 3.800V FZCD MAX6348_R39- T Max ZB SOT23 microproc -ve reset gen 3.900V FZCE MAX6348_R40- T Max ZB SOT23 microproc -ve reset gen 4.000V FZCF MAX6348_R41- T Max ZB SOT23 microproc -ve reset gen 4.100V FZCG MAX6348_R42T Max ZB SOT23 microproc -ve reset gen 4.200V FZCH MAX6348_R43- T Max ZB SOT23 microproc -ve reset gen 4.380V FZCI MAX6348_R44- T Max ZB SOT23 microproc -ve reset gen 4.400V http://www.marsport.org.uk/smd/smdf.htm (7 of 10)27/5/2007 18:20:03
- 97. SMD Codebook page F FZCJ MAX6348_R45- T Max ZB SOT23 microproc -ve reset gen 4.500V FZCK MAX6348_R46- T Max ZB SOT23 microproc -ve reset gen 4.600V FZCW MAZ6001UR Max ZC SOT23 1.250V V reference FZCX MAZ6002UR Max L SOT23 2.500V V reference FZCY MAZ6004UR Max L SOT23 4.096V V reference FZCZ MAZ6005UR Max L SOT23 5.000V V reference FZDA MAX6012B Max ZC SOT23 precision reference 1.247V FZDB MAX6025B Max ZC SOT23 precision reference 2.500V FZDC MAX6041B Max ZC SOT23 precision reference 4.096V FZDD MAX6045B Max ZC SOT23 precision reference 4.500V FZdE MAX6050B Max ZC SOT23 precision reference 5.000V FZDF MAX6021B Max ZC SOT23 precision reference 2.047V FZDK MAZ6003UR Max L SOT23 3.000V V reference FZDW MAX6030A Max ZC SOT23 precision reference 3.000V FZDX MAX6012B Max ZC SOT23 precision reference 3.000V FZEB LM4041AIM3- 1.2 Max L SOT23 1.225V 0.1% shunt V ref FZEC LM4041BIM3- 1.2 Max L SOT23 1.225V 0.2% shunt V ref FZED LM4041DIM3- 1.2 Max L SOT23 1.225V 0.5% shunt V ref FZEE LM4041DIM3- 1.2 Max L SOT23 1.225V 1.5% shunt V ref FZEF LM4040A IM3- 2.1 Max L SOT23 2.048V shunt reference 0.1% FZEG LM4040B IM3- 2.1 Max L SOT23 2.048V shunt reference 0.2 % FZEH LM4040C IM3- 2.1 Max L SOT23 2.048V shunt reference 0.5% FZEI LM4040D IM3- 2.1 Max L SOT23 2.048V shunt reference 1.0% FZEJ LM4040A IM3- 2.5 Max L SOT23 2.500V shunt reference 0.1% FZEK LM4040B IM3- 2.5 Max L SOT23 2.500V shunt reference 0.2 % http://www.marsport.org.uk/smd/smdf.htm (8 of 10)27/5/2007 18:20:03
- 98. SMD Codebook page F FZEL LM4040C IM3- 2.5 Max L SOT23 2.500V shunt reference 0.5% FZEM LM4040D IM3- 2.5 Max L SOT23 2.500V shunt reference 1.0% FZEN LM4040A IM3- 3.0 Max L SOT23 3.000V shunt reference 0.1% FZEO LM4040B IM3- 3.0 Max L SOT23 3.000V shunt reference 0.2 % FZEP LM4040C IM3- 3.0 Max L SOT23 3.000V shunt reference 0.5% FZEQ LM4040D IM3- 3.0 Max L SOT23 3.000V shunt reference 1.0% FZER LM4040A IM3- 4.1 Max L SOT23 4.096V shunt reference 0.1% FZES LM4040B IM3- 4.1 Max L SOT23 4.096V shunt reference 0.2 % FZET LM4040C IM3- 4.1 Max L SOT23 4.096V shunt reference 0.5% FZEU LM4040DIM3- 4.1 Max L SOT23 4.096V shunt reference 1.0% FZEV LM4040A IM3- 5.0 Max L SOT23 5.000V shunt reference 0.1% FZEW LM4040B IM3- 5.0 Max L SOT23 5.000V shunt reference 0.2 % FZEX LM4040C IM3- 5.0 Max L SOT23 5.000V shunt reference 0.5% FZEY LM4040D IM3- 5.0 Max L SOT23 5.000V shunt reference 1.0% FZEZ MAZ803LUR Max ZB SOT23 microproc -ve reset gen, 5.0V FZFA MAZ803MUR Max ZB SOT23 microproc -ve reset gen, 5.0V FZFB MAZ803TUR Max ZB SOT23 microproc -ve reset gen, 3.3V FZFC MAZ803SUR Max ZB SOT23 microproc -ve reset gen, 3.3V FZFD MAZ803RUR Max ZB SOT23 microproc -ve reset gen, 3.0V FZGH MAZ6006AUR Max L SOT23 1.250V 0.2% shunt V reference FZGI MAZ6006BUR Max L SOT23 1.250V 0.5% shunt V reference FZGJ MAZ6006CUR Max L SOT23 1.250V 1.0% shunt V reference FZGK MAZ6007AUR Max L SOT23 2.480V 0.2% shunt V reference http://www.marsport.org.uk/smd/smdf.htm (9 of 10)27/5/2007 18:20:03
- 99. SMD Codebook page F FZGL MAZ6007BUR Max L SOT23 2.480V 0.5% shunt V reference FZGM MAZ6007CUR Max L SOT23 2.480V 1.0% shunt V reference FZGN MAZ6008AUR Max L SOT23 2.500V 0.2% shunt V reference FZGO MAZ6008BUR Max L SOT23 2.500V 0.5% shunt V reference FZGP MAZ6008CUR Max L SOT23 2.500V 1.0% shunt V reference FZGQ MAZ6009AUR Max L SOT23 3.000V 0.2% shunt V reference FZGR MAZ6009BUR Max L SOT23 3.000V 0.5% shunt V reference FZGS MAZ6009CUR Max L SOT23 3.000V 1.0% shunt V reference Last Updated on 13/06/2006 By GM4PMK http://www.marsport.org.uk/smd/smdf.htm (10 of 10)27/5/2007 18:20:03
- 100. SMD Codebook page G GM4PMK's SMD Codebook Codes beginning with 'G' Code Device Manf Base Package Leaded Equivalent/Data G BAR63-02W Sie I SCD80 RF pin to 3GHz G BAR63-03W Sie I SOD323 RF pin to 3GHz G KV1181E Tok I URD uhf varicap 2-16pF G MRF947A Mot N SOT323 npn RF 8GHz G0 HSMP-3890 HP C SOT23 HP3890 pin sw diode G0 HSMP-389B HP C SOT323 HP3890 pin sw diode G08 DTD133HKA Roh N SC59 npn dtr 3k3+10k 50V 500mA G1 BFS20 Phi N SOT23 BF199 G1p BFS20 Phi N SOT23 BF199 G1 BFS20 Phi N SOT23 BF199 G1t HSMP-3891 HP K SOT23 HP3890 pin sw diode G1 MMBT5551 Mot N SOT23 2N5551 npn Vce 140V tG1 PMBT5551 Phi N SOT23 2N5551 npn Vce 140V tG1 PMST5551 Phi N SOT323 2N5551 npn Vce 140V G1E BC847A Rho N SOT23 BC547A G1F BC847B Rho N SOT23 BC547B G1G BC847C Rho N SOT23 BC547C G1J BC848A Rho N SOT23 BC548A G1K BC848B Rho N SC70 BC548B G1K BC848BW Rho N UMT3 BC548B G1K BC848B Rho N SOT23 BC548B G1L BC848C Rho N SOT23 BC548C G2 HSMP-3892 HP D SOT23 dual ser HP3890 pin sw diode G2 CGY50 Sie IQ SOT143 GaAs MMIC amp G3 HSMP-3893 HP A SOT23 dual HP3890 pin sw diode pG3 PMST5551 Phi N SOT323 2N5551 G3 BAR63 Sie C SOT23 single 3GHz pin G3C DTB122JK Roh N SC59 pnp dtr 220R + 470R 50V 500mA http://www.marsport.org.uk/smd/smdg.htm (1 of 4)27/5/2007 18:20:07
- 101. SMD Codebook page G G3E BC857A Roh N SOT23 BC557A G3F BC857B Roh N SOT23 BC557B G3J BC858A Roh N SOT23 BC558A G3K BC858B Roh N SOT23 BC558B G3K BC858B Roh N SC70 BC558B G3K BC858BW Roh N UMT3 BC558B G3L BC858C Roh N SOT23 BC558C G4 BFS20R Phi N SOT23 BF199 G4 HSMP-3894 HP B SOT23 dual HP3890 pin sw diode G4 BAR63-04 Sie D SOT23 dual series 3GHz pin G4C DTD122JK Roh N SC59 npn dtr 220R + 470R 50V 500mA G4s BAR63-04W Sie D SOT323 dual series 3GHz pin G5 HSMP-3895 HP S SOT143 dual HP3890 pin sw diode G5 BAR63-05 Sie B SOT23 dual cc 3GHz pin G5s BAR63-05W Sie B SOT323 dual cc 3GHz pin G5B BC807-25 Roh N SOT23 BC327-25 G6 BAR63-06 Sie A SOT23 dual ca 3GHz pin G6s BAR63-06W Sie A SOT323 dual ca 3GHz pin G6A BC817-16 Roh N BC337-16 G6B BC817-25 Roh N SOT23 BC337-25 G7 BF579 Tfk N BF979 pnp uhf fT 1.75GHz G11 DTB113ZKA Roh N SC59 pnp dtr 1k0 +10k 50V 500mA G17 MMBZ4617 Vis C SOT23 zener 350mW 5% 2.4V G18 MMBZ4618 Vis C SOT23 zener 350mW 5% 2.7V G19 MMBZ4619 Vis C SOT23 zener 350mW 5% 3.0V G20 MMBZ4620 Vis C SOT23 zener 350mW 5% 3.3V G21 MMBZ4621 Vis C SOT23 zener 350mW 5% 3.6V G21 DTD113ZKA Roh N SC59 npn dtr 1k0 +10k 50V 500mA G22 MMBZ4622 Vis C SOT23 zener 350mW 5% 3.9V G23 MMBZ4623 Vis C SOT23 zener 350mW 5% 4.3V G24 MMBZ4624 Vis C SOT23 zener 350mW 5% 4.7V G25 MMBZ4625 Vis C SOT23 zener 350mW 5% 5.1V G26 MMBZ4626 Vis C SOT23 zener 350mW 5% 5.6V G27 MMBZ4627 Vis C SOT23 zener 350mW 5% 6.2V http://www.marsport.org.uk/smd/smdg.htm (2 of 4)27/5/2007 18:20:07
- 102. SMD Codebook page G G98 DTB133HKA Roh N SC59 pnp dtr 3k3+10k 50V 500mA GA HSMP-4890 HP B SOT23 0.5-3GHz dual cc pin limiter GA BAW78A Sie LQ SOT89 50V 1A sw diode GAxx GF1A Vis I DO214 rectifier 50V 1A xx date code GAB BCW60B Rho N SOT23 BCY58-viii GAC BCW60C Rho N SOT23 BCY58-ix GAD BCW60D Rho N SOT23 BCY58-x GAH BCX70H Rho N SOT23 BCY59-viii BC107B GAJ BCX70J Rho N SOT23 BCY59-ix BC107 GAK BCX70K Rho N SOT23 BCY59-x BC107 GB BAW78B Sie LQ SOT89 100V 1A sw diode GBxx GF1B Vis I DO214 rectifier 100V 1A xx date code GBB BCW61B Rho N SOT23 BCY78-viii GBC BCW61C Rho N SOT23 BCY78-ix GBG BCX71G Rho N SOT23 BCY79-vii GBH BCX71H Rho N SOT23 BCY79-viii GBJ BCX71J Rho N SOT23 BCY79-ix GC BAW78C Sie LQ SOT89 200V 1A sw diode GC1 BCW29 Roh N SOT23 BC178A GC2 BCW30 Roh N SOT23 BC178B GD BAW78D Sie LQ SOT89 400V 1A sw diode GDxx GF1D Vis I DO214 rectifier 200V 1A xx date code GD1 BCW31 Roh N SOT23 BC108C GD2 BCW32 Roh N SOT23 BC108B GD3 BCW33 Roh N SOT23 BC108A GE BFR35AP Sie N SOT23 BFR34A GE BAW79A Sie JQ SOT89 dual cc 50V 1A switch diodes GEC BCW65C Rho N SOT23 npn 32V 800mA hfe 250 min GF BFR92P Sie N SOT23 BFR90 GF BAW79B Sie JQ SOT89 dual cc 100V 1A switch diodes GG BF579R Tfk R BF979 pnp uhf fT1.75GHz GG BFR93P Sie N SOT23 BFR91A GG BAW79C Sie JQ SOT89 dual cc 200V 1A switch diodes GGxx GF1G Vis I DO214 rectifier 400V 1A xx date code http://www.marsport.org.uk/smd/smdg.htm (3 of 4)27/5/2007 18:20:07
- 103. SMD Codebook page G GH BAW79D Sie JQ SOT89 dual cc 400V 1A switch diodes GH1 BCW69 Roh N SOT23 BC177A GH2 BCW70 Roh N SOT23 BC177B GJxx GF1J Vis I DO214 rectifier 600V 1A xx date code GK1 BCW71 Roh N SOT23 BC107A GK2 BCW72 Roh N SOT23 BC107B ZXT300 GKxx GF1K Vis I DO214 rectifier 800V 1A xx date code GLP MMBT1010 Mot N SOT23 pnp 15V hfe 300-600 @100mA GLP MMBT1010 Mot N SOT346 pnp 15V hfe 300-600 @100mA GMxx GF1M Vis I DO214 rectifier 1000V 1A xx date code GMA BFS17 Roh N SOT23 BFW92 GP CMDZ3L6 CSC I SOD323 zener 250mW Iz 0.5mA 3.6V GT1 BCX17 Roh N SOT23 BC327 GT2 BCX18 Roh N SOT23 BC328 GU1 BCX19 Roh N SOT23 BC337 GU2 BCX20 Roh N SOT23 BC338 Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdg.htm (4 of 4)27/5/2007 18:20:07
- 104. SMD Codebook page H GM4PMK's SMD Codebook Codes beginning with 'H' Code Device Manf Base Package Leaded Equivalent/Data H MRF947B Mot N SOT323 npn RF 8GHz H BB659C Sie I SCD80 2.5-39 pF varicap in H BBY51-03W Sie I SOD323 3-5 pF varicap in H BB141 Phi I SOD 523 Low Voltage Varicap H RN262G Roh I VMD2 HF pin diode H0 CMOZ15V CSC I SOD523 zener 350mW 5% 15V H02 DTC323TU Rho N SC70 npn dtr 15V 0.6A, R1 2k2 , for muting H04 DTC323TU Rho N SC70 npn dtr 15V 0.6A, R1 10k , for muting H1 BCW69 Phi N SOT23 BC177A H1 MMSZ52341 Vis I SOD123 zener 300mW 5% 11V H1 CMOZ6V2 CSC I SOD523 zener 350mW 5% 6.2V H1p BCW69 Phi N SOT23 BC177A H1t BCW69 Phi N SOT23 BC177A H2 BCW70 Phi N SOT23 BC177B H2 MMSZ52342 Vis I SOD123 zener 300mW 5% 12V H2 CMOZ6V8 CSC I SOD523 zener 350mW 5% 6.8V H2 EDZ7.5B Roh I EMD2 150mW zener 7.5V H2 VDZ7.5B Roh I VMD2 150mW zener 7.5V H2p BCW70 Phi N SOT23 BC177B H2t BCW70 Phi N SOT23 BC177B H3 BCW89 Phi N SOT23 BC556 H3 MMSZ52343 Vis I SOD123 zener 300mW 5% 13V H3 CMOZ7V5 CSC I SOD523 zener 350mW 5% 7.5V H3p BCW89 Phi N SOT23 BC556 H3t BCW89 Phi N SOT23 BC556 H4 BCW69R Phi R SOT23R BC177A http://www.marsport.org.uk/smd/smdh.htm (1 of 2)27/5/2007 18:20:11
- 105. SMD Codebook page H H4 MMSZ52344 Vis I SOD123 zener 300mW 5% 14V H4 CMOZ8V2 CSC I SOD523 zener 350mW 5% 8.2V H5 BCW70R Phi R SOT23R BC177B H5 MBD770DW Mot DL Dual UHF schottky diode H5 MMSZ52345 Vis I SOD123 zener 300mW 5% 15V H5 CMOZ9V1 CSC I SOD523 zener 350mW 5% 9.1V H6 BCW89R Phi R SOT23R BC556 H6 CMOZ10V CSC I SOD523 zener 350mW 5% 10V H7 CMOZ11V CSC I SOD523 zener 350mW 5% 11V H8 CMOZ12V CSC I SOD523 zener 350mW 5% 12V H9 CMOZ13V CSC I SOD523 zener 350mW 5% 13V H9 1SS344 Tosh C SC70 schottky 20V 0.5A H11 UMH11TN Roh DI npn/pnpdtr pair 10k+10k H16 SST4416 Sil F 2N4416 n-ch jfet H27 DTC323TU Rho N SC70 npn dtr 15V 0.6A, R1 6k8 , for muting H31 BCW89R Phi N SOT23R BC556 H84 SST5484 Sil F SOT23 2N5484 H85 SST5485 Sil F SOT23 2N5485 H86 SST5486 Sil F SOT23 2N5486 HB BFN22 SGS P SOT23 npn Vce 250V HC BFN23 SGS P SOT23 pnp Vce 250V HG CFY77-08 Sie DM 20GHz HEMT 0.8dB nf HH CFY77-10 Sie DM 20GHz HEMT 1.0 dB nf HH BBY51-07 Sie S SOT143 dual varicap like BBY51 HP CMDZ3L9 CSC I SOD323 zener 250mW Iz 0.5mA 3.9V HQ 2SA1036K Roh N pnp 500mA driver Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdh.htm (2 of 2)27/5/2007 18:20:11
- 106. smd Codebook page I G4PMK's SMD Codebook Codes beginning with 'I' be sure to check the '1' (one) table as well Code Device Manf Base Package Leaded Equivalent/Data I BBY51-02W Sie I SCD80 3-5 pF varicap I BBY52-03W Sie I SOD323 1.25-1.75 pF varicap in I08 SST108 Sil F SOT23 J108 n-ch jfet I09 SST109 Sil F SOT23 J109 n-ch jfet I10 SST110 Sil F SOT23 J110 n-ch jfet Last Updated on 15/03/2002 By G4PMK http://www.marsport.org.uk/smd/smdi.htm27/5/2007 18:20:12
- 107. |SMD Codebook page J GM4PMK's SMD Codebook Codes beginning with 'J' Code Device Manf Base Package Leaded Equivalent/Data J RN141G Roh I VMD2 HF PIN diode 0.8 pF J0 HSMS-2840 HP C SOT23 schottky diode J0 CMOZ39V CSC I SOD523 zener 350mW 5% 139V J01 SO2906R N 2N2906 J03 SO2907AR R 2N2907A J05 SO2907R R 2N2907 J1 HSMS-2841 HP K SOT23 schottky diode J1 ZC830 Zet C ZC820 varicaps J1 BSS138L Mot M SOT23 n-ch enh TMOS fet J1 MMSZ5246 Vis I SOD123 zener 300mW 5% 16V J1 CMOZ16V CSC I SOD523 zener 350mW 5% 16V J1A ZC830A Zet C SOT23 varicap hyperabrupt 28V 10pF@2V J1B ZC830B Zet C SOT23 varicap hyperabrupt 28V 10pF@2V pJ1 BSH101 Phi M SOT23 n-ch 60V 0.7A mosfet pJ2 BSH102 Phi M SOT23 n-ch 30V 1A mosfet J2 ZC833 Zet C SOT23 ZC823 J2 MMSZ5247 Vis I SOD123 zener 300mW 5% 17V J2 CMOZ18V CSC I SOD523 zener 350mW 5% 18V J2 EDZ8.2B Roh I EMD2 150mW zener 8.2V J2 VDZ8.2B Roh I VMD2 150mW zener 8.2V J2A ZC833A Zet C SOT23 varicap hyperabrupt 28V 33pF@2V J2B ZC833B Zet C SOT23 varicap hyperabrupt 28V 33pF@2V pJ3 BSH103 Phi M SOT23 n-ch 30V 0.8A mosfet J3 ZC831 Zet C SOT23 ZC821 J3 MMSZ5248 Vis I SOD123 zener 300mW 5% 18V J3 CMOZ20V CSC I SOD523 zener 350mW 5% 20V J3A ZC831A Zet C SOT23 varicap hyperabrupt 28V 15pF@2V J3B ZC831B Zet C SOT23 varicap hyperabrupt 28V 15pF@2V http://www.marsport.org.uk/smd/smdj.htm (1 of 3)27/5/2007 18:20:16
- 108. |SMD Codebook page J J3D MSB81T1 Mot vhf pnp fT 0.6GHz J4A MBV109 Mot C SOT23 29pF VHF varicap diode J4 ZC832 Zet C SOT23 ZC823 J4 MMSZ5249 Vis I SOD123 zener 300mW 5% 19V J4 CMOZ22V CSC I SOD523 zener 350mW 5% 22V J4A ZC832A Zet C SOT23 varicap hyperabrupt 28V 22pF@2V J4B ZC832B Zet C SOT23 varicap hyperabrupt 28V 22pF@2V J5 ZC834 Zet C SOT23 ZC824 J5 MMSZ5250 Vis I SOD123 zener 300mW 5% 20V J5 CMOZ16V CSC I SOD523 zener 350mW 5% 24V J5A ZC834A Zet C SOT23 varicap hyperabrupt 28V 47pF@2V J5B ZC834B Zet C SOT23 varicap hyperabrupt 28V 47pF@2V J6 M1MA174 Mot C gp Si diode 100V J6 ZC835 Zet C SOT23 ZC825 J6 CMOZ27V CSC I SOD523 zener 350mW 5% 27V J6A ZC835A Zet C SOT23 varicap hyperabrupt 28V 68pF@2V J6B ZC835B Zet C SOT23 varicap hyperabrupt 28V 68pF@2V J7 ZC836 Zet C SOT23 ZC826 J7 CMOZ30V CSC I SOD523 zener 350mW 5% 30V J7A ZC830A Zet C SOT23 varicap hyperabrupt 28V 100pF@2V J7B ZC830B Zet C SOT23 varicap hyperabrupt 28V 100pF@2V J8 BCX71JR Phi R SOT23R BCY79-ix J8 CMOZ33V CSC I SOD523 zener 350mW 5% 33V J9 CMOZ36V CSC I SOD523 zener 350mW 5% 16V J9A ZC829A Zet I SOT23 varicap hyperabrupt 28V 8.2pF@2V J9B ZC829B Zet I SOT23 varicap hyperabrupt 28V 8.2pF@2V J12 SO2906AR R 2N2906A J32 SO5400R SGS R 2N5400 J33 SO5401R SGS R 2N5401 J39 SO692R SGS pnp Vce 300V JA BAV74 Zet B SOT23 dual diode cc 50V 0.1A JA BAV74 Mot B SOT23 dual sw diodes JBs BAR74 Sie C SOT23 fast sw diode 50V 0.25A JCs BAL74 Sie V SOT23 fast sw diode 50V 0.25A http://www.marsport.org.uk/smd/smdj.htm (2 of 3)27/5/2007 18:20:16
- 109. |SMD Codebook page J JFs BAL99 Sie V SOT23 fast sw diode 70V 0.25A JG BAR99 Sie E fast sw diode 70V 0.25A JKs BF1009 Sie W SOT143 biased n-ch dg mosfet 1GHz 9V JLs BF1009S Sie W SOT143 biased n-ch dg mosfet 1GHz 9V JL MRF949 Mot N SOT323 npn RF fT 9GHz JP CMDZ4L3 CSC I SOD323 zener 250mW Iz 0.5mA 4.3V JPs BAS19 Sie C SOT23 120V 250mA fast sw diode JPs BAW101 Sie S SOT143 pair isolated 300V sw diodes JRs BAS20 Sie C SOT23 150V 250mA fast sw diode JSs BAS21 Sie C SOT143 200V 250mA fast sw diode JS BAW100 Sie Y SOT143 dual isolated fast sw diodes JTs BAS28 Sie S SOT143 dual isolated fast sw diodes JTs BAS28W Sie FQ SOT343 dual isolated fast sw diodes JV BAS116 Sie C SOT23 250V 75mA Ir 5nA JX BAV170 Mot B SOT23 dual cc Si diode low Ir JY BAV199 Mot D SOT23 dual series Si diode low Ir JZ BAW156 Mot A SOT23 dual ca Si diode low Ir Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdj.htm (3 of 3)27/5/2007 18:20:16
- 110. SMD Codebook page K GM4PMK's SMD Codebook Codes beginning with 'K' Code Device Manf Base Package Leaded Equivalent/Data K BAT68-03W Sie I SOD323 BAT68 Schottky K BBY52-02W Sie I SCD80 UHF varicap 1.75-1.25pF K MRF917 Mot N SOT323 npn RF fT 6GHz K BB142 Phi I SOD 523 Low Voltage Varicap K RN142G Roh I VMD2 HF pin diode 0.45pF K RN142S Roh I EMD2 HF pin diode 0.45pF K0 HSMP-3830 HP C SOT23 gp pin diode HP3830 K1 HSMP-3831 HP K SOT23 gp pin diode HP3830 K1p BCW71 Phi N SOT23 BC107A K1t BCW71 Phi N SOT23 BC107A K1 BCW71 Phi N SOT23 BC107A K1 MMSZ52351 Vis I SOD123 zener 300mW 5% 22V K1 CMOZ43V CSC I SOD523 zener 350mW 5% 43V K2p BCW72 Phi N SOT23 BC107B ZXT300 K2t BCW72 Phi N SOT23 BC107B ZXT300 K2 BCW72 Phi N SOT23 BC107B ZXT300 K2 HSMP-3832 HP D SOT23 dual HP3830 pin diode K2 MMSZ52352 Vis I SOD123 zener 300mW 5% 24V K3 HSMP-3833 HP A SOT23 dual HP3830 pin diode K3 BCW81 Phi N SOT23 npn 50V 0.1A 0.2W hfe 420 K3 BB145C Phi I SOD 523 Low Voltage Varicap K3 MMSZ52353 Vis I SOD123 zener 300mW 5% 25V K3p BCW81 Phi N SOT23 npn 50V 0.1A 0.2W hfe 420 K3t BCW81 Phi N SOT23 npn 50V 0.1A 0.2W hfe 420 K4 BCW71R Phi R SOT23R BC107A K4 HSMP-3834 HP B SOT23 dual HP3830 pin diode K4 MMSZ52354 Vis I SOD123 zener 300mW 5% 27V http://www.marsport.org.uk/smd/smdk.htm (1 of 5)27/5/2007 18:20:25
- 111. SMD Codebook page K K5 BCW72R Phi R SOT23R BC107B ZTX300 K5 MMSZ52355 Vis I SOD123 zener 300mW 5% 28V K6 BCV71R Phi R SOT23R BC546A K7 BCV71 Phi N SOT23 BC546A K7p BCV71 Phi N SOT23 BC546A K7t BCV71 Phi N SOT23 BC546A K8 BCV72 Phi N SOT23 BC546B K8p BCV72 Phi N SOT23 BC546B K8t BCV72 Phi N SOT23 BC546B K9 BCV72R Phi R SOT23R BC546B K9 1SS348 Tosh B SC59 schottky 80V 0.1A K14 DTA114GE Roh N EMT3 pnp dtr 50V 100mA R2 10k K14 DTA114GUA Roh N SC70 pnp dtr 50V 100mA R2 10k K14 DTA114GKA Roh N SC59 pnp dtr 50V 100mA R2 10k K15 DTA124GKA Roh N SC59 pnp dtr 50V 50mA R2 22k K16 DTA144GUA Roh N SC70 npn dtr 50V 100mA R2 47k K16 DTA144GKA Roh N SC59 npn dtr 50V 100mA R2 47k K19 DTA115GUA Roh N SC70 npn dtr 50V 100mA R2 100k K19 DTA115GKA Roh N SC59 npn dtr 50V 100mA R2 100k K24 DTC114GUA Roh N SC70 npn dtr 50V 100mA R2 22k K24 DTC114GKA Roh N SC59 npn dtr 50V 100mA R2 22k K25 DTA124GUA Roh N SC70 pnp dtr 50V 50mA R2 22k K25 DTA124GKA Roh N SC59 pnp dtr 50V 50mA R2 22k K26 DTC144GE Roh N EMT3 npn dtr 50V 100mA R2 47k K26 DTC144GUA Roh N SC70 npn dtr 50V 100mA R2 47k K26 DTC144GKA Roh N SC59 npn dtr 50V 100mA R2 47k K29 DTC115GUA Roh N SC70 npn dtr 50V 100mA R2 100k K29 DTC115GKA Roh N SC59 npn dtr 50V 100mA R2 100k K31 BCW81R Phi R npn 50V 0.1A 0.2W hfe 420 KB MMBT8099L Mot N SOT23 npn 80V gp KC BFQ29P Sie N BFT66 KC1xx MMBZ5221BT Dio C SOT523 zener 150mW 2.4V (xx= date code) KC3xx MMBZ5223BT Dio C SOT523 zener 150mW 2.7V (xx= date code) KC5xx MMBZ5225BT Dio C SOT523 zener 150mW 3.0V (xx= date code) http://www.marsport.org.uk/smd/smdk.htm (2 of 5)27/5/2007 18:20:25
- 112. SMD Codebook page K KD1 AZ23C2V7 Dio A SOT23 dual ca zener 2.7V 0.3W KD2 AZ23C3V0 Dio A SOT23 dual ca zener 3.0V 0.3W KD3 AZ23C3V3 Dio A SOT23 dual ca zener 3.3V 0.3W KD4 AZ23C3V6 Dio A SOT23 dual ca zener 3.6V 0.3W KD5 AZ23C3V9 Dio A SOT23 dual ca zener 3.9V 0.3W KD6 AZ23C4V3 Dio A SOT23 dual ca zener 4.3V 0.3W KD7 AZ23C4V7 Dio A SOT23 dual ca zener 4.7V 0.3W KD8 AZ23C5V1 Dio A SOT23 dual ca zener 5.1V 0.3W KD9 AZ23C5V6 Dio A SOT23 dual ca zener 5.6V 0.3W KD9 AZZ23C5V6W Dio A SOT323 dual ca zener 5.6V 0.2W KDA AZ23C6V2 Dio A SOT23 dual ca zener 6.2V 0.3W KDB AZZ23C6V8 Dio A SOT23 dual ca zener 6.8V 0.3W KDB AZZ23C6V8W Dio A SOT323 dual ca zener 6.8V 0.2W KDC AZZ23C7V5 Dio A SOT23 dual ca zener 7.5V 0.3W KDD AZZ23C8V2 Dio A SOT23 dual ca zener 8.2V 0.3W KDE AZZ23C9V1 Dio A SOT23 dual ca zener 9.1V 0.3W KDF AZZ23C10 Dio A SOT23 dual ca zener 10V 0.2W KDF AZZ23C10W Dio A SOT323 dual ca zener 10V 0.3W KDG AZZ23C11 Dio A SOT23 dual ca zener 11V 0.3W KDH AZZ23C12 Dio A SOT23 dual ca zener 12V 0.3W KDI AZZ23C13 Dio A SOT23 dual ca zener 13V 0.3W KDJ AZZ23C15 Dio A SOT23 dual ca zener 15V 0.3W KDK AZZ23C16 Dio A SOT23 dual ca zener 16V 0.3W KDL AZZ23C18 Dio A SOT23 dual ca zener 18V 0.3W KDL AZZ2318W Dio A SOT323 dual ca zener 18V 0.2W KDM AZZ23C20 Dio A SOT23 dual ca zener 20V 0.3W KDN AZZ23C22 Dio A SOT23 dual ca zener 22V 0.3W KDO AZZ23C24 Dio A SOT23 dual ca zener 24V 0.3W KDP AZZ23C27 Dio A SOT23 dual ca zener 27V 0.3W KDQ AZZ23C30 Dio A SOT23 dual ca zener 30V 0.3W KDR AZZ23C33 Dio A SOT23 dual ca zener 33V 0.3W KDS AZZ23C36 Dio A SOT23 dual ca zener 36V 0.3W KDT AZZ23C39 Dio A SOT23 dual ca zener 39V 0.3W KE1xx MMBZ5231BT Dio C SOT523 zener 150mW 5.1V (xx= date code) http://www.marsport.org.uk/smd/smdk.htm (3 of 5)27/5/2007 18:20:25
- 113. SMD Codebook page K KE2xx MMBZ5232BT Dio C SOT523 zener 150mW 5.6V (xx= date code) KE4xx MMBZ5234BT Dio C SOT523 zener 150mW 6.2V (xx= date code) KE5xx MMBZ5235BT Dio C SOT523 zener 150mW 6.8V (xx= date code) KF1xx MMBZ5236BT Dio C SOT523 zener 150mW 7.5V (xx= date code) KF2xx MMBZ5237BT Dio C SOT523 zener 150mW 8.2V (xx= date code) KF4xx MMBZ5239BT Dio C SOT523 zener 150mW 9.1V (xx= date code) KF5xx MMBZ5240BT Dio C SOT523 zener 150mW 10V (xx= date code) KG1xx MMBZ5226BT Dio C SOT523 zener 150mW 3.3V (xx= date code) KG2xx MMBZ5227BT Dio C SOT523 zener 150mW 3.6V (xx= date code) KG3xx MMBZ5228BT Dio C SOT523 zener 150mW 3.9V (xx= date code) KG4xx MMBZ5229BT Dio C SOT523 zener 150mW 4.3V (xx= date code) KG5xx MMBZ5230BT Dio C SOT523 zener 150mW 4.7V (xx= date code) KHxx MMBZ5241BT Dio C SOT523 zener 150mW 11V (xx= date code) KH2xx MMBZ5242BT Dio C SOT523 zener 150mW 12V (xx= date code) KH3xx MMBZ5243BT Dio C SOT523 zener 150mW 13V (xx= date code) KH5xx MMBZ5245BT Dio C SOT523 zener 150mW 15V (xx= date code) KJ1xx MMBZ5246BT Dio C SOT523 zener 150mW 16V (xx= date code) KJ3xx MMBZ5248BT Dio C SOT523 zener 150mW 18V (xx= date code) KJ5xx MMBZ5250BT Dio C SOT523 zener 150mW 20V (xx= date code) KK1xx MMBZ5251BT Dio C SOT523 zener 150mW 22V (xx= date code) KK2xx MMBZ5252BT Dio C SOT523 zener 150mW 24V (xx= date code) KK4xx MMBZ5254BT Dio C SOT523 zener 150mW 27V (xx= date code) KK5xx MMBZ5255BT Dio C SOT523 zener 150mW 28V (xx= date code) KM BST80 Phi T VN10 KM1xx MMBZ5256BT Dio C SOT523 zener 150mW 30V (xx= date code) KM2xx MMBZ5257BT Dio C SOT523 zener 150mW 33V (xx= date code) KM3xx MMBZ5258BT Dio C SOT523 zener 150mW 36V (xx= date code) KM4xx MMBZ5259BT Dio C SOT523 zener 150mW 39V (xx= date code) KN BST84 Phi T Nch VMOS 200V 0.25A KO BST86 Phi T nch VMOS 180V 0.3A KP CMDZ4L7 CSC I SOD323 zener 250mW Iz 0.5mA 4.7V KV1 DZ23C2V7 Dio A SOT23 dual cc zener 2.7V 0.3W KV2 DZ23C3V0 Dio A SOT23 dual cc zener 3.0V 0.3W KV3 DZ23C3V3 Dio A SOT23 dual cc zener 3.3V 0.3W http://www.marsport.org.uk/smd/smdk.htm (4 of 5)27/5/2007 18:20:25
- 114. SMD Codebook page K KV4 DZ23C3V6 Dio A SOT23 dual cc zener 3.6V 0.3W KV5 DZ23C3V9 Dio A SOT23 dual cc zener 3.9V 0.3W KV6 DZ23C4V3 Dio A SOT23 dual cc zener 4.3V 0.3W KV7 DZ23C4V7 Dio A SOT23 dual cc zener 4.7V 0.3W KV8 DZ23C5V1 Dio A SOT23 dual cc zener 5.1V 0.3W KV9 DZ23C5V6 Dio A SOT23 dual cc zener 5.6V 0.3W KVA DZ23C6V2 Dio A SOT23 dual cc zener 6.2V 0.3W KVB DZZ23C6V8 Dio A SOT23 dual cc zener 6.8V 0.3W KVC DZZ23C7V5 Dio A SOT23 dual cc zener 7.5V 0.3W KVD DZZ23C8V2 Dio A SOT23 dual cc zener 8.2V 0.3W KVE DZZ23C9V1 Dio A SOT23 dual cc zener 9.1V 0.3W KVF DZZ23C10 Dio A SOT23 dual cc zener 10V 0.2W KVG DZZ23C11 Dio A SOT23 dual cc zener 11V 0.3W KVH DZZ23C12 Dio A SOT23 dual cc zener 12V 0.3W KVI DZZ23C13 Dio A SOT23 dual cc zener 13V 0.3W KVJ DZZ23C15 Dio A SOT23 dual cc zener 15V 0.3W KVK DZZ23C16 Dio A SOT23 dual cc zener 16V 0.3W KVL DZZ23C18 Dio A SOT23 dual cc zener 18V 0.3W KVM DZZ23C20 Dio A SOT23 dual cc zener 20V 0.3W KVN DZZ23C22 Dio A SOT23 dual cc zener 22V 0.3W KVO DZZ23C24 Dio A SOT23 dual cc zener 24V 0.3W KVP DZZ23C27 Dio A SOT23 dual cc zener 27V 0.3W KVQ DZZ23C30 Dio A SOT23 dual cc zener 30V 0.3W KVR DZZ23C33 Dio A SOT23 dual cc zener 33V 0.3W KVS DZZ23C36 Dio A SOT23 dual cc zener 36V 0.3W KVT DZZ23C39 Dio A SOT23 dual cc zener 39V 0.3W KVU DZZ23C43 Dio A SOT23 dual cc zener 43V 0.3W KVV DZZ23C47 Dio A SOT23 dual cc zener 47V 0.3W KVW DZZ23C51 Dio A SOT23 dual cc zener 51V 0.3W Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdk.htm (5 of 5)27/5/2007 18:20:25
- 115. SMD Codebook page L GM4PMK's SMD Codebook Codes beginning with 'L' Code Device Manf Base Package Leaded Equivalent/Data L BAT62-03W Sie I SOD323 BAT62 schottky detector L BBY53-02W Sie I SCD80 varicap 5.3-2.2 pF L BB14 Phi I SOD 523 Low Voltage Varicap L0 HSMP-386B HP C SOT323 gp RF pin diode L0 HSMP-3860 HP C SOT23 dual series pin diode L0 BAT721S Phi C SOT23 dual series 40V 200mA schottky L0p BAT721S Phi C SOT23 dual series 40V 200mA schottky L0t BAT721S Phi C SOT23 dual series 40V 200mA schottky L0W BAT721S Phi C SOT23 dual series 40V 200mA schottky L1 BSS65 Zet N pnp 12V 0.1A 400MHz sw L10 ZLLS1000 Zet C SOT23 schottky 40V 1.1A low leakage high temp L2 BB202 Phi I SOD 523 Low Voltage Varicap L2 HSMP-3862 HP D SOT23 dual RF pin diode L2 BSS69 Zet N pnp 40V 0.1A 200MHz sw L2 BAT42W CSC I SOD123 schottky L2 EDZ9.1B Roh I EMD2 150mW zener 9.1V L2 VDZ9.1B Roh I VMD2 150mW zener 9.1V L3 BSS70 Zet N pnp 40V 0.1A 200MHz sw L3 MMBC1623L3 Mot N npn 40V gp L3 HSMP-3863 HP A SOT23 ca gp RF pin diode L3 BAT43W CSC I SOD123 schottky L4 HSMP-3864 HP B SOT23 cc gp RF pin diode L4 BAT54W Phi C SOT323 BAT85 schottky 30V 0.2A L4 BAT54W CSC I SOD123 schottky L4p BAT54 Phi C SOT23 BAT85 schottky 30V 0.2A L4t BAT54 Phi C SOT23 BAT85 schottky 30V 0.2A L4W BAT54 Phi C SOT23 BAT85 schottky 30V 0.2A http://www.marsport.org.uk/smd/smdl.htm (1 of 4)27/5/2007 18:20:29
- 116. SMD Codebook page L L4Z BAT54 Zet C SOT23 BAT85 schottky 30V 0.2A L4 MMBC1623L4 Mot N npn 40V gp L5 BSS65R Zet R pnp 12V 0.1A 400MHz sw L5 MMBC1623L5 Mot N MPS3904 hfe 135-270 L6 BAR17 Sie C pin diode L6 BSS69R Zet N pnp 40V 0.1A 200MHz sw L6 MMBC1623L6 Mot N MPS3904 hfe 200-400 L6 BAT46W CSC I SOD123 schottky L7p BAT721 Phi C SOT23 40V 200mA schottky L7t BAT721 Phi C SOT23 40V 200mA schottky L8W BAT721 Phi C SOT23 e 40V 200mA schottky L7 BSS70R Zet N pnp 40V 0.1A 200MHz sw L7 MMBC1623L7 Mot N MPS3904 hfe 300-600 L7 BAR14-1 Sie D dual pin 100mA max L7 BAT17W CSC I SOD123 schottky L8 BAT721A Phi A SOT23 dual ca 40V 200mA schottky L8p BAT721A Phi A SOT23 dual ca 40V 200mA schottky L8t BAT721A Phi A SOT23 dual ca 40V 200mA schottky L8W BAT721A Phi A SOT23 dual ca 40V 200mA schottky L8 BAR15-1 Sie A dual pin 100mA max L9 BAT721C Phi B SOT23 dual cc 40V 200mA schottky L9p BAT721C Phi B SOT23 dual cc 40V 200mA schottky L9t BAT721C Phi B SOT23 dual cc 40V 200mA schottky L9W BAT721C Phi AB SOT23 dual cc 40V 200mA schottky L9 BAR16-1 Sie B dual pin 100mA max L9 1SS349 Tosh C SC59 dual cc schottky 20V 1.0A L14 DTB114GK Rho N SC59 pnp dtr 0.5A, R2 10k L20 BAS29 Nat C SOT23 Si diode 120V 50mA L21 BAS31 Nat D SOT23 dual BAS29 diodes L22 BAS35 Nat A SOT23 dual BAS29 diodes L14 DTD114GK Rho N SC59 npn dtr 0.5A, R2 10k L30 BAV23 Phi S SOT143 dual 200V 225mA diodes L41 BAT74 Phi S SOT143 2x BAT85 L42p BAT54A Phi A SOT23 dual c anode schottky 30V 0.2A http://www.marsport.org.uk/smd/smdl.htm (2 of 4)27/5/2007 18:20:29
- 117. SMD Codebook page L L42t BAT54A Phi A SOT23 dual c anode schottky 30V 0.2A L42W BAT54A Phi A SOT23 dual c anode schottky 30V 0.2A L43p BAT54C Phi B SOT23 dual c cathode schottky 30V 0.2A L43t BAT54C Phi B SOT23 dual c cathode schottky 30V 0.2A L43W BAT54C Phi B SOT23 dual c cathode schottky 30V 0.2A L44p BAT54S Phi D SOT23 dual series schottky 30V 0.2A L44t BAT54S Phi D SOT23 dual series schottky 30V 0.2A L44W BAT54S Phi D SOT23 dual series schottky 30V 0.2A L51 BAS56 Phi S SOT143 dual 60V 200mA ultra fast sw diodes L77 FMMTL717 Zet N SOT23 pnp 12V 1.25A hfe 300 L78 FMMTL718 Zet N SOT23 pnp 20V 1A hFfe 200 LAp BF550 Phi N SOT23 pnp 40V 25mA LB S525T Tfk G n-ch vhf mosfet 200MHz LBs BF999 Sie G SOT23 n-ch vhf mosfet 300MHz LDs BF543 Sie G SOT23 n-ch vhf mosfet 300MHz LEs BF660 Sie N SOT23 BF606A pnp vhf osc fT 800MHz LG 2SC4116 N npn LGs BF775A Sie N SOT23 npn RF fT 5.6GHz for IF amp LHs BF569 Sie N SOT23 BF970 pnp RF LKs BF799 Sie N SOT23 BF959 LKs BF799W Sie N SOT323 BF959 LH BF569R Tfk R BF970 pnp RF LM BST120 Phi T p-ch DMOSfet 60V 0.3A LN BST122 Phi T p-ch DMOSfet 50V 0.25A LKs BF799 Sie N SOT23 BF959 LKs BF799W Sie N SOT323 BF959 LOs BF775 Sie N SOT23 BFQ69 LOs BF775W Sie N SOT323 BFQ69 LP CMDZ5L1 CSC I SOD323 zener 250mW Iz 0.5mA 5.1V LRs BF517 Sie T SOT23 BF763 2.5 GHz LSs BF770A Sie N SOT23 npn low noise RF, Ft 6GHz Last Updated on 10/07/2006 http://www.marsport.org.uk/smd/smdl.htm (3 of 4)27/5/2007 18:20:29
- 118. SMD Codebook page L By GM4PMK http://www.marsport.org.uk/smd/smdl.htm (4 of 4)27/5/2007 18:20:29
- 119. SMD Codebook page M GM4PMK's SMD Codebook Codes beginning with 'M' Code Device Manf Base Package Leaded Equivalent/Data M (blue) BAR65-03W Sie I SOD323 pin diode M (white) BBY55-03W Sie I SOD323 5.4-2.3pF varicap in M BAR64-02W Sie I SCD80 pin diode M BAR65-07 Sie S SOT143 dual pin diode M01 BF901 Phi W SOT143 N-ch dg mosfet M02 BF901R Phi UQ SOT143 N-ch dg mosfet M04 BF904 Phi W SOT143B N-ch dg mosfet M06 BF904R Phi UQ SOT143 N-ch dg mosfet M08 PMBFJ308 Phi F SOT23 VHF n-ch JFET J308 M09 PMBFJ309 Phi F SOT23 VHF n-ch JFET J309 M1 BFR30 Phi F SOT23 BFW11 BF245 M1 MMSZ5256 Vis I SOD123 zener 300mW 5% 30V M1B MMBT2222L Mot N SOT23 2N2222 M1E MMBTA43L Mot N SOT23 MPSA43 200V Vce npn M1F MMBT5550L Mot N SOT23 2N5550 npn 140V M1J MMBT2369L Mot N SOT23 2N2369A M2 BFR31 Phi F SOT23 BFW12 BF245 M2 MMSZ5257 Vis I SOD123 zener 300mW 5% 33V M2B MMBT2907L Mot N SOT23 2N2907 pnp gp M2C MMBTA70L Mot N SOT23 gp pnp MPSA70 M3 BFT46 Phi F SOT23 n-ch fet gp low level amp M3 MMBA812M3 Mot N 2N5086 hfe 60-120 pnp M3 MMSZ5258 Vis I SOD123 zener 300mW 5% 36V M3A MMBTH24L Mot N SOT23 npn VHF amp 400MHz fT 30V M3B MMBT918L Mot N SOT23 2N918 UHF amp M3J MMBTH69L Mot N SOT23 pnp VHF amp 2GHz fT 15V http://www.marsport.org.uk/smd/smdm.htm (1 of 5)27/5/2007 18:20:34
- 120. SMD Codebook page M M4 BSR56 Phi F 2N4856 n-ch fet M4 MBD110DW Mot DL SOT363 dual UHF schottky M4 MMSZ5259 Vis I SOD123 zener 300mW 5% 39V M4A MMBV109 Mot C SOT323 Hyperabrupt varicap M4B MMBV432 Mot B SOT23 dual cc varicap 45pF/2V M4C MMBV3102 Mot C SOT23 Hyperabrupt varicap M4E MMBV105G Mot C SOT23 Hyperabrupt varicap M4F MMBD353 Mot D SOT23 dual MBD101 in series M4G MMBV2101 Mot C SOT23 varicap 6.8pF MV2101 M5 BSR57 Phi F 2N5457 n-ch fet M5 MMBA812M5 Mot N 2N5086 hfe 135-270 pnp M5 MMSZ5260 Vis I SOD123 zener 300mW 5% 43V M5C MMBD7000 Mot D SOT23 100V 2x series sw diodes M5 MMBD352W Mot Z SOT323 2x MBD101 in series M6 BSR58 Phi F SOT23 2N4858 n-ch fet M6 MMBA812M6 Mot N 2N5086 hfe 200-400 pnp M6 BSS66 Zet N npn 40V 0.1A sw fT 250MHz M6A MMBF4416 Mot F SOT23 2N4416 n-ch rf jfet M6B MMBF5484 Mot F SOT23 2N5484 n-ch rf jfet M6C MMBFU310 Mot F SOT23 U310 n-ch rf jfet M6E MMBF5460 Mot F SOT23 2N5460 n-ch rf jfet M6H MMBD354 Mot A SOT23 dual MBD101 cc M7 BSS67 Zet N npn 40V 0.1A sw fT 300MHz M7 MMBA812M7 Mot N 2N5086 hfe 300-600 pnp M8 BSS66R Zet R npn 40V 0.1A sw fT 250MHz M8 BSH103 Phi M SOT23 n-ch 50V 0.11A mosfet M8p BSN20 Phi M SOT23 n-ch 50V 0.11A mosfet M9 BSS67R Zet R npn 40V 0.1A sw fT 300MHz M10 PMBFJ310 Phi F SOT23 J310 n-ch jfet M16 PMBF4416A Phi ZC SOT23 2N4416A n-ch jfet M26 BF908 Phi W SOT143 UHF n-ch dg mosfet M27 BF908R Phi UQ SOT143 UHF n-ch dg mosfet M28 BF909 Phi W SOT143 UHF n-ch dg mosfet M29 BF909R Phi UQ SOT143 UHF n-ch dg mosfet http://www.marsport.org.uk/smd/smdm.htm (2 of 5)27/5/2007 18:20:34
- 121. SMD Codebook page M M31 BSD20 Phi XQ n-ch depl sw mosfet 10V M32 BSD22 Phi XQ n-ch depl sw mosfet 20V M33 BF861A Phi ZC SOT23 n-ch jfet M34 BF861B Phi ZC SOT23 n-ch jfet M35 BF861C Phi ZC SOT23 n-ch jfet M52 BF992R Phi UQ SOT143R n-ch dg mosfet M56 BF1100 Phi W SOT143 dg mosfet 14V 30mA 0.2W M57 BF1100R Phi UQ SOT143R dg mosfet 14V 30mA 0.2W M65 BF545A Phi ZC SOT23 VHF n-ch jfet M66 BF545B Phi ZC SOT23 VHF n-ch jfet M67 BF545C Phi ZC SOT23 VHF n-ch jfet M68 PMBFJ210 Phi ZC SOT23 n-ch jfet J210 M69 PMBFJ211 Phi ZC SOT23 n-ch jfet J211 M70 PMBFJ212 Phi ZC SOT23 n-ch jfet J212 M74 BSS83 Phi XQ n-ch enh sw mosfet M84 BF556A Phi ZC SOT23 VHF n-ch jfet M85 BF556B Phi ZC SOT23 VHF n-ch jfet M86 BF556C Phi ZC SOT23 VHF n-ch jfet M87 BF990A Phi W SOT23 UHF n-ch dg mosfet M90 BF990 Phi W BF980 M91 BF991 Phi W BF981 M92 BF992 Phi W BF982 M94 BF994 Phi W BF964 M96 BF996 Phi W BF966 M97 BFR101A M98 BFR101B MA M1MA151AT Mot E SOT346 40V 100mA sw diode MA MBT3904DW1 Mot DN SOT363 dual 2N3904 MA M1MA152AT Mot E SOT346 80V 100mA sw diode MA BFS17 N SOT23 BFW92 MAp BF989 Phi W SOT143 n-ch dg mosfet MB BF998WR Phi UQ SOT343 n-ch vhf dg mosfet BF988 MB BF995 Sie UQ n-ch vhf dg mosfet BF961 MB MBT3904DW9 Mot dual 2N3904 http://www.marsport.org.uk/smd/smdm.htm (3 of 5)27/5/2007 18:20:34
- 122. SMD Codebook page M MCs BFS17P Sie N SOT23 BFW92 MCs BFS17PW Sie N SOT323 BFW92 MC ZVN3306F Zet M SOT23 n-ch mosfet 60V 150mA MC BF904WR Phi UQ SOT343R n-ch uhf dg mosfet MD BF908WR Phi UQ SOT343R n-ch uhf dg mosfet MF ZVN3310F Zet M SOT23 n-ch mosfet 100V 100mA MF BF1100WR Phi UQ SOT343R n-ch uhf dg mosfet MG BF994S Tfk W BF964 n-ch dg vhf mosfet MGp BF994S Phi W SOT343 BF964 n-ch dg vhf mosfet MH BF996S Tfk W BF966 n-ch dg vhf mosfet MH BF996S Phi W SOT343 BF966 n-ch dg vhf mosfet MH M1MA141KT Mot C SOT323 40V 100mA sw diode MH M1MA151KT Mot C SOT346 40V 100mA sw diode MI M1MA142KT Mot C SOT323 80V 100mA sw diode MI M1MA152KT Mot C SOT346 80V 100mA sw diode ML ZVP3306F Zet M SOT23 p-ch mosfet 60V 90mA MN M1MA141WA Mot A SOT323 d diode ca 40V 100mA MN M1MA151WA Mot A SOT346 d diode ca 40V 100mA MO M1MA142W Mot A SOT323 d diode ca 80V 100mA MO M1MA152W Mot A SOT346 d diode ca 80V 100mA MOs BF998 Sie W SOT143 n-ch vhf dg mosfet BF988 MOR BF998R Tfk UQ SOT143R n-ch vhf dg mosfet BF988 MOp BF998 Phi W SOT143 n-ch vhf dg mosfet BF988 MOp BF998R Sie UQ SOT143R n-ch vhf dg mosfet BF988 MR BF998W Sie UQ SOT143R n-ch vhf dg mosfet BF988 MR ZVP3310F Zet M SOT23 p-ch mosfet 100V 75mA MS CF739 Sie W dg GaAsfet 2GHz MT M1MA141WK Mot B SOT323 dual diode cc 40V 100mA MT M1MA151WK Mot B SOT346 dual diode cc 40V 100mA MU M1MA142WK Mot B SOT323 dual diode cc 80V 100mA MU M1MA152WK Mot B SOT346 dual diode cc 80V 100mA MU ZVN3320F Zet M SOT23 n-ch mosfet 200V 60mA MX CF750 Sie U biased dg GaAsfet, 3-6V MY VN10LF Zet M SOT23 n-ch mosfet 60V 150mA http://www.marsport.org.uk/smd/smdm.htm (4 of 5)27/5/2007 18:20:34
- 123. SMD Codebook page M MY BF1012 Sie W n-ch dg mosfet 1GHz 12V MZ ZVN4106F Zet M SOT23 n-ch mosfet 60V 200mA MZ BF1005 Sie W n-ch dg mosfet 1GHz 5V Last updated 10/07/2006 by GM4PMK http://www.marsport.org.uk/smd/smdm.htm (5 of 5)27/5/2007 18:20:34
- 124. SMD Codebook page N GM4PMK's SMD Codebook Codes beginning with 'N' Code Device Manf Base Package Leaded Equivalent/Data N DAN202K Roh B 80V 100mA dual diode N RN242CS Roh I VMN2 HF pin diode N BB181 Phi I SOD 523 VHF Varicap 1-15pF N0 TN0200T Nat M SOT23 n-ch mosfet 0.6A Id N1 MMBT100 Nat N npn gp sw 500mA N1 MMBF201N Mot M SOT23 n-ch tmosfet 20V 0.3A Id N1 MRF571 Mot N SOT416 8 GHz 40mA npn RF N1 TN0201T Tem M SOT23 n-ch mosfet 0.3A Id 0.2W N1 MMSZ5261 Vis I SOD123 zener 300mW 5% 47V N2 MGSF1N02LT1 Mot M SOT23 n-ch mosfet, 20V 85mA N2 MMBC1653N2 Mot N npn 130V 50mA hfe 50-130 N2 BFS520 Phi N SOT323 npn RF 9GHz 70mA N2 MMSZ5262 Vis I SOD123 zener 300mW 5% 51V N3 MMBC1653N3 Mot N npn 130V 50mA hfe 100-220 N3 MGSF1N03L Mot M SOT23 n-ch TMOS mosfet 30V 0.75A N3 MMSZ5263 Vis I SOD123 zener 300mW 5% 56V N3 1PS66SB62 Phi DY SOT666 3 x 40V 20ma low C schottky diodes N4 MMBC1653N4 Mot N npn 130V 50mA hfe 150-330 N4 MMSZ5264 Vis I SOD123 zener 300mW 5% 60V N5 MMBC1654N5 Mot N npn 160V 50mA hfe 50-130 N5 MMSZ5265 Vis I SOD123 zener 300mW 5% 62V N6 MMBC1653N6 Mot N npn 160V 50mA hfe 100-220 N6 BFS25A Phi N SOT323 npn RF 5GHz 6.5mA 32 mW N7 MMBC1653N7 Mot N npn 160V 50mA hfe 150-330 N9 1SS372 Tosh D SC70 dual series schottky 10V 0.1A low Vf http://www.marsport.org.uk/smd/smdn.htm (1 of 7)27/5/2007 18:20:41
- 125. SMD Codebook page N N9 1SS374 Tosh D SC59 dual series schottky 10V 0.1A low Vf N9 DAN222 Mot B SOT416 dual cc si diode N01 DDTC113TE Dio N SOT523 dtr npn 50V 0.1A R1 1k0 0.15W N01 DDTC113TUA Dio N SOT323 dtr npn 50V 0.1A R1 1k0 0.2W N01 DDTC113TCA Dio N SOT23 dtr npn 50V 0.1A R11k0 0.2W N01 DDTC113TKA Dio N SC59 dtr npn 50V 0.1A R1 1k0 0.2W N02 DDTC113ZE Dio N SOT523 dtr npn 50V 0.1A res 1k0/10k 0.15W N02 DDTC113ZUA Dio N SOT323 dtr npn 50V 0.1A res 1k0/10k 0.2W N02 DDTC113ZCA Dio N SOT23 dtr npn 50V 0.1A res 1k0/10k 0.2W N02 DDTC113ZKA Dio N SC59 dtr npn 50V 0.1A res 1k0/10k 0.2W N03 DDTC123TE Dio N SOT523 dtr npn 50V 0.1A R1 2k2 0.15W N03 DDTC123TUA Dio N SOT323 dtr npn 50V 0.1A R1 2k2 0.2W N03 DDTC123TCA Dio N SOT23 dtr npn 50V 0.1A R1 2k2 0.2W N03 DDTC123TKA Dio N SC59 dtr npn 50V 0.1A R1 2k2 0.2W N04 DDTC123EE Dio N SOT523 dtr npn 50V 0.1A res 2k2/2k2 0.15W N04 DDTC123EUA Dio N SOT323 dtr npn 50V 0.1A res 2k2/2k2 0.2W N04 DDTC123ECA Dio N SOT23 dtr npn 50V 0.1A res 2k2/2k2 0.2W N04 DDTC123EKA Dio N SC59 dtr npn 50V 0.1A res 2k2/2k2 0.2W N05 SO2484 SGS N 2N2484 N05 DDTC123YE Dio N SOT523 dtr npn 50V 0.1A res 2k2/10k 0.15W N05 DDTC123YUA Dio N SOT323 dtr npn 50V 0.1A res 2k2/10k 0.2W N05 DDTC123YCA Dio N SOT23 dtr npn 50V 0.1A res 2k2/10k 0.2W N05 DDTC123YKA Dio N SC59 dtr npn 50V 0.1A res 2k2/10k 0.2W http://www.marsport.org.uk/smd/smdn.htm (2 of 7)27/5/2007 18:20:41
- 126. SMD Codebook page N N06 DDTC123JE Dio N SOT523 dtr npn 50V 0.1A res 2k2/47k 0.15W N06 DDTC123JUA Dio N SOT323 dtr npn 50V 0.1A res 2k2/47k 0.2W N06 DDTC123JCA Dio N SOT23 dtr npn 50V 0.1A res 2k2/47k 0.2W N06 DDTC123JKA Dio N SC59 dtr npn 50V 0.1A res 2k2/47k 0.2W N06 DDC123JU Dio DN SOT363 dual dtr npn 50V 0.1A 2k2/47k N06 DDC123JK Dio DN SOT26 dual dtr npn 50V 0.1A 2k2/47k N07 DDTC143TE Dio N SOT523 dtr npn 50V 0.1A R1 4k7 0.15W N07 DDTC143TUA Dio N SOT323 dtr npn 50V 0.1A R1 4k7 0.2W N07 DDTC143TCA Dio N SOT23 dtr npn 50V 0.1A R1 4k7 0.2W N07 DDTC143TKA Dio N SC59 dtr npn 50V 0.1A R1 4k7 0.2W N07 DDC143TU Dio DN SOT363 dual dtr npn 50V 0.1A R1 4k7 N07 DDC143TK Dio DN SOT26 dual dtr npn 50V 0.1A R1 4k7 N08 DDTC143EE Dio N SOT523 dtr npn 50V 0.1A 4k7/4k7 0.15W N08 DDTC143EUA Dio N SOT323 dtr npn 50V 0.1A 4k7/4k7 0.2W N08 DDTC143ECA Dio N SOT23 dtr npn 50V 0.1A 4k7/4k7 0.2W N08 DDTC143EKA Dio N SC59 dtr npn 50V 0.1A 4k7/4k7 0.2W N08 SO930 SGS N 2N930 N09 DDTC123XE Dio N SOT523 dtr npn 50V 0.1A res 4k7/10k 0.15W N09 DDTC123XUA Dio N SOT323 dtr npn 50V 0.1A res 4k7/10k 0.2W N09 DDTC123XCA Dio N SOT23 dtr npn 50V 0.1A res 4k7/10k 0.2W N09 DDTC123XKA Dio N SC59 dtr npn 50V 0.1A res 4k7/10k 0.2W N10 SO918 SGS N 2N918 N10 DDTC143FE Dio N SOT523 dtr npn 50V 0.1A 4k7/22k 0.15W N10 DDTC143FUA Dio N SOT323 dtr npn 50V 0.1A 4k7/22k 0.2W N10 DDTC143FCA Dio N SOT23 dtr npn 50V 0.1A 4k7/22k 0.2W N10 DDTC143FKA Dio N SC59 dtr npn 50V 0.1A 4k7/22k 0.2W N11 DDTC143ZE Dio N SOT523 dtr npn 50V 0.1A 4k7/47k 0.15W N11 DDTC143ZUA Dio N SOT323 dtr npn 50V 0.1A 4k7/47k 0.2W http://www.marsport.org.uk/smd/smdn.htm (3 of 7)27/5/2007 18:20:41
- 127. SMD Codebook page N N11 DDTC143ZCA Dio N SOT23 dtr npn 50V 0.1A 4k7/47k 0.2W N11 DDTC143ZKA Dio N SC59 dtr npn 50V 0.1A 4k7/47k 0.2W N11 SO2369 SGS N 2N2369 N12 SO2221 SGS N 2N2221 N12 DDTC114TE Dio N SOT523 dtr npn 50V 0.1A R1 10k 0.15W N12 DDTC114TUA Dio N SOT323 dtr npn 50V 0.1A R1 10k 0.2W N12 DDTC114TCA Dio N SOT23 dtr npn 50V 0.1A R110k 0.2W N12 DDTC114TKA Dio N SC59 dtr npn 50V 0.1A R1 10k 0.2W N12 DDC114TU Dio DN SOT363 dual dtr npn 50V 0.1A R1 10k N12 DDC114TK Dio DN SOT26 dual dtr npn 50V 0.1A R1 10k N13 DDTC114EE Dio N SOT523 dtr npn 50V 0.1A 10k/10k 0.15W N13 DDTC114EUA Dio N SOT323 dtr npn 50V 0.1A 10k/10k 0.2W N13 DDTC114ECA Dio N SOT23 dtr npn 50V 0.1A 10k/10k 0.2W N13 DDTC114EKA Dio N SC59 dtr npn 50V 0.1A 10k/10k 0.2W N13 DDC114EU Dio DN SOT363 dual dtr npn 50V 0.1A 10k/10k N13 DDC114EK Dio DN SOT26 dual dtr npn 50V 0.1A 10k/10k N13 SO2222 SGS N 2N2222 N14 DDTC114YE Dio N SOT523 dtr npn 50V 0.1A 10k/47k 0.15W N14 DDTC114YUA Dio N SOT323 dtr npn 50V 0.1A 10k/47k 0.2W N14 DDTC114YCA Dio N SOT23 dtr npn 50V 0.1A 10k/47k 0.2W N14 DDTC114YKA Dio N SC59 dtr npn 50V 0.1A 10k/47k 0.2W N14 DDC114YU Dio DN SOT363 dual dtr npn 50V 0.1A 10k/47k N14 DDC114YK Dio DN SOT26 dual dtr npn 50V 0.1A 10k/47k N15 DDTC114WE Dio N SOT523 dtr npn 50V 0.1A 10k/47k 0.15W N15 DDTC114WUA Dio N SOT323 dtr npn 50V 0.1A 10k/47k 0.2W N15 DDTC114WCA Dio N SOT23 dtr npn 50V 0.1A 10k/47k 0.2W N15 DDTC114WKA Dio N SC59 dtr npn 50V 0.1A 10k/47k 0.2W N16 DDTC124TE Dio N SOT523 dtr npn 50V 0.1A R1 22k 0.15W N16 DDTC124TUA Dio N SOT323 dtr npn 50V 0.1A R1 22k 0.2W N16 DDTC124TCA Dio N SOT23 dtr npn 50V 0.1A R1 22k 0.2W N16 DDTC124TKA Dio N SC59 dtr npn 50V 0.1A R1 22k 0.2W N17 DDTC124EE Dio DN SOT523 dtr npn 50V 0.1A 22k/22k 0.15W N17 DDTC124EUA Dio DN SOT323 dtr npn 50V 0.1A 22k/22k 0.2W N17 DDTC124ECA Dio DN SOT23 dtr npn 50V 0.1A 22k/22k 0.2W http://www.marsport.org.uk/smd/smdn.htm (4 of 7)27/5/2007 18:20:41
- 128. SMD Codebook page N N17 DDTC124EKA Dio DN SC59 dtr npn 50V 0.1A 22k/22k 0.2w N17 DDC124EU Dio DN SOT363 dual dtr npn 50V 0.1A 22k/22k N17 DDC124EK Dio DN SOT26 dual dtr npn 50V 0.1A 22k/22k N18 SO1711 SGS N 2N1711 N18 DDTC124XE Dio N SOT523 dtr npn 50V 0.1A 22k/47k 0.15W N18 DDTC124XUA Dio N SOT323 dtr npn 50V 0.1A 22k/47k 0.2W N18 DDTC124XCA Dio N SOT23 dtr npn 50V 0.1A 22k/47k 0.2W N18 DDTC124XKA Dio N SC59 dtr npn 50V 0.1A 22k/47k 0.2W N19 DDTC144TE Dio N SOT523 dtr npn 50V 0.1A R1 47k 0.15W N19 DDTC144TUA Dio N SOT323 dtr npn 50V 0.1A R1 47k 0.2W N19 DDTC144TCA Dio N SOT23 dtr npn 50V 0.1A R1 47k 0.2W N19 DDTC144TKA Dio N SC59 dtr npn 50V 0.1A R1 47k 0.2W N20 DDTC124EE Dio N SOT523 dtr npn 50V 0.1A 22k/22k 0.15W N20 DDTC124EUA Dio N SOT323 dtr npn 50V 0.1A 22k/22k 0.2W N20 DDTC124ECA Dio N SOT23 dtr npn 50V 0.1A 22k/22k 0.2W N20 DDTC124EKA Dio N SC59 dtr npn 50V 0.1A 22k/22k 0.2W N20 DDC144EU Dio DN SOT363 dual dtr npn 50V 0.1A 47k/47k N20 DDC144EK Dio DN SOT26 dual dtr npn 50V 0.1A 47k/47k N20 SO2222A SGS N 2N2222A N21 DDTC144VE Dio N SOT523 dtr npn 50V 0.1A 47k/10k 0.15W N21 DDTC144VUA Dio N SOT323 dtr npn 50V 0.1A 47k/10k 0.2W N21 DDTC144VCA Dio N SOT23 dtr npn 50V 0.1A 47k/10k 0.2W N21 DDTC144VKA Dio N SC59 dtr npn 50V 0.1A 47k/10k 0.2W N22 DDTC144WE Dio N SOT523 dtr npn 50V 0.1A 47k/22k 0.15W N22 DDTC144WUA Dio N SOT323 dtr npn 50V 0.1A 47k/22k 0.2W N22 DDTC144WCA Dio N SOT23 dtr npn 50V 0.1A 47k/22k 0.2W N22 DDTC144WKA Dio N SC59 dtr npn 50V 0.1A 47k/22k 0.2W N23 DDTC115TE Dio N SOT523 dtr npn 50V 0.1A R1 100k 0.15W N23 DDTC115TUA Dio N SOT323 dtr npn 50V 0.1A R1 100k 0.2W N23 DDTC115TCA Dio N SOT23 dtr npn 50V 0.1A R1 100k 0.2W N23 DDTC115TKA Dio N SC59 dtr npn 50V 0.1A R1 100k 0.2W N24 DDTC115EE Dio N SOT523 dtr npn 50V 0.1A 100k/100k 0.15W http://www.marsport.org.uk/smd/smdn.htm (5 of 7)27/5/2007 18:20:41
- 129. SMD Codebook page N N24 DDTC115EUA Dio N SOT323 dtr npn 50V 0.1A 100k/100k 0.2W N24 DDTC115ECA Dio N SOT23 dtr npn 50V 0.1A 100k/100k 0.2W N24 DDTC115EKA Dio N SC59 dtr npn 50V 0.1A 100k/100k 0.2W N25 DDTC125TE Dio N SOT523 dtr npn 50V 0.1A R1 200k 0.15W N25 DDTC125TUA Dio N SOT323 dtr npn 50V 0.1A R1 200k 0.2W N25 DDTC125TCA Dio N SOT23 dtr npn 50V 0.1A R1 200k 0.2W N25 DDTC125TKA Dio N SC59 dtr npn 50V 0.1A R1 200k 0.2W N26 DDTC114GE Dio N SOT523 dtr npn 50V 0.1A R2 10k 0.15W N26 DDTC114GUA Dio N SOT323 dtr npn 50V 0.1A R2 10k 0.2W N26 DDTC114GCA Dio N SOT23 dtr npn 50V 0.1A R2 10k 0.2W N26 DDTC114GKA Dio N SC59 dtr npn 50V 0.1A R2 10k 0.2W N27 SO1893 SGS N 2N1893 N27 DDTC124GE Dio N SOT523 dtr npn 50V 0.1A R2 22k 0.15W N27 DDTC124GUA Dio N SOT323 dtr npn 50V 0.1A R2 22k 0.2W N27 DDTC124GCA Dio N SOT23 dtr npn 50V 0.1A R2 22k 0.2W N27 DDTC124GKA Dio N SC59 dtr npn 50V 0.1A R2 22k 0.2W N28 BFR520 Phi N SOT23 npn RF 9GHz 70mA N28 DDTC144GE Dio N SOT523 dtr npn 50V 0.1A R2 47k 0.15W N28 DDTC144GUA Dio N SOT323 dtr npn 50V 0.1A R2 47k 0.2W N28 DDTC144GCA Dio N SOT23 dtr npn 50V 0.1A R2 47k 0.2W N28 DDTC144GKA Dio N SC59 dtr npn 50V 0.1A R2 47k 0.2W N29 BFR540 Phi N SOT23 npn RF 9GHz 120mA N29 DDTC115GE Dio N SOT523 dtr npn 50V 0.1A R2 100k 0.15W N29 DDTC115GUA Dio N SOT323 dtr npn 50V 0.1A R2 100k 0.2W N29 DDTC115GCA Dio N SOT23 dtr npn 50V 0.1A R2 100k 0.2W N29 DDTC115GKA Dio N SC59 dtr npn 50V 0.1A R2 100k 0.2W N30 BFR505 Phi N SOT23 npn RF 9GHz 15V 18mA N33 BFG505 Phi TQ SOT143 npn RF 9GHz 15V 18mA N36 BFG520 Phi X SOT143 npn RF 9GHz 70mA N37 BFG540 Phi X SOT143 npn RF 9GHz 120mA N38 BFG590 Phi TQ SOT143 npn RF 5GHz 15V 0.2A N39 BFG505X Phi X npn RF 9GHz 15V 18mA http://www.marsport.org.uk/smd/smdn.htm (6 of 7)27/5/2007 18:20:41
- 130. SMD Codebook page N N44 BFG590X Phi X npn RF 5GHz 15V 0.2A N54 SO2221A SGS N 2N2221A N70 BFG10 Phi TQ SOT143 npn 8V 250mA 1.8GHz pwr amp N71 SO3904 SGS N 2N3904 N71 BFG10X Phi X 8V 250mA 1.8GHz pwr amp N72 BFG11 Phi TQ SOT143 8V 400mA 1.8GHz pwr amp N72 SO3903 SGS N 2N3903 N73 BFG11X Phi X 8V 400mA 1.8GHz pwr amp N79 SO5550 SGS N 2N5550 N80 SO5551 SGS N 2N5551 N81 SO2369A SGS N 2N2369A N91 SO642 SGS N npn Vce 300V N94 SO517 SGS N npn darlington NA CFY35-20 Sie DM 10GHz GaAsfet NA BF1105WR Phi UQ SOT343R uhf n-ch dg mosfet NAp BF1105R Phi UQ SOT143R uhf n-ch dg mosfet NB BF1109WR Phi UQ SOT343R uhf n-ch dg mosfet NBp BF1109R Phi UQ SOT143R uhf n-ch dg mosfet NEp BF1105 Phi UQ SOT143 uhf n-ch dg mosfet NFp BF1109 Phi UQ SOT143 uhf n-ch dg mosfet NB CFY35-23 Sie DM 10GHz GaAsfet NP CMDZ5L6 CSC I SOD323 zener 250mW Iz 0.5mA 5.6V NY BF1012s Sie W n-ch dg mosfet 1GHz 12V NZ MGSF1N02L Mot M n-ch TMOS FET Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdn.htm (7 of 7)27/5/2007 18:20:41
- 131. SMD Codebook page O GM4PMK's SMD Codebook Codes beginning with 'O' be sure to check the '0' (zero) table as well Code Device Manf Base Package Leaded Equivalent/Data O (white) BAT14-03W Sie I SOD323 RF Schottky 4V 90mA O05 SO2484R SGS R 2N2484 O08 SO930R SGS R 2N930 O9 1SS385F Tosh B ESM 2 x 10V 0.1A cc schottky O9 1SS385 Tosh B SSM 2 x 10V 0.1A cc schottky O9 1SS378 Tosh B SC70 2 x 10V 0.1A cc schottky O9 1SS377 Tosh B sc59 2 x 10V 0.1A cc schottky O10 SO918R SGS R 2N918 O12 SO2221R SGS R 2N2221 O13 SO2222R SGS R 2N2222 O2 BST82 Phi M SOT23 n-ch mosfet 80V 175mA O20 SO2222AR SGS R 2N2222A O27 SO1893R SGS R 2N1893 O54 SO2221AR SGS R 2N2221A O79 SO5550R SGS R 2N5550 O80 SO5551R SGS R 2N5551 O91 SO642R SGS R npn Vce 300V OP CMDZ6L2 CSC I SOD323 zener 250mW Iz 0.5mA 6.2V Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdo.htm27/5/2007 18:20:43
- 132. SMD Codebook page P GM4PMK's SMD Codebook Codes beginning with 'P' Code Device Manf Base Package Leaded Equivalent/Data P (white) BAT15-03W Sie I SOD323 RF Schottky 4V 100mA P KV1841E Tok I URD uhf varicap 7-15pF P RSX051VA-30 Roh I TUMD2 schottky diode 0.5A 30V P DAP202K Roh A 80V 100mA dual P0 BFP90A Phi CX SOT173 BFG90A P0 TP0101T Tem M SOT23 p-ch mosfet 0.5A 12V P0 HSMS-285B HP C SOT323 zero-bias schottky diode uW det P0 HSMS-2850 HP C SOT23 zero-bias schottky diode uW det P01 SO2906 SGS N 2N2906 P01 SST201 Sil F SOT23 J201 n-ch fet P01 DDTA113TE Dio N SOT523 dtr pnp 50V 0.1A R1 1k0 0.15W P01 DDTA113TUA Dio N SOT323 dtr pnp 50V 0.1A R1 1k0 0.2W P01 DDTA113TCA Dio N SOT23 dtr pnp 50V 0.1A R11k0 0.2W P01 DDTA113TKA Dio N SC59 dtr pnp 50V 0.1A R1 1k0 0.2W P02 SST202 Sil F SOT23 J202 n-ch fet P02 DDTA113ZE Dio N SOT523 dtr pnp 50V 0.1A res 1k0/10k 0.15W P02 DDTA113ZUA Dio N SOT323 dtr pnp 50V 0.1A res 1k0/10k 0.2W P02 DDTA113ZCA Dio N SOT23 dtr pnp 50V 0.1A res 1k0/10k 0.2W P02 DDTA113ZKA Dio N SC59 dtr pnp 50V 0.1A res 1k0/10k 0.2W P03 SO2907A SGS N 2N2907A P03 SST203 Sil F SOT23 J203 n-ch fet P03 DDTA123TE Dio N SOT523 dtr pnp 50V 0.1A R1 2k2 0.15W P03 DDTA123TUA Dio N SOT323 dtr pnp 50V 0.1A R1 2k2 0.2W P03 DDTA123TCA Dio N SOT23 dtr pnp 50V 0.1A R1 2k2 0.2W P03 DDTA123TKA Dio N SC59 dtr pnp 50V 0.1A R1 2k2 0.2W P04 SST204 Sil F SOT23 J204 n-ch fet P04 DDTA123EE Dio N SOT523 dtr pnp 50V 0.1A res 2k2/2k2 0.15W http://www.marsport.org.uk/smd/smdp.htm (1 of 8)27/5/2007 18:20:49
- 133. SMD Codebook page P P04 DDTA123EUA Dio N SOT323 dtr pnp 50V 0.1A res 2k2/2k2 0.2W P04 DDTA123ECA Dio N SOT23 dtr pnp 50V 0.1A res 2k2/2k2 0.2W P04 DDTA123EKA Dio N SC59 dtr pnp 50V 0.1A res 2k2/2k2 0.2W P05 SO2907 SGS N 2N2907 P05 DDTA123YE Dio N SOT523 dtr pnp 50V 0.1A res 2k2/10k 0.15W P05 DDTA123YUA Dio N SOT323 dtr pnp 50V 0.1A res 2k2/10k 0.2W P05 DDTA123YCA Dio N SOT23 dtr pnp 50V 0.1A res 2k2/10k 0.2W P05 DDTA123YKA Dio N SC59 dtr pnp 50V 0.1A res 2k2/10k 0.2W P06 SO2894 SGS N 2N2894 P06 DDTA123JE Dio N SOT523 dtr pnp50V 0.1A res 2k2/47k 0.15W P06 DDTA123JUA Dio N SOT323 dtr pnp 50V 0.1A res 2k2/47k 0.2W P06 DDTA123JCA Dio N SOT23 dtr pnp 50V 0.1A res 2k2/47k 0.2W P06 DDTA123JKA Dio N SC59 dtr pnp 50V 0.1A res 2k2/47k 0.2W P06 DDA123JU Dio DO SOT363 dual dtr pnp 50V 0.1A 2k2/47k P06 DDA123JK Dio DO SOT26 dual dtr pnp 50V 0.1A 2k2/47k P07 DDTA143TE Dio N SOT523 dtr pnp 50V 0.1A R1 4k7 0.15W P07 DDTA143TUA Dio N SOT323 dtr pnp 50V 0.1A R1 4k7 0.2W P07 DDTA143TCA Dio N SOT23 dtr pnp 50V 0.1A R1 4k7 0.2W P07 DDTA143TKA Dio N SC59 dtr pnp 50V 0.1A R1 4k7 0.2W P07 DDA143TU Dio DO SOT363 dual dtr pnp 50V 0.1A R1 4k7 P07 DDA143TK Dio DO SOT26 dual dtr pnp 50V 0.1A R1 4k7 P08 DDTA143EE Dio N SOT523 dtr pnp 50V 0.1A 4k7/4k7 0.15W P08 DDTA143EUA Dio N SOT323 dtr pnp 50V 0.1A 4k7/4k7 0.2W P08 DDTA143ECA Dio N SOT23 dtr pnp 50V 0.1A 4k7/4k7 0.2W P08 DDTA143EKA Dio N SC59 dtr pnp 50V 0.1A 4k7/4k7 0.2W P09 DDTA123XE Dio N SOT523 dtr pnp 50V 0.1A res 4k7/10k 0.15W P09 DDTA123XUA Dio N SOT323 dtr pnp 50V 0.1A res 4k7/10k 0.2W P09 DDTA123XCA Dio N SOT23 dtr pnp 50V 0.1A res 4k7/10k 0.2W P09 DDTA123XKA Dio N SC59 dtr pnp 50V 0.1A res 4k7/10k 0.2W P1 BB131 Phi I SOD 323 VHF Varicap 1-15pF P1 BFP91A Phi CX SOT173 BFG91A P1 SST201 Tem F SOT23 J201 n-ch jfet P1 MMSZ5266 Vis I SOD123 zener 300mW 5% 68V P1 BZX84C11T Dio C SOT523 zener 150mW 11V http://www.marsport.org.uk/smd/smdp.htm (2 of 8)27/5/2007 18:20:49
- 134. SMD Codebook page P P1D PZTA42 Mot P MPSA42 10mA 300V npn P1F PZT2222A Mot P 2N2222A sw npn P1N PZTA14 Mot P MPSA14 darlington P1 BFR92 Phi N SOT23 BFR90 P1D PZTA42 Mot P MPSA42 300V npn P1N PZTA14 Mot P npn darlington MPSA14 P2 BB132 Phi I SOD 323 VHF Varicap 2,5-28,8pF P2 BFR92A Phi N SOT23 BFR90A P2p BFR92AW Phi N SOT323 BFR90A P2 HSMSM-285C HP D SOT323 dual series HSMS-285B P2 HSMSM-2852 HP D SOT23 dual series HSMS-285B P2 MMSZ5267 Vis I SOD123 zener 300mW 5% 75V P2 BZX84C12T Dio C SOT523 zener 150mW 12V P2D PZTA92 Mot P MPSA92 300V pnp P2F PZT2907A Mot P 2N2907A sw pnp P2V PZTA64 Mot P MPSA64 darlington P3 BB133 Phi I SOD 323 VHF Varicap 2,5-18,5pF P3 MMBF2202P Mot M SOT23 p-ch TMOSfet 0.3A 20V P3 TP0202T Tem M p-ch mosfet 0.3A 20V P3 BZX84C13T Dio C SOT523 zener 150mW 13V P4 BFR92R Phi R SOT23R BFR90 P4 BB134 Phi I SOD 323 UHF Varicap 2-12pF P4 BZX84C15T Dio C SOT523 zener 150mW 15V P5 BB135 Phi I SOD 323 UHF Varicap 2-12pF P5 BFR92AR Phi R SOT23R BFR90A P5 FMMT2369A Zet N 2N2369A P5 HSMSM-2855 HP S SOT143 separate pair HSMS-2850 P5 BZX84C16T Dio C SOT523 zener 150mW 16V P6 BFP96 Phi CX SOT173 BFG96 P6 BZX84C18T Dio C SOT523 zener 150mW 18V P7 BB147 Phi I SOD 323 VHF Varicap 2,5-42pF P7 BZX84C20T Dio C SOT523 zener 150mW 20V P8 BB148 Phi I SOD 323 VHF Varicap 2,5-17,5pF P8 BZX84C22T Dio C SOT523 zener 150mW 22V http://www.marsport.org.uk/smd/smdp.htm (3 of 8)27/5/2007 18:20:49
- 135. SMD Codebook page P P8A FLLD258 Zet B SOT23 low leakage dual ca Si diode P9 BB149 Phi I SOD 323 UHF Varicap 2-11pF P9 BCX70KR Phi R SOT23R BCY59-x P9 DAP222 Mot A SOT416 dual ca sw diode P9 BZX84C24T Dio C SOT523 zener 150mW 24V P10 DDTA143FE Dio N SOT523 dtr pnp 50V 0.1A 4k7/22k 0.15W P10 DDTA143FUA Dio N SOT323 dtr pnp50V 0.1A 4k7/22k 0.2W P10 DDTA143FCA Dio N SOT23 dtr pnp 50V 0.1A 4k7/22k 0.2W P10 DDTA143FKA Dio N SC59 dtr pnp 50V 0.1A 4k7/22k 0.2W P11 DDTA143ZE Dio N SOT523 dtr pnp 50V 0.1A 4k7/47k 0.15W P11 DDTA143ZUA Dio N SOT323 dtr pnp 50V 0.1A 4k7/47k 0.2W P11 DDTA143ZCA Dio N SOT23 dtr pnp 50V 0.1A 4k7/47k 0.2W P11 DDTA143ZKA Dio N SC59 dtr pnp 50V 0.1A 4k7/47k 0.2W P12 SO2906A SGS N 2N2906A P12 DDTA114TE Dio N SOT523 dtr pnp 50V 0.1A R1 10k 0.15W P12 DDTA114TUA Dio N SOT323 dtr pnp 50V 0.1A R1 10k 0.2W P12 DDTA114TCA Dio N SOT23 dtr pnp 50V 0.1A R110k 0.2W P12 DDTA114TKA Dio N SC59 dtr pnp 50V 0.1A R1 10k 0.2W P12 DDA114TU Dio DO SOT363 dual dtr pnp 50V 0.1A R1 10k P12 DDA114TK Dio DO SOT26 dual dtr pnp 50V 0.1A R1 10k P13 DDTA114EE Dio N SOT523 dtr pnp 50V 0.1A 10k/10k 0.15W P13 DDTA114EUA Dio N SOT323 dtr pnp 50V 0.1A 10k/10k 0.2W P13 DDTA114ECA Dio N SOT23 dtr pnp 50V 0.1A 10k/10k 0.2W P13 DDTA114EKA Dio N SC59 dtr pnp 50V 0.1A 10k/10k 0.2W P13 DDA114EU Dio DO SOT363 dual dtr pnp 50V 0.1A 10k/10k P13 DDA114EK Dio DO SOT26 dual dtr pnp 50V 0.1A 10k/10k P14 DDTA114YE Dio N SOT523 dtr pnp 50V 0.1A 10k/47k 0.15W P14 DDTA114YUA Dio N SOT323 dtr pnp 50V 0.1A 10k/47k 0.2W P14 DDTA114YCA Dio N SOT23 dtr pnp 50V 0.1A 10k/47k 0.2W P14 DDTA114YKA Dio N SC59 dtr pnp 50V 0.1A 10k/47k 0.2W P14 DDA114YU Dio DO SOT363 dual dtr pnp 50V 0.1A 10k/47k P14 DDA114YK Dio DO SOT26 dual dtr pnp 50V 0.1A 10k/47k P15 DDTA114WE Dio N SOT523 dtr pnp 50V 0.1A 10k/47k 0.15W P15 DDTA114WUA Dio N SOT323 dtr pnp 50V 0.1A 10k/47k 0.2W http://www.marsport.org.uk/smd/smdp.htm (4 of 8)27/5/2007 18:20:49
- 136. SMD Codebook page P P15 DDTA114WCA Dio N SOT23 dtr pnp 50V 0.1A 10k/47k 0.2W P15 DDTA114WKA Dio N SC59 dtr pnp 50V 0.1A 10k/47k 0.2W P16 DDTA124TE Dio N SOT523 dtr pnp 50V 0.1A R1 22k 0.15W P16 DDTA124TUA Dio N SOT323 dtr pnp 50V 0.1A R1 22k 0.2W P16 DDTA124TCA Dio N SOT23 dtr pnp 50V 0.1A R1 22k 0.2W P16 DDTA124TKA Dio N SC59 dtr pnp 50V 0.1A R1 22k 0.2W P17 DDTA124EE Dio DO SOT523 dtr pnp 50V 0.1A 22k/22k 0.15W P17 DDTA124EUA Dio DO SOT323 dtr pnp 50V 0.1A 22k/22k 0.2W P17 DDTA124ECA Dio DO SOT23 dtr pnp 50V 0.1A 22k/22k 0.2W P17 DDTA124EKA Dio DO SC59 dtr pnp 50V 0.1A 22k/22k 0.2w P17 DDC124EU Dio DO SOT363 dual dtr pnp 50V 0.1A 22k/22k P17 DDC124EK Dio DO SOT26 dual dtr pnp 50V 0.1A 22k/22k P18 DDTA124XE Dio N SOT523 dtr pnp 50V 0.1A 22k/47k 0.15W P18 DDTA124XUA Dio N SOT323 dtr pnp 50V 0.1A 22k/47k 0.2W P18 DDTA124XCA Dio N SOT23 dtr pnp 50V 0.1A 22k/47k 0.2W P18 DDTA124XKA Dio N SC59 dtr pnp 50V 0.1A 22k/47k 0.2W P19 DDTA144TE Dio N SOT523 dtr pnp50V 0.1A R1 47k 0.15W P19 DDTA144TUA Dio N SOT323 dtr pnp 50V 0.1A R1 47k 0.2W P19 DDTA144TCA Dio N SOT23 dtr pnp 50V 0.1A R1 47k 0.2W P19 DDTA144TKA Dio N SC59 dtr pnp 50V 0.1A R1 47k 0.2W P20 DDTA124EE Dio N SOT523 dtr pnp 50V 0.1A 22k/22k 0.15W P20 DDTA124EUA Dio N SOT323 dtr pnp 50V 0.1A 22k/22k 0.2W P20 DDTA124ECA Dio N SOT23 dtr pnp 50V 0.1A 22k/22k 0.2W P20 DDTA124EKA Dio N SC59 dtr pnp 50V 0.1A 22k/22k 0.2W P20 DDA144EU Dio DO SOT363 dual dtr pnp 50V 0.1A 47k/47k P20 DDA144EK Dio DO SOT26 dual dtr pnp 50V 0.1A 47k/47k P21 DDTA144VE Dio N SOT523 dtr pnp 50V 0.1A 47k/10k 0.15W P21 DDTA144VUA Dio N SOT323 dtr pnp 50V 0.1A 47k/10k 0.2W P21 DDTA144VCA Dio N SOT23 dtr pnp 50V 0.1A 47k/10k 0.2W P21 DDTA144VKA Dio N SC59 dtr pnp 50V 0.1A 47k/10k 0.2W P22 DDTA144WE Dio N SOT523 dtr pnp 50V 0.1A 47k/22k 0.15W P22 DDTA144WUA Dio N SOT323 dtr pnp 50V 0.1A 47k/22k 0.2W P22 DDTA144WCA Dio N SOT23 dtr pnp 50V 0.1A 47k/22k 0.2W P22 DDTA144WKA Dio N SC59 dtr pnp 50V 0.1A 47k/22k 0.2W http://www.marsport.org.uk/smd/smdp.htm (5 of 8)27/5/2007 18:20:49
- 137. SMD Codebook page P P23 DDTA115TE Dio N SOT523 dtr pnp 50V 0.1A R1 100k 0.15W P23 DDTA115TUA Dio N SOT323 dtr pnp 50V 0.1A R1 100k 0.2W P23 DDTA115TCA Dio N SOT23 dtr pnp 50V 0.1A R1 100k 0.2W P23 DDTA115TKA Dio N SC59 dtr pnp 50V 0.1A R1 100k 0.2W P24 DDTA115EE Dio N SOT523 dtr pnp 50V 0.1A 100k/100k 0.15W P24 DDTA115EUA Dio N SOT323 dtr pnp 50V 0.1A 100k/100k 0.2W P24 DDTA115ECA Dio N SOT23 dtr pnp 50V 0.1A 100k/100k 0.2W P24 DDTA115EKA Dio N SC59 dtr pnp 50V 0.1A 100k/100k 0.2W P25 DDTA125TE Dio N SOT523 dtr pnp 50V 0.1A R1 200k 0.15W P25 DDTA125TUA Dio N SOT323 dtr pnp 50V 0.1A R1 200k 0.2W P25 DDTA125TCA Dio N SOT23 dtr pnp 50V 0.1A R1 200k 0.2W P25 DDTA125TKA Dio N SC59 dtr pnp 50V 0.1A R1 200k 0.2W P25 SO3906 SGS N 2N3906 P26 SO3905 SGS N 2N3905 P26 DDTA114GE Dio N SOT523 dtr pnp 50V 0.1A R2 10k 0.15W P26 DDTA114GUA Dio N SOT323 dtr pnp 50V 0.1A R2 10k 0.2W P26 DDTA114GCA Dio N SOT23 dtr pnp 50V 0.1A R2 10k 0.2W P26 DDTA114GKA Dio N SC59 dtr pnp 50V 0.1A R2 10k 0.2W P27 DDTA124GE Dio N SOT523 dtr pnp 50V 0.1A R2 22k 0.15W P27 DDTA124GUA Dio N SOT323 dtr pnp 50V 0.1A R2 22k 0.2W P27 DDTA124GCA Dio N SOT23 dtr pnp 50V 0.1A R2 22k 0.2W P27 DDTA124GKA Dio N SC59 dtr pnp 50V 0.1A R2 22k 0.2W P28 DDTA144GE Dio N SOT523 dtr pnp 50V 0.1A R2 47k 0.15W P28 DDTA144GUA Dio N SOT323 dtr pnp 50V 0.1A R2 47k 0.2W P28 DDTA144GCA Dio N SOT23 dtr pnp 50V 0.1A R2 47k 0.2W P28 DDTA144GKA Dio N SC59 dtr pnp 50V 0.1A R2 47k 0.2W P29 DDTA115GE Dio N SOT523 dtr pnp 50V 0.1A R2 100k 0.15W P29 DDTA115GUA Dio N SOT323 dtr pnp 50V 0.1A R2 100k 0.2W P29 DDTA115GCA Dio N SOT23 dtr pnp 50V 0.1A R2 100k 0.2W P29 DDTA115GKA Dio N SC59 dtr pnp 50V 0.1A R2 100k 0.2W P32 SO5400 SGS N 2N5400 P33 SO5401 SGS N 2N5401 P38 SST4338 Sil F SOT23 2N4338 P39 SST4339 Sil F 2N4339 http://www.marsport.org.uk/smd/smdp.htm (6 of 8)27/5/2007 18:20:49
- 138. SMD Codebook page P P39 SO692 SGS pnp Vce 300V P40 SST4340 Sil F SOT23 2N4340 P41 SST4341 Sil F SOT23 2N4341 P57 SST5457 Sil F SOT23 2N5457 P58 SST5458 Sil F SOT23 2N5458 P59 SST5459 Sil F SOT23 2N5459 P60 SST5460 Sil F SOT23 2N5460 P61 SST5461 Sil F SOT23 2N5461 P62 SST5462 Sil F SOT23 2N5462 P63 SST5463 Sil F SOT23 2N5463 P64 SST5464 Sil F SOT23 2N5464 P65 SST5465 Sil F SOT23 2N5465 PA BB151 Phi I SOD 323 Low Voltage Varicap PB BB152 Phi I SOD 323 VHF Varicap 2,5-23pF PC BB153 Phi I SOD 323 VHF Varicap 2,5-15pF PC MGSF1P02L Mot M SOT23 p ch enh tmosfet PD BSS84L Mot M SOT23 p-ch enh tmosfet PE BB155 Phi I SOD 323 Low Voltage Varicap PF BB156 Phi I SOD 323 Low Voltage Varicap PG BB157 Phi I SOD 323 VHF Varicap 2,7-13,7pF PH BB158 Phi I SOD 323 VHF Varicap 2,5-17,5pF PH2 SST4302 Sil F SOT23 2N4302 PH3 SST4303 Sil F SOT23 2N4303 PH4 SST4304 Sil F SOT23 2N4304 PJ BB159 Phi I SOD 323 UHF Varicap 2-11pF PK BB164 Phi I SOD 323 VHF Varicap 3-22,5pF PL BB149A Phi I SOD323 2-12pF varicap PN BB190 Phi I SOD 323 Low Voltage Varicap POs BAR64 Sie C SOT23 single 200V RF pin PP CMDZ6L8 CSC I SOD323 zener 250mW Iz 0.5mA 6.8V PPs BAR64-04 Sie D SOT23 dual series 200V RF pin PPs BAR64-04W Sie D SOT323 dual series 200V RF pin PRs BAR64-05 Sie B SOT23 dual cc 200V RF pin PRs BAR64-05W Sie B SOT323 dual cc 200V RF pin http://www.marsport.org.uk/smd/smdp.htm (7 of 8)27/5/2007 18:20:49
- 139. SMD Codebook page P PSs BAR64-06 Sie A SOT23 dual ca 200V RF pin PSs BAR64-06W Sie A SOT323 dual ca 200V RF pin Last Updated on 10/07/2005 By GM4PMK http://www.marsport.org.uk/smd/smdp.htm (8 of 8)27/5/2007 18:20:49
- 140. SMD Codebook Page Q GM4PMK's SMD Codebook Codes beginning with 'Q' Code Device Manf Base Package Leaded Equivalent/Data Q RSX071VA-30 Roh I TUMD2 schottky diode 0.7A 30V Q3 MMBC1321Q3 Mot N npn VHF amp fT 0.6GHz Q4 MMBC1321Q4 Mot N npn VHF amp fT 0.6GHz Q5 MMBC1321Q5 Mot N npn VHF amp fT 0.6GHz QP CMDZ7L5 CSC I SOD323 zener 250mW Iz 0.5mA 7.5V QQ 2SC4536 Nec P npn RF fT 5.7GHz 2W hFE 40-80 QR 2SC4536 Nec P npn RF fT 5.7GHz 2W hFE 60-120 QS 2SC4536 Nec P npn RF fT 5.7GHz 2W hFE 100-200 Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdq.htm27/5/2007 18:20:51
- 141. SMD Codebook page R GM4PMK's SMD Codebook Codes beginning with 'R' Code Device Manf Base Package Leaded Equivalent/Data R BA895 Sie I SCD80 R BA585 Sie I SOD123 pin diode 50mA max R RSX101VA-30 Roh I TUMD2 schottky diode 1A 30V R (yellow) BA597 Sie I SOD323 UHF pin diode 100mA max R (white) BA595 Sie I SOD323 UHF pin diode 50mA max R1 BFR93 SGS N SOT23 BFR91 R1 HSMS-8101 HP K SOT23 10-14GHz schottky mixer R1 UMT4401 Rho N SC70 2N4401 R1 BZX84C4V7T Dio C SOT523 zener 150mW 4.7V R1A SST3904 Rho N SOT23 2N3904 R1A UMT3904 Rho N SC70 2N3904 R1A MMST3904 Rho N SC59 2N3904 R1G SSTA06 Rho N SOT23 MPSA06 R1G MMSTA06 Rho N SC59 MPSA06 R1H SSTA05 Rho N SOT23 MPSA05 R1J SST6427 Rho N SOT23 R1K MMST6428 Rho N SC59 R1M SSTA13 Rho N SOT23 MPSA13 R1M MMSTA13 Rho N SC59 MPSA13 R1N SSTA14 Rho N SOT23 MPSA14 R1N MMSTA14 Rho N SC59 MPSA14 R1O MMST5088 Rho N SC59 2N5088 R1P SST2222A Rho N SOT23 2N2222A R1P UMT2222A Rho N SC70 2N2222A R1P MMST2222A Rho N SC59 2N2222A R2 BFR93A Phi N SOT23 BFR91A R2 2SC2351P Nec N SOT23 npn RF fT 4.5 GHz hfe 40-120 R2 2SC4225 Nec N SOT323 npn RF fT 4GHz hfe 40-120 http://www.marsport.org.uk/smd/smdr.htm (1 of 6)27/5/2007 18:20:57
- 142. SMD Codebook page R R2 BZX84C5V1T Dio C SOT523 zener 150mW 5V1V R2A SST3906 Rho N SOT23 2N3906 R2A UMT3906 Rho N SC70 2N3906 R2A MMST3906 Rho N SC59 2N3906 R2B MMST2907 Rho N SC59 2N2907 R2F SST2907A Rho N SOT23 2N2907A R2F UMT2907A Rho N SC70 2N2907A R2F MMST2907A Rho N SC59 2N2907A R2G SSTA56 Rho N SOT23 MPSA56 R2G MMSTA56 Rho N SC59 MPSA56 R2K MMST8598 Rho N SC59 R2O MMST5087 Rho N SC59 R2P MMST5086 Rho N SC59 R2T SST4403 Rho N SOT23 2N4403 R2T UMT4403 Rho N SC70 2N4403 R2T MMST4403 Rho N SC59 2N4403 R2V MMSTA64 Rho N SC59 MPSA64 R2X SST4401 Rho N SOT23 2N4401 R2X MMST4401 Rho N SC59 2N4401 R3 2SC2351Q Nec N SOT23 npn RF fT 4.5 GHz hfe 100-200 R3 2SC4225 Nec N SOT323 npn RF fT 4GHz hfe 100-200 R3 BZX84C5V6T Dio C SOT523 zener 150mW 5.6V R3B SST918 Rho N SOT23 2N918 R3B MMST918 Rho N SC59 2N918 R4 BFR93R Tfk R BFR91 R4 2SC4092 Nec WQ SOT143 npn RF fT 6GHz hfe 40-120 R4 BZX84C6V2T Dio C SOT523 zener 150mW 6.2V R5 HSMS-8205 HP S SOT143 separate pair HSMS-8101 R5 BFR93AR SGS R SOT23R BFR91A R5 2SC4092 Nec WQ SOT143 npn RF fT 6GHz hfe 100-200 R5 BZX84C6V8T Dio C SOT523 zener 150mW 6.8V R6 BZX84C7V5T Dio C SOT523 zener 150mW 7.5V R6A 2SC4187 Nec N SOT323 npn RF fT 4GHz hfe 50-100 R6B 2SC4187 Nec N SOT323 npn RF fT 4GHz hfe 80-160 R6C 2SC4187 Nec N SOT323 npn RF fT 4GHz hfe 125-250 http://www.marsport.org.uk/smd/smdr.htm (2 of 6)27/5/2007 18:20:57
- 143. SMD Codebook page R R7 HSMS-8207 HP RQ SOT145 HSMS-8101 ring quad mixer R7 BFR106 Phi N SOT23 BFR96S R7 BZX84C8V2T Dio C SOT523 zener 150mW 8.2V R8 BFG93A Sie TQ SOT143 BFG90 R8 BZX84C9V1T Dio C SOT523 zener 150mW 9.1V R9 BZX84C10T Dio C SOT523 zener 150mW 10V R9 1SS393 Tosh B SC70 dual cc schottky 40V 0.1A R9 1SS392 Tosh B SC59 dual cc schottky 40V 0.1A R10 MMST5088 Roh N SMT3 2N5088 R13 2SC4885 Nec WQ SOT143 npn RF fT 3.5GHz R22 2SC3356 Nec N SOT23 npn RF fT 7GHz 20V 0.2W R23 2SC3356Q Nec N SOT23 npn RF fT 7GHz hfe 50-100 R23 2SC4226 Nec N SOT323 npn RF fT 4.5 GHz hfe 40-80 R24 2SC3356R Nec N SOT23 npn RF fT 7GHz hfe 80-160 R24 2SC4226 Nec N SOT323 npn RF fT 4.5 GHz hfe 70-140 R25 2SC3356S Nec N SOT23 npn RF fT 7GHz hfe 125-250 R25 2SC4226 Nec N SOT323 npn RF fT 4.5 GHz hfe 125-250 R26 2SC4093Q Nec WQ SOT143 npn RF fT 6.5 GHz hfe 50-100 R26 2SC5011Q Nec WQ SOT343 npn RF fT 6.5 GHz hfe 50-100 R27 2SC4093R Nec WQ SOT143 npn RF fT 6.5 GHz hfe 80-160 R27 2SC5011R Nec WQ SOT343 npn RF fT 6.5 GHz hfe 80-160 R28 2SC4093S Nec WQ SOT143 npn RF fT 6.5 GHz hfe 125-250 R28 2SC5011S Nec WQ SOT343 npn RF fT 6.5 GHz hfe 125-250 R32 2SC3583 Nec N SOT23 npn RF fT 9GHz @ 20mA R33 2SC3583Q Nec N SOT23 npn RF fT 9GHz hfe 50-100 R33 2SC4227 Nec N SOT323 npn RF fT 7 GHz hfe 40-90 R34 2SC3583R Nec N SOT23 npn RF fT 9GHz hfe 80-160 R34 2SC4227 Nec N SOT323 npn RF fT 7 GHz hfe 70-150 R35 2SC3583S Nec N SOT23 npn RF fT 9GHz hfe 125-250 R35 2SC4227 Nec N SOT323 npn RF fT 7 GHz hfe 110-240 R36 2SC4094Q Nec WQ SOT143 npn RF fT 9GHz hfe 50-100 R36 2SC5012 Nec WQ SOT343 npn RF fT 9GHz hfe 50-100 R37 2SC4094R Nec WQ SOT143 npn RF fT 9GHz hfe 80-160 R37 2SC5012 Nec WQ SOT343 2SC4094 but min-mold pkg R38 2SC4094S Nec WQ SOT143 npn RF fT 9GHz hfe 125-250 http://www.marsport.org.uk/smd/smdr.htm (3 of 6)27/5/2007 18:20:57
- 144. SMD Codebook page R R38 2SC5012 Nec WQ SOT343 npn RF fT 9GHz hfe 125-250 R42 2SC3585 Nec N SOT23 npn RF fT 10GHz @ 10mA R43 2SC3585Q Nec N SOT23 npn RF l fT 10GHz hfe 50-100 R43 2SC4228 Nec N SOT323 npn RF fT 8.5GHz hfe 50-100 R44 2SC3585R Nec N SOT23 npn RFfT 10GHz hfe 80-160 R44 2SC4228 Nec N SOT323 npn RF fT 8.5GHz hfe 80-160 R45 2SC3585S Nec N SOT23 npn RF fT 10GHz hfe 125-250 R45 2SC4228 Nec N SOT323 npn RF fT 8.5GHz hfe 125-250 R46 2SC4095Q Nec WQ SOT143 npn fT10GHz R46 2SC5013Q Nec WQ SOT343 npn fT10GHz R47 2SC4095R Nec WQ SOT143 npn fT10GHz R47 2SC5013R Nec WQ SOT343 npn fT10GHz R48 2SC4095S Nec WQ SOT143 npn fT10GHz R48 2SC5013S Nec WQ SOT343 npn fT10GHz R62 2SC3663 Nec N SOT23 npn RF fT 4GHz @1mA R64 2SC4091 Nec WQ npn RF fT 4GHz @1mA R66 2SC4091Q Nec WQ SOT143 npn RF fT 4GHz hfe 50-100 R67 2SC4091R Nec WQ SOT143 npn RF fT 4GHz hfe 80-160 R68 2SC4091S Nec WQ SOT143 npn RF fT 4GHz hfe 125-250 R97 SSTIS97 Rho N SOT23 TIS97 RA BFQ81 Sie N SOT23 BFQ69 npn fT 5.8GHz RAxx RGF1A Vis I DO214 fast rectifier 50V 1A xx date code RAs BF772 Sie X SOT143 npn RF TV tuners RAT SSTA28 Rho N SOT23 MPSA28 RAT MMSTA28 Rho N SC59 MPSA28 RAV MMST8908 Rho N SC59 RBR SST6838 Rho N SOT23 RB MSC1621 Mot H npn sw 20V 200MHz RB BZX84C2V4T Dio C SOT523 zener 150mW 2.4V RBxx RGF1B Vis I DO214 fast rectifier 100V 1A xx date code RBs BF771 Sie N SOT23 npn RF fT 8GHz RBs BF771W Sie N SOT323 npn RF fT 8GHz RC BZX84C2V7T Dio C SOT523 zener 150mW 2.7V RCs BFP193 Sie X SOT143 BFQ82 npn fT 8GHz RCs BFP193W Sie WQ SOT343 BFQ82 npn fT 8GHz http://www.marsport.org.uk/smd/smdr.htm (4 of 6)27/5/2007 18:20:57
- 145. SMD Codebook page R RCs BFR193 Sie N SOT23 BFQ82 npn fT 8GHz RCs BFR193T Sie N SC75 BFQ82 npn fT 8GHz RD BZX84C3V0T Dio C SOT523 zener 150mW 3.0V RDxx RGF1D Vis I DO214 fast rectifier 200V 1A xx date code RDs BFP180 Sie X SOT143 npn RF 8V 4mA fT 7GHz RDs BFP180W Sie WQ SOT343 npn RF 8V 4mA fT 7GHz RDs BFR180 Sie N SOT23 npn RF 8V 4mA fT 7GHz RDs BFR180W Sie N SOT323 npn RF 8V 4mA fT 7GHz RE BZX84C2V4T Dio C SOT523 zener 150mW 3.3V REs BFS480 Sie DJ SOT363 dual RF npn fT 7GHz REs BFR280 Sie N SOT23 npn RF 8V 8mA fT 7.5GHz REs BFR280W Sie N SOT323 npn RF 8V 8mA fT 7.5GHz REs BFP280 Sie X SOT143 npn RF 8V 8mA fT 7.5GHz REs BFP280W Sie WQ SOT343 npn RF 8V 8mA fT 7.5GHz RE 2SC3357 Nec P SOT89 npn RF 1.2W fT 6.5GHz RF BZX84C3V6T Dio C SOT523 zener 150mW 3.6V RFs BFR181 Sie N SOT23 npn RF 12V 20mA fT 8GHz RFs BFP181 Sie X SOT143 npn RF 12V 20mA fT 8GHz RFs BFP181W Sie WQ SOT343 npn RF 12V 20mA fT 8GHz RFs BFS481 Sie DJ SOT363 Dual BFR181 RF 2SC3357 Nec P SOT89 npn RF 1.2W fT 6.5GHz RFQ SST6839 Rho N SOT23 RG BZX84C3V9T Dio C SOT523 zener 150mW 3.9V RGxx RGF1G Vis I DO214 fast rectifier 400V 1A xx date code RGs BFR182 Sie N SOT23 npn RF12V 35mA fT 8GHz RGs BFR182W Sie N SOT323 npn RF12V 35mA fT 8GHz RGs BFP182 Sie X SOT143 npn RF12V 35mA fT 8GHz RGs BFP182W Sie WQ SOT343 npn RF12V 35mA fT 8GHz RGs BFR182T Sie N SC75 npn RF12V 35mA fT 8GHz RGs BFS482 Sie DJ SOT363 Dual BFR182 RH BZX84C4V3T Dio C SOT523 zener 150mW 4.3V RHs BFR183 Sie N SOT23 npn RF 12V 65mA fT 8GHz RHs BFR183W Sie N SOT323 npn RF 12V 65mA fT 8GHz RHs BFR183T Sie N SC75 npn RF 12V 65mA fT 8GHz RHs BFP183 Sie X SOT143 npn RF 12V 65mA fT 8GHz http://www.marsport.org.uk/smd/smdr.htm (5 of 6)27/5/2007 18:20:57
- 146. SMD Codebook page R RHs BFP183W Sie WQ SOT343 npn RF 12V 65mA fT 8GHz RH 2SC3357 Nec P SOT89 npn RF 1.2W fT 6.5GHz RHs BFS483 Sie DJ SOT363 Dual BFR183 npn RF RIs BFP196 Sie X SOT143 pnp RF 12V 100mA Ft 7.5GHz RJxx RGF1J Vis I DO214 fast rectifier 600V 1A xx date code RKs BFP194 Sie X SOT143 pnp RF 15V 100mA Ft 5GHz RKs BFR194 Sie N SOT233 pnp RF 15V 100mA Ft 5GHz RKM RK7002 Rho SOT23 RK 2SC3357 Nec P SOT89 npn RF 1.2W fT 6.5GHz RKxx RGF1K Vis I DO214 fast rectifier 800V 1A xx date code RMxx RGF1M Vis I DO214 fast rectifier 1000V 1A xx date code RP CMDZ8L2 CSC I SOD323 zener 250mW Iz 0.5mA 8.2V RR BBY59-02V Inf I SC79 hyperabrupt varicap 7-28pF RR BFR93P Sie N SOT23 BFR91 RVX MMST918 Roh N SC59 2N918 RVZ MMST4126 Rho N SC59 2N4126 RW BFR194 Sie N pnp RF amp 1.5GHz RZC SST4124 Rho N SOT23 2N4124 RZC MMST4124 Rho N SC59 2N4124 Last Updated on 102/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdr.htm (6 of 6)27/5/2007 18:20:57
- 147. SMD Codebook page S GM4PMK's SMD Codebook Codes beginning with 'S' Code Device Manf Base Package Leaded Equivalent/Data S (blue) BA592 Sie I SOD323 BA282 S (red) BB640 Sie I SOD323 70-3pF varicap S (white) BB535 Sie I SOD323 18-2pF varicap S (yellow) BB639 Sie I SOD323 39-2.7pF varicap S BAP64-02 Phi I SOD523 3GHz pin diode S BB515 Sie I SOD123 varicap 17.7pf @ 1V 30V max S0 HSMP-3880 HP C SOT23 pin sw diode S1 HSMP-3881 HP K SOT23 pin sw diode S1 BBY31 Phi C SOT23 BB405 S1A S1A Fch I DO214 1N4001 S1B S1B Fch I DO214 1N4002 S1D S1D Fch I DO214 1N4003 S1G S1G Fch I DO214 1N4004 S1J S1J Fch I DO214 1N4005 S2 BBY40 Phi C SOT23 BB809 S2 BFQ31 Zet N npn vhf 15V 0.1A S3 BFQ31R Zet R npn vhf 15V 0.1A S3 BBY51 Sie B SOT23 dual cc varicap S3 1SS388 Tosh I ESC low fwd V schottky 10V 0.1A S3 1SS357 Tosh I USC low fwd V schottky 10V 0.1A S4 BFQ31A Zet N npn vhf 15V 0.1A S4 1SS389 Tosh I ESC low fwd V schottky 40V 0.1A S4 1SS367 Tosh I USC low fwd V schottky 40V 0.1A S5 BFQ31AR Zet R npn vhf 15V 0.1A S5 BBY52 Sie B SOT23 dual cc varicap S5 BAT15-099 Sie NQ SOT143 Dual BAT15 schottky S6 BAT15-099R Sie DQ Ring quad BAT15 schottky http://www.marsport.org.uk/smd/smds.htm (1 of 3)27/5/2007 18:21:02
- 148. SMD Codebook page S S6 BF510 Phi G BF410A S6 SD103AW Vis I SOD123 schottky diode S6 1PS76SB62 Phi I SOD323 40V 20mA low C schottky diode S7 BF511 Phi G BF410B S7 SD103BW Vis I SOD123 schottky diode S7 SST177 Tem F SOT23 J177 p-ch analog sw jfet S7s BBY53-05 Sie B SOT23 dual cc varicap S7s BBY53-05W Sie B SOT323 dual cc varicap S7 BAT114-099 Sie NQ SOT143 Dual schottky S8 BF512 Phi G BF410C S8 SD103CW Vis I SOD123 schottky diode S8 BAT14-099 Sie NQ SOT143 Dual schottky S9 BAT14-099R Sie DQ Quad crossover ring schottky S9 1SS395 Tosh C SC70 low fwd V schottky 10V 0.1A S9 1SS394 Tosh C SC59 low fwd V schottky 10V 0.1A S9 BF513 Phi G BF410D S12 BBY39 Phi B SOT23 2x BBY31 S14 SST5114 Sil F SOT23 2N5114 S15 SST5115 Sil F SOT23 2N5115 S16 SST5116 Sil F SOT23 2N5116 S16 ZHCS1006 Zet C SOT23 60V 1A schottky diode S56 ZHCS506 Zet C SOT23 60V 0.5A schottky diode S70 SST270 Sil F SOT23 J270 p-ch jfet S71 SST271 Sil F SOT23 J271 p-ch jfet S74 SST174 Sil F SOT23 J174 p-ch fet S75 SST175 Sil F SOT23 J175 p-ch fet S76 SST176 Sil F SOT23 J176 p-ch fet S76 ZHCS756 Zet C SOT23 60V 0.75A schottky diode S77 SST177 Sil F SOT23 J177 p-ch fet SA BSS123 Sie M SOT23 n-ch mosfet 100V 0.17A SA SD101AW Vis I SOD123 schottky diode SBp BB200 Phi B SOT 23 Low Voltage Varicap dual SB SD101BW Vis I SOD123 schottky diode SC SD101CW Vis I SOD123 schottky diode SCp BB201 Phi b SOT 223 Low Voltage Varicap dual http://www.marsport.org.uk/smd/smds.htm (2 of 3)27/5/2007 18:21:02
- 149. SMD Codebook page S SD BSS284 Sie M SOT23 p-ch mosfet 50V 0.13A SE 2SC4703 Nec P npn RF 1.8W fT 6GHz SF 2SC4703 Nec P npn RF 1.8W fT 6GHz SFs BB804 Sie A SOT23 dual 45-26pF cc VHF varicap SF2 BB804W Phi B SOT 23 VHF Varicap dual SF5 BB804 Phi B SOT 23 VHF Varicap dual sSG SN7002 Sie M SOT23 n-ch mosfet 60V 0.19A SH 2SC4703 Nec P npn RF 1.8W fT 6GHz SH2 BB814 Sie A SOT23 dual 45-20pF cc varicap SM BB914 Sie B SOT23 dual varicap for FM radio SR BSS131 Sie M SOT23 n-ch mosfet 240V 0.1A SP BSS84 Sie M SOT23 p-ch mosfet 50V 0.13A SP CMDZ9L1 CSC I SOD323 zener 250mW Iz 0.5mA 9.1V SS BSS138 Sie M SOT23 n-ch mosfet 50V 0.22A ST BSS139 Sie M SOT23 n-ch dep mosfet 250V 0.04A Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smds.htm (3 of 3)27/5/2007 18:21:02
- 150. SMD Codebook page T GM4PMK's SMD Codebook Codes beginning with 'T' Code Device Manf Base Package Leaded Equivalent/Data T BAR67-02W Sie I SOD80 T RN15G Roh I VMD2 HF pin diode T BB811 Sie I SOD123 9.8pF @ 1V 30V max T0 TP0601T Tem M p-ch mosfet 60V 0.12A T0 HSMS-2860 HP C SOT23 zero bias schottky diode T0 HSMS-286B HP C SOT323 zero bias schottky diode T1 BCX17 Phi N SOT23 BC327 T1p BCX17 Phi N SOT23 BC327 T1t BCX17 Phi N SOT23 BC327 T1 IMT1A Roh DA 2 x 2SA1037AK pnp T1 BSS63 Mot N SOT23 pnp 100V 0.1A T1 GDZ5.1B Vis I SOD323 zener 200mW 5.1V T2 BCX18 Phi N SOT23 BC328 T2p BCX18 Phi N SOT23 BC328 T2t BCX18 Phi N SOT23 BC328 T2 IMT2A Roh DB 2 x 2SA1037AK pnp T2 HSMS-286C HP D SOT323 dual series HSMS-286B T2 HSMS-2862 HP D SOT23 dual series HSMS-286B T2 GDZ5.6B Vis I SOD323 zener 200mW 5.6V T2L 2SC5661 Roh N VMT3 RF 18V 50mA ft 1.5GHz T3 BSS63 Phi N SOT23 BSS68 T3 HSMS-286E HP A SOT323 ca dual HSMS-286B T3 HSMS-2863 HP A SOT23 ca dual HSMS-286B T3 GDZ6.2B Vis I SOD323 zener 200mW 6.2V T4 BCX17R Phi R SOT23R BC327 T4 HSMS-286F HP B SOT323 cc dual HSMS-286B T4 HSMS-2864 HP B SOT23 cc dual HSMS-286B T4 MBD330DW Mot DL SOT363 dual UHF schottky diode T4 GDZ6.8B Vis I SOD323 zener 200mW 6.8V http://www.marsport.org.uk/smd/smdt.htm (1 of 5)27/5/2007 18:21:07
- 151. SMD Codebook page T T4 ZUMTS17 Zet N SOT323 npn RF ft 1.3 GHz 15V 25mA hfe 25- 150 T4H ZUMTS17H Zet N SOT323 npn RF ft 1.3 GHz 15V 25mA hfe 70- 200 T5 HSMS-2865 HP S SOT143 separate dual HSMS-286B T5 BCX18R Phi R SOT23R BC328 T5 GDZ7.5B Vis I SOD323 zener 200mW 7.51V T6 BSS63R Phi R SOT23R BSS68 T6 GDZ8.2B Vis I SOD323 zener 200mW 8.2V T7 BSR15 SGS N SOT23 2N2907 T7 GDZ9.1B Vis I SOD323 zener 200mW 9.1V T7p BSR15 Phi N SOT23 2N2907 T7t BSR15 Phi N SOT23 2N2907 T8 BSR16 SGS N SOT23 2N2907A T8 GDZ10B Vis I SOD323 zener 200mW 10V T8p BSR16 Phi N SOT23 2N2907A T8t BSR16 Phi N SOT23 2N2907A T9 GDZ11B Vis I SOD323 zener 200mW 11V T9 1SS396 Tosh B SC59 dual series schottky 40V 0.1A T32 2SC4182 Nec N SOT23 npn RF fT 1.1GHz @3V hfe 60-105 T33 2SC4182 Nec N SOT23 npn RF fT 1.1GHz @3V hfe 85-150 T34 2SC4182 Nec N SOT23 npn RF fT 1.1GHz @3V hfe 120-220 T42 2SC3545P Nec N npn RF fT 2GHz hfe 50-100 T42 2SC4184 Nec N SOT323 npn RF fT1.8GHz hfe 40-80 T43 2SC3545Q Nec N UHF osc/mix fT 2GHz hfe 70-140 T43 2SC4184 Nec N SOT323 npn fT1.8GHz hfe 60-120 T44 2SC3545R Nec N npn RF fT 2GHz hfe 120-250 T44 2SC4184 Nec N SOT323 npn RF fT1.8GHz hfe 100-200 T61 ZUMT617 Zet N SOT323 npn 15V 1.5A sw T62 ZUMT618 Zet N SOT323 npn 20V 1.25A sw T62 2SC3841P Nec N SOT23 npn RF fT 4GHz hfe 40-80 T62 2SC4186 Nec N SOT323 npn RF fT 4GHz hfe 40-80 T63 2SC3841Q Nec N SOT23 npn RF fT 4GHz hfe 60-120 T63 2SC4186 Nec N SOT323 npn RF fT 4GHz hfe 60-120 T63 ZUMT619 Zet N SOT323 npn 50V 1.0A sw T64 2SC3841R Nec N SOT23 npn RF fT 4GHz hfe 100-200 http://www.marsport.org.uk/smd/smdt.htm (2 of 5)27/5/2007 18:21:07
- 152. SMD Codebook page T T64 2SC4186 Nec N SOT323 npn RF fT 4GHz hfe 100-200 T71 BSR15R SGS R SOT23R 2N2907 T71 ZUMT717 Zet N SOT323 pnp 12V 1.5A sw T72 2SC4568 Nec N SOT23 npn RF ft 5.5GHz hfe 40-80 T72 2SC4570 Nec N SOT323 npn RF ft 5.5GHz hfe 40-80 T72 ZUMT718 Zet N SOT323 pnp 20V 1.0A sw T73 2SC4568 Nec N SOT23 npn RF ft 5.5GHz hfe 60-120 T73 2SC4570 Nec N SOT323 npn RF ft 5.5GHz hfe 60-120 T73 ZUMT719 Zet N SOT323 pnp 40V 1.0A sw T74 2SC4568 Nec N SOT23 npn RF ft 5.5GHz hfe 100-200 T74 2SC4570 Nec N SOT323 npn RF ft 5.5GHz hfe 100-200 T75 2SC4569 Nec N SOT23 npn RF fT 5GHz hfe 40-80 T75 2SC4571 Nec N SOT323 npn RF fT 5GHz hfe 40-80 T76 2SC4569 Nec N SOT23 npn RF fT 5GHz hfe 60-120 T76 2SC4571 Nec N SOT323 npn RF fT 5GHz hfe 60-120 T77 2SC4569 Nec N SOT23 npn RF fT 5GHz hfe 100-200 T76 2SC4571 Nec N SOT323 npn RF fT 5GHz hfe 100-200 T78 2SC5507 Nec WQ SOT343 npn RF fT 25GHz 3V 10mA T79 2SC5508 Nec WQ SOT343 npn RF fT 25GHz 3V 30mA T80 2SC5507 Nec WQ SOT343 npn RF fT 17GHz 3V 90mA T81 BSR16R SGS R SOT23R 2N2907A T82 2SC4954 Nec N SOT23 npn RF fT12GHz @3V 5mA T82 2SC4956 Nec WQ SOT143 npn RF fT 12GHz @3V 5mA T82 2SC4958 Nec N SOT323 npn RF fT 12GHz @3V 5mA T82 2SC5014 Nec WQ SOT343 npn RF fT 12GHz @3V 5mA T83 2SC4955 Nec N SOT23 npn RF fT 12GHz @3V 10mA T83 2SC4957 Nec WQ SOT143 npn RF fT 12GHz @3V 10mA T83 2SC4959 Nec N SOT323 npn RF fT 12GHz @3V 10mA T83 2SC5015 Nec WQ SOT343 npn RF fT 12GHz @3V 10mA T84 2SC5177 Nec N SOT23 npn RF fT 13GHz @2V 7mA T84 2SC5179 Nec N SOT323 npn RF fT 13GHz @2V 7mA T84 2SC5178 Nec WQ SOT143 npn RF fT 13GHz @2V 7mA T84 2SC5180 Nec WQ SOT343 npn RF fT 13GHz @2V 7mA T86 2SC5182 Nec N SOT23 npn RF fT 12GHz @2V 20mA T86 2SC5183 Nec WQ SOT143 npn RF fT 12GHz @2V 20mA http://www.marsport.org.uk/smd/smdt.htm (3 of 5)27/5/2007 18:21:07
- 153. SMD Codebook page T T86 2SC5184 Nec N SOT323 npn RF fT 12GHz @2V 20mA T86 2SC5183 Nec WQ SOT343 npn RF fT 12GHz @2V 20mA T88 2SC5191 Nec N SOT23 npn RF fT 8.5GHz @3V 20mA T88 2SC5192 Nec WQ SOT143 npn RF fT 8.5GHz @3V 20mA T88 2SC5193 Nec N SOT323 npn RF fT 8.5GHz @3V 20mA T88 2SC5193 Nec WQ SOT343 npn RF fT 8.5GHz @3V 20mA T89 2SC5288 Nec WQ SOT143 npn RF T90 2SC5289 Nec WQ SOT143 npn RF T92 BSR18A Fch N SOT23 2N3904 T92P BSR18A Phi N SOT23 2N3904 T92 2SA1977 Nec N SOT23 pnp RF fT 8.5GHz T93 2SA1978 Nec N SOT23 pnp RF fT 8.5GHz TA 2SC5431EB Nec N SC59 npn RF fT 4.3GHz 12V 60mA TA GDZ12B Vis I SOD323 zener 200mW 12V TB 2SC5431FB Nec N SC59 npn RF fT 4.3GHz 12V 60mA TB GDZ13B Vis I SOD323 zener 200mW 13V TC 2SC5432EB Nec N SC59 npn RF fT 4.5GHz 12V 100mA TC GDZ15B Vis I SOD323 zener 200mW 15V TD 2SC5432FB Nec N SC59 npn RF fT 4.5GHz 12V 100mA TD GDZ16B Vis I SOD323 zener 200mW 16V TE 2SC5433EB Nec N SC59 npn RF fT 7GHz 10V 65mA TE GDZ18B Vis I SOD323 zener 200mW 18V TF 2SC5433FB Nec N SC59 npn RF fT 7GHz 10V 65mA TFX BAL99 Mot V SOT23 switching diode TH 2SC5434EB Nec N SC59 npn RF fT 8GHz 10V 35mA TH GDZ20B Vis I SOD323 zener 200mW 20V TJ 2SC5434FB Nec N SC59 npn RF fT 8GHz 10V 35mA TK 2SC5435EB Nec N SC59 npn RF fT 12GHz 9V 30mA TK GDZ22B Vis I SOD323 zener 200mW 22V TL 2SC5435FB Nec N SC59 npn RF fT 12GHz 9V 30mA TL GDZ24B Vis I SOD323 zener 200mW 24V TM GDZ27B Vis I SOD323 zener 200mW 27V TN GDZ30B Vis I SOD323 zener 200mW 30V TN 2SC5436EB Nec N SC59 npn RF fT 14GHz 5V 30mA TP 2SC5436FB Nec N SC59 npn RF fT 14GHz 5V 30mA http://www.marsport.org.uk/smd/smdt.htm (4 of 5)27/5/2007 18:21:07
- 154. SMD Codebook page T TP GDZ33B Vis I SOD323 zener 200mW 33V TP CMDZ10L CSC I SOD323 zener 250mW Iz 0.5mA 10V TS 2SC5437EB Nec N SC59 npn RF fT 9.5GHz 9V 50mA TT 2SC5437FB Nec N SC59 npn RF fT 9.5GHz 9V 50mA TT GDZ36B Vis I SOD323 zener 200mW 36V TV 2SC5599 Nec N SC-70 npn RF fT 5GHz 5.5V 5mA TV 2SC5600 Nec N SC-59 npn RF fT 5GHz 5.5V 15mA TV MMBF112L Mot F SOT23 RF jfet TW 2SC5602 Nec N SC-70 npn RF fT 13.5GHz 6V 5mA TW 2SC5603 Nec N SC-59 npn RF fT 13.5GHz 6V 15mA Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdt.htm (5 of 5)27/5/2007 18:21:07
- 155. SMD Codebook page U GM4PMK's SMD Codebook Codes beginning with 'U' Code Device Manf Base Package Leaded Equivalent/Data U BB545 Sie I SOD323 20-2pF varicap U BB145 Phi I SOD 523 Low Voltage Varicap U1 BCX19 Mot N SOT23 BC337 U1p BCX19 Phi N SOT23 BC337 U1t BCX19 Phi N SOT23 BC337 U1 BGX50A Sie BQ SOT143 quad ring Si sw diodes U1A 3SK230A Nec UQ SOT143 dg RF mosfet U1B 3SK230B Nec UQ SOT143 dg RF mosfet U1C 3SK231C Nec UQ SOT143 dg RF mosfet U1D 3SK231D Nec UQ SOT143 dg RF mosfet U1E 3SK252E Nec UQ SOT143 dg RF mosfet U1E 3SK254E Nec UQ SOT343 dg RF mosfet U1G 3SK253G Nec UQ SOT143 dg RF mosfet U1G 3SK255G Nec UQ SOT343 dg RF mosfet U2 BCX20 Phi N SOT23 BC338 U2t BCX20 Phi N SOT23 BC338 U3 BSS64 Phi N SOT23 120V 0.25A 0.2W U4 BCX19R Phi R SOT23R BC337 U5 BCX20R Phi R SOT23R BC338 U6 BSS64R Phi R SOT23R 120V 0.25A 0.2W U7 BSR13 SGS N SOT23 2N2222 U7 3SK320 Tosh DW SC61 dg GaAsfet U7p BSR13 Phi N SOT23 2N2222 U7t BSR13 Phi N SOT23 2N2222 U8 BSR14 SGS N SOT23 2N2222A U8p BSR14 Phi N SOT23 2N2222A U8t BSR14 Phi N SOT23 2N2222A U16 2SC4183 Nec N npn RF 5V fT1GHz hFE 60-120 http://www.marsport.org.uk/smd/smdu.htm (1 of 3)27/5/2007 18:21:12
- 156. SMD Codebook page U U17 2SC4183 Nec N npn RF 5V fT1GHz hFE 90-180 U18 2SC4183 Nec N npn RF 5V fT1GHz hFE 120-240 U21 2SC4185 Nec N npn RF 10V fT2.4GHz hFE 40-80 U22 2SC4185 Nec N npn RF 10V fT2.4GHz hFE 60-120 U23 2SC4185 Nec N npn RF 10V fT2.4GHz hFE 90-180 U55 3SK134B Nec UQ SOT143 dg mosfet U55 3SK245 Nec UQ SOT343 dg mosfet U56 3SK134B Nec UQ SOT143 dg mosfet U56 3SK245 Nec UQ SOT343 dg mosfet U65 3SK135A Nec UQ SOT143 dg mosfet U66 3SK135A Nec UQ SOT143 dg mosfet U71 BSR13R SGS R SOT23R 2N2222 U71 3SK177 Nec UQ SOT143 dg GaAsfet Idss 5-15mA U71 3SK299 Nec UQ SOT343 dg GaAsfet Idss 5-15mA U72 3SK177 Nec UQ SOT143 dg GaAsfet Idss10-25mA U72 3SK299 Nec UQ SOT343 dg GaAsfet Idss 10-25mA U73 3SK177 Nec UQ SOT143 dg GaAsfet Idss 20-35mA U73 3SK299 Nec UQ SOT343 dg GaAsfet Idss 20-35mA U74 3SK177 Nec UQ SOT143 dg GaAsfet Idss 30-40mA U74 3SK299 Nec UQ SOT343 dg GaAsfet Idss 30-40mA U76 3SK206 Nec UQ SOT143 dg GaAsfet Idss 10-25mA U77 3SK206 Nec UQ SOT143 dg GaAsfet Idss 20-35mA U78 3SK206 Nec UQ SOT143 dg GaAsfet Idss 30-50mA U79 3SK206 Nec UQ SOT143 dg GaAsfet Idss 45-80mA U81 BSR14R SGS R SOT23R 2N2222A U87 3SK176A Nec UQ SOT143 dg mosfet U88 3SK176A Nec UQ SOT143 dg mosfet U90 3SK223 Nec UQ SOT143 dg mosfet U90 3SK243 Nec UQ SOT343 dg mosfet U91 3SK223 Nec UQ SOT143 dg mosfet U91 3SK243 Nec UQ SOT143 dg mosfet U92 BSR17A Fch N SOT23 2N3904 U92p BSR17A Phi N SOT23 2N3904 U94 3SK224D Nec UQ SOT143 dg mosfet U94 3SK244D Nec UQ SOT343 dg mosfet http://www.marsport.org.uk/smd/smdu.htm (2 of 3)27/5/2007 18:21:12
- 157. SMD Codebook page U U95 3SK224E Nec UQ SOT143 dg mosfet U95 3SK244E Nec UQ SOT143 dg mosfet UB 2SB852K Roh N pnp darlington comp 2SD1383K UC MSC2404-C Mot H npn RF 450MHz fT 20V UF 3SK293 Tosh DW SC61 dg mosfet UHF amp, 3SK291 UH 3SK260 Tosh DW SC61 dg mosfet TV mixer, 3SK151 UI 3SK259 Tosh DW SC61 dg mosfet VHF/UHF amp, 3SK253 UK 3SK294 Tosh DW SC61 dg mosfet VHF/UHF amp, 3SK292 UN 3SK274 Tosh DW SC61 dg GaAsfet UHF amp, 3SK240 UO 3SK249 Tosh DW SC61 dg mosfet UHF amp, 3SK232 UP CMDZ11L CSC I SOD323 zener 250mW Iz 0.5mA 11V UR 3SK256 Tosh DW SC61 dg mosfet UHF amp, 3SK207 UT 3SK257 Tosh DW SC61 dg mosfet VHF amp, 3SK225 UU 3SK258 Tosh DW SC61 dg mosfet VHF amp, 3SK226 Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdu.htm (3 of 3)27/5/2007 18:21:12
- 158. SMD Codebook page V GM4PMK's SMD Codebook Codes beginning with 'V' Code Device Manf Base Package Leaded Equivalent/Data V01 VN50300T Sil M n-ch enh mosfet 500V 22mA V02 VN0605T Sil M n-ch enh mosfet 60V/0.18A V04 VN45350T Sil M n-ch enh mosfet 450V 20mA V1p BFT25 Phi N SOT23 npn RF 5V 6.5mA 2.3GHz V1 MRF959 Mot N SC75 npn RF fT 9GHz V1 DZ23C2V7 Dio A SOT23 dual cc zener 2.7V 0.3W V1 1SV160 Tosh B SC59 FM AFC varicap 10pF V2 BFQ67 Tfk N npn RF fT 7.5 GHz 50mA V2 DZ23C3V0 Dio A SOT23 dual cc zener 3.0V 0.3W V3 BFG67 Phi X SOT143 npn RF fT 8GHz 50mA V3 DZ23C3V3 Dio A SOT23 dual cc zener 3.3V 0.3W V3 1SV225 Tosh DT SMINI 2 x FM tuning varicap 20pF pV3 BAT54A Phi A SOT23 dual ca 30V 0.2A schottky tV3 BAT54A Phi A SOT23 dual ca 30V 0.2A schottky wV3 BAT54A Phi A SOT23 dual ca 30V 0.2A schottky V4 DZ23C3V6 Dio A SOT23 dual cc zener 3.6V 0.3W V4 1SV228 Tosh DT SMINI 2 x FM tuning varicap 30pF pV4 BAT54S Phi D SOT23 dual series 30V 0.2A schottky tV4 BAT54S Phi D SOT23 dual series 30V 0.2A schottky wV4 BAT54S Phi D SOT23 dual series 30V 0.2A schottky V5 BFG197 Phi X SOT143 npn RF 7.5GHz 100mA V5 DZ23C3V9 Dio A SOT23 dual cc zener 3.9V 0.3W V5 1SV242 Tosh DT SMINI 2 x varicap 39pF V6 DZ23C4V3 Dio A SOT23 dual cc zener 4.3V 0.3W V7 DZ23C4V7 Dio A SOT23 dual cc zener 4.7V 0.3W V8 DZ23C5V1 Dio A SOT23 dual cc zener 5.1V 0.3W V9 DZ23C5V6 Dio A SOT23 dual cc zener 5.6V 0.3W V10 DZ23C6V2 Dio A SOT23 dual cc zener 6.2V 0.3W V11 3SK131 Nec UQ SOT143 dg VHF mosfet http://www.marsport.org.uk/smd/smdv.htm (1 of 3)27/5/2007 18:21:16
- 159. SMD Codebook page V V11 3SK242 Nec UQ SOT343 dg VHF mosfet V11 DZZ23C6V8 Dio A SOT23 dual cc zener 6.8V 0.3W V12 DZZ23C7V5 Dio A SOT23 dual cc zener 7.5V 0.3W V12 3SK131 Nec UQ SOT143 dg VHF mosfet V12 3SK242 Nec UQ SOT343 dg VHF mosfet V13 3SK131 Nec UQ SOT143 dg VHF mosfet V13 ZC932 Zet C SOT23 5 - 17pF hyperabrupt varicap V13 3SK242 Nec UQ SOT343 dg VHF mosfet V13 DZZ23C8V2 Dio A SOT23 dual cc zener 8.2V 0.3W V14 ZC931 Zet C SOT23 4 -13.5pF hyperabrupt varicap V14 DZZ23C9V1 Dio A SOT23 dual cc zener 9.1V 0.3W V15 ZC930 Zet C SOT23 3 - 9pF hyperabrupt varicap V15 DZZ23C10 Dio A SOT23 dual cc zener 10V 0.2W V16 ZC934 Zet C SOT23 25 - 95pF hyperabrupt varicap V16 DZZ23C11 Dio A SOT23 dual cc zener 11V 0.3W V17 ZC933 Zet C SOT23 12 - 42pF hyperabrupt varicap V17 DZZ23C12 Dio A SOT23 dual cc zener 12V 0.3W V18 DZZ23C13 Dio A SOT23 dual cc zener 13V 0.3W V19 DZZ23C15 Dio A SOT23 dual cc zener 15V 0.3W V20 DZZ23C16 Dio A SOT23 dual cc zener 16V 0.3W V21 3SK222 Nec UQ SOT143 dg VHF mosfet V21 3SK246 Nec UQ SOT343 dg VHF mosfet V21 DZZ23C18 Dio A SOT23 dual cc zener 18V 0.3W V22 3SK222 Nec UQ SOT143 dg VHF mosfet V22 3SK246 Nec UQ SOT343 dg VHF mosfet V22 DZZ23C22 Dio A SOT23 dual cc zener 22V 0.3W V23 DZZ23C22 Dio A SOT23 dual cc zener 22V 0.3W V24 DZZ23C24 Dio A SOT23 dual cc zener 24V 0.3W V25 DZZ23C27 Dio A SOT23 dual cc zener 27V 0.3W V26 DZZ23C30 Dio A SOT23 dual cc zener 30V 0.3W V27 DZZ23C33 Dio A SOT23 dual cc zener 33V 0.3W V28 DZZ23C36 Dio A SOT23 dual cc zener 36V 0.3W V29 DZZ23C39 Dio A SOT23 dual cc zener 39V 0.3W V30 DZZ23C43 Dio A SOT23 dual cc zener 43V 0.3W V31 DZZ23C47 Dio A SOT23 dual cc zener 47V 0.3W http://www.marsport.org.uk/smd/smdv.htm (2 of 3)27/5/2007 18:21:16
- 160. SMD Codebook page V V32 DZZ23C51 Dio A SOT23 dual cc zener 51V 0.3W V50 VP0610T Sil M p-ch enh mosfet -60V 120mA VB MSC2295-B Mot H npn RF 150MHz fT 20V VC MSC2295-C Mot H npn RF 150MHz fT 20V VP CMDZ12L CSC I SOD323 zener 250mW Iz 0.5mA 12V Last Updated 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdv.htm (3 of 3)27/5/2007 18:21:16
- 161. SMD Codebook page w GM4PMK's SMD Codebook Codes beginning with 'W' Code Device Manf Base Package Leaded Equivalent/Data W0F TSDF1205RW Vis WQ SOT343R 12GHz npn 5mA 4V W03 S503TRW Vis UQ SOT343R dg mosfet MOSIC 5V uhf tv tuners W04 S504TRW Vis UQ SOT343R dg mosfet MOSIC 5V uhf tv tuners W05 S505TRW Vis UQ SOT343R dg mosfet MOSIC 5V uhf tv tuners W1 BZT52B2V4 Vis I SOD123 300 mW zener 2% 2.4V W1 BZT52C2V4 Vis I SOD123 300 mW zener 5% 2.4V W1 BZT52C2V7S Dio I SOD323 200mW zener 2.7V W1 BZX384B2V4 Vis I SOD323 200 mW zener 2% 2.4V W1 BZX384C2V4 Vis I SOD323 200 mW zener 5% 2.4V pW1 BAT54C Phi B SOT23 dual cc 30V 0.2A schottky tW1 BAT54C Phi B SOT23 dual cc 30V 0.2A schottky wW1 BAT54C Phi B SOT23 dual cc 30V 0.2A schottky W1s BFT92 Sie N SOT23 BFQ51/BFQ76 W1s BCR10PN Sie DP SOT363 pnp/npn dig 0.1A 10k+10k W2 TSDF1220RW Tfk WQ SOT343 12GHz npn 6V 20mA W2 BZT52B2V7 Vis I SOD123 300 mW zener 2% 2.7V W2 BZT52C2V7 Vis I SOD123 300 mW zener 5% 2.7V W2 BZT52C3V0S Dio I SOD323 200mW zener 3.0V W2 BZX384B2V7 Vis I SOD323 200 mW zener 2% 2.7V W2 BZX384C2V7 Vis I SOD323 200 mW zener 5% 2.7V W2F TSDF1220RW Vis WQ SOT343R 12GHz npn 40mA 6V W3 BZX84-C2V4 Phi C SOT23 0.3W zener 2.4V±5% W3 BZT52B3V0 Vis I SOD123 300 mW zener 2% 3.0V W3 BZT52C3V0 Vis I SOD123 300 mW zener 5% 3.0V W3 BZT52C3V3S Dio I SOD323 200mW zener 3.3V W3 BZX384B3V0 Vis I SOD323 200 mW zener 2% 3.0V http://www.marsport.org.uk/smd/smdw.htm (1 of 10)27/5/2007 18:21:23
- 162. SMD Codebook page w W3 BZX384C3V0 Vis I SOD323 200 mW zener 5% 3.0V W4 BZX84-C2V7 Phi C SOT23 0.3W zener 2.7V±5% W4 BZT52B3V3 Vis I SOD123 300 mW zener 2% 3.3V W4 BZT52C3V3 Vis I SOD123 300 mW zener 5% 3.3V W4 BZT52C3V6S Dio I SOD323 200mW zener 3.6V W4 BZX384B3V3 Vis I SOD323 200 mW zener 2% 3.3V W4 BZX384C3V3 Vis I SOD323 200 mW zener 5% 3.3V W5 BZX84-C3V0 Phi C SOT23 0.3W zener 3.0V±5% W5 BZT52B3V6 Vis I SOD123 300 mW zener 2% 3.6V W5 BZT52C3V6 Vis I SOD123 300 mW zener 5% 3.6V W5 BZT52C3V9S Dio I SOD323 200mW zener 3.9V W5 BZX384B3V6 Vis I SOD323 200 mW zener 2% 3.6V W5 BZX384C3V6 Vis I SOD323 200 mW zener 5% 3.6V W5F TSDF1250RW Vis WQ SOT343R 12GHz npn 60mA 6V W6 BZX84-C3V3 Phi C SOT23 0.3W zener 3.3V±5% W6 BZT52B3V9 Vis I SOD123 300 mW zener 2% 3.9V W6 BZT52C3V9 Vis I SOD123 300 mW zener 5% 3.9V W6 BZT52C4V3S Dio I SOD323 200mW zener 4.3V W6 BZX384B3V9 Vis I SOD323 200 mW zener 2% 3.9V W6 BZX384C3V9 Vis I SOD323 200 mW zener 5% 3.9V W7 BZX84-C3V6 Phi C SOT23 0.3W zener 3.6V±5% W7 BZT52B4V3 Vis I SOD123 300 mW zener 2% 4.3V W7 BZT52C4V3 Vis I SOD123 300 mW zener 5% 4.3V W7 BZT52C4V7S Dio I SOD323 200mW zener 4.7V W7 BZX384B4V3 Vis I SOD323 200 mW zener 2% 4.3V W7 BZX384C4V3 Vis I SOD323 200 mW zener 5% 4.3V W8 BZX84-C3V9 Phi C SOT23 0.3W zener 3.9V±5% W8 BZV49C3V9 Zet O SOT89 1W zener 3.9V±5% W8 BZT52B4V7 Vis I SOD123 300 mW zener 2% 4.7V W8 BZT52C4V7 Vis I SOD123 300 mW zener 5% 4.7V W8 BZT52C5V1S Dio I SOD323 200mW zener 5.1V W8 BZX384B4V7 Vis I SOD323 200 mW zener 2% 4.7V W8 BZX384C4V7 Vis I SOD323 200 mW zener 5% 4.7V W9 BZX84-C4V3 Phi C SOT23 0.3W zener 4.3V±5% http://www.marsport.org.uk/smd/smdw.htm (2 of 10)27/5/2007 18:21:23
- 163. SMD Codebook page w W9 BZV49C4V3 Zet O SOT89 1W zener 4.3V±5% W9 BZT52B5V1 Vis I SOD123 300 mW zener 2% 5.1V W9 BZT52C5V1 Vis I SOD123 300 mW zener 5% 5.1V W9 BZT52C5V6S Dio I SOD323 200mW zener 5.6V W9 BZX384B5V1 Vis I SOD323 200 mW zener 2% 5.1V W9 BZX384C5V1 Vis I SOD323 200 mW zener 5% 5.1V W10 CMPZDA27V CSC A SOT23 dual ca zener 350mW 27V W11 CMPZDA30V CSC A SOT23 dual ca zener 350mW 30V W12 CMPZDA33V CSC A SOT23 dual ca zener 350mW 33V W13 CMPZDA36V CSC A SOT23 dual ca zener 350mW 36V W13 S913TWR Vis UQ SOT343R dg mosfet MOSIC 9V uhf tv tuners W14 CMPZDA39V CSC A SOT23 dual ca zener 350mW 39V W15 CMPZDA43V CSC A SOT23 dual ca zener 350mW 43V W16 CMPZDA47V CSC A SOT23 dual ca zener 350mW 47V W18 BFP181TW Tfk X npn RF fT 7.8GHz 10V 20mA W18 BFP181TRW Tfk WQ npn RF fT 7.8GHz 10V 20mA W22 S822TW Tfk X npn rf fT 5.2 GHz 6V 8mA W22 S822TRW Tfk WQ npn rf fT 5.2 GHz 6V 8mA W28 BFP280TRW Tfk WQ npn rf fT 7 GHz 8V 10mA W28 BFP280TW Tfk X npn rf fT 7 GHz 8V 10mA W52 S852TW Tfk X npn rf fT 5.2 GHz 6V 8mA W59 S595TRW Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners W67 BFP67W Tfk X npn rf fT 7.5 GHz 10V 50mA W82 BFP182TRW Tfk WQ npn rf fT 7.5 GHz 10V 35mA W82 BFP182TW Tfk X npn rf fT 7.5 GHz 10V 35mA W83 BFP183TRW Tfk WQ npn rf fT 7.4 GHz 10V 65mA W83 BFP183T Tfk X npn rf fT 7.4 GHz 10V 65mA W92 BFP92AW Tfk X SOT343 npn rf fT 6 GHz 15V 30mA W93 S593TRW Vis UQ SOT343R biased dg mosfet MOSIC 5V uhf tv tuners W94 S594TRW Vis UQ SOT343R biased dg mosfet MOSIC 5V uhf tv tuners http://www.marsport.org.uk/smd/smdw.htm (3 of 10)27/5/2007 18:21:23
- 164. SMD Codebook page w W99 S949TRW Vis UQ SOT343R biased dg uhf mosfet MOSIC for TV tuners 9V WA BZT52B5V6 Vis I SOD123 300 mW zener 2% 5.6V WA BZT52C5V6 Vis I SOD123 300 mW zener 5% 5.6V WA BZT52C6V2S Dio I SOD323 200mW zener 6.2V WB 2SD1383K Roh N npn darlington comp 2SB852K WB BZT52B6V2 Vis I SOD123 300 mW zener 2% 6.2V WB BZT52C6V2 Vis I SOD123 300 mW zener 5% 6.2V WB BZT52C6V8S Dio I SOD323 200mW zener 6.8V WC BZT52B6V8 Vis I SOD123 300 mW zener 2% 6.8V WC BZT52C6V8 Vis I SOD123 300 mW zener 5% 6.8V WC BZT52C7V5S Dio I SOD323 200mW zener 7.5V WCs BCR133 Sie N SOT23 npn dig 50V 0.1A 10k+10k WCs BCR133T Sie N SC75 npn dig 50V 0.1A 10k+10k WCs BCR133U Sie N SOT457 npn dig 50V 0.1A 10k+10k WCs BCR133W Sie N SOT323 npn dig 50V 0.1A 10k+10k WCs BCR133S Sie DN SOT363 dual BCR133 WD BZT52B7V5 Vis I SOD123 300 mW zener 2% 7.5V WD BZT52C7V5 Vis I SOD123 300 mW zener 5% 7.5V WD BZT52C8V2S Dio I SOD323 200mW zener 8.2V WDs BCR141 Sie N SOT23 npn 50V 0.1A dig 22k +22k WDs BCR141T Sie N SC75 npn 50V 0.1A dig 22k +22k WDs BCR141W Sie N SOT323 npn 50V 0.1A dig 22k +22k WDs BCR141S Sie DN SOT363 dual BCR141 WE BZT52B8V2 Vis I SOD123 300 mW zener 2% 8.2V WE BZT52C8V2 Vis I SOD123 300 mW zener 5% 8.2V WE BZT52C9V1S Dio I SOD323 200mW zener 9.1V WEs BCR148 Sie N SOT23 npn 50V 0.1A dig 47k +47k WEs BCR148T Sie N SC75 npn 50V 0.1A dig 47k +47k WEs BCR148U Sie N SOT457 npn 50V 0.1A dig 47k +47k WEs BCR148W Sie N SOT323 npn 50V 0.1A dig 47k +47k WEs BCR148S Sie DN SOT363 dual BCR148 WE1 BFS17W Tfk N npn rf fT 2.1GHz SOT-323 WE2 BFS17AW Tfk N npn rf fT 3.2GHz SOT-323 http://www.marsport.org.uk/smd/smdw.htm (4 of 10)27/5/2007 18:21:23
- 165. SMD Codebook page w WF BZT52B9V1 Vis I SOD123 300 mW zener 2% 9.1V WF BZT52C9V1 Vis I SOD123 300 mW zener 5% 9.1V WF BZT52C10S Dio I SOD323 200mW zener 10V WFs BCR08PN Sie DP SOT363 pnp/npn dig 0.1A 2k2+47k WFs BCR112 Sie N SOT23 npn dig 50V 0.1A 4k7+4k7 WF0 TSDF1205W Vis X SOT343 12 GHz npn 12mA 4V WF2 TSDF1220W Vis X SOT343 12GHz npn 6V 40mA WF5 TSDF1250W Vis X SOT343 12GHz npn 6V 60mA WFE BFP93A Tfk X SOT343 BFP93A (FE) in 6GHz npn WG BZT52B10 Vis I SOD123 300 mW zener 2% 10V WG BZT52C10 Vis I SOD123 300 mW zener 5% 10V WG BZT52C11S Vis I SOD123 300 mW zener 5% 11V WG BZX384B10 Vis I SOD323 200 mW zener 2% 10V WG BZX384C10 Vis I SOD323 200 mW zener 5% 10V WGs BCR116 Sie N SOT23 npn dig 50V 0.1A 4k7+47k WGs BCR116W Sie N SOT323 npn dig 50V 0.1A 4k7+47k WH BZT52B11 Vis I SOD123 300 mW zener 2% 11V WH BZT52C11 Vis I SOD123 300 mW zener 5% 11V WH BZX384B11 Vis I SOD323 200 mW zener 2% 11V WH BZX384C11 Vis I SOD323 200 mW zener 5% 11V WG BZT52C12S Vis I SOD123 300 mW zener 5% 12V WHs BCR108 Sie N SOT23 npn dig 50V 0.1A 2k2+47k WHs BCR108T Sie N SC75 npn dig 50V 0.1A 2k2+47k WHs BCR108W Sie N SOT323 npn dig 50V 0.1A 2k2+47k WHs BCR108S Sie DN SOT363 dual BCR108 WI BZT52B12 Vis I SOD123 300 mW zener 2% 12V WI BZT52C12 Vis I SOD123 300 mW zener 5% 12V WI BZT52C13S Vis I SOD123 300 mW zener 5% 13V WI BZX384B12 Vis I SOD323 200 mW zener 2% 12V WI BZX384C12 Vis I SOD323 200 mW zener 5% 12V WIs BCR158 Sie N SOT23 pnp dig 50V 0.1A 2k2+47k WIs BCR158T Sie N SC75 pnp dig 50V 0.1A 2k2+47k WIs BCR158W Sie N SOT323 pnp dig 50V 0.1A 2k2+47k WJs BCR135 Sie N SOT23 npn dig 50V 0.1A 10k+47k http://www.marsport.org.uk/smd/smdw.htm (5 of 10)27/5/2007 18:21:23
- 166. SMD Codebook page w WJs BCR135T Sie N SC75 npn dig 50V 0.1A 10k+47k WJs BCR135W Sie N SOT323 npn dig 50V 0.1A 10k+47k WJs BCR135S Sie DN SOT363 dual BCR135 WJ BZT52C15S Vis I SOD123 300 mW zener 5% 15V WK BZT52B13 Vis I SOD123 300 mW zener 2% 13V WK BZT52C13 Vis I SOD123 300 mW zener 5% 13V WK BZT52C16S Vis I SOD123 300 mW zener 5% 16V WK BZX384B13 Vis I SOD323 200 mW zener 2% 13V WK BZX384C13 Vis I SOD323 200 mW zener 5% 13V WKs BCR119 Sie N SOT23 npn dig 50V 0.1A 4k7 WKs BCR119S Sie DN SOT363 npn dig 50V 0.1A 4k7 WKs BCR119W Sie N SOT323 npn dig 50V 0.1A 4k7 WL BZT52B15 Vis I SOD123 300 mW zener 2% 15V WL BZT52C15 Vis I SOD123 300 mW zener 5% 15V WL BZT52C18S Vis I SOD123 300 mW zener 5% 18V WL BZX384B15 Vis I SOD323 200 mW zener 2% 15V WL BZX384C15 Vis I SOD323 200 mW zener 5% 15V WLs BCR146 Sie N SOT23 dual npn dig 50V 47k+22k WLs BCR146W Sie N SOT323 dual npn dig 50V 47k+22k WM BZT52B16 Vis I SOD123 300 mW zener 2% 16V WM BZT52C16 Vis I SOD123 300 mW zener 5% 16V WG BZT52C20S Vis I SOD123 300 mW zener 5% 20V WM BZX384B16 Vis I SOD323 200 mW zener 2% 16V WM BZX384C16 Vis I SOD323 200 mW zener 5% 16V WMs BCR183 Sie N SOT23 pnp dig 50V 10k+10k WMs BCR183W Sie N SOT323 pnp dig 50V 10k+10k WMs BCR183T Sie N SC75 pnp dig 50V 10k+10k WMs BCR183U Sie N SOT457 pnp dig 50V 10k+10k WMs BCR183S Sie DO SOT363 dual pnp dig 50V 10k+10k WMO BF998RW Tfk UQ SOT343R vhf dg mosfet BF988 WN BZT52B18 Vis I SOD123 300 mW zener 2% 18V WN BZT52C18 Vis I SOD123 300 mW zener 5% 18V WN BZT52C22S Vis I SOD123 300 mW zener 5% 22V WN BZX384B18 Vis I SOD323 200 mW zener 2% 18V http://www.marsport.org.uk/smd/smdw.htm (6 of 10)27/5/2007 18:21:23
- 167. SMD Codebook page w WN BZX384C18 Vis I SOD323 200 mW zener 5% 18V WNs BCR185 Sie N SOT23 pnp dig 50V 0.1A 10k+47k WNs BCR185U Sie N SOT457 pnp dig 50V 0.1A 10k+47k WNs BCR185W Sie N SOT323 pnp dig 50V 0.1A 10k+47k WNs BCR185S Sie DO SOT363 dual BCR185 WO BZT52B20 Vis I SOD123 300 mW zener 2% 20V WO BZT52C20 Vis I SOD123 300 mW zener 5% 20V WO BZT52C24S Vis I SOD123 300 mW zener 5% 24V WO BZX384B20 Vis I SOD323 200 mW zener 2% 20V WO BZX384C20 Vis I SOD323 200 mW zener 5% 20V WOs BCR191 Sie N SOT23 pnp dig 50V 0.1A 22k+22k WOs BCR191W Sie N SOT323 pnp dig 50V 0.1A 22k+22k WOs BCR191S Sie DO SOT363 dual BCR191 WO BZX284-B2V4 Phi I SOD110 0.4W zener 2.4V E24 ±2% WP BZX284-B2V7 Phi I SOD110 0.4W zener 2.7V E24 ±2% WP BZT52B22 Vis I SOD123 300 mW zener 2% 22V WP BZT52C22 Vis I SOD123 300 mW zener 5% 22V WP BZT52C27S Vis I SOD123 300 mW zener 5% 27V WP BZX384B22 Vis I SOD323 200 mW zener 2% 22V WP BZX384C22 Vis I SOD323 200 mW zener 5% 22V WPs BCR192 Sie N SOT23 pnp dig 50V 0.1A 22k+47k WPs BCR192T Sie N SC75 pnp dig 50V 0.1A 22k+47k WPs BCR192W Sie N SOT323 pnp dig 50V 0.1A 22k+47k WPs BCR22PN Sie DP SOT363 pnp/npn dig 0.1A 22k+22k WP2 BFR92A Tfk N SOT23 BRF90A WQ BZX284-B3V0 Phi I SOD110 0.4W zener 3.0V E24 ±2% WQ BZT52C30S Vis I SOD123 300 mW zener 5% 30V WR BZT52B24 Vis I SOD123 300 mW zener 2% 24V WR BZT52C24 Vis I SOD123 300 mW zener 5% 24V WR BZT52C33S Vis I SOD123 300 mW zener 5% 33V WR BZX384B24 Vis I SOD323 200 mW zener 2% 24V WR BZX384C24 Vis I SOD323 200 mW zener 5% 24V WR MSD602R Mot N SOT346 npn gp 25V 150mA WRs BCR198 Sie N SOT23 pnp dig 50V 0.1A 47k+47k http://www.marsport.org.uk/smd/smdw.htm (7 of 10)27/5/2007 18:21:23
- 168. SMD Codebook page w WRs BCR198W Sie NN SOT323 pnp dig 50V 0.1A 47k+47k WRs BCR198S Sie D SOT363 dual BCR198 WR BZX284-B3V3 Phi I SOD110 0.4W zener 3.3V E24 ±2% WR2 BFR93AW Tfk N BFR91A WRE BFR280TW Tfk N npn RF fT 7.5GHz WRF BFR181TW Tfk N npn RF fT 7.8GHz WRG BFR182TW Tfk N npn RF fT 7GHz WRH BFR183TW Tfk N npn RF fT 7.4GHz WS BCR169 Sie N SOT23 pnp dig 50V 0.1A 4k7 WS BCR169W Sie N SOT323 pnp dig 50V 0.1A 4k7 WS BCR169S Sie DO SOT363 dual BC169 WS BZT52B27 Vis I SOD123 300 mW zener 2% 27V WS BZT52C27 Vis I SOD123 300 mW zener 5% 27V WS BZT52C36S Vis I SOD123 300 mW zener 5% 136V WS BZX384B27 Vis I SOD323 200 mW zener 2% 27V WS BZX384C27 Vis I SOD323 200 mW zener 5% 27V WS BZX284-B3V6 Phi I SOD110 0.4W zener 3.6V E24 ±2% WT BCR166 Sie N SOT23 pnp dig 50V 0.1A 4k7+47k WT BCR166W Sie N SOT323 pnp dig 50V 0.1A 4k7+47k WT BCR48PN Sie DP SOT363 pnp/npn dig npn 2x47k pnp 2k2+47k WT BZT52B30 Vis I SOD123 300 mW zener 2% 30V WT BZT52C30 Vis I SOD123 300 mW zener 5% 30V WT BZT52C39S Vis I SOD123 300 mW zener 5% 39V WT BZX384B30 Vis I SOD323 200 mW zener 2% 30V WT BZX384C30 Vis I SOD323 200 mW zener 5% 30V WT BZX284-B3V9 Phi I SOD110 0.4W zener 3.9V E24 ±2% WU BCR162 Sie N SOT23 pnp dig 50V 0.1A 4k7+4k7 WU BCR162T Sie N SC75 pnp dig 50V 0.1A 4k7+4k7 WU BCR35PN Sie DP SOT363 pnp/npn dig 0.1A 10k+47k WU BZX284-B4V3 Phi I SOD110 0.4W zener 4.3V E24 ±2% WU BZT52B33 Vis I SOD123 300 mW zener 2% 33V WU BZT52C33 Vis I SOD123 300 mW zener 5% 33V WU BZX384B33 Vis I SOD323 200 mW zener 2% 33V WU BZX384C33 Vis I SOD323 200 mW zener 5% 33V http://www.marsport.org.uk/smd/smdw.htm (8 of 10)27/5/2007 18:21:23
- 169. SMD Codebook page w WU MRF2947A Mot DG SOT363 dual MRF941 npn RF 9GHz WW BZT52B36 Vis I SOD123 300 mW zener 2% 36V WW BZT52C36 Vis I SOD123 300 mW zener 5% 36V WW BZX384B36 Vis I SOD323 200 mW zener 2% 36V WW BZX384C36 Vis I SOD323 200 mW zener 5% 36V WW3 CMPZDA2V4 CSC A SOT23 dual ca zener 350mW 2.4V WW4 CMPZDA2V7 CSC A SOT23 dual ca zener 350mW 2.7V WW5 CMPZDA3V0 CSC A SOT23 dual ca zener 350mW 3.0V WW6 CMPZDA3V3 CSC A SOT23 dual ca zener 350mW 3.3V WW7 CMPZDA3V6 CSC A SOT23 dual ca zener 350mW 3.6V WW8 CMPZDA3V9 CSC A SOT23 dual ca zener 350mW 3.9V WW9 CMPZDA4V3 CSC A SOT23 dual ca zener 350mW 4.3V WX BZT52B39 Vis I SOD123 300 mW zener 2% 39V WX BZT52C39 Vis I SOD123 300 mW zener 5% 39V WX BZX384B39 Vis I SOD323 200 mW zener 2% 39V WX BZX384C39 Vis I SOD323 200 mW zener 5% 39V WX3 S593TXRW Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners WX4 S594TXRW Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners WX5 S595TXRW Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners WX6 S504TXRW Vis UQ SOT343R biased dg mosfet MOSIC 5V uhf tv tuners WX7 S505TXRW Vis UQ SOT343R biased dg mosfet MOSIC 5V uhf tv tuners WX8 S503TXRW Vis UQ SOT343R biased dg mosfet MOSIC 5V uhf tv tuners WY BZT52B43 Vis I SOD123 300 mW zener 2% 43V WY BZT52C43 Vis I SOD123 300 mW zener 5% 43V WY BZX384B43 Vis I SOD323 200 mW zener 2% 43V WY BZX384C43 Vis I SOD323 200 mW zener 5% 43V WY5 S505TXRW Vis UQ SOT343R dg mosfet MOSIC 5V uhf tv tuners WY6 S506TXRW Vis UQ SOT343R dg mosfet MOSIC 5V uhf tv tuners http://www.marsport.org.uk/smd/smdw.htm (9 of 10)27/5/2007 18:21:23
- 170. SMD Codebook page w WZ BZT52B47 Vis I SOD123 300 mW zener 2% 47V WZ BZT52C47 Vis I SOD123 300 mW zener 5% 47V WZ BZX384B47 Vis I SOD323 200 mW zener 2% 47V WZ BZX384C47 Vis I SOD323 200 mW zener 5% 47V Last Updated 10/07/2006 by GM4PMK http://www.marsport.org.uk/smd/smdw.htm (10 of 10)27/5/2007 18:21:23
- 171. SMD Codebook page X GM4PMK's SMD Codebook Codes beginning with 'X' Code Device Manf Base Package Leaded Equivalent/Data X (white) BB833 Sie I SOT323 9.3-0.75pF varicap X (yellow) BB835 Sie I SOT323 9.1-0.6pF varicap X BB187 Phi I SOD 523 VHF Varicap 2,7-13,7pF X03 S503TX Vis W SOT143 dg mosfet MOSIC 5V uhf tv tuners X04 S504TX Vis W SOT143 dg mosfet MOSIC 5V uhf tv tuners X05 S505TX Vis W SOT143 dg mosfet MOSIC 5V uhf tv tuners X1 BFT93 Sie N SOT23 BFQ23 BFQ75 X1p BFT93 Phi N SOT23 BFQ23 BFQ75 X1 IMX1 Roh DC dual 2SC2412K npn X1 BZX84-C27 Phi C SOT23 0.3W zener 27V±5% X1 BZT52B51 Vis I SOD123 300 mW zener 2% 51V X1 BZT52C51 Vis I SOD123 300 mW zener 5% 51V X1 BZX384B51 Vis I SOD323 200 mW zener 2% 51V X1 BZX384C51 Vis I SOD323 200 mW zener 5% 51V X1 CMDZ5221B CSC I SOD323 250mW zener 5% 2.4V X2 IMX2 Roh DD dual 2SC2412K npn X2 BZX99-C13 Phi C SOT23 13V 0.3W zener ±5% X2 BZX84-C30 Zet C SOT23 0.3W zener 30V±5% X2 BZV49C30 Zet O SOT89 1W zener 30V±5% X2 BZT52B56 Vis I SOD123 300 mW zener 2% 56V X2 BZT52C56 Vis I SOD123 300 mW zener 5% 56V X2 BZX384B56 Vis I SOD323 200 mW zener 2% 56V X2 BZX384C56 Vis I SOD323 200 mW zener 5% 56V X2 CMDZ5222B CSC I SOD323 250mW zener 5% 2.5V http://www.marsport.org.uk/smd/smdx.htm (1 of 6)27/5/2007 18:21:28
- 172. SMD Codebook page X X3 BZX99-C15 Phi C SOT23 15V 0.3W zener ±5% X3 BZX84-C33 Zet C SOT23 0.3W zener 33V±5% X3 BZT52B62 Vis I SOD123 300 mW zener 2% 62V X3 BZT52C62 Vis I SOD123 300 mW zener 5% 62V X3 BZX384B62 Vis I SOD323 200 mW zener 2% 62V X3 BZX384C62 Vis I SOD323 200 mW zener 5% 62V X3 CMDZ5223B CSC I SOD323 250mW zener 5% 2.7V X3R S593TXR Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners X4 BFT93R Sie R SOT23R BFQ23 BFQ75 X4 BZX84-C36 Zet C SOT23 0.3W zener 36V±5% X4 BZT52B68 Vis I SOD123 300 mW zener 2% 68V X4 BZT52C68 Vis I SOD123 300 mW zener 5% 68V X4 BZX384B68 Vis I SOD323 200 mW zener 2% 68V X4 BZX384C68 Vis I SOD323 200 mW zener 5% 68V X4 CMDZ5224B CSC I SOD323 250mW zener 5% 2.8V X4R S594TXR Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners X5 BZV49C39 Zet O SOT89 1W zener 39V±5% X5 MMBV409G Mot C SOT23 Hyperabrupt varicap X5 BZT52B75 Vis I SOD123 300 mW zener 2% 75V X5 BZT52C75 Vis I SOD123 300 mW zener 5% 75V X5 BZX384B75 Vis I SOD323 200 mW zener 2% 75V X5 BZX384C75 Vis I SOD323 200 mW zener 5% 75V X5 CMDZ5225B CSC I SOD323 250mW zener 5% 3.0V X5R S595TXR Vis UQ SOT143R biased dg mosfet MOSIC 5V uhf tv tuners X6 BZV49C43 Zet O SOT89 1W zener 43V±5% X6 BZX84-C43 Zet C SOT23 0.3W zener 43V±5% X6 CMDZ5226B CSC I SOD323 250mW zener 5% 3.3V X6R S504TXR Vis UQ SOT143R dg mosfet MOSIC 5V uhf tv tuners X7 BZX84-C47 Zet C SOT23 0.3W zener 47V±5% X7 CMDZ5227B CSC I SOD323 250mW zener 5% 3.6V http://www.marsport.org.uk/smd/smdx.htm (2 of 6)27/5/2007 18:21:28
- 173. SMD Codebook page X X7R S505TXR Vis UQ SOT143R dg mosfet MOSIC 5V uhf tv tuners X8 CMDZ5228B CSC I SOD323 250mW zener 5% 3.9V X8C S503TXR Vis UQ SOT143R dg mosfet MOSIC 5V uhf tv tuners X9 CMDZ5229B CSC I SOD323 250mW zener 5% 4.3V X93 S593TX Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners X94 S594TX Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners X95 S595TX Vis W SOT143 biased dg mosfet MOSIC 5V uhf tv tuners XAs BCR503 Sie N SOT23 npn dtr 50V 0.5A 2k2 +2k2 XA BZX284-B7V5 Phi I SOD110 0.4W zener 7.5V E24 ±2% XA BZX99-C4V7 Phi C SOT23 4.7V 0.3W zener XA CMDZ5230B CSC I SOD323 250mW zener 5% 4.7V XBs BCR553 Sie N SOT23 pnp dtr 50V 0.5A 2k2 +2k2 XB BZX284-B8V2 Phi I SOD110 0.4W zener 8.2V E24 ±2% XB BZX99-C5V1 Phi C SOT23 5.1V 0.3W zener XB CMDZ5231B CSC I SOD323 250mW zener 5% 5.1V XCs BCR533 Sie N SOT23 npn dtr 50V 0.5A 10k + 10k XC BZX284-B9V1 Phi I SOD110 0.4W zener 9.1V E24 ±2% XC BZX99-C5V6 Phi C SOT23 5.6V 0.3W zener XC CMDZ5232B CSC I SOD323 250mW zener 5% 5.6V XDs BCR555 Sie N SOT23 pnp dtr 50V 0.5A 2k2 +10k XD BZX284-B10 Phi I SOD110 0.4W zener 10V E24 ±2% XD BZX99-C6V2 Phi C SOT23 6.2V 0.3W zener XD CMDZ5233B CSC I SOD323 250mW zener 5% 6.0V XE BZX284-B11 Phi I SOD110 0.4W zener 11V E24 ±2% XE BZX99-C6V8 Phi C SOT23 6.8V 0.3W zener XE CMDZ5234B CSC I SOD323 250mW zener 5% 6.2V XFs BCR512 Sie N SOT23 npn dtr 50V 0.5A 4k7+ 4k7 XF BZX284-B12 Phi I SOD110 0.4W zener 12V E24 ±2% XF CMDZ5235B CSC I SOD323 250mW zener 5% 6.8V XGs BCR523 Sie N SOT23 npn dtr 50V 0.5A 1k0 +10k http://www.marsport.org.uk/smd/smdx.htm (3 of 6)27/5/2007 18:21:28
- 174. SMD Codebook page X XG BZX284-B13 Phi I SOD110 0.4W zener 13V E24 ±2% S XG CMDZ5236B CSC I SOD323 250mW zener 5% 7.5V XHs BCR573 Sie N SOT23 pnp dtr 50V 0.5A 1k0 +10k XH BZX284-B15 Phi I SOD110 0.4W zener 15V E24 ±2% XH MMSD701 Mot I SOD123 MMBD701 XH CMDZ5237B CSC I SOD323 250mW zener 5% 8.2V XI BZX284-B16 Phi I SOD110 0.4W zener 16V E24 ±2% XJ BZX284-B18 Phi I SOD110 0.4W zener 18V E24 ±2% XJ CMDZ5238B CSC I SOD323 250mW zener 5% 8.7V XKs BCR519 Sie N SOT23 npn dtr 50V 0.5A R1 4k7 XK BZX284-B20 Phi I SOD110 0.4W zener 20V E24 ±2% XK CMDZ5239B CSC I SOD323 250mW zener 5% 9.1V XLs BCR569 Sie N SOT23 pnp dtr 50V 0.5A R1 4k7 XL BZX284-B22 Phi I SOD110 0.4W zener 22V E24 ±2% XL BZX99-C2V4 Phi C SOT23 2.4V 0.3W zener XL CMDZ5240B CSC I SOD323 250mW zener 5% 10V XMs BCR583 Sie N SOT23 pnp dtr 50V 0.5A 10k +10k XM BZX284-B24 Phi I SOD110 0.4W zener 24V E24 ±2% XM BZX99-C2V7 Phi C SOT23 2.7V 0.3W zener XN BZX284-B27 Phi I SOD110 0.4W zener 27V E24 ±2% XN BZX99-C3V0 Phi C SOT23 3.0V 0.3W zener XN CMDZ5241B CSC I SOD323 250mW zener 5% 11V XO BZX284-B30 Phi I SOD110 0.4W zener 30V E24 ±2% XO CMDZ5242B CSC I SOD323 250mW zener 5% 12V XP MMBD3000 Mot C SOT346 Si diode 30V 0.2A XP BZX284-B33 Phi I SOD110 0.4W zener 33V E24 ±2% XP BZX99-C3V3 Phi C SOT23 3.3V 0.3W zener XP CMDZ5243B CSC I SOD323 250mW zener 5% 13V XP CMDZ13L CSC I SOD323 zener 250mW Iz 0.5mA 13V XQ MMBD3005 Mot A SOT346 dual ca MMBD3000 XQ BZX284-B36 Phi I SOD110 0.4W zener 36V E24 ±2% XQ 2PD602AQ Phi N SOT346 gp npn hfe 85-170 XQ CMDZ5244B CSC I SOD323 250mW zener 5% 14V http://www.marsport.org.uk/smd/smdx.htm (4 of 6)27/5/2007 18:21:28
- 175. SMD Codebook page X XR BZX284-B39 Phi I SOD110 0.4W zener 39V E24 ±2% XR BZX99-C3V6 Phi C SOT23 3.6V 0.3W zener XR MRF2947RA Mot DH SOT363 dual MRF941 npn RF 9GHz XR 2PD602AR Phi N SOT346 gp npn hfe 120-240 XR CMDZ5245B CSC I SOD323 250mW zener 5% 15V XS MMBD3010 Mot B SOT346 dual cc MMBD3000 XS BZX284-B43 Phi I SOD110 0.4W zener 43V E24 ±2% XS BZX99-C3V9 Phi C SOT23 3.9V 0.3W zener XS 2PD602AS Phi N SOT346 gp npn hfe 170-340 XS CMDZ5246B CSC I SOD323 250mW zener 5% 16V XT BZX284-B47 Phi I SOD110 0.4W zener 47V E24 ±2% XT MMSD301 Mot I SOD123 MBD301 XT BZX99-C4V3 Phi C SOT23 4.3V 0.3W zener XT CMDZ5247B CSC I SOD323 250mW zener 5% 17V XU BZX284-B51 Phi I SOD110 0.4W zener 51V E24 ±2% XU MRF2947RA Mot DH dual MRF941 npn RF 9GHz XUs BCR562 Sie N SOT23 pnp dtr 50V 0.5A 4k7+ 4k7 XU BZX99-C7V5 Phi C SOT23 7.5V 0.3W zener XU CMDZ5248B CSC I SOD323 250mW zener 5% 18V XV BZX284-B56 Phi I SOD110 0.4W zener 56V E24 ±2% XVs BCR521 Sie N SOT23 npn dtr 50V 0.5A 1k0 +1k0 XV BZX99-C8V2 Phi C SOT23 8.2V 0.3W zener XV CMDZ5249B CSC I SOD323 250mW zener 5% 19V XW BZX284-B62 Phi I SOD110 0.4W zener 62V E24 ±2% XWs BCR505 Sie N SOT23 npn dtr 50V 0.5A 2k2 +10k XW BZX99-C9V1 Phi C SOT23 9.1V 0.3W zener XX BZX284-B68 Phi I SOD110 0.4W zener 68V E24 ±2% XX BZX99-C10 Phi C SOT23 10V 0.3W zener XX CMDZ5250B CSC I SOD323 250mW zener 5% 20V XXs BCR571 Sie N SOT23 pnp dtr 50V 0.5A 1k0 +1k0 XY BZX99-C11 Phi C SOT23 11V 0.3W zener XY BZX284-B75 Phi I SOD110 0.4W zener 75V E24 ±2% XY CMDZ5251B CSC I SOD323 250mW zener 5% 22V XZ CMDZ5252B CSC I SOD323 250mW zener 5% 24V http://www.marsport.org.uk/smd/smdx.htm (5 of 6)27/5/2007 18:21:28
- 176. SMD Codebook page X XZ BZX99-C12 Phi C SOT23 12V 0.3W zener Last modified 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdx.htm (6 of 6)27/5/2007 18:21:28
- 177. SMD Codebook page Y GM4PMK's SMD Codebook Codes beginning with 'Y' Code Device Manf Base Package Leaded Equivalent/Data Y BB182B Phi I SOD 523 VHF Varicap Y0s CGY121B Sie GaAs MMIC Y05 S505TX Vis W SOT143 dg mosfet MOSIC 5V uhf tv tuners Y06 S506TX Vis W SOT143 dg mosfet MOSIC 5V uhf tv tuners Y1 BZX84-C11 Phi C SOT23 0.3W zener 11V±5% Y1p BZX84-C11 Phi C SOT23 0.3W zener 11V±5% Y1 BZV49C11 Zet O SOT89 1W zener 11V ±5% Y1 CMDZ5253B CSC I SOT323 zener 250mW 5% 25V Y2 CLY2 Sie DR MW6 3GHz GaAsfet 0.25W 3GHz Y2 BZX84-C12 Phi C SOT23 0.3W zener 12V±5% Y2 CMDZ5254B CSC I SOT323 zener 250mW 5% 27V Y3 BZX84-C13 Phi C SOT23 0.3W zener 13V±5% Y3 CMDZ5255B CSC I SOT323 zener 250mW 5% 28V Y4 BZX84-C15 Phi C SOT23 0.3W zener 15V±5% Y4 BZV49C15 Zet O SOT89 1W zener 15V ±5% Y4 CMDZ5256B CSC I SOT323 zener 250mW 5% 30V Y5s CGY59 Sie DS SOT363 GaAs 0.9/1.8GHz preamp Y5 BZX84-C16 Phi C SOT23 0.3W zener 16V±5% Y5 BZV49C16 Zet O SOT89 1W zener 16V ±5% Y5 CMDZ5257B CSC I SOT323 zener 250mW 5% 33V Y5R S505TXR Vis UQ SOT143R dg mosfet MOSIC 5V uhf tv tuners Y6s CGY62 Sie DS MW6 GaAs MMIC Y6 BZX84-C18 Phi C SOT23 0.3W zener 18V±5% Y6 CMDZ5258B CSC I SOT323 zener 250mW 5% 36V Y6R S506TXR Vis UQ SOT143R dg mosfet MOSIC 5V uhf tv tuners http://www.marsport.org.uk/smd/smdy.htm (1 of 4)27/5/2007 18:21:33
- 178. SMD Codebook page Y Y7 CGY60 Sie DS MW6 GaAs preamp MMIC 1.8GHz Y7 BZX84-C20 Phi C SOT23 0.3W zener 20V±5% Y7 CMDZ5259B CSC I SOT323 zener 250mW 5% 39V Y8 CGY120 Sie MW6 GaAs MMIC Y8 BZX84-C22 Phi C SOT23 0.3W zener 22V±5% Y8 BZV49C22 Zet O SOT89 1W zener 22V ±5% Y8 CMDZ5260B CSC I SOT323 zener 250mW 5% 43V Y9s CGY121A Sie MW6 GaAs MMIC Y9 BZX84-C24 Phi C SOT23 0.3W zener 24V±5% Y9 BZV49C24 Zet O SOT89 1W zener 124V ±5% Y9 CMDZ5261B CSC I SOT323 zener 250mW 5% 47V Y10 BZX84-C27 Phi C SOT23 0.3W zener 27V±5% Y11 BZX84-C30 Phi C SOT23 0.3W zener 30V±5% Y12 BZX84-C33 Phi C SOT23 0.3W zener 33V±5% Y13 BZX84-C36 Phi C SOT23 0.3W zener 36V±5% Y14 BZX84-C39 Phi C SOT23 0.3W zener 39V±5% Y15 BZX84-C43 Phi C SOT23 0.3W zener 43V±5% Y16 BZX84-C47 Phi C SOT23 0.3W zener 47V±5% Y17 BZX84-C51 Phi C SOT23 0.3W zener 51V±5% Y18 BZX84-C56 Phi C SOT23 0.3W zener 56V±5% Y19 BZX84-C62 Phi C SOT23 0.3W zener 62V±5% Y20 BZX84-C68 Phi C SOT23 0.3W zener 68V±5% Y21 BZX84-C75 Phi C SOT23 0.3W zener 75V±5% Y36 BZX84-C13V6 Phi C SOT23 0.3W zener 13.6V±5% Y50 BZX84-A2V4 Phi C SOT23 0.3W zener 2.4V ±1% Y51 BZX84-A2V7 Phi C SOT23 0.3W zener 2.7V ±1% Y52 BZX84-A3V0 Phi C SOT23 0.3W zener 3.0V ±1% Y53 BZX84-A3V3 Phi C SOT23 0.3W zener 3.3V ±1% Y54 BZX84-A3V6 Phi C SOT23 0.3W zener 3.6V ±1% Y55 BZX84-A3V9 Phi C SOT23 0.3W zener 3.9V ±1% Y56 BZX84-A4V3 Phi C SOT23 0.3W zener 4.3V ±1% Y57 BZX84-A4V7 Phi C SOT23 0.3W zener 4.7V ±1% Y58 BZX84-A5V1 Phi C SOT23 0.3W zener 5.1V ±1% http://www.marsport.org.uk/smd/smdy.htm (2 of 4)27/5/2007 18:21:33
- 179. SMD Codebook page Y Y59 BZX84-A5V6 Phi C SOT23 0.3W zener 5.6V ±1% Y60 BZX84-A6V2 Phi C SOT23 0.3W zener 6.2V ±1% Y61 BZX84-A6V8 Phi C SOT23 0.3W zener 6.8V ±1% Y62 BZX84-A7V5 Phi C SOT23 0.3W zener 7.5V ±1% Y63 BZX84-A8V2 Phi C SOT23 0.3W zener 8.2V ±1% Y64 BZX84-A9V1 Phi C SOT23 0.3W zener 9.1V ±1% Y65 BZX84-A10 Phi C SOT23 0.3W zener 10V ±1% Y66 BZX84-A11 Phi C SOT23 0.3W zener 11V ±1% Y67 BZX84-A12 Phi C SOT23 0.3W zener 12V ±1% Y68 BZX84-A13 Phi C SOT23 0.3W zener 13V ±1% Y69 BZX84-A15 Phi C SOT23 0.3W zener 15V ±1% Y70 BZX84-A16 Phi C SOT23 0.3W zener 16V ±1% Y71 BZX84-A18 Phi C SOT23 0.3W zener 18V ±1% Y72 BZX84-A20 Phi C SOT23 0.3W zener 20V ±1% Y73 BZX84-A22 Phi C SOT23 0.3W zener 22V ±1% Y74 BZX84-A24 Phi C SOT23 0.3W zener 24V ±1% Y75 BZX84-A27 Phi C SOT23 0.3W zener 27V ±1% Y76 BZX84-A30 Phi C SOT23 0.3W zener 30V ±1% Y77 BZX84-A33 Phi C SOT23 0.3W zener 33V ±1% Y78 BZX84-A36 Phi C SOT23 0.3W zener 36V ±1% Y79 BZX84-A39 Phi C SOT23 0.3W zener 39V ±1% Y80 BZX84-A43 Phi C SOT23 0.3W zener 43V ±1% Y81 BZX84-A47 Phi C SOT23 0.3W zener 47V ±1% Y82 BZX84-A51 Phi C SOT23 0.3W zener 51V ±1% Y83 BZX84-A56 Phi C SOT23 0.3W zener 56V ±1% Y84 BZX84-A62 Phi C SOT23 0.3W zener 62V ±1% Y85 BZX84-A68 Phi C SOT23 0.3W zener 68V ±1% Y86 BZX84-A75 Phi C SOT23 0.3W zener 75V ±1% YBs BSS84 Inf M SOT23 p-ch mosfet 50V 0.13A YO BZX284-C2V4 Phi I SOD110 0.4W zener 2.4V E12 ±5% YP BZX284-C2V7 Phi I SOD110 0.4W zener 2.7V E12 ±5% YP CMDZ15L CSC I SOD323 zener 250mW Iz 0.5mA 15V YQ BZX284-C3V0 Phi I SOD110 0.4W zener 3.0V E12 ±5% YR MSD601R Mot N SOT346 npn gp 25V http://www.marsport.org.uk/smd/smdy.htm (3 of 4)27/5/2007 18:21:33
- 180. SMD Codebook page Y YR BZX284-C3V3 Phi I SOD110 0.4W zener 3.3V E12 ±5% YS MSD601S Mot N SOT346 npn gp 25V YS BZX284-C3V6 Phi I SOD110 0.4W zener 3.6V E12 ±5% YT BZX284-C3V9 Phi I SOD110 0.4W zener 3.9V E12 ±5% YU BZX284-C4V3 Phi I SOD110 0.4W zener 4.3V E12 ±5% YV BZX284-C4V7 Phi I SOD110 0.4W zener 4.7V E12 ±5% YW BZX284-C5V1 Phi I SOD110 0.4W zener 5.1V E12 ±5% YX BZX284-C5V6 Phi I SOD110 0.4W zener 5.6V E12 ±5% YY BZX284-C6V2 Phi I SOD110 0.4W zener 6.2V E12 ±5% YY1 CMPZDA11V CSC A SOT23 dual ca zener 350mW 11V YY2 CMPZDA12V CSC A SOT23 dual ca zener 350mW 12V YY3 CMPZDA13V CSC A SOT23 dual ca zener 350mW 13V YY4 CMPZDA15V CSC A SOT23 dual ca zener 350mW 15V YY5 CMPZDA16V CSC A SOT23 dual ca zener 350mW 16V YY6 CMPZDA18V CSC A SOT23 dual ca zener 350mW 18V YY7 CMPZDA20V CSC A SOT23 dual ca zener 350mW 20V YY8 CMPZDA22V CSC A SOT23 dual ca zener 350mW 22V YY9 CMPZDA24V CSC A SOT23 dual ca zener 350mW 24V YZ BZX284-C6V8 Phi I SOD110 0.4W zener 6.8V E12 ±5% Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdy.htm (4 of 4)27/5/2007 18:21:33
- 181. SMD Codebook page Z GM4PMK's SMD Codebook Codes beginning with 'Z' Code Device Manf Base Package Leaded Equivalent/Data Z BB145B Phi I SOD 523 Low Voltage Varicap Z0 SST310 Tem F SOT23 J310 n-ch jfet Z0 PDZ2.4B Phi I SOD323 2.4V 0.4W zener Z08 SST308 Sil F SOT23 J308 n-ch jfet Z09 SST309 Sil F SOT23 J309 n-ch jfet Z10 SST310 Sil F SOT23 J310 n-ch jfet Z1 BB145B-01 Phi I SOD 723 Low Voltage Varicap Z1 BZX84-C4V7 Phi C SOT23 0.3W zener 4.7V Z1 SSTJ211 Sil F SOT23 J211 n-ch jfet Z1 PDZ2.7B Phi I SOD323 2.7V 0.4W zener Z1 IMZ1A Roh DE 2SC2414 npn,2SA1037AK pnp Z1 BZV49C4V7 Zet O SOT89 1W ±5% zener 4.7V Z2 BZX84-C5V1 Phi C SOT23 0.3W zener 4.7V Z2 SSTJ212 Sil F SOT23 J212 n-ch jfet Z2 IMZ2A Roh DF 2SC2414 npn,2SA1037AK pnp Z2 PDZ3.0B Phi I SOD323 3.0V 0.4W zener Z2 BZV49C5V1 Zet O SOT89 1W ±5% zener 5.1V Z2U FMMTA63 Zet N SOT23 MPSA63 Z2V FMMTA64 Zet N SOT23 MPSA64 Z3 BZX84-C5V6 Phi C SOT23 0.3W zener 5.6V Z3 PDZ3.3B Phi I SOD323 3.3V 0.4W zener Z3 2SK1078 Tos T SOT89 n-ch mosfet 60V 0.8A Z3 BZV49C5V6 Zet O SOT89 1W ±5% zener 5.6V Z4 BZX84-C6V2 Phi C SOT23 0.3W zener 6.2V Z4 PDZ3.6B Phi I SOD323 3.6V 0.4W zener Z4 2SK1079 Tos T SOT89 n-ch mosfet 100V 0.6A http://www.marsport.org.uk/smd/smdz.htm (1 of 6)27/5/2007 18:21:38
- 182. SMD Codebook page Z Z4 BZV49C6V2 Zet O SOT89 1W ±5% zener 6.2V Z5 BZX84-C6V8 Phi C SOT23 0.3W zener 6.8V Z5 PDZ3.9B Phi I SOD323 3.9V 0.4W zener Z5 2SK1717 Tos T SOT89 n-ch mosfet 60V 2A Z5 BZV49C6V8 Zet O SOT89 1W ±5% zener 6.8V Z6 BZX84-C7V5 Phi C SOT23 0.3W zener 7.5V Z6 PDZ4.3B Phi I SOD323 4.3V 0.4W zener Z6 2SJ238 Tos T SOT89 p-ch mosfet 60V 1A Z6 BZV49C7V5 Zet O SOT89 1W ±5% zener 7.5V Z7 BZX84-C8V2 Phi C SOT23 0.3W zener 8.2V Z7 PDZ4.7B Phi I SOD323 4.7V 0.4W zener Z7 BZV49C8V2 Zet O SOT89 1W ±5% zener 8.2V Z8 BZX84-C9V1 Phi C SOT23 0.3W zener 9.1V Z8 PDZ5.1B Phi I SOD323 5.1V 0.4W zener Z8 BZV49C9V1 Zet O SOT89 1W ±5% zener 9.1V Z9 BZX84-C10 Phi C SOT23 0.3W zener 10V Z9 PDZ5.6B Phi I SOD323 5.6V 0.4W zener Z1 BZV49C10 Zet O SOT89 1W ±5% zener 10V Z10 SST310 Sil F SOT23 J310 n-ch jfet Z11 BZX84-C2V4 Phi C SOT23 0.3W zener 2.4V ±5% Z12 BZX84-C2V7 Phi C SOT23 0.3W zener 2.7V ±5% Z13 BZX84-C3V0 Phi C SOT23 0.3W zener 3.0V ±5% Z14 BZX84-C3V3 Phi C SOT23 0.3W zener 3.3V ±5% Z15 BZX84-C3V6 Phi C SOT23 0.3W zener 3.6V ±5% Z16 BZX84-C3V9 Phi C SOT23 0.3W zener 3.9V ±5% Z17 BZX84-C4V3 Phi C SOT23 0.3W zener 4.3V ±5% Z21 DTC113ZE Rho N EMT3 npn dtr 1k0 + 10k 50V 100mA Z21 DTC113ZUA Rho N SC70 npn dtr 1k0 + 10k 50V 100mA Z21 DTC113ZKA Rho N SC59 npn dtr 1k0 + 10k 50V 100mA Z50 BZX84-B2V4 Phi C SOT23 0.3W zener 2.4V ±2% Z51 BZX84-B2V7 Phi C SOT23 0.3W zener 2.7V ±2% Z52 BZX84-B3V0 Phi C SOT23 0.3W zener 3.0V ±2% Z53 BZX84-B3V3 Phi C SOT23 0.3W zener 3.3V ±2% Z54 BZX84-B3V6 Phi C SOT23 0.3W zener 3.6V ±2% http://www.marsport.org.uk/smd/smdz.htm (2 of 6)27/5/2007 18:21:38
- 183. SMD Codebook page Z Z55 BZX84-B3V9 Phi C SOT23 0.3W zener 3.9V ±2% Z56 BZX84-B4V3 Phi C SOT23 0.3W zener 4.3V ±2% Z57 BZX84-B4V7 Phi C SOT23 0.3W zener 4.7V ±2% Z58 BZX84-B5V1 Phi C SOT23 0.3W zener 5.1V ±2% Z59 BZX84-B5V6 Phi C SOT23 0.3W zener 5.6V ±2% Z60 BZX84-B6V2 Phi C SOT23 0.3W zener 6.2V ±2% Z61 BZX84-B6V8 Phi C SOT23 0.3W zener 6.8V ±2% Z62 BZX84-B7V5 Phi C SOT23 0.3W zener 7.5V ±2% Z63 BZX84-B8V2 Phi C SOT23 0.3W zener 8.2V ±2% Z64 BZX84-B9V1 Phi C SOT23 0.3W zener 9.1V ±2% Z65 BZX84-B10 Phi C SOT23 0.3W zener 10V ±2% Z66 BZX84-B11 Phi C SOT23 0.3W zener 11V ±2% Z67 BZX84-B12 Phi C SOT23 0.3W zener 12V ±2% Z68 BZX84-B13 Phi C SOT23 0.3W zener 13V ±2% Z69 BZX84-B15 Phi C SOT23 0.3W zener 15V ±2% Z70 BZX84-B16 Phi C SOT23 0.3W zener 16V ±2% Z71 BZX84-B18 Phi C SOT23 0.3W zener 18V ±2% Z72 BZX84-B20 Phi C SOT23 0.3W zener 20V ±2% Z73 BZX84-B22 Phi C SOT23 0.3W zener 22V ±2% Z74 BZX84-B24 Phi C SOT23 0.3W zener 24V ±2% Z75 BZX84-B27 Phi C SOT23 0.3W zener 27V ±2% Z76 BZX84-B30 Phi C SOT23 0.3W zener 30V ±2% Z77 BZX84-B33 Phi C SOT23 0.3W zener 33V ±2% Z78 BZX84-B36 Phi C SOT23 0.3W zener 36V ±2% Z79 BZX84-B39 Phi C SOT23 0.3W zener 39V ±2% Z80 BZX84-B43 Phi C SOT23 0.3W zener 43V ±2% Z81 BZX84-B47 Phi C SOT23 0.3W zener 47V ±2% Z82 BZX84-B51 Phi C SOT23 0.3W zener 51V ±2% Z83 BZX84-B56 Phi C SOT23 0.3W zener 56V ±2% Z84 BZX84-B62 Phi C SOT23 0.3W zener 62V ±2% Z85 BZX84-B68 Phi C SOT23 0.3W zener 68V ±2% Z86 BZX84-B75 Phi C SOT23 0.3W zener 75V ±2% ZA BZX284-C7V5 Phi I SOD110 0.4W zener 7.5V ±5% ZA PDZ6.2B Phi I SOD323 6.2V 0.4W zener http://www.marsport.org.uk/smd/smdz.htm (3 of 6)27/5/2007 18:21:38
- 184. SMD Codebook page Z ZB FMMT4123 Zet N SOT23 2N4123 ZB PDZ6.8B Phi I SOD323 6.8V 0.4W zener ZB BZX284-C8V2 Phi I SOD110 0.4W zener 8.2V ±5% ZC FMMT4124 Zet N SOT23 2N4124 ZC BZX284-C9V1 Phi I SOD110 0.4W zener 9.1V ±5% ZC PDZ7.5B Phi I SOD323 7.5V 0.4W zener ZD FMMT4125 Zet N SOT23 2N4125 ZD MMBT4125 Mot N SOT23 2N4125 ZD BZX284-C10 Phi I SOD110 0.4W zener 10V ±5% ZD PDZ8.2B Phi I SOD323 8.2V 0.4W zener ZE FMMT4126 Zet N SOT23 2N4126 ZE MMBT4123 Nat N SOT23 2N4123 ZE BZX284-C11 Phi I SOD110 0.4W zener 11V ±5% ZE PDZ9.1B Phi I SOD323 9.1V 0.4W zener ZF BZX284-C12 Phi I SOD110 0.4W zener 12V ±5% ZF PDZ10B Phi I SOD323 10V 0.4W zener ZG BZX284-C13 Phi I SOD110 0.4W zener 13V ±5% ZG PDZ11B Phi I SOD323 11V 0.4W zener ZH BZX284-C15 Phi I SOD110 0.4W zener 15V ±5% ZH PDZ12B Phi I SOD323 12V 0.4W zener ZHK SM2Z5V1 STM I 2W SMD 5.1V 2W zener ZHL SM2Z5V6 STM I 2W SMD 5.6V 2W zener ZHW SM2Z12 STM I 2W SMD 12V 2W zener ZI BZX284-C16 Phi I SOD110 0.4W zener 16V ±5% ZJ BZX284-C18 Phi I SOD110 0.4W zener 18V ±5% ZJ PDZ13B Phi I SOD323 13V 0.4W zener ZJF SM2Z18 STM I 2W SMD 18V 2W zener ZJQ SM2Z30 STM I 2W SMD 30V 2W zener ZK BZX284-C20 Phi I SOD110 0.4W zener 20V ±5% ZK PDZ15B Phi I SOD323 15V 0.4W zener http://www.marsport.org.uk/smd/smdz.htm (4 of 6)27/5/2007 18:21:38
- 185. SMD Codebook page Z ZKR SM2Z150 STM I 2W SMD 150V 2W zener ZL BZX284-C22 Phi I SOD110 0.4W zener 22V ±5% ZL PDZ16B Phi I SOD323 16V 0.4W zener ZM BZX284-C24 Phi I SOD110 0.4W zener 24V ±5% ZM PDZ18B Phi I SOD323 18V 0.4W zener ZN BZX284-C27 Phi I SOD110 0.4W zener 27V ±5% ZN PDZ20B Phi I SOD323 20V 0.4W zener ZO BZX284-C30 Phi I SOD110 0.4W zener 30V ±5% ZP BZX284-C33 Phi I SOD100 0.4W zener 33V ±5% ZP PDZ22B Phi I SOD323 22V 0.4W zener ZP CMDZ16L CSC I SOD323 zener 250mW Iz 0.5mA 16V ZQ BZX284-C36 Phi I SOD110 0.4W zener 36V ±5% ZQ PDZ24B Phi I SOD323 24V 0.4W zener Z-Q 2PC4081Q Phi N SOT323 gp npn hfe 120-270 ZtQ 2PC4081Q Phi N SOT323 gp npn hfe 120-270 ZR MSD1819A Mot N SOT323 npn gp 50V ZR BZX284-C39 Phi I SOD110 0.4W zener 39V ±5% ZR PDZ27B Phi I SOD323 27V 0.4W zener Z-R 2PC4081R Phi N SOT323 gp npn hfe 180-390 ZtR 2PC4081R Phi N SOT323 gp npn hfe 180-390 ZS BZX284-C43 Phi I SOD110 0.4W zener 43V ±5% ZS PDZ30B Phi I SOD323 30V 0.4W zener ZS1 ZHCS1000 Zet C SOT23 30V 1A schottky diode ZS2 ZHCS2000 Zet C SOT23 40V 2A schottky diode ZS5 ZHCS500 Zet C SOT23 40V 0.5A schottky diode ZS7 ZHCS750 Zet C SOT23 30V 0.75A schottky diode Z-S 2PC4081S Phi N SOT323 gp npn hfe 270-560 ZtS 2PC4081S Phi N SOT323 gp npn hfe 270-560 ZT BZX284-C47 Phi I SOD110 0.4W zener 47V ±5% ZT PDZ33B Phi I SOD323 33V 0.4W zener ZU BZX284-C51 Phi I SOD110 0.4W zener 51V ±5% ZU PDZ36B Phi I SOD323 36V 0.4W zener ZV BZX284-C56 Phi I SOD110 0.4W zener 56V ±5% http://www.marsport.org.uk/smd/smdz.htm (5 of 6)27/5/2007 18:21:38
- 186. SMD Codebook page Z ZW BZX284-C62 Phi I SOD110 0.4W zener 62V ±5% ZX BZX284-C68 Phi I SOD110 0.4W zener 68V ±5% ZY BZX284-C75 Phi I SOD110 0.4W zener 75V ±5% Last Updated on 10/07/2006 By GM4PMK http://www.marsport.org.uk/smd/smdz.htm (6 of 6)27/5/2007 18:21:38
- 187. bases a to f http://www.marsport.org.uk/smd/baseatof.htm27/5/2007 18:21:41
- 188. bases g to k http://www.marsport.org.uk/smd/basegtok.htm27/5/2007 18:21:45
- 189. bases l to p http://www.marsport.org.uk/smd/baseltop.htm27/5/2007 18:21:48
- 190. bases q to v http://www.marsport.org.uk/smd/baseqtov.htm27/5/2007 18:21:51
- 191. bases w to z http://www.marsport.org.uk/smd/basewtoz.htm27/5/2007 18:21:54
- 192. bases aq to fq http://www.marsport.org.uk/smd/baseaqtofq.htm27/5/2007 18:21:58
- 193. bases gq to lq http://www.marsport.org.uk/smd/basegqtolq.htm27/5/2007 18:22:02
- 194. base mq tosq http://www.marsport.org.uk/smd/basemqtosq.htm27/5/2007 18:22:05
- 195. bases vq to zq http://www.marsport.org.uk/smd/basetqtozq.htm27/5/2007 18:22:08
- 196. bases za to zf http://www.marsport.org.uk/smd/basezatozf.htm27/5/2007 18:22:11
- 197. bases cs to cz http://www.marsport.org.uk/smd/basecstocz.htm27/5/2007 18:22:15
- 198. bases da to df http://www.marsport.org.uk/smd/basedatodf.htm27/5/2007 18:22:19
- 199. bases dg to dl http://www.marsport.org.uk/smd/basedgtodl.htm27/5/2007 18:22:25
- 200. bases dm to ds http://www.marsport.org.uk/smd/basedmtods.htm27/5/2007 18:22:31
- 201. bases dm to ds http://www.marsport.org.uk/smd/basedttodz.htm27/5/2007 18:22:36
- 202. SMD Codebook Intro The Surface Mount Device Code Book © R P Blackwell GM4PMK A marsport publication! Introduction SMD devices are, by their very nature, too small to carry conventional semiconductor type numbers. Instead, a somewhat arbitrary coding system has grown up, where the device package carries a simple two- or three-character ID code. Identifying the manufacturers' type number of an SMD device from the package code can be a difficult task, involving combing through many different databooks. This HTML book is designed to provide an easy means of device identification. It lists over 3,500 device codes in alphabetical order, together with type numbers, device characteristics or equivalents and pinout information. Sometimes I'm asked to put IC information in the codebook. There is some information about ICs - but first and foremost the codebook is intended for discrete devices. Some ICs have been included, usually these are 3/4 pin devices or RF circuits I'm interested in. Imitations The home of GM4PMK's SMD codebook is here - and it's only here you'll get the most up-to-date information as it's updated often........ There are a number of other copies of this codebook on the Net, of varying ages. Some are translations with my permission, some are just straight rip-offs. None of them will be as up to date as the original. How to use the SMD Codebook To identify a particular SMD device, first identify the package style and note the ID code printed on the device. Now look up the code in the alphanumeric listing which forms the main part of this book by clicking on the first character shown in the left-hand frame. A scrollable page of data will appear in the main frame. Unfortunately, each device code is not necessarily unique. For example a device coded 1A might be either a BC846A or a FMMT3904. Even the same manufacturer may use the same code for different devices! If there is more than http://www.marsport.org.uk/smd/codeintro.htm (1 of 6)27/5/2007 18:22:44
- 203. SMD Codebook Intro one entry, use the package style to differentiate between devices with the same ID code. Identifying the package is not always easy - measuring the package dimensions may help; and the codebook has some information about these. This compilation has been collected from manufacturers' data and other sources of SMD device ID codes, pinout and leaded device equivalent information. The entries under the Manufacturer column are not intended to be comprehensive; rather they are intended to provide help on locating sources of more detailed information if you require it. Bases/Connections When you have looked up a device, the Base letter will guide you to a pin-out diagram. Note that some bases have marks to show the correct orientations, on others, one or more 'pins' may be a different size or shape. Some packages have nothing at all - in that case the device is shown such that the ID code is the right way up. ID Code Variations Many manufacturers use an extra letter as their own identification code. If the device is from Philips it will sometimes have a lower case 'p' (or sometimes 't') added to the code; Siemens devices usually have a lower case 's'. For example, if the code is 1A, according to the table there are a number of possibilities: 1A BC846A Phi ITT N BC546A 1A FMMT3904 Zet N 2N3904 1A MMBT3904 Mot N 2N3904 1A IRLML2402 IR F n-ch mosfet 20V 0.9A Note that p6A (for example) is different from 6Ap. The position of the 'p' is important! In this case, p6A is a jfet, and 6Ap a bipolar transistor. You'll find both of these in the '6' page though - in other words these lower case prefixes or suffixes are ignored for indexing purposes, but critical to identifying the device. http://www.marsport.org.uk/smd/codeintro.htm (2 of 6)27/5/2007 18:22:44
- 204. SMD Codebook Intro This has been a problem in the past, however recently manufacturers have been adding lower case letters which clarify the code. Many recent Motorola devices have a small superscript letter after the device code, such as SAC. This smaller letter is merely a month of manufacture code. Many devices from Rohm Semiconductors which start with G have direct equivalents found in the rest of the number. For example GD1 is the same as D1 which is a BCW31. Some devices have a single coloured letter (usually on extremely small diode packages). Colour, if significant, is shown in small type after the code letter. A major re-write of the codebook is under way. A new column is being added to each table, giving the package. Obviously this will take quite some time to complete!! An 'L' suffix usually indicates a low-profile package, such as an SOT323 or SC70. Reverse joggle devices do present a few problems. They oftern have an 'R' in the type number. A reverse package is one where the lead have been bent up instead of down. So it's a mirror image of a conventional device. Identification is usually possible from the code number, but some manufacturers use the same code. In these cases, it's a case of looking at the device with a magnifying glass. The leads of most normal packages come out closer to the circuit board side of the device; conversely a reverse joggle package will have them coming out closer to the 'top' of the device. Sometimes a series of devices, derived from the same die, have related type (not code) numbers. Often an 'R' will indicate a reverse joggle package, and/or a 'W' indicate a smaller package variant, such as SOT343. Sometimes similarities are also found in the code numbers. For example '67' is the code for a BFP67 (SOT143 package) , and '67R' is the code for the reverse joggle variant BFP67R (SOT143R), while 'W67' is the code for a SOT343 package version. Recently some manufacturers have used a symbol or lower case letter to indicate the country of manufacture. These have been ignored in the alphabetical ordering. For example 'Z-S' and 'ZtS ' are both 2PC4081Q devices http://www.marsport.org.uk/smd/codeintro.htm (3 of 6)27/5/2007 18:22:44
- 205. SMD Codebook Intro made by Philips; the first made in Hong Kong and the second in Malaysia; this appears in the codebook classified under ZS. Leaded equivalent device and information Where possible, the listing gives the part number of a conventional wire-leaded device with equivalent characteristics. If the leaded device is well-known then no more information is given. If the device is less common, some additional information will sometimes be given. Where no exact leaded equivalent exists, a brief device description is given, which may be sufficient to allow substitution with another device. When describing device characteristics, some terms are implied from the type of device. For example, a voltage specified for a rectifier diode is usually the maximum PIV (peak inverse voltage) of the diode, but for a zener diode the operating (zener voltage) will be given. Normally, where a voltage, current or power is specified, these will be limiting values. For example, a device specified as NPN 20V 0.1A 1W is a NPN transistor with a Vce (max) of 20V, maximum collector current of 100mA and a maximum total power dissipation of 1W. Some of the transistors are types with integrated resistors; in the list, a base resistor means a resistor connected in series with the base. When two resistor values are given, the first is the series base resistor, and the second the resistor between base and emitter. Digital Transistors (dtr) These are transistors with built-in resistors, also called 'prebiased transistors'. The Codebook uses 'dtr' as it's shorter... Some have one resistor between base and emitter, others in series with the base lead. Many others have both. To keep things simple, the series resistor is called R1 and the base emitter resistor is called R2. If both are present, then two values are given, R1 first. So 4k7 + 10k means that R1 (the base resistor) is 4k7 and R2 (the resistor between base and emitter) is 10k. http://www.marsport.org.uk/smd/codeintro.htm (4 of 6)27/5/2007 18:22:44
- 206. SMD Codebook Intro Endpiece Appendices showing device pinouts, some package dimensions, abbreviations, diode colour codes, resistor and capacitor codes are also available from the main SMD Codebook Screen. Finally, thanks to all for the kind comments and data - it's nice to know the codebook is useful. Anyone out there who wants to donate up-to-date data books, they would be a most welcome aid to updating the codebook. My postal mail address is here. If you have any extra information to add to what's here, I'd be very grateful. You can email to me here. I'm not able to offer any additional information apart from what is on the pages, so please DON'T ASK. Emails requesting 'can you help me with SMD code XX' will be ignored. No liability is accepted by the author for errors or omissions. The SMD Codebook is © R P Blackwell. Enter the SMD Codebook Hyper(space)link back to Marsport http://www.marsport.org.uk/smd/codeintro.htm (5 of 6)27/5/2007 18:22:44
- 207. SMD Codebook Intro updated 01/06/2006 by GM4PMK http://www.marsport.org.uk/smd/codeintro.htm (6 of 6)27/5/2007 18:22:44
- 208. Abbreviations Abbreviations Device data abbreviations amp amplifier atten attenuator a anode b base bi, bid bidirectional c cathode ca common anode cc common cathode comp complement d drain dg dual gate dtr digital transistor (see codebook introduction) enh enhancement (mode - FETs) fet field effect transistor fT transition frequency GaAsfet Gallium Arsenide field effect transistor g gate gnd ground gp general purpose hfe small signal current gain i/p input Id drain current Ig gate current Ir reverse leakage current (diodes) jfet junction field effect transistor MAG maximum available gain max maximum min minimum mmic microwave minature integrated circuit modamp modular amplifier - an mmic amplifier mosfet metal oxide insulated gate fet n-ch n-channel fet (any type) npn npn bipolar transistor o/p output p-ch p-channel fet (any type) pin pin diode pkg package http://www.marsport.org.uk/smd/abbreviations.htm (1 of 2)27/5/2007 18:22:48
- 209. Abbreviations pnp pnp bipolar transistor prot protection, protected (as in mosfet gate) res resistor s source ser series Si silicon substr substrate sw switch or switching tvs transient voltage supressor uni unidirectional Vce collector - emitter voltage (maximum) Vcc collector supply voltage Manufacturer abbreviations Agi Agilent (was HP) CSC Central Semiconductor Corp Dio Diodes Inc Fch Fairchild HP Hewlett-Packard (Now Agilent) Inf Infineon (was Siemens) ITT ITT Semiconductors MC Mini-Circuits Mot Motorola (now ON Semiconductors) Nat National Semiconductor Nec NEC NJRC New Japan Radio Co ON ON Semiconductors (was Motorola) Phi Philips Roh Rohm SGS SGS-Thompson Sie Siemens (now Infineon) Sil Siliconix (Vishay-Silliconix) Tem Temic Semiconductors Tfk Telefunken (Vishay-Telefunken) Tok Toko Inc. Tosh Toshiba Vis Vishay Semiconductor (was Gen Semi, Tfk, Sil etc) Zet Zetex Last Updated on 01/06/2006 By GM4PMK http://www.marsport.org.uk/smd/abbreviations.htm (2 of 2)27/5/2007 18:22:48
- 210. HP diode codes HP diode coding HP diodes appear to follow a regular coding scheme. Although this is not always followed, it may help in identifying diodes and package styles if used with caution. Not all HP diodes follow this scheme, so beware! The general type number scheme is: HSMX-123# HSM stands for HP Suface Mount, I suppose! X is either S for a schottky diode or P for a PIN diode. # is a letter for a SOT323 package and a number for a SOT23 device. It denotes the internal arrangement - single, common anode pair, quad, etc. The digit of the code marked on the package itself usually corresponds to the package style (#) number. The numbers and letters correspond to the following arrangements: Device style # SOT-23 # SOT-323 Printed on package Codebook base Single diode - standard 0 B 0 C Single diode – reverse 1 A 1 K Dual series - standard 2 C 2 D Dual series – reverse 2 C 2 Z Common anode pair 3 3 A Common cathode pair 4 4 B Unconnected pair 5 5 S Ring Quad 7 7 RQ Bridge Quad 8 8 BQ Dual Anode A Y Dual Cathode B J Last Updated on 01/06/06 By GM4PMK http://www.marsport.org.uk/smd/hp.htm27/5/2007 18:22:50
- 211. SOD-80 diodes MELF/mini-MELF/LL-34 Package Diodes The SOD-80 package, also known as mini-MELF, is a small ( glass, sometimes plastic) cylinder with metal ends. MELF package L=4.9mm D=2.5mm mini-MELF (SOD80C) L=3.5mm D=1.6mm LL-34 L=3.4mm D= 1.4mm Code marked devices Marked 2Y4 to 75Y (E24 series) BZV49 series 1W zener diodes (2.4 - 75V) Marked C2V4 TO C75 (E24 series) BZV55 series 500mW zener diodes (2.4 - 75V) The cathode end is indicated by a coloured band. Coloured band marked devices (MELF/SOD-80) CATHODE BAND (S) Device http://www.marsport.org.uk/smd/sod80.htm (1 of 4)27/5/2007 18:22:54
- 212. SOD-80 diodes Black BAS32, BAS45, BAV105 LL4148, 50, 51,53, LL4448 BB241,BB249 Black Brown LL4148, LL914 Black Orange LL4150, BB219 Brown Green LL300 Brown Black LL4448 Red BA682 Red Orange BA683 Red Green BA423L Red WHite LL600 Orange Yellow LL3595 Yellow BZV55,BZV80,BZV81 series zeners Green BAV105, BB240 Green Black BAV100 Green Brown BAV101 Green Red BAV102 Green Orange BAV103 Grey BAS81, 82, 83, 85, 86 White BB219 White Green BB215 Some manufacturers have a generic type coding scheme for MELF and mini- MELF diodes. That for Vishay/General Semiconductor is shown below: CATHODE BAND Mini MELF Device Type Black General purpose Yellow Switching http://www.marsport.org.uk/smd/sod80.htm (2 of 4)27/5/2007 18:22:54
- 213. SOD-80 diodes Green Schottky Blue Zener CATHODE BAND MELF Device Type Black Zener Green Schottky Rohm LL-34 package Zener Diodes RLZ Series Three band colour code Third band is always Green Type 1st Band 2nd Band 3rd Band Type 1st Band 2nd Band 3rd Band RLZ3.6B Black Purple Green RLZ12B Red Black Green RLZ3.9B Black Gray Green RLZ13B Red Brown Green RLZ4.3B Brown White Green RLZ15B Red Red Green RLZ4.7B Brown Black Green RLZ16B Red Orange Green RLZ5.1B Brown Brown Green RLZ18B Red Yellow Green RLZ5.6B Brown Red Green RLZ20B Red Green Green RLZ6.2B Brown Orange Green RLZ22B Red Blue Green RLZ6.8B Brown Yellow Green RLZ24B Red Purple Green RLZ7.5B Brown Green Green RLZ27B Red Gray Green RLZ8.2B Brown Blue Green RLZ30B Red White Green RLZ9.1B Black Purple Green RLZ33B Orange Black Green RLZ10B Black Gray Green RLZ36B Orange Brown Green RLZ11B Black White Green RLZ39B Orange Red Green http://www.marsport.org.uk/smd/sod80.htm (3 of 4)27/5/2007 18:22:54
- 214. SOD-80 diodes http://www.marsport.org.uk/smd/sod80.htm (4 of 4)27/5/2007 18:22:54
- 215. MELF diodes Plastic MELF Package Diodes Vishay/General Semiconductor plastic MELF and mini-MELF packages may have colour coding as shown in the following tables A * (asterisk) indicates device is mini-MELF: 1st band Red 2nd Band Devices Red BYM11-100, RGL41A, RGL43B* Orange BYM11-200, RGL41D, RGL43D Yellow BYM11-400, RGL41G, RGL43G Green BYM11-600, RGL41J, RGL43J Blue BYM11-800, RGL41K Violet BYM11-1000, RGL41M Gray BYM11-50, RGL41A, RGL43A 1st Band Orange 2nd Band Devices Red BYM13-30, SGL41-30 Orange BYM13-40, SGL41-40 http://www.marsport.org.uk/smd/plasmelf.htm (1 of 3)27/5/2007 18:22:56
- 216. MELF diodes Yellow BYM13-50, SGL41-50 Green BYM13-60, SGL41-60 Gray BYM13-20, SGL41-20 1st Band Green 2nd Band Devices Brown BYM12-300, EGL41F, BYM-07- 300*, EGL34F* Red BYM12-100, EGL41B, BYM07- 100*, EGL34B* Orange BYM12-200, EGL41D, BYM07- 200*, EGL34D* Yellow BYM12-400,EGL41G, BYM07- 400*, EGL34G* Gray BYM12-50, EGL41A, BYM07- 50*, EGL34A* Pink BYM12-150, EGL41C, BYM07- 150*, EGL34C* 1st Band White 2nd Band Devices Brown GL41Y Red BYM10-100, GL41B, GL34B* Orange BYM10-200, GL41D, GL34D* Yellow BYM10-400, GL41G, GL34G* Green BYM10-600, GL41J, GL34J* Blue BYM10-800, GL41K Violet BYM10-1000,GL41M http://www.marsport.org.uk/smd/plasmelf.htm (2 of 3)27/5/2007 18:22:56
- 217. MELF diodes Gray BYM10-50, GL41A, GL34A* White GL41T http://www.marsport.org.uk/smd/plasmelf.htm (3 of 3)27/5/2007 18:22:56
- 218. SOD-8123 diodes SOD-123 Package Diodes Colour-coded SOD-123 and SOD-323diodes. Devices marked with letter/ number codes will be found in the main list. CATHODE BAND Devices Red BA620, BB620, BB729, BB713S, BV430-2 Yellow BA619, BB619, BB701S, BB729S Green BA585, BB731 Purple BB730 Blue BA582, BA583, BA584, BB731, BA782-3 White BA512, BA515, BB515, BA811, BB721, BB721S Note! Devices with a coloured band may also have a alphanumeric code - which may well be only a date code. http://www.marsport.org.uk/smd/sod123.htm27/5/2007 18:22:57
- 219. SMD Electrolytic Capacitor Coding SMD Electrolytic Capacitor Coding SMD electrolytic capacitors are often marked with their capacitance and working voltage, e. g. 10 6V is 10 μF 6V . Sometimes a code is used instead, which normally consists of a letter and 3 digits. The letter indicates the working voltage and the 3 digits (2 digits and multiplier) give the capacitance in pF. Letter Voltage e 2.5 G 4 J 6.3 A 10 C 16 D 20 E 25 V 35 H 50 The band or stripe indicates the positive terminal. For example, a capacitor marked A475 is a 4.7m F 10V unit. 475 = 47 x 105 pF = 4.7 x 106 pF = 4.7m F http://www.marsport.org.uk/smd/cap.htm27/5/2007 18:23:00
- 220. SMD Ceramic Capacitor Coding SMD Ceramic Capacitor Coding SMD ceramic capacitors are sometimes marked with a code, consisting of one or two letters and a digit. The first letter if present is a manufacturer code (i.e K for Kemet, etc.), the second letter the mantissa and the digit the exponent (multiplier) of the capacitance in pF. For example S3 is a 4.7nF (4.7 x 10³ pf) capactitor from an unknown manufacturer, while KA2 is a 100 pF (1.0 x 10² pF) capacitor from Kemet. Thanks to K7ITM for providing this information! Letter Mantissa Letter Mantissa Letter Mantissa Letter Mantissa A 1.0 J 2.2 S 4.7 a 2.5 B 1.1 K 2.4 T 5.1 b 3.5 C 1.2 L 2.7 U 5.6 d 4.0 D 1.3 M 3.0 V 6.2 e 4.5 E 1.5 N 3.3 W 6.8 f 5.0 F 1.6 P 3.6 X 7.5 m 6.0 G 1.8 Q 3.9 Y 8.2 n 7.0 H 2.0 R 4.3 Z 9.1 t 8.0 y 9.0 http://www.marsport.org.uk/smd/chipcap.htm27/5/2007 18:23:02
- 221. SMD Resistor marking SMD Resistor Coding SMD Resistors are usually coded with a numerical equivalent of the familiar three band colour code. In the same way as wire ended components, precision resistors (1% or better) may be marked with a four digit code. The first two (or 3) digits are the first two (or 3) digits of the resistance in ohms, and the third(or 4th) is the number of zeros to follow - the 'multiplier'. Resistances of less than 10 ohms have a 'R' to indicate the position of the decimal point. Some examples will meake this clearer: Three Digit Examples Four Digit Examples 330 is 33 ohms - not 330 ohms 1000 is 100 ohms - not 1000 ohms 221 is 220 ohms 4992 is 49 900 ohms, or 49.9 kohm 683 is 68 000 ohms, or 68 kohm 16234 is 162 000 ohms, or 162 kohm 105 is 1 000 000 ohms, or 1 Mohm 0R56 or R56 is 0.56 ohms 8R2 is 8.2 ohms But just to make life more interesting, a new coding system has appeared on 1% types. This is known as the EIA-96 marking method. It consists of a three-character code. The first two digits signify the 3 significant digits of the resistor value, using the lookup table below. The third character - a letter - signifies the multiplier. code value code value code value code value code value code value 01 100 17 147 33 215 49 316 65 464 81 681 02 102 18 150 34 221 50 324 66 475 82 698 03 105 19 154 35 226 51 332 67 487 83 715 04 107 20 158 36 232 52 340 68 499 84 732 05 110 21 162 37 237 53 348 69 511 85 750 06 113 22 165 38 243 54 357 70 523 86 768 07 115 23 169 39 249 55 365 71 536 87 787 08 118 24 174 40 255 56 374 72 549 88 806 09 121 25 178 41 261 57 383 73 562 89 825 10 124 26 182 42 237 58 392 74 576 90 845 11 127 27 187 43 274 59 402 75 590 91 866 12 130 28 191 44 280 60 412 76 604 92 887 13 133 29 196 45 287 61 422 77 619 93 909 14 137 30 200 46 294 62 432 78 634 94 931 http://www.marsport.org.uk/smd/res.htm (1 of 2)27/5/2007 18:23:07
- 222. SMD Resistor marking 15 140 31 205 47 301 63 442 79 649 95 953 16 143 32 210 48 309 64 453 80 665 96 976 The multiplier letters are as follows: letter mult letter mult F 100000 B 10 E 10000 A 1 D 1000 X or S 0.1 C 100 Y or R 0.01 22A is a 165 ohm resistor, 68C is a 49900 ohm (49.9 k) and 43E a 2740000 (2.74 M). This marking scheme applies to 1% resistors only. A similar scheme can be used for 2, 5 and 10% tolerance types. The multiplier letters are identical to the 1% ones, but occur before the number code. Just to make it even more fun, a different coding scheme is used. Here it is: 2% 5% 10% code value code value code value code value code value 01 100 13 330 25 100 37 330 49 100 02 110 14 360 26 110 38 360 50 120 03 120 15 390 27 120 39 390 51 150 04 130 16 430 28 130 40 430 52 180 05 150 17 470 29 150 41 470 53 220 06 160 18 510 30 160 42 510 54 270 07 180 19 560 31 180 43 560 55 330 08 200 20 620 32 200 44 620 56 390 09 220 21 680 33 220 45 680 57 470 10 240 22 750 34 240 46 750 58 560 11 270 23 820 35 270 47 820 59 680 12 300 24 910 36 300 48 910 60 820 So with this scheme, A55 is a 330 ohm, 10% tolerance resistor, C31 a 5%, 18000 ohm (18 kilohm) unit, and D18 510000 ohms (510 kohm) 2% tolerance. Personally, I'd check with an ohm-meter! last updated 10/07/06 by GM4PMK http://www.marsport.org.uk/smd/res.htm (2 of 2)27/5/2007 18:23:07
- 223. SMD Package equivalents PACKAGE EQUIVALENTS Here is a table of more-or-less equivalents for many SMD packages. Package Equivalents SOT89 SC62 SOT223 SC73 SOT323 SC70,UMT3 SOT346 SC59,SMT3 SOT363 SC88 SOT416 SC75, SC90, EMT3 SOT457 SC74 SOD323 SC76 SOD523 SC79 http://www.marsport.org.uk/smd/package%20equivalents.htm27/5/2007 18:23:09
- 224. GM4PMK's SMD Codebook - Date Codes Date Coding There are a variety of date coding schemes in use. Here are some of them. Often, it's possible to confuse which is the device code and which is the date code. Date codes are often in a different font, of a different size, or placed in a different orientation. Sometimes they are incorporated into the code number - where possible this will be indocated on the code entry by 'xx' and a note in the data entry. Some devices are only marked with the month of production. Method 1 2 characters from tables below in form YM for year, month Year 2002 2003 2004 2005 2006 2007 2008 Code N P R S T U V Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code 1 2 3 4 5 6 7 8 9 O N D Another alternative year table...... likely to apply to General Semiconductor products up to 2000 Year 1994 1995 1996 1997 1998 1999 2000 Code E F H J K L M Method 2 2 characters from tables below in form YM for year, month Year 1997 1998 1999 2000 2001 2002 2003 2004 2005 Code 7 8 9 0 1 2 3 4 5 Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec Code 1 2 3 4 5 6 7 8 9 A B C http://www.marsport.org.uk/smd/datecode.htm27/5/2007 18:23:12
- 229. Diode package dimensions DIODE PACKAGES Dimensions of 2-lead diode packages, as length x width x thickness or length x diameter (mm) Package Size Manufacturer EMD2 1.2 x 0.8 x 0.6 Rohm PMDT 3.8 x 2.4 x 0.95 Rohm PMDS 4.5 x 2.6 x 2.0 Rohm PMDU 2.6 x 1.6 x 0.8 Rohm TUMD2 1.9 x 1.3 x 0.6 Rohm UMD2 1.7 x 1.25 x 0.7 Rohm VMD2 1.0 x 0.6 x 0.5 Rohm VMN2 0.9 x 0.6 x 0.4 Rohm LLDS 3.4 x 1.5Ø Rohm MELF 4.9 x 2.5Ø SOD80 3.5 x 1.6Ø SOD110 2.1 x 1.4 x 1.6 SOD323 2.7 x 1.8 x 1.2 SOD523 1.1 x 0.7 x 0.8 SOD882 1.0 x 0.6 x 0.5 LL34 3.4x 1.5Ø JEDEC http://www.marsport.org.uk/smd/diode%20packages.htm27/5/2007 18:23:29
