Threat Modeling Basics with Examples
1 like1,258 views
The document provides a comprehensive overview of threat modeling, detailing its purpose, methodologies, and implementation strategies. It emphasizes the importance of addressing potential threats early in the design phase and outlines different types of threat modeling approaches. Additionally, it includes common mistakes to avoid, tools for implementation, and recommended resources for further learning.
Threat Modeling Basics with Examples
- 1. sanjeevjaiswal.com Threat Modeling for Everyone The earlier the better. (2021) Sanjeev Jaiswal (Jassi) 1
- 2. sanjeevjaiswal.com Agenda ● What and Why Is Threat Modeling ● When We should use Threat Model ● How to implement Threat Model ● STRIDE Hands-On ● What’s Next 2
- 3. sanjeevjaiswal.com Mindset plays an important role here! 3
- 4. sanjeevjaiswal.com What is Threat Modeling ● Design/Model of a system/application from security point of view ● A list of potential threats ● A list of action to mitigate each threat ● Validating the threats and verifications of action taken. 4
- 5. sanjeevjaiswal.com Why Threat Modeling ● To build a secure system/application ● Define and build required controls ● Identify threats early and evaluate their risk ● Document threats, controls, risks & Mitigations ● .Security test cases to be performed by pentesters 5
- 6. sanjeevjaiswal.com Curious case of Helmet Does using helmet is enough? ● Types of helmets, which one? ● Having helmet is enough? ● Low quality helmet is ok? ● Wearing helmet just to avoid fine? ● What about helmet expiry date? ● Do we need helmet upgrade? 6
- 7. sanjeevjaiswal.com When to use Threat Modeling ● The sooner the better ● Ideally at design phase ● Whenever system changes ● After an incident ● Possibly at CI/CD ? 7
- 8. sanjeevjaiswal.com Threat Modeling Methodologies Start with these 4 Questions 1. What are we building? 2. What can go wrong? 3. What are we going to do about it? 4. Did We do a good enough job? 8
- 9. sanjeevjaiswal.com Threat Modeling Types Basically 3 types: 1. Attacker Centric 2. Application Centric 3. Asset Centric 9
- 10. sanjeevjaiswal.com STRIDE (Developer Focused) ● Spoofing ● Tampering ● Repudiation ● Information Disclosure ● Denial of Service ● Elevation of Privilege 10
- 11. sanjeevjaiswal.com What can go wrong Threat Desired property Spoofing Authenticity Tampering Integrity Repudiation Non-repudiability Information disclosure Confidentiality Denial of Service Availability Elevation of Privilege Authorization 11
- 12. sanjeevjaiswal.com Batman needs Threat Model 12
- 14. sanjeevjaiswal.com DFD for Threat Model Terms that you will use ● Asset: What do you want to protect? ● Threat: What's a potential negative impact or outcome? ● Vulnerability: Spotted Weakness? Threat can be sensed? ● Attack: How to take advantage of the Vulnerability? ● Mitigation: How can we reduce the damage? 14
- 15. sanjeevjaiswal.com DFD for Threat Model Elements ● Process ● Multi-Process ● Data Flow ● Trust Boundary ● Data Store ● External Entity 15

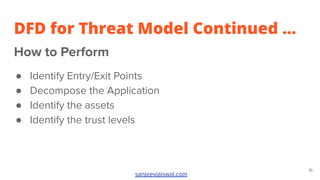

- 16. sanjeevjaiswal.com DFD for Threat Model Continued ... How to Perform ● Identify Entry/Exit Points ● Decompose the Application ● Identify the assets ● Identify the trust levels 16
- 18. sanjeevjaiswal.com Common Threat Model mistakes ● Thinking like an attacker while threat modeling ● This process is only for experts or for Architects ● Only inflow, no outflow and reverse as well ● Thinking one size fits all ● Neglecting business impact ● Focusing on vulnerabilities not the threats 18
- 20. sanjeevjaiswal.com Implement Threat Model: Tools ● MS Threat Modeling tool ● OWASP Threat Dragon Project ● Draw.io ● IriusRisk ● SecuriCAD by foreSeeti ● SD Elements 20
- 21. sanjeevjaiswal.com What’s Next ● DevSecOps Threat Model ● Infra Threat Model ● PASTA (Attacker Focused) ● OCTAVE (Practice Focused) ● VAST (Enterprise Focused) 21
- 22. sanjeevjaiswal.com Must READ Resources ● Threat Modeling Book by Adam Shostack ● Learn Threat Modeling for Security Professionals ● OWASP Application Threat Modeling ● Threat Modeling CheatSheet ● Threat Playbook by we45 (Interesting One) ● Docker Container Security and STRIDE 22
- 23. sanjeevjaiswal.com Useful Resources Continued ... ● Microsoft Secure-SDL: Threat Modeling ● OWASP Application Threat Modeling ● Threat Modeling why how when (Nice Article) ● Kubernetes Threat Model (pdf) ● Docker Security: Threat Modeling ● Container as a Service Threat Analysis (pdf) 23
- 24. sanjeevjaiswal.com Thank you Happy Learning. Share if you care. 24
