Tokens expressionsin C++

UNIT-3
TOKENS,EXPRESSIONS & CONTROL
STATEMENTS

TOKENS
 The Smallest Units in a program are known as
token.
 C++ has following tokens:
 Keywords
 Identifiers
 Constants
 Strings
 Operators
11/24/2016
C++ Lecture Notes By Hansa Halai

KEYWORDS
 Keywords are reserved words in proramming .
 Each keyword has fixed meaning and that can not
be changed by user.
 For Ex:
int num1; where int is keyword indicates num1
is integer type.
11/24/2016

asm double new switch
auto else operator template
break enum private this
case extern protected throw
catch float public try
char for register typedef
class friend return union
const goto short unsigned
continue if signed virtual
default inline sizeof void
delete int static volatile
do long struct while
bool export reinterpret_cast typename
const_cast false static_cast using
dynamic_cast mutable true wchar_t
explicit namespace typeid

IDENTIFIERS AND CONSTANTS
 Identifier is user defined names of variables,
functions,arrays, classes,etc.
 They are the fundamental of any language.
 Each language has its own rules for naming these
identifiers.These are follow:
 Only alphabetic characters,digits and
underscores are permitted.
 The name can not start with digits.
 Uppercase and lowercase letters are distinct.
 A declared keyword cannot be used as a variable
name.

 Constants refers to fixed values that do not change
during the execution of program.
 They include integer,character,floating point
numbers and string
11/24/2016

C++ DATA TYPES
 C++ data types divided mainly in three categories
as follows:
 Basic data types
 User defined data types
 Derived data types
11/24/2016

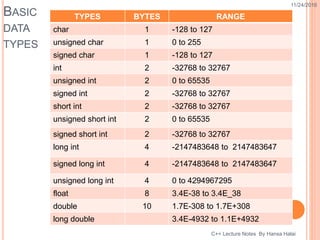

BASIC
DATA
TYPES
TYPES BYTES RANGE
char 1 -128 to 127
unsigned char 1 0 to 255
signed char 1 -128 to 127
int 2 -32768 to 32767
unsigned int 2 0 to 65535
signed int 2 -32768 to 32767
short int 2 -32768 to 32767
unsigned short int 2 0 to 65535
signed short int 2 -32768 to 32767
long int 4 -2147483648 to 2147483647
signed long int 4 -2147483648 to 2147483647
unsigned long int 4 0 to 4294967295
float 8 3.4E-38 to 3.4E_38
double 10 1.7E-308 to 1.7E+308
long double 3.4E-4932 to 1.1E+4932
11/24/2016

USER-DEFINED DATA TYPES
 There are following user defined data types:
 struct
 union
 enum
 class
11/24/20
16

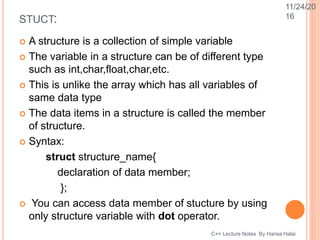

STUCT:
 A structure is a collection of simple variable
 The variable in a structure can be of different type
such as int,char,float,char,etc.
 This is unlike the array which has all variables of
same data type
 The data items in a structure is called the member
of structure.
 Syntax:
struct structure_name{
declaration of data member;
};
 You can access data member of stucture by using
only structure variable with dot operator.
11/24/20
16

11/24/2016
#include<iostream>
using namespace std;
struct student{
int Roll_No;
char name[15];
int cPlus,maths,sql,dfs,total;
float per;
};
int main(){
struct student s;
cout<<"Enter Roll No:";
cin>>s.Roll_No;
cout<<"Enter Name:";
cin>>s.name;
cout<<"Enter Marks For CPlus:";
cin>>s.cPlus;
cout<<"Enter Marks For Maths:";
PROGRAMME OF STRUCTURE

11/24/2016
cin>>s.maths;
cout<<"Enter Marks For Sql :";
cin>>s.sql;
cout<<"Enter Marks For DFS:";
cin>>s.dfs;
s.total=s.cPlus+s.maths+s.sql+s.dfs;
s.per=s.total/4;
cout<<"Your Roll No is:"<<s.Roll_No<<"n";
cout<<"Your Name is:"<<s.name<<"n";
cout<<"Your Total is:"<<s.total<<"n";
cout<<"Your Percentage is:"<<s.per<<"%"<<"n";
return 0;
}

11/24/2016

UNION
 Union is also like a structure means union is also
used to storing different data types ,but the
difference between structure and union is that
structure consume the memory of addition of all
elements of different data types but a union
consume the memory that is highest among all
elements.
 It consume memory of highest variable and it will
share the data among all other variable.
11/24/2016

 For example:
If a union contains variable like int, char,float then
the memory will be consume of float variable
because float is highest among all variable of data
type.
 Syntax:
union union_name //union declaration
{
data_type member1;
data_type member2;
…
};
11/24/2016

 Like ,
union stu{
int roll_no; //occupies 2 bytes
char grade ; //occupies 1 bytes
};
11/24/2016
Byte 0 Byte 1
roll_no
grade
Memory representation in union

11/24/2016
 Define with ‘struct’ keyword.
 All member can be manipulated
simultaneosly.
 The size of object is equal to
the sum of individual size of the
member object.
 Members are allocated distinct
memory location.
 Define with ’union’ keyword.
 Member can be manipulated
one at a time.
 The size of object is equal to
the size of largest member
object.
 Members are share common
memory space.
STRUCTURE UNION

ENUM IN C++
 An enumeration type is user defined type that enable
the user to define the range of values for the type.
 Syntax:
enum [enum-type] { enum-list};
 Name constants are used to represent the value of an
enumeration for example:
enum char{a,b,c};
 The default value assigned to the enumeration canstant
are zero-based so in above example a=0,b=1 and so
on.
11/24/2016

 The user also can assign value to one or more
enumeration constant,and subsequent values that
are not assigned will be incremented.
For example :
enum char{a=3,b=7,c,d};
here, value of c is 8 and d is 9.
11/24/2016

PROGRAMME FOR ENUM TYPE
#include<iostream>
int main()
{
enum Fruits{apple,orange,guava,pinapple};
Fruits myfruit;
int i;
cout<<"Enter your choice:";
cin>>i;
11/24/2016

switch(i)
{
case apple:
cout<<"Your first fruit is Apple.";
break;
case orange:
cout<<"Your second fruit is Orange.";
break;
case guava:
cout<<"Your thidr fruit is Guava.";
break;
case pinapple:
cout<<"Your forth fruit is Pinapple.";
break;
}
return 0;
}
11/24/2016

CLASS
 The class type enables us to create sophisticated
use dfined type.
 We provide data items for the class and the
operation that can be performed on the data.
 Syntax:
class class_name{
data member variables;
data member mehods/functions;
};
11/24/2016

CLASS PROGRAMME
#include<iostream>
class piramid
{
int i,n,j;
public:
void getdata();
void buildpiramid();
};
void piramid::getdata()
{
cout<<"enter N:";
cin>>n;
}
11/24/2016

void piramid::buildpiramid()
{
for(i=1;i<=n;i++)
{
for(j=1;j<=i;j++)
{
cout<<"*";
}
cout<<"n";
}
}
int main()
{
piramid p;
p.getdata();
p.buildpiramid();
return 0;
}
11/24/2016

DERIVED DATA TYPE
 The derived data type are:
 array
 function
 pointer
11/24/2016

ARRAY
 An array is a series of elements of the same data
type placed in contiguous memory location.
 Like regular variable ,an array must be declare
before it is used.
 Syntax:
data_type name[size];
 Ex:
char name[10];
int student[10];
11/24/2016

FUNCTION
 A function is a group of statement that together
perform a task.
 Every c++ program has at least one function that is
main() and programmer can define additional
function.
 You must define function prototype before use
them.
 A function prototype tells compiler the name of the
function ,return type, and parameters.
11/24/2016

 Syntax:
return_type function_name(parameter_list);
 Ex:
int max(int n1,int n2);
11/24/2016

11/24/2016
#include<iostream>
int max(int n1,int n2); declaration
int main()
{
int n1;
int n2;
int a;
cout<<"Enter Number1: "<<"n";
cin>>n1;
cout<<"Enter Number2: "<<"n";
cin>>n2;
a=max(n1,n2); calling function
cout<<"max value is "<<a<<"n";
return 0;
}
FUNCTION PROGRAM

11/24/2016
int max(int n1,int n2)
{
int result;
if(n1>n2)
result=n1;
else
result=n2;
return result;
}

POINTER
 Pointer is basically the same as any other
variable,difference about them is that instead of
containing actual data they contain a pointer to
the memory location where information can be
found.
 Basically, pointer is variable whose value is address
of another variable.
 Syntax:
type *var_name;
 Ex:
int *p;
11/24/2016

 There are few operation which will do frequently
with pointer is:
I. We define a pointer variable.
II. Assign address of variable to a pointer and
III. Finally access the value at the address available in
the pointer variable.
 Like,
I. int var=20;
II. p =&var;
III. int *p;
11/24/2016

POINTER PROGRAM
11/24/2016
#include<iostream>
int main()
{
int var=34;
int *p;
p=&var;
cout<<"Value of Var variable is "<<var<<"n";
cout<<"Address stored in variable is "<<p<<"n";
cout<<"Value of P Variable is "<<*p<<"n";
return 0;
}

SYMBOLIC CONSTANT TYPE
 Constant is an identifier with associated value
which can not be altered by the program during
execution.
 You must initialize a constant when you craete
it,you can not assign new value later after constant
is initialized.
 Symbolic constant is a constant that is
represented by name.
 Defining constant with ’ #define’.
 Defining constant with ’const’.
 Defining constant with ’enum’.
11/24/2016

 Ex:
#define pi 3.14
const max=10;
enum char{a,b,c};
11/24/2016

TYPE COMPATIBILITY
 The sizeof is a keyword but it is compile time
operator that determine the size, in byte, of a
variable or data type.
 It can be used to get the size of classes, structure,
union and any other user defined data type.
 Syntax:
sizeof(data_type)
 Ex:
sizeof(x) or sizeof(int)
 sizeof operater will return integer value.
11/24/2016

PROGRAM: USE OF SIZEOF OPERATOR
#include<iostream>
int main()
{
int a,x;
char b;
float c=10.02;
double d;
cout<<"size of a:"<<sizeof(a)*sizeof(x)<<"n"; *nested sizeof *
cout<<"size of b:"<<sizeof(b)<<"n";
cout<<"size of c:"<<sizeof(10.02)<<"n";
cout<<"size of d:"<<sizeof(d)<<"n";
return 0;
}
11/24/2016

VARABLE IN C++
 Variable is a place to store information.
 A variable is a location in your computer’s memory
in which you can store a value and from which you
can later retrive the value.
 This is temporary storage,when you turn the
computer off these variable are lost.
 Like c, in c++ all variable must be declare before
we used it.
 The diiference is that in c, it requires to be defined
at the beginning of a scope,rather c++ allow you to
declaration of variable anywhere in the scope.
11/24/2016

 This means that a variable can be declared right at
the place of its first use.
 Declaration Of variable:
char name[12];
int a;
float num;
 If you are going to declare more than one variable
having same data type, you can declare all of them
in single statement by separating their identifiers
with commas.
 For ex:
int a,b,c;
11/24/2016

 At the other-end you can assign value to the variable
when you declare them its called initialization.
 Ex:
int a=0;
char name[]={‘h’,’e’,’l’,’l’,’o’};
char name[8]=‘computer’
11/24/2016

 Dynamic initialization:
The additional feature of c++ is ,to initialize the
variable at run time it is called dynamic initialization.
For example:
int c= a+b;
float avg=sum/n;
11/24/2016

 Reference variable:
 c++ references allow you to create a second
name for the variable that you can use to read or
modify the original data stored in that variable.
 This means that when you declare a reference
and assign it a variable it will allow you to treat the
reference exactly as though it were the original
variable for the purpose of accessing and modifying
the value of the original even if the second
name(reference) is located within the different
scope.
 Variable with different name share same data
space.
11/24/2016

 Syntax:
data_type& ref_name= var_name;
 Ex:
int a;
int& i=a;
11/24/2016

REFERENCE PROGRAM
#include<iostream>
int main()
{
int x[5]={1,2,3,4,5};
int& y=x[2];
cout<< "The Value of y is::" << y;
return 0;
}
11/24/2016

OPERATORS IN C++
 All the operator in c is available in c++,but some
additional operator that are not in c are:
<< Insertion operator
>> Extraction operator
:: Scope resolution operator
.* Pointer to member operator
delete memory release operator
endl line feed operator
new memory allocation operator
setw field width operator
11/24/2016

SCOPE RESOLUTION OPERATOR(::)
 Basically variable are two types ,local variable and
global variable.
 The variable which are declared within a block or
function, that are used only inside a function is called
local variable.
 The global variable are declared out side function
and used anywhere in the program.
11/24/2016

 A situation occurs when both global and local
variable name are same and we have to use global
variable inside a local block or function, then it is
only possible by using Scope Resolution Operator,
it is used with global variable.
 Syntax:
::variable_name;
 A major application of the scope resolution
operator is in the classes to identify the class to
which a member function belongs.
11/24/2016

PROGRAME USING :: OPERATOR
11/24/2016
#include<iostream>
int m=5; //global declare
int main()
{
int m=15; //local to main
cout<<"Value of m is "<<m<<"n";
cout<<"Value of global ::m is "<<::m<<"n";
return 0;
}

MEMBER DEREFERENCING OPERATOR
 The member dereferencing operator are used in
class, a class contain various type of data and
function as member.
 A c++ also permit us to access the class member
through pointer, so required a pointer to member
operator which are,
 ::* to declare a pointer to a member class
 .* to access a member using object name or
pointer to that member.
 ->* to access a member using a pointer to the
object and a pointer to that member.
11/24/2016

MEMORY MANAGEMENT OPERATORS
 C++ using two unary operators to new and delete , that
perform the task of allocating and freeing the memory in
better and easy way.
 A new operator can be create object of any type.
 Syntax:
pointer_variable= new data_type;
 Ex:
int *p=new int;
 A delete operetor deallocate pointer variable.
 Syntax:
delete pointer_variable;
 Ex:
delete p;
11/24/2016

 You can also create space for any data type
including user-defined data type like array, structure
,classes ,etc.
 Syntax :
pointer_variable=new data_type[size];
 Ex:
int *p=new int[100];
 Delete array element.
 Syntax:
delete [] pointer_variable;
 Ex:
delete []p;
11/24/2016

PROGRAM USING NEW AND DELETE OPERATOR
#include<iostream>
int main()
{
int *a=new int;
int *b =new int;
int *sum= new int;
cout<<"Enter value for a and b:"<<"n";
cin>>*a>>*b;
*sum=*a+*b;
cout<<"Sum of a and b is: "<<*sum;
delete a;
delete b;
return 0;
}
11/24/2016

MANIPULATORS
 C++ provides the operator called manipulator for
formatting the output or manipulate the data in the
way programmers wants to display it.
 Most commonly used manipulators are:
 endl
 setw()
 endl manipulator same as the new line(“n”)
character and used to move to the next line.
 setw() is used to provide the field width for the
value and display them right-justified.
11/24/2016

 Like,
int x=22;
cout<<setw(5)<<x;
 The <iomanip> header file provide rich set of
manipulators.
11/24/2016
2 2

MANIPULATOR PROGRAM
11/24/2016
#include<iostream>
#include<iomanip>
int main()
{
int roll_no=2;
char name[]="Heer";
int age=19;
cout<<"Roll number is :"<<setw(5)<<roll_no<<endl;
cout<<"Name is :"<<setw(5)<<name<<endl;
cout<<"Age is :"<<setw(5)<<age<<endl;
}

TYPE CASTING
 While evaluating an expression if both operands for
an operator are not of same data type, then using
implicit conversion rule c++ convert smaller type
to wider type.
 For example, if two operands are respectively int
and float type, then int is converted into a float ad
then operation is performed.
 Many times implicit conversion cause the problem
and we do not get proper result.
11/24/2016

 For that, like c, c++ also uses explicit type casting
with the type cast operator in two different style as
follow:
 Syntax:
(type_name) expression;
type_name (expression);
 Ex:
average=(float) sum/n;
average=float(sum)/n;
11/24/2016

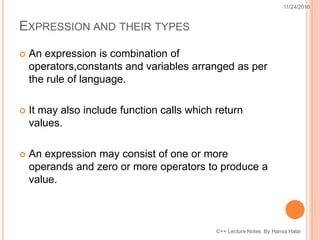

EXPRESSION AND THEIR TYPES
 An expression is combination of
operators,constants and variables arranged as per
the rule of language.
 It may also include function calls which return
values.
 An expression may consist of one or more
operands and zero or more operators to produce a
value.
11/24/2016

 Expression may consist of following seven types:
 Constant expressions
 Integral expressions
 Float expressions
 Pointer expressions
 Relational expressions
 Logical expressions
 Bitwise expressions
11/24/2016

 Constant expression:
It consist of only constant value.
Ex: 20 + 5 / 20;
 Integral expression:
Integral expressions are those which produce integer results
after implementing all the automatic and implicit type
conversions.
Ex: m * n – 5; //m and n are integer
5 + int(2.0);
 Float expression:
Floating expression are those which, after all
conversations, produce floating point results.
Ex: 5 + float(10);
x * y / 10; //x and y are floating point
11/24/2016

 Pointer expression:
Pointer expression are produce address values.
Ex: &m;
ptr; //m is variable and ptr is pointer
 Relational expression:
Relational expressions yield results of type bool which
takes a value true or false.
Also known as boolean expression.
Ex: x <= y;
a+b = c+d;
If arithmetic expression are used either side of
relational operator, they will be evaluated first then the
results compared.
11/24/2016

 Logical expression
Logical expression combine two or more relational
expression and produces bool type result.
Ex: a>b && x==10;
x==10 || y==5;
 Bitwise expression
Bitwise expressions are used to manipulate data at bit
level. They are basically used for testing or shifting bits.
Ex: x<<3 // shift three bit position to left
y>>1 // shift one bit position to right
11/24/2016

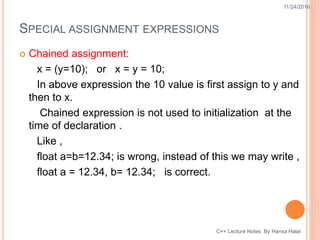

SPECIAL ASSIGNMENT EXPRESSIONS
 Chained assignment:
x = (y=10); or x = y = 10;
In above expression the 10 value is first assign to y and
then to x.
Chained expression is not used to initialization at the
time of declaration .
Like ,
float a=b=12.34; is wrong, instead of this we may write ,
float a = 12.34, b= 12.34; is correct.
11/24/2016

 Embedded assignment:
x = (y =50) +10;
where y=50 is an assignment expression known
as embedded assignment.
here, value 50 is assigned to y and then the result
(50 + 10 = 60) is assigned to x.
like, y=50;
x = y + 10;
 Compound assignment:
Compound assignment operator (+=)is a
combination of the assignment operator with a
binary operator.
Ex: x=x+10 may be written as ,
x +=10;
11/24/2016

IMPLICIT CONVERSION
 Whenever data type are mixed in expression, c++
perform conversions automatically. This process is
known as implicit conversion.
 If the operand type differ than the compiler converts
one of them to match with the other using the rule
that the “smaller” type is converted to the “wider”
type.
 For example, if one operand is an int and other is
float , the int is converted into float because float is
wider than int.
 Whenever a char and short int appears in
expression it is converted to an int.
11/24/2016

OPERATOR PRECEDENCE AND ASSOCIATIVITY
11/24/2016
precedence operators description associativity
1 ::
Scope resolution
operator
Left-to-right
2
++ --
type()
type{ }
( )
[ ]
.
->
Suffix/postfix
increment decrement
Function style
Type cast
Function call
Array subscripting
Element selection by
Reference
Element selection
through pointer

11/24/2016
3
++ - -
+ -
! ~
(type)
*
&
sizeof
new, new[]
delete ,
delete[]
Prefix increment and
decrement
Unary plus and minus
logical NOT and
bitwise NOT
C-style type cast
Indirection
(dereference)
Address –of
Sizeof
Dynamic memory
allocation
Dynamic memory
deallocation
Right-to-left

11/24/2016
4 .* ->* Pointer to member
Left-to-right
5
* / % Multiplication, division and
remainder
6
+ - Addition and subtraction
7
<< >> Bitwise left shift and right
shift
8
< <=
> >=
Relational operator
9
== != Relational is equal to and
not equal to
10 & Bitwise AND
11 ^ Bitwise(exclusive)OR
12 | Bitwise (inclusive) OR
13 && Logical AND
14 || Logical OR

11/24/2016
15
?:
throw
=
+= -=
*= /= %=
<<= >>=
&= ^= |=
Ternary operator
Throw operator
Direct assignment
operator
Assignment by sum
and difference
Assignment by product
quotient, and
remainder
Assignment by left shift
and right shift
Assignment by bitwise
AND XOR and OR
Right-to-left
16
, comma
Left-to-right

CONTROL STRUCTURE
 Like c ,c++ also provide same control structure as
follows:
 if statement
 if-else statement
 switch statement
 do-while statement
 while statement
 for statement
11/24/2016

 If statement:
syntax:
if (expression is true)
{
action-1;
}
else
{
action-2;
}
11/24/2016
if(a>b)
{
cout<<“a is max”;
}
else
{
cout<<“b is max”;
}

 Switch statement:
switch(expression)
{
case1:
action1;
break;
case2:
action2;
break;
…
default:
actionN;
}
11/24/2016
switch(character)
{
case ‘m’:
cout<<“male candidate”;
break;
case ‘f’:
cout<<“female candidate”;
break;
default:
cout<<“invalid gender code”;
}

 While statement:
syntax:
while(condition is true)
{
action1;
}
11/24/2016
while(i>5)
{
cout<<“number of class:”;
i++;
}

 Do-while statement:
syntax:
do
{
action1;
}
while(condition is true);
11/24/2016
i=0;
do
{
cout<<i<<“n”;
i++;
}
while(i<5);

 For statement:
syntax:
for(initial_value;condition;incement/decrement)
{
action1;
}
11/24/2016
for(int i=0;i<=5;i++)
{
cout<<i<<“n”;
}

Tokens expressionsin C++

More Related Content

What's hot (20)

Viewers also liked (6)

Similar to Tokens expressionsin C++ (20)

Recently uploaded (20)

Tokens expressionsin C++
