COMPOSITE DATA TYPES
• Composite data types are like scalar data
types. Scalar data types are atomic, because
they do not consist of a group.
• Composite data types, on the other hand, are
groups or collections.
• Examples
– RECORD
– TABLE
– nested TABLE
– VARRAY.

PL/SQL RECORDS
• PL/SQL records are similar in structure to a
row in a database table.
• A record consists of components of any scalar,
PL/SQL record, or PL/SQL table type.
• These components are known as fields, and
they have their own values.
• PL/SQL records are similar in structure to
“struct” in the C Language.

• It makes easier by transferring the entire row in
to a record rather than each column into a
variable separately.
• A PL/SQL record is based on a cursor, a table’s
row, or a user-defined record type.
• A record can be explicitly declared based on a
cursor or a table:
CURSOR cursorname IS
SELECT query
Recordname CursorName%ROWTYPE;
• A record can also be based on another composite
data type called TABLE.
PL/SQL RECORDS

Creating PL/SQL Record
• This is used to create user-defined record.
Create a RECORD type first, and then you
declare a record with that RECORD type.
– The general syntax is
TYPE recordtypename is RECORD
(fieldname1 datatype |variable%TYPE| table.column%TYPE
| table%ROWTYPE [[NOT NULL]:= | DEFAULT
Expression][,fieldname2….,FielfName3…);
recordname recordtypename;

Example:
TYPE employee_rectype IS RECORD
(e-last VARCHAR2(15), e_first VARCHAR2(15), e_sal NUMBER(8,2));
employee_rec employee_rectype;
• Employee_rectype is the user-defined RECORD
type. Three fields are included in its structure;
e_last,e_first and e_sal.
• The record employee_rec is a record declared with
the user-defined record type employee_rectype.
• Each field declaration is similar to a scalar variable
declaration.

• Another declaration with the %TYPE attribute.
TYPE employee_rectype IS RECORD
(e_id NUMBER(3) NOT NULL:=111, e_last employee.Lname%TYPE, e_first
employee.Fname%TYPE, e_sal employee.Salary%TYPE);
Employee_rec employee_rectype;
• The NOT NULL constraint can be used for any
field to prevent Null values, but that field must
be initialized with a value

Referencing Fields in a Record
• A filed in a record has a name that is given in the
RECORD-type definition. Cannot reference a field
by its name only; Must use the record name as a
qualifier:
– recordname.fieldname
• The record name and field name are joined by a
dot(.). e-sal can be referenced as
– employee_rec.e_sal
• Can use a field in a assignment statement to
assign a value of it. EG:
employee_rec.e_sal:=100000;
employee_rec.e_last:=‘jordan’;

Working with records
• A record is known in the block where it is declared.
When the block ends, the record no longer exists.
• Can assign values to a record from columns in a row by
using SELECT statement or FETCH statement.
• The order of fields in a record must match the order of
columns in the row.
• The record can be assigned to another record if both
records have the same structure.
• A record can be set to NULL, and all fields will be set to
NULL. Do not try to assign a NULL to a record that has
fields with NOT NULL constraint. EG:
Employee_rec:=NULL;

• The record declared with %ROWTYPE has the same
structure as the table’s row.
• For EG: emp_rec employee%ROWTYPE;
• Emp_rec assumes the structure of the EMPLOYEE
table. The fields in the emp_rec take their column
names and their and their data types from the table.
• It is advantageous to use %ROWTYPE , because it does
not require you to know the column names and their
datatypes in the underlying table.
• If you change the datatype or size of a column, the
record is created at execution time and is defined with
updated table structure.
• The fields in the record declared with %ROWTYPE are
referenced with the qualified name
recordname,fieldname.
Working with records

• The SELECT query retrieves a row into the
record based on the student ID entered at the
prompt. The field in the record are printed
using the recordname,fieldname notation.

NESTED RECORDS
• Nested record can be created including a
record into another record as a field.
• The record that contains another record as a
field is called the enclosing record.
• For EG: DECLARE
TYPE address_rectype IS RECORD
(first VARCHAR2(15),
last VARCHAR2(15),
street VARCHAR2(25),
city VARCHAR2(15)
State CHAR(2),
Zip CHAR(5));

TYPE all_address_rectype IS RECORD
(home_address address_rectype,
bus_address address_rectype,
vacation address address_rectype);
address_rec all_address_rectype;
• In this all_address_rectype nests address_rectype as a field type.
• If decide to use an unnested simple record, the record becomes
cumbersome.
• There are six fields in address_rectype. Have to use six fields each
for each of the three record fields home_address, bus_address,
and vacation_address, which will result in a total of 18 fields.
• Nested records makes code more readable and easier to maintain.
You can nest records to multiple levels.
• Dot notation is also used to reference fields in the nested situation.
EG: address_rec.home_address.city references a field called city in
the nested record home_address which is enclosed by record
address_rec.
NESTED RECORDS

PL/SQL TABLES
• A table, like a record, is a composite data
structure in PL/SQL.
• A PL/SQL table is a single-dimensional structure
with a collection of elements that store the same
type of value.
• It is like array in other programming languages, in
COBOL arrays are called tables.
• There is dissimilarities between a traditional array
and a PL/SQL table.
• A table is a dynamic structure that is not
constrained, whereas an array is not dynamic in
most computer languages.

Declaring a PL/SQL Table
• A PL/SQL TABLE declaration is done in two
steps, like a record declaration:
– 1. Declare a PL/SQL table type with a TYPE
statement. The structure could use any of the
scalar data types.
– 2. Declare an actual table based on the type
declared in the previous step.
SYNTAX:
TYPE tabletypename IS TABLE OF
datatype | variablename%TYPE |tablename.columnname%TYPE
[NOT NULL] INDEX BY BINARY_INTEGER;

• Example:
TYPE deptname_table_type IS TABLE OF
dept.DeptName%TYPE
INDEX BY BINARY_INTEGER;
TYPE major_table_type IS TABLE OF VARCHAR2(50)
INDEX BY BINARY_INTEGER;
• Declare a table type with a scalar data type
(VARCHAR2, DATE, BOOLEAN, or POSITIVE) or
with declaration attribute %TYPE.
• The table may have a Null value. Add INDEX
BY BINARY_INTEGER clause to the declaration

• This is the only available clause for indexing a table at
present.
• Indexing speeds up the search process from the
table. The primary key is stored internally in the table
along with the data column.
• The table consist of two columns, the index/primary
key column and the data column.
• syntax: tablename tabletypename;
– Deptname_table deptname_table_type;
– Major_table major_table_type;

• The table represents primary key column and data column.
cannot name these columns by user.
• The primary key has the type BINARY_INTEGER, and the data
column is of any valid type.
• There is no limit on the number of elements but you cannot
initialize elements of a table at declaration time.

Referencing table elements/rows
• The row in a table are referenced in the same
way that an element in an array is referenced.
You cannot reference a table by its name only.
• Primary key value should be used in pair of
parentheses as its subscript or index.
– tablename(primarykeyvalue)
• The valid assignment for table’s row:
– Deptname_table(5):=‘Human Resources’;
– Major_table(100):=v_major

• Use expression or value other than a
BINARY_INTEGER value, and PL/SQL will
convert it.
– deptname_table(25.7):=‘Training;
– deptname_table(‘5’||’00’):=‘Research’;
– deptname_table(v_num+7):=‘Development’;
• In c and VB language will specify number of
elements in an array when declaring an array.
• The memory locations are reserved for
elements in an array at the declaration time.

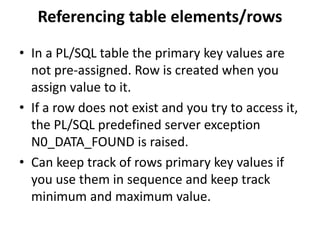

• In a PL/SQL table the primary key values are
not pre-assigned. Row is created when you
assign value to it.
• If a row does not exist and you try to access it,
the PL/SQL predefined server exception
N0_DATA_FOUND is raised.
• Can keep track of rows primary key values if
you use them in sequence and keep track
minimum and maximum value.

Assigning values to rows in PL/SQL
Table
• Assigning values to tables in 3 ways
– Direct assignment
– Assignment in a loop
– Aggregate assignment
• Direct assignment
• Assign a values to a row with an assignment statement,
as you already learned in the previous topic.
• This is preferred only few assignments are to be made.
• If entire database table values are to be assigned to a
table, a looping method is preferable.

Table
• Direct assignment
• Assign a values to a row with an assignment
statement, as you already learned in the
previous topic.
• This is preferred only few assignments are to
be made.
• If entire database table values are to be
assigned to a table, a looping method is
preferable.

• Assignment in a loop
• Any of the three PL/SQL loops could be used to
assign values to rows in a table.
• The diagram represents all Sunday dates for year
2004 to table.
• The primary key index value will vary from 1 to 52.
• The table column will contain dates for 52 sundays.
Table

Assigning values to rows in PL/SQL Table

• Aggregate assignment
• Table values can be assigned to another table. The
datatypes of both tables must be compatible.
• When assign tables values to another table, the table
receiving those values loses all its previous primary key
values as well as its data column values.
• If assign empty table with no rows to another table with
rows, the recipient table is created. It loses all its rows
• Both tables must have the same type for such an
assignment.
Assigning values to rows in PL/SQL Table

Built-In Table Methods
• The built-in table methods are procedures or
functions that provide information about a
PL/SQL table.
• The table lists built-in table methods and their
use.
• SYNTAX: tablename.methodname[(index1 [,
index2])]

• It declares two table types, the two tables
based on these TABLE types are parallel
tables.
• The corresponding values in the two tables
are related.
• The program populates these two tables using
a cursor FOR loop. Another simple FOR loop is
used to print information from two tables.
Built-In Table Methods

TABLE OF RECORDS
• The PL/SQL table type is declared with a data
type. Record type can be used as a table’s
datatype.
• The %ROWTYPE declaration attribute can be
used to define the record type.
• When a table is based on record, the record
must consist of fields with scalar data type.
• The record must not contain nested record.
The following will tell different ways to declare
table types based on records.

PL/SQL VARRAYS
• A varray is another composite data type or
collection type in PL/SQL. Varray stands for
variable-size array.
• They are single-dimensional, bounded
collections of elements with the same data
type.
• They retain their ordering and subscripts when
stored in and retrieved from a database table.
• They are similar to a PL/SQL table, and each
element is assigned a subscript/index starting
with 1.

• A PL/SQL VARRAY type with a TYPE statement. The TYPE
declaration includes a size to set the upper bound of a
Varray. The lower bound is always one.
• Declare an actual varray based on the type declared in the
previous step.
• SYNTAX:
TYPE varraytypename IS VARRAY (size) OF
ElementType [NOT NULL];
Varrayname varraytypename;
EG:
TYPE Lname_varray_type IS VARRAY(5) OF
employee.Lname%TYPE;
Lname_varray Lname_varray_type := Lname_varray_type();
PL/SQL VARRAYS

• When a varray is declared, it is NULL. It must be
initialized before referencing its elements.
• In second step of varray’s declaration, the
assignment initializes it.
• The EXTEND method is used before adding a new
element to varray.
• In example upperbound is would be five which
limits number of elements to five.
• A cursor FOR loop then adds elements to the
varray.
• The use of EXTEND method before assigning a
value to the new element.
PL/SQL VARRAYS

• The COUNT method returns the number of
elements, the LIMIT method the upper bound,
the FIRST method the first subscript, and the
LAST method the last subscript.
• In oracle 9i it is possible to create collection of a
collection (multilevel collection) like a varray of
varrays. EG:DECLARE
TYPE varray_type1 IS VARRAY(3) of NUMBER;
TYPE varray_type2 IS VARRAY(2) of varray_type1;
PL/SQL VARRAYS

PL/SQL NAMED BLOCKS
• An anonymous block can call other types of blocks
are called procedures and functions.
• Procedures and functions are called named blocks
and they can be called with parameters.
• Anonymous block can be nested within a
procedure, function, or other anonymous block.
• The purpose of procedure or functional call is to
modularize a PL/SQL program.
• A named PL/SQL block is compiled when it is
created or altered.
• Compilation process consist of three steps: syntax
error checking, binding and p-code generation.

• A syntactically error-free program’s variables are
assigned storage in binding stage.
• The list of instructions called p-code is generated
for PL/SQL engine.
• P-code stored in database for all named blocks.
– Procedures
– Functions
– Packages
– Triggers
PL/SQL NAMED BLOCKS

• A procedure is a named PL/SQL program block that can
perform one or more tasks.
• A procedure is the building block of modular
programming.
SYNTAX:
CREATE [OR REPLACE] PROCEDURE procedurename
[ (parameter1 [, parameter2..]) ]
IS
[constant/variable declaration]
BEGIN
executable statements
[EXCEPTION
exception handling statements ]
END [procedurename ];
PROCEDURES

• Where procedurename is user-supplied name
that follows rules used in naming identifiers.
• Parameter list has name of parameters passed
to procedure by calling program as well as
information passed from procedure to calling
program.
PROCEDURES

• Local constants and variables are declared after
reserved word IS.
• If there are no local identifiers to declare, there I
nothing between reserved words IS and BEGIN.
• The executable statements are written after
BEGIN and before EXCEPTION or END.
• There must be atleast one executable statement
in the body.
• The reserved word exception and exception
handling statements are optional.
PROCEDURES

CALLING A PROCEDURE
• Call to procedure is made through executable PL/SQL
statement.
• The procedure is called by specifying its name along
with list of parameters in paranthesis. Call statement
ends with semicolon.
Syntax: procedurename [ (parameter1,…) ];
EG:
monthly_salary(v_salary);
Calculate_net(v_monthly_salary,0.28);
Display_messages;
• Can use variable, constant, expression or literal
values as a parameter.

• Procedure definition that comes before reserved
word IS is called procedure header.
• Procedure header contains name of procedure
and parameter list with data types.
CREATE OR REPLACE PROCEDURE monthly_salary
(v_salary_in IN employee.salary%TYPE)
CREATE OR REPLACE PROCEURE calculate_net
(v_monthly_salary_in Innempliyee.salary%TYPE,
v_taxrate_in IN NUMBER)
CREATE OR REPLACE PROCEDURE display_messages
PROCEDURE HEADER

• Parameter in the header contains name of
parameter along with its type.
• Parameters names used in procedure header do
not have to be same as the names used in call.
• Number of parameters in call and in header must
match, and parameters must be in same order.
PROCEDURE HEADER

• It contains declaration executable, and exception-
handling section.
• Declaration and exception-handling section are
optional, executable section contains action
statements, and it must contain atleast one.
• Procedure body starts after reserved word IS. If there
is no local declaration, IS is followed by reserved word
BEGIN.
• Body ends with reserved word END. There can be
more than one END statement in program, it is good
idea to use procedure name as optional label after
END.
Procedure Body

Parameters
• Parameters are used to pass values back and
forth from calling environment to oracle
server.
• Values passed are processed and/or returned
with a procedure execution. There are three
types of parameters: IN,OUT, AND IN OUT.

ACTUAL AND FORMAL PARAMETERS:
• Parameters passed in call statement are called
actual parameter.
• Parameter names in header of module are called
formal parameters.
• Actual parameters and their matching formal
parameters must have same data types.
• On procedure call, parameters are passed
without data types. Procedure header contains
formal parameters with data types, but size of
data type is not required.

Matching actual and formal
parameters
• There are two different ways in PL/SQL to link formal
and actual parameter
• In positional notation, formal parameter is linked
with an actual parameter implicitly by position.
Positional notation is more commonly used for
parameter matching.
• In named notation, formal parameter is linked with
an actual parameter explicitly by name.
• Formal parameter and actual parameter are linked in
call statement with symbol =>
• SYNTAX: formalparametername => argumentvalue
• Eg: EMPNO => 543

• If a procedure with same name already exists, it is
replaced.
• You can type in any editor such as notepad. When
you run it procedure created message is displayed.
• Procedure named dependent_info is compiled into
p-code and then stored in database for future
execution.
• It can be executed in SQL*plus with EXECUTE
command.
• Eg: SQL>EXECUTE dependent_info
parameters

• If you receive error use command SHOW ERROR.Procedure
becomes invalid if table on which it is based is deleted or altered.
• Compiled version of procedure is stored and version should be
re-compiled in case of alterations to table.
• Recompile using procedure ALTER PROCEDURE procedurename
COMPILE;
• Procedure search_emp receives three parameters: i_empid,
o_last, o_first, are used for writing.
• Procedure searches for employee’s name based on V_ID that is
passed
• If employee Is not found exception is handled in procedure.
• If employee is found procedure send out last name last name and
first name.
parameters

FUNCTIONS
– Function is a named PL/SQL block, it is a stored
block.
– Difference between function and procedure is
function always returns value to calling block.
– Function is characterized as:
• Function can be passed zero or more parameters
• Function must have explicit RETURN statement in
executable section to return value.
• Data type of return value must be declared in function’s
header.
• A function cannot be executed as a stand-alone program.

• Function may have parameter of IN,OUT and IN OUT types, but primary
use of function is to return a value with an explicit RETURN statement.
• Use of OUT and IN OUT parameter types in function is rare and
considered to be bad practice.
SYNTAX:
CREATE [ OR REPLACE ] FUNCTION functionname
[ (parameter1 [, parameter2…]) ]
RETURN DataType
IS
[ constant | variable declaration ]
BEGIN
Executable statements
RETURN returnvalue
[ EXCEPTION
Exception-handling statements
RETURN returnvalue ]
END [ functionname ];
FUNCTIONS

• RETURN statement does not have to be last
statement in body of function.
• Body may contain more than one RETURN
statement, but only one is executed with each
function call.
• If you have return statement in exception you
need one return for each exception.
FUNCTIONS

FUNCTION HEADER
• Function header comes before reserved word IS.
Headers contains name of function, list of
parameters and RETURN data type.
• FUNCTION BODY: It should contain atleast one
executable statement, if no declaration reserved
word BEGIN follows IS.
• if there is no exception handler then EXCEPTION
keyword could be omitted.
• Function name label next to END is optional.
• There can be more than one return statement
but only one RETURN is executed in function call.

RETURN DATATYPES
• Function can return a value with scalar data type,
such as VARCHAR2, NUMBER, BINARY_INTEGER,
or BOOLEAN.
• It also return composite/complex datatype such
as PL/SQL table, PL/SQL record, nested table,
VARRAY or LOB.

Calling a function
• Function call is similar to procedure call, function
call is made via executable statement such as
assignment, selection or output statement.
– V_salary := get_salary(&emp_id);
– IF emp_exists(v_empid)…

Calling a function from SQL statement:
• Stored function block can be called from SQL
statement, such a SELECT. For eg:
• SELECT get_deptname(10) FROM dual;
• This function call with parameter 10 will return
dapartment name Finance in N2 example tables.
• Substitution variables can be used as
parameters.
Calling a function

• Package is a collection of PL/SQL objects.
• Objects in a package are grouped within BEGIN and END blocks.
• Packages may contain:
– Cursors
– Scalar variables
– Composite variables
– Consonants
– Exception names
– TYPE declarations for records and tables
– Procedures and f
– Functions.
• Oracle has many built-in packages, objects in package is
declared as public objects.
• Can restrict access to package to its specification, and can hide
actual programming aspect.
PACKAGES

• Package follows some rules of object-oriented
programming and it gives programmers some
object-oriented capabilities.
• Package complies successfully even without a body
if specification compiles.
• When object in package is referenced for first time,
entire package is loaded into memory.
• All package elements are available from that point
on, because entire package stays in memory.
• One-time loading improves performance and is very
useful when functions and procedures in it are
accessed frequently. Package follows top-down
design.
PACKAGES

Structure of a package:
• package provides extra layer to module. A module has a
header and a body, whereas package has a specification
and a body.
• Module header specifies name and parameters, which tell
us how to call that module.
• Package specification tell us how to call different modules
within a package.
PACKAGE SPECIFICATION:
• It does not contain any code, it contains information
about elements of package.
• It contains definition of functions and procedure,
declaration of global or public variables and anything can
be declared in PL/SQL block declaration.
PACKAGES

• Objects in specification of package are called public objects.
Syntax:
CREATE [OR REPLACE ] PACKAGE packagename
IS
[constant, variable and type declarations]
[exception declarations]
[cursor specifications]
[function specifications]
[procedure specification]
END [packagename];
Example:
PACKAGE bb_team
IS total_players CONSTANT INTEGER :=12;
Player_on_di EXCEPTION;
FUNCTION team_average(points IN NUMBER, players IN NUMBER) RETURN NUMBER;
END bb_team;
PACKAGES

Package body:
• Package body contains actual programming code for modules described in
specification section.
• It contains code for modules not described in specification section.
• Module code in body without description in specification module is called
private module.
SYNTAX:
PACKAGE BODY package name
IS
[variable and type declarations]
[cursor specifications and SELECT queries]
[header and body of functions]
[header and body of procedures]
[BEGIN
executable statements]
[EXCEPTION
exception handlers ]
END [packagename];
PACKAGES

• When you reference object in a package you
must qualify it with name of that package using
dot notation.
• If you do not use dot notation to reference a
object compilation will fail.
– Eg: IF bb_team.total_players<10 THEN
EXCEPTION
WHEN bb_team.player_on_dl THEN
• Where total_players and player_on_dl are
modules in bb_team package.
PACKAGES

• Variables, constants, exceptions are declared in
specification must not be declared again in
package body.
• Number of cursor and module definition in
specification must match number of cursor and
module headers in body.
• Any element declared in specification can be
referenced in body.
PACKAGES

TRIGGERS
• Database trigger(Trigger) is a PL/SQL block. It is
stored in database and is called automatically
when a triggering event occurs.
• User cannot call a trigger explicitly. Triggering
event is based on Data Manipulation Language
statement such as INSERT,UPDATE or DELETE.
• Execution of trigger is also called firing the
trigger.

• CREATE means creating new trigger and REPLACE
means replacing a existing trigger.
• Trigger cannot use transaction control language
statement, such as COMMIT, ROLLBACK, or
SAVEPOINT.
• Procedure or function called by trigger cannot
perform transaction control language.
• Variable in a trigger cannot be declared with LOGIN
or LONG RAW data types.
• Simple DML Triggers
– Before Trigger
– After Trigger
– Instead of Trigger
TRIGGERS

BEFORE TRIGGERS:
• Before trigger is fired before execution of DML statement. It is
used when you want to plug into some values in new row.
AFTER TRIGGER:
• After trigger fires after DML statement is executed.
• It utilizes built-in boolean functions INSERING,UPDATING and
DELETING.
• If triggering event is one of three DML statements, function
related to DML statement returns TRUE and other two return
FALSE.
• FOR EACH ROW command is known as row trigger.
• Statement trigger is fired only once for statement, irrespective
of number of rows affected by DML statement.
TRIGGERS

• Instead of trigger:
• BEFORE and AFTER triggers are based on database
tables.
• Oracle provides instead of triggers which is not
based on table, but is based on view.
• INSTEAD OF trigger is row trigger, if a view is based
on SELECT query that contains set operators, group
functions, GROUP BY and HAVING clauses, DISTINCT
function, join or ROWNUM pseudocolumn, data
manipulation is not possible through it.
• INSTEAD OF trigger is used to modify a table that
cannot be modified through a view.
TRIGGERS

• This trigger fires instead of DML statements such
as DELETE,UPDATE,INSERT.

• Formal parameters in a modules header must
match actual parameters in call to module with
positional or named notation.
• Function call is made via executable PL/SQL
statement, such as assignment or an IF
statement.
• Structure of package includes a specification and
a body.
• Trigger is based on DML statements such as
INSERT,DELETE & UPDATE.
• INSTEAD OF trigger is based on a view instead of
database table.
TRIGGERS

• oracle maintains informative data dictionary.
• Few data dictionary views are useful for getting
information about stored PL/SQL blocks.
• USER_PROCEDURES, USER-TRIGGERS,USR-
SOURCE, USER_OBJECTS and USER_ERRORS.
• DESCRIBE command is used to find names of
column in each data dictionary view.
• Procedure body consist of declaration, executable
and exception option.
• Three types of parameters IN, OUT and INOUT
type passes value into subprogram and returns
value.
DATA DICTIONARY VIEWS:

Unit 5 composite datatypes

More Related Content

What's hot (20)

Similar to Unit 5 composite datatypes (20)

More from DrkhanchanaR (11)

Recently uploaded (20)

Unit 5 composite datatypes
