Motivation
Serial algorithms are suitable for running on a
uniprocessor computer.
We will now extend our model to parallel algorithms that
can run on a multiprocessor computer.

Computational Model
There exist many competing models of parallel
computation that are essentially different. For
example, one can have shared or distributed memory.
Since multicore processors are ubiquitous, we focus on a
parallel computing model with shared memory.

Threads
• A thread in computer science is short for a thread of
execution.
• A thread of execution is the smallest sequence of programmed
instructions that can be managed independently by a scheduler,
which is typically a part of the operating system.
• Threads are a way for a program to divide (termed "split")
itself into two or more simultaneously (or
pseudo-simultaneously) running tasks.
• The implementation of threads and processes differs between
operating systems, but in most cases a thread is a component of
a process. Multiple threads can exist within one process,
executing concurrently and sharing resources such as memory,
while different processes do not share these resources.
• Threads are lightweight, in terms of the system resources they
consume, as compared with processes.

Threading Types
• Two types feasible:
• Static threading: OS controls, typically for single-core CPU’s.
but multi-core CPU’s use it if compiler guarantees safe execution
• Dynamic threading: Program controls explicitly, threads are
created/destroyed as needed, parallel computing model
Threads allow concurrent execution of two or more parts of a program for
maximum utilization of CPU.

Dynamic Multithreading
Programming a shared-memory parallel computer can be
difficult and error-prone. In particular, it is difficult to
partition the work among several threads so that each
thread approximately has the same load.
A concurrency platform is a software layer that
coordinates, schedules, and manages parallel-computing
resources. We will use a simple extension of the serial
programming model that uses the concurrency
instructions parallel, spawn, and sync.

Spawn
Spawn: If spawn proceeds a procedure call, then the
procedure instance that executes the spawn (the
parent) may continue to execute in parallel with the
spawned subroutine (the child), instead of waiting for
the child to complete.
The keyword spawn does not say that a procedure must
execute concurrently, but simply that it may.
At runtime, it is up to the scheduler to decide which
subcomputations should run concurrently.

Sync
The keyword sync indicates that the procedure must
wait for all its spawned children to complete.

Parallel
Many algorithms contain loops, where all iterations can
operate in parallel. If the parallel keyword proceeds a
for loop, then this indicates that the loop body can be
executed in parallel.

Definition
The Fibonacci numbers (0,1,2,3,5,8,13…) are defined by
the recurrence:
F0
= 0
F1
= 1
Fi
= Fi-1
+ Fi-2
for i > 1.

Naive Algorithm
Computing the Fibonacci numbers can be done with
the following algorithm:
Fibonacci(n)
if n < 2 then return n;
x = Fibonacci(n-1);
y = Fibonacci(n-2) ;
return x + y;

Running Time
Let T(n) denote the running time of Fibonacci(n). Since this
procedure contains two recursive calls and a constant amount of
extra work, we get
T(n) = T(n-1) + T(n-2) + θ(1)
which yields T(n) = θ(Fn
)= θ( ((1+sqrt(5))/2)n
)
Since this is an exponential growth, this is a particularly bad way
to calculate Fibonacci numbers.
How would you calculate the Fibonacci numbers?

Fibonacci Example
Observe that within FIB(n), the two recursive calls in lines 3 and 4 to
FIB(n-1) and FIB(n-2), respectively, are independent of each other: they
could be called in either order, and the computation performed by one has
no way affects the other. Therefore, the two recursive calls can run in
parallel.

Fibonacci Example
Parallel algorithm to compute Fibonacci numbers:
We augment our pseudocode to indicate parallelism
by adding the concurrency keywords spawn and
sync. Here is how we can rewrite the FIB
procedure to use dynamic multithreading:

Spawn, Sync & Parallel
Notice that if we delete the concurrency keywords spawn and
sync from P-FIB,the resulting pseudocode text is identical to
FIB (other than renaming the procedurein the header and in
the two recursive calls).
We define the serialization of a multithreaded algorithm to be
the serial algorithm that results from deleting the
multithreaded keywords:
spawn, sync, and parallel.

Spawn
Nested parallelism occurs when the keyword spawn precedes a
procedure call, as in line 3.
The semantics of a spawn differs from an ordinary procedure call
in that the procedure instance that executes the spawn—the
parent—may continue to execute in parallel with the spawned
subroutine—its child—instead of waiting for the child to
complete, as would normally happen in a serial execution.

Spawn
In this case, while the spawned child is computing P-FIB(n-1), the
parent may go on to compute P-FIB(n-2)in line 4 in parallel with the
spawned child.
Since the P-FIB procedure is recursive, these two subroutine calls
themselves create nested parallelism, as do their children, thereby
creating a potentially vast tree of subcomputations, all executing in
parallel.

Spawn
The keyword spawn does not say, however, that a procedure must
execute concurrently with its spawned children, only that it may.
The concurrency keywords express the logical parallelism of the
computation, indicating which parts of the computation may
proceed in parallel.
At runtime, it is up to a scheduler to determine which
subcomputations actually run concurrently by assigning them to
available processors as the computation unfolds.

Sync
A procedure cannot safely use the values returned by its spawned
children until after it executes a sync statement, as in line 5.
The keyword sync indicates that the procedure must wait as
necessary for all its spawned children to complete before
proceeding to the statement after the sync.
In the P-FIB procedure, a sync is required before the return
statement in line 6 to avoid the anomaly that would occur if x
and y were summed before x was computed.
In addition to explicit synchronization provided by the sync
statement, every procedure executes a sync implicitly before it
returns, thus ensuring that all its children terminate before it
does.

A model for multithreaded execution
It helps to think of a multithreaded computation—the set of
runtime instructions executed by a processor on behalf of a
multithreaded program—as a directed acyclic graph G =(V,E), called
a computation dag.

Computation DAG
Multithreaded computation can be better understood with the
help of a computation directed acyclic graph G=(V,E).
The vertices V in the graph are the instructions.
The edges E represent dependencies between instructions.
An edge (u,v) is in E means that the instruction u must execute
before instruction v.

Strand and Threads
A sequence of instructions containing no parallel control
(spawn, sync, return from spawn, parallel) can be
grouped into a single strand.
A strand of maximal length will be called a thread.

Computation DAG
A computation directed acyclic graph G=(V,E) consists a vertex
set V that comprises the threads of the program.
The edge set E contains an edge (u,v) if and only if the thread u
need to execute before thread v.
If there is an edge between thread u and v, then they are said to
be (logically) in series. If there is no thread, then they are said
to be (logically) in parallel.

Edge Classification
A continuation edge (u,v) connects a thread u to its
successor v within the same procedure instance.
When a thread u spawns a new thread v, then (u,v) is
called a spawn edge.
When a thread v returns to its calling procedure and x is
the thread following the parallel control, then the
return edge (v,x) is included in the graph.

Fibonacci Example

•Each circle represents one strand (a chain of instructions which contains no parallel control).
•Black dots : base case or part of the procedure up to the spawn of P-FIN(n-1) in line 3.
•Grey dots: regular execution ie the part of the procedure that calls P-FIN(n-2) in line 4 up to
the sync in line 5.
•White dots: part of the procedure after sync up to the point where it returns the result.

Performance Measures
DAG: directed acyclic graph. Vertices are the circles for spawn, sync or
procedure call. For a problem of size n:
• Span S or T∞
(n). Number of vertices on the longest directed path from
start to finish in the computation DAG. (The critical path).
The run time if each vertex of the DAG has its own processor.
• Work W or T1
(n). Total time to execute the entire computation on one
processor. Defined as the number of vertices in the computation DAG
• Tp(n). Total time to execute entire computation with p processors
• Speed up = T1/Tp. How much faster it is.
• Parallelism = T1/ T∞
. The maximum possible speed up.

The work of a multithreaded computation is the total
time to execute the entire computation on one
processor.
Work = sum of the times taken by each thread
= 17 time units

The span is the longest time to execute the threads
along any path of the computational directed acyclic
graph.
Span =the number of vertices on a longest or critical
path
span = 8 time units

Performance Measure Example
In Fibonacci(4), we have
17 vertices = 17 threads.
8 vertices on longest path.
Assuming unit time for each
thread, we get
work = 17 time units
span = 8 time units

The actual running time of a multithreaded computation
depends not just on its work and span, but also on how
many processors (cores) are available, and how the
scheduler allocates strands to processors.
Running time on P processors is indicated by subscript P
- T1
running time on a single processor
- TP
running time on P processors
- T∞
running time on unlimited processors

Work Law
An ideal parallel computer with P processors can do at
most P units of work, and thus in Tp
time, it can perform
at most PTp
work.
Since the total work to do is T1, we have PTp
>= T1.
Dividing by P yields the work law:
Tp
>= T1
/P

Span Law
A P-processor ideal parallel computer cannot run faster
than a machine with unlimited number of processors.
However, a computer with unlimited number of
processors can emulate a P-processor machine by using
just P of its processors. Therefore,
Tp
>= T∞
which is called the span law.
- TP
running time on P processors
- T∞
running time on unlimited processors

Speedup and Parallelism
The speed up of a computation on P processors is defined
as T1
/ Tp
i.e. how many times faster the computations on P
processors than on 1 processor (How much faster it is).
Thus, speedup on P processors can be at most P.

The parallelism (max possible speed up). of a multithreaded
computation is given by T1
/ T∞
We can view the parallelism from three perspectives.
As a ratio, the parallelism denotes the average amount of work
that can be performed in parallel for each step along the critical
path.
As an upper bound, the parallelism gives the maximum possible
speedup that can be achieved on any number of processors.
Finally, and perhaps most important, the parallelism provides a
limit on the possibility of attaining perfect linear speedup.
Specifically, once the number of processors exceeds the
parallelism, the computation cannot possibly achieve perfect
linear speedup.

Consider the computation P-FIB(4) and assume that each strand
takes unit time.
Since the work is T1 = 17 and the span is T∞
= 8,
the parallelism is T1/T∞
= 17/8 = 2.125.
Consequently, achieving much more than double the speedup is
impossible, no matter how many processors we employ to execute
the computation.

Scheduling
The performance depends not just on the work and span.
Additionally, the strands must be scheduled efficiently
onto the processors of the parallel machines.
The strands must be mapped to static threads, and the
operating system schedules the threads on the
processors themselves.
The scheduler must schedule the computation with no
advance knowledge of when the strands will be spawned
or when they will complete; it must operate online.

Greedy Scheduler
We will assume a greedy scheduler in our analysis, since
this keeps things simple. A greedy scheduler assigns as
many strands to processors as possible in each time
step.
On P processors, if at least P strands are ready to
execute during a time step, then we say that the step is
a complete step; otherwise we say that it is an
incomplete step.

Greedy Scheduler Theorem
On an ideal parallel computer with P processors, a greedy
scheduler executes a multithreaded computation with
work T1
and span T∞
in time
TP
<= T1
/ P + T∞
[Given the fact the best we can hope for on P processors is TP
=
T1
/ P by the work law, and TP
= T∞
by the span law, the sum of
these two bounds ]

Corollary
The running time of any multithreaded computation scheduled by
a greedy scheduler on an ideal parallel computer with P
processors is within a factor of 2 of optimal.
Proof.: The TP
*
be the running time produced by an optimal
scheduler. Let T1
be the work and T∞
be the span of the
computation. Then TP
*
>= max(T1
/P, T∞
). By the theorem,
TP
<= T1
/P + T∞
<= 2 max(T1
/P, T∞
) <= 2 TP
*

Slackness
The parallel slackness of a multithreaded computation
executed on an ideal parallel computer with P
processors is the ratio of parallelism by P.
Slackness = (T1
/ T∞
) / P
If the slackness is less than 1, we cannot hope to achieve
a linear speedup.

Speedup
Let TP
be the running time of a multithreaded computation
produced by a greedy scheduler on an ideal computer with P
processors. Let T1
be the work and T∞
be the span of the
computation. If the slackness is big, P << (T1
/ T∞
), then
TP
is approximately T1
/ P.

Unit2-Part2-MultithreadAlgos.pptx.pdf

Parallel Fibonacci Computation
Fibonacci(n)
if n < 2 then return n;
x = spawn Fibonacci(n-1); // parallel execution
y = spawn Fibonacci(n-2) ; // parallel execution
sync; // wait for results of x and y
return x + y;

Work of Fibonacci
We want to know the work and span of the Fibonacci
computation, so that we can compute the parallelism
(work/span) of the computation.
The work T1
is straightforward, since it amounts to
compute the running time of the serialized algorithm.
T1
= θ( ((1+sqrt(5))/2)n
)

Span of Fibonacci
Recall that the span T∞
in the longest path in the computational
DAG. Since Fibonacci(n) spawns
•Fibonacci(n-1)
•Fibonacci(n-2)
we have
T∞
(n) = max( T∞
(n-1) , T∞
(n-2) ) + θ(1) = T∞
(n-1) + θ(1)
which yields T∞
(n) = θ(n).

Parallelism of Fibonacci
The parallelism of the Fibonacci computation is
T1
(n)/T∞
(n) = θ( ((1+sqrt(5))/2)n
/ n)
which grows dramatically as n gets large.
Therefore, even on the largest parallel computers, a modest
value of n suffices to achieve near perfect linear speedup, since
we have considerable parallel slackness.

Parallel loops
Many algorithms contain loops all of whose iterations can operate
in parallel.
We can parallelize such loops using the spawn and sync
keywords, but it is much more convenient to specify directly
that the iterations of such loops can run concurrently.
The pseudocode provides this functionality via the parallel
concurrency keyword, which precedes the for keyword in a for
loop statement.

Parallel loops
The parallel for keywords in lines 3 and 5 indicate that the
iterations of the respective loops may be run concurrently.
A compiler can implement each parallel for loop as a
divide-and-conquer subroutine using nested parallelism.
For example, the parallel for loop in lines 5–7 can be
implemented with the call MAT-VEC-MAIN-LOOP(A, x, y, n, 1, n)

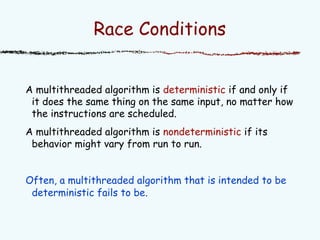

Race Conditions
A multithreaded algorithm is deterministic if and only if
it does the same thing on the same input, no matter how
the instructions are scheduled.
A multithreaded algorithm is nondeterministic if its
behavior might vary from run to run.
Often, a multithreaded algorithm that is intended to be
deterministic fails to be.

Determinacy Race
A determinacy race occurs when two logically parallel
instructions access the same memory location and at
least one of the instructions performs a write.
Race-Example()
x = 0
parallel for i = 1 to 2 do
x = x+1
print x

Determinacy Race
When a processor increments x, the operation is not indivisible,
but composed of a sequence of instructions.
1) Read x from memory into one of the processor’s registers
2) Increment the value of the register
3) Write the value in the register back into x in memory

Determinacy Race
x = 0
assign r1 = 0
incr r1, so r1=1
assign r2 = 0
incr r2, so r2 = 1
write back x = r1
write back x = r2
print x // now prints 1 instead of 2

Determinacy Race
If the effect of the parallel execution were that processor 1
executed all its instructions before processor 2, the value 2
would be printed.
Conversely, if the effect were that processor 2 executed all its
instructions before processor 1, the value 2 would still be
printed.
When the instructions of the two processors execute at the
same time, however, it is possible, as in this example execution,
that one of the updates to x is lost.

Determinacy Race
Generally, most orderings produce correct . But some orderings generate
improper results when the instructions interleave. Consequently, races
can be extremely hard to test for. You can run tests for days and never
see the bug, only to experience a catastrophic system crash in the field
when the outcome is critical.
Although we can cope with races in a variety of ways, including using
mutual exclusion locks and other methods of synchronization, for our
purposes, we shall simply ensure that strands that operate in parallel
are independent: they have no determinacy races among them.
Thus, in a parallel for construct, all the iterations should be
independent.
Between a spawn and the corresponding sync, the code of the spawned
child should be independent of the code of the parent, including code
executed by additional spawned or called children.

Matrix Multiplication: Naïve
Method
void multiply(int A[][N], int B[][N], int C[][N])
{
for (int i = 0; i < N; i++)
{
for (int j = 0; j < N; j++)
{
C[i][j] = 0;
for (int k = 0; k < N; k++)
{
C[i][j] += A[i][k]*B[k][j];
}
}
}
}
Time Complexity of above method is O(N3
)

Matrix Multiplication: Divide and Conquer
Following is simple Divide and Conquer method to multiply two square matrices.
1) Divide matrices A and B in 4 sub-matrices of size N/2 x N/2 as shown in the
below diagram.
2) Calculate following values recursively. ae + bg, af + bh, ce + dg and cf + dh.
In the above method, we do 8 multiplications for matrices of size N/2 x N/2
and 4 additions. Addition of two matrices takes O(N2
) time. So the time
complexity can be written as
T(N) = 8T(N/2) + O(N2
) From Master's Theorem, time complexity of above
method is O(N3
) which is unfortunately same as the above naive method.

Matrix Multiplication: Divide and Conquer

Strassen’s Matrix Multiplication Method
-In divide and conquer method, the main component
for high time complexity is 8 recursive calls.
- The idea of Strassen’s method is to reduce the
number of recursive calls to 7.
- Strassen’s method is similar to simple divide and
conquer method in the sense that this method also
divide matrices to sub-matrices of size N/2 x N/2 as
shown, but in Strassen’s method, the four
sub-matrices of result are calculated using following
formulae.

Strassen’s Matrix Multiplication Method
Thus, to multiply two 2 × 2 matrices, Strassen’s algorithm makes seven
multiplications and 18 additions/subtractions, whereas the
normal algorithm requires eight multiplications and four additions.

Matrix Multiplication
One can multiply nxn matrices serially in time
θ( nlog 7
) = O( n2.81
) using Strassen’s divide-and-conquer
method.
We will use multithreading for a simpler
divide-and-conquer algorithm.

Simple Divide-and-Conquer
To multiply two nxn matrices, we perform 8 matrix
multiplications of n/2 x n/2 matrices and one addition of n x n
matrices.

Matrix Multiplication
Matrix-Multiply(C, A, B, n):
// Multiplies matrices A and B, storing the result in C.
// n is power of 2 (for simplicity).
if n == 1:
C[1, 1] = A[1, 1] · B[1, 1]
else:
allocate a temporary matrix T[1...n, 1...n]
partition A, B, C, and T into (n/2)x(n/2) submatrices
spawn Matrix-Multiply(C11
,A11
,B11
, n/2)
,A11
,B12
, n/2)
,A21
,B11
, n/2)
,A21
,B12
, n/2)
spawn Matrix-Multiply(T11
,A12
,B21
, n/2)
,A12
,B22
, n/2)
,A22
,B21
, n/2)
Matrix-Multiply(T22
,A22
,B22
, n/2)
sync
Matrix-Add(C, T, n)

Addition of Matrices
Matrix-Add(C, T, n):
// Adds matrices C and T in-place, producing C = C + T
// n is power of 2 (for simplicity).
if n == 1:
C[1, 1] = C[1, 1] + T[1, 1]
else:
partition C and T into (n/2)x(n/2) submatrices
spawn Matrix-Add(C11
, T11
, n/2)
, T12
, n/2)
, T21
, n/2)
, T22
, n/2)
sync

Work of Matrix Multiplication
The work T1
(n) of matrix multiplication satisfies the recurrence
T1
(n) = 8 T1
(n/2) + θ(n2
) = θ(n3
)
by case 1 of the Master theorem.
The parallelism (max possible speed up). of a multithreaded
computation is given by T1
/ T∞

Span of Matrix Multiplication
The span T∞
(n) of matrix multiplication is determined by
- the span for partitioning θ(1)
- the span of the parallel nested for loops at the end θ(log n)
- the maximum span of the 8 matrix multiplications
T∞
(n) = T∞
(n/2) + θ(log n)
Solving this recurrence we get
T∞
(n) = θ((log n)2
)
The parallelism of matrix multiplication is given by
T1
(n) / T∞
(n) = θ(n3
/ (log n)2
)

Multithreaded Merge Sort
P-MERGE procedure assumes that the two subarrays to be merged lie within the
same array.
P-MERGE takes as an argument an output subarray A into which the merged values
should be stored.
The call P-MERGE(T, p1, r1, p2, r2,A, p3) merges the sorted subarrays T[p1 ..r1] and
T[p2 .. r2] into the subarray A[p3 .. r3], where r3=p3 +(r1 -p1 + 1) +(r2- p2+ 1)- 1 =
p3+(r1- p1)+(r2 - p2)+ 1 and is not provided as an input.

Multithreaded Merge Sort
Parallelism:

Acknowledgements
Andreas Klappenecker
https://www.youtube.com/watch?v=UaCX8Iy00DA
https://www.youtube.com/watch?v=VD8hY7kWjdc
https://www.youtube.com/watch?v=7T-gjX24FR0
https://www.slideshare.net/AndresMendezVazquez/24-multithre
aded-algorithms

• https://homes.luddy.indiana.edu/achauhan/Teaching/B403/Lect
ureNotes/11-multithreaded.html
• https://catonmat.net/mit-introduction-to-algorithms-part-thirt
een
• https://www.youtube.com/watch?v=iFrmLRr9ke0
• https://www.youtube.com/watch?v=GvtgV2NkdVg&t=31s
• https://www.youtube.com/watch?v=_XOZ2IiP2nw
• Analysis of merge sort :
https://www.youtube.com/watch?v=0nlPxaC2lTw

Unit2-Part2-MultithreadAlgos.pptx.pdf

More Related Content

Similar to Unit2-Part2-MultithreadAlgos.pptx.pdf (20)

Recently uploaded (20)

Unit2-Part2-MultithreadAlgos.pptx.pdf
