Analysis of Algorithms Multi-threaded Algorithms Andres Mendez-Vazquez April 15, 2016 1 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 2 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 3 / 94
Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 5 / 94
The Model to Be Used Symmetric Multiprocessor The model that we will use is the Symmetric Multiprocessor (SMP) where a shared memory exists. L3 Cache L2 Cache L1i Cache L1d Cache CPU Core 1 CPU Core 3 CPU Core 4 CPU Core 2 L1d Cache L1d Cache L1d Cache L1i Cache L1i Cache L1i Cache L2 Cache L2 CacheL2 Cache P-to-P L3 Cache L2 Cache L1i Cache L1d Cache CPU Core 1 CPU Core 3 CPU Core 4 CPU Core 2 L1d Cache L1d Cache L1d Cache L1i Cache L1i Cache L1i Cache L2 Cache L2 CacheL2 Cache P-to-P L3 Cache L2 Cache L1i Cache L1d Cache CPU Core 1 CPU Core 3 CPU Core 4 CPU Core 2 L1d Cache L1d Cache L1d Cache L1i Cache L1i Cache L1i Cache L2 Cache L2 CacheL2 Cache P-to-P L3 Cache L2 Cache L1i Cache L1d Cache CPU Core 1 CPU Core 3 CPU Core 4 CPU Core 2 L1d Cache L1d Cache L1d Cache L1i Cache L1i Cache L1i Cache L2 Cache L2 CacheL2 Cache P-to-P MAIN SHARED MEMORY Processor 1 Processor 2 Processor 3 Processor 4 BUS 6 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 8 / 94
SPAWN SPAWN When called before a procedure, the parent procedure may continue to execute in parallel. Note The keyword spawn does not say anything about concurrent execution, but it can happen. The Scheduler decide which computations should run concurrently. 9 / 94
SPAWN SPAWN When called before a procedure, the parent procedure may continue to execute in parallel. Note The keyword spawn does not say anything about concurrent execution, but it can happen. The Scheduler decide which computations should run concurrently. 9 / 94
SPAWN SPAWN When called before a procedure, the parent procedure may continue to execute in parallel. Note The keyword spawn does not say anything about concurrent execution, but it can happen. The Scheduler decide which computations should run concurrently. 9 / 94
SYNC AND PARALLEL SYNC The keyword sync indicates that the procedure must wait for all its spawned children to complete. PARALLEL This operation applies to loops, which make possible to execute the body of the loop in parallel. 10 / 94
SYNC AND PARALLEL SYNC The keyword sync indicates that the procedure must wait for all its spawned children to complete. PARALLEL This operation applies to loops, which make possible to execute the body of the loop in parallel. 10 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 11 / 94
A Classic Parallel Piece of Code: Fibonacci Numbers Fibonacci’s Definition F0 = 0 F1 = 1 Fi = Fi−1 + Fi−2 for i > 1. Naive Algorithm Fibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 return x + y 12 / 94
A Classic Parallel Piece of Code: Fibonacci Numbers Fibonacci’s Definition F0 = 0 F1 = 1 Fi = Fi−1 + Fi−2 for i > 1. Naive Algorithm Fibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 return x + y 12 / 94
Time Complexity Recursion and Complexity Recursion T (n) =T (n − 1) + T (n − 2) + Θ (1). Complexity T(n) = Θ (Fn) = Θ (φn), φ = 1+ √ 5 2 . 13 / 94
Time Complexity Recursion and Complexity Recursion T (n) =T (n − 1) + T (n − 2) + Θ (1). Complexity T(n) = Θ (Fn) = Θ (φn), φ = 1+ √ 5 2 . 13 / 94
There is a Better Way We can order the first tree numbers in the sequence as F2 F1 F1 F0 = 1 1 1 0 Then F2 F1 F1 F0 F2 F1 F1 F0 = 1 1 1 0 1 1 1 0 = 2 1 1 1 = F3 F2 F2 F1 14 / 94
There is a Better Way We can order the first tree numbers in the sequence as F2 F1 F1 F0 = 1 1 1 0 Then F2 F1 F1 F0 F2 F1 F1 F0 = 1 1 1 0 1 1 1 0 = 2 1 1 1 = F3 F2 F2 F1 14 / 94
There is a Better Way Calculating in O(log n) when n is a power of 2 1 1 1 0 n = F (n + 1) F (n) F (n) F (n − 1) Thus 1 1 1 0 n 2 1 1 1 0 n 2 = F n 2 + 1 F n 2 F n 2 F n 2 − 1 F n 2 + 1 F n 2 F n 2 F n 2 − 1 However... We will use the naive version to illustrate the principles of parallel programming. 15 / 94
There is a Better Way Calculating in O(log n) when n is a power of 2 1 1 1 0 n = F (n + 1) F (n) F (n) F (n − 1) Thus 1 1 1 0 n 2 1 1 1 0 n 2 = F n 2 + 1 F n 2 F n 2 F n 2 − 1 F n 2 + 1 F n 2 F n 2 F n 2 − 1 However... We will use the naive version to illustrate the principles of parallel programming. 15 / 94
The Concurrent Code Parallel Algorithm PFibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = spawn Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 sync 6 return x + y 16 / 94
The Concurrent Code Parallel Algorithm PFibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = spawn Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 sync 6 return x + y 16 / 94
The Concurrent Code Parallel Algorithm PFibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = spawn Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 sync 6 return x + y 16 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 17 / 94
How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
How do we compute a complexity? Computation DAG Thus If there is an edge between thread u and v, then they are said to be (logically) in series. If there is no edge, then they are said to be (logically) in parallel. 19 / 94
How do we compute a complexity? Computation DAG Thus If there is an edge between thread u and v, then they are said to be (logically) in series. If there is no edge, then they are said to be (logically) in parallel. 19 / 94
Example: PFibonacci(4) Example PFibonacci(4) PFibonacci(3) PFibonacci(2) PFibonacci(2) PFibonacci(1) PFibonacci(1) PFibonacci(1) PFibonacci(0) PFibonacci(0) 20 / 94
Edge Classification Continuation Edge A continuation edge (u, v) connects a thread u to its successor v within the same procedure instance. Spawned Edge When a thread u spawns a new thread v, then (u, v) is called a spawned edge. Call Edges Call edges represent normal procedure call. Return Edge Return edge signals when a thread v returns to its calling procedure. 21 / 94
Edge Classification Continuation Edge A continuation edge (u, v) connects a thread u to its successor v within the same procedure instance. Spawned Edge When a thread u spawns a new thread v, then (u, v) is called a spawned edge. Call Edges Call edges represent normal procedure call. Return Edge Return edge signals when a thread v returns to its calling procedure. 21 / 94
Edge Classification Continuation Edge A continuation edge (u, v) connects a thread u to its successor v within the same procedure instance. Spawned Edge When a thread u spawns a new thread v, then (u, v) is called a spawned edge. Call Edges Call edges represent normal procedure call. Return Edge Return edge signals when a thread v returns to its calling procedure. 21 / 94
Edge Classification Continuation Edge A continuation edge (u, v) connects a thread u to its successor v within the same procedure instance. Spawned Edge When a thread u spawns a new thread v, then (u, v) is called a spawned edge. Call Edges Call edges represent normal procedure call. Return Edge Return edge signals when a thread v returns to its calling procedure. 21 / 94
Example: PFibonacci(4) The Different Edges PFibonacci(4) PFibonacci(3) PFibonacci(2) PFibonacci(2) PFibonacci(1) PFibonacci(1) PFibonacci(1) PFibonacci(0) PFibonacci(0) Init Thread Spawn Edge Continuation Edge Return Edge Final Thread Call Edge 22 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 23 / 94
Performance Measures WORK The work of a multi-threaded computation is the total time to execute the entire computation on one processor. Work = i∈I Time (Threadi) SPAN The span is the longest time to execute the strands along any path of the DAG. In a DAG which each strand takes unit time, the span equals the number of vertices on a longest or critical path in the DAG. 24 / 94
Performance Measures WORK The work of a multi-threaded computation is the total time to execute the entire computation on one processor. Work = i∈I Time (Threadi) SPAN The span is the longest time to execute the strands along any path of the DAG. In a DAG which each strand takes unit time, the span equals the number of vertices on a longest or critical path in the DAG. 24 / 94
Example: PFibonacci(4) Example Critical Path PFibonacci(4) PFibonacci(3) PFibonacci(2) PFibonacci(2) PFibonacci(1) PFibonacci(1) PFibonacci(1) PFibonacci(0) PFibonacci(0) 25 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 27 / 94
Running Time Classification Single Processor T1 running time on a single processor. Multiple Processors Tp running time on P processors. Unlimited Processors T∞ running time on unlimited processors, also called the span, if we run each strand on its own processor. 28 / 94
Running Time Classification Single Processor T1 running time on a single processor. Multiple Processors Tp running time on P processors. Unlimited Processors T∞ running time on unlimited processors, also called the span, if we run each strand on its own processor. 28 / 94
Running Time Classification Single Processor T1 running time on a single processor. Multiple Processors Tp running time on P processors. Unlimited Processors T∞ running time on unlimited processors, also called the span, if we run each strand on its own processor. 28 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 29 / 94
Work Law Definition In one step, an ideal parallel computer with P processors can do: At most P units of work. Thus in TP time, it can perform at most PTP work. PTP ≥ T1 =⇒ Tp ≥ T1 P 30 / 94
Work Law Definition In one step, an ideal parallel computer with P processors can do: At most P units of work. Thus in TP time, it can perform at most PTP work. PTP ≥ T1 =⇒ Tp ≥ T1 P 30 / 94
Work Law Definition In one step, an ideal parallel computer with P processors can do: At most P units of work. Thus in TP time, it can perform at most PTP work. PTP ≥ T1 =⇒ Tp ≥ T1 P 30 / 94
Work Law Definition In one step, an ideal parallel computer with P processors can do: At most P units of work. Thus in TP time, it can perform at most PTP work. PTP ≥ T1 =⇒ Tp ≥ T1 P 30 / 94
Span Law Definition A P-processor ideal parallel computer cannot run faster than a machine with unlimited number of processors. However, a computer with unlimited number of processors can emulate a P-processor machine by using simply P of its processors. Therefore, TP ≥ T∞ 31 / 94
Span Law Definition A P-processor ideal parallel computer cannot run faster than a machine with unlimited number of processors. However, a computer with unlimited number of processors can emulate a P-processor machine by using simply P of its processors. Therefore, TP ≥ T∞ 31 / 94
Work Calculations: Serial Serial Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = T∞ (A) + T∞ (B). 32 / 94
Work Calculations: Serial Serial Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = T∞ (A) + T∞ (B). 32 / 94
Work Calculations: Serial Serial Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = T∞ (A) + T∞ (B). 32 / 94
Work Calculations: Parallel Parallel Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = max {T∞ (A) , T∞ (B)}. 33 / 94
Work Calculations: Parallel Parallel Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = max {T∞ (A) , T∞ (B)}. 33 / 94
Work Calculations: Parallel Parallel Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = max {T∞ (A) , T∞ (B)}. 33 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 34 / 94
Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 36 / 94
Greedy Scheduler Definition A greedy scheduler assigns as many strands to processors as possible in each time step. Note On P processors, if at least P strands are ready to execute during a time step, then we say that the step is a complete step. Otherwise we say that it is an incomplete step. This changes from Algorithm to Algorithm. 37 / 94
Greedy Scheduler Definition A greedy scheduler assigns as many strands to processors as possible in each time step. Note On P processors, if at least P strands are ready to execute during a time step, then we say that the step is a complete step. Otherwise we say that it is an incomplete step. This changes from Algorithm to Algorithm. 37 / 94
Greedy Scheduler Definition A greedy scheduler assigns as many strands to processors as possible in each time step. Note On P processors, if at least P strands are ready to execute during a time step, then we say that the step is a complete step. Otherwise we say that it is an incomplete step. This changes from Algorithm to Algorithm. 37 / 94
Greedy Scheduler Definition A greedy scheduler assigns as many strands to processors as possible in each time step. Note On P processors, if at least P strands are ready to execute during a time step, then we say that the step is a complete step. Otherwise we say that it is an incomplete step. This changes from Algorithm to Algorithm. 37 / 94
Greedy Scheduler Theorem and Corollaries Theorem 27.1 On an ideal parallel computer with P processors, a greedy scheduler executes a multi-threaded computation with work T1 and span T∞ in time TP ≤ T1 P + T∞. Corollary 27.2 The running time TP of any multi-threaded computation scheduled by a greedy scheduler on an ideal parallel computer with P processors is within a factor of 2 of optimal. Corollary 27.3 Let TP be the running time of a multi-threaded computation produced by a greedy scheduler on an ideal parallel computer with P processors, and let T1 and T∞ be the work and span of the computation, respectively. Then, if P T1 T∞ (Much Less), we have TP ≈ T1 P , or equivalently, a speedup of approximately P . 38 / 94
Greedy Scheduler Theorem and Corollaries Theorem 27.1 On an ideal parallel computer with P processors, a greedy scheduler executes a multi-threaded computation with work T1 and span T∞ in time TP ≤ T1 P + T∞. Corollary 27.2 The running time TP of any multi-threaded computation scheduled by a greedy scheduler on an ideal parallel computer with P processors is within a factor of 2 of optimal. Corollary 27.3 Let TP be the running time of a multi-threaded computation produced by a greedy scheduler on an ideal parallel computer with P processors, and let T1 and T∞ be the work and span of the computation, respectively. Then, if P T1 T∞ (Much Less), we have TP ≈ T1 P , or equivalently, a speedup of approximately P . 38 / 94
Greedy Scheduler Theorem and Corollaries Theorem 27.1 On an ideal parallel computer with P processors, a greedy scheduler executes a multi-threaded computation with work T1 and span T∞ in time TP ≤ T1 P + T∞. Corollary 27.2 The running time TP of any multi-threaded computation scheduled by a greedy scheduler on an ideal parallel computer with P processors is within a factor of 2 of optimal. Corollary 27.3 Let TP be the running time of a multi-threaded computation produced by a greedy scheduler on an ideal parallel computer with P processors, and let T1 and T∞ be the work and span of the computation, respectively. Then, if P T1 T∞ (Much Less), we have TP ≈ T1 P , or equivalently, a speedup of approximately P . 38 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 39 / 94

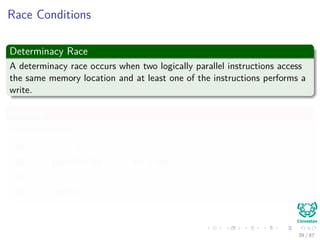

Race Conditions Determinacy Race A determinacy race occurs when two logically parallel instructions access the same memory location and at least one of the instructions performs a write. Example Race-Example() 1 x = 0 2 parallel for i = 1 to 3 do 3 x = x + 1 4 print x 40 / 94
Race Conditions Determinacy Race A determinacy race occurs when two logically parallel instructions access the same memory location and at least one of the instructions performs a write. Example Race-Example() 1 x = 0 2 parallel for i = 1 to 3 do 3 x = x + 1 4 print x 40 / 94
Example Determinacy Race Example 1 2 3 4 5 67 8 910 11 step x r1 r2 r3 1 0 2 0 0 3 0 1 4 0 1 0 5 0 1 0 0 6 0 1 0 1 7 0 1 1 1 8 1 1 1 1 9 1 1 1 1 10 1 1 1 1 41 / 94
Example NOTE Although, this is of great importance is beyond the scope of this class: For More about this topic, we have: Maurice Herlihy and Nir Shavit, “The Art of Multiprocessor Programming,” Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2008. Andrew S. Tanenbaum, “Modern Operating Systems” (3rd ed.). Prentice Hall Press, Upper Saddle River, NJ, USA, 2007. 42 / 94
Example NOTE Although, this is of great importance is beyond the scope of this class: For More about this topic, we have: Maurice Herlihy and Nir Shavit, “The Art of Multiprocessor Programming,” Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2008. Andrew S. Tanenbaum, “Modern Operating Systems” (3rd ed.). Prentice Hall Press, Upper Saddle River, NJ, USA, 2007. 42 / 94
Example NOTE Although, this is of great importance is beyond the scope of this class: For More about this topic, we have: Maurice Herlihy and Nir Shavit, “The Art of Multiprocessor Programming,” Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2008. Andrew S. Tanenbaum, “Modern Operating Systems” (3rd ed.). Prentice Hall Press, Upper Saddle River, NJ, USA, 2007. 42 / 94
Example NOTE Although, this is of great importance is beyond the scope of this class: For More about this topic, we have: Maurice Herlihy and Nir Shavit, “The Art of Multiprocessor Programming,” Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2008. Andrew S. Tanenbaum, “Modern Operating Systems” (3rd ed.). Prentice Hall Press, Upper Saddle River, NJ, USA, 2007. 42 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 43 / 94
Example of Complexity: PFibonacci Complexity T∞ (n) = max {T∞ (n − 1) , T∞ (n − 2)} + Θ (1) Finally T∞ (n) = T∞ (n − 1) + Θ (1) = Θ (n) Parallelism T1 (n) T∞ (n) = Θ φn n 44 / 94
Example of Complexity: PFibonacci Complexity T∞ (n) = max {T∞ (n − 1) , T∞ (n − 2)} + Θ (1) Finally T∞ (n) = T∞ (n − 1) + Θ (1) = Θ (n) Parallelism T1 (n) T∞ (n) = Θ φn n 44 / 94
Example of Complexity: PFibonacci Complexity T∞ (n) = max {T∞ (n − 1) , T∞ (n − 2)} + Θ (1) Finally T∞ (n) = T∞ (n − 1) + Θ (1) = Θ (n) Parallelism T1 (n) T∞ (n) = Θ φn n 44 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 45 / 94
Matrix Multiplication Trick To multiply two n × n matrices, we perform 8 matrix multiplications of n 2 × n 2 matrices and one addition n × n of matrices. Idea A= A11 A12 A21 A22 ,B = B11 B12 B21 B22 , C = C11 C12 C21 C22 C = C11 C12 C21 C22 = A11 A12 A21 A22 B11 B12 B21 B22 = ... A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 46 / 94
Matrix Multiplication Trick To multiply two n × n matrices, we perform 8 matrix multiplications of n 2 × n 2 matrices and one addition n × n of matrices. Idea A= A11 A12 A21 A22 ,B = B11 B12 B21 B22 , C = C11 C12 C21 C22 C = C11 C12 C21 C22 = A11 A12 A21 A22 B11 B12 B21 B22 = ... A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 46 / 94
Any Idea to Parallelize the Code? What do you think? Did you notice the multiplications of sub-matrices? Then What? We have for example A11B11 and A12B21!!! We can do the following A11B11 + A12B21 47 / 94
Any Idea to Parallelize the Code? What do you think? Did you notice the multiplications of sub-matrices? Then What? We have for example A11B11 and A12B21!!! We can do the following A11B11 + A12B21 47 / 94
Any Idea to Parallelize the Code? What do you think? Did you notice the multiplications of sub-matrices? Then What? We have for example A11B11 and A12B21!!! We can do the following A11B11 + A12B21 47 / 94
The use of the recursion!!! As always our friend!!! 48 / 94
Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
Explanation Lines 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 Extra matrix for storing the second matrix in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 T Line 5 Do the desired partition!!! 50 / 94
Explanation Lines 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 Extra matrix for storing the second matrix in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 T Line 5 Do the desired partition!!! 50 / 94
Explanation Lines 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 Extra matrix for storing the second matrix in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 T Line 5 Do the desired partition!!! 50 / 94
Explanation Lines 6 to 13 Calculating the products in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 Using Recursion and Parallel Computations Line 14 A barrier to wait until all the parallel computations are done!!! Line 15 Call Matrix − Add to add C and T. 51 / 94
Explanation Lines 6 to 13 Calculating the products in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 Using Recursion and Parallel Computations Line 14 A barrier to wait until all the parallel computations are done!!! Line 15 Call Matrix − Add to add C and T. 51 / 94
Explanation Lines 6 to 13 Calculating the products in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 Using Recursion and Parallel Computations Line 14 A barrier to wait until all the parallel computations are done!!! Line 15 Call Matrix − Add to add C and T. 51 / 94
Matrix ADD Matrix Add Code Matrix − Add(C, T, n) // Add matrices C and T in-place to produce C = C + T 1 if (n == 1) 2 C [1, 1] = C [1, 1] + T [1, 1] 3 else 4 Partition C and T into n 2 × n 2 sub-matrices 5 spawn Matrix − Add (C11, T11, n/2) 6 spawn Matrix − Add (C12, T12, n/2) 7 spawn Matrix − Add (C21, T21, n/2) 8 Matrix − Add (C22, T22, n/2) 9 sync 52 / 94
Matrix ADD Matrix Add Code Matrix − Add(C, T, n) // Add matrices C and T in-place to produce C = C + T 1 if (n == 1) 2 C [1, 1] = C [1, 1] + T [1, 1] 3 else 4 Partition C and T into n 2 × n 2 sub-matrices 5 spawn Matrix − Add (C11, T11, n/2) 6 spawn Matrix − Add (C12, T12, n/2) 7 spawn Matrix − Add (C21, T21, n/2) 8 Matrix − Add (C22, T22, n/2) 9 sync 52 / 94
Matrix ADD Matrix Add Code Matrix − Add(C, T, n) // Add matrices C and T in-place to produce C = C + T 1 if (n == 1) 2 C [1, 1] = C [1, 1] + T [1, 1] 3 else 4 Partition C and T into n 2 × n 2 sub-matrices 5 spawn Matrix − Add (C11, T11, n/2) 6 spawn Matrix − Add (C12, T12, n/2) 7 spawn Matrix − Add (C21, T21, n/2) 8 Matrix − Add (C22, T22, n/2) 9 sync 52 / 94
Matrix ADD Matrix Add Code Matrix − Add(C, T, n) // Add matrices C and T in-place to produce C = C + T 1 if (n == 1) 2 C [1, 1] = C [1, 1] + T [1, 1] 3 else 4 Partition C and T into n 2 × n 2 sub-matrices 5 spawn Matrix − Add (C11, T11, n/2) 6 spawn Matrix − Add (C12, T12, n/2) 7 spawn Matrix − Add (C21, T21, n/2) 8 Matrix − Add (C22, T22, n/2) 9 sync 52 / 94
Explanation Line 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 To Partition C = A11B11 A11B12 A21B11 A21B12 T = A12B21 A12B22 A22B21 A22B22 In lines 5 to 8 We do the following sum in parallel!!! A11B11 A11B12 A21B11 A21B12 C + A12B21 A12B22 A22B21 A22B22 T 53 / 94
Explanation Line 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 To Partition C = A11B11 A11B12 A21B11 A21B12 T = A12B21 A12B22 A22B21 A22B22 In lines 5 to 8 We do the following sum in parallel!!! A11B11 A11B12 A21B11 A21B12 C + A12B21 A12B22 A22B21 A22B22 T 53 / 94
Explanation Line 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 To Partition C = A11B11 A11B12 A21B11 A21B12 T = A12B21 A12B22 A22B21 A22B22 In lines 5 to 8 We do the following sum in parallel!!! A11B11 A11B12 A21B11 A21B12 C + A12B21 A12B22 A22B21 A22B22 T 53 / 94
Explanation Line 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 To Partition C = A11B11 A11B12 A21B11 A21B12 T = A12B21 A12B22 A22B21 A22B22 In lines 5 to 8 We do the following sum in parallel!!! A11B11 A11B12 A21B11 A21B12 C + A12B21 A12B22 A22B21 A22B22 T 53 / 94
Calculating Complexity of Matrix Multiplication Work of Matrix Multiplication The work of T1 (n) of matrix multiplication satisfies the recurrence: T1 (n) = 8T1 n 2 The sequential product + Θ n2 The sequential sum = Θ n3 . 54 / 94
Calculating Complexity of Matrix Multiplication Span of Matrix Multiplication T∞ (n) = T∞ n 2 The parallel product + Θ (log n) The parallel sum = Θ log2 n This is because: T∞ n 2 Matrix Multiplication is taking n 2 × n 2 matrices at the same time because parallelism. Θ (log n) is the span of the addition of the matrices (Remember, we are using unlimited processors) which has a critical path of length log n. 55 / 94
Calculating Complexity of Matrix Multiplication Span of Matrix Multiplication T∞ (n) = T∞ n 2 The parallel product + Θ (log n) The parallel sum = Θ log2 n This is because: T∞ n 2 Matrix Multiplication is taking n 2 × n 2 matrices at the same time because parallelism. Θ (log n) is the span of the addition of the matrices (Remember, we are using unlimited processors) which has a critical path of length log n. 55 / 94
Calculating Complexity of Matrix Multiplication Span of Matrix Multiplication T∞ (n) = T∞ n 2 The parallel product + Θ (log n) The parallel sum = Θ log2 n This is because: T∞ n 2 Matrix Multiplication is taking n 2 × n 2 matrices at the same time because parallelism. Θ (log n) is the span of the addition of the matrices (Remember, we are using unlimited processors) which has a critical path of length log n. 55 / 94
Collapsing the sum Parallel Sum + + 56 / 94
How much Parallelism? The Final Parallelism in this Algorithm is T1 (n) T∞ (n) = Θ n3 log2 n Quite A Lot!!! 57 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 58 / 94
Merge-Sort : The Serial Version We have Merge − Sort (A, p, r) Observation: Sort elements in A [p...r] 1 if (p < r) then 2 q = (p+r)/2 3 Merge − Sort (A, p, q) 4 Merge − Sort (A, q + 1, r) 5 Merge (A, p, q, r) 59 / 94
Merge-Sort : The Parallel Version We have Merge − Sort (A, p, r) Observation: Sort elements in A [p...r] 1 if (p < r) then 2 q = (p+r)/2 3 spawn Merge − Sort (A, p, q) 4 Merge − Sort (A, q + 1, r) // Not necessary to spawn this 5 sync 6 Merge (A, p, q, r) 60 / 94
Calculating Complexity of This simple Parallel Merge-Sort Work of Merge-Sort The work of T1 (n) of this Parallel Merge-Sort satisfies the recurrence: T1 (n) = Θ (1) if n = 1 2T1 n 2 + Θ (n) otherwise = Θ (n log n) Because the Master Theorem Case 2. Span T∞ (n) = Θ (1) if n = 1 T∞ n 2 + Θ (n) otherwise We have then T∞ n 2 sort is taking two sorts at the same time because parallelism. Then, T∞ (n) = Θ (n) because the Master Theorem Case 3. 61 / 94
Calculating Complexity of This simple Parallel Merge-Sort Work of Merge-Sort The work of T1 (n) of this Parallel Merge-Sort satisfies the recurrence: T1 (n) = Θ (1) if n = 1 2T1 n 2 + Θ (n) otherwise = Θ (n log n) Because the Master Theorem Case 2. Span T∞ (n) = Θ (1) if n = 1 T∞ n 2 + Θ (n) otherwise We have then T∞ n 2 sort is taking two sorts at the same time because parallelism. Then, T∞ (n) = Θ (n) because the Master Theorem Case 3. 61 / 94
Calculating Complexity of This simple Parallel Merge-Sort Work of Merge-Sort The work of T1 (n) of this Parallel Merge-Sort satisfies the recurrence: T1 (n) = Θ (1) if n = 1 2T1 n 2 + Θ (n) otherwise = Θ (n log n) Because the Master Theorem Case 2. Span T∞ (n) = Θ (1) if n = 1 T∞ n 2 + Θ (n) otherwise We have then T∞ n 2 sort is taking two sorts at the same time because parallelism. Then, T∞ (n) = Θ (n) because the Master Theorem Case 3. 61 / 94
Calculating Complexity of This simple Parallel Merge-Sort Work of Merge-Sort The work of T1 (n) of this Parallel Merge-Sort satisfies the recurrence: T1 (n) = Θ (1) if n = 1 2T1 n 2 + Θ (n) otherwise = Θ (n log n) Because the Master Theorem Case 2. Span T∞ (n) = Θ (1) if n = 1 T∞ n 2 + Θ (n) otherwise We have then T∞ n 2 sort is taking two sorts at the same time because parallelism. Then, T∞ (n) = Θ (n) because the Master Theorem Case 3. 61 / 94
How much Parallelism? The Final Parallelism in this Algorithm is T1 (n) T∞ (n) = Θ (log n) NOT NOT A Lot!!! 62 / 94
Can we improve this? We have a problem We have a bottleneck!!! Where? Yes in the Merge part!!! We need to improve that bottleneck!!! 63 / 94
Can we improve this? We have a problem We have a bottleneck!!! Where? Yes in the Merge part!!! We need to improve that bottleneck!!! 63 / 94
Parallel Merge Example: Here, we use and intermediate array T 64 / 94
Parallel Merge Step 1. Find x = T [q1] where q1 = (p1+r1)/2 or the midpoint in T [p1..r1] 65 / 94
Parallel Merge Step 2. Use Binary Search in T [p1..r1] to find q2 66 / 94
Then So that if we insert x between T [q2 − 1] and T [q2] T p1 · · · q2 − 1 x q2 · · · r1 is sorted 67 / 94
Binary Search It takes a key x and a sub-array T [p..r] and it does 1 If T [p..r] is empty r < p, then it returns the index p. 2 if x ≤ T [p], then it returns p. 3 if x > T [p], then it returns the largest index q in the range p < q ≤ r + 1 such that T [q − 1] < x. 68 / 94
Binary Search It takes a key x and a sub-array T [p..r] and it does 1 If T [p..r] is empty r < p, then it returns the index p. 2 if x ≤ T [p], then it returns p. 3 if x > T [p], then it returns the largest index q in the range p < q ≤ r + 1 such that T [q − 1] < x. 68 / 94
Binary Search It takes a key x and a sub-array T [p..r] and it does 1 If T [p..r] is empty r < p, then it returns the index p. 2 if x ≤ T [p], then it returns p. 3 if x > T [p], then it returns the largest index q in the range p < q ≤ r + 1 such that T [q − 1] < x. 68 / 94
Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
Parallel Merge Step 3. Copy x in A [q3] where q3 = p3 + (q1 − p1) + (q2 − p2) 70 / 94
Parallel Merge Step 4. Recursively merge T [p1..q1 − 1] and T [p2..q2 − 1] and place result into A [p3..q3 − 1] 71 / 94
Parallel Merge Step 5. Recursively merge T [q1 + 1..r1] and T [q2..r2] and place result into A [q3 + 1..r3] 72 / 94
The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
Explanation Line 1 Obtain the length of the two arrays to be merged Line 2: If one is larger than the other We exchange the variables to work the largest element!!! In this case we make n1 ≥ n2 Line 4 if n1 == 0 return nothing to merge!!! 74 / 94
Explanation Line 1 Obtain the length of the two arrays to be merged Line 2: If one is larger than the other We exchange the variables to work the largest element!!! In this case we make n1 ≥ n2 Line 4 if n1 == 0 return nothing to merge!!! 74 / 94
Explanation Line 1 Obtain the length of the two arrays to be merged Line 2: If one is larger than the other We exchange the variables to work the largest element!!! In this case we make n1 ≥ n2 Line 4 if n1 == 0 return nothing to merge!!! 74 / 94
Explanation Line 10 It copies T [q1] directly into A [q3] Line 11 and 12 They are used to recurse using nested parallelism to merge the sub-arrays less and greater than x. Line 13 The sync is used to ensure that the subproblems have completed before the procedure returns. 75 / 94
Explanation Line 10 It copies T [q1] directly into A [q3] Line 11 and 12 They are used to recurse using nested parallelism to merge the sub-arrays less and greater than x. Line 13 The sync is used to ensure that the subproblems have completed before the procedure returns. 75 / 94
Explanation Line 10 It copies T [q1] directly into A [q3] Line 11 and 12 They are used to recurse using nested parallelism to merge the sub-arrays less and greater than x. Line 13 The sync is used to ensure that the subproblems have completed before the procedure returns. 75 / 94
First the Span Complexity of Parallel Merge: T∞ (n) Suppositions n = n1 + n2 What case should we study? Remember T∞ (n) = max {T∞ (n1) + T∞ (n2)} We notice then that Because lines 3-6 n2 ≤ n1 76 / 94
First the Span Complexity of Parallel Merge: T∞ (n) Suppositions n = n1 + n2 What case should we study? Remember T∞ (n) = max {T∞ (n1) + T∞ (n2)} We notice then that Because lines 3-6 n2 ≤ n1 76 / 94
First the Span Complexity of Parallel Merge: T∞ (n) Suppositions n = n1 + n2 What case should we study? Remember T∞ (n) = max {T∞ (n1) + T∞ (n2)} We notice then that Because lines 3-6 n2 ≤ n1 76 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Then 2n2 ≤ n1 + n2 = n =⇒ n2 ≤ n/2 Thus In the worst case, a recursive call in lines 11 merges: n1 2 elements of T [p1...r1] (Remember we are halving the array by mid-point). With all n2 elements of T [p2...r2]. 77 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Then 2n2 ≤ n1 + n2 = n =⇒ n2 ≤ n/2 Thus In the worst case, a recursive call in lines 11 merges: n1 2 elements of T [p1...r1] (Remember we are halving the array by mid-point). With all n2 elements of T [p2...r2]. 77 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Then 2n2 ≤ n1 + n2 = n =⇒ n2 ≤ n/2 Thus In the worst case, a recursive call in lines 11 merges: n1 2 elements of T [p1...r1] (Remember we are halving the array by mid-point). With all n2 elements of T [p2...r2]. 77 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Then 2n2 ≤ n1 + n2 = n =⇒ n2 ≤ n/2 Thus In the worst case, a recursive call in lines 11 merges: n1 2 elements of T [p1...r1] (Remember we are halving the array by mid-point). With all n2 elements of T [p2...r2]. 77 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Thus, the number of elements involved in such a call is n1 2 + n2 ≤ n1 2 + n2 2 + n2 2 ≤ n1 2 + n2 2 + n/2 2 = n1 + n2 2 + n 4 ≤ n 2 + n 4 = 3n 4 78 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Thus, the number of elements involved in such a call is n1 2 + n2 ≤ n1 2 + n2 2 + n2 2 ≤ n1 2 + n2 2 + n/2 2 = n1 + n2 2 + n 4 ≤ n 2 + n 4 = 3n 4 78 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Thus, the number of elements involved in such a call is n1 2 + n2 ≤ n1 2 + n2 2 + n2 2 ≤ n1 2 + n2 2 + n/2 2 = n1 + n2 2 + n 4 ≤ n 2 + n 4 = 3n 4 78 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Thus, the number of elements involved in such a call is n1 2 + n2 ≤ n1 2 + n2 2 + n2 2 ≤ n1 2 + n2 2 + n/2 2 = n1 + n2 2 + n 4 ≤ n 2 + n 4 = 3n 4 78 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Knowing that the Binary Search takes Θ (log n) We get the span for parallel merge T∞ (n) = T∞ 3n 4 + Θ (log n) This can can be solved using the exercise 4.6-2 in the Cormen’s Book T∞ (n) = Θ log2 n 79 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Knowing that the Binary Search takes Θ (log n) We get the span for parallel merge T∞ (n) = T∞ 3n 4 + Θ (log n) This can can be solved using the exercise 4.6-2 in the Cormen’s Book T∞ (n) = Θ log2 n 79 / 94
Span Complexity of the Parallel Merge with One Processor: T1 (n) Knowing that the Binary Search takes Θ (log n) We get the span for parallel merge T∞ (n) = T∞ 3n 4 + Θ (log n) This can can be solved using the exercise 4.6-2 in the Cormen’s Book T∞ (n) = Θ log2 n 79 / 94
Calculating Work Complexity of Parallel Merge Ok!!! We need to calculate the WORK T1 (n) = Θ (Something) Thus We need to calculate the upper and lower bound. 80 / 94
Calculating Work Complexity of Parallel Merge Ok!!! We need to calculate the WORK T1 (n) = Θ (Something) Thus We need to calculate the upper and lower bound. 80 / 94
Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
Calculating Work Complexity of Parallel Merge Then Then, for some α ∈ 1 4, 3 4 , then we have the following recursion for the Parallel Merge when we have one processor: T1 (n) = T1 (αn) + T1 ((1 − α) n) Merge Part + Θ (log n) Binary Search Remark: α varies at each level of the recursion!!! 82 / 94
Calculating Work Complexity of Parallel Merge Then Then, for some α ∈ 1 4, 3 4 , then we have the following recursion for the Parallel Merge when we have one processor: T1 (n) = T1 (αn) + T1 ((1 − α) n) Merge Part + Θ (log n) Binary Search Remark: α varies at each level of the recursion!!! 82 / 94
Calculating Work Complexity of Parallel Merge Then Then, for some α ∈ 1 4, 3 4 , then we have the following recursion for the Parallel Merge when we have one processor: T1 (n) = T1 (αn) + T1 ((1 − α) n) Merge Part + Θ (log n) Binary Search Remark: α varies at each level of the recursion!!! 82 / 94
Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94

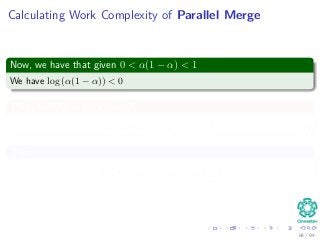

Calculating Work Complexity of Parallel Merge Now, we have that given 0 < α(1 − α) < 1 We have log (α(1 − α)) < 0 Thus, making n large enough log n + log (α(1 − α)) > 0 (1) Then T1 (n) ≤ c1n − (c2 − c3) log n 84 / 94
Calculating Work Complexity of Parallel Merge Now, we have that given 0 < α(1 − α) < 1 We have log (α(1 − α)) < 0 Thus, making n large enough log n + log (α(1 − α)) > 0 (1) Then T1 (n) ≤ c1n − (c2 − c3) log n 84 / 94
Calculating Work Complexity of Parallel Merge Now, we have that given 0 < α(1 − α) < 1 We have log (α(1 − α)) < 0 Thus, making n large enough log n + log (α(1 − α)) > 0 (1) Then T1 (n) ≤ c1n − (c2 − c3) log n 84 / 94
Calculating Work Complexity of Parallel Merge Now, we choose c2 and c3 such that c2 − c3 ≥ 0 We have that T1 (n) ≤ c1n = O(n) 85 / 94
Calculating Work Complexity of Parallel Merge Now, we choose c2 and c3 such that c2 − c3 ≥ 0 We have that T1 (n) ≤ c1n = O(n) 85 / 94
Finally Then T1 (n) = Θ (n) The parallelism of Parallel Merge T1 (n) T∞ (n) = Θ n log2 n 86 / 94
Finally Then T1 (n) = Θ (n) The parallelism of Parallel Merge T1 (n) T∞ (n) = Θ n log2 n 86 / 94
Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Work We can use the worst work in the parallel to generate the recursion: TPMS 1 (n) = 2TPMS 1 n 2 + TPM 1 (n) = 2TPMS 1 n 2 + Θ (n) = Θ (n log n) Case 2 of the MT 88 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Work We can use the worst work in the parallel to generate the recursion: TPMS 1 (n) = 2TPMS 1 n 2 + TPM 1 (n) = 2TPMS 1 n 2 + Θ (n) = Θ (n log n) Case 2 of the MT 88 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Work We can use the worst work in the parallel to generate the recursion: TPMS 1 (n) = 2TPMS 1 n 2 + TPM 1 (n) = 2TPMS 1 n 2 + Θ (n) = Θ (n log n) Case 2 of the MT 88 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Work We can use the worst work in the parallel to generate the recursion: TPMS 1 (n) = 2TPMS 1 n 2 + TPM 1 (n) = 2TPMS 1 n 2 + Θ (n) = Θ (n log n) Case 2 of the MT 88 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Span We get the following recursion for the span by taking in account that lines 7 and 8 of parallel merge sort run in parallel: TPMS ∞ (n) = TPMS ∞ n 2 + TPM ∞ (n) = TPMS ∞ n 2 + Θ log2 n = Θ log3 n Exercise 4.6-2 in the Cormen’s Book 89 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Span We get the following recursion for the span by taking in account that lines 7 and 8 of parallel merge sort run in parallel: TPMS ∞ (n) = TPMS ∞ n 2 + TPM ∞ (n) = TPMS ∞ n 2 + Θ log2 n = Θ log3 n Exercise 4.6-2 in the Cormen’s Book 89 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Span We get the following recursion for the span by taking in account that lines 7 and 8 of parallel merge sort run in parallel: TPMS ∞ (n) = TPMS ∞ n 2 + TPM ∞ (n) = TPMS ∞ n 2 + Θ log2 n = Θ log3 n Exercise 4.6-2 in the Cormen’s Book 89 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Span We get the following recursion for the span by taking in account that lines 7 and 8 of parallel merge sort run in parallel: TPMS ∞ (n) = TPMS ∞ n 2 + TPM ∞ (n) = TPMS ∞ n 2 + Θ log2 n = Θ log3 n Exercise 4.6-2 in the Cormen’s Book 89 / 94
Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Parallelism T1 (n) T∞ (n) = Θ n log2 n 90 / 94
Plotting both Parallelisms We get the incredible difference between both algorithm 91 / 94
Plotting the T∞ We get the incredible difference when running both algorithms with an infinite number of processors!!! 92 / 94
Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 93 / 94
Exercises 27.1-1 27.1-2 27.1-4 27.1-6 27.1-7 27.2-1 27.2-3 27.2-4 27.2-5 27.3-1 27.3-2 27.3-3 27.3-4 94 / 94

More Related Content

PPTX
CPU Scheduling in OS Presentation
usmankiyani1

PPTX
Process synchronization in Operating Systems
Ritu Ranjan Shrivastwa

PPT
Sequential consistency model
Bharathi Lakshmi Pon

PPTX
Multiprocessor
Neel Patel

PPT
program flow mechanisms, advanced computer architecture
Pankaj Kumar Jain

PPTX
Interconnection Network
Ali A Jalil

PPT
CPU Scheduling Algorithms
Shubhashish Punj

PPTX
Mass Storage Structure
Vimalanathan D

CPU Scheduling in OS Presentation
usmankiyani1

Process synchronization in Operating Systems
Ritu Ranjan Shrivastwa

Sequential consistency model
Bharathi Lakshmi Pon

Multiprocessor
Neel Patel

program flow mechanisms, advanced computer architecture
Pankaj Kumar Jain

Interconnection Network
Ali A Jalil

CPU Scheduling Algorithms
Shubhashish Punj

Mass Storage Structure
Vimalanathan D


What's hot (20)

PPT
Hardware and Software parallelism
prashantdahake

PDF
Process Scheduling in OS
Rashmi Bhat

PPT
Chapter 6-Consistency and Replication.ppt
sirajmohammed35

PPTX
Process synchronization
Syed Hassan Ali

PPT
message passing
Ashish Kumar

PPTX
Distributed file system
Anamika Singh

PPT
program partitioning and scheduling IN Advanced Computer Architecture
Pankaj Kumar Jain

PDF
parallel Questions &amp; answers
Md. Mashiur Rahman

PPTX
Inter Process Communication
Adeel Rasheed

PDF
management of distributed transactions
Nilu Desai

PDF
P, NP, NP-Complete, and NP-Hard
Animesh Chaturvedi

PPT
multi threaded and distributed algorithms
Dr Shashikant Athawale

PPT
Scheduling algorithms
Chankey Pathak

PPTX
Transactions and Concurrency Control
Dilum Bandara

PDF
Memory consistency models
palani kumar

PPTX
Deadlock detection & prevention
IkhtiarUddinShaHin

PPTX
Advanced DBMS presentation
Hindustan Petroleum

PPTX
Synchronization in distributed computing
SVijaylakshmi

PDF
Basic communication operations - One to all Broadcast
RashiJoshi11

PDF
8 memory management strategies
Dr. Loganathan R

Hardware and Software parallelism
prashantdahake

Process Scheduling in OS
Rashmi Bhat

Chapter 6-Consistency and Replication.ppt
sirajmohammed35

Process synchronization
Syed Hassan Ali

message passing
Ashish Kumar

Distributed file system
Anamika Singh

program partitioning and scheduling IN Advanced Computer Architecture
Pankaj Kumar Jain

parallel Questions &amp; answers
Md. Mashiur Rahman

Inter Process Communication
Adeel Rasheed

management of distributed transactions
Nilu Desai

P, NP, NP-Complete, and NP-Hard
Animesh Chaturvedi

multi threaded and distributed algorithms
Dr Shashikant Athawale

Scheduling algorithms
Chankey Pathak

Transactions and Concurrency Control
Dilum Bandara

Memory consistency models
palani kumar

Deadlock detection & prevention
IkhtiarUddinShaHin

Advanced DBMS presentation
Hindustan Petroleum

Synchronization in distributed computing
SVijaylakshmi

Basic communication operations - One to all Broadcast
RashiJoshi11

8 memory management strategies
Dr. Loganathan R

Ad

Viewers also liked (11)

PPTX
Multithreaded algorithms
Soicon Karo

PDF
Aula sobre multithreading
Bianca Dantas

PDF
Parallel Algorithms
Dr Sandeep Kumar Poonia

PDF
An OpenCL Method of Parallel Sorting Algorithms for GPU Architecture
Waqas Tariq

PDF
Software Projects Java Projects Ieee Projects Domains
ncct

PPT
Chuong 05 de quy
Cau Chu Nho

PPTX
optimizing code in compilers using parallel genetic algorithm
Fatemeh Karimi

PDF
Comparing different concurrency models on the JVM
Mario Fusco

PPTX
Parallel algorithms
Danish Javed

PPTX
Parallel sorting
Mr. Vikram Singh Slathia

PDF
Многопоточные Алгоритмы (для BitByte 2014)
Roman Elizarov

Multithreaded algorithms
Soicon Karo

Aula sobre multithreading
Bianca Dantas

Parallel Algorithms
Dr Sandeep Kumar Poonia

An OpenCL Method of Parallel Sorting Algorithms for GPU Architecture
Waqas Tariq

Software Projects Java Projects Ieee Projects Domains
ncct

Chuong 05 de quy
Cau Chu Nho

optimizing code in compilers using parallel genetic algorithm
Fatemeh Karimi

Comparing different concurrency models on the JVM
Mario Fusco

Parallel algorithms
Danish Javed

Parallel sorting
Mr. Vikram Singh Slathia

Многопоточные Алгоритмы (для BitByte 2014)
Roman Elizarov

Ad

Similar to 24 Multithreaded Algorithms (20)

PDF
High Performance Computer Architecture
Subhasis Dash

PPT
Parallel Programming Primer
Sri Prasanna

PPT
Parallel Programming Primer 1
mobius.cn

PPT
Migration To Multi Core - Parallel Programming Models
Zvi Avraham

PPTX
CSA unit5.pptx
AbcvDef

PDF
Unit2-Part2-MultithreadAlgos.pptx.pdf
Vinayak247538

PPT
multiprocessors and multicomputers
Pankaj Kumar Jain

PPT
Parallel processing
Shivalik college of engineering

PPT
Parallel computing
Vinay Gupta

PPTX
Parallel Processing (Part 2)
Ajeng Savitri

PPTX
Computer system Architecture. This PPT is based on computer system
mohantysikun0

PPTX
unit 4.pptx
SUBHAMSHARANRA211100

PPTX
unit 4.pptx
SUBHAMSHARANRA211100

PPTX
parellelisum edited_jsdnsfnjdnjfnjdn.pptx
aravym456

PDF
Summary of Simultaneous Multithreading: Maximizing On-Chip Parallelism
Farwa Ansari

PPTX
Parallel Programming
Uday Sharma

PPTX
Multiprocessor.pptx
Muhammad54342

PDF
KA 5 - Lecture 1 - Parallel Processing.pdf
Carlos701746

PPTX
Parallel architecture-programming
Shaveta Banda

PPT
Multiprocessor_YChen.ppt
AberaZeleke1

High Performance Computer Architecture
Subhasis Dash

Parallel Programming Primer
Sri Prasanna

Parallel Programming Primer 1
mobius.cn

Migration To Multi Core - Parallel Programming Models
Zvi Avraham

CSA unit5.pptx
AbcvDef

Unit2-Part2-MultithreadAlgos.pptx.pdf
Vinayak247538

multiprocessors and multicomputers
Pankaj Kumar Jain

Parallel processing
Shivalik college of engineering

Parallel computing
Vinay Gupta

Parallel Processing (Part 2)
Ajeng Savitri

Computer system Architecture. This PPT is based on computer system
mohantysikun0

unit 4.pptx
SUBHAMSHARANRA211100

unit 4.pptx
SUBHAMSHARANRA211100

parellelisum edited_jsdnsfnjdnjfnjdn.pptx
aravym456

Summary of Simultaneous Multithreading: Maximizing On-Chip Parallelism
Farwa Ansari

Parallel Programming
Uday Sharma

Multiprocessor.pptx
Muhammad54342

KA 5 - Lecture 1 - Parallel Processing.pdf
Carlos701746

Parallel architecture-programming
Shaveta Banda

Multiprocessor_YChen.ppt
AberaZeleke1


More from Andres Mendez-Vazquez (20)

PDF
2.03 bayesian estimation
Andres Mendez-Vazquez

PDF
05 linear transformations
Andres Mendez-Vazquez

PDF
01.04 orthonormal basis_eigen_vectors
Andres Mendez-Vazquez

PDF
01.03 squared matrices_and_other_issues
Andres Mendez-Vazquez

PDF
01.02 linear equations
Andres Mendez-Vazquez

PDF
01.01 vector spaces
Andres Mendez-Vazquez

PDF
06 recurrent neural_networks
Andres Mendez-Vazquez

PDF
05 backpropagation automatic_differentiation
Andres Mendez-Vazquez

PDF
Zetta global
Andres Mendez-Vazquez

PDF
01 Introduction to Neural Networks and Deep Learning
Andres Mendez-Vazquez

PDF
25 introduction reinforcement_learning
Andres Mendez-Vazquez

PDF
Neural Networks and Deep Learning Syllabus
Andres Mendez-Vazquez

PDF
Introduction to artificial_intelligence_syllabus
Andres Mendez-Vazquez

PDF
Ideas 09 22_2018
Andres Mendez-Vazquez

PDF
Ideas about a Bachelor in Machine Learning/Data Sciences
Andres Mendez-Vazquez

PDF
Analysis of Algorithms Syllabus
Andres Mendez-Vazquez

PDF
20 k-means, k-center, k-meoids and variations
Andres Mendez-Vazquez

PDF
18.1 combining models
Andres Mendez-Vazquez

PDF
17 vapnik chervonenkis dimension
Andres Mendez-Vazquez

PDF
A basic introduction to learning
Andres Mendez-Vazquez

2.03 bayesian estimation
Andres Mendez-Vazquez

05 linear transformations
Andres Mendez-Vazquez

01.04 orthonormal basis_eigen_vectors
Andres Mendez-Vazquez

01.03 squared matrices_and_other_issues
Andres Mendez-Vazquez

01.02 linear equations
Andres Mendez-Vazquez

01.01 vector spaces
Andres Mendez-Vazquez

06 recurrent neural_networks
Andres Mendez-Vazquez

05 backpropagation automatic_differentiation
Andres Mendez-Vazquez

Zetta global
Andres Mendez-Vazquez

01 Introduction to Neural Networks and Deep Learning
Andres Mendez-Vazquez

25 introduction reinforcement_learning
Andres Mendez-Vazquez

Neural Networks and Deep Learning Syllabus
Andres Mendez-Vazquez

Introduction to artificial_intelligence_syllabus
Andres Mendez-Vazquez

Ideas 09 22_2018
Andres Mendez-Vazquez

Ideas about a Bachelor in Machine Learning/Data Sciences
Andres Mendez-Vazquez

Analysis of Algorithms Syllabus
Andres Mendez-Vazquez

20 k-means, k-center, k-meoids and variations
Andres Mendez-Vazquez

18.1 combining models
Andres Mendez-Vazquez

17 vapnik chervonenkis dimension
Andres Mendez-Vazquez

A basic introduction to learning
Andres Mendez-Vazquez


Recently uploaded (20)

PDF
The CXO Playbook 2025 – Future-Ready Strategies for C-Suite Leaders Cerebrai...
Cerebraix Technologies

PPTX
Foundation to blockchain - A guide to Blockchain Tech
Davies Chacko

PPTX
additive manufacturing of ss316l using mig welding
premcdr7799

PDF
R24 SURVEYING LAB MANUAL for civil enggi
MNANDITHACIVILSTAFF

DOCX
ASol_English-Language-Literature-Set-1-27-02-2023-converted.docx
AYUSHMANAV

PPTX
M Tech Sem 1 Civil Engineering Environmental Sciences.pptx
ShriNRPrasad

PPT
Project quality management in manufacturing
BarMusaTetik

PPTX
CARTOGRAPHY AND GEOINFORMATION VISUALIZATION chapter1 NPTE (2).pptx
abhi1361yadav

PDF
Model Code of Practice - Construction Work - 21102022 .pdf
AinieButt1

PDF
SM_6th-Sem__Cse_Internet-of-Things.pdf IOT
smceramu

PDF
Enhancing Cyber Defense Against Zero-Day Attacks using Ensemble Neural Networks
IJCNCJournal

PPTX
MET 305 2019 SCHEME MODULE 2 COMPLETE.pptx
VinayB68

PDF
Automation-in-Manufacturing-Chapter-Introduction.pdf
pcmth867

PDF
keyrequirementskkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
mojeeburahmanwardak

PDF
July 2025 - Top 10 Read Articles in International Journal of Software Enginee...
sebastianku31

PPTX
Welding lecture in detail for understanding
sahilpoonia10

PPTX
MCN 401 KTU-2019-PPE KITS-MODULE 2.pptx
VinayB68

PPTX
IOT PPTs Week 10 Lecture Material.pptx of NPTEL Smart Cities contd
ssusera400e8

PPTX
Recipes for Real Time Voice AI WebRTC, SLMs and Open Source Software.pptx
Alberto González Trastoy

PDF
PRIZ Academy - 9 Windows Thinking Where to Invest Today to Win Tomorrow.pdf
PRIZ Guru

The CXO Playbook 2025 – Future-Ready Strategies for C-Suite Leaders Cerebrai...
Cerebraix Technologies

Foundation to blockchain - A guide to Blockchain Tech
Davies Chacko

additive manufacturing of ss316l using mig welding
premcdr7799

R24 SURVEYING LAB MANUAL for civil enggi
MNANDITHACIVILSTAFF

ASol_English-Language-Literature-Set-1-27-02-2023-converted.docx
AYUSHMANAV

M Tech Sem 1 Civil Engineering Environmental Sciences.pptx
ShriNRPrasad

Project quality management in manufacturing
BarMusaTetik

CARTOGRAPHY AND GEOINFORMATION VISUALIZATION chapter1 NPTE (2).pptx
abhi1361yadav

Model Code of Practice - Construction Work - 21102022 .pdf
AinieButt1

SM_6th-Sem__Cse_Internet-of-Things.pdf IOT
smceramu

Enhancing Cyber Defense Against Zero-Day Attacks using Ensemble Neural Networks
IJCNCJournal

MET 305 2019 SCHEME MODULE 2 COMPLETE.pptx
VinayB68

Automation-in-Manufacturing-Chapter-Introduction.pdf
pcmth867

keyrequirementskkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkkk
mojeeburahmanwardak

July 2025 - Top 10 Read Articles in International Journal of Software Enginee...
sebastianku31

Welding lecture in detail for understanding
sahilpoonia10

MCN 401 KTU-2019-PPE KITS-MODULE 2.pptx
VinayB68

IOT PPTs Week 10 Lecture Material.pptx of NPTEL Smart Cities contd
ssusera400e8

Recipes for Real Time Voice AI WebRTC, SLMs and Open Source Software.pptx
Alberto González Trastoy

PRIZ Academy - 9 Windows Thinking Where to Invest Today to Win Tomorrow.pdf
PRIZ Guru


24 Multithreaded Algorithms

  • 1. Analysis of Algorithms Multi-threaded Algorithms Andres Mendez-Vazquez April 15, 2016 1 / 94
  • 2. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 2 / 94
  • 3. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 3 / 94
  • 4. Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
  • 5. Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
  • 6. Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
  • 7. Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
  • 8. Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
  • 9. Multi-Threaded Algorithms Motivation Until now, our serial algorithms are quite suitable for running on a single processor system. However, multiprocessor algorithms are ubiquitous: Therefore, extending our serial models to a parallel computation model is a must. Computational Model There exist many competing models of parallel computation that are essentially different: Shared Memory Message Passing Etc. 4 / 94
  • 10. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 5 / 94
  • 11. The Model to Be Used Symmetric Multiprocessor The model that we will use is the Symmetric Multiprocessor (SMP) where a shared memory exists. L3 Cache L2 Cache L1i Cache L1d Cache CPU Core 1 CPU Core 3 CPU Core 4 CPU Core 2 L1d Cache L1d Cache L1d Cache L1i Cache L1i Cache L1i Cache L2 Cache L2 CacheL2 Cache P-to-P L3 Cache L2 Cache L1i Cache L1d Cache CPU Core 1 CPU Core 3 CPU Core 4 CPU Core 2 L1d Cache L1d Cache L1d Cache L1i Cache L1i Cache L1i Cache L2 Cache L2 CacheL2 Cache P-to-P L3 Cache L2 Cache L1i Cache L1d Cache CPU Core 1 CPU Core 3 CPU Core 4 CPU Core 2 L1d Cache L1d Cache L1d Cache L1i Cache L1i Cache L1i Cache L2 Cache L2 CacheL2 Cache P-to-P L3 Cache L2 Cache L1i Cache L1d Cache CPU Core 1 CPU Core 3 CPU Core 4 CPU Core 2 L1d Cache L1d Cache L1d Cache L1i Cache L1i Cache L1i Cache L2 Cache L2 CacheL2 Cache P-to-P MAIN SHARED MEMORY Processor 1 Processor 2 Processor 3 Processor 4 BUS 6 / 94
  • 12. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 13. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 14. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 15. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 16. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 17. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 18. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 19. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 20. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 21. Dynamic Multi-Threading Dynamic Multi-Threading In reality it can be difficult to handle multi-threaded programs in a SMP. Thus, we will assume a simple concurrency platform that handles all the resources: Schedules Memory Etc It is Called Dynamic Multi-threading. Dynamic Multi-Threading Computing Operations Spawn Sync Parallel 7 / 94
  • 22. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 8 / 94
  • 23. SPAWN SPAWN When called before a procedure, the parent procedure may continue to execute in parallel. Note The keyword spawn does not say anything about concurrent execution, but it can happen. The Scheduler decide which computations should run concurrently. 9 / 94
  • 24. SPAWN SPAWN When called before a procedure, the parent procedure may continue to execute in parallel. Note The keyword spawn does not say anything about concurrent execution, but it can happen. The Scheduler decide which computations should run concurrently. 9 / 94
  • 25. SPAWN SPAWN When called before a procedure, the parent procedure may continue to execute in parallel. Note The keyword spawn does not say anything about concurrent execution, but it can happen. The Scheduler decide which computations should run concurrently. 9 / 94
  • 26. SYNC AND PARALLEL SYNC The keyword sync indicates that the procedure must wait for all its spawned children to complete. PARALLEL This operation applies to loops, which make possible to execute the body of the loop in parallel. 10 / 94
  • 27. SYNC AND PARALLEL SYNC The keyword sync indicates that the procedure must wait for all its spawned children to complete. PARALLEL This operation applies to loops, which make possible to execute the body of the loop in parallel. 10 / 94
  • 28. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 11 / 94
  • 29. A Classic Parallel Piece of Code: Fibonacci Numbers Fibonacci’s Definition F0 = 0 F1 = 1 Fi = Fi−1 + Fi−2 for i > 1. Naive Algorithm Fibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 return x + y 12 / 94
  • 30. A Classic Parallel Piece of Code: Fibonacci Numbers Fibonacci’s Definition F0 = 0 F1 = 1 Fi = Fi−1 + Fi−2 for i > 1. Naive Algorithm Fibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 return x + y 12 / 94
  • 31. Time Complexity Recursion and Complexity Recursion T (n) =T (n − 1) + T (n − 2) + Θ (1). Complexity T(n) = Θ (Fn) = Θ (φn), φ = 1+ √ 5 2 . 13 / 94
  • 32. Time Complexity Recursion and Complexity Recursion T (n) =T (n − 1) + T (n − 2) + Θ (1). Complexity T(n) = Θ (Fn) = Θ (φn), φ = 1+ √ 5 2 . 13 / 94
  • 33. There is a Better Way We can order the first tree numbers in the sequence as F2 F1 F1 F0 = 1 1 1 0 Then F2 F1 F1 F0 F2 F1 F1 F0 = 1 1 1 0 1 1 1 0 = 2 1 1 1 = F3 F2 F2 F1 14 / 94
  • 34. There is a Better Way We can order the first tree numbers in the sequence as F2 F1 F1 F0 = 1 1 1 0 Then F2 F1 F1 F0 F2 F1 F1 F0 = 1 1 1 0 1 1 1 0 = 2 1 1 1 = F3 F2 F2 F1 14 / 94
  • 35. There is a Better Way Calculating in O(log n) when n is a power of 2 1 1 1 0 n = F (n + 1) F (n) F (n) F (n − 1) Thus 1 1 1 0 n 2 1 1 1 0 n 2 = F n 2 + 1 F n 2 F n 2 F n 2 − 1 F n 2 + 1 F n 2 F n 2 F n 2 − 1 However... We will use the naive version to illustrate the principles of parallel programming. 15 / 94
  • 36. There is a Better Way Calculating in O(log n) when n is a power of 2 1 1 1 0 n = F (n + 1) F (n) F (n) F (n − 1) Thus 1 1 1 0 n 2 1 1 1 0 n 2 = F n 2 + 1 F n 2 F n 2 F n 2 − 1 F n 2 + 1 F n 2 F n 2 F n 2 − 1 However... We will use the naive version to illustrate the principles of parallel programming. 15 / 94
  • 37. The Concurrent Code Parallel Algorithm PFibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = spawn Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 sync 6 return x + y 16 / 94
  • 38. The Concurrent Code Parallel Algorithm PFibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = spawn Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 sync 6 return x + y 16 / 94
  • 39. The Concurrent Code Parallel Algorithm PFibonacci(n) 1 if n ≤ 1 then 2 return n 3 else x = spawn Fibonacci(n − 1) 4 y = Fibonacci(n − 2) 5 sync 6 return x + y 16 / 94
  • 40. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 17 / 94
  • 41. How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
  • 42. How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
  • 43. How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
  • 44. How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
  • 45. How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
  • 46. How do we compute a complexity? Computation DAG Definition A directed acyclic G = (V , E) graph where The vertices V are sets of instructions. The edges E represent dependencies between sets of instructions i.e. (u, v) instruction u before v. Notes A set of instructions without any parallel control are grouped in a strand. Thus, V represents a set of strands and E represents dependencies between strands induced by parallel control. A strand of maximal length will be called a thread. 18 / 94
  • 47. How do we compute a complexity? Computation DAG Thus If there is an edge between thread u and v, then they are said to be (logically) in series. If there is no edge, then they are said to be (logically) in parallel. 19 / 94
  • 48. How do we compute a complexity? Computation DAG Thus If there is an edge between thread u and v, then they are said to be (logically) in series. If there is no edge, then they are said to be (logically) in parallel. 19 / 94
  • 49. Example: PFibonacci(4) Example PFibonacci(4) PFibonacci(3) PFibonacci(2) PFibonacci(2) PFibonacci(1) PFibonacci(1) PFibonacci(1) PFibonacci(0) PFibonacci(0) 20 / 94
  • 50. Edge Classification Continuation Edge A continuation edge (u, v) connects a thread u to its successor v within the same procedure instance. Spawned Edge When a thread u spawns a new thread v, then (u, v) is called a spawned edge. Call Edges Call edges represent normal procedure call. Return Edge Return edge signals when a thread v returns to its calling procedure. 21 / 94
  • 51. Edge Classification Continuation Edge A continuation edge (u, v) connects a thread u to its successor v within the same procedure instance. Spawned Edge When a thread u spawns a new thread v, then (u, v) is called a spawned edge. Call Edges Call edges represent normal procedure call. Return Edge Return edge signals when a thread v returns to its calling procedure. 21 / 94
  • 52. Edge Classification Continuation Edge A continuation edge (u, v) connects a thread u to its successor v within the same procedure instance. Spawned Edge When a thread u spawns a new thread v, then (u, v) is called a spawned edge. Call Edges Call edges represent normal procedure call. Return Edge Return edge signals when a thread v returns to its calling procedure. 21 / 94
  • 53. Edge Classification Continuation Edge A continuation edge (u, v) connects a thread u to its successor v within the same procedure instance. Spawned Edge When a thread u spawns a new thread v, then (u, v) is called a spawned edge. Call Edges Call edges represent normal procedure call. Return Edge Return edge signals when a thread v returns to its calling procedure. 21 / 94
  • 54. Example: PFibonacci(4) The Different Edges PFibonacci(4) PFibonacci(3) PFibonacci(2) PFibonacci(2) PFibonacci(1) PFibonacci(1) PFibonacci(1) PFibonacci(0) PFibonacci(0) Init Thread Spawn Edge Continuation Edge Return Edge Final Thread Call Edge 22 / 94
  • 55. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 23 / 94
  • 56. Performance Measures WORK The work of a multi-threaded computation is the total time to execute the entire computation on one processor. Work = i∈I Time (Threadi) SPAN The span is the longest time to execute the strands along any path of the DAG. In a DAG which each strand takes unit time, the span equals the number of vertices on a longest or critical path in the DAG. 24 / 94
  • 57. Performance Measures WORK The work of a multi-threaded computation is the total time to execute the entire computation on one processor. Work = i∈I Time (Threadi) SPAN The span is the longest time to execute the strands along any path of the DAG. In a DAG which each strand takes unit time, the span equals the number of vertices on a longest or critical path in the DAG. 24 / 94
  • 58. Example: PFibonacci(4) Example Critical Path PFibonacci(4) PFibonacci(3) PFibonacci(2) PFibonacci(2) PFibonacci(1) PFibonacci(1) PFibonacci(1) PFibonacci(0) PFibonacci(0) 25 / 94
  • 59. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 60. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 61. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 62. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 63. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 64. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 65. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 66. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 67. Example Example In Fibonacci(4), we have 17 threads. 8 vertices in the longest path We have that Assuming unit time WORK=17 time units SPAN=8 time units Note Running time not only depends on work and span but Available Cores Scheduler Policies 26 / 94
  • 68. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 27 / 94
  • 69. Running Time Classification Single Processor T1 running time on a single processor. Multiple Processors Tp running time on P processors. Unlimited Processors T∞ running time on unlimited processors, also called the span, if we run each strand on its own processor. 28 / 94
  • 70. Running Time Classification Single Processor T1 running time on a single processor. Multiple Processors Tp running time on P processors. Unlimited Processors T∞ running time on unlimited processors, also called the span, if we run each strand on its own processor. 28 / 94
  • 71. Running Time Classification Single Processor T1 running time on a single processor. Multiple Processors Tp running time on P processors. Unlimited Processors T∞ running time on unlimited processors, also called the span, if we run each strand on its own processor. 28 / 94
  • 72. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 29 / 94
  • 73. Work Law Definition In one step, an ideal parallel computer with P processors can do: At most P units of work. Thus in TP time, it can perform at most PTP work. PTP ≥ T1 =⇒ Tp ≥ T1 P 30 / 94
  • 74. Work Law Definition In one step, an ideal parallel computer with P processors can do: At most P units of work. Thus in TP time, it can perform at most PTP work. PTP ≥ T1 =⇒ Tp ≥ T1 P 30 / 94
  • 75. Work Law Definition In one step, an ideal parallel computer with P processors can do: At most P units of work. Thus in TP time, it can perform at most PTP work. PTP ≥ T1 =⇒ Tp ≥ T1 P 30 / 94
  • 76. Work Law Definition In one step, an ideal parallel computer with P processors can do: At most P units of work. Thus in TP time, it can perform at most PTP work. PTP ≥ T1 =⇒ Tp ≥ T1 P 30 / 94
  • 77. Span Law Definition A P-processor ideal parallel computer cannot run faster than a machine with unlimited number of processors. However, a computer with unlimited number of processors can emulate a P-processor machine by using simply P of its processors. Therefore, TP ≥ T∞ 31 / 94
  • 78. Span Law Definition A P-processor ideal parallel computer cannot run faster than a machine with unlimited number of processors. However, a computer with unlimited number of processors can emulate a P-processor machine by using simply P of its processors. Therefore, TP ≥ T∞ 31 / 94
  • 79. Work Calculations: Serial Serial Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = T∞ (A) + T∞ (B). 32 / 94
  • 80. Work Calculations: Serial Serial Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = T∞ (A) + T∞ (B). 32 / 94
  • 81. Work Calculations: Serial Serial Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = T∞ (A) + T∞ (B). 32 / 94
  • 82. Work Calculations: Parallel Parallel Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = max {T∞ (A) , T∞ (B)}. 33 / 94
  • 83. Work Calculations: Parallel Parallel Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = max {T∞ (A) , T∞ (B)}. 33 / 94
  • 84. Work Calculations: Parallel Parallel Computations A B Note Work: T1 (A ∪ B) = T1 (A) + T1 (B). Span: T∞ (A ∪ B) = max {T∞ (A) , T∞ (B)}. 33 / 94
  • 85. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 34 / 94
  • 86. Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
  • 87. Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
  • 88. Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
  • 89. Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
  • 90. Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
  • 91. Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
  • 92. Speedup and Parallelism Speed up The speed up of a computation on P processors is defined as T1 TP . Then, by work law T1 TP ≤ P. Thus, the speedup on P processors can be at most P. Notes Linear Speedup when T1 TP = Θ (P). Perfect Linear Speedup when T1 TP = P. Parallelism The parallelism of a computation on P processors is defined as T1 T∞ . In specific, we are looking to have a lot of parallelism. This changes from Algorithm to Algorithm. 35 / 94
  • 93. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 36 / 94
  • 94. Greedy Scheduler Definition A greedy scheduler assigns as many strands to processors as possible in each time step. Note On P processors, if at least P strands are ready to execute during a time step, then we say that the step is a complete step. Otherwise we say that it is an incomplete step. This changes from Algorithm to Algorithm. 37 / 94
  • 95. Greedy Scheduler Definition A greedy scheduler assigns as many strands to processors as possible in each time step. Note On P processors, if at least P strands are ready to execute during a time step, then we say that the step is a complete step. Otherwise we say that it is an incomplete step. This changes from Algorithm to Algorithm. 37 / 94
  • 96. Greedy Scheduler Definition A greedy scheduler assigns as many strands to processors as possible in each time step. Note On P processors, if at least P strands are ready to execute during a time step, then we say that the step is a complete step. Otherwise we say that it is an incomplete step. This changes from Algorithm to Algorithm. 37 / 94
  • 97. Greedy Scheduler Definition A greedy scheduler assigns as many strands to processors as possible in each time step. Note On P processors, if at least P strands are ready to execute during a time step, then we say that the step is a complete step. Otherwise we say that it is an incomplete step. This changes from Algorithm to Algorithm. 37 / 94
  • 98. Greedy Scheduler Theorem and Corollaries Theorem 27.1 On an ideal parallel computer with P processors, a greedy scheduler executes a multi-threaded computation with work T1 and span T∞ in time TP ≤ T1 P + T∞. Corollary 27.2 The running time TP of any multi-threaded computation scheduled by a greedy scheduler on an ideal parallel computer with P processors is within a factor of 2 of optimal. Corollary 27.3 Let TP be the running time of a multi-threaded computation produced by a greedy scheduler on an ideal parallel computer with P processors, and let T1 and T∞ be the work and span of the computation, respectively. Then, if P T1 T∞ (Much Less), we have TP ≈ T1 P , or equivalently, a speedup of approximately P . 38 / 94
  • 99. Greedy Scheduler Theorem and Corollaries Theorem 27.1 On an ideal parallel computer with P processors, a greedy scheduler executes a multi-threaded computation with work T1 and span T∞ in time TP ≤ T1 P + T∞. Corollary 27.2 The running time TP of any multi-threaded computation scheduled by a greedy scheduler on an ideal parallel computer with P processors is within a factor of 2 of optimal. Corollary 27.3 Let TP be the running time of a multi-threaded computation produced by a greedy scheduler on an ideal parallel computer with P processors, and let T1 and T∞ be the work and span of the computation, respectively. Then, if P T1 T∞ (Much Less), we have TP ≈ T1 P , or equivalently, a speedup of approximately P . 38 / 94
  • 100. Greedy Scheduler Theorem and Corollaries Theorem 27.1 On an ideal parallel computer with P processors, a greedy scheduler executes a multi-threaded computation with work T1 and span T∞ in time TP ≤ T1 P + T∞. Corollary 27.2 The running time TP of any multi-threaded computation scheduled by a greedy scheduler on an ideal parallel computer with P processors is within a factor of 2 of optimal. Corollary 27.3 Let TP be the running time of a multi-threaded computation produced by a greedy scheduler on an ideal parallel computer with P processors, and let T1 and T∞ be the work and span of the computation, respectively. Then, if P T1 T∞ (Much Less), we have TP ≈ T1 P , or equivalently, a speedup of approximately P . 38 / 94
  • 101. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 39 / 94
  • 102. Race Conditions Determinacy Race A determinacy race occurs when two logically parallel instructions access the same memory location and at least one of the instructions performs a write. Example Race-Example() 1 x = 0 2 parallel for i = 1 to 3 do 3 x = x + 1 4 print x 40 / 94
  • 103. Race Conditions Determinacy Race A determinacy race occurs when two logically parallel instructions access the same memory location and at least one of the instructions performs a write. Example Race-Example() 1 x = 0 2 parallel for i = 1 to 3 do 3 x = x + 1 4 print x 40 / 94
  • 104. Example Determinacy Race Example 1 2 3 4 5 67 8 910 11 step x r1 r2 r3 1 0 2 0 0 3 0 1 4 0 1 0 5 0 1 0 0 6 0 1 0 1 7 0 1 1 1 8 1 1 1 1 9 1 1 1 1 10 1 1 1 1 41 / 94
  • 105. Example NOTE Although, this is of great importance is beyond the scope of this class: For More about this topic, we have: Maurice Herlihy and Nir Shavit, “The Art of Multiprocessor Programming,” Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2008. Andrew S. Tanenbaum, “Modern Operating Systems” (3rd ed.). Prentice Hall Press, Upper Saddle River, NJ, USA, 2007. 42 / 94
  • 106. Example NOTE Although, this is of great importance is beyond the scope of this class: For More about this topic, we have: Maurice Herlihy and Nir Shavit, “The Art of Multiprocessor Programming,” Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2008. Andrew S. Tanenbaum, “Modern Operating Systems” (3rd ed.). Prentice Hall Press, Upper Saddle River, NJ, USA, 2007. 42 / 94
  • 107. Example NOTE Although, this is of great importance is beyond the scope of this class: For More about this topic, we have: Maurice Herlihy and Nir Shavit, “The Art of Multiprocessor Programming,” Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2008. Andrew S. Tanenbaum, “Modern Operating Systems” (3rd ed.). Prentice Hall Press, Upper Saddle River, NJ, USA, 2007. 42 / 94
  • 108. Example NOTE Although, this is of great importance is beyond the scope of this class: For More about this topic, we have: Maurice Herlihy and Nir Shavit, “The Art of Multiprocessor Programming,” Morgan Kaufmann Publishers Inc., San Francisco, CA, USA, 2008. Andrew S. Tanenbaum, “Modern Operating Systems” (3rd ed.). Prentice Hall Press, Upper Saddle River, NJ, USA, 2007. 42 / 94
  • 109. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 43 / 94
  • 110. Example of Complexity: PFibonacci Complexity T∞ (n) = max {T∞ (n − 1) , T∞ (n − 2)} + Θ (1) Finally T∞ (n) = T∞ (n − 1) + Θ (1) = Θ (n) Parallelism T1 (n) T∞ (n) = Θ φn n 44 / 94
  • 111. Example of Complexity: PFibonacci Complexity T∞ (n) = max {T∞ (n − 1) , T∞ (n − 2)} + Θ (1) Finally T∞ (n) = T∞ (n − 1) + Θ (1) = Θ (n) Parallelism T1 (n) T∞ (n) = Θ φn n 44 / 94
  • 112. Example of Complexity: PFibonacci Complexity T∞ (n) = max {T∞ (n − 1) , T∞ (n − 2)} + Θ (1) Finally T∞ (n) = T∞ (n − 1) + Θ (1) = Θ (n) Parallelism T1 (n) T∞ (n) = Θ φn n 44 / 94
  • 113. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 45 / 94
  • 114. Matrix Multiplication Trick To multiply two n × n matrices, we perform 8 matrix multiplications of n 2 × n 2 matrices and one addition n × n of matrices. Idea A= A11 A12 A21 A22 ,B = B11 B12 B21 B22 , C = C11 C12 C21 C22 C = C11 C12 C21 C22 = A11 A12 A21 A22 B11 B12 B21 B22 = ... A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 46 / 94
  • 115. Matrix Multiplication Trick To multiply two n × n matrices, we perform 8 matrix multiplications of n 2 × n 2 matrices and one addition n × n of matrices. Idea A= A11 A12 A21 A22 ,B = B11 B12 B21 B22 , C = C11 C12 C21 C22 C = C11 C12 C21 C22 = A11 A12 A21 A22 B11 B12 B21 B22 = ... A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 46 / 94
  • 116. Any Idea to Parallelize the Code? What do you think? Did you notice the multiplications of sub-matrices? Then What? We have for example A11B11 and A12B21!!! We can do the following A11B11 + A12B21 47 / 94
  • 117. Any Idea to Parallelize the Code? What do you think? Did you notice the multiplications of sub-matrices? Then What? We have for example A11B11 and A12B21!!! We can do the following A11B11 + A12B21 47 / 94
  • 118. Any Idea to Parallelize the Code? What do you think? Did you notice the multiplications of sub-matrices? Then What? We have for example A11B11 and A12B21!!! We can do the following A11B11 + A12B21 47 / 94
  • 119. The use of the recursion!!! As always our friend!!! 48 / 94
  • 120. Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
  • 121. Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
  • 122. Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
  • 123. Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
  • 124. Pseudo-code of Matrix-Multiply Matrix − Multiply(C, A, B, n) // The result of A × B in C with n a power of 2 for simplicity 1 if (n == 1) 2 C [1, 1] = A [1, 1] + B [1, 1] 3 else 4 allocate a temporary matrix T [1...n, 1...n] 5 partition A, B, C, T into n 2 × n 2 sub-matrices 6 spawn Matrix − Multiply (C11, A11, B11, n/2) 7 spawn Matrix − Multiply (C12, A11, B12, n/2) 8 spawn Matrix − Multiply (C21, A21, B11, n/2) 9 spawn Matrix − Multiply (C22, A21, B12, n/2) 10 spawn Matrix − Multiply (T11, A12, B21, n/2) 11 spawn Matrix − Multiply (T12, A12, B21, n/2) 12 spawn Matrix − Multiply (T21, A22, B21, n/2) 13 Matrix − Multiply (T22, A22, B22, n/2) 14 sync 15 Matrix − Add(C, T, n) 49 / 94
  • 125. Explanation Lines 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 Extra matrix for storing the second matrix in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 T Line 5 Do the desired partition!!! 50 / 94
  • 126. Explanation Lines 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 Extra matrix for storing the second matrix in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 T Line 5 Do the desired partition!!! 50 / 94
  • 127. Explanation Lines 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 Extra matrix for storing the second matrix in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 T Line 5 Do the desired partition!!! 50 / 94
  • 128. Explanation Lines 6 to 13 Calculating the products in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 Using Recursion and Parallel Computations Line 14 A barrier to wait until all the parallel computations are done!!! Line 15 Call Matrix − Add to add C and T. 51 / 94
  • 129. Explanation Lines 6 to 13 Calculating the products in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 Using Recursion and Parallel Computations Line 14 A barrier to wait until all the parallel computations are done!!! Line 15 Call Matrix − Add to add C and T. 51 / 94
  • 130. Explanation Lines 6 to 13 Calculating the products in A11B11 A11B12 A21B11 A21B12 + A12B21 A12B22 A22B21 A22B22 Using Recursion and Parallel Computations Line 14 A barrier to wait until all the parallel computations are done!!! Line 15 Call Matrix − Add to add C and T. 51 / 94
  • 131. Matrix ADD Matrix Add Code Matrix − Add(C, T, n) // Add matrices C and T in-place to produce C = C + T 1 if (n == 1) 2 C [1, 1] = C [1, 1] + T [1, 1] 3 else 4 Partition C and T into n 2 × n 2 sub-matrices 5 spawn Matrix − Add (C11, T11, n/2) 6 spawn Matrix − Add (C12, T12, n/2) 7 spawn Matrix − Add (C21, T21, n/2) 8 Matrix − Add (C22, T22, n/2) 9 sync 52 / 94
  • 132. Matrix ADD Matrix Add Code Matrix − Add(C, T, n) // Add matrices C and T in-place to produce C = C + T 1 if (n == 1) 2 C [1, 1] = C [1, 1] + T [1, 1] 3 else 4 Partition C and T into n 2 × n 2 sub-matrices 5 spawn Matrix − Add (C11, T11, n/2) 6 spawn Matrix − Add (C12, T12, n/2) 7 spawn Matrix − Add (C21, T21, n/2) 8 Matrix − Add (C22, T22, n/2) 9 sync 52 / 94
  • 133. Matrix ADD Matrix Add Code Matrix − Add(C, T, n) // Add matrices C and T in-place to produce C = C + T 1 if (n == 1) 2 C [1, 1] = C [1, 1] + T [1, 1] 3 else 4 Partition C and T into n 2 × n 2 sub-matrices 5 spawn Matrix − Add (C11, T11, n/2) 6 spawn Matrix − Add (C12, T12, n/2) 7 spawn Matrix − Add (C21, T21, n/2) 8 Matrix − Add (C22, T22, n/2) 9 sync 52 / 94
  • 134. Matrix ADD Matrix Add Code Matrix − Add(C, T, n) // Add matrices C and T in-place to produce C = C + T 1 if (n == 1) 2 C [1, 1] = C [1, 1] + T [1, 1] 3 else 4 Partition C and T into n 2 × n 2 sub-matrices 5 spawn Matrix − Add (C11, T11, n/2) 6 spawn Matrix − Add (C12, T12, n/2) 7 spawn Matrix − Add (C21, T21, n/2) 8 Matrix − Add (C22, T22, n/2) 9 sync 52 / 94
  • 135. Explanation Line 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 To Partition C = A11B11 A11B12 A21B11 A21B12 T = A12B21 A12B22 A22B21 A22B22 In lines 5 to 8 We do the following sum in parallel!!! A11B11 A11B12 A21B11 A21B12 C + A12B21 A12B22 A22B21 A22B22 T 53 / 94
  • 136. Explanation Line 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 To Partition C = A11B11 A11B12 A21B11 A21B12 T = A12B21 A12B22 A22B21 A22B22 In lines 5 to 8 We do the following sum in parallel!!! A11B11 A11B12 A21B11 A21B12 C + A12B21 A12B22 A22B21 A22B22 T 53 / 94
  • 137. Explanation Line 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 To Partition C = A11B11 A11B12 A21B11 A21B12 T = A12B21 A12B22 A22B21 A22B22 In lines 5 to 8 We do the following sum in parallel!!! A11B11 A11B12 A21B11 A21B12 C + A12B21 A12B22 A22B21 A22B22 T 53 / 94
  • 138. Explanation Line 1 - 2 Stops the recursion once you have only two numbers to multiply Line 4 To Partition C = A11B11 A11B12 A21B11 A21B12 T = A12B21 A12B22 A22B21 A22B22 In lines 5 to 8 We do the following sum in parallel!!! A11B11 A11B12 A21B11 A21B12 C + A12B21 A12B22 A22B21 A22B22 T 53 / 94
  • 139. Calculating Complexity of Matrix Multiplication Work of Matrix Multiplication The work of T1 (n) of matrix multiplication satisfies the recurrence: T1 (n) = 8T1 n 2 The sequential product + Θ n2 The sequential sum = Θ n3 . 54 / 94
  • 140. Calculating Complexity of Matrix Multiplication Span of Matrix Multiplication T∞ (n) = T∞ n 2 The parallel product + Θ (log n) The parallel sum = Θ log2 n This is because: T∞ n 2 Matrix Multiplication is taking n 2 × n 2 matrices at the same time because parallelism. Θ (log n) is the span of the addition of the matrices (Remember, we are using unlimited processors) which has a critical path of length log n. 55 / 94
  • 141. Calculating Complexity of Matrix Multiplication Span of Matrix Multiplication T∞ (n) = T∞ n 2 The parallel product + Θ (log n) The parallel sum = Θ log2 n This is because: T∞ n 2 Matrix Multiplication is taking n 2 × n 2 matrices at the same time because parallelism. Θ (log n) is the span of the addition of the matrices (Remember, we are using unlimited processors) which has a critical path of length log n. 55 / 94
  • 142. Calculating Complexity of Matrix Multiplication Span of Matrix Multiplication T∞ (n) = T∞ n 2 The parallel product + Θ (log n) The parallel sum = Θ log2 n This is because: T∞ n 2 Matrix Multiplication is taking n 2 × n 2 matrices at the same time because parallelism. Θ (log n) is the span of the addition of the matrices (Remember, we are using unlimited processors) which has a critical path of length log n. 55 / 94
  • 143. Collapsing the sum Parallel Sum + + 56 / 94
  • 144. How much Parallelism? The Final Parallelism in this Algorithm is T1 (n) T∞ (n) = Θ n3 log2 n Quite A Lot!!! 57 / 94
  • 145. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 58 / 94
  • 146. Merge-Sort : The Serial Version We have Merge − Sort (A, p, r) Observation: Sort elements in A [p...r] 1 if (p < r) then 2 q = (p+r)/2 3 Merge − Sort (A, p, q) 4 Merge − Sort (A, q + 1, r) 5 Merge (A, p, q, r) 59 / 94
  • 147. Merge-Sort : The Parallel Version We have Merge − Sort (A, p, r) Observation: Sort elements in A [p...r] 1 if (p < r) then 2 q = (p+r)/2 3 spawn Merge − Sort (A, p, q) 4 Merge − Sort (A, q + 1, r) // Not necessary to spawn this 5 sync 6 Merge (A, p, q, r) 60 / 94
  • 148. Calculating Complexity of This simple Parallel Merge-Sort Work of Merge-Sort The work of T1 (n) of this Parallel Merge-Sort satisfies the recurrence: T1 (n) = Θ (1) if n = 1 2T1 n 2 + Θ (n) otherwise = Θ (n log n) Because the Master Theorem Case 2. Span T∞ (n) = Θ (1) if n = 1 T∞ n 2 + Θ (n) otherwise We have then T∞ n 2 sort is taking two sorts at the same time because parallelism. Then, T∞ (n) = Θ (n) because the Master Theorem Case 3. 61 / 94
  • 149. Calculating Complexity of This simple Parallel Merge-Sort Work of Merge-Sort The work of T1 (n) of this Parallel Merge-Sort satisfies the recurrence: T1 (n) = Θ (1) if n = 1 2T1 n 2 + Θ (n) otherwise = Θ (n log n) Because the Master Theorem Case 2. Span T∞ (n) = Θ (1) if n = 1 T∞ n 2 + Θ (n) otherwise We have then T∞ n 2 sort is taking two sorts at the same time because parallelism. Then, T∞ (n) = Θ (n) because the Master Theorem Case 3. 61 / 94
  • 150. Calculating Complexity of This simple Parallel Merge-Sort Work of Merge-Sort The work of T1 (n) of this Parallel Merge-Sort satisfies the recurrence: T1 (n) = Θ (1) if n = 1 2T1 n 2 + Θ (n) otherwise = Θ (n log n) Because the Master Theorem Case 2. Span T∞ (n) = Θ (1) if n = 1 T∞ n 2 + Θ (n) otherwise We have then T∞ n 2 sort is taking two sorts at the same time because parallelism. Then, T∞ (n) = Θ (n) because the Master Theorem Case 3. 61 / 94
  • 151. Calculating Complexity of This simple Parallel Merge-Sort Work of Merge-Sort The work of T1 (n) of this Parallel Merge-Sort satisfies the recurrence: T1 (n) = Θ (1) if n = 1 2T1 n 2 + Θ (n) otherwise = Θ (n log n) Because the Master Theorem Case 2. Span T∞ (n) = Θ (1) if n = 1 T∞ n 2 + Θ (n) otherwise We have then T∞ n 2 sort is taking two sorts at the same time because parallelism. Then, T∞ (n) = Θ (n) because the Master Theorem Case 3. 61 / 94
  • 152. How much Parallelism? The Final Parallelism in this Algorithm is T1 (n) T∞ (n) = Θ (log n) NOT NOT A Lot!!! 62 / 94
  • 153. Can we improve this? We have a problem We have a bottleneck!!! Where? Yes in the Merge part!!! We need to improve that bottleneck!!! 63 / 94
  • 154. Can we improve this? We have a problem We have a bottleneck!!! Where? Yes in the Merge part!!! We need to improve that bottleneck!!! 63 / 94
  • 155. Parallel Merge Example: Here, we use and intermediate array T 64 / 94
  • 156. Parallel Merge Step 1. Find x = T [q1] where q1 = (p1+r1)/2 or the midpoint in T [p1..r1] 65 / 94
  • 157. Parallel Merge Step 2. Use Binary Search in T [p1..r1] to find q2 66 / 94
  • 158. Then So that if we insert x between T [q2 − 1] and T [q2] T p1 · · · q2 − 1 x q2 · · · r1 is sorted 67 / 94
  • 159. Binary Search It takes a key x and a sub-array T [p..r] and it does 1 If T [p..r] is empty r < p, then it returns the index p. 2 if x ≤ T [p], then it returns p. 3 if x > T [p], then it returns the largest index q in the range p < q ≤ r + 1 such that T [q − 1] < x. 68 / 94
  • 160. Binary Search It takes a key x and a sub-array T [p..r] and it does 1 If T [p..r] is empty r < p, then it returns the index p. 2 if x ≤ T [p], then it returns p. 3 if x > T [p], then it returns the largest index q in the range p < q ≤ r + 1 such that T [q − 1] < x. 68 / 94
  • 161. Binary Search It takes a key x and a sub-array T [p..r] and it does 1 If T [p..r] is empty r < p, then it returns the index p. 2 if x ≤ T [p], then it returns p. 3 if x > T [p], then it returns the largest index q in the range p < q ≤ r + 1 such that T [q − 1] < x. 68 / 94
  • 162. Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
  • 163. Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
  • 164. Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
  • 165. Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
  • 166. Binary Search Code BINARY-SEARCH(x, T, p, r) 1 low = p 2 high = max {p, r + 1} 3 while low < high 4 mid = log+high 2 5 if x ≤ T [mid] 6 high = mid 7 else low = mid + 1 8 return high 69 / 94
  • 167. Parallel Merge Step 3. Copy x in A [q3] where q3 = p3 + (q1 − p1) + (q2 − p2) 70 / 94
  • 168. Parallel Merge Step 4. Recursively merge T [p1..q1 − 1] and T [p2..q2 − 1] and place result into A [p3..q3 − 1] 71 / 94
  • 169. Parallel Merge Step 5. Recursively merge T [q1 + 1..r1] and T [q2..r2] and place result into A [q3 + 1..r3] 72 / 94
  • 170. The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
  • 171. The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
  • 172. The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
  • 173. The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
  • 174. The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
  • 175. The Final Code for Parallel Merge Par − Merge (T, p1, r1, p2, r2, A, p3) 1 n1 = r1 − p1 + 1, n2 = r2 − p2 + 1 2 if n1 < n2 3 Exchange p1 ↔ p2, r1 ↔ r2, n1 ↔ n2 4 if (n1 == 0) 5 return 6 else 7 q1 = (p1+r1)/2 8 q2 = BinarySearch (T [q1] , T, p2, r2) 9 q3 = p3 + (q1 − p1) + (q2 − p2) 10 A [q3] = T [q1] 11 spawn Par − Merge (T, p1, q1 − 1, p2, q2 − 1, A, p3) 12 Par − Merge (T, q1 + 1, r1, q2 + 1, r2, A, q3 + 1) 13 sync 73 / 94
  • 176. Explanation Line 1 Obtain the length of the two arrays to be merged Line 2: If one is larger than the other We exchange the variables to work the largest element!!! In this case we make n1 ≥ n2 Line 4 if n1 == 0 return nothing to merge!!! 74 / 94
  • 177. Explanation Line 1 Obtain the length of the two arrays to be merged Line 2: If one is larger than the other We exchange the variables to work the largest element!!! In this case we make n1 ≥ n2 Line 4 if n1 == 0 return nothing to merge!!! 74 / 94
  • 178. Explanation Line 1 Obtain the length of the two arrays to be merged Line 2: If one is larger than the other We exchange the variables to work the largest element!!! In this case we make n1 ≥ n2 Line 4 if n1 == 0 return nothing to merge!!! 74 / 94
  • 179. Explanation Line 10 It copies T [q1] directly into A [q3] Line 11 and 12 They are used to recurse using nested parallelism to merge the sub-arrays less and greater than x. Line 13 The sync is used to ensure that the subproblems have completed before the procedure returns. 75 / 94
  • 180. Explanation Line 10 It copies T [q1] directly into A [q3] Line 11 and 12 They are used to recurse using nested parallelism to merge the sub-arrays less and greater than x. Line 13 The sync is used to ensure that the subproblems have completed before the procedure returns. 75 / 94
  • 181. Explanation Line 10 It copies T [q1] directly into A [q3] Line 11 and 12 They are used to recurse using nested parallelism to merge the sub-arrays less and greater than x. Line 13 The sync is used to ensure that the subproblems have completed before the procedure returns. 75 / 94
  • 182. First the Span Complexity of Parallel Merge: T∞ (n) Suppositions n = n1 + n2 What case should we study? Remember T∞ (n) = max {T∞ (n1) + T∞ (n2)} We notice then that Because lines 3-6 n2 ≤ n1 76 / 94
  • 183. First the Span Complexity of Parallel Merge: T∞ (n) Suppositions n = n1 + n2 What case should we study? Remember T∞ (n) = max {T∞ (n1) + T∞ (n2)} We notice then that Because lines 3-6 n2 ≤ n1 76 / 94
  • 184. First the Span Complexity of Parallel Merge: T∞ (n) Suppositions n = n1 + n2 What case should we study? Remember T∞ (n) = max {T∞ (n1) + T∞ (n2)} We notice then that Because lines 3-6 n2 ≤ n1 76 / 94
  • 185. Span Complexity of the Parallel Merge with One Processor: T1 (n) Then 2n2 ≤ n1 + n2 = n =⇒ n2 ≤ n/2 Thus In the worst case, a recursive call in lines 11 merges: n1 2 elements of T [p1...r1] (Remember we are halving the array by mid-point). With all n2 elements of T [p2...r2]. 77 / 94
  • 186. Span Complexity of the Parallel Merge with One Processor: T1 (n) Then 2n2 ≤ n1 + n2 = n =⇒ n2 ≤ n/2 Thus In the worst case, a recursive call in lines 11 merges: n1 2 elements of T [p1...r1] (Remember we are halving the array by mid-point). With all n2 elements of T [p2...r2]. 77 / 94
  • 187. Span Complexity of the Parallel Merge with One Processor: T1 (n) Then 2n2 ≤ n1 + n2 = n =⇒ n2 ≤ n/2 Thus In the worst case, a recursive call in lines 11 merges: n1 2 elements of T [p1...r1] (Remember we are halving the array by mid-point). With all n2 elements of T [p2...r2]. 77 / 94
  • 188. Span Complexity of the Parallel Merge with One Processor: T1 (n) Then 2n2 ≤ n1 + n2 = n =⇒ n2 ≤ n/2 Thus In the worst case, a recursive call in lines 11 merges: n1 2 elements of T [p1...r1] (Remember we are halving the array by mid-point). With all n2 elements of T [p2...r2]. 77 / 94
  • 189. Span Complexity of the Parallel Merge with One Processor: T1 (n) Thus, the number of elements involved in such a call is n1 2 + n2 ≤ n1 2 + n2 2 + n2 2 ≤ n1 2 + n2 2 + n/2 2 = n1 + n2 2 + n 4 ≤ n 2 + n 4 = 3n 4 78 / 94
  • 190. Span Complexity of the Parallel Merge with One Processor: T1 (n) Thus, the number of elements involved in such a call is n1 2 + n2 ≤ n1 2 + n2 2 + n2 2 ≤ n1 2 + n2 2 + n/2 2 = n1 + n2 2 + n 4 ≤ n 2 + n 4 = 3n 4 78 / 94
  • 191. Span Complexity of the Parallel Merge with One Processor: T1 (n) Thus, the number of elements involved in such a call is n1 2 + n2 ≤ n1 2 + n2 2 + n2 2 ≤ n1 2 + n2 2 + n/2 2 = n1 + n2 2 + n 4 ≤ n 2 + n 4 = 3n 4 78 / 94
  • 192. Span Complexity of the Parallel Merge with One Processor: T1 (n) Thus, the number of elements involved in such a call is n1 2 + n2 ≤ n1 2 + n2 2 + n2 2 ≤ n1 2 + n2 2 + n/2 2 = n1 + n2 2 + n 4 ≤ n 2 + n 4 = 3n 4 78 / 94
  • 193. Span Complexity of the Parallel Merge with One Processor: T1 (n) Knowing that the Binary Search takes Θ (log n) We get the span for parallel merge T∞ (n) = T∞ 3n 4 + Θ (log n) This can can be solved using the exercise 4.6-2 in the Cormen’s Book T∞ (n) = Θ log2 n 79 / 94
  • 194. Span Complexity of the Parallel Merge with One Processor: T1 (n) Knowing that the Binary Search takes Θ (log n) We get the span for parallel merge T∞ (n) = T∞ 3n 4 + Θ (log n) This can can be solved using the exercise 4.6-2 in the Cormen’s Book T∞ (n) = Θ log2 n 79 / 94
  • 195. Span Complexity of the Parallel Merge with One Processor: T1 (n) Knowing that the Binary Search takes Θ (log n) We get the span for parallel merge T∞ (n) = T∞ 3n 4 + Θ (log n) This can can be solved using the exercise 4.6-2 in the Cormen’s Book T∞ (n) = Θ log2 n 79 / 94
  • 196. Calculating Work Complexity of Parallel Merge Ok!!! We need to calculate the WORK T1 (n) = Θ (Something) Thus We need to calculate the upper and lower bound. 80 / 94
  • 197. Calculating Work Complexity of Parallel Merge Ok!!! We need to calculate the WORK T1 (n) = Θ (Something) Thus We need to calculate the upper and lower bound. 80 / 94
  • 198. Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
  • 199. Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
  • 200. Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
  • 201. Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
  • 202. Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
  • 203. Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
  • 204. Calculating Work Complexity of Parallel Merge Work of Parallel Merge The work of T1 (n) of this Parallel Merge satisfies: T1 (n) = Ω (n) Because each of the n elements must be copied from array T to array A. What about the Upper Bound O? First notice that we can have a merge with n 4 elements when we have we have the worst case of n1 2 + n2 in the other merge. And 3n 4 for the worst case. And the work of the Binary Search of O (log n) 81 / 94
  • 205. Calculating Work Complexity of Parallel Merge Then Then, for some α ∈ 1 4, 3 4 , then we have the following recursion for the Parallel Merge when we have one processor: T1 (n) = T1 (αn) + T1 ((1 − α) n) Merge Part + Θ (log n) Binary Search Remark: α varies at each level of the recursion!!! 82 / 94
  • 206. Calculating Work Complexity of Parallel Merge Then Then, for some α ∈ 1 4, 3 4 , then we have the following recursion for the Parallel Merge when we have one processor: T1 (n) = T1 (αn) + T1 ((1 − α) n) Merge Part + Θ (log n) Binary Search Remark: α varies at each level of the recursion!!! 82 / 94
  • 207. Calculating Work Complexity of Parallel Merge Then Then, for some α ∈ 1 4, 3 4 , then we have the following recursion for the Parallel Merge when we have one processor: T1 (n) = T1 (αn) + T1 ((1 − α) n) Merge Part + Θ (log n) Binary Search Remark: α varies at each level of the recursion!!! 82 / 94
  • 208. Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
  • 209. Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
  • 210. Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
  • 211. Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
  • 212. Calculating Work Complexity of Parallel Merge Then Assume that T1 (n) ≤ c1n − c2 log n for positive constants c1 and c2. We have then using c3 for Θ (log n) T1 (n) ≤ T1 (αn) + T1 ((1 − α) n) + c3 log n ≤ c1αn − c2 log (αn) + c1 (1 − α) n − c2 log ((1 − α) n) + c3 log n = c1n − c2 log (α(1 − α)) − 2c2 log n + c3 log n (splitting elements) = c1n − c2 (log n + log (α(1 − α))) − (c2 − c3) log n ≤ c1n − (c2 − c3) log n because log n + log (α(1 − α)) > 0 83 / 94
  • 213. Calculating Work Complexity of Parallel Merge Now, we have that given 0 < α(1 − α) < 1 We have log (α(1 − α)) < 0 Thus, making n large enough log n + log (α(1 − α)) > 0 (1) Then T1 (n) ≤ c1n − (c2 − c3) log n 84 / 94
  • 214. Calculating Work Complexity of Parallel Merge Now, we have that given 0 < α(1 − α) < 1 We have log (α(1 − α)) < 0 Thus, making n large enough log n + log (α(1 − α)) > 0 (1) Then T1 (n) ≤ c1n − (c2 − c3) log n 84 / 94
  • 215. Calculating Work Complexity of Parallel Merge Now, we have that given 0 < α(1 − α) < 1 We have log (α(1 − α)) < 0 Thus, making n large enough log n + log (α(1 − α)) > 0 (1) Then T1 (n) ≤ c1n − (c2 − c3) log n 84 / 94
  • 216. Calculating Work Complexity of Parallel Merge Now, we choose c2 and c3 such that c2 − c3 ≥ 0 We have that T1 (n) ≤ c1n = O(n) 85 / 94
  • 217. Calculating Work Complexity of Parallel Merge Now, we choose c2 and c3 such that c2 − c3 ≥ 0 We have that T1 (n) ≤ c1n = O(n) 85 / 94
  • 218. Finally Then T1 (n) = Θ (n) The parallelism of Parallel Merge T1 (n) T∞ (n) = Θ n log2 n 86 / 94
  • 219. Finally Then T1 (n) = Θ (n) The parallelism of Parallel Merge T1 (n) T∞ (n) = Θ n log2 n 86 / 94
  • 220. Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
  • 221. Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
  • 222. Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
  • 223. Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
  • 224. Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
  • 225. Then What is the Complexity of Parallel Merge-sort with Parallel Merge? First, the new code - Input A [p..r] - Output B [s..s + r − p] Par − Merge − Sort (A, p, r, B, s) 1 n = r − p + 1 2 if (n == 1) 3 B [s] = A [p] 4 else let T [1..n] be a new array 5 q = (p+r)/2 6 q = q − p + 1 7 spawn Par − Merge − Sort (A, p, q, T, 1) 8 Par − Merge − Sort (A, q + 1, r, T, q + 1) 9 sync 10 Par − Merge (T, 1, q , q + 1, n, B, s) 87 / 94
  • 226. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Work We can use the worst work in the parallel to generate the recursion: TPMS 1 (n) = 2TPMS 1 n 2 + TPM 1 (n) = 2TPMS 1 n 2 + Θ (n) = Θ (n log n) Case 2 of the MT 88 / 94
  • 227. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Work We can use the worst work in the parallel to generate the recursion: TPMS 1 (n) = 2TPMS 1 n 2 + TPM 1 (n) = 2TPMS 1 n 2 + Θ (n) = Θ (n log n) Case 2 of the MT 88 / 94
  • 228. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Work We can use the worst work in the parallel to generate the recursion: TPMS 1 (n) = 2TPMS 1 n 2 + TPM 1 (n) = 2TPMS 1 n 2 + Θ (n) = Θ (n log n) Case 2 of the MT 88 / 94
  • 229. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Work We can use the worst work in the parallel to generate the recursion: TPMS 1 (n) = 2TPMS 1 n 2 + TPM 1 (n) = 2TPMS 1 n 2 + Θ (n) = Θ (n log n) Case 2 of the MT 88 / 94
  • 230. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Span We get the following recursion for the span by taking in account that lines 7 and 8 of parallel merge sort run in parallel: TPMS ∞ (n) = TPMS ∞ n 2 + TPM ∞ (n) = TPMS ∞ n 2 + Θ log2 n = Θ log3 n Exercise 4.6-2 in the Cormen’s Book 89 / 94
  • 231. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Span We get the following recursion for the span by taking in account that lines 7 and 8 of parallel merge sort run in parallel: TPMS ∞ (n) = TPMS ∞ n 2 + TPM ∞ (n) = TPMS ∞ n 2 + Θ log2 n = Θ log3 n Exercise 4.6-2 in the Cormen’s Book 89 / 94
  • 232. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Span We get the following recursion for the span by taking in account that lines 7 and 8 of parallel merge sort run in parallel: TPMS ∞ (n) = TPMS ∞ n 2 + TPM ∞ (n) = TPMS ∞ n 2 + Θ log2 n = Θ log3 n Exercise 4.6-2 in the Cormen’s Book 89 / 94
  • 233. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Span We get the following recursion for the span by taking in account that lines 7 and 8 of parallel merge sort run in parallel: TPMS ∞ (n) = TPMS ∞ n 2 + TPM ∞ (n) = TPMS ∞ n 2 + Θ log2 n = Θ log3 n Exercise 4.6-2 in the Cormen’s Book 89 / 94
  • 234. Then, What is the amount of Parallelism of Parallel Merge-sort with Parallel Merge? Parallelism T1 (n) T∞ (n) = Θ n log2 n 90 / 94
  • 235. Plotting both Parallelisms We get the incredible difference between both algorithm 91 / 94
  • 236. Plotting the T∞ We get the incredible difference when running both algorithms with an infinite number of processors!!! 92 / 94
  • 237. Outline 1 Introduction Why Multi-Threaded Algorithms? 2 Model To Be Used Symmetric Multiprocessor Operations Example 3 Computation DAG Introduction 4 Performance Measures Introduction Running Time Classification 5 Parallel Laws Work and Span Laws Speedup and Parallelism Greedy Scheduler Scheduling Rises the Following Issue 6 Examples Parallel Fibonacci Matrix Multiplication Parallel Merge-Sort 7 Exercises Some Exercises you can try!!! 93 / 94
