The document discusses using graph theory and machine learning to improve user experience in social TV by matching users with content that interests them. It details the process of extracting and disambiguating information from unstructured data, employing named entity recognition and graph databases. The final solution involves a language-agnostic model that efficiently processes real-time data to enhance content relevance.
Using Graph theory to understand Intent & Concepts - Neo4j User Group (January 2013)

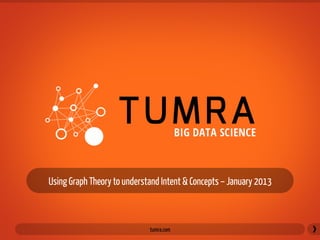

- 1. Using Graph Theory to understand Intent & Concepts – January 2013 tumra.com
- 2. UNDERSTANDING INTENT & CONCEPTS • Use case: - Enhancing Social TV user experience - Matching users to content that interests them • Topics we’ll cover: - Natural Language Processing - Graph Theory - Machine Learning tumra.com

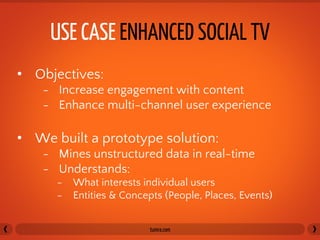

- 3. USE CASE ENHANCED SOCIAL TV • Objectives: - Increase engagement with content - Enhance multi-channel user experience • We built a prototype solution: - Mines unstructured data in real-time - Understands: - What interests individual users - Entities & Concepts (People, Places, Events) tumra.com
- 4. THE CHALLENGE THANKS FORtoLISTENING Help users to “follow the story” regardless of the news outlet, integrated web / second-screen tumra.com Photo Credit: byrion on Flickr (cc)
- 5. THE PROBLEM Unstructured Data Magic?!?! Awesomeness! tumra.com
- 6. THE PROBLEM • Little useful data to work with… - Streams of continuous live TV - Have to create metadata • Where did we start? - Ingest several live news channels - Extract whatever data was available: - In-video text using OCR - Subtitles / Closed Captions tumra.com
- 7. STEP 1 NAMED ENTITY RECOGNITION We used a simple N-Gram model for exact matches; then Apache Lucene for everything else… tumra.com
- 8. EXAMPLE N.E.R. “David Cameron and the German Chancellor Angela Merkel meets to discuss the debt crisis and signal their approval for greater eurozone integration.” tumra.com
- 9. EXAMPLE N.E.R. “David Cameron and the German Chancellor Angela Merkel meets to discuss the debt crisis and signal their approval for greater eurozone integration.” tumra.com
- 10. INITIAL SOLUTION NoSQL Unstructured Awesomeness! Data NER tumra.com
- 11. OH NO!!! *facepalm* Photo Credit: cesarastudillo on Flickr (cc)
- 12. DISAMBIGUATION • Which “David Cameron”? - We have many in our Knowledgebase - Sportsmen, actors, painters & characters… • Our initial simplistic approach was naïve - Works great with unambiguous matches - Best-case returns top-scoring entity • We needed a smarter approach tumra.com

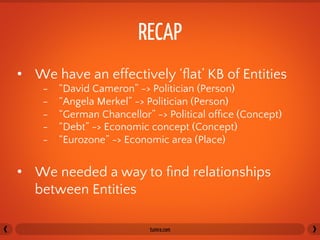

- 13. RECAP • We have an effectively ‘flat’ KB of Entities - “David Cameron” -> Politician (Person) - “Angela Merkel” -> Politician (Person) - “German Chancellor” -> Political office (Concept) - “Debt” -> Economic concept (Concept) - “Eurozone” -> Economic area (Place) • We needed a way to find relationships between Entities tumra.com
- 14. THE BIG IDEA Graphs allow us to store relationships between entities, and graph algorithms allow us to interrogate those connections…
- 15. GRAPH DATABASES Graph Neo4J Lab Apache Golden Giraph Orb … of course there are many more open-source & proprietary ones tumra.com
- 16. SO, WHICH ONE? ??? … it had to be fast, scalable, active development tumra.com
- 17. STEP 2 BUILDING RELATIONSHIPS We had 250 million Nodes, and 4 billion Edges… great initial results but horrendously inefficient! Example: “David Cameron” & “Angela Merkel” tumra.com
- 20. INITIAL IMPROVEMENTS • We didn’t need everything… just: - People: “David Cameron”, “Angela Merkel” - Places: “London”, “Downing Street”, “Eurozone” - Concepts: “Debt”, “President”, “Eurozone” - Things: Companies, Products etc. • Pruned the graph using Map/Reduce • This reduced the number of Entities… - … but we still had billions of connections tumra.com
- 21. EXAMPLE PEOPLE, PLACES, CONCEPTS “David Cameron and the German Chancellor Angela Merkel meets to discuss the debt crisis and signal their approval for greater eurozone integration.” tumra.com
- 22. EXAMPLE PEOPLE, PLACES, CONCEPTS “David Cameron and the German Chancellor Angela Merkel meets to discuss the debt crisis and signal their approval for greater eurozone integration.” Concepts Places People tumra.com
- 23. DISAMBIGUATION Angela Merkel David Cameron (painter) Living Person Politician Head of State David Cameron David (footballer) David Cameron Cameron (actor) (politician) Possibilities: shortest path, number of common connections etc.
- 24. STEP 3 SIMPLIFYING THE GRAPH Sure all that extra metadata was tasty but we didn’t need it all to solve the use-case… So we used Map/Reduce to count the common connections tumra.com
- 25. SIMPLIFIED Angela Merkel David Cameron (painter) 1 3 1 David Cameron David (footballer) David Cameron Cameron (actor) (politician) Woah … that looks a lot like Least Cost Routing problem
- 26. LEAST COST PATH Angela Merkel David Cameron (painter) 1/1 1/3 1/1 David Cameron David (footballer) David Cameron Cameron (actor) (politician) 1 / number of common connections = cost
- 27. UPDATED SOLUTION Neo4J NoSQL Unstructured Disambiguation Awesomeness! Data NER tumra.com
- 28. RECAP • Graphs allow us to interrogate relationships - Disambiguate when faced with multiple possibilities - Infer more about the context of what’s happening • Went through iterations of improvements - Kept our Entity data in NoSQL = TB’s - Used the Graph as an index of sorts = GB’s • Neo4j was a great fit for our needs tumra.com
- 29. STEP 4 MAKING IT WORK REAL-TIME Some queries were taking ‘seconds’ and we needed to go a lot faster because TV wont wait for us … Do we really need to check the Graph everytime? tumra.com
- 30. ENTER MACHINE LEARNING • We can use simple predictors to estimate the likelihood of Entities occurring - i.e. every time we’ve looked for “David Cameron” in the past the best match was the Politician • Keeping a ‘probabilistic context’ of recent Entities allows us to detect shifts in topics - Works especially well on News channels - Reduces the demand on Graph lookups tumra.com
- 31. BAYES THEOREM Looks complicated, but its basically just counting & division Photo Credit: mattbuck007 on Flickr (cc)
- 32. STEP 5 MAKING IT WORK WORLDWIDE We solved the problem for English, but what about other languages? tumra.com
- 33. LANGUAGE • Our core Entities of ‘People’, ‘Places’, & ‘Concepts’ are language agnostic… • We needed a way to ditch ‘language’ and jump straight to entities… - The colour ‘Red’ means the same thing regardless of you calling it ‘Rot’, ‘Rouge’ or ‘赤’ • Again, Graphs could solve the problem tumra.com
- 34. LANGUAGE INDEPENDENT Red !"#أ Color: Rouge Red 赤 Rot Röd Rojo 紅
- 35. PROBLEM SOLVED Typical response time ~30ms … relevancy improves over time and learns new entities ‘online’ tumra.com
- 36. FINAL SOLUTION Neo4J NoSQL Unstructured Language Model Disambiguation Awesomeness! Data Machine Learning NER tumra.com
- 37. ABOUT US • We’ve built a product… - Our ‘Digital Marketing Optimization’ platform improves conversion rates & customer satisfaction for eCommerce & Marketing campaigns - Launches Q1 2013 • What else do we do? - ‘Big Data’ & ‘Data Science’ professional services - Bespoke prototype & solution development “TUMRA” is a transliteration of the Sanskrit word for “BIG”; we thought it’s a great name … ( and the .COM was available ) tumra.com
- 38. TUMRA You? THANKS FOR LISTENING We’re hiring! Data Scientists & Developers work@tumra.com tumra.com
- 39. THANKS FOR LISTENING Questions? tumra.com hello@tumra.com twitter.com/tumra tumra.com
