![In addition, a requiredbit pattern can be specifiedusingits octal equivalent.
'044' produces bit pattern00100100.
Character constants are rarely used, since string constants are more convenient. A string
constant is surrounded by double quotes e.g. "Brian and Dennis". The string is actually
stored as an array of characters. The null character '0' is automatically placed at the end of
such a stringto act as a stringterminator.
Constant is a special types of variable which can not be changed at the time of execution.
Syntax:
const int a=20;
C Language Operator PrecedenceChart
Operator precedence describes the order in which C reads expressions. For example, the
expression a=4+b*2 contains two operations, an addition and a multiplication. Does the C
compiler evaluate 4+b first, then multiply the result by 2, or does it evaluate b*2 first, then
add 4 to the result? The operator precedence chart contains the answers. Operators higher in
the chart have a higher precedence, meaning that the C compiler evaluates them first.
Operators on the same line in the chart have the same precedence, and the "Associatively"
columnon the right gives their evaluation order.
Operator Precedence Chart
Operator Type Operator Associatively
Primary Expression
Operators
() [] . -> expr++ expr-- left-to-right
Unary Operators
* & + - ! ~ ++expr --expr (typecast)
sizeof()
right-to-left
Binary Operators * / % left-to-right](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-11-320.jpg)
![#include /* For definition of getchar, putchar, EOF */
main()
{ char ch;
while((ch = getchar()) != EOF)
putchar (to-upper(ch));
}
gets
gets reads a whole line of input into a string until a new line or EOF is encountered. It is
critical to ensure that the stringis large enough to hold any expectedinput lines.
When all input is finished, NULL as definedin studio is returned.
#include
main()
{ char ch[20];
gets(x);
puts(x);
}
puts
puts writes a string to the output, and follows it with a new line character.
Example: Program which uses gets and puts to double space typed input.
#include
main()
{ char line[256]; /* Define string sufficiently large to
store a line of input */
while(gets(line) != NULL) /* Read line */
{ puts(line); /* Print line */
printf("n"); /* Print blank line */
}
}
Note that putchar, printf and puts can be freelyusedtogether
ExpressionStatements](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-27-320.jpg)
![One dimensional Array
So far, we've been declaringsimple variables: the declaration
int i;
declares a single variable, named i, of type int. It is also possible to declare an array of
several elements. The declaration
int a[10];
declares an array, named a, consisting of ten elements, each of type int. Simply speaking, an
array is a variable that can hold more than one value. You specify which of the several values
you're referring to at any given time by using a numeric subscript. (Arrays in programming
are similar to vectors or matrices in mathematics.) We can represent the array a above with a
picture like this:
In C, arrays are zero-based: the ten elements of a 10-element array are numbered from 0 to 9.
The subscript which specifies a single element of an array is simply an integer expression in
square brackets. The first element of the array is a[0], the second element is a[1], etc. You
can use these ``array subscript expressions'' anywhere you can use the name of a simple
variable, for example:
a[0] = 10;
a[1] = 20;
a[2] = a[0] + a[1];
Notice that the sub scripted array references (i.e. expressions such as a[0] and a[1]) can
appear on either side of the assignment operator. it is possible to initialize some or all
elements of anarray when the array is defined. The syntax looks like this:
int a[10] = {0, 1, 2, 3, 4, 5, 6, 7, 8, 9};
The list of values, enclosed in braces {}, separated by commas, provides the initial values for
successive elements of the array.
The subscript does not have to be a constant like 0 or 1; it can be any integral expression. For
example, it's commonto loopover all elements of anarray:
int i;](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-36-320.jpg)
![for(i = 0;i < 10; i = i + 1)
a[i] = 0;
This loopsets all tenelements of the array a to 0.
Arrays are a real convenience for many problems, but there is not a lot that C will do with
them for you automatically. In particular, you can neither set all elements of an array at once
nor assign one array to another; both of the assignments
a = 0; /* WRONG */
and
int b[10];
b = a; /* WRONG */
are illegal.
To set all of the elements of an array to some value, you must do so one by one, as in the
loop example above. To copy the contents of one array to another, you must again do so one
by one:
int b[10];
for(i = 0;i < 10; i = i + 1)
b[i] = a[i];
Remember that for an array declared
int a[10];
there is no element a[10]; the topmost element is a[9]. This is one reason that zero-based
loops are also commonin C. Note that the for loop
for(i = 0;i < 10; i = i + 1)
...
does just what you want in this case: it starts at 0, the number 10 suggests (correctly) that
it goes through 10 iterations, but the less-than comparison means that the last trip through
the loop has i set to 9. (The comparison i <= 9 would also work, but it would be less
clear and thereforepoorer style.)
Multidimensional Array](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-37-320.jpg)
![The declarationof an array of arrays looks like this:
int a2[5][7];
You have to read complicated declarations like these ``inside out.'' What this one says is that
a2 is an array of 5 something’s, and that each of the something’s is an array of 7 ints. More
briefly, ``a2 is an array of 5 arrays of 7 ints,'' or, ``a2 is an array of array of int.'' In the
declaration of a2, the brackets closest to the identifier a2 tell you what a2 first and foremost
is. That's how you know it's an array of 5 arrays of size 7, not the other way around. You can
think of a2 as having 5 ``rows'' and 7 ``columns,'' although this interpretation is not
mandatory. (You could also treat the ``first'' or inner subscript as ``x'' and the second as ``y.''
Unless you're doing something fancy, all you have to worry about is that the subscripts when
you access the array match those that you used when you declared it, as in the examples
below.)
To illustrate the use of multidimensional arrays, we might fill in the elements of the above
array a2 using this piece of code:
int i, j;
for(i = 0;i < 5; i = i + 1)
{
for(j = 0; j < 7; j = j + 1)
a2[i][j] = 10 * i + j;
}
This pair of nested loops sets a[1][2] to 12, a[4][1] to 41, etc. Since the first dimension of
a2 is 5, the first sub scripting index variable, i, runs from 0 to 4. Similarly, the second
subscript varies from 0 to 6.
We could print a2 out (in a two-dimensional way, suggesting its structure) with a similar pair
of nestedloops:
for (i = 0; i < 5; i = i + 1)
{
for (j = 0; j < 7; j = j + 1)
printf ("%dt", a2[i][j]);
printf ("n");
}
(The character t in the printf stringis the tab character.)](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-38-320.jpg)
![Just to see more clearly what's going on, we could make the ``row'' and ``column'' subscripts
explicit by printing them, too:
for(j = 0;j < 7; j = j + 1)
printf("t%d:", j);
printf ("n");
for(i = 0;i < 5; i = i + 1)
{
printf("%d:", i);
for(j = 0; j < 7; j = j + 1)
printf("t%d", a2[i][j]);
printf("n");
}
This last fragment would print
0: 1: 2: 3: 4: 5: 6:
0: 0 1 2 3 4 5 6
1: 10 11 12 13 14 15 16
2: 20 21 22 23 24 25 26
3: 30 31 32 33 34 35 36
4: 40 41 42 43 44 45 46
STRING
String are the combination of number of characters these are used to store any word in any
variable of constant. A string is an array of character. It is internally represented in system by
using ASCII value. Every single character can have its own ASCII value in the system. A
character stringis storedinone array of character type.
e.g. “Ram” contains ASCII value per location, when we are using strings and then these
strings are always terminated by character ‘0’. We use conversion specifies %s to set any
stringwe can have any stringas follows:-
char NM [25].
When we store any value in nm variable then it can hold only 24 character because at the end
of the stringone character is consumedautomaticallyby ‘0’.
#include](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-39-320.jpg)
![x=20;
y=30;
printf(”n Value of a and b before function call =%d %d”,a,b);
fncn(&x,&y); printf(”n Value of a and b after function call =%d %d”,a,b);
}
fncn(p,q)
int p,q;
{
*p=*p+*p;
*q=*q+*q;
}
Pointer to arrays:
an array is actually very much similar like pointer. We can declare as int *a is an address,
because a[0] the arrays first element as a[0] and *a is also an address the form of declaration
is also equivalent. The difference is pointer can appear on the left of the assignment operator
and it is a is a variable that is value. The array name cannot appear as the left side of
assignment operator and is constant.
/* A program to display the contents of array using pointer*/
main()
{
int a[100];
int i,j,n;
printf(”nEnter the elements of the arrayn”);
scanf(%d,&n);
printf(”Enter the array elements”);
for(I=0;I< n;I++)
scanf(%d,&a[I]);
printf(”Array element are”);
for(ptr=a,ptr< (a+n);ptr++)
printf(”Value of a[%d]=%d stored at address %u”,j+=,*ptr,ptr);
}
Pointersandstructures :](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-50-320.jpg)
![We know the name of an array stands for address of its zeros element the same concept
applies for names of arrays of structures. Suppose item is an array variable of the struct type.
Consider the followingdeclaration:
structure products
{
char name[30];
int manufacture;
float net;
item[2],*ptr;
UNIT - 7
STRUCTURES
What is a Structure?
Structure is a methodof packing the data of different types.
When we require using a collection of different data items of different data types in
that situationwe can use a structure.
A structure is used as a method of handling a group of related data items of different
data types.
A structure is a collection of variables under a single name. These variables can be of
different types, and each has a name which is used to select it from the structure. A structure
is a convenient way of grouping several pieces of relatedinformationtogether.
A structure can be defined as a new named type, thus extending the number of available
types. It can use other structures, arrays or pointers as some of its members, though this can
get complicatedunless youare careful.
Defining a Structure
A structure type is usually defined near to the start of a file using a typedef statement.
typedef defines and names a new type, allowing its use throughout the program. typedefs
usually occur just after the #define and #include statements ina file.
Here is an example structure definition.
type def structure {
char name[64];
char course[128];](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-51-320.jpg)
![int age;
int year;
} student;
This defines a new type student variables of type student can be declaredas follows.
student st_rec;
Notice how similar this is to declaringan int or float.
The variable name is st_rec, it has members calledname, course, age and year.
Accessing Members of a Structure
Each member of a structure can be used just like a normal variable, but its name will be a bit
longer. To return to the examples above, member name of structure st_rec will behave just
like a normal array of char, however we refer to it by the name .
st_rec.name
Here the dot is an operator whichselects amember from a structure.
Where we have a pointer to a structure we could deference the pointer and then use dot as a
member selector. This method is a little clumsy to type. Since selecting a member from a
structure pointer happens frequently, it has its own operator -> which acts as follows.
Assume that st_ptr is a pointer to a structure of type student We would refer to the name
member as.
st_ptr -> name
/* Example program for using a structure*/
#include< stdio.h >
void main()
{
int id_no;
char name[20];
char address[20];
char combination[3];
int age;
}new student;
printf(”Enter the student information”);](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-52-320.jpg)
![printf(”Now Enter the student id_no”);
scanf(“%d”,&new student.id_no);
printf(“Enter the name of the student”);
scanf(“%s”,&new student.name);
printf(“Enter the address of the student”);
scanf(“%s”,&new student.address);printf(“Enter the combination of the student”);
scanf(“%d”,&new student.combination);printf(Enter the age of the student”);
scanf(“%d”,&new student.age);
printf(“Student informationn”);
printf(“student id_number=%dn”,new student.id_no);
printf(“student name=%sn”,new student.name);
printf(“student Address=%sn”,new student.address);
printf(“students combination=%sn”,new student.combination);
printf(“Age of student=%dn”,new student.age);
}
Arrays of structure:
It is possible to define a array of structures for example if we are maintaining information of
all the students in the college and if 100 students are studying in the college. We need to use
an array than single variables. We can define an array of structures as shown in the following
example:
structure information
{
int id_no;
char name[20];
char address[20];
char combination[3];
int age;
}
student[100];
An array of structures can be assigned initial values just as any other array can. Remember
that each element is a structure that must be assigned corresponding initial values as
illustrated below.
#include< stdio.h >
{
structure info
{
int id_no;
char name[20];
char address[20];](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-53-320.jpg)
![char combination[3];
int age;
}
structure info std[100];
int I,n;
printf(“Enter the number of students”);
scanf(“%d”,&n);
printf(“ Enter Id_no,name address combination agem”);
for(I=0;I < n;I++)
scanf(“%d%s%s%s%d”,&std[I].id_no,std[I].name,std[I].address,std[I].combination,&std[I].a
ge);
printf(“n Student information”);
for (I=0;I< n;I++)
printf(“%d%s%s%s%dn”,
”,std[I].id_no,std[I].name,std[I].address,std[I].combination,std[I].age);
}
Structure withinastructure:
A structure may be defined as a member of another structure. In such structures the
declaration of the embedded structure must appear before the declarations of other structures.
structure date
{
int day;
int month;
int year;
};
structure student
{
int id_no;
char name[20];
char address[20];
char combination[3];
int age;
structure date def;
structure date doa;
}oldstudent, newstudent;
the sturucture student constains another structure date as its one of its members.
UNIT- 8
Union:
Unions like structure contain members whose individual data types may differ from one
another. However the members that compose a union all share the same storage area within](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-54-320.jpg)
![MyEnumType y = 123; // should NOT be allowed by compiler
Note that it doesn't matter whether the int matches one of the constants of the enum type; the
type conversionis always illegal
Typedefs
A type def in C is a declaration. Its purpose is to create new types from existing types;
whereas a variable declaration creates new memory locations. Since a type def is a
declaration, it can be intermingled with variable declarations, although common practice
would be to state typedefs first, then variable declarations. A nice programming
convention is to capitalize the first letter of a user-defined type to
distinguish it from the built-in types, which all have lower-case names. Also,
typedefs are usually global declarations.
Example: Use a Type def To Create A Synonym for a Type Name
type def int Integer; //Integer can now be used in place of int
int a,b,c,d; //4 variables of type int
Integer e,f,g,h; //the same thing
In general, a type def should never be used to assign a different name to a built-in type name;
it just confuses the reader. Usually, a type def associates a type name with a more
complicated type specification, such as an array. A type def should always be used in
situations where the same type definition is used more than once for the same
purpose. For example, a vector of 20 elements might represent different aspects of a
scientificmeasurement.
Example: Use a Type def To Create A Synonym for an Array Type
type def int Vector[20];//20 integers
Vector a,b;
int a[20], b[20]; //the same thing, but a type def is preferred](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-57-320.jpg)
![This drawing shows the list built in memory by the function BuildOneTwoThree() (the full
source code for this function is below). The beginning of the linked list is stored in a "head"
pointer which points to the first node. The first node contains a pointer to the second node.
The second node contains a pointer to the third node, ... and so on. The last node in the list
has its .next field set to NULL to mark the end of the list. Code can access any node in the
list by starting at the head and following the .next pointers. Operations towards the front of
the list are fast while operations which access node farther down the list take longer the
further they are from the front. This "linear" cost to access a node is fundamentally more
costly then the constant time [ ] access provided by arrays. In this respect, linked lists are
definitelyless efficient thanarrays.
Drawings such as above are important for thinking about pointer code, so most of the
examples in this article will associate code with its memory drawing to emphasize the habit.
In this case the head pointer is an ordinary local pointer variable, so it is drawn separately on
the left to show that it is in the stack. The list nodes are drawn on the right to show that they
are allocatedinthe heap.
The Empty List — NULL
The above is a list pointed to by head is described as being of "length three" since it is made
of three nodes with the .next field of the last node set to NULL. There needs to be some
representation of the empty list — the list with zero nodes. The most common representation
chosen for the empty list is a NULL head pointer. The empty list case is the one common
weird "boundary case" for linked list code. All of the code presented in this article works
correctlyfor the emptylist case, but that was not without some effort.
When working on linked list code, it's a good habit to remember to check the empty list case
to verify that it works too. Sometimes the empty list case works the same as all the cases, but
sometimes it requires some special case code. No matter what, it's a good case to at least
think about.
LinkedList Types: Node and Pointer
Before writingthe code to build the above list, we needtwo data types...
• Node The type for the nodes which will make up the body of the list.
These are allocatedinthe heap. Each node contains a single client data
element and a pointer to the next node in the list. Type: struct node
struct node {
int data;](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-60-320.jpg)
![integer next; // index of next entry in array
integer prev; // previous entry (if double-linked)
string name;
real balance;
}
By creating an array of these structures, and an integer variable to store the index of the first
element, a linked list canbe built:
integer listHead;
Entry Records[1000];
Links between elements are formed by placing the array index of the next (or previous) cell
into the Next or Prevfieldwithin a given element. For example:
Index Next Prev Name Balance
0 1 4 Jones, John 123.45
1 -1 0 Smith, Joseph 234.56
2 (listHead) 4 -1 Adams, Adam 0.00
3 Ignore, Ignatius 999.99
4 0 2 Another, Anita 876.54
5
6
7
In the above example, ListHead would be set to 2, the location of the first entry in the list.
Notice that entry 3 and 5 through 7 are not part of the list. These cells are available for any
additions to the list. By creating a ListFree integer variable, a free list could be created to
keep track of what cells are available. If all entries are in use, the size of the array would
have to be increased or some elements would have to be deleted before new entries could be
storedinthe list.
The followingcode would traverse the list and display names and account balance:
i := listHead;
while i >= 0 { '// loopthrough the list
print i, Records[i].name, Records[i].balance // print entry](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-71-320.jpg)
![i = Records[i].next;
}
When facedwith a choice, the advantages of this approach include:
The linked list is relocatable, meaning it can be moved about in memory at will, and it
can also be quickly and directly serialized for storage on disk or transfer over a
network.
Especially for a small list, array indexes can occupy significantly less space than a
full pointer on many architectures.
Locality of reference can be improved by keeping the nodes together in memory and
by periodicallyrearrangingthem, although this can also be done in a general store.
Naïve dynamic memory allocators can produce an excessive amount of overhead
storage for each node allocated; almost no allocation overhead is incurred per node in
this approach.
Seizing an entry from a pre-allocated array is faster than using dynamic memory
allocation for each node, since dynamic memory allocation typically requires a search
for a free memoryblockof the desiredsize.
This approach has one main disadvantage, however: it creates and manages a private
memoryspace for its nodes. This leads to the followingissues:
It increase complexityof the implementation.
Growing a large array when it is full may be difficult or impossible, whereas finding
space for a new linked list node in a large, general memorypool may be easier.
Adding elements to a dynamic array will occasionally (when it is full) unexpectedly
take linear (O (n)) insteadof constant time (although it's still an amortized constant).
Using a general memory pool leaves more memory for other data if the list is smaller
than expectedor if many nodes are freed.
For these reasons, this approach is mainly used for languages that do not support dynamic
memory allocation. These disadvantages are also mitigated if the maximum size of the list is
known at the time the array is created.
Language support
Many programming languages such as Lisp and Scheme have singly linked lists built in. In
many functional languages, these lists are constructed from nodes, each called a consor cons
cell. The cons has two fields: the car, a reference to the data for that node, and the cdr, a
reference to the next node. Although cons cells can be used to build other data structures, this
is their primary purpose.](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-72-320.jpg)
![1. No special processing of the data occurs and each byte of data is transferred to or from
the disk unprocessed.
2. C Programming Language places no constructs on the file, and it may be read from, or
writtento, in any manner chosenby the programmer.
Binary files can be either processed sequentially or, depending on the needs of the
application, they can be processed using random access techniques. In C Programming
Language, processing a file using random access techniques involves moving the current file
position to an appropriate place in the file before reading or writing data. This indicates a
second characteristic of binary files
– they a generallyprocessedusingread and write operations simultaneously.
For example, a database file will be created and processed as a binary file. A record update
operation will involve locating the appropriate record, reading the record into memory,
modifying it in some way, and finally writing the record back to disk at its appropriate
location in the file. These kinds of operations are common to many binary files, but are rarely
found in applications that process text files.
Creating a file andoutput some data
In order to create files we have to learn about File I/O i.e. how to write data into a file and
how to read data from a file. We will start this section with an example of writing data to a
file. We begin as before with the include statement for stdio.h, then define some variables for
use in the example including a rather strange lookingnew type.
/* Program to create a file and write some data the file */
#include
#include
main( )
{
FILE *fp;
char stuff[25];
int index;
fp = fopen("TENLINES.TXT","w"); /* open for writing */
strcpy(stuff,"This is an example line.");
for (index= 1; index <= 10; index++)
fprintf(fp,"%s Line number %dn", stuff, index);
fclose(fp);/* close the file before endingprogram */
}](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-77-320.jpg)
![2,
3
int x[] = { NUMBERS };
==> int x[] = { 1, 2, 3 };
The most commonvisible consequence of this is surprisingline numbers in error messages.
There is no restriction on what can go in a macro body provided it decomposes into valid
preprocessing tokens. Parentheses need not balance, and the body need not resemble valid C
code. (If it does not, you may get error messages from the C compiler when you use the
macro.)
The C preprocessor scans your program sequentially. Macro definitions take effect at the
place you write them. Therefore, the followinginput to the C preprocessor
foo = X;
#define X 4
bar = X;
produces
foo = X;
bar = 4;
When the preprocessor expands a macro name, the macro's expansion replaces the macro
invocation, then the expansion is examined for more macros to expand. For example,
#define TABLESIZE BUFSIZE
#define BUFSIZE 1024
TABLESIZE
==> BUFSIZE
==> 1024
TABLESIZE is expanded first to produce BUFSIZE, then that macro is expanded to produce
the final result, 1024.
Notice that BUFSIZE was not defined when TABLESIZE was defined. The `#define' for
TABLESIZE uses exactly the expansion you specify—in this case, BUFSIZE—and does not
check to see whether it too contains macro names. Only when you use TABLESIZE is the
result of its expansionscanned for more macro names.](https://image.slidesharecdn.com/5-190509123915/85/WEBSITE-DEVELOPMENT-85-320.jpg)
WEBSITE DEVELOPMENT
- 1. WEBSITE DEVELOPMENT Modular DesignofPrograms One of the key concepts in the application of programming is the design of a program as a set of units referred to as blocks or modules. A style that breaks large computer programs into smaller elements called modules. Each module performs a single task; often a task that needs to be performed multiple times during the running of a program. Each module also stands alone with defined input and output. Since modules are able to be reused they can be designed to be used for multiple programs. By debugging each module and only including it when it performs its defined task, larger programs are easier to debug because large sections of the code have already been evaluated for errors. That usually means errors will be in the logic that calls the various modules. Languages like Modula-2 were designed for use with modular programming. Modular programming has generally evolved into object-orientedprogramming. Programs canbe logicallyseparatedintothe following functional modules: 1) Initialization 2) Input 3) Input Data Validation 4) Processing 5) Output 6) Error Handling 7) Closingprocedure Basic attributesof modular programming: 1) Input 2) Output 3) Function 4) Mechanism 5) Internal data
- 2. Control Relationship betweenmodules: The structure charts show the interrelationships of modules by arranging them at different levels and connecting modules in those levels by arrows. An arrow between two modules means the program control is passed from one module to the other at execution time. The first module is said to call or invoke the lower level modules.There are three rules for controllingthe relationshipbetweenmodules. 1) There is only one module at the top of the structure. This is called the root or boss module. 2) The root passes control down the structure chart to the lower level modules. However, control is always returned to the invoking module and a finished module should always terminate at the root. 3) There can be more than one control relationship between two modules on the structure chart, thus, if module A invokes module B, then B cannot invoke module A. Communicationbetweenmodules: 1) Data: Shown by an arrow with empty circle at its tail. 2) Control : Shown by a filled-incircleat the end of the tail of arrow Module DesignRequirements A hierarchical or module structure should prevent many advantages in management, developing, testing and maintenance. However, such advantages will occur only if modules fulfill the followingrequirements. a) Coupling: In computer science, coupling is considered to be the degree to which each program module relies on other modules, and is also the term used to describe connecting two or more systems. Coupling is broken down into loose coupling, tight coupling, and decoupled. Coupling is also used to describe software as well as systems. Also called dependency Types of Programming Language Low Level Language First-generation language is the lowest level computer language. Information is conveyed to the computer by the programmer
- 3. as binary instructions. Binary instructions are the equivalent of the on/off signals used by computers to carry out operations. The language consists of zeros and ones. In the 1940s and 1950s, computers were programmed by scientists sitting before control panels equipped with toggle switches so that theycould input instructions as strings of zeros andones. Advantages - Fast and efficient - Machine oriented - No translationrequired Disadvantages -Not portable - Not programmer friendly AssemblyLanguage Assembly or assembler language was the second generation of computer language. By the late 1950s, this language had become popular. Assembly language consists of letters of the alphabet. This makes programming much easier than trying to program a series of zeros and ones. As an added programming assist, assembly language makes use of mnemonics, or memoryaids, which are easier for the human programmer to recall than are numerical codes. Assembler An assembler is a program that takes basic computer instructions and converts them into a pattern of bits that the computer's processor can use to perform its basic operations. Some people call these instructions assembler language and others use the term assembly language In other words An assembler is a computer program for translating assembly language — essentially, a mnemonic representation of machine language — into object code. A cross assembler (seecross compiler) producescode for one processor, but runs on another. As well as translating assembly instruction mnemonics into op codes, assemblers provide the ability to use symbolic names for memory locations (saving tedious calculations and manually updating addresses when a program is slightly modified), and macro facilities for performing textual substitution — typically used to encode common short sequences of instructions to runinline insteadof in a subroutine. HighLevel Language
- 4. The introduction of the compiler in 1952 spurred the development of third-generation computer languages. These languages enable a programmer to create program files using commands that are similar to spoken English. Third-level computer languages have become the major means of communication between the digital computer and its user. By 1957, the International Business Machine Corporation (IBM) had created a language called FORTRAN (Formulas Translate). This language was designed for scientific work involving complicated mathematical formulas. It became the first high-level programming language (or "source code") to be usedby many computer users. Within the next few years, refinements gave rise to ALGOL (Algorithmic Language) and COBOL (Common Business Oriented Language). COBOL is noteworthy because it improved the record keeping and data management ability of businesses, which stimulated business expansion. Advantages - Portable or machine independent - Programmer-friendly Disadvantages -Not as efficient as low-level languages -Needto be translated Examples : C, C++, Java, FORTRAN, Visual Basic, and Delphi. Interpreter An interpreter is a computer program that executes other programs. This is in contrast to a compiler which does not execute its input program (the source code) but translates it into executable machine code (also called object code) which is output to a file for later execution. It may be possible to execute the same source code either directly by an interpreter or bycompilingit and then executingthe machine code produced. It takes longer to run a program under an interpreter than to run the compiled code but it can take less time to interpret it than the total required to compile and run it. This is especially important when prototyping and testing code when an edit-interpret-debug cycle can often be much shorter than an edit-compile-run-debugcycle.
- 5. Interpreting code is slower than running the compiled code because the interpreter must analyses each statement in the program each time it is executed and then perform the desired action whereas the compiled code just performs the action. This run-time analysis is known as "interpretive overhead". Access to variables is also slower in an interpreter because the mapping of identifiers to storage locations must be done repeatedly at run-time rather than at compile time. COMPILER A program that translates source code into object code. The compiler derives its name from the way it works, looking at the entire piece of source code and collecting and reorganizing the instructions. Thus, a compiler differs from an interpreter, which analyzes and executes each line of source code in succession, without looking at the entire program. The advantage of interpreters is that they can execute a program immediately. Compilers require some time before an executable program emerges. However, programs produced by compilers run much faster than the same programs executedby an interpreter. Every high-level programming language (except strictly interpretive languages) comes with a compiler. In effect, the compiler is the language, because it defines which instructions are acceptable. FourthGenerationLanguage Fourth-generation languages attempt to make communicating with computers as much like the processes of thinking and talking to other people as possible. The problem is that the computer still only understands zeros and ones, so a compiler and interpreter must still convert the source code into the machine code that the computer can understand. Fourth- generation languages typically consist of English-like words and phrases. When they are implemented on microcomputers, some of these languages include graphic devices such as icons and onscreen push buttons for use during programming and when running the resulting application. Many fourth-generation languages use Structured Query Language (SQL) as the basis for operations. SQL was developed at IBM to develop information stored in relational databases. Examples of fourth-generation languages include PROLOG, an Artificial Intelligence language
- 6. UNIT-2 FEATURES OF ‘C’ C-Language keywords Data Types A C language programmer has to tell the system before-hand, the type of numbers or characters he is using in his program. These are data types. There are many data types in C language. A C programmer has to use appropriate data type as per his requirement. C language data types can be broadly classifiedas -Primarydata type - Derived data type - User defineddata type Primarydata type All C Compilers accept the followingfundamental data types 1. Integer int 2. Character char 3. Floating Point float 4. Double precisionfloatingpoint double 5. Void void The size and range of eachdata type is giveninthe table below DATA TYPE RANGE OF VALUES char -128 to 127
- 7. Int -32768to +32767 float 3.4 e-38 to 3.4 e+38 double 1.7 e-308 to 1.7 e+308 Integer Type: Integers are whole numbers with a machine dependent range of values. A good programming language as to support the programmer by giving a control on a range of numbers and storage space. C has 3 classes of integer storage namely short int, int and long int. All of these data types have signed and unsigned forms. A short int requires half the space than normal integer values. Unsigned numbers are always positive and consume all the bits for the magnitude of the number. The long and unsigned integers are used to declare a longer range of values. Floating Point Types: Floating point number represents a real number with 6 digits precision. Floating point numbers are denoted by the keyword float. When the accuracy of the floating point number is insufficient, we can use the double to define the number. The double is same as float but with longer precision. To extend the precision further we can use long double which consumes 80 bits of memoryspace. Void Type: Using void data type, we can specify the type of a function. It is a good practice to avoid functions that does not returnany values to the calling function. Character Type: A single character can be defined as a defined as a character type of data. Characters are usually stored in 8 bits of internal storage. The qualifier signed or unsigned can be explicitly applied to char. While unsigned characters have values between 0 and 255, signed characters have values from –128 to 127. Size and Range of Data Types on 16 bit machine. TYPE SIZE (Bits) Range Char or Signed Char 8 -128 to 127 Unsigned 8 0 to 255
- 8. Char Int or Signed int 16 -32768to 32767 Unsigned int 16 0 to 65535 Short int or Signed short int 8 -128 to 127 Unsigned short int 8 0 to 255 Long int or signed long int 32 -2147483648to 2147483647 Unsigned long int 32 0 to 4294967295 Float 32 3.4 e-38 to 3.4 e+38 Double 64 1.7e-308 to 1.7e+308 Long Double 80 3.4 e-4932to 3.4 e+4932 Variable: Variable is a name of memory location where we can store any data. It can store only single data (Latest data) at a time. In C, a variable must be declared before it can be used. Variables can be declared at the start of any block of code, but most are found at the start of each function. A declaration begins with the type, followed by the name of one or more variables. For example, Data Type Name_of_Variable_Name; int a,b,c; Variable Names Every variable has a name and a value. The name identifies the variable, the value stores data. There is a limitation on what these names can be. Every variable name in C must start with a letter; the rest of the name can consist of letters, numbers and underscore characters. C
- 9. recognizes upper and lower case characters as being different. Finally, you cannot use any of C's keywords like main, while, switch etc as variable names. Examples of legal variable names include: x result out file best-yet x1 x2 out_file best_yet power impetus gamma hi_score It is conventional to avoid the use of capital letters in variable names. These are used for names of constants. Some old implementations of C only use the first 8 characters of a variable name. Local Variables Local variables are declared within the body of a function, and can only be used within that functiononly. Syntax: Void main( ){ int a,b,c; } Void fun1() { int x,y,z; } Here a,b,c are the local variable of void main() function and it can’t be used within fun1() Function. And x, y and z are local variable of fun1(). Global Variable
- 10. A global variable declaration looks normal, but is located outside any of the program's functions. This is usually done at the beginning of the program file, but after preprocessed directives. The variable is not declaredagain in the body of the functions which access it. Syntax: #include int a,b,c; void main() { } Void fun1() { } Here a,b,c are global variable .and these variable cab be accessed (used) within a whole program. Constants C constant is usually just the written version of a number. For example 1, 0, 5.73, 12.5e9. We can specify our constants in octal or hexadecimal, or force them to be treated as long integers. Octal constants are writtenwith a leading zero - 015. Hexadecimal constants are writtenwith a leading 0x - 0x1ae. Long constants are written with a trailingL - 890L. Character constants are usually just the character enclosed in single quotes; 'a', 'b', 'c'. Some characters can't be representedinthis way, so we use a 2 character sequence.
- 11. In addition, a requiredbit pattern can be specifiedusingits octal equivalent. '044' produces bit pattern00100100. Character constants are rarely used, since string constants are more convenient. A string constant is surrounded by double quotes e.g. "Brian and Dennis". The string is actually stored as an array of characters. The null character '0' is automatically placed at the end of such a stringto act as a stringterminator. Constant is a special types of variable which can not be changed at the time of execution. Syntax: const int a=20; C Language Operator PrecedenceChart Operator precedence describes the order in which C reads expressions. For example, the expression a=4+b*2 contains two operations, an addition and a multiplication. Does the C compiler evaluate 4+b first, then multiply the result by 2, or does it evaluate b*2 first, then add 4 to the result? The operator precedence chart contains the answers. Operators higher in the chart have a higher precedence, meaning that the C compiler evaluates them first. Operators on the same line in the chart have the same precedence, and the "Associatively" columnon the right gives their evaluation order. Operator Precedence Chart Operator Type Operator Associatively Primary Expression Operators () [] . -> expr++ expr-- left-to-right Unary Operators * & + - ! ~ ++expr --expr (typecast) sizeof() right-to-left Binary Operators * / % left-to-right
- 12. + - >> << < > <= >= == != & ^ | && || Ternary Operator ?: right-to-left Assignment Operators = += -= *= /= %= >>= <<= &= ^= |= right-to-left Comma , left-to-right Operators Introduction An operator is a symbol which helps the user to command the computer to do a certain mathematical or logical manipulations. Operators are used in C language program to operate on data and variables. C has a richset of operators whichcan be classifiedas
- 13. 1.Arithmetic operators 2.Relational Operators 3.Logical Operators 4.Assignment Operators 5.Increments and Decrement Operators 6.Conditional Operators 7.Bitwise Operators 8. Special Operators 1. Arithmetic Operators All the basic arithmetic operations can be carried out in C. All the operators have almost the same meaning as in other languages. Both unary and binary operations are available in C language. Unary operations operate on a singe operand, therefore the number 5 when operatedby unary – will have the value –5. Arithmetic Operators Operator Meaning + Addition or Unary Plus – Subtractionor Unary Minus * Multiplication / Division % Modulus Operator Examples of arithmetic operators are x + y x - y -x + y a * b + c -a * b etc.,
- 14. here a, b, c, x, yare known as operands. The modulus operator is a special operator in C language which evaluates the remainder of the operands after division. Example . #include //include header file stdio.h void main() //tell the compiler the start of the program { int numb1, num2, sum, sub, mul, div, mod; //declaration of variables scanf (“%d %d”, &num1, &num2); //inputs the operands sum = num1+num2; //addition of numbers and storing in sum. printf(“n Thu sum is = %d”, sum); //display the output sub = num1-num2; //subtraction of numbers and storing in sub. printf(“n Thu difference is = %d”, sub); //display the output mul = num1*num2; //multiplication of numbers and storing in mul. printf(“n Thu product is = %d”, mul); //display the output div = num1/num2; //division of numbers and storing in div. printf(“n Thu division is = %d”, div); //display the output mod = num1%num2; //modulus of numbers and storing in mod. printf(“n Thu modulus is = %d”, mod); //display the output } . Integer Arithmetic When an arithmetic operation is performed on two whole numbers or integers than such an operation is called as integer arithmetic. It always gives an integer as the result. Let x= 27and y = 5be 2 integer numbers. Then the integer operation leads to the following results. x + y = 32 x – y = 22 x * y = 115 x % y = 2
- 15. x / y = 5 In integer divisionthe fractional part is truncated. Floatingpoint arithmetic When an arithmetic operation is preformed on two real numbers or fraction numbers such an operation is called floating point arithmetic. The floating point results can be truncated according to the properties requirement. The remainder operator is not applicable for floating point arithmetic operands. Let x = 14.0 and y = 4.0 then x + y = 18.0 x – y = 10.0 x * y = 56.0 x / y = 3.50 Mixedmode arithmetic When one of the operand is real and other is an integer and if the arithmetic operation is carried out on these 2 operands then it is called as mixed mode arithmetic. If any one operand is of real type then the result will always be real thus 15/10.0= 1.5 2. Relational Operators Often it is required to compare the relationship between operands and bring out a decision and program accordingly. This is when the relational operator come into picture. C supports the followingrelational operators. Operato r Meaning < is less than <= is less than or equal to > is greater than >= is greater than or equal to == is equal to
- 16. It is required to compare the marks of 2 students, salary of 2 persons, we can compare them using relational operators. A simple relational expression contains only one relational operator and takes the following form. exp1 relational operator exp2 Where exp1 and exp2 are expressions, which may be simple constants, variables or combination of them. Given below is a list of examples of relational expressions and evaluated values. 6.5 <= 25 TRUE -65 > 0 FALSE 10 < 7 + 5 TRUE Relational expressions are used in decision making statements of C language such as if, while and for statements to decide the course of actionof arunning program. 3. Logical Operators C has the following logical operators, they compare or evaluate logical and relational expressions. Operator Meaning && Logical AND || Logical OR ! Logical NOT Logical AND (&&) This operator is used to evaluate 2 conditions or expressions with relational operators simultaneously. If both the expressions to the left and to the right of the logical operator is true then the whole compound expression is true. Example a > b && x = = 10 The expression to the left is a > b and that on the right is x == 10 the whole expression is true only if both expressions are true i.e., if a is greater than b and x is equal to 10.
- 17. Logical OR (||) The logical OR is used to combine 2 expressions or the condition evaluates to true if any one of the 2 expressions is true. Example a < m || a < n The expression evaluates to true if any one of them is true or if both of them are true. It evaluates to true if a is less than either m or n and when a is less than both m and n. Logical NOT(!) The logical not operator takes single expression and evaluates to true if the expression is false and evaluates to false if the expression is true. In other words it just reverses the value of the expression. For example ! (x >= y)the NOT expression evaluates to true only if the value of x is neither greater than or equal to y 4. Assignment Operators The Assignment Operator evaluates an expression on the right of the expression and substitutes it to the value or variable on the left of the expression. Example x = a + b Here the value of a + b is evaluated and substituted to the variable x. In addition, C has a set of shorthand assignment operators of the form. var oper = exp; Here var is a variable, exp is an expression and oper is a C binary arithmetic operator. The operator oper = is known as shorthand assignment operator Example
- 18. x + = 1 is same as x = x + 1 The commonly used shorthand assignment operators are as follows Shorthand assignment operators . Statement with simple assignment operator Statement with shorthand operator a = a + 1 a += 1 a = a – 1 a -= 1 a = a * (n+1) a *= (n+1) a = a / (n+1) a /= (n+1) a = a % b a %= b Example for using shorthandassignment operator . #define N 100 //creates a variable N with constant value 100 #define A 2 //creates a variable A with constant value 2 main() //start of the program { int a; //variable a declaration a = A; //assigns value 2 to a while (a < N) //while value of a is less than N { //evaluate or do the following printf(“%d n”,a); //print the current value of a a *= a; //shorthand form of a = a * a } //end of the loop } //end of the program Output 2 4 16 5. Increment and Decrement Operators
- 19. The increment and decrement operators are one of the unary operators which are very useful in C language. They are extensively used in for and while loops. The syntax of the operators is given below 1. ++ variable name 2. variable name++ 3. – –variable name 4. variable name– – The increment operator ++ adds the value 1 to the current value of operand and the decrement operator – – subtracts the value 1 from the current value of operand. ++variable name and variable name++ mean the same thing when they form statements independently, they behave differently when they are used in expression on the right hand side of an assignment statement. Consider the following . m = 5; y = ++m; (prefix) In this case the value of y and m would be 6 Suppose if we rewrite the above statement as m = 5; y = m++; (post fix) Then the value of y will be 5 and that of m will be 6. A prefix operator first adds 1 to the operand and then the result is assigned to the variable on the left. On the other hand, a postfixes operator first assigns the value to the variable on the left and then increments the operand. 6. Conditional or TernaryOperator The conditional operator consists of 2 symbols the question mark (?) and the colon (:) The syntax for a ternary operator is as follows . exp1 ? exp2 : exp3 The ternary operator works as follows
- 20. exp1 is evaluated first. If the expression is true then exp2is evaluated & its value becomes the value of the expression. If exp1 is false, exp3 is evaluated and its value becomes the value of the expression. Note that only one of the expression is evaluated. For example a = 10; b = 15; x = (a > b) ? a : b Here x will be assigned to the value of b. The condition follows that the expression is false therefore bis assigned tox. . /* Example : to find the maximum value using conditional operator) #include void main() //start of the program { int i,j,larger; //declaration of variables printf (“Input 2 integers : ”); //ask the user to input 2 numbers scanf(“%d %d”,&i, &j); //take the number from standard input and store it larger = i > j ? i : j; //evaluation using ternary operator printf(“The largest of two numbers is %d n”, larger); // print the largest number } // end of the program . Output Input 2 integers : 34 45 The largest of two numbers is 45 7. Bitwise Operators C has a distinction of supporting special operators known as bitwise operators for manipulation data at bit level. A bitwise operator operates on each bit of data. Those operators are used for testing, complementing or shifting bits to the right on left. Bitwise operators maynot be applied to a float or double.
- 21. Operator Meaning & Bitwise AND | Bitwise OR ^ Bitwise Exclusive << Shift left >> Shift right 8. Special Operators C supports some special operators of interest such as comma operator, size of operator, pointer operators(& and *) and member selection operators(. and ->). The size of and the comma operators are discussed here. The remaining operators are discussed in forth coming chapters. The Comma Operator The comma operator can be used to link related expressions together. A comma-linked list of expressions are evaluated left to right and value of right most expression is the value of the combinedexpression. For example the statement value = (x = 10, y = 5, x + y); First assigns 10 to x and 5 to y and finally assigns 15 to value. Since comma has the lowest precedence inoperatorsthe parenthesis is necessary. Some examples of commaoperator are In for loops: for (n=1, m=10, n<=m; n++,m++) In while loops While (c=get char(), c != ‘10’) Exchanging values. t = x, x = y, y = t; The size of Operator
- 22. The operator size of gives the size of the data type or variable in terms of bytes occupied in the memory. The operandmay be a variable, a constant or a data type qualifier. Example m = size of (sum); n = size of (long int); k = size of (235L); The size of operator is normally used to determine the lengths of arrays and structures when their sizes are not known to the programmer. It is also used to allocate memory space dynamically to variables during the executionof the program. Example program that employs different kinds of operators. The results of their evaluation are also shown in comparison. .main() //start of program { int a, b, c, d; //declaration of variables a = 15; b = 10; c = ++a-b; //assign values to variables printf (“a = %d, b = %d, c = %dn”, a,b,c); //print the values d=b++ + a; printf (“a = %d, b = %d, d = %dn, a,b,d); printf (“a / b = %dn, a / b); printf (“a %% b = %dn, a % b); printf (“a *= b = %dn, a *= b); printf (“%dn, (c > d) ? 1 : 0 ); printf (“%dn, (c < d) ? 1 : 0 ); } Notice the way the increment operator ++ works when used in an expression. In the statement c = ++a – b; new value a = 16 is used thus giving value 6 to C. That is a is incrementedby1 before usingin expression. However in the statement d = b++ + a; The old value b = 10 is used in the expression. Here b is incremented after it is used in the expression. We can print the character % by placing it immediately after another % character in the control string. This is illustrated by the statement. printf(“a %% b = %dn”, a%b);
- 23. This program also illustrates that the expression c > d ? 1 : 0 Assumes the value 0 when c is less than d and 1 when c is greater than d. Type conversions inexpressions Implicit type conversion C permits mixing of constants and variables of different types in an expression. C automatically converts any intermediate values to the proper type so that the expression can be evaluated without loosing any significance. This automatic type conversion is know as implicit type conversion . During evaluation it adheres to very strict rules and type conversion. If the operands are of different types the lower type is automatically converted to the higher type before the operation proceeds. The result is of higher type. The followingrules apply during evaluating expressions All short and char are automatically converted to int then 1. If one operand is long double, the other will be converted to long double and result .....will be long double. .2. If one operand is double, the other will be converted to double and result will be double. .3. If one operand is float, the other will be converted to float and result will be float. .4. If one of the operand is unsigned long int, the other will be converted into unsigned .....long int and result will be unsigned long int. .5. If one operand is long int and other is unsigned int then . .....a. If unsigned int can be converted to long int, then unsigned int operand will be ..........converted as such and the result will be long int. .....b. Else Both operands will be converted to unsigned long int and the result will be ..........unsigned long int. .6. If one of the operand is long int, the other will be converted to long int and the result will be long int. . 7. If one operand is unsigned int the other will be converted to unsigned int and the .....result will be unsigned int. Explicit Conversion
- 24. Many times there may arise a situation where we want to force a type conversion in a way that is different from automatic conversion. Consider for example the calculation of number of female and male students in a class female_students Ratio = ------------------- male_students Since if female_students and male_students are declared as integers, the decimal part will be rounded off and its ratio will represent a wrong figure. This problem can be solved by convertinglocallyone of the variables to the floatingpoint as shown below. Ratio = (float) female_students/ male_students The operator float converts the female_students to floating point for the purpose of evaluation of the expression. Then using the rule of automatic conversion, the division is performed by floating point mode, thus retaining the fractional part of the result. The process of such a local conversion is known as explicit conversion or casting a value. The general form is (type_name) expression SpecifierMeaning %c – Print a character %d – Print a Integer %i – Print a Integer %e – Print float value in exponential form. %f – Print float value %g – Print using %e or %f whichever is smaller %o – Print actual value %s – Print a string %x – Print a hexadecimal integer (Unsigned) using lower case a – F %X – Print a hexadecimal integer (Unsigned) using upper case A – F %a – Print a unsigned integer. %p – Print a pointer value %hx – hex short %lo – octal long %ld – longunsigned integer. Input and Output
- 25. Input and output are covered in some detail. C allows quite precise control of these. This sectiondiscusses input and output from keyboard and screen. The same mechanisms can be used to read or write data from and to files. It is also possible to treat character strings in a similar way, constructing or analysis them and storing results in variables. These variants of the basic input and output commands are discussed in the next section This offers more structured output than put char. Its arguments are, in order; a control string, which controls what gets printed, followed by a list of values to be substituted for entries in the control string Example: int a,b; printf(“a = %d,b=%d”,a,b);. It is also possible to insert numbers into the control string to control field widths for values to be displayed. For example %6d would print a decimal value in a field 6 spaces wide, %8.2f would print a real value in a field 8 spaces wide with room to show 2 decimal places. Display is left justified by default, but can be right justified by putting a - before the format information, for example %-6d, a decimal integer right justifiedina 6 space field scanf
- 26. scanf allows formatted reading of data from the keyboard. Like printf it has a control string, followed by the list of items to be read. However scanf wants to know the address of the items to be read, since it is a function which will change that value. Therefore the names of variables are preceded by the & sign. Character strings are an exception to this. Since a string is already a character pointer, we give the names of string variables unmodified by a leading &. Control string entries which match values to be read are preceded by the percentage sign in a similar way to their printf equivalents. Example: int a,b; scan f(“%d%d”,& a,& b); getchar getchar returns the next character of keyboard input as an int. If there is an error then EOF (end of file) is returned instead. It is therefore usual to compare this value against EOF before using it. If the return value is stored in a char, it will never be equal to EOF, so error conditions will not be handled correctly. As an example, here is a program to count the number of characters read until an EOF is encountered. EOFcan be generatedby typing Control - d. #include main() { int ch, i = 0; while((ch = getchar()) != EOF) i ++; printf("%dn", i); } putchar putchar puts its character argument on the standard output (usually the screen). The following example program converts any typed input into capital letters. To do this it applies the function to upper from the character conversion library c type .h to each character in turn. #include /* For definition of to-upper */
- 27. #include /* For definition of getchar, putchar, EOF */ main() { char ch; while((ch = getchar()) != EOF) putchar (to-upper(ch)); } gets gets reads a whole line of input into a string until a new line or EOF is encountered. It is critical to ensure that the stringis large enough to hold any expectedinput lines. When all input is finished, NULL as definedin studio is returned. #include main() { char ch[20]; gets(x); puts(x); } puts puts writes a string to the output, and follows it with a new line character. Example: Program which uses gets and puts to double space typed input. #include main() { char line[256]; /* Define string sufficiently large to store a line of input */ while(gets(line) != NULL) /* Read line */ { puts(line); /* Print line */ printf("n"); /* Print blank line */ } } Note that putchar, printf and puts can be freelyusedtogether ExpressionStatements
- 28. Most of the statements in a C program are expression statements. An expression statement is simply an expressionfollowedby a semicolon. The lines i = 0; i = i + 1; and printf("Hello, world!n"); are all expression statements. (In some languages, such as Pascal, the semicolon separates statements, such that the last statement is not followed by a semicolon. In C, however, the semicolon is a statement terminator; all simple statements are followed by semicolons. The semicolon is also used for a few other things in C; we've already seen that it terminates declarations, too. UNIT – 3 Branching andlooping CONTROL FLOW STATEMENT IF- Statement: It is the basic form where the if statement evaluate a test condition and direct program executiondepending onthe result of that evaluation. Syntax: If (Expression) { Statement 1; Statement 2; } Where a statement may consist of a single statement, a compound statement or nothing as an empty statement. The Expression also referred so as test condition must be enclosed in parenthesis, which cause the expression to be evaluated first, if it evaluate to true (a non zero value), then the statement associated with it will be executed otherwise ignored and the control will pass to the next statement. Example:
- 29. if (a>b) { printf (“a is larger than b”); } IF-ELSE Statement: An if statement may also optionally contain a second statement, the ``else clause,'' which is to be executedif the conditionis not met. Here is an example: if(n> 0) average = sum / n; else { printf("can't compute averagen"); average = 0; } NESTED-IF- Statement: It's also possible to nest one if statement inside another. (For that matter, it's in general possible to nest any kind of statement or control flow construct within another.) For example, here is a little piece of code which decides roughly which quadrant of the compass you're walking into, based on an x value which is positive if you're walking east, and a y value which is positive if you're walking north: if(x> 0) { if(y> 0) printf("Northeast.n"); else printf("Southeast.n"); } else { if(y> 0) printf("Northwest.n"); else printf("Southwest.n"); } /* Illuminates nestedif else and multiple arguments to the scanf function. */ #include
- 30. main() { int invalid_operator = 0; char operator; float number1, number2, result; printf("Enter two numbers and an operator inthe formatn"); printf(" number1 operator number2n"); scanf("%f %c %f", &number1, &operator, &number2); if(operator == '*') result = number1 * number2; else if(operator== '/') result = number1 / number2; else if(operator == '+') result = number1 + number2; else if(operator == '-') result = number1 - number2; else invalid _ operator = 1; if( invalid _ operator != 1 ) printf("%f %c %f is %fn", number1, operator, number2, result ); else printf("Invalid operator.n"); } Sample Program Output Enter two numbers and an operator inthe format number1 operator number2 23.2 + 12 23.2 + 12 is 35.2 SwitchCase This is another form of the multi way decision. It is well structured, but can only be used in certaincases where; Only one variable is tested, all branches must depend on the value of that variable. The variable must be an integral type. (int, long, short or char).
- 31. Each possible value of the variable can control a single branch. A final, catch all, default branch may optionallybe usedto trap all unspecifiedcases. Hopefully an example will clarify things. This is a function which converts an integer into a vague description. It is useful where we are only concerned in measuring a quantity when it is quite small. estimate(number) int number; /* Estimate a number as none, one, two, several, many */ { switch(number) { case 0 : printf("Nonen"); break; case 1 : printf("Onen"); break; case 2 : printf("Twon"); break; case 3 : case 4 : case 5 : printf("Severaln"); break; default : printf("Manyn"); break; } } Each interesting case is listed with a corresponding action. The break statement prevents any further statements from being executed by leaving the switch. Since case 3 and case 4 have no followingbreak, they continue on allowing the same actionfor several values of number. Both if and switch constructs allow the programmer to make a selection from a number of possible actions.
- 32. Loops Looping is a way by which we can execute any some set of statements more than one times continuously.In c there are mainly three types of loops are use : · while Loop · do while Loop · For Loop While Loop Loops generally consist of two parts: one or more control expressions which (not surprisingly) control the execution of the loop, and the body, which is the statement or set of statements whichis executedover and over. The general syntax of a while loopis Initialization while( expression ) { Statement1 Statement2 Statement3 } The most basic loop in C is the while loop. A while loop has one control expression, and executes as long as that expression is true. This example repeatedly doubles the number 2 (2, 4, 8, 16, ...) and prints the resultingnumbers as long as theyare less than 1000: int x = 2; while(x < 1000) { printf("%dn", x); x = x * 2; }
- 33. (Once again, we've used braces {} to enclose the group of statements which are to be executedtogether as the body of the loop.) For Loop Our second loop, which we've seen at least one example of already, is the for loop. The general syntax of a while loopis for( Initialization;expression;Increments/decrements ) { Statement1 Statement2 Statement3 } The first one we saw was: for (i = 0; i < 10;i = i + 1) printf ("i is %dn", i); (Here we see that the for loop has three control expressions. As always, the statement can be a brace-enclosedblock.) Do while Loop This is very similar to the while loop except that the test occurs at the end of the loop body. This guarantees that the loop is executed at least once before continuing. Such a setup is frequently used where data is to be read. The test then verifies the data, and loops back to read again if it was unacceptable. do { printf("Enter 1 for yes, 0 for no :"); scanf("%d", &input_value); } while (input_value != 1 && input_value != 0) The break Statement We have already met break in the discussion of the switch statement. It is used to exit from a loopor a switch, control passingto the first statement beyondthe loopor a switch.
- 34. With loops, break can be used to force an early exit from the loop, or to implement a loop with a test to exit in the middle of the loop body. A break within a loop should always be protectedwithinan if statement which provides the test to control the exit condition. The continue Statement This is similar to break but is encountered less frequently. It only works within loops where its effect is to force animmediate jump to the loopcontrol statement. In a while loop, jump to the test statement. In a do while loop, jump to the test statement. In a for loop, jump to the test, and perform the iteration. Like a break, continue should be protected by an if statement. You are unlikely to use it very often. Take the following example: int i; for (i=0;i<10;i++) { if (i==5) continue; printf("%d",i); if (i==8) break; } This code will print 1 to 8 except 5. Continue means, whatever code that follows the continue statement WITHIN the loop code block will not be executed and the program will go to the next iteration, in this case, when the program reaches i=5 it checks the condition in the if statement and executes 'continue', everything after continue, which are the printf statement, the next if statement, will not be executed. Break statement will just stop execution of the look and go to the next statement after the loop if any. In this case when i=8 the program will jump out of the loop. Meaning, it wont continue till i=9, 10.
- 35. Comment: o The compiler is "line oriented", and parses your program in a line-by-line fashion. o There are two kinds of comments: single-line andmulti-line comments. o The single-line comment is indicatedby"//" This means everything after the first occurrence of "//", UP TO THE END OF CURRENT LINE, is ignored. o The multi-line comment is indicatedby the pair "/*" and "*/". This means that everything between these two sequences will be ignored. This may ignore any number of lines. Here is a variant of our first program: /* This is a variant of my first program. * It is not much, I admit. */ int main() { printf("Hello World!n"); // that is all? return(0); } UNIT – 4 ARRAY AND STRING Arrays are widely used data type in ‘C’ language. It is a collection of elements of similar data type. These similar elements could be of all integers, all floats or all characters. An array of character is called as string whereas and array of integer or float is simply called as an array. So array may be defined as a group of elements that share a common name and that are defined by position or index. The elements of an arrays are store in sequential order in memory. There are mainly two types of Arrays are used: · One dimensional Array · Multidimensional Array
- 36. One dimensional Array So far, we've been declaringsimple variables: the declaration int i; declares a single variable, named i, of type int. It is also possible to declare an array of several elements. The declaration int a[10]; declares an array, named a, consisting of ten elements, each of type int. Simply speaking, an array is a variable that can hold more than one value. You specify which of the several values you're referring to at any given time by using a numeric subscript. (Arrays in programming are similar to vectors or matrices in mathematics.) We can represent the array a above with a picture like this: In C, arrays are zero-based: the ten elements of a 10-element array are numbered from 0 to 9. The subscript which specifies a single element of an array is simply an integer expression in square brackets. The first element of the array is a[0], the second element is a[1], etc. You can use these ``array subscript expressions'' anywhere you can use the name of a simple variable, for example: a[0] = 10; a[1] = 20; a[2] = a[0] + a[1]; Notice that the sub scripted array references (i.e. expressions such as a[0] and a[1]) can appear on either side of the assignment operator. it is possible to initialize some or all elements of anarray when the array is defined. The syntax looks like this: int a[10] = {0, 1, 2, 3, 4, 5, 6, 7, 8, 9}; The list of values, enclosed in braces {}, separated by commas, provides the initial values for successive elements of the array. The subscript does not have to be a constant like 0 or 1; it can be any integral expression. For example, it's commonto loopover all elements of anarray: int i;
- 37. for(i = 0;i < 10; i = i + 1) a[i] = 0; This loopsets all tenelements of the array a to 0. Arrays are a real convenience for many problems, but there is not a lot that C will do with them for you automatically. In particular, you can neither set all elements of an array at once nor assign one array to another; both of the assignments a = 0; /* WRONG */ and int b[10]; b = a; /* WRONG */ are illegal. To set all of the elements of an array to some value, you must do so one by one, as in the loop example above. To copy the contents of one array to another, you must again do so one by one: int b[10]; for(i = 0;i < 10; i = i + 1) b[i] = a[i]; Remember that for an array declared int a[10]; there is no element a[10]; the topmost element is a[9]. This is one reason that zero-based loops are also commonin C. Note that the for loop for(i = 0;i < 10; i = i + 1) ... does just what you want in this case: it starts at 0, the number 10 suggests (correctly) that it goes through 10 iterations, but the less-than comparison means that the last trip through the loop has i set to 9. (The comparison i <= 9 would also work, but it would be less clear and thereforepoorer style.) Multidimensional Array
- 38. The declarationof an array of arrays looks like this: int a2[5][7]; You have to read complicated declarations like these ``inside out.'' What this one says is that a2 is an array of 5 something’s, and that each of the something’s is an array of 7 ints. More briefly, ``a2 is an array of 5 arrays of 7 ints,'' or, ``a2 is an array of array of int.'' In the declaration of a2, the brackets closest to the identifier a2 tell you what a2 first and foremost is. That's how you know it's an array of 5 arrays of size 7, not the other way around. You can think of a2 as having 5 ``rows'' and 7 ``columns,'' although this interpretation is not mandatory. (You could also treat the ``first'' or inner subscript as ``x'' and the second as ``y.'' Unless you're doing something fancy, all you have to worry about is that the subscripts when you access the array match those that you used when you declared it, as in the examples below.) To illustrate the use of multidimensional arrays, we might fill in the elements of the above array a2 using this piece of code: int i, j; for(i = 0;i < 5; i = i + 1) { for(j = 0; j < 7; j = j + 1) a2[i][j] = 10 * i + j; } This pair of nested loops sets a[1][2] to 12, a[4][1] to 41, etc. Since the first dimension of a2 is 5, the first sub scripting index variable, i, runs from 0 to 4. Similarly, the second subscript varies from 0 to 6. We could print a2 out (in a two-dimensional way, suggesting its structure) with a similar pair of nestedloops: for (i = 0; i < 5; i = i + 1) { for (j = 0; j < 7; j = j + 1) printf ("%dt", a2[i][j]); printf ("n"); } (The character t in the printf stringis the tab character.)
- 39. Just to see more clearly what's going on, we could make the ``row'' and ``column'' subscripts explicit by printing them, too: for(j = 0;j < 7; j = j + 1) printf("t%d:", j); printf ("n"); for(i = 0;i < 5; i = i + 1) { printf("%d:", i); for(j = 0; j < 7; j = j + 1) printf("t%d", a2[i][j]); printf("n"); } This last fragment would print 0: 1: 2: 3: 4: 5: 6: 0: 0 1 2 3 4 5 6 1: 10 11 12 13 14 15 16 2: 20 21 22 23 24 25 26 3: 30 31 32 33 34 35 36 4: 40 41 42 43 44 45 46 STRING String are the combination of number of characters these are used to store any word in any variable of constant. A string is an array of character. It is internally represented in system by using ASCII value. Every single character can have its own ASCII value in the system. A character stringis storedinone array of character type. e.g. “Ram” contains ASCII value per location, when we are using strings and then these strings are always terminated by character ‘0’. We use conversion specifies %s to set any stringwe can have any stringas follows:- char NM [25]. When we store any value in nm variable then it can hold only 24 character because at the end of the stringone character is consumedautomaticallyby ‘0’. #include
- 40. There are some common inbuilt functions to manipulation on string in string.h file. these are as follows: 1. strlen - string length 2. stripy - string copy 3. strumpet - string compare 4. syrups - string upper 5. strlwr - string lower 6. strcat - string concatenate UNIT- 5 Function A function is a ``black box'' that we've locked part of our program into. The idea behind a function is that it compartmentalizes part of the program, and in particular, that the code within the functionhas some useful properties: 1. It performs some well-defined task, which will be useful to other parts of the program. 2. It might be useful to other programs as well; that is, we might be able to reuse it (and without having to rewrite it). 3. The rest of the program doesn't have to know the details of how the function is implemented. This can make the rest of the program easier to thinkabout. 4. The function performs its task well. It may be written to do a little more than is required by the first program that calls it, with the anticipation that the calling program (or some other program) may later need the extra functionality or improved performance. (It's important that a finished function do its job well, otherwise there might be a reluctance to call it, and it therefore might not achieve the goal of re- usability.) 5. By placing the code to perform the useful task into a function, and simply calling the function in the other parts of the program where the task must be performed, the rest of the program becomes clearer: rather than having some large, complicated, difficult-
- 41. to-understand piece of code repeated wherever the task is being performed, we have a single simple function call, and the name of the function reminds us which task is being performed. 6. Since the rest of the program doesn't have to know the details of how the function is implemented, the rest of the program doesn't care if the function is reimplemented later, in some different way (as long as it continues to perform its same task, of course!). This means that one part of the program can be rewritten, to improve performance or add a new feature (or simply to fix a bug), without having to rewrite the rest of the program. Functions are probably the most important weapon in our battle against software complexity. You'll want to learn when it's appropriate to break processing out into functions (and also when it's not), and how to set up function interfaces to best achieve the qualities mentioned above: re-usability, informationhiding, clarity, and maintainability. So what defines a function? It has a name that you call it by, and a list of zero or more arguments or parameters that you hand to it for it to act on or to direct its work; it has a body containing the actual instructions (statements) for carrying out the task the function is supposedto perform;and it may give you back a return value, of aparticular type. Here is a very simple function, which accepts one argument, multiplies it by 2, and hands that value back: int multbytwo(int x) { int retrieval; retrieval = x * 2; returnretrieval; } On the first line we see the return type of the function (int), the name of the function (multbytwo), and a list of the function's arguments, enclosed in parentheses. Each argument has both a name and a type; multbytwo accepts one argument, of type int, named x. The name x is arbitrary, and is used only within the definition of multbytwo. The caller of this function only needs to know that a single argument of type int is expected; the caller does not need to know what name the function will use internally to refer to that argument. (In particular, the caller does not have to pass the value of a variable named x.) Next we see, surrounded by the familiar braces, the body of the function itself. This function consists of one declaration (of a local variable retrieval) and two statements. The first statement is a conventional expression statement, which computes and assigns a value to

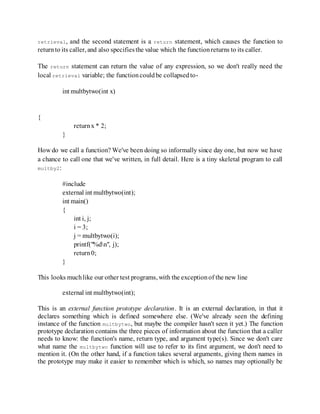

- 42. retrieval, and the second statement is a return statement, which causes the function to returnto its caller, and also specifiesthe value which the functionreturns to its caller. The return statement can return the value of any expression, so we don't really need the local retrieval variable; the functioncouldbe collapsedto- int multbytwo(int x) { returnx * 2; } How do we call a function? We've been doing so informally since day one, but now we have a chance to call one that we've written, in full detail. Here is a tiny skeletal program to call multby2: #include external int multbytwo(int); int main() { int i, j; i = 3; j = multbytwo(i); printf("%dn", j); return0; } This looks muchlike our other test programs, with the exceptionof the new line external int multbytwo(int); This is an external function prototype declaration. It is an external declaration, in that it declares something which is defined somewhere else. (We've already seen the defining instance of the function multbytwo, but maybe the compiler hasn't seen it yet.) The function prototype declaration contains the three pieces of information about the function that a caller needs to know: the function's name, return type, and argument type(s). Since we don't care what name the multbytwo function will use to refer to its first argument, we don't need to mention it. (On the other hand, if a function takes several arguments, giving them names in the prototype may make it easier to remember which is which, so names may optionally be
- 43. used in function prototype declarations.) Finally, to remind us that this is an external declarationand not a defininginstance, the prototype is precededbythe keyword external. The presence of the function prototype declaration lets the compiler know that we intend to call this function, multbytwo. The information in the prototype lets the compiler generate the correct code for calling the function, and also enables the compiler to check up on our code (by making sure, for example, that we pass the correct number of arguments to each function we call). Down in the body of main, the actionof the functioncall should be obvious: the line j = multbytwo(i); calls multbytwo, passing it the value of i as its argument. When multbytwo returns, the return value is assigned to the variable j. (Notice that the value of main's local variable i will become the value of multbytwo's parameter x; this is absolutely not a problem, and is a normal sort of affair.) This example is written out in ``longhand,'' to make each step equivalent. The variable i isn't reallyneeded, since we couldjust as well call j = multbytwo(3); And the variable j isn't reallyneeded, either, since we couldjust as well call printf("%dn", multbytwo(3)); Here, the call to multbytwo is a sub expression which serves as the second argument to printf. The value returned by multbytwo is passed immediately to printf. (Here, as in general, we see the flexibility and generality of expressions in C. An argument passed to a function may be an arbitrarily complex sub expression, and a function call is itself an expression which may be embedded as a sub expression within arbitrarily complicated surrounding expressions.) We should say a little more about the mechanism by which an argument is passed down from a caller into a function. Formally, C is call by value, which means that a function receives copies of the values of its arguments. We can illustrate this with an example. Suppose, in our implementation of multbytwo, we had gotten rid of the unnecessary retrieval variable like this: int multbytwo(int x) {
- 44. x = x * 2; returnx; } Recursive Functions A recursive function is one which calls itself. This is another complicated idea which you are unlikely to meet frequently. We shall provide some examples to illustrate recursive functions. Recursive functions are useful in evaluating certain types of mathematical function. You may also encounter certain dynamic data structures such as linked lists or binary trees. Recursion is a very useful way of creatingand accessingthese structures. Here is a recursive version of the Fibonacci function. We saw a non recursive version of this earlier. int fib(int num) /* Fibonacci value of a number */ { switch(num) { case 0: return(0); break; case 1: return(1); break; default: /* Including recursive calls */ return(fib(num - 1) + fib(num - 2)); break; } } We met another functionearlier calledpower. Here is an alternative recursive version. double power(double val, unsigned pow) { if(pow == 0) /* pow(x, 0) returns 1 */ return(1.0); else return(power(val, pow - 1) * val);
- 45. } Notice that each of these definitions incorporate a test. Where an input value gives a trivial result, it is returned directly; otherwise the function calls itself, passing a changed version of the input values. Care must be taken to define functions which will not call themselves indefinitely, otherwise your program will never finish. The definition of fib is interesting, because it calls itself twice when recursion is used. Consider the effect on program performance of such a function calculating the Fibonacci functionof a moderate size number. If such a function is to be called many times, it is likely to have an adverse effect on program performance. Don't be frightened by the apparent complexity of recursion. Recursive functions are sometimes the simplest answer to a calculation. However there is always an alternative non- recursive solution available too. This will normally involve the use of a loop, and may lack the elegance of the recursive solution.
- 46. UNIT – 6 Pointer a pointer is a variable that points to or references a memory location in which data is stored. In the computer, each memory cell has an address that can be used to access that location so a pointer variable points to a memory location we can access and change the contents of this memorylocationvia the pointer. Pointer declaration: A pointer is a variable that contains the memory location of another variable in which data is stored. Using pointer, you start by specifying the type of data stored in the location. The asterisk helps to tell the compiler that you are creating a pointer variable. Finally you have to give the name of the variable. The syntax is as shown below. type * variable name The following exampleillustratethe declarationofpointer variable: int *ptr; float *string; Address operator: Once we declare a pointer variable then we must point it to something we can do this by assigning to the pointer the address of the variable you want to point as in the following example: ptr=# The above code tells that the address where num is stores into the variable ptr. The variable ptr has the value 21260,if num is storedinmemory21260 address then
- 47. The following program illustratethe pointer declaration: /* A program to illustrate pointer declaration*/ main() { int *ptr; int sum; sum=45; ptr=&ptr; printf (”n Sum is %dn”, sum); printf (”n The sum pointer is %d”, ptr); } Pointer expressions & pointer arithmetic: In expressions, like other variables pointer variables can be used. For example if p1 and p2 are properlyinitializedand declaredpointers, thenthe followingstatements are valid. y=*p1**p2; sum=sum+*p1; z= 5* – *p2/p1; *p2= *p2 + 10; C allows us to subtract integers to or add integers from pointers as well as to subtract one pointer from the other. We can also use short hand operators with pointers p1+=; sum+=*p2; etc., By using relational operators, we can also compare pointers like the expressions such as p1 >p2 , p1==p2 and p1!=p2 are allowed. The following program illustratethe pointer expressionand pointer arithmetic:
- 48. /*Program to illustrate the pointer expression and pointer arithmetic*/ #include< stdio.h > main() { int ptr1,ptr2; int a,b,x,y,z; a=30;b=6; ptr1=&a; ptr2=&b; x=*ptr1+ *ptr2 6; y=6*- *ptr1/ *ptr2 +30; printf(”nAddress of a +%u”,ptr1); printf(”nAddress of b %u”,ptr2); printf(”na=%d, b=%d”,a,b); printf(”nx=%d,y=%d”,x,y); ptr1=ptr1 + 70; ptr2= ptr2; printf(”na=%d, b=%d,”a,b); } Pointersandfunction: In a function declaration, the pointer are very much used . Sometimes, only with a pointer a complex function can be easily represented and success. In a function definition, the usage of the pointers maybe classifiedinto two groups. 1. Call byreference 2. Call byvalue. Call by value: We have seen that there will be a link established between the formal and actual parameters when a function is invoked. As soon as temporary storage is created where the value of actual parameters is stored. The formal parameters picks up its value from storage area the mechanism of data transfer between formal and actual parameters allows the actual parameters mechanism of data transfer is referred as call by value. The corresponding formal parameter always represents a local variable in the called function. The current value of the corresponding actual parameter becomes the initial value of formal parameter. In the body of
- 49. the actual parameter, the value of formal parameter may be changed. In the body of the subprogram, the value of formal parameter may be changed by assignment or input statements. This will not change the value of the actual parameters. /* Include< stdio.h> void main() { int x,y; x=20; y=30; printf(”n Value of a and b before function call =%d %d”,a,b); fncn(x,y); printf(”n Value of a and b after function call =%d %d”,a,b); } fncn(p,q) int p,q; { p=p+p; q=q+q; } Call by Reference: The address should be pointers, when we pass address to a function the parameters receiving. By using pointers, the process of calling a function to pass the address of the variable is known as call by reference. The function which is called by reference can change the value of the variable used in the call. /* example of call by reference*? /* Include< stdio.h > void main() { int x,y;
- 50. x=20; y=30; printf(”n Value of a and b before function call =%d %d”,a,b); fncn(&x,&y); printf(”n Value of a and b after function call =%d %d”,a,b); } fncn(p,q) int p,q; { *p=*p+*p; *q=*q+*q; } Pointer to arrays: an array is actually very much similar like pointer. We can declare as int *a is an address, because a[0] the arrays first element as a[0] and *a is also an address the form of declaration is also equivalent. The difference is pointer can appear on the left of the assignment operator and it is a is a variable that is value. The array name cannot appear as the left side of assignment operator and is constant. /* A program to display the contents of array using pointer*/ main() { int a[100]; int i,j,n; printf(”nEnter the elements of the arrayn”); scanf(%d,&n); printf(”Enter the array elements”); for(I=0;I< n;I++) scanf(%d,&a[I]); printf(”Array element are”); for(ptr=a,ptr< (a+n);ptr++) printf(”Value of a[%d]=%d stored at address %u”,j+=,*ptr,ptr); } Pointersandstructures :
- 51. We know the name of an array stands for address of its zeros element the same concept applies for names of arrays of structures. Suppose item is an array variable of the struct type. Consider the followingdeclaration: structure products { char name[30]; int manufacture; float net; item[2],*ptr; UNIT - 7 STRUCTURES What is a Structure? Structure is a methodof packing the data of different types. When we require using a collection of different data items of different data types in that situationwe can use a structure. A structure is used as a method of handling a group of related data items of different data types. A structure is a collection of variables under a single name. These variables can be of different types, and each has a name which is used to select it from the structure. A structure is a convenient way of grouping several pieces of relatedinformationtogether. A structure can be defined as a new named type, thus extending the number of available types. It can use other structures, arrays or pointers as some of its members, though this can get complicatedunless youare careful. Defining a Structure A structure type is usually defined near to the start of a file using a typedef statement. typedef defines and names a new type, allowing its use throughout the program. typedefs usually occur just after the #define and #include statements ina file. Here is an example structure definition. type def structure { char name[64]; char course[128];
- 52. int age; int year; } student; This defines a new type student variables of type student can be declaredas follows. student st_rec; Notice how similar this is to declaringan int or float. The variable name is st_rec, it has members calledname, course, age and year. Accessing Members of a Structure Each member of a structure can be used just like a normal variable, but its name will be a bit longer. To return to the examples above, member name of structure st_rec will behave just like a normal array of char, however we refer to it by the name . st_rec.name Here the dot is an operator whichselects amember from a structure. Where we have a pointer to a structure we could deference the pointer and then use dot as a member selector. This method is a little clumsy to type. Since selecting a member from a structure pointer happens frequently, it has its own operator -> which acts as follows. Assume that st_ptr is a pointer to a structure of type student We would refer to the name member as. st_ptr -> name /* Example program for using a structure*/ #include< stdio.h > void main() { int id_no; char name[20]; char address[20]; char combination[3]; int age; }new student; printf(”Enter the student information”);
- 53. printf(”Now Enter the student id_no”); scanf(“%d”,&new student.id_no); printf(“Enter the name of the student”); scanf(“%s”,&new student.name); printf(“Enter the address of the student”); scanf(“%s”,&new student.address);printf(“Enter the combination of the student”); scanf(“%d”,&new student.combination);printf(Enter the age of the student”); scanf(“%d”,&new student.age); printf(“Student informationn”); printf(“student id_number=%dn”,new student.id_no); printf(“student name=%sn”,new student.name); printf(“student Address=%sn”,new student.address); printf(“students combination=%sn”,new student.combination); printf(“Age of student=%dn”,new student.age); } Arrays of structure: It is possible to define a array of structures for example if we are maintaining information of all the students in the college and if 100 students are studying in the college. We need to use an array than single variables. We can define an array of structures as shown in the following example: structure information { int id_no; char name[20]; char address[20]; char combination[3]; int age; } student[100]; An array of structures can be assigned initial values just as any other array can. Remember that each element is a structure that must be assigned corresponding initial values as illustrated below. #include< stdio.h > { structure info { int id_no; char name[20]; char address[20];
- 54. char combination[3]; int age; } structure info std[100]; int I,n; printf(“Enter the number of students”); scanf(“%d”,&n); printf(“ Enter Id_no,name address combination agem”); for(I=0;I < n;I++) scanf(“%d%s%s%s%d”,&std[I].id_no,std[I].name,std[I].address,std[I].combination,&std[I].a ge); printf(“n Student information”); for (I=0;I< n;I++) printf(“%d%s%s%s%dn”, ”,std[I].id_no,std[I].name,std[I].address,std[I].combination,std[I].age); } Structure withinastructure: A structure may be defined as a member of another structure. In such structures the declaration of the embedded structure must appear before the declarations of other structures. structure date { int day; int month; int year; }; structure student { int id_no; char name[20]; char address[20]; char combination[3]; int age; structure date def; structure date doa; }oldstudent, newstudent; the sturucture student constains another structure date as its one of its members. UNIT- 8 Union: Unions like structure contain members whose individual data types may differ from one another. However the members that compose a union all share the same storage area within
- 55. the computers memory where as each member within a structure is assigned its own unique storage area. Thus unions are used to observe memory. They are useful for application involving multiple members. Where values need not be assigned to all the members at any one time. Like structures unioncanbe declaredusing the keyword union as follows: union item { int m; float p; char c; } code; this declares a variable code of type union item. The union contains three members each with a different data type. However we can use only one of them at a time. This is because if only one location is allocated for union variable irrespective of size. The compiler allocates a piece of storage that is large enough to access a union member we can use the same syntax that we use to access structure members. That is code.m code.p code.c are all valid member variables. During accessing we should make sure that we are accessing the member whose value is currently stored. For example a statement suchas - code.m=456; code.p=456.78; printf(“%d”,code.m); Would produce erroneous result..
- 56. Enum declarations There are two kinds of enum type declarations. One kind creates anamed type, as in enum MyEnumType { ALPHA, BETA, GAMMA }; If you give an enum type a name, you can use that type for variables, function arguments and returnvalues, and so on: enum MyEnumType x; /* legal in both C and C++ */ MyEnumType y; // legal onlyin C++ The other kind creates an unnamed type. This is used when you want names for constants but don't plan to use the type to declare variables, function arguments, etc. For example, you can write enum { HOMER, MARGE, BART, LISA, MAGGIE }; Values of enum constants If you don't specify values for enum constants, the values start at zero and increase by one with each move down the list. For example, given enum MyEnumType { ALPHA, BETA, GAMMA }; ALPHA has a value of 0, BETA has a value of 1, and GAMMA has a value of 2. If you want, you may provide explicit values for enum constants, as in enum Foo Size { SMALL = 10, MEDIUM = 100, LARGE = 1000 }; There is an implicit conversionfrom any enum type to int. Suppose this type exists: enum MyEnumType { ALPHA, BETA, GAMMA }; Then the followinglines are legal: int i = BETA; // give i a value of 1 int j = 3 + GAMMA; // give j a value of 5 On the other hand, there is not an implicit conversionfrom int to an enum type: MyEnumType x = 2; // shouldNOT be allowed by compiler
- 57. MyEnumType y = 123; // should NOT be allowed by compiler Note that it doesn't matter whether the int matches one of the constants of the enum type; the type conversionis always illegal Typedefs A type def in C is a declaration. Its purpose is to create new types from existing types; whereas a variable declaration creates new memory locations. Since a type def is a declaration, it can be intermingled with variable declarations, although common practice would be to state typedefs first, then variable declarations. A nice programming convention is to capitalize the first letter of a user-defined type to distinguish it from the built-in types, which all have lower-case names. Also, typedefs are usually global declarations. Example: Use a Type def To Create A Synonym for a Type Name type def int Integer; //Integer can now be used in place of int int a,b,c,d; //4 variables of type int Integer e,f,g,h; //the same thing In general, a type def should never be used to assign a different name to a built-in type name; it just confuses the reader. Usually, a type def associates a type name with a more complicated type specification, such as an array. A type def should always be used in situations where the same type definition is used more than once for the same purpose. For example, a vector of 20 elements might represent different aspects of a scientificmeasurement. Example: Use a Type def To Create A Synonym for an Array Type type def int Vector[20];//20 integers Vector a,b; int a[20], b[20]; //the same thing, but a type def is preferred
- 58. Typedefs for EnumeratedTypes Every type has constants. For the "int" type, the constants are 1,2,3,4,5; for "char", 'a','b','c'. When a type has constants that have names, like the colors of the rainbow, that type is called an enumerated type. Use an enumerated type for computer representation of common objects that have names like Colors, Playing Cards, Animals, Birds, Fish etc. Enumerated type constants (since theyare names) make a program easy to read and understand. We know that all names in a computer usually are associated with a number. Thus, all of the names (RED, BLUE, GREEN) for an enumerated type are "encoded" with numbers. In eC, if you define an enumerated type, like Color, you cannot add it to an integer; it is not type compatible. In standard C++, anything goes. Also, in eC an enumerated type must always be declaredin a typedef before use (infact, all new types must be declaredbefore use). Example: Use a Typedef To Create An Enumerated Type typedef enum {RED, BLUE, GREEN} Color; Color a,b; a = RED; a = RED+BLUE; //NOT ALLOWED in eC if ((a == BLUE) || (a==b)) cout<<"great"; Notice that an enumerated type is a code that associates symbols and numbers. The char type can be thought of as an enumeration of character codes. The default code for an enumerated type assigns the first name to the value 0 (RED), second name 1 (BLUE), third 2 (GREEN) etc. The user can, however, override any, or all, of the default codes by specifying alternative values. UNIT 9 LINKED LIST linked list is a chain of structure or records called nodes. Each node has at least two members, one of which points to the next item or node in the list! These are defined as Single Linked Lists because they only point to the next item, and not the previous. Those that do point to both are called Doubly Linked Lists or Circular Linked Lists. Please note that there is a distinct difference between Double Linked lists and Circular Linked lists. I won't go into any depth on it because it doesn't concern this tutorial. According to this definition, we could have our record hold anything we wanted! The only drawback is that each record must be an
- 59. instance of the same structure. This means that we couldn't have a record with a char pointing to another structure holding a short, a char array, and a long. Again, they have to be instances of the same structure for this to work. Another cool aspect is that each structure can be locatedanywhere in memory, each node doesn't have to be linear in memory! a linked list is data structure that consists of a sequence of data records such that in each record there is a field that contains a reference (i.e., a link) to the next record in the sequence.A linked list whose nodes contain two fields: an integer value and a link to the next node. Linked lists are among the simplest and most common data structures, and are used to implement many important abstract data structures, such as stacks, queues, hash tables, symbolic expressions, skiplists, and many more. The principal benefit of a linked list over a conventional array is that the order of the linked items may be different from the order that the data items are stored in memory or on disk. For that reason, linked lists allow insertion and removal of nodes at any point in the list, with a constant number of operations. On the other hand, linked lists by themselves do not allow random access to the data, or any form of efficient indexing. Thus, many basic operations — such as obtaining the last node of the list, or finding a node that contains a given data, or locating the place where a new node should be inserted — may require scanning most of the list elements. What LinkedLists LookLike An array allocates memoryfor all its elements lumpedtogether as one blockof memory. In contrast, a linked list allocates space for each element separately in its own block of memory called a "linked list element" or "node". The list gets is overall structure by using pointers to connect all its nodes together like the links ina chain. Each node contains two fields: a "data" field to store whatever element type the list holds for its client, and a "next" fieldwhich is a pointer usedto link one node to the next node. Each node is allocated in the heap with a call to mallow(), so the node memory continues to exist until it is explicitlydeal-locatedwith a call to free(). The front of the list is a 5 pointer to the first node. Here is what a list containingthe numbers 1, 2, and 3 might look like... Build One,Two,Three()
- 60. This drawing shows the list built in memory by the function BuildOneTwoThree() (the full source code for this function is below). The beginning of the linked list is stored in a "head" pointer which points to the first node. The first node contains a pointer to the second node. The second node contains a pointer to the third node, ... and so on. The last node in the list has its .next field set to NULL to mark the end of the list. Code can access any node in the list by starting at the head and following the .next pointers. Operations towards the front of the list are fast while operations which access node farther down the list take longer the further they are from the front. This "linear" cost to access a node is fundamentally more costly then the constant time [ ] access provided by arrays. In this respect, linked lists are definitelyless efficient thanarrays. Drawings such as above are important for thinking about pointer code, so most of the examples in this article will associate code with its memory drawing to emphasize the habit. In this case the head pointer is an ordinary local pointer variable, so it is drawn separately on the left to show that it is in the stack. The list nodes are drawn on the right to show that they are allocatedinthe heap. The Empty List — NULL The above is a list pointed to by head is described as being of "length three" since it is made of three nodes with the .next field of the last node set to NULL. There needs to be some representation of the empty list — the list with zero nodes. The most common representation chosen for the empty list is a NULL head pointer. The empty list case is the one common weird "boundary case" for linked list code. All of the code presented in this article works correctlyfor the emptylist case, but that was not without some effort. When working on linked list code, it's a good habit to remember to check the empty list case to verify that it works too. Sometimes the empty list case works the same as all the cases, but sometimes it requires some special case code. No matter what, it's a good case to at least think about. LinkedList Types: Node and Pointer Before writingthe code to build the above list, we needtwo data types... • Node The type for the nodes which will make up the body of the list. These are allocatedinthe heap. Each node contains a single client data element and a pointer to the next node in the list. Type: struct node struct node { int data;
- 61. structure node* next; }; • Node Pointer The type for pointers to nodes. This will be the type of the head pointer and the .next fields inside eachnode. In C and C++, no separate type declarationis requiredsince the pointer type is just the node type followedby a '*'. Type: structure node* BuildOneTwoThree() Function Here is simple functionwhich uses pointer operations to buildthe list {1, 2, 3}. The memorydrawing above corresponds to the state of memoryat the end of this function. This functiondemonstrates howcalls to mallow() and pointer assignments (=) workto build a pointer structure inthe heap. /* Build the list {1, 2, 3} in the heap and store its head pointer ina local stackvariable. Returns the head pointer to the caller. */ struct node* BuildOneTwoThree() { struct node* head = NULL; struct node* second= NULL; struct node* third= NULL; head = malloc(sizeof(struct node));// allocate 3 nodes inthe heap second= malloc(sizeof(struct node)); third = malloc(sizeof(struct node));
- 62. head->data = 1; // setupfirst node head->next = second;// note: pointer assignment rule second->data= 2; // setup secondnode second->next = third; third->data= 3; // setupthird link third->next = NULL; // At this point, the linked list referencedby"head" // matches the list inthe drawing. returnhead; } Basic concepts and nomenclature Each recordof a linked list is oftencalledan element or node. The field of each node that contains address of the next node is usually called the next link or next pointer. The remaining fields may be called the data, information, value, or payload fields. The head of a list is its first node, and the tail is the list minus that node (or a pointer thereto). In Lisp and some derived languages, the tail may be called the CDR (pronounced could-R) of the list, while the payload of the head node may be calledthe Linear and circular lists In the last node of a list, the link field often contains a null reference, a special value that is interpreted by programs as meaning "there is no such node". A less common convention is to make it point to the first node of the list; in that case the list is said to be circular or circularlylinked;otherwise it is saidto be open or linear. Simply-, doubly-, and multiply-linkedlists In a doubly-linked list, each node contains, besides the next-node link, a second link field pointing to the previous node in the sequence. The two links may be called forward(s) and
- 63. backwards. Linked lists that lack such pointers are said to be simply linked, or simple linkedlists. A doubly-linked list whose nodes contain three fields: an integer value, the link forward to the next node, and the link backward to the previous node The technique known as XOR-linking allows a doubly-linked list to be implemented using a single link field in each node. However, this technique requires the ability to do bit operations onaddresses, and thereforemaynot be available in some high-level languages. In a multiply-linkedlist, each node contains two or more link fields, each field being used to connect the same set of data records in a different order (e.g., by name, by department, by date of birth, etc.). (While doubly-linked lists can be seen as special cases of multiply-linked list, the fact that the two orders are opposite to each other leads to simpler and more efficient algorithms, so they are usually treatedas a separate case.) Linkedlistsvs. arrays Array Linkedlist Indexing Θ(1) Θ(n) Inserting/ Deletingat end Θ(1) Θ(1) or Θ(n) Inserting/ Deletingin middle (with iterator) Θ(n) Θ(1) Persistent No Singly yes Locality Great Poor Linked lists have several advantages over arrays. Insertion of an element at a specific point of a list is a constant-time operation, whereas insertion in an array may require moving half of the elements, or more. While one can "delete" an element from an array in constant time
- 64. by somehow marking its slot as "vacant", an algorithm that iterates over the elements may have to skip a large number of vacant slots. Moreover, arbitrarily many elements may be inserted into a linked list, limited only by the total memory available; while an array will eventually fill up, and then have to be resized — an expensive operation, that may not even be possible if memory is fragmented. Similarly, an array from which many elements are removed may have to be resized in order to avoid wasting too much space. On the other hand, arrays allow random access, while linked lists allow only sequential access to elements. Singly-linked lists, in fact, can only be traversed in one direction. This makes linked lists unsuitable for applications where it's useful to look up an element by its index quickly, such as heap sort. Sequential access on arrays is also faster than on linked lists on many machines, because they have greater locality of reference and thus profit more from processor caching. Another disadvantage of linked lists is the extra storage needed for references, which often makes them impractical for lists of small data items such as characters or Boolean values. It can also be slow, and with a naive allocator, wasteful, to allocate memory separately for each new element, a problem generallysolvedusing memorypools. Some hybrid solutions try to combine the advantages of the two representations. Unrolled linked lists store several elements in each list node, increasing cache performance while decreasing memory overhead for references. CDR coding does both these as well, by replacing references with the actual data referenced, which extends off the end of the referencingrecord. A good example that highlights the pros and cons of using arrays vs. linked lists is by implementing a program that resolves the Josephus problem. The Josephus problem is an election method that works by having a group of people stand in a circle. Starting at a predetermined person, you count around the circle n times. Once you reach the nth person, take them out of the circle and have the members close the circle. Then count around the circle the same n times and repeat the process, until only one person is left. That person wins the election. This shows the strengths and weaknesses of a linked list vs. an array, because if you view the people as connected nodes in a circular linked list then it shows how easily the linked list is able to delete nodes (as it only has to rearrange the links to the different nodes). However, the linked list will be poor at finding the next person to remove and will need to recurse through the list until it finds that person. An array, on the other hand, will be poor at deleting nodes (or elements) as it cannot remove one node without individually shifting all
- 65. the elements up the list by one. However, it is exceptionally easy to find the nth person in the circle bydirectlyreferencingthem by their positioninthe array. The list ranking problem concerns the efficient conversion of a linked list representation into an array. Although trivial for a conventional computer, solving this problem by a parallel algorithm is complicatedand has beenthe subject of muchresearch. Simply-linkedlinear listsvs. other lists While doubly-linked and/or circular lists have advantages over simply-linked linear lists, linear lists offer someadvantages that make them preferable insome situations. For one thing, a simply-linked linear list is a recursive data structure, because it contains a pointer to a smaller object of the same type. For that reason, many operations on simply- linked linear lists (such as merging two lists, or enumerating the elements in reverse order) often have very simple recursive algorithms, much simpler than any solution using iterative commands. While one can adapt those recursive solutions for doubly-linked and circularly- linked lists, the procedures generallyneedextraarguments and more complicatedbase cases. Linear simply-linked lists also allow tail-sharing, the use of a common final portion of sub- list as the terminal portion of two different lists. In particular, if a new node is added at the beginning of a list, the former list remains available as the tail of the new one — a simple example of a persistent data structure. Again, this is not true with the other variants: a node may never belong to two different circular or doubly-linkedlists. In particular, end-sentinel nodes can be shared among simply-linked non-circular lists. One may even use the same end-sentinel node for every such list. In Lisp, for example, every proper list ends with a link to a special node, denoted by nil or (), whose CAR and CDR links point to itself. Thus a Lisp procedure cansafelytake the CAR or CDR of any list. Indeed, the advantages of the fancy variants are often limited to the complexity of the algorithms, not in their efficiency. A circular list, in particular, can usually be emulated by a linear list together withtwo variables that point to the first and last nodes, at no extra cost. Doubly-linkedvs. singly-linked Double-linked lists require more space per node (unless one uses xor-linking), and their elementary operations are more expensive; but they are often easier to manipulate because they allow sequential access to the list in both directions. In particular, one can insert or delete a node in a constant number of operations given only that node's address. To do the
- 66. same in a singly-linked list, one must have the previous node's address. Some algorithms require access in both directions. On the other hand, they do not allow tail-sharing, and cannot be usedas persistent datastructures. Circularly-linkedvs. linearly-linked A circularly linked list may be a natural option to represent arrays that are naturally circular, e.g. for the corners of a polygon, for a pool of buffers that are used and released in FIFO order, or for a set of processes that should be time-shared in round-robin order. In these applications, a pointer to any node serves as a handle to the whole list. With a circular list, a pointer to the last node gives easy access also to the first node, by following one link. Thus, in applications that require access to both ends of the list (e.g., in the implementation of a queue), a circular structure allows one to handle the structure by a single pointer, instead of two. A circular list can be split into two circular lists, in constant time, by giving the addresses of the last node of each piece. The operation consists in swapping the contents of the link fields of those two nodes. Applying the same operation to any two nodes nodes in two distinct lists joins the two list into one. This property greatly simplifies some algorithms and data structures, suchas the quad-edge and face-edge. The simplest representation for an empty circular list (when such thing makes sense) has no nodes, and is represented by a null pointer. With this choice, many algorithms have to test for this special case, and handle it separately. By contrast, the use of null to denote an empty linear list is more natural and oftencreates fewer special cases. Using sentinel nodes Sentinel node may simplify certain list operations, by ensuring that the next and/or previous nodes exist for every element, and that even empty lists have at least one node. One may also use a sentinel node at the end of the list, with an appropriate data field, to eliminate some end-of-list tests. For example, when scanning the list looking for a node with a given value x, setting the sentinel's data field to x makes it unnecessary to test for end-of-list inside the loop. Another example is the merging two sorted lists: if their sentinels have data fields set to +∞, the choice of the next output node does not need special handling for emptylists. However, sentinel nodes use up extra space (especially in applications that use many short lists), and they may complicate other operations (suchas the creationof a new empty list).
- 67. However, if the circular list is used merely to simulate a linear list, one may avoid some of this complexity by adding a single sentinel node to every list, between the last and the first data nodes. With this convention, an empty list consists of the sentinel node alone, pointing to itself via the next-node link. The list handle should then be a pointer to the last data node, before the sentinel, if the list is not empty; or to the sentinel itself, if the list is empty. The same trick can be used to simplify the handling of a doubly-linked linear list, by turning it into a circular doubly-linked list with a single sentinel node. However, in this case, the handle shouldbe a single pointer to the dummy node itself. Linked list operations When manipulating linked lists in-place, care must be taken to not use values that you have invalidated in previous assignments. This makes algorithms for inserting or deleting linked list nodes somewhat subtle. This section gives pseudo code for adding or removing nodes from singly, doubly, and circularly linked lists in-place. Throughout we will use null to refer to an end-of-list marker or sentinel, whichmay be implementedina number of ways. Linearly-linkedlists Singly-linkedlists Our node data structure will have two fields. We also keep a variable first Node which always points to the first node in the list, or is null for an empty list. record Node { data // The data being stored in the node next // A reference to the next node, null for last node } record List { Node first Node // points to first node of list; null for empty list } Traversal of a singly-linked list is simple, beginning at the first node and following each next link until we come to the end: node := list.first Node while node not null { (do something with node.data)
- 68. node := node.next } The following code inserts a node after an existing node in a singly linked list. The diagram shows how it works. Inserting a node before an existing one cannot be done; instead, you have to locate it while keeping track of the previous node. function insert After(Node node, Node newNode) { // insert new Node after node newNode.next := node.next node.next := newNode } Inserting at the beginning of the list requires a separate function. This requires updating first Node. function insert Beginning(List list, Node newNode) { // insert node before current first node newNode.next := list.first Node list.firstNode := newNode } Similarly, we have functions for removing the node after a given node, and for removing a node from the beginning of the list. The diagram demonstrates the former. To find and remove a particular node, one must again keeptrack of the previous element. function remove After(nodenode) { // remove node past this one obsolete Node := node.next node.next := node.next.next destroyobsolete Node } function remove Beginning(List list) { // remove first node obsolete Node := list.first Node list.firstNode := list.first Node.next // point past deleted node destroyobsolete Node } Notice that remove Beginning() sets list.first Node to null when removing the last node in the list.
- 69. Since we can't iterate backwards, efficient "insertBefore" or "removeBefore" operations are not possible. Appending one linked list to another can be inefficient unless a reference to the tail is kept as part of the List structure, because we must traverse the entire first list in order to find the tail, and then append the second list to this. Thus, if two linearly-linked lists are each of length n, list appending has asymptotic time complexity of O(n). In the Lisp family of languages, list appending is provided by the append procedure. Many of the special cases of linked list operations can be eliminated by including a dummy element at the front of the list. This ensures that there are no special cases for the beginning of the list and renders both insertBeginning() and removeBeginning() unnecessary. In this case, the first useful datain the list will be found at list.firstNode.next. Circularly-linkedlist In a circularly linked list, all nodes are linked in a continuous circle, without using null. For lists with a front and a back (such as a queue), one stores a reference to the last node in the list. The next node after the last node is the first node. Elements can be added to the back of the list and removed from the front in constant time. Circularly-linkedlists canbe either singlyor doubly linked. Both types of circularly-linked lists benefit from the ability to traverse the full list beginning at any given node. This often allows us to avoid storing firstNode and lastNode, although if the list may be empty we need a special representation for the empty list, such as a lastNode variable which points to some node in the list or is null if it's empty; we use such a lastNode here. This representation significantly simplifies adding and removing nodes with a non- empty list, but empty lists are thena special case. circularly-linkedlists Assuming that someNode is some node in a non-empty circular simply-linked list, this code iterates throughthat list startingwith someNode: function iterate(someNode) if someNode ≠ null node := someNode do do somethingwith node.value
- 70. node := node.next while node ≠ someNode Notice that the test "while node ≠ someNode" must be at the end of the loop. If it were replaced by the test "" at the beginning of the loop, the procedure would fail whenever the list had only one node. This function inserts a node "newNode" into a circular linked list after a given node "node". If "node" is null, it assumes that the list is empty. function insertAfter(Node node, Node newNode) if node = null newNode.next := newNode else newNode.next := node.next node.next := newNode Suppose that "L" is a variable pointing to the last node of a circular linked list (or null if the list is empty). To append "newNode" to the end of the list, one may do insertAfter(L, newNode) L = newNode To insert "newNode" at the beginning of the list, one may do insertAfter(L, newNode) if L = null L = newNode Linked lists using arrays of nodes Languages that do not support any type of reference can still create links by replacing pointers with array indices. The approach is to keep an array of records, where each record has integer fields indicating the index of the next (and possibly previous) node in the array. Not all nodes in the array need be used. If records are not supported as well, parallel arrays can oftenbe usedinstead. As an example, consider the followinglinkedlist recordthat uses arrays insteadof pointers: record Entry {
- 71. integer next; // index of next entry in array integer prev; // previous entry (if double-linked) string name; real balance; } By creating an array of these structures, and an integer variable to store the index of the first element, a linked list canbe built: integer listHead; Entry Records[1000]; Links between elements are formed by placing the array index of the next (or previous) cell into the Next or Prevfieldwithin a given element. For example: Index Next Prev Name Balance 0 1 4 Jones, John 123.45 1 -1 0 Smith, Joseph 234.56 2 (listHead) 4 -1 Adams, Adam 0.00 3 Ignore, Ignatius 999.99 4 0 2 Another, Anita 876.54 5 6 7 In the above example, ListHead would be set to 2, the location of the first entry in the list. Notice that entry 3 and 5 through 7 are not part of the list. These cells are available for any additions to the list. By creating a ListFree integer variable, a free list could be created to keep track of what cells are available. If all entries are in use, the size of the array would have to be increased or some elements would have to be deleted before new entries could be storedinthe list. The followingcode would traverse the list and display names and account balance: i := listHead; while i >= 0 { '// loopthrough the list print i, Records[i].name, Records[i].balance // print entry
- 72. i = Records[i].next; } When facedwith a choice, the advantages of this approach include: The linked list is relocatable, meaning it can be moved about in memory at will, and it can also be quickly and directly serialized for storage on disk or transfer over a network. Especially for a small list, array indexes can occupy significantly less space than a full pointer on many architectures. Locality of reference can be improved by keeping the nodes together in memory and by periodicallyrearrangingthem, although this can also be done in a general store. Naïve dynamic memory allocators can produce an excessive amount of overhead storage for each node allocated; almost no allocation overhead is incurred per node in this approach. Seizing an entry from a pre-allocated array is faster than using dynamic memory allocation for each node, since dynamic memory allocation typically requires a search for a free memoryblockof the desiredsize. This approach has one main disadvantage, however: it creates and manages a private memoryspace for its nodes. This leads to the followingissues: It increase complexityof the implementation. Growing a large array when it is full may be difficult or impossible, whereas finding space for a new linked list node in a large, general memorypool may be easier. Adding elements to a dynamic array will occasionally (when it is full) unexpectedly take linear (O (n)) insteadof constant time (although it's still an amortized constant). Using a general memory pool leaves more memory for other data if the list is smaller than expectedor if many nodes are freed. For these reasons, this approach is mainly used for languages that do not support dynamic memory allocation. These disadvantages are also mitigated if the maximum size of the list is known at the time the array is created. Language support Many programming languages such as Lisp and Scheme have singly linked lists built in. In many functional languages, these lists are constructed from nodes, each called a consor cons cell. The cons has two fields: the car, a reference to the data for that node, and the cdr, a reference to the next node. Although cons cells can be used to build other data structures, this is their primary purpose.
- 73. In languages that support Abstract data types or templates, linked list ADTs or templates are available for building linked lists. In other languages, linked lists are typically built using references togetherwith records. Here is acomplete example in C: #include /* for printf */ #include /* for malloc */ struct node { int data; struct node *next;/* pointer to next element in list */ }; struct node *list_add(struct node **p, int i) { struct node *n= malloc(sizeof(struct node)); if (n == NULL) return NULL; n->next = *p; /* the previous element (*p) now becomes the "next" element */ *p = n; /* add new empty element to the front (head) of the list */ n->data = i; return *p; } void list_remove(structnode **p) /* remove head */ { if (*p!= NULL) { struct node *n= *p; *p = (*p)->next; free(n); } } struct node **list_search(struct node **n, int i) { while (*n!= NULL)
- 74. { if ((*n)->data== i) { return n; } n = &(*n)->next; } return NULL; } void list_print(struct node *n) { if (n == NULL) { printf("list is emptyn"); } while (n != NULL) { printf("print %p %p %dn", n, n->next, n->data); n = n->next; } } int main(void) { struct node *n = NULL; list_add(&n, 0);/* list: 0 */ list_add(&n, 1);/* list: 1 0 */ list_add(&n, 2);/* list: 2 1 0 */ list_add(&n, 3);/* list: 3 2 1 0 */ list_add(&n, 4);/* list: 4 3 2 1 0 */ list_print(n); list_remove(&n); /* remove first (4) */ list_remove(&n->next); /* remove new second (2) */ list_remove(list_search(&n, 1)); /* remove cell containing 1 (first) */ list_remove(&n->next); /* remove second to last node (0) */ list_remove(&n); /* remove last (3) */
- 76. UNIT - 10 FILE MANAGEMENT What is a File? Abstractly, a file is a collection of bytes stored on a secondary storage device, which is generally a disk of some kind. The collection of bytes may be interpreted, for example, as characters, words, lines, paragraphs and pages from a textual document; fields and records belonging to a database; or pixels from a graphical image. The meaning attached to a particular file is determined entirely by the data structures and operations used by a program to process the file. It is conceivable (and it sometimes happens) that a graphics file will be read and displayed by a program designed to process textual data. The result is that no meaningful output occurs (probably) and this is to be expected. A file is simply a machine decipherable storage mediawhere programs and data are storedfor machine usage. Essentially there are two kinds of files that programmers deal with text files and binary files. These two classes of files will be discussedinthe followingsections. ASCII Text files A text file can be a stream of characters that a computer can process sequentially. It is not only processed sequentially but only in forward direction. For this reason a text file is usually openedfor only one kind of operation(reading, writing, or appending) at any given time. Similarly, since text files only process characters, they can only read or write data one character at a time. (In C Programming Language, Functions are provided that deal with lines of text, but these still essentially process data one character at a time.) A text stream in C is a special kind of file. Depending on the requirements of the operating system, newline characters may be converted to or from carriage-return/linefeed combinations depending on whether data is being written to, or read from, the file. Other character conversions may also occur to satisfy the storage requirements of the operating system. These translations occur transparently and they occur because the programmer has signalled the intention to process a text file. Binaryfiles A binary file is no different to a text file. It is a collection of bytes. In C Programming Language a byte and a character are equivalent. Hence a binary file is also referred to as a character stream, but there are two essential differences.
- 77. 1. No special processing of the data occurs and each byte of data is transferred to or from the disk unprocessed. 2. C Programming Language places no constructs on the file, and it may be read from, or writtento, in any manner chosenby the programmer. Binary files can be either processed sequentially or, depending on the needs of the application, they can be processed using random access techniques. In C Programming Language, processing a file using random access techniques involves moving the current file position to an appropriate place in the file before reading or writing data. This indicates a second characteristic of binary files – they a generallyprocessedusingread and write operations simultaneously. For example, a database file will be created and processed as a binary file. A record update operation will involve locating the appropriate record, reading the record into memory, modifying it in some way, and finally writing the record back to disk at its appropriate location in the file. These kinds of operations are common to many binary files, but are rarely found in applications that process text files. Creating a file andoutput some data In order to create files we have to learn about File I/O i.e. how to write data into a file and how to read data from a file. We will start this section with an example of writing data to a file. We begin as before with the include statement for stdio.h, then define some variables for use in the example including a rather strange lookingnew type. /* Program to create a file and write some data the file */ #include #include main( ) { FILE *fp; char stuff[25]; int index; fp = fopen("TENLINES.TXT","w"); /* open for writing */ strcpy(stuff,"This is an example line."); for (index= 1; index <= 10; index++) fprintf(fp,"%s Line number %dn", stuff, index); fclose(fp);/* close the file before endingprogram */ }
- 78. The type FILE is used for a file variable and is defined in the stdio.h file. It is used to define a file pointer for use in file operations. Before we can write to a file, we must open it. What this really means is that we must tell the system that we want to write to a file and what the file name is. We do this with the fopen() function illustrated in the first line of the program. The file pointer, fp in our case, points to the file and two arguments are required in the parentheses, the file name first, followedby the file type. The file name is any valid DOS file name, and can be expressed in upper or lower case letters, or even mixed if you so desire. It is enclosed in double quotes. For this example we have chosen the name TENLINES.TXT. This file should not exist on your disk at this time. If you have a file with this name, you should change its name or move it because when we execute this program, its contents will be erased. If you don’t have a file by this name, that is good because we will create one and put some data into it. You are permitted to include a directory with the file name. The directory must, of course, be a valid directory otherwise an error will occur. Also, because of the way C handles literal strings, the directory separation character ‘’ must be written twice. For example, if the file is to be stored in the PROJECTS sub directory then the file name should be entered as “PROJECTSTENLINES.TXT”. The second parameter is the file attribute and can be any of three letters, r, w, or a, and must be lower case. Reading (r) When an r is used, the file is opened for reading, a w is used to indicate a file to be used for writing, and an indicates that you desire to append additional data to the data already in an existing file. Most C compilers have other file attributes available; check your Reference Manual for details. Using the r indicates that the file is assumed to be a text file. Opening a file for reading requires that the file already exist. If it does not exist, the file pointer will be set to NULL and can be checkedby the program. Here is a small program that reads a file and display its contents on screen. /* Program to display the contents of afile onscreen*/ #include void main() { FILE *fopen(), *fp; int c; fp = fopen("prog.c","r"); c = getc(fp) ; while (c!= EOF)
- 79. { putchar(c); c = getc(fp); } fclose(fp); } Writing (w) When a file is opened for writing, it will be created if it does not already exist and it will be reset if it does, resulting in the deletion of any data already there. Using the w indicates that the file is assumedto be a text file. Here is the program to create a file and write some data into the file. #include int main() { FILE *fp; file = fopen("file.txt","w"); /*Create a file and add text*/ fprintf(fp,"%s","This is just an example :)"); /*writes datato the file*/ fclose(fp);/*done!*/ return0; } Appending (a): When a file is opened for appending, it will be created if it does not already exist and it will be initially empty. If it does exist, the data input point will be positioned at the end of the present data so that any new data will be added to any data that already exists in the file. Using the a indicates that the file is assumed to be a text file. Here is a program that will add text to a file which already exists and there is some text in the file. #include int main() { FILE *fp

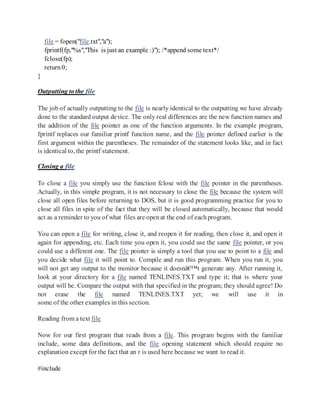

- 80. file = fopen("file.txt","a"); fprintf(fp,"%s","This is just an example :)"); /*append some text*/ fclose(fp); return0; } Outputting tothe file The job of actually outputting to the file is nearly identical to the outputting we have already done to the standard output device. The only real differences are the new function names and the addition of the file pointer as one of the function arguments. In the example program, fprintf replaces our familiar printf function name, and the file pointer defined earlier is the first argument within the parentheses. The remainder of the statement looks like, and in fact is identical to, the printf statement. Closing a file To close a file you simply use the function fclose with the file pointer in the parentheses. Actually, in this simple program, it is not necessary to close the file because the system will close all open files before returning to DOS, but it is good programming practice for you to close all files in spite of the fact that they will be closed automatically, because that would act as a reminder to you of what files are openat the end of eachprogram. You can open a file for writing, close it, and reopen it for reading, then close it, and open it again for appending, etc. Each time you open it, you could use the same file pointer, or you could use a different one. The file pointer is simply a tool that you use to point to a file and you decide what file it will point to. Compile and run this program. When you run it, you will not get any output to the monitor because it doesn’t generate any. After running it, look at your directory for a file named TENLINES.TXT and type it; that is where your output will be. Compare the output with that specified in the program; they should agree! Do not erase the file named TENLINES.TXT yet; we will use it in some of the other examples in this section. Reading from a text file Now for our first program that reads from a file. This program begins with the familiar include, some data definitions, and the file opening statement which should require no explanation except for the fact that an r is used here because we want to read it. #include
- 81. main( ) { FILE *fp; char c; funny = fopen("TENLINES.TXT", "r"); if (fp == NULL) printf("File doesn't existn"); else { do { c = getc(fp);/* get one character from the file */ putchar(c);/* display it on the monitor */ } while (c != EOF); /* repeat until EOF (end of file) */ } fclose(fp); } In this program we check to see that the file exists, and if it does, we execute the main body of the program. If it doesn’t, we print a message and quit. If the file does not exist, the system will set the pointer equal to NULL which we can test. The main body of the program is one do while loop in which a single character is read from the file and output to the monitor until an EOF (end of file) is detected from the input file. The file is then closed and the program is terminated. At this point, we have the potential for one of the most common and most perplexing problems of programming in C. The variable returned from the getc function is a character, so we can use a char variable for this purpose. There is a problem that could develop here if we happened to use an unsigned char however, because C usually returns a minus one for an EOF - which an unsigned char type variable is not capable of containing. An unsigned char type variable can only have the values of zero to 255, so it will return a 255 for a minus one in C. This is a very frustrating problem to try to find. The program can never find the EOF and will therefore never terminate the loop. This is easy to prevent: always have a char or int type variable for use in returning an EOF. There is another problem with this program but we will worry about it when we get to the next program and solve it with the one followingthat. After you compile and run this program and are satisfied with the results, it would be a good exercise to change the name of TENLINES.TXT and run the program again to see that the
- 82. NULL test actually works as stated. Be sure to change the name back because we are still not finishedwith TENLINES.TXT.
- 83. UNIT 11 C - PREPROCESSOR Overview The C preprocessor, often known as cpp, is a macro processor that is used automatically by the C compiler to transform your program before compilation. It is called a macro processor because it allows you to define macros, which are brief abbreviations for longer constructs. The C preprocessor is intended to be used only with C, C++, and Objective-C source code. In the past, it has been abused as a general text processor. It will choke on input which does not obey C's lexical rules. For example, apostrophes will be interpreted as the beginning of character constants, and cause errors. Also, you cannot rely on it preserving characteristics of the input which are not significant to C-family languages. If a Makefile is preprocessed, all the hard tabs will be removed, and the Makefile will not work. Having said that, you can often get away with using cpp on things which are not C. Other Algol-ish programming languages are often safe (Pascal, Ada, etc.) So is assembly, with caution. -traditional-cpp mode preserves more white space, and is otherwise more permissive. Many of the problems can be avoided by writing C or C++ style comments insteadof native language comments, and keeping macros simple Include Syntax Both user and system header files are included using the preprocessing directive `#include'. It has two variants: #include <file> This variant is used for system header files. It searches for a file named file in a standard list of system directories. You can prepend directories to this list with the -I option(see Invocation). #include "file" This variant is used for header files of your own program. It searches for a file named file first in the directory containing the current file, then in the quote directories and then the same directories used for <file>. You can prepend directories to the list of quote directories withthe -iquote option.
- 84. The argument of `#include', whether delimited with quote marks or angle brackets, behaves like a string constant in that comments are not recognized, and macro names are not expanded. Thus, #include <x/*y> specifies inclusionof a system header file named x/*y. However, if backslashes occur within file, they are considered ordinary text characters, not escape characters. None of the character escape sequences appropriate to string constants in C are processed. Thus, #include "xny" specifies a filename containing three backslashes. (Some systems interpret `' as a pathname separator. All of these also interpret `/' the same way. It is most portable to use only `/'.) It is an error if there is anything (other than comments) onthe line after the file name. Object-like Macros An object-like macro is a simple identifier which will be replaced by a code fragment. It is called object-like because it looks like a data object in code that uses it. They are most commonlyusedto give symbolic names to numeric constants. You create macros with the `#define' directive. `#define' is followed by the name of the macro and then the token sequence it should be an abbreviation for, which is variously referredto as the macro's body, expansion or replacement list. For example, #define BUFFER_SIZE 1024 defines a macro named BUFFER_SIZE as an abbreviation for the token 1024. If somewhere after this `#define' directive there comesaC statement of the form . foo = (char *) malloc (BUFFER_SIZE); then the C preprocessor will recognize and expand the macro BUFFER_SIZE. The C compiler will see the same tokens as it would if you had written . foo = (char *) malloc (1024); By convention, macro names are written in uppercase. Programs are easier to read when it is possible to tell at a glance which names are macros. The macro's body ends at the end of the `#define' line. You may continue the definition onto multiple lines, if necessary, using backslash-newline. When the macro is expanded, however, it will all come out on one line. For example, #define NUMBERS 1,
- 85. 2, 3 int x[] = { NUMBERS }; ==> int x[] = { 1, 2, 3 }; The most commonvisible consequence of this is surprisingline numbers in error messages. There is no restriction on what can go in a macro body provided it decomposes into valid preprocessing tokens. Parentheses need not balance, and the body need not resemble valid C code. (If it does not, you may get error messages from the C compiler when you use the macro.) The C preprocessor scans your program sequentially. Macro definitions take effect at the place you write them. Therefore, the followinginput to the C preprocessor foo = X; #define X 4 bar = X; produces foo = X; bar = 4; When the preprocessor expands a macro name, the macro's expansion replaces the macro invocation, then the expansion is examined for more macros to expand. For example, #define TABLESIZE BUFSIZE #define BUFSIZE 1024 TABLESIZE ==> BUFSIZE ==> 1024 TABLESIZE is expanded first to produce BUFSIZE, then that macro is expanded to produce the final result, 1024. Notice that BUFSIZE was not defined when TABLESIZE was defined. The `#define' for TABLESIZE uses exactly the expansion you specify—in this case, BUFSIZE—and does not check to see whether it too contains macro names. Only when you use TABLESIZE is the result of its expansionscanned for more macro names.
- 86. This makes a difference if you change the definition of BUFSIZE at some point in the source file. TABLESIZE, defined as shown, will always expand using the definition of BUFSIZE that is currentlyineffect: #define BUFSIZE 1020 #define TABLESIZE BUFSIZE #undef BUFSIZE #define BUFSIZE 37 Conditional Syntax A conditional in the C preprocessor begins with a conditional directive: `#if', `#ifdef' or `#ifndef'. Ifdef If Defined Else Elif Ifdef The simplest sort of conditional is #ifdef MACRO controlled text #endif /* MACRO */ This block is called a conditional group. controlled text will be included in the output of the preprocessor if and only if MACRO is defined. We say that the conditional succeeds if MACRO is defined, fails if it is not. The controlled text inside of a conditional can include preprocessing directives. They are executed only if the conditional succeeds. You can nest conditional groups inside other conditional groups, but they must be completely nested. In other words, `#endif' always matches the nearest `#ifdef' (or `#ifndef', or `#if'). Also, you cannot start a conditional group in one file and end it in another. Even if a conditional fails, the controlled text inside it is still run through initial transformations and tokenization. Therefore, it must all be lexically valid C. Normally the
- 87. only way this matters is that all comments and string literals inside a failing conditional group must still be properlyended. The comment following the `#endif' is not required, but it is a good practice if there is a lot of controlled text, because it helps people match the `#endif' to the corresponding `#ifdef'. Older programs sometimes put MACRO directly after the `#endif' without enclosing it in a comment. This is invalid code according to the C standard. CPP accepts it with a warning. It never affects which `#ifndef' the `#endif' matches. Sometimes you wish to use some code if a macro is not defined. You can do this by writing `#ifndef' instead of `#ifdef'. One common use of `#ifndef' is to include code only the first time a header file is included. See Once-OnlyHeaders. If The `#if' directive allows you to test the value of an arithmetic expression, rather than the mere existence of one macro. Its syntax is #if expression controlled text #endif /* expression */ expression is aC expressionof integer type, subject to stringent restrictions. It may contain Integer constants. Character constants, which are interpretedas theywould be in normal code. Arithmetic operators for addition, subtraction, multiplication, division, bitwise operations, shifts, comparisons, and logical operations (&& and ||). The latter two obey the usual short-circuitingrules of standardC. Macros. All macros in the expression are expanded before actual computation of the expression's value begins. Uses of the defined operator, which lets you check whether macros are defined in the middle of an `#if'. Identifiers that are not macros, which are all considered to be the number zero. This allows you to write #if MACRO instead of #ifdef MACRO, if you know that MACRO, when defined, will always have a nonzero value. Function-like macros used without their functioncall parentheses are also treatedas zero. Defined The special operator defined is used in `#if' and `#elif' expressions to test whether a certain name is defined as a macro. defined name and defined (name) are both expressions
- 88. whose value is 1 if name is defined as a macro at the current point in the program, and 0 otherwise. Thus, #if defined MACRO is preciselyequivalent to #ifdef MACRO. defined is useful when you wish to test more than one macro for existence at once. For example, #if defined(__vax__) || defined(__ns16000__) would succeedif either of the names __vax__ or __ns16000__ is defined as a macro. Conditionals writtenlike this: #if definedBUFSIZE && BUFSIZE >= 1024 can generally be simplified to just #if BUFSIZE >= 1024, since if BUFSIZE is not defined, it will be interpretedas having the value zero. If the defined operator appears as a result of a macro expansion, the C standard says the behavior is undefined. GNU cpp treats it as a genuine defined operator and evaluates it normally. It will warn wherever your code uses this feature if you use the command-line option -pedantic, since other compilers mayhandle it differently. Else The `#else' directive can be added to a conditional to provide alternative text to be used if the conditionfails. This is what it looks like: #if expression text-if-true #else /* Not expression */ text-if-false #endif /* Not expression */ If expression is nonzero, the text-if-true is included and the text-if-false is skipped. If expression is zero, the opposite happens. You can use `#else' with`#ifdef' and `#ifndef', too. Elif
- 89. One common case of nested conditionals is used to check for more than two possible alternatives. For example, you might have #if X == 1 ... #else /* X != 1 */ #if X == 2 ... #else /* X != 2 */ ... #endif /* X != 2 */ #endif /* X != 1 */ Another conditional directive, `#elif', allows this to be abbreviated as follows: #if X == 1 ... #elif X == 2 ... #else /* X != 2 and X != 1*/ ... #endif /* X != 2 and X != 1*/ `#elif' stands for “else if”. Like `#else', it goes in the middle of a conditional group and subdivides it; it does not require a matching `#endif' of its own. Like `#if', the `#elif' directive includes an expression to be tested. The text following the `#elif' is processed only if the original `#if'-conditionfailedand the `#elif' conditionsucceeds. More than one `#elif' can go in the same conditional group. Then the text after each `#elif' is processed only if the `#elif' condition succeeds after the original `#if' and all previous `#elif' directives within it have failed. `#else' is allowedafter any number of `#elif' directives, but `#elif' maynot follow`#else'.
