WebSockets wiith Scala and Play! Framework
22 likes14,415 views
This document is a presentation on WebSockets in the Play! framework by Fabio Tiriticco, detailing their functionality, advantages, and disadvantages. It covers the essentials of WebSocket communication, including client-server interaction, basic API usage, and comparison with HTTP. The document also includes examples and exercises related to WebSocket implementation and integration with Play! framework features.
![WebSockets in Play!
Similar signature to a regular HTTP Action:
val echo = Action { request =>
Ok("Got request [" + request + "]")
}
def index = WebSocket.using[String] { request =>
val in = Iteratee.foreach[String](chunk => println(chunk))
val out = Enumerator("Hello!")
(in, out)
}
using[A](f: (RequestHeader) (Iteratee[A, _], Enumerator[A]))
WebSocket.using signature:](https://image.slidesharecdn.com/websocket20mar2014-140320163917-phpapp01/85/WebSockets-wiith-Scala-and-Play-Framework-15-320.jpg)
![WebSockets in Play!
There is also an ‘async’ version which combines the
two channels asynchronously and returns a Future.
def index = WebSocket.async[String] { request =>
Future {
val in = Iteratee.foreach[String](chunk => println(chunk))
val out = Enumerator("Hello!")
(in, out)
}
}
async[A](f: (RequestHeader) Future[(Iteratee[A, _], Enumerator[A])])
WebSocket.async signature:](https://image.slidesharecdn.com/websocket20mar2014-140320163917-phpapp01/85/WebSockets-wiith-Scala-and-Play-Framework-16-320.jpg)
![Iteratees & Enumerators
How To
• They both take a type:
• Play! Framework provides various utilities to create
them and use them together.
• Time for some concrete examples!
trait Iteratee[E, +A] extends AnyRef
trait Enumerator[E] extends AnyRef](https://image.slidesharecdn.com/websocket20mar2014-140320163917-phpapp01/85/WebSockets-wiith-Scala-and-Play-Framework-18-320.jpg)
 (ActorRef) Props)
There is also a way to reject a Websocket connection:
tryAcceptWithActor[A, B](f: (RequestHeader) Future[Either[Result,
(ActorRef) Props]])
Return Left to reject or Right(WebsocketActor.Props) to accept.](https://image.slidesharecdn.com/websocket20mar2014-140320163917-phpapp01/85/WebSockets-wiith-Scala-and-Play-Framework-20-320.jpg)
![def index = WebSocket.acceptWithActor[String, String] { request => out =>
WebsocketActor.props(out)
}
object MyWebSocketActor {
def props(out: ActorRef) = Props(new WebsocketActor(out))
}
class WebsocketActor(out: ActorRef) extends Actor {
def receive = {
case msg: String =>
out ! ("I received your message: " + msg)
}
}
WebSockets in Play!](https://image.slidesharecdn.com/websocket20mar2014-140320163917-phpapp01/85/WebSockets-wiith-Scala-and-Play-Framework-21-320.jpg)
WebSockets wiith Scala and Play! Framework
- 1. WebSockets in Play! Framework Fabio Tiriticco @ticofab Scala Academy 20 March 2014 Amsterdam Scala
- 2. Two words about myself Currently freelancing and working on my own ideas. …one of which involves and WebSockets! Bicycle Touring Amsterdam
- 3. Agenda • What are WebSockets? • WebSocket clients • Relationship and comparison with HTTP • Advantages and disadvantages • WebSocket servers in Play! • Simple examples & exercises • Use case
- 4. What are WebSockets? • Full-duplex channel between client and server. • Persistent connection. Both parties can send data at any time. • Very simple API. • Standardised by the IETF as RFC 6455 in 2011, which has lead to broader adoption.
- 5. The TCP / IP stack WEBSOCKET
- 6. The API, Client-side RECEPTION CALLBACKS • onOpen • onClosed • onMessage(message) • onError(error) CONNECTION • open • close SEND DATA • send(message)
- 7. var myWebSocket = new WebSocket("ws://fabio.com/example"); // define callbacks myWebSocket.onmessage = function(event) { console.log("got data: " + event.data); } myWebSocket.onopen = function(event) { console.log("Connection open ..."); }; myWebSocket.onclose = function(event) { console.log("Connection closed."); }; myWebSocket.onerror = function(event) { console.log("Error!"); }; myWebSocket.send("Hello from Javascript!”); // send stuff myWebSocket.close(); // close connection JavaScript client example
- 8. WebSocketClient mWsClient = new WebSocketClient(URI.create(“ws://fabio.com/example”), new Listener() { @Override public void onMessage(final String message) { Log.d(TAG, “onMessage: ” + message); } @Override public void onError(final Exception error) { Log.e(TAG, "Error!", error); } @Override public void onDisconnect(final int code, final String reason) { Log.d(TAG, String.format("Disconnected! Code: %d Reason: %s", code, reason)); } @Override public void onConnect() { Log.d(TAG, "onConnect"); } }, mExtraHeaders); mWsClient.connect(); mWsClient.send(“Hello from Android!”); mWSClient.disconnect(); Android (Java) client example
- 9. Request URL:ws://echo.websocket.org/ Request Method:GET Status Code:101 Web Socket Protocol Handshake Connection:Upgrade Host:echo.websocket.org Sec-WebSocket-Version:13 Upgrade:websocket Relationship with HTTP • A websocket connection is initiated via a standard HTTP GET request, where the client asks for an ‘Upgrade’ • The response will be a 101 status, ‘Switching protocol’
- 10. Why WebSockets? • The ‘native’ web built around HTTP only relies on client’s action. Only the client can request new content by for instance opening a new page. • A way to make things more dynamic is using intense polling, which is bad for performance and traffic. • The need to give impression of a ‘dynamic’ web was solved using workarounds like Long-polling or Streaming. • It works but it’s complicated and it doesn’t solve the big issue of the HTTP overhead!
- 11. WS vs HTTP: overhead HTTP: up to 2000 bytes (2Kb) WebSocket: 2 bytes
- 12. WS vs HTTP: processing time

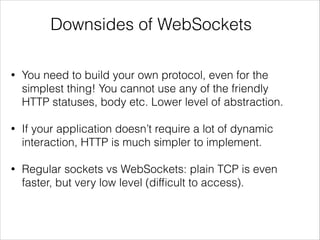

- 13. Downsides of WebSockets • You need to build your own protocol, even for the simplest thing! You cannot use any of the friendly HTTP statuses, body etc. Lower level of abstraction. • If your application doesn’t require a lot of dynamic interaction, HTTP is much simpler to implement. • Regular sockets vs WebSockets: plain TCP is even faster, but very low level (difficult to access).
- 14. A few useful links • https://tools.ietf.org/html/rfc6455 (official doc) • http://www.html5rocks.com/en/tutorials/websockets/ basics/ (basic tutorial) • http://www.websocket.org (the echo server folks) • http://blog.arungupta.me/2014/02/rest-vs-websocket- comparison-benchmarks/ (HTTP vs WebSocket comparison) • http://eng.42go.com/websockets-vs-regular-sockets/
- 15. WebSockets in Play! Similar signature to a regular HTTP Action: val echo = Action { request => Ok("Got request [" + request + "]") } def index = WebSocket.using[String] { request => val in = Iteratee.foreach[String](chunk => println(chunk)) val out = Enumerator("Hello!") (in, out) } using[A](f: (RequestHeader) (Iteratee[A, _], Enumerator[A])) WebSocket.using signature:
- 16. WebSockets in Play! There is also an ‘async’ version which combines the two channels asynchronously and returns a Future. def index = WebSocket.async[String] { request => Future { val in = Iteratee.foreach[String](chunk => println(chunk)) val out = Enumerator("Hello!") (in, out) } } async[A](f: (RequestHeader) Future[(Iteratee[A, _], Enumerator[A])]) WebSocket.async signature:
- 17. Iteratees and Enumerators • Complex functional abstractions. Very powerful but difficult to grasp. • In the WebSocket domain, all you need to know is that they represent the two channels where data flows between client and server.
- 18. Iteratees & Enumerators How To • They both take a type: • Play! Framework provides various utilities to create them and use them together. • Time for some concrete examples! trait Iteratee[E, +A] extends AnyRef trait Enumerator[E] extends AnyRef
- 19. Repositories (ask Google for “ticofab github” or something like that) • https://github.com/ticofab/simple-websocket-client (test client) • https://github.com/ticofab/simple-play-websocket- server (test server)
- 20. WebSockets in Play! Even though you can wrap the pair (Iteratee, Enumerator) into an Actor, the framework also offers a way to manage a WebSocket using actors out of the box. The signature of the accept function is unusual: a function that returns a function which takes an ActorRef and returns the Props of an actor! acceptWithActor[A, B](f: (RequestHeader) (ActorRef) Props) There is also a way to reject a Websocket connection: tryAcceptWithActor[A, B](f: (RequestHeader) Future[Either[Result, (ActorRef) Props]]) Return Left to reject or Right(WebsocketActor.Props) to accept.
- 21. def index = WebSocket.acceptWithActor[String, String] { request => out => WebsocketActor.props(out) } object MyWebSocketActor { def props(out: ActorRef) = Props(new WebsocketActor(out)) } class WebsocketActor(out: ActorRef) extends Actor { def receive = { case msg: String => out ! ("I received your message: " + msg) } } WebSockets in Play!
- 22. Little exercise 1. Uses Actors to handle connections wrapping Iteratee and Enumerators. 2. It echoes anything it receives, but closes the connection if it receives a specific string of your choice. 3. Bonus: make the endpoint proxy the result of the API call to: Create a new Play! app with a WebSocket endpoint. http://api.openweathermap.org/data/2.5/weather?q=Amsterdam,nl
- 23. Two good articles • Iteratees and Enumerators for human beings: http:// mandubian.com/2012/08/27/understanding-play2- iteratees-for-normal-humans/ • WebSocket examples: http://blog.tksfz.org/ 2012/10/12/websockets-echo-using-play-scala- and-actors-part-i/
- 24. Use case Play! Framework sample: WebSocket chat
- 25. Thank you Websocket in Play!Framework @ticofab
