Principles of Reliable Data Transfer
• Important in application, transport, link layers
• Top-10 list of important networking topics!

Principles of Reliable Data Transfer (rdt)
• Important in application, transport, link layers
• Top-10 list of important networking topics!

Reliable Data Transfer: Getting Started
rdt_send(): called from
above, (e.g., by app.). Passed data to
deliver to receiver upper layer

send
side

udt_send(): called by rdt
protocol, to transfer packet over
unreliable channel to receiver

deliver_data(): called by rdt
to deliver data to upper layer

receive
side

rdt_rcv(): called when packet
arrives on rcv-side of channel

Reliable Data Transfer: Getting Started
We’ll:
• Incrementally develop sender, receiver sides of
reliable data transfer protocol (rdt)
• Consider only unidirectional data transfer
– but control info will flow on both directions!

• Use Finite State Machines (FSM) to specify sender,
receiver
event causing state transition
actions taken on state transition
state: When in this “state”
next state uniquely
determined by next
event

state
1

event
actions

state
2

Rdt1.0: Reliable Data Transfer over a Perfectly
Reliable Channel
• Underlying channel perfectly reliable
– no bit errors
– no loss of packets

• Separate FSMs for sender, receiver:
– sender sends data into underlying channel
– receiver reads data from underlying channel

• The initial state of the FSM is indicated by the dashed line
Wait for
call from
above

rdt_send(data)
packet =make_pkt(data)
udt_send(packet)

Sender

Wait for
call from
below

rdt_rcv(packet)
extract (packet,data)
deliver_data(data)

Receiver

Note:Perfectly reliable channel no need for feedback

Rdt2.0: Channel with Bit Errors
• More realistic model
– Underlying channel may flip bits in packet

• How people deal with such a situation
– OK (positive acknowledgment)
– Please repeat that (negative acknowledgements)
– Acknowledgements (ACKs): Receiver explicitly tells sender that pkt
received OK
– Negative acknowledgements (NAKs): Receiver explicitly tells sender
that pkt had errors
– Sender retransmits pkt on receipt of NAK

• These control messages let the sender know
– What has been received in error and requires repetition

• Automatic Repeat reQuest (ARQ) protocols.

Rdt2.0: Channel with Bit Errors
Three capabilities are required in ARQ to handle the presence of bit
errors.
• Error Detection:
– Needed to allow the receiver to detect bit errors
– Checksum field in the header
• Receiver Feed Back
– Receiver provided explicit feedback
– ACK
– NAK
• Retransmission
– A packet that is received in error will be retransmitted
• New mechanisms in rdt2.0 (beyond rdt1.0):
– Error detection
– Receiver feedback: Control msgs (ACK,NAK) Rcvr->Sender

Rdt2.0: FSM Specification
rdt_send(data)
snkpkt = make_pkt(data, checksum)
udt_send(sndpkt)
rdt_rcv(rcvpkt) &&
isNAK(rcvpkt)
Wait for
call from
above

Wait for
ACK or
NAK

udt_send(sndpkt)

rdt_rcv(rcvpkt) && isACK(rcvpkt)

receiver
rdt_rcv(rcvpkt) &&
corrupt(rcvpkt)
udt_send(NAK)
Wait for call
from below

sender
rdt_rcv(rcvpkt) &&
notcorrupt(rcvpkt)
extract(rcvpkt,data)
deliver_data(data)
udt_send(ACK)

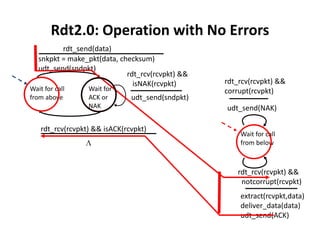

Rdt2.0: Operation with No Errors
rdt_send(data)
udt_send(sndpkt)
rdt_rcv(rcvpkt) &&
isNAK(rcvpkt)

Wait for call
from above

Wait for
ACK or
NAK

udt_send(sndpkt)


rdt_rcv(rcvpkt) &&
corrupt(rcvpkt)
udt_send(NAK)
Wait for call
from below

rdt_rcv(rcvpkt) &&
notcorrupt(rcvpkt)
deliver_data(data)
udt_send(ACK)

Rdt2.0: error scenario
rdt_send(data)
udt_send(sndpkt)
rdt_rcv(rcvpkt) &&
isNAK(rcvpkt)
Wait for

Wait for call
from above

ACK or
NAK

udt_send(sndpkt)


rdt_rcv(rcvpkt) &&
corrupt(rcvpkt)
udt_send(NAK)
Wait for call
from below

rdt_rcv(rcvpkt) &&
notcorrupt(rcvpkt)
deliver_data(data)
udt_send(ACK)

Rdt2.0
• rdt2.0 is a stop and wait protocol
– Sender sends one packet, then
waits for receiver response

• rdt2.0 has a fatal flaw
• What happens if ACK/NAK get
corrupted?
–

•

Add checksum bits to ACK/NAK

How the protocol should recover from
errors in ACK/NAK?
– Retransmission on receipt of a
corrupt ACK/NAK
– Retransmission causes duplicates

– Receiver does not know whether
ACK or NAK it sent was received
correctly
– Receiver does not know a priori
whether an arriving packet
contains new data or is a
retransmission

Handling Duplicates:
• Sender retransmits current
packet if ACK/NAK garbled
• Sender adds sequence number
to each packet
• Receiver discards (doesn’t
deliver up) duplicate packet

Rdt2.1: Sender, handles garbled ACK/NAKs
rdt_send(data)
sndpkt = make_pkt(0, data, checksum)
udt_send(sndpkt)

Wait for call
0 from
above

Wait for
ACK or NAK
0

rdt_rcv(rcvpkt)
&& notcorrupt(rcvpkt)
&& isACK(rcvpkt)

rdt_rcv(rcvpkt) &&
( corrupt(rcvpkt) ||
isNAK(rcvpkt) )
udt_send(sndpkt)

rdt_rcv(rcvpkt) &&
isNAK(rcvpkt) )
udt_send(sndpkt)

rdt_rcv(rcvpkt)
&& isACK(rcvpkt)

Wait for
ACK or NAK
1

Wait for
call 1
from
above
rdt_send(data)

udt_send(sndpkt)

Rdt2.1: Receiver, handles garbled ACK/NAKs
rdt_rcv(rcvpkt) && notcorrupt(rcvpkt)
&& has_seq0(rcvpkt)

rdt_rcv(rcvpkt) && (corrupt(rcvpkt))

deliver_data(data)
sndpkt = make_pkt(ACK, chksum)
udt_send(sndpkt)
rdt_rcv(rcvpkt) && (corrupt(rcvpkt))

sndpkt = make_pkt(NAK, chksum)
udt_send(sndpkt)
rdt_rcv(rcvpkt) &&
not corrupt(rcvpkt) &&
has_seq1(rcvpkt)
udt_send(sndpkt)

sndpkt = make_pkt(NAK, chksum)
udt_send(sndpkt)
Wait for
0 from
below

Wait for
1 from
below

&& has_seq1(rcvpkt)
deliver_data(data)
udt_send(sndpkt)

rdt_rcv(rcvpkt) &&
not corrupt(rcvpkt) &&
has_seq0(rcvpkt)
udt_send(sndpkt)

Rdt2.2: a NAK-free protocol
• Same functionality as rdt2.1, using ACKs only
• Instead of NAK, receiver sends ACK for last packet
received OK
– Receiver must explicitly include seq # of the
packet being ACKed
• Duplicate ACK at sender results in same action as
NAK: retransmit current packet

Rdt2.2: Sender, Receiver Fragments
rdt_send(data)

rdt_rcv(rcvpkt) &&
udt_send(sndpkt)
Wait for
Wait for
isACK(rcvpkt,1) )
ACK

call 0 from
above

0

Sender FSM
Fragment
rdt_rcv(rcvpkt) &&
(corrupt(rcvpkt) ||
has_seq1(rcvpkt))
udt_send(sndpkt)

Wait for
0 from
below

udt_send(sndpkt)

rdt_rcv(rcvpkt)
&& isACK(rcvpkt,0)

Receiver FSM
Fragment

&& has_seq1(rcvpkt)
deliver_data(data)
sndpkt = make_pkt(ACK,1, chksum)
udt_send(sndpkt)

Rdt3.0: Channels with Errors and Loss
New Assumption: Underlying channel can also lose packets
(data or ACKs)
 What to do when packet loss occurs?
 Retransmissions
 How to detect loss?
 Sender waits “reasonable” amount of time for ACK
 Must wait at least as long as RTT plus processing
delay.
 Retransmits if no ACK received in this time
 If packet (or ACK) just delayed (not lost):
 Retransmission will be duplicate, but use of sequence
numbers can handles this.

Rdt3.0: Channels with Errors and Loss
Implement a Retransmission mechanism using a
 count down timer
 Interrupts the sender after certain
amount of time

The sender will need to be able to:
Start the timer each time a packet is
sent
Respond to a timer interrupt
Stop the timer

Rdt3.0 Sender
rdt_send(data)

rdt_rcv(rcvpkt) &&
isACK(rcvpkt,1) )

udt_send(sndpkt)
start_timer

rdt_rcv(rcvpkt)

Wait for
call 0 from
above
rdt_rcv(rcvpkt)
&& isACK(rcvpkt,1)

rdt_rcv(rcvpkt) &&
isACK(rcvpkt,0) )

timeout
udt_send(sndpkt)
start_timer
rdt_rcv(rcvpkt)
&& isACK(rcvpkt,0)
stop_timer

stop_timer

timeout
udt_send(sndpkt)
start_timer

Wait
for
ACK 0

Wait
for
ACK1

Wait for
call 1 from
above
rdt_send(data)
udt_send(sndpkt)
start_timer

Rdt3.0 Receiver?

rdt_rcv(rcvpkt)

Pipelined Reliable Data Transfer
Protocols
 Rdt3.0 works, but performance is poor

 Poor Performance is due to the fact that

it is a stop and wait protocol


Poor utilization of the resource

 Solution

Sender is allowed to send multiple packets
without waiting for ACKs.
 Pipelining


Since many sender to receiver packets can be
visualized as filling a pipeline
Increase utilization

Pipelined Reliable Data Transfer Protocols
 Pipelining has the following consequences for

reliable data transfer
 Range of sequence numbers must be increased
 Sender and receiver sides may have to buffer
more than one packet.

 Two basic approaches towards pipeline error

recovery:

Go-Back-N, Selective Repeat

Go-Back-N (GBN)
Sender:
 Sender is allowed to transmit multiple packets without waiting

for an acknowledgement
 Constrained to a certain maximum number N.
 Base or send_base
 Sequence number of oldest unacknowledged packet
 Nextseqnum
 Sequence number of next packet to be sent
 The range of sequence numbers for transmitted but not
acknowledged packets can be viewed as a window of size N.
 This window slides forward as the protocol operates

Go-Back-N
GBN sender must respond to three types of events
 Invocation from above (rdt_send() is called):
 If window is full, returns data to upper layer
 Maintain synchronization mechanism
 Receipt of an ACK:
 ACK for packet with seq # n is taken as“Cumulative ACK”
 More shortly in receiver
 Time out event:
 Sender has timer for oldest unacknowledged packet
• If timer expires, retransmit all unacknowledged packets

Go-Back-N
Receiver:
 If a packet with seq # n is received correctly and is in
order


ACK is sent and data is delivered to upper layers

 For all other cases
 Receiver discards the packet and resends ACK for most
recently received in order packet
 Packets are delivered one at a time to upper layers
 If a packet k has been received and delivered, then all
packets with seq # lower than k have also been delivered.
 Receiver discards out of order packets
 No receiver buffering
 Need only remember expectedseqnum

GBN in
action

http://www.eecis.udel.edu/~amer/450/TransportApplets/GBN/GBNindex.html
