- 1. What a Modern Database Enables Srini Srinivasan CTO and Founder Aerospike
- 2. All rights reserved. © 2023 Aerospike, Inc. Our Driving Design Centers 2 Optimizations for Modern System Architectures • CPU and NUMA pinning • Storage tiers (DRAM, NVMe) • Hybrid Memory Architecture • Network to application alignment Massive Parallelism with Indexing • Multi-threaded NUMA architecture • Data distribution across disks, nodes • Client accesses server in single hop • AI/ML Processing Strongly Consistent Transactions • Zero Data Loss • Linearizable reads (tunable) • Read one, write all scheme • Roster concept maximizes availability Geo-Distributed Active-Active System • Uniform data partitioning • Mixed workload handling • Self-managed rack aware clusters • Synch and Asynch Replication
- 3. All rights reserved. © 2023 Aerospike, Inc. Strongly Consistent Transactions 3
- 4. All rights reserved. © 2023 Aerospike, Inc. Aerospike Strong Consistency @ 33% less H/W 4 Failure Support – Big Hardware Savings • 1 failure => 2 copies • 2 failures => 3 copies When is data consistent? • Once all nodes respond Aerospike consensus is non-quorum, roster-based How is consistency maintained? • With a roster • Determines cluster health Heartbeats • Exchanged by nodes • CPU unaffected as data/node increases A B Application (Leader) (Follower) Aerospike passes Jepsen tests: https://jepsen.io/analyses/aerospike-3-99-0-3
- 5. All rights reserved. © 2023 Aerospike, Inc. Strong Consistency (SC) – Write Logic 5 Write to all replicas before return to client w/commits with minimum friction 1. Request 6. Success 2. Write Local 3. Replicate 4. Response 5. Advise Replicated* 3. Replicate 4. Response 5. Advise Replicated* *Advise Replicated is one way and only when more than 1 copy Master Client Replica 2 Replica 1
- 6. All rights reserved. © 2023 Aerospike, Inc. SC – Linearizable Read Logic 6 Master or replica read alone is sufficient for Sequential Consistency Master Client 1. Request 5. Response 2. Read Local Replica 2 Replica 1 3. Status Request 4. Status Response 3. Status Request 4. Status Response No stale reads possible Extra network round-trip
- 7. All rights reserved. © 2023 Aerospike, Inc. High Availability in an RF2 Strong Consistency System 7 Synchronous 1M Rack 1 Zone 1 A B C Z 1R 2M 2R 3M 3R C B Read (3R) Write (3M) Write (3M) Read (3M) RF2: Complete copy of data Writes < 10ms Reads < 1ms Automatic Sync RF – Replication Factor Rack 2 Zone 2 Rack Awareness pegs data copies to racks distributed across zones or datacenters within a cluster
- 8. All rights reserved. © 2023 Aerospike, Inc. Data Availability During Split Brain Events A B C D E A B C D E A B C D E RM R RR M RM R RR M RM RR M R In a healthy cluster the Roster Master is the same as the Master, and the Roster Replica is the same as the replica. Rule 1: A sub-cluster is Active if it has the Roster Master and all Roster Replicas and at least 1 is full. Rule 2: A sub-cluster is Active if it has the majority of nodes and at least one full Roster Master or Roster Replica OR exactly ½ the roster nodes and the Roster Master and the partition is full. A B C D E RM RR M R Rule 3: A sub-cluster is Active if it is a Super Majority Cluster and the partitions are full or subsets
- 9. All rights reserved. © 2023 Aerospike, Inc. Geo-Distributed Active-Active System 9
- 10. All rights reserved. © 2023 Aerospike, Inc. Node Add/Remove/Update without Disruption 10 Self-healing, auto-sharding, algorithmic cluster management A B C Z 25% CLUSTER DATA High uptime “Shared Nothing” architecture No single points of failure Self-healing capability Auto rebalance upon node add/remove Data migrates automatically, evenly Set-and-forget DevOps Automatic sharding of data No re-tuning of cluster for use-case changes 25% CLUSTER DATA 25% CLUSTER DATA 25% CLUSTER DATA A B C Z
- 11. All rights reserved. © 2023 Aerospike, Inc. Global Transactions – Sync Active-Active 11 USA West Rack 1 Node 1 R1 Node 2 Node 3 Geographically distributed strongly consistent transactions at scale Node 7 Node 8 Node 9 M United Kingdom Rack 3 Node 4 R1 Node 5 Node 6 USA East Rack 2 Local apps Roster Membership Based Local apps Local apps Synchronous active-active replication Strong Consistency (linearizable) No data loss Conflict avoidance Auto recovery on single site failure Low latency reads from local rack Single cluster with Racks 1, 2, 3 Automatic Sync Writes ~ 200 ms Reads < 1ms
- 12. All rights reserved. © 2023 Aerospike, Inc. Distributed Data Hub – Async Active-Active 12 Multiple clusters connected via XDR › Asynchronous active-active replication › Dynamic fine-grained data routing › Relaxed consistency (lag ~ 100ms) › Asynchronous active-active replication › Dynamic fine-grained data routing › Relaxed consistency (lag ~ 100ms) Predictive Analytics Single Source of Truth Legacy Data Store TB’s 100’s PB’s PB’s Edge (ms) Core (ms) Warehouse (sec-to-mins) Location A (SOE) Location B (SOE) Location C (SOE) XDR XDR Real Time System of Record Streaming AI/ML Engines XDR Query & Reporting Store Web Social Data Sources Streaming Video Gaming Enterprise Applications IoT 3rd Party Mobile Features
- 13. All rights reserved. © 2023 Aerospike, Inc. Optimizations for Modern System Architectures 13
- 14. All rights reserved. © 2023 Aerospike, Inc. Real-time Read Access to Data in SSD 14 Patented Hybrid Memory ArchitectureTM (HMA) places data on SSD and indexes-only in DRAM Software written in C to natively talk to hardware, not an API layer BLOCK INTERFACE SSD SSD NVME SSD HYBRID-MEMORY ARCHITECTURE™ Direct SSD device access Highly Parallelized Large Block Writes to SSD SSD vendor-optimized Continuous, non-disruptive defrag OS FILE SYSTEM PAGE CACHE BLOCK INTERFACE SSD SSD OTHER DATABASE
- 15. All rights reserved. © 2023 Aerospike, Inc. Storage Tier Configurations 15 All DRAM All Flash › Index and Data in Flash › Sub 5-millisecond reads & writes › Lower DRAM usage than HMA › Suitable for lots of small objects › Server footprint reduction similar to HMA OPERATIONS EXPIRY DIGEST & TREE INFO RECORD METADATA STORAGE POINTER WRITE QUEUE BIN 1 BIN 2 BIN 3 STORAGE FLASH INDEX OPERATIONS EXPIRY DIGEST & TREE INFO RECORD METADATA STORAGE POINTER WRITE QUEUE DEFRAG DATA IN FLASH READS STORAGE Hybrid DRAM/Flash › Index in DRAM, Data in Flash › Sub millisecond reads & writes › 5-10X lower server footprint DRAM INDEX OPERATIONS EXPIRY DIGEST & TREE INFO RECORD METADATA STORAGE POINTER WRITE QUEUE DEFRAG DATA IN FLASH READS STORAGE BIN 1 BIN 2 BIN 3 BIN 1 BIN 2 BIN 3 › Index and Data DRAM › Sub millisecond reads & writes
- 16. All rights reserved. © 2023 Aerospike, Inc. SLAs versus Scale on Storage Tiers 16 Memory Optimized 512 GiB memory 2 x 1900 GB SSD r6in.16xlarge Storage Optimized 128 GiB memory 2 x 7500 GB SSD im4gn.8xlarge 20 TB Data 37 nodes 20 TB Data Addressable memory space: 512 GiB/node Addressable memory space: 15 TB/node In-Memory All-Flash Hybrid Memory Performance + Cost Affordable Scale 99% < 1ms 99% < 1ms 99% < 10ms Terabytes Petabytes 6 nodes In-Memory All-Flash Hybrid Memory Petabytes
- 17. All rights reserved. © 2023 Aerospike, Inc. C based DB kernel Optimizations for CPU, Memory, Network 17 ➤ Multi-threaded data structures (NUMA pinned) ➤ Nested locking model for synchronization ➤ Lockless data structures ➤ Partitioned single threaded data structures ➤ Index entries are aligned to cache line (64 bytes) ➤ Custom memory management (arenas) Memory Arena Assignment Multi-core Architecture NIC Queue NIC Queue NIC Queue NIC Queue NIC NIC IRQ Binding Core Core Core Core CPU Socket NIC IRQ Binding NIC IRQ Binding Core Core Core Core CPU Socket NIC IRQ Binding

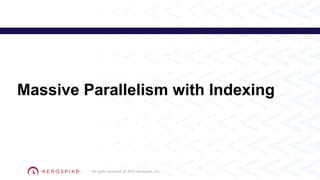

- 18. All rights reserved. © 2023 Aerospike, Inc. Massive Parallelism with Indexing 18
- 19. All rights reserved. © 2023 Aerospike, Inc. Data distribution Intelligent Data Partitioning Eliminates Hotspots 19 Data distribution is deterministic, uniform and algorithmic Even amount data on every node and on every flash device Load balanced continually and automatically on all servers, even while scaling up/down or with cluster reconfigurations No retuning for new use cases (same scheme/algos) Partition Id Leader Replica 1 Replica 2 Replica 3 Replica 4 0 B D E A C 1 E C A D B 2 C B E A D … … … … … … 4095 A E B D C A B C D E
- 20. All rights reserved. © 2023 Aerospike, Inc. Remove bottlenecks: Same low latency from 1st GB to the 1st PB… Smart Client TM Direct Path to Data (single-hop) 20 Each nodes knows where all data resides via Smart ClientTM Client is 1st -class participant in architecture and data fabric Continuously updates Calculates Partition ID to determine Node ID Cluster-spanning operations (scan, query, batch) sent to all processing nodes for parallel processing Executes operations APIs (e.g. CRUD+)
- 21. All rights reserved. © 2023 Aerospike, Inc. Secondary Indexes – Parallel Query Execution b1:r1 b2:r1 … b1:r2 b2:r4 … b5:r3 b2:r9 … . . . P1 P2 Px SECONDARY INDEX PRIMARY INDEX RECORD RECORD RECORD RECORD SSD SSD DRAM … Query • Value-based lookup • Via secondary index • Similar to SQL “select” Parallel execution • Per partition • Scatter-gather scheme • Multiple threads across nodes Parallel access efficient for “low selectivity indices Support equality matches, range queries: Integer, double, string, blob
- 22. All rights reserved. © 2023 Aerospike, Inc. A B C CLIENT 22 % OF CLUSTER DATA 11% SSD 1 11% SSD 2 11% SSD 3 Massively Parallel Architecture Data distribution is deterministic, uniform and algorithmic Data distribution Even amount data on every node and on every flash device Load balanced continually and automatically on all servers, even while scaling up/down or with cluster reconfigurations No retuning for new use cases (same scheme/algos) No hot spots with intelligent auto-sharding 33% CLUSTER DATA 0 33% CLUSTER DATA 33% CLUSTER DATA A B C
- 23. All rights reserved. © 2023 Aerospike, Inc. Summary 23 Optimizations for Modern System Architectures • CPU and NUMA pinning • Storage tiers (DRAM, NVMe) • Hybrid Memory Architecture • Network to application alignment Massive Parallelism with Indexing • Multi-threaded NUMA architecture • Data distribution across disks, nodes • Client accesses server in single hop • AI/ML Processing Strongly Consistent Transactions • Zero Data Loss • Linearizable reads (tunable) • Read one, write all scheme • Roster concept maximizes availability Geo-Distributed Active-Active System • Uniform data partitioning • Mixed workload handling • Self-managed rack aware clusters • Synch and Asynch Replication
