Who wants to be a
Developer?
Phil Bellanti
Technical Marketing Engineer
2016 May 18th

+
• Ask
• Call
• Conference
• Hangup
• Record
• Reject
• Say
• Transfer

Inbound Capabilities:
User Calls or Texts App
• Surveys / Voting
• Voice Search
• Seasonal Spikes
• Audio Conferencing
• Information Lookup
• Basic Auto Attendant

Outbound Capabilities:
App Calls or Texts User
• Voice Broadcast
• Conditional Alerts
• Click-to-Call
• Appointment Reminders
• Two Factor Authentication
• Confirmation SMS

PHP
<?php
answer();
say("Hello World");
hangup();
?>
Javascript
answer();
say("Hello World");
hangup();
Ruby
answer
say "Hello World"
hangup
Python
answer()
say("Hello World")
hangup()
Groovy
answer()
say("Hello World")
hangup()

<?php
$options = array('choices' => '1 (1, sales),
2 (2, support)');
$result = ask('Hi. For sales, say Sales or press 1.
For support, say Support or press 2.',
$options);
if ($result->name == 'choice') {
switch ($result->value) {
case 1:
say('Your money is important to us.');
break;
case 2:
say('Your call will be ignored in the order
received.');
break;
}
}
?>

Incoming Calls
answer();
say("Welcome to Tropo!");
hangup();

Incoming Calls

Creating your
first application

Create an account
• Register at www.Tropo.com
• Create a new application

Playing Audio
say("http://www.phono.com/audio/trop
orocks.mp3")

Playing Audio
say("http://www.phono.com/audio/trop
orocks.mp3
http://www.phono.com/audio/holdmusi
c.mp3")

Try It
• Create an application that…
• answers an incoming call
• says “Hello Tropo!”
• then plays an audio file.
• If you have a softphone like Jabber, you
can also call in using the application SIP
address

Solution
say("Hello Tropo!
http://www.phono.com/audio/troporocks.mp3");

Asking Questions
var result = ask("What's your favorite color? Choose from
red, blue or green.", {
choices:"red, blue, green"
});
say("You said " + result.value);
log("They said " + result.value);

Asking Questions
var result=ask("Pick a number from 0 to 9", {
choices:"0,1,2,3,4,5,6,7,8,9"
});

Grammar Builtins
result=ask("Pick a number from 0 to 9", {
choices:"[1 DIGIT]"
});
choices:"[4 DIGITS]"
OR
choices:"[4-16 DIGITS]"

Two Styles
result=ask("Pick a number from 0 to 9", {
choices:"[1 DIGIT]"
});
},
});

Exercise
How can we add a conditional statement to this
script to repeat back a correct choice?
attempts: 3,
},
}
});

Solution
attempts: 3,
},
}
});
if (result.name == "choice") {
say("You chose " + result.value);
}

Try It
• Ask the caller to pick a 3-6 digit number
and speak it back to them.

Solution
var result=ask("Pick a number 3 to 6 digits long", {
choices:"[3-6 DIGITS]"
});

record("Leave your message at the beep. Press pound
when finished.", {
beep:true,
timeout:10,
silenceTimeout:7,
maxTime:60,
terminator:'#',
recordFormat:"audio/mp3",
recordURI:"ftp://example.com/1.mp3",
recordUser:"tropocloud",
recordPassword:"password"
}
);

var rec = record("Leave a message.");
say(rec.value);

startCallRecording("http://example.com/recording.js");
ask("What's your favorite color? Choose from red, blue or
green.", {
choices:"red, blue, green"
});
stopCallRecording();

startCallRecording("http://example.com/recording.js");
transfer("sip:alice@example.com");
stopCallRecording();

var callerID = currentCall.callerID;
say("Welcome to speed therapy!");
record("Tell us how you feel in fifteen minutes or less!", {
beep:true,
maxTime:900,
recordURI:"http://example.com/recording.js",
transcriptionOutURI:"mailto:you@aol.com",
transcriptionID:callerID
}
);

Try It
• Voicemail application
• Ask for a message
• Play a beep
• Allow the caller to end recording with #
• Only allow 10 seconds
• Play the message to them when done.

Solution
var rec = record("Leave a message.", {
beep:true,
silenceTimeout:3,
maxTime:10,
terminator:'#' }
);
say(rec.value);

Outgoing Calls
call("+14155550100");
say("Tag, you’re it!");

Outgoing Calls
call("sip:alice@example.com");

Outgoing Calls
call("+14155550100");
call("14155550100");
call("4155550100");
call("+1 415 555-0100");

Outgoing Calls
call(
[
"+14075550100",
"sip:alice@example.com"
]
);
say("Tag, you're it!");

call('+' + numberToDial);
say("Hey, "+ customerName +": "+ msg);
POST /rest/1/Sessions
{
"token": "abcdef123456",
"customerName": "John Dyer",
"numberToDial": "14075551212",
"msg": "the sky is falling."
}

call('+' + numberToDial);
{
"whatever": "14075551212"
}

call('+' + whatever);
{
"whatever": "14075551212"
}

https://api.tropo.com/1.0/sessions?action=create&tok
en=TOKEN&numberToDial=14074551212
REST Api Shortcut -
URL in browser

Try It
• Place a call to your SIP account and say
something.
• Start it with the Session API
• Pass the SIP address in the session Api

Solution
call(to);
say("Hello, Tropo!");
{
"token": "abcdef123456",
"to": "sip:you@example.com",
}

call('+14155550100', {
timeout:120,
onAnswer: function() {
say("Tag, you are it!");
log("Obnoxious call complete");
},
onTimeout: function() {
log("Call timed out");
},
onCallFailure: function() {
log("Call could not be completed as dialed");
}
});

Controlling a Call
transfer("+14075550100");
transfer([
"+14075550100",
"+16505559876"
]);

transfer(["+14075550100","sip:12345678912@221.122.5
4.86"], {
playvalue: "http://example.com/holdmusic.mp3",
terminator: "*",
onTimeout: function(event) {
say("nobody answered");
}
});

Try It
• Work with a partner
• Call your Tropo SIP address
• Transfer the call to your partner’s SIP
address.
• Add a ring tone or a terminator

Solution
transfer("sip:you@example.com", {
playvalue: "http://example.com/holdmusic.mp3",
terminator: "*",
});

Rejecting calls
reject();
var callerID = currentCall.callerID;
if (callerID == "4155550100") {
reject();
}

Redirect
redirect("sip:alice@example.com");

Hanging up
• Explicitly, through hangup();
• When a script ends
• When execution fails

Try It
• Reject, redirect, or hang up on a call

Conferencing
conference("1138");
conference("2600hz");

conference("Four score and seven", {
terminator: "*",
playTones: true,
say("Disconnecting");
}
});

result=ask("What is your conference ID?",
{choices:"[4 DIGITS]"}
);
conference(result.value);

conference("12345", {
joinPrompt: "Someone joined",
leavePrompt: "Someone left",
});

Try It
• Work with a partner
• Ask for a conference ID
• Ask for the caller’s name (hint: record)
• Play their name into the conference
when they join

Solution
var result=ask("What is your conference ID?",
{choices:"[4 DIGITS]"}
);
var rec = record("Say your name.");
conference(result.value, {
joinPrompt: rec.value + " joined",
leavePrompt: rec.value + " left",
});

Text Messages
call("+14155550100",
{network:"SMS"}
);

call('+' + to, {network:"SMS"});
say(msg);
{
"token": "abcd12345",
"to": "14075551212",
"msg": "the sky is falling."
}

Incoming SMS

Incoming SMS
answer();
hangup();

Capture an incoming
text message
currentCall.initialText

Try It
• Create an inbound SMS app
• Send it a text message and have it reply
back with a response tailored to the
inbound text's content

Solution
if(currentCall.initialText == "Yes")
{
say("Awesome, I totally agree.");
}
else if(currentCall.initialText == "No")
{
say("Well that's just too bad");
}
else
{
say("That wasn't an option, sorry");
}

Multichannel
say("Thanks for your call. We'll text you the
information.");
hangup();
call(currentCall.callerID, {
network:"SMS"});
say("Here's what you asked for.");

Multichannel
information.");
hangup();
var newcall =
call(currentCall.callerID, {
network:"SMS"});
newcall.value.say("Here's what you asked for.");

Message Shortcut
message("Here's what you asked for.",
{
to: "+16505551212",
network: "SMS"}
);

Message Shortcut
information.");
message("Here's what you asked for.",
{
to: currentCall.callerID,
network: "SMS"}
);
say("This goes to the voice call.");

Call Properties
• calledID
• calledName
• callerID
• callerName
• channel
• network
• id
• sessionId
• isActive function

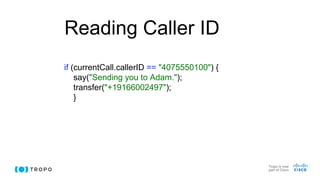

Reading Caller ID
if (currentCall.callerID == "4075550100") {
say("Sending you to Adam.");
transfer("+19166002497");
}

Setting Caller ID
call("+19165550101", {
callerID:"+14075550100"
});
transfer("+19165550100", {
callerID: "14075550100"
});

Try It
• Call your SIP address
• Read your caller ID back to yourself

Solution
say("You are calling from " + currentCall.callerID);

Speech Control
say("1234");
“One thousand two hundred thirty four”

Speech Control
say("1 2 3 4");
“One Two Three Four”

SSML
say("<speak>
<say-as interpret-as='vxml:digits'>
1234
</say-as>
</speak>");
“One Two Three Four”

say-as
• currency
• number
• phone
• date
• time
interpret-as='vxml:digits'

Prosody
say("<speak>One potato, two potato, three potato,
four. <prosody rate='-50%'>One potato, two
potato, three potato, four.</prosody></speak>");

TTS Fallback
say('<speak>
<audio src="http://example.com/welcome.wav">
This text will be spoken if
the audio file can not be
played.
</audio>
</speak>');

Try It
• Speak “1234” as “one thousand two
hundred thirty four” and then as digits

Solution
say("1234");
say("1 2 3 4");
say("<speak>
<say-as interpret-as = 'vxml:digits'>
1234
</say-as>
</speak>");

Grammars
• SimpleGrammar
• hamburger(burger, cheeseburger, hamburger)
• GrXML
• ABNF
• SRGS

SimpleGrammar
var foo = ask("Who?", {
choices: "department(support, engineering,
sales), person(jose, jason, adam)",
});
say("You said " + foo.choice.interpretation + ",
which is a " +
foo.value);

External Grammars
var result = ask("What's your destination?", {
choices:"http://example.com/tropo/destinations.grxml
"
});

<?xml version="1.0"?>
<grammar xmlns="http://www.w3.org/2001/06/grammar" root="main">
<rule id="main" scope="public">
<item repeat="1-16">
<ruleref uri="#digit">
<tag>out.concept = out.concept + rules.digit;</tag>
</ruleref>
</item>
</rule>
<rule id="digit">
<one-of>
<item>0</item>
<item>1</item>
<item>2</item>
<item>3</item>
<item>4</item>
<item>5</item>
<item>6</item>
<item>7</item>
<item>8</item>
<item>9</item>
</one-of>
</rule>
</grammar>

Audio Playback
• 8kHz, 8bit u-law (wav or raw) (*.wav or *.ulaw)
• 8kHz, 8bit a-law (wav or raw) (*.wav or *.alaw)
• 8kHz, 8bit pcm (wav) (*.wav)
• 8khz, 16bit pcm (wav or raw) (*.wav or *.pcm)
• MS-GSM (wav) (*.wav)
• GSM 6.10 (raw) (*.gsm)
• MP3

Ask
• Collect input
Text
allowSignals
bargein
attempts
choices
interdigitTimeout
minConfidence
mode
onBadChoice
onChoice

Ask Result
attempt – This will return an integer which will relay
what attempt the user is currently on.
value – This will return the users selection.
name – This will return the event that was accepted:
choice, badChoice, timeout, error
timestamp – This will return the timestamp of the
completed ask 2013-09-09T18:59:06.267Z

Call
destination
machineDetection
allowSignals
network
answerOnMedia
onAnswer
callerID
onBusy
channel
onCallFailure
• Outgoing Calls & Messages
headers
onError
onSignal
onTimeout
recordFormat
recordMethod
recordURI
timeout
voice

Call Result
value – a call object representing the state of the
current call.
timestamp – this will return the timestamp of the of the
connected call 2013-09-09T18:59:06.267Z

Conference
• Joins two or more calls in a conference.
Limited only by server capacity.
conferenceId
allowSignals
interdigitTimeout
joinPrompt
onHangup
onSignal
playTones
terminator
leavePrompt
mute
onChoice
onError

Hangup
• Disconnect a call or end a SIP session
• Automatic at the end of the script

Log
• Insert a line into the application logs
• Note: in PHP, this is _log()
• Only parameter is the string to insert into
the log
log("The user name is " + name);

Message
• Message-sending shortcut
• Equivalent to call, say, hangup sequence
to
callerID
channel
network
timeout

Record
• Record user input
• See also startCallRecording &
stopCallRecording
onEvent
allowSignals
onHangup
attempts
onRecord
bargein
onSignal
beep
onTimeout
interdigitTimeout
recordFormat
maxTime
recordMethod
onError
recordPassword
recordUser
silenceTimeout
terminator
timeout
transcriptionID
transcriptionOutFormat
transcriptionOutURI
voice

Reject
• Return a busy signal instead of
answering
• CDR has a duration of 0

Say
• Speak TTS or play audio URL (or both)
• Does not await a response
text
allowSignals
onError
onHangup
onSignal
voice

startCallRecording
• Non-blocking, turns on a recording
• Local leg in one audio channel, remote leg in
another
• Stop with stopCallRecording
url
format
method
recordPassword
recordUser
transcriptionEmailFormat
transcriptionID
transcriptionOutURI

stopCallRecording
• Takes no parameters
• Stops the active call recording and
triggers upload

Transfer
• Simple mechanism to call a new number
and bridge to the current call
destination
allowSignals
answerOnMedia
callerID
headers
interdigitTimeout
onBusy
onCallFailure
onConnect
onError
onSignal
onSuccess
onTimeout
playrepeat
playValue
terminator
timeout
voice

wait
• Pauses specified number of milliseconds
• Differs from built-in sleep function by
being interruptible
• In Groovy use await()
milliseconds
onSignal
allowSignals

Session
• Start a new session
• Send a signal to an existing session

Conference
• Mute and unmute participants
• Play an audio file to all members of a
conference

Provisioning
• Manage applications, users, and phone
numbers
• Full role-based access control
• Tropo Commander and UI both built on
this

What is it?
• Uses JSON over http to communicate
with Tropo
• Most large-scale customers stick with
Scripting
• Web Scale issues

Who wants to be a Developer?

More Related Content

Similar to Who wants to be a Developer? (20)

More from Cisco Canada (20)

Recently uploaded (20)

Who wants to be a Developer?
