@brisebois
@brisebois
@brisebois http://bit.ly/1gG3SLT
@brisebois http://bit.ly/1cReNGH
@brisebois
• It’s a full SQL server
• It’s resources aren’t shared
• You must maintain and
patch the server
• No High Availability
• You will probably need an
I.T professional to help you
manage the Virtual Machine
http://bit.ly/1cReNGH
SQL Server Enterprise Edition on a Medium
VM (2 CPU, 3.5GB RAM) Costs $20,364/ Year
@brisebois
• It’s highly available
• It’s data is redundant (3 Copies)
• It’s response times are
unpredictable
• It doesn’t support a high volume
of concurrent queries
• It can be federated (scaled out)
• It’s constantly updated by
Microsoft
• It’s maintained by Microsoft
http://bit.ly/1cReNGH
SQL Database 150GB
Cost $2,709.36 / Year

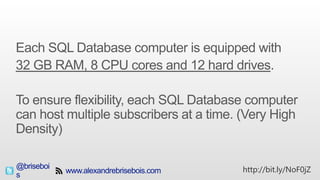

@brisebois http://bit.ly/NoF0jZ

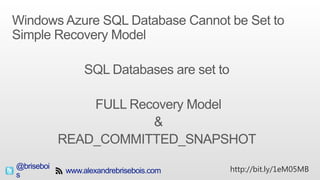

@brisebois http://bit.ly/1eM05MB
@brisebois http://bit.ly/1iWxmb3
@brisebois http://bit.ly/1hsz7eU
Take Control! Use the Microsoft SQL Server
Data Tools
@brisebois http://bit.ly/1iwpdvw

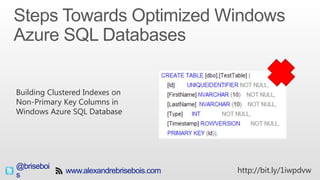

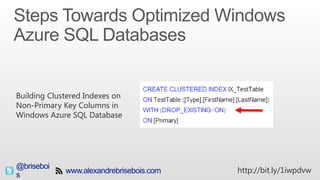

Building Clustered Indexes on
Non-Primary Key Columns in
Windows Azure SQL Database
@brisebois http://bit.ly/1iwpdvw
Building Clustered Indexes on
Non-Primary Key Columns in
Windows Azure SQL Database
@brisebois http://bit.ly/1iwpdvw
Building Clustered Indexes on
Non-Primary Key Columns in
Windows Azure SQL Database
@brisebois http://bit.ly/1nyFgOd
Use IDs for lookup data and use GUIDs for data
that is susceptible to synchronization and to
public use.
@brisebois http://bit.ly/1iwpdvw

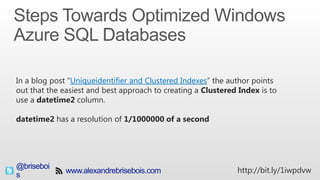

In a blog post “Uniqueidentifier and Clustered Indexes” the author points
out that the easiest and best approach to creating a Clustered Index is to
use a datetime2 column.
datetime2 has a resolution of 1/1000000 of a second
@brisebois http://bit.ly/Nopd4t
Creating NONCLUSTERED INDEXES
@brisebois http://bit.ly/Nopd4t
• If a CLUSTERED INDEX is present on
the table, then NONCLUSTERED
INDEXES will use its key instead of
the table ROW ID.
• To reduce the size consumed by the
NONCLUSTERED INDEXES it’s
imperative that the CLUSTERED INDEX
KEY is kept as narrow as possible.
@brisebois http://bit.ly/Nopd4t
• SQL Database can JOIN and
INTERSECT INDEXES in order to satisfy
a query without having to read data
directly from the table.
• Favor many narrow NONCLUSTERED
INDEXES
• Create Filtered INDEXES to create
highly selectivity
@brisebois http://bit.ly/Nopd4t
• Use Covering INDEXEs to reduce the
number of bookmark lookups required
to gather data that is not present in the
other INDEXES.
• Covering INDEXES can be used to
physically maintain the data in the
same order as is required by the
queries’ result sets reducing the need
for SORT operations.
@brisebois http://bit.ly/Nopd4t
• Covering INDEXES have an increased
maintenance cost, therefore you must
see if performance gain justifies the extra
maintenance cost.
• NONCLUSTERED INDEXES can
reduce blocking by having SQL
Database read from NONCLUSTERED
INDEX data pages instead of the actual
tables.
@brisebois http://bit.ly/1idgltT
Identify Missing Indexes in Your Windows
Azure SQL Database
@brisebois http://bit.ly/1qMrE0N
Don’t Forget About Index Maintenance on
Windows Azure SQL Database
• On SQL Server, when we identify 5% to
30% of average fragmentation we should
issue a REORGANIZE statement
• On SQL Database we can only use the
REBUILD WITH (ONLINE =
ON) statement
@brisebois http://bit.ly/1qMrE0N
Entity
Framework and TransactionScope
transactions are limited to 10 minutes
@brisebois http://bit.ly/1fTckv2

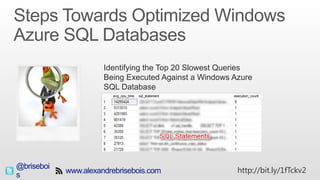

Identifying the Top 20 Slowest Queries
Being Executed Against a Windows Azure
SQL Database
@brisebois http://bit.ly/1kD3eDp
Does Your Data Really Belong in Your SQL
Database?
@brisebois http://bit.ly/1fTdHdg
Put Your SQL Database on a
Diet!
@brisebois
• It’s highly availability
• It’s data is redundant (3 copies)
• It’s constantly updated by
Microsoft
• It’s maintained by Microsoft
• Can use services like a CDN
• The load is dispersed over many
services
http://bit.ly/1cReNGH
SQL Database 10GB + 100GB Blob
+ 100GB Table = Cost $803.52 /Year
@brisebois http://bit.ly/1d7hhkP
@brisebois
• It’s highly availability
• It’s data is redundant (3 copies)
• It can handle + concurrent queries
that a 1 database
• It’s quite complex to backup
• It’s response time is unpredictable
• It’s constantly updated by
Microsoft
• It’s maintained by Microsoft
http://bit.ly/1cReNGH
SQL Database 5 * 10GB
Cost $2,757.24 /Year
@brisebois
• It has dedicated resources
• It’s response time is predictable
• It’s highly available
• It’s data is redundant (3 Copies)
• It’s maintained by Microsoft
• It can be sharded (scaled out)
• It’s constantly updated by
Microsoft
http://bit.ly/1cReNGH
SQL Database Premium P2 150GB
Cost $11,331 /Year (preview pricing)
@brisebois http://bit.ly/1nyrLOi
@brisebois http://bit.ly/PJm6GH
What Does it Cost to Backup a Windows Azure SQL Database?
@brisebois http://bit.ly/1id79FY
@brisebois
@brisebois http://bit.ly/1dhxu19
@brisebois http://bit.ly/1iW2XxL
@brisebois http://bit.ly/1gzhfB5
• Replace NewDatabaseName by the name
of the new Database
• Replace ServerName by the database
server name of the source Database
• Replace SourceDatabase by the name of
the source Database
@brisebois http://bit.ly/1lIDJAr
@brisebois http://bit.ly/1hsOmEx
@brisebois http://bit.ly/1hsOmEx
• 40501 – Retry to connect to SQL Database in intervals of 10 seconds until the resources are
available and your connection is established again.
• 40550 – The session has been terminated because it has acquired too many locks. Try reading or
modifying fewer rows in a single transaction.
• 40549 – Session is terminated because you have a long running transaction. Try shortening your
transaction.
• 40551 – The session has been terminated because of excessive TEMPDB usage. Try modifying
your query to reduce temporary table space usage.
• 40552 – The session has been terminated because of excessive transaction log space usage. Try
modifying fewer rows in a single transaction.
• 40553 – The session has been terminated because of excessive memory usage. Try modifying your
query to process fewer rows.
• 40545- The service is experiencing a problem that is currently under investigation.
• 40544 – The database has reached its size quota. Partition or delete data, drop indexes, or consult
the documentation for possible resolutions.
• 40174 – The partition is in transition and transactions are being terminated.
@brisebois
• It has been around since the early days of .Net and has been
tested thoroughly
• Can be used to repopulate the database
• Has change tracking through the DataRow RowState property.
• Is a 2 dimensional array with individually typed columns
• It can be consumed using Linq
http://bit.ly/1iwF8Ko
@brisebois http://bit.ly/1cRWP6U
@brisebois http://bit.ly/1gzilg5
@brisebois http://bit.ly/1cRWP6U
@brisebois
@brisebois
