The document discusses strategies for architecting an enterprise API management strategy. It covers factors to consider like whether to treat APIs as a product or tactic. It also discusses API management components like the API publisher and store. The document outlines reference architectures like using API management within an orthogonal toolset. It provides examples of API management for use cases like within a telecommunications ecosystem.
Architecting an Enterprise API Management Strategy
- 1. Architec(ng an enterprise API management strategy Mifan Careem Director, Solu0ons Architecture WSO2 Mifan AT WSO2.com APIdays Sydney February 2015

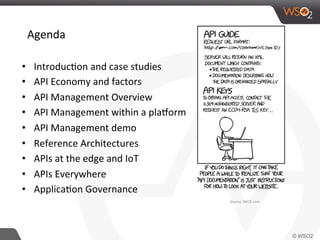

- 2. Agenda • Introduc0on and case studies • API Economy and factors • API Management Overview • API Management within a plaJorm • API Management demo • Reference Architectures • APIs at the edge and IoT • APIs Everywhere • Applica0on Governance Source: XKCD.com
- 3. WSO2 – Who we are

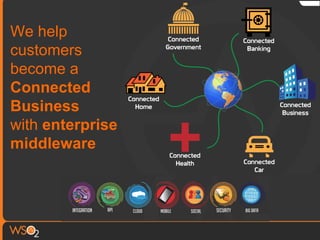

- 4. We help customers become a Connected Business with enterprise middleware

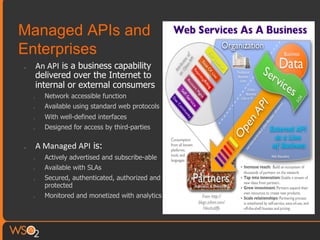

- 7. Managed APIs and Enterprises o An API is a business capability delivered over the Internet to internal or external consumers o Network accessible function o Available using standard web protocols o With well-defined interfaces o Designed for access by third-parties o A Managed API is: o Actively advertised and subscribe-able o Available with SLAs o Secured, authenticated, authorized and protected o Monitored and monetized with analytics
- 8. Strategy factors • API as a product vs API based products = API as a strategy vs API as a tactic • External API management vs internal API management • Developer ecosytem – API ecosystem vs cloud-devops • API management and the enterprise • Business model – Pay as you go, revshare, freemium,..
- 9. Characteristics of Business APIs ● Protocols & Styles ● API as the main product ● API as the brand ● Business Model -‐ Mone0za0on ● API Sta0s0cs ● Authen0ca0on & Authoriza0on ● ThroTling ● Caching ● Deployment Models
- 10. Architectural factors • Deployment model • Distributed deployment, access token caching,… • On-premise vs cloud vs hybrid, Cloud to enterprise access • Federated architecture • Large scale APIs • Edge API management
- 12. API Centric SOA BU-‐1 BU-‐2 BU-‐3 Services Services Services APIs API Façade
- 14. WSO2 API Manager Components o Create APIs o Find and subscribe/buy APIs o API Store and Governance o Manage, secure and protect APIs o API Management and Gateway o Monitor and Mone0ze APIs o API Monitoring and Analy0cs
- 15. • Publish APIs to external consumers and partners, as well as internal users; SOAP and REST services are supported • Manage API versions (several versions can be deployed in parallel) • Govern the API lifecycle (publish, deprecate, re0re) • ATach documenta0on (files, external URLs) to APIs • Apply Security policies to APIs (authen0ca0on, authoriza0on) • ATach SLAs • Provision and Manage API keys • Track consumers per API • Monitor API usage and performance, SLA compliance • Gather consumers requirements WSO2 API Manager : API Publisher
- 16. • Find useful APIs by browsing or searching through the API Store: view top rated, top used and featured APIs • Explore API documenta0on and ask ques0ons to publisher • Register applica0ons and obtain API keys • Subscribe to API changes and receive news • Evaluate APIs, rate APIs, and share comments • Request features and improvements from publishers • Par0cipate in online forums • OAuth2 support for API access WSO2 API Manager : API Consumers via API Store
- 18. API Gateway Processing Flow
- 19. API Access Tokens o OAuth2 standard compliant o Supports mul0ple grant types o SAML, IWA/NTLM o Client creden0al, Implicit, Password o Pre-‐generated Access Token: can be used from an applica0on, to iden0fy the applica0on itself o On-‐demand Access Token: generated via API call, using Consumer Key and Consumer Secret -‐ Iden0fies the end user of an applica0on (web applica0ons, mobile applica0ons) 19
- 21. The big picture Source: hTps://www.flickr.com/photos/photosighJaces/13144863085
- 22. The Open Enterprise is much more than just APIs Credit: KuppingerCole
- 23. API Management within an orthogonal toolset
- 24. API Manager Product and PlaJorm 24
- 25. Analy0cs means business models o API Manager supports out of the box: o Google Analy0cs o WSO2 Business Ac0vity Monitor Analy0cs 2 • Build confidence in the API model • Understand your customer • Not just the developer but also the end-‐ user • Help manage services and versions • Understand when deprecated services can be re0red • Plan beTer • Monitor the growth of aggregated API traffic • Monitor the growth of specific apps
- 28. From edge API management to large scale distributed API management
- 29. Reference Architecture • API as a strategic product • Collabora0ve business model • Scalable horizontal deployment • Orthogonal toolset for ver0cal use cases • Federated architecture Source: flickr.com
- 30. Developer Eco-‐system for Telco API Management Payment Messaging Iden0ty Loca0on WebRTC NFC M2M,… Enterprise Developers Applica0ons Subscribers • U0lize partners to sell APIs • Newer business models – revenue share from customer • Empower eco-‐ system for RAD OTT Customers
- 31. Telco API Management API Gateway API Store Operator Portal Transforma0on Adapters Backend Systems (CRM) Backend Systems (Diameter) Iden0ty API Publisher Workflows Audi0ng and Repor0ng Developer Ecosystem Event Processing
- 32. Federated Architecture and the Telco ecosystem Telco API Mgmt API Gateway API Store Developer Portal Iden0ty API Publisher Workflows Audi0ng and Repor0ng Event Processing Discovery and Rou0ng Standard API NFC Payment Messaging Iden0ty Telco API Mgmt Enterpris e Developer s Applica0ons Subscribers OTT Customers
- 33. API Management at the Edge • Raw devices can expose functionality as APIs • Functional capabilities (actuators) – Function APIs • Administration capabilities (management) – Management APIs • Monitoring capabilities (sensor data) – Sensor APIs • E.g: GET hTp://{ip}/{loca0onid}/sensors/temperature • Augment device capability • ThroTling • Caching • Request rou0ng • Stats collec0on and monitoring • Decision making • Security • Authoriza0on based on token (Oauth)
- 34. * * API Management and IoT Device Queue Media(on/ Rou(ng Device Gateway App End User Authoriza(on Manager Sta(s(cs Processing Devi ce Device Hub Devi Devi ce Devi ce Device Management Iden(ty Management
- 35. * * WSO2-‐ Reference Architecture for IoT
- 36. Application Services Governance and APIs Everywhere • One click API capability • Governance of API, Services, resources within an enterprise with Unified Governance • Life cycle automation with WSO2 Appfactory
- 37. WSO2 Appfactory, WSO2 Private PaaS and WSO2 App Manager IdP (WSO2 Iden(ty Server) (WSO2 Business Ac(vity Monitor)
- 38. Summary • Introduc0on and case studies • API Economy and factors • API Management Overview • API Management within a plaJorm • API Management demo • Reference Architectures • APIs at the edge and IoT • APIs Everywhere • Applica0on Governance
- 39. Contact Us
