Zarafa SummerCamp 2012 - Zarafa Cluster using a reverse proxy
- 1. Zarafa multiserver reverse proxy Steve Hardy
- 2. Cluster node proxy • General idea – Parts of the system • HTTP(s) proxy • Zarafa server – Some details • Session IP locking • Internal vs external connections • Network layouts – SSL offload – Loadbalancer • Configuration – Configuring – Testing (stats)
- 3. Goal • Single exposed ‘host’ to clients for cloud solutions • Host may be: – Single hostname, single IP – Single hostname, round-robin IP • Advantages: – Easier firewalling – Use off-the-shelf proxy / loadbalance hardware

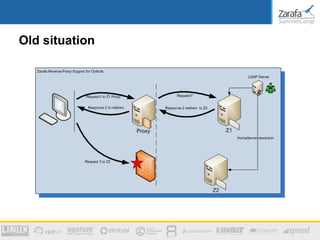

- 6. Why it doesn’t work Client Server (Node 1) Server (Node 2) What a nice day, let’s connect to my fav server revproxy.zarafa.com “Hi, please give me john’s store” “Uh, sorry, I don’t have that, you have to ask Node2, he’s at http://node2.internal.local:237/ zarafa” Dagnabbit, ok, I’ll connect to node2.internal.local and retry CONNECTION REFUSED *snore*
- 7. Why it does work with reverse proxy support Client Server (Node 1) Server (Node 2) What a nice day, let’s connect to my fav server revproxy.zarafa.com “Hi, please give me john’s store” “Uh, sorry, I don’t have that, you have to ask Node2, he’s at http:// node2.internal.local, but I see you connected through a proxy, in that case you should use http://revproxy.zarafa.com/node2 ” Dagnabbit, ok, I’ll connect to revproxy.zarafa.com/node2 and retry Here’s john’s store for you. Have fun.
- 8. Configuration of nodes • Node1 – ipHost: node1.local – zarafaPort: 236 – zarafaHttpsPort: 237 – zarafaProxy: http://proxy.domain.com/node1 • Node2 – ipHost: node2.local – zarafaPort: 236 – zarafaHttpsPort: 237 – zarafaProxy: http://proxy.domain.com/node2
- 9. To revproxy or not to revproxy • In some cases using the proxy is unnecessary – Local connects between nodes – Not very frequent – One case: • Spooler uses ‘copy to delegated sent-items after send’ feature • After sending message, spooler must copy item to sent items folder, which is possible on other host • Spooler connects to other host • Proxy not needed • Strategy is: – Only return node’s proxy address if the originating request was itself proxied – Detected by looking at header, uses setting ‘proxy_header’
- 10. Proxy headers • X-Forwarded-For header – Used as originating IP address – Used for session <-> IP locking – Used in zarafa-stats (including –top)
