Automated Unit Test Generation

Vassil Popovski, VMware
Automated unit test generation presentation  -  Java2ays 2013
Automated unit test generation presentation  -  Java2ays 2013
The Cost of Software Bugs?
$59.9 B per year in USA (NIST, 2002)*
$312 B per year worldwide (Cambridge University, 2012)**

(*) http://www.nist.gov/director/planning/upload/report02-3.pdf
(**) http://www.roguewave.com/DesktopModules/Bring2mind/DMX/Download.aspx?
entryid=1606&command=core_download&PortalId=0&TabId=607
The Cost of Software Bugs?

$312,000,000,000
The Cost of Software Bugs?
Total market capitalization for all 3
companies(*):
!

$177.36 B
(*) Google finance - as of Nov 2nd, 2013
The Cost of World Hunger?

$40B per year(*)

(*) According to United Nations
Automated unit test generation presentation  -  Java2ays 2013

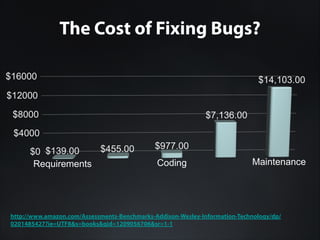

The Cost of Fixing Bugs?

http://www.amazon.com/Assessments-Benchmarks-Addison-Wesley-Information-Technology/dp/
0201485427?ie=UTF8&s=books&qid=1209056706&sr=1-1

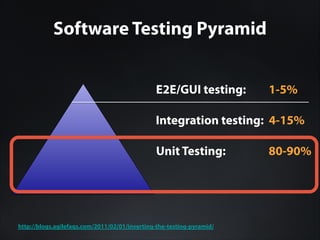

Software Testing Pyramid
E2E/GUI testing:

1-5%

Integration testing: 4-15%
Unit Testing:

http://blogs.agilefaqs.com/2011/02/01/inverting-the-testing-pyramid/

80-90%
Techniques/Tools

The goal: High (close to 100% code coverage*)
1. Random data generation
2. Search based
3. Symbolic/Concolic based
Anatomy of a Unit Test
Arrange
Act
Assert
Anatomy of a Unit Test
Arrange Data
Arrange Mocks/Stubs
Act
Assert
Anatomy of a Unit Test
Evaluation of Tools

Arrange/
Generate Data
Arrange/
Generate
Mocks/Stubs
Act/Invoke
methods
Assert/Verify
the results
Techniques/Tools

x != 100

x>=z

x == 100

x<z
Techniques/Tools
Random data generation:
!

x != 100

x == 100

Feed x,y with random data
x>=z

x<z
Demo
Evaluation of Tools
junit-quickcheck
feed4JUnit
Arrange/
Generate Data
Arrange/
Generate
Mocks/Stubs
Act/Invoke
methods
Assert/Verify
the results

yes - some
no
no
no
Techniques/Tools
1. Random Data Generation:
• junit-quickcheck (Java)
https://github.com/pholser/junit-quickcheck/
• Feed4JUnit & Feed4TestNG + Benerator (java)
http://databene.org/feed4-tools.html
http://databene.org/databene-benerator.html
• Randoop (Java + .NET)
https://code.google.com/p/randoop/
• T2 (Java)
https://code.google.com/p/t2framework/
Techniques/Tools
Search based approach:
!

x != 100

x == 100

1. Start with random/initial
data (x=1, y=1)
x>=z

x<z
Techniques/Tools
x=1, y=1
Search based approach:
!

x != 100

x == 100

1. Start with random/initial
data (x=1, y=1)
x>=z

x<z
Techniques/Tools
x=1, y=1
Search based approach:
!

x != 100

x == 100

1. Start with random/initial
data (x=1, y=1)
x>=z

x<z
Techniques/Tools
x=100, y=1
Search based approach:
!

1. Start with random/initial
data (x=1, y=1)
2. Based on coverage
information - select new
value(s) (x==100)

x != 100

x>=z

x == 100

x<z
Techniques/Tools
x=100, y=1
Search based approach:
x != 100

!

1. Start with random/initial
data (x=1, y=1)
2. Based on coverage
information - select new
value(s) (x==100)
!

x>=z

x == 100

x<z
Demo
Automated unit test generation presentation  -  Java2ays 2013
Automated unit test generation presentation  -  Java2ays 2013
Evaluation of Tools
junit-quickcheck
feed4JUnit
Arrange/
Generate Data
Arrange/
Generate
Mocks/Stubs
Act/Invoke
methods
Assert/Verify
the results

yes - some

EvoSuite

yes

no

no

no

yes

no

yes
Techniques/Tools
2. Search Based:
• EvoSuite (Java)
http://www.evosuite.org/
• Testful (Java)
https://code.google.com/p/testful/
Techniques/Tools
x=X, y=Y, z=2*Y

Symbolic based approach:
!

x != 100

x == 100

1. Evaluate path conditions (PC)
PC: X!=100, Y
PC: X == 100, Y
on every branch
2. For each leaf - calculate X & Y
x>=z
x<z
using a constraints solver:
1. X!=100, Y
=> (x=1, y=1)
2. X=100, X>=2*Y =>(x=100, y=1)
3. X=100, X<2*Y =>(x=100, y=51)

PC: X == 100, PC: X == 100,
X>=2*Y
X<2*Y
Techniques/Tools
Concolic based
approach:

x != 100

x == 100

!

Optimization of symbolic
execution - but use real
values for some of the
branches

x>=z

x<z
Demo
Evaluation of Tools
junit-quickcheck
feed4JUnit
Arrange/
Generate Data
Arrange/
Generate
Mocks/Stubs
Act/Invoke
methods
Assert/Verify
the results

yes - some

EvoSuite

PEX (+ Moles)

yes

yes

no

no

no

yes

yes

no

yes

yes

yes - some
Techniques/Tools
3. Symbolic/Concolic based:
• Microsoft Pex (.NET)
http://research.microsoft.com/en-us/projects/pex/
• jCUTE (Java)
http://osl.cs.uiuc.edu/software/jcute/
• jalangi (Java Script)
https://github.com/SRA-SiliconValley/jalangi
• AgitarOne (Java, commercial)
http://www.agitar.com/solutions/products/
agitarone.html

• Jtest (Java, commercial)
http://www.parasoft.com/jsp/products/jtest.jsp
Best Usage of Auto Generated Unit
Tests
1.Regression testing of legacy code
!

2.To support your unit testing / TDD
Q&A
Thank you
!

Vassil Popovski
!

Sr. Director, R&D, VMware
