Lecture 7:
Heapsort / Priority Queues
Steven Skiena

Department of Computer Science
State University of New York
Stony Brook, NY 11794–4400

http://www.cs.sunysb.edu/∼skiena

Problem of the Day
Take as input a sequence of 2n real numbers. Design an
O(n log n) algorithm that partitions the numbers into n pairs,
with the property that the partition minimizes the maximum
sum of a pair.
For example, say we are given the numbers (1,3,5,9).
The possible partitions are ((1,3),(5,9)), ((1,5),(3,9)), and
((1,9),(3,5)). The pair sums for these partitions are (4,14),
(6,12), and (10,8). Thus the third partition has 10 as
its maximum sum, which is the minimum over the three
partitions.

Importance of Sorting
Why don’t CS profs ever stop talking about sorting?
1. Computers spend more time sorting than anything else,
historically 25% on mainframes.
2. Sorting is the best studied problem in computer science,
with a variety of different algorithms known.
3. Most of the interesting ideas we will encounter in the
course can be taught in the context of sorting, such as
divide-and-conquer, randomized algorithms, and lower
bounds.
You should have seen most of the algorithms - we will
concentrate on the analysis.

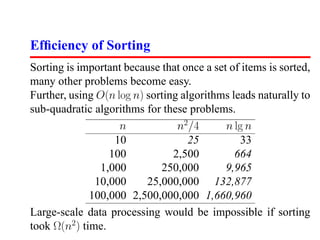

Efﬁciency of Sorting
Sorting is important because that once a set of items is sorted,
many other problems become easy.
Further, using O(n log n) sorting algorithms leads naturally to
sub-quadratic algorithms for these problems.
n n2 /4 n lg n
10 25 33
100 2,500 664
1,000 250,000 9,965
10,000 25,000,000 132,877
100,000 2,500,000,000 1,660,960
Large-scale data processing would be impossible if sorting
took Ω(n2 ) time.

Application of Sorting: Searching
Binary search lets you test whether an item is in a dictionary
in O(lg n) time.
Search preprocessing is perhaps the single most important
application of sorting.

Application of Sorting: Closest pair
Given n numbers, ﬁnd the pair which are closest to each other.
Once the numbers are sorted, the closest pair will be next to
each other in sorted order, so an O(n) linear scan completes
the job.

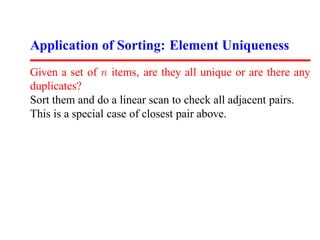

Application of Sorting: Element Uniqueness
Given a set of n items, are they all unique or are there any
duplicates?
Sort them and do a linear scan to check all adjacent pairs.
This is a special case of closest pair above.

Application of Sorting: Mode
Given a set of n items, which element occurs the largest
number of times? More generally, compute the frequency
distribution.
Sort them and do a linear scan to measure the length of all
adjacent runs.
The number of instances of k in a sorted array can be found in
O(log n) time by using binary search to look for the positions
of both k − and k + .

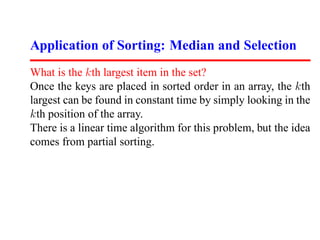

Application of Sorting: Median and Selection
What is the kth largest item in the set?
Once the keys are placed in sorted order in an array, the kth
largest can be found in constant time by simply looking in the
kth position of the array.
There is a linear time algorithm for this problem, but the idea
comes from partial sorting.

Application of Sorting: Convex hulls
Given n points in two dimensions, ﬁnd the smallest area
polygon which contains them all.

The convex hull is like a rubber band stretched over the
points.
Convex hulls are the most important building block for more
sophisticated geometric algorithms.

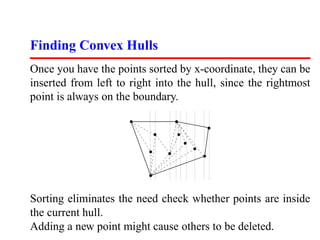

Finding Convex Hulls
Once you have the points sorted by x-coordinate, they can be
inserted from left to right into the hull, since the rightmost
point is always on the boundary.

Sorting eliminates the need check whether points are inside
the current hull.
Adding a new point might cause others to be deleted.

Pragmatics of Sorting: Comparison Functions
Alphabetizing is the sorting of text strings.
Libraries have very complete and complicated rules con-
cerning the relative collating sequence of characters and
punctuation.
Is Skiena the same key as skiena?
Is Brown-Williams before or after Brown America before or
after Brown, John?
Explicitly controlling the order of keys is the job of the
comparison function we apply to each pair of elements.
This is how you resolve the question of increasing or
decreasing order.

Pragmatics of Sorting: Equal Elements
Elements with equal key values will all bunch together in any
total order, but sometimes the relative order among these keys
matters.
Sorting algorithms that always leave equal items in the same
relative order as in the original permutation are called stable.
Unfortunately very few fast algorithms are stable, but
Stability can be achieved by adding the initial position as a
secondary key.

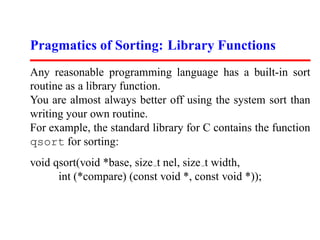

Pragmatics of Sorting: Library Functions
Any reasonable programming language has a built-in sort
routine as a library function.
You are almost always better off using the system sort than
writing your own routine.
For example, the standard library for C contains the function
qsort for sorting:
void qsort(void *base, size t nel, size t width,
int (*compare) (const void *, const void *));

Selection Sort
Selection sort scans throught the entire array, repeatedly
finding the smallest remaining element.
For i = 1 to n
A: Find the smallest of the first n − i + 1 items.
B: Pull it out of the array and put it first.

Selection sort takes O(n(T (A) + T (B)) time.

The Data Structure Matters
Using arrays or unsorted linked lists as the data structure,
operation A takes O(n) time and operation B takes O(1), for
an O(n2 ) selection sort.
Using balanced search trees or heaps, both of these operations
can be done within O(lg n) time, for an O(n log n) selection
sort, balancing the work and achieving a better tradeoff.
Key question: “Can we use a different data structure?”

Heap Definition
A binary heap is defined to be a binary tree with a key in each
node such that:
1. All leaves are on, at most, two adjacent levels.
2. All leaves on the lowest level occur to the left, and all
levels except the lowest one are completely filled.
3. The key in root is ≤ all its children, and the left and right
subtrees are again binary heaps.
Conditions 1 and 2 specify shape of the tree, and condition 3
the labeling of the tree.

Binary Heaps
Heaps maintain a partial order on the set of elements which
is weaker than the sorted order (so it can be efﬁcient to
maintain) yet stronger than random order (so the minimum
element can be quickly identiﬁed).
1 1492
1492 2 1783
3 1776

1783 1776 4 1804
5 1865
6 1945
1804 1865 1945 1963 7 1963
8 1918
1918 2001 1941 9 2001
10 1941

A heap-labeled tree of important years (l), with the corre-
sponding implicit heap representation (r)

Array-Based Heaps
The most natural representation of this binary tree would
involve storing each key in a node with pointers to its two
children.
However, we can store a tree as an array of keys, usiing
the position of the keys to implicitly satisfy the role of the
pointers.
The left child of k sits in position 2k and the right child in
2k + 1.
The parent of k is in position n/2 .

Can we Implicitly Represent Any Binary Tree?
The implicit representation is only efficient if the tree is
sparse, meaning that the number of nodes n < 2h .
All missing internal nodes still take up space in our structure.
This is why we insist on heaps as being as balanced/full at
each level as possible.
The array-based representation is also not as flexible to
arbitrary modifications as a pointer-based tree.

Constructing Heaps
Heaps can be constructed incrementally, by inserting new
elements into the left-most open spot in the array.
If the new element is greater than its parent, swap their
positions and recur.
Since all but the last level is always ﬁlled, the height h of an
n element heap is bounded because:
h
2i = 2h+1 − 1 ≥ n
i=1

so h = lg n .
Doing n such insertions takes Θ(n log n), since the last n/2
insertions require O(log n) time each.

Heap Insertion

pq insert(priority queue *q, item type x)
{
if (q->n >= PQ SIZE)
printf(”Warning: overﬂow insert”);
else {
q->n = (q->n) + 1;
q->q[ q->n ] = x;
bubble up(q, q->n);
}
}

Bubble Up

bubble up(priority queue *q, int p)
{
if (pq parent(p) == -1) return;

if (q->q[pq parent(p)] > q->q[p]) {
pq swap(q,p,pq parent(p));
bubble up(q, pq parent(p));
}
}

Bubble Down or Heapify
Robert Floyd found a better way to build a heap, using a
merge procedure called heapify.
Given two heaps and a fresh element, they can be merged into
one by making the new one the root and bubbling down.
Build-heap(A)
n = |A|
For i = n/2 to 1 do
Heapify(A,i)

Bubble Down Implementation

bubble down(priority queue *q, int p)
{
int c; (* child index *)
int i; (* counter *)
int min index; (* index of lightest child *)

c = pq young child(p);
min index = p;

for (i=0; i<=1; i++)
if ((c+i) <= q->n) {
if (q->q[min index] > q->q[c+i]) min index = c+i;
}

if (min index ! = p) {
pq swap(q,p,min index);
bubble down(q, min index);
}
}

Exact Analysis of Heapify
In fact, heapify performs better than O(n log n), because most
of the heaps we merge are extremely small.
It follows exactly the same analysis as with dynamic arrays
(Chapter 3).
In a full binary tree on n nodes, there are at most n/2h+1
nodes of height h, so the cost of building a heap is:
lg n lg n
h+1
n/2 O(h) = O(n h/2h)
h=0 h=0
Since this sum is not quite a geometric series, we can’t apply
the usual identity to get the sum. But it should be clear that
the series converges.

Proof of Convergence (*)
The identify for the sum of a geometric series is
∞ k 1
x =
k=0 1−x
If we take the derivative of both sides, . . .
∞ 1
kxk−1 =
k=0 (1 − x)2
Multiplying both sides of the equation by x gives:
∞ x
kxk =
k=0 (1 − x)2
Substituting x = 1/2 gives a sum of 2, so Build-heap uses at
most 2n comparisons and thus linear time.

Is our Analysis Tight?
“Are we doing a careful analysis? Might our algorithm be
faster than it seems?”
Doing at most x operations of at most y time each takes total
time O(xy).
However, if we overestimate too much, our bound may not be
as tight as it should be!

Heapsort
Heapify can be used to construct a heap, using the observation
that an isolated element forms a heap of size 1.
Heapsort(A)
Build-heap(A)
for i = n to 1 do
swap(A[1],A[i])
n=n−1
Heapify(A,1)

Exchanging the maximum element with the last element
and calling heapify repeatedly gives an O(n lg n) sorting
algorithm. Why is it not O(n)?

Priority Queues
Priority queues are data structures which provide extra
ﬂexibility over sorting.
This is important because jobs often enter a system at
arbitrary intervals. It is more cost-effective to insert a new
job into a priority queue than to re-sort everything on each
new arrival.

Priority Queue Operations
The basic priority queue supports three primary operations:
• Insert(Q,x): Given an item x with key k, insert it into the
priority queue Q.
• Find-Minimum(Q) or Find-Maximum(Q): Return a
pointer to the item whose key value is smaller (larger)
than any other key in the priority queue Q.
• Delete-Minimum(Q) or Delete-Maximum(Q) – Remove
the item from the priority queue Q whose key is minimum
(maximum).
Each of these operations can be easily supported using heaps
or balanced binary trees in O(log n).

Applications of Priority Queues: Dating
What data structure should be used to suggest who to ask out
next for a date?
It needs to support retrieval by desirability, not name.
Desirability changes (up or down), so you can re-insert the
max with the new score after each date.
New people you meet get inserted with your observed
desirability level.
There is never a reason to delete anyone until they arise to the
top.

Applications of Priority Queues: Discrete Event
Simulations
In simulations of airports, parking lots, and jai-alai – priority
queues can be used to maintain who goes next.
The stack and queue orders are just special cases of orderings.
In real life, certain people cut in line.

Applications of Priority Queues: Greedy
Algorithms
In greedy algorithms, we always pick the next thing which
locally maximizes our score. By placing all the things in a
priority queue and pulling them off in order, we can improve
performance over linear search or sorting, particularly if the
weights change.
War Story: sequential strips in triangulations

Skiena algorithm 2007 lecture07 heapsort priority queues

More Related Content

What's hot (20)

Viewers also liked (20)

Similar to Skiena algorithm 2007 lecture07 heapsort priority queues (20)

More from zukun (20)

Recently uploaded (20)

Skiena algorithm 2007 lecture07 heapsort priority queues
