SQLite Database Tutorial In Android

SQLite Database Tutorial In Android
Posted on J uly 9, 2018 by Bhadresh
SQLite Database in Android used to store persistent data. If you want to store some data into local storage then SQLite
Database is the most common storage option. It is lightweight database that comes with Android OS.
In Android There are others data storage options also available Like
Shared Preference to store small amount of data in form of Key / Value pair.
SQLite Database
File System
Here we are going to learn how to use SQLite Database in Android application. SQLite is an open source SQL database
which store the data into text le on android device. SQLite database in android also support relational database features.
In order to access SQLite Database you don’t need to establish any kind of connections like J DBC, ODBC.
1. Overview
In this tutorial we are going to create Student App to learn all the operation related the SQLite Database. The app is very
simple and which allow us to insert, update, delete and view student data. We will use 2 screen to perform all this
operations. In rst screen we fetch full list of student from the student table while using second screen update or add new
student record.

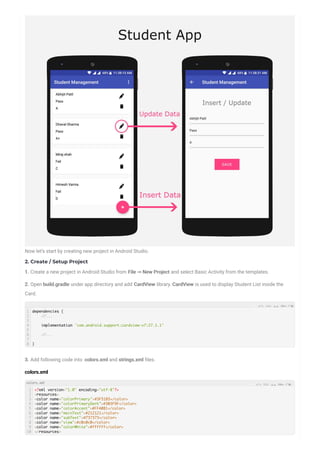

Following is the Student app screen shot.

Now let’s start by creating new project in Android Studio.
2. Create / Setup Project
1. Create a new project in Android Studio from File ⇒ New Project and select Basic Activity from the templates.
2. Open build.gradle under app directory and add CardView library. CardView is used to display Student List inside the
Card.
3. Add following code into colors.xml and strings.xml les.
colors.xml
1
2
3
4
5
6
7
8
dependencies {
//...
implementation 'com.android.support:cardview-v7:27.1.1'
//...
}
1
2
3
4
5
6
7
8
9
10
<?xml version="1.0" encoding="utf-8"?>
<resources>
<color name="colorPrimary">#3F51B5</color>
<color name="colorPrimaryDark">#303F9F</color>
<color name="colorAccent">#FF4081</color>
<color name="mainText">#212121</color>
<color name="subText">#737373</color>
<color name="view">#c0c0c0</color>
<color name="colorWhite">#ffffff</color>
</resources>
colors.xml

strings.xml

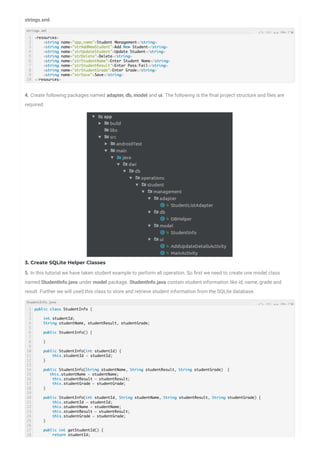

4. Create following packages named adapter, db, model and ui. The following is the nal project structure and les are
required.
3. Create SQLite Helper Classes
5. In this tutorial we have taken student example to perform all operation. So rst we need to create one model class
named StudentInfo.java under model package. StudentInfo.java contain student information like id, name, grade and
result. Further we will used this class to store and retrieve student information from the SQLite database.
1
2
3
4
5
6
7
8
9
10
<resources>
<string name="app_name">Student Management</string>
<string name="strAddNewStudent">Add New Student</string>
<string name="strUpdateStudent">Update Student</string>
<string name="strDelete">Delete</string>
<string name="strStudentName">Enter Student Name</string>
<string name="strStudentResult">Enter Pass/Fail</string>
<string name="strStudentGrade">Enter Grade</string>
<string name="strSave">Save</string>
</resources>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
public class StudentInfo {
int studentId;
String studentName, studentResult, studentGrade;
public StudentInfo() {
}
public StudentInfo(int studentId) {
this.studentId = studentId;
}
public StudentInfo(String studentName, String studentResult, String studentGrade) {
this.studentName = studentName;
this.studentResult = studentResult;
this.studentGrade = studentGrade;
}
public StudentInfo(int studentId, String studentName, String studentResult, String studentGrade) {
}
public int getStudentId() {
return studentId;
strings.xml
StudentInfo.java

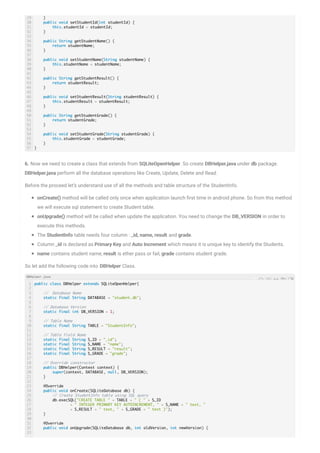

6. Now we need to create a class that extends from SQLiteOpenHelper. So create DBHelper.java under db package.
DBHelper.java perform all the database operations like Create, Update, Delete and Read.
Before the proceed let’s understand use of all the methods and table structure of the StudentInfo.
onCreate() method will be called only once when application launch rst time in android phone. So from this method
we will execute sql statement to create Student table.
onUpgrade() method will be called when update the application. You need to change the DB_VERSION in order to
execute this methods.
The StudentInfo table needs four column : _id, name, result and grade.
Column _id is declared as Primary Key and Auto Increment which means it is unique key to identify the Students.
name contains student name, result is ether pass or fail, grade contains student grade.
So let add the following code into DBHelper Class.
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
}
public void setStudentId(int studentId) {
}
public String getStudentName() {
return studentName;
}
public void setStudentName(String studentName) {
}
public String getStudentResult() {
return studentResult;
}
public void setStudentResult(String studentResult) {
}
public String getStudentGrade() {
return studentGrade;
}
public void setStudentGrade(String studentGrade) {
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
public class DBHelper extends SQLiteOpenHelper{
// Database Name
static final String DATABASE = "student.db";
// Database Version
static final int DB_VERSION = 1;
// Table Name
static final String TABLE = "StudentInfo";
// Table Field Name
static final String S_ID = "_id";
static final String S_NAME = "name";
static final String S_RESULT = "result";
static final String S_GRADE = "grade";
// Override constructor
public DBHelper(Context context) {
super(context, DATABASE, null, DB_VERSION);
}
@Override
public void onCreate(SQLiteDatabase db) {
// Create StudentInfo table using SQL query
db.execSQL("CREATE TABLE " + TABLE + " ( " + S_ID
+ " INTEGER PRIMARY KEY AUTOINCREMENT, " + S_NAME + " text, "
+ S_RESULT + " text, " + S_GRADE + " text )");
}
@Override
public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
DBHelper.java

7. Now we need to implement four methods to perform CRUD [Create, Read, Update, Delete] operations with student data.
Let’s have look of each methods.
7.1 Insert Student Data
Inserting data requires writable instance of the SQLiteDatabase So Create instance using getWritableDatabase().
ContentValues() is used to add database values in respective column. So setup all the value with respective column
in ContentValues(), Skip _id because it’s auto inserted.
Close the database connection after inserting is done.
7.2 Update Student Data.
Updating data also requiring writable access of the SQLiteDatabase. Student data will be updated using _id column.
7.3 Delete Student Data.
To delete student data we also required to declare SQLiteDatabase instance with writable access. The following methods
will be Delete speci ed student record from the database using _id
7.4 Fetch Student Data
To read data from the database table requires SQLiteDatabase instance as a read access. For that we can de ne
SQLiteDatabase instance using getReadableDatabase().
Following method will fetch all students data from the database table.
34
35
36
37
38
39
40
// Drop old version table
db.execSQL("Drop table " + TABLE);
// Create New Version table
onCreate(db);
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
public void addStudentDetails(StudentInfo studInfo) {
SQLiteDatabase db = this.getWritableDatabase();
ContentValues values = new ContentValues();
values.put(S_NAME, studInfo.getStudentName());
values.put(S_RESULT, studInfo.getStudentResult());
values.put(S_GRADE, studInfo.getStudentGrade());
// Inserting Row
db.insert(TABLE, null, values);
db.close();
}
1
2
3
4
5
6
7
8
9
10
11
12
13
public int updateStudentDetails(StudentInfo studInfo) {
// updating row
return db.update(TABLE, values, S_ID + " = ?",
new String[]{String.valueOf(studInfo.getStudentId())});
}
1
2
3
4
5
6
7
8
public void deleteStudentDetails(StudentInfo studentInfo) {
db.delete(TABLE, S_ID + " = ?",
new String[]{String.valueOf(studentInfo.getStudentId())});
db.close();
}
1 public List<StudentInfo> getStudentDetails() {
addStudentDetails
updateStudentDetails
deleteStudentDetails
getStudentDetails

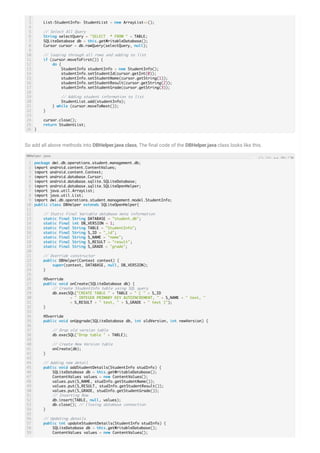

So add all above methods into DBHelper.java class, The nal code of the DBHelper.java class looks like this.
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
List<StudentInfo> StudentList = new ArrayList<>();
// Select All Query
String selectQuery = "SELECT * FROM " + TABLE;
Cursor cursor = db.rawQuery(selectQuery, null);
// looping through all rows and adding to list
if (cursor.moveToFirst()) {
do {
StudentInfo studentInfo = new StudentInfo();
studentInfo.setStudentId(cursor.getInt(0));
studentInfo.setStudentName(cursor.getString(1));
studentInfo.setStudentResult(cursor.getString(2));
studentInfo.setStudentGrade(cursor.getString(3));
// Adding student information to list
StudentList.add(studentInfo);
} while (cursor.moveToNext());
}
cursor.close();
return StudentList;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
package dwi.db.operations.student.management.db;
import android.content.ContentValues;
import android.content.Context;
import android.database.Cursor;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;
import java.util.ArrayList;
import java.util.List;
import dwi.db.operations.student.management.model.StudentInfo;
public class DBHelper extends SQLiteOpenHelper{
// Static Final Variable database meta information
static final String DATABASE = "student.db";
static final int DB_VERSION = 1;
static final String TABLE = "StudentInfo";
static final String S_ID = "_id";
static final String S_NAME = "name";
static final String S_RESULT = "result";
static final String S_GRADE = "grade";
// Override constructor
public DBHelper(Context context) {
super(context, DATABASE, null, DB_VERSION);
}
@Override
public void onCreate(SQLiteDatabase db) {
// Create StudentInfo table using SQL query
db.execSQL("CREATE TABLE " + TABLE + " ( " + S_ID
+ " INTEGER PRIMARY KEY AUTOINCREMENT, " + S_NAME + " text, "
+ S_RESULT + " text, " + S_GRADE + " text )");
}
@Override
public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
// Drop old version table
db.execSQL("Drop table " + TABLE);
// Create New Version table
onCreate(db);
}
// Adding new detail
public void addStudentDetails(StudentInfo studInfo) {
// Inserting Row
db.insert(TABLE, null, values);
db.close(); // Closing database connection
}
// Updating details
public int updateStudentDetails(StudentInfo studInfo) {
DBHelper.java

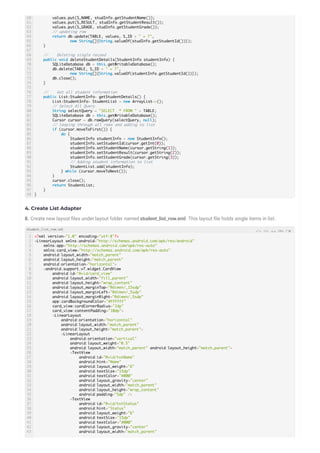

4. Create List Adapter
8. Create new layout les under layout folder named student_list_row.xml. This layout le holds single items in list.
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
// updating row
return db.update(TABLE, values, S_ID + " = ?",
new String[]{String.valueOf(studInfo.getStudentId())});
}
// Deleting single recoed
public void deleteStudentDetails(StudentInfo studentInfo) {
db.delete(TABLE, S_ID + " = ?",
new String[]{String.valueOf(studentInfo.getStudentId())});
db.close();
}
// Get all student information
public List<StudentInfo> getStudentDetails() {
List<StudentInfo> StudentList = new ArrayList<>();
// Select All Query
String selectQuery = "SELECT * FROM " + TABLE;
Cursor cursor = db.rawQuery(selectQuery, null);
// looping through all rows and adding to list
if (cursor.moveToFirst()) {
do {
StudentInfo studentInfo = new StudentInfo();
studentInfo.setStudentId(cursor.getInt(0));
studentInfo.setStudentName(cursor.getString(1));
studentInfo.setStudentResult(cursor.getString(2));
studentInfo.setStudentGrade(cursor.getString(3));
// Adding student information to list
StudentList.add(studentInfo);
} while (cursor.moveToNext());
}
cursor.close();
return StudentList;
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:card_view="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="horizontal">
<android.support.v7.widget.CardView
android:id="@+id/card_view"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:layout_marginTop="@dimen/_15sdp"
android:layout_marginLeft="@dimen/_5sdp"
android:layout_marginRight="@dimen/_5sdp"
app:cardBackgroundColor="#FFFFFF"
card_view:cardCornerRadius="2dp"
card_view:contentPadding="10dp">
<LinearLayout
android:orientation="horizontal"
android:layout_height="match_parent">
<LinearLayout
android:orientation="vertical"
android:layout_weight="0.5"
android:layout_width="match_parent" android:layout_height="match_parent">
<TextView
android:id="@+id/txtName"
android:hint="Name"
android:layout_weight="6"
android:textSize="15dp"
android:textColor="#000"
android:layout_gravity="center"
android:padding="5dp" />
<TextView
android:id="@+id/txtStatus"
android:hint="Status"
student_list_row.xml

9. Now create the new class named StudentListAdapter.java under adapter package.
This is the Student List adapter and it will show you all the student records from the database.
From the list you can Delete or Update particular student data by tapping on Delete or Update button.
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
<TextView
android:id="@+id/txtGrade"
android:hint="Grade"
</LinearLayout>
<LinearLayout
android:layout_weight="1.9"
android:layout_height="match_parent">
<ImageView
android:id="@+id/imgEdit"
android:src="@drawable/ic_edit"
android:layout_width="@dimen/_20sdp"
android:layout_height="@dimen/_20sdp"
/>
<ImageView
android:id="@+id/imgDelete"
android:src="@drawable/ic_delete"
android:layout_width="@dimen/_20sdp"
/>
</LinearLayout>
</LinearLayout>
</android.support.v7.widget.CardView>
</LinearLayout>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
public class StudentListAdapter extends ArrayAdapter<StudentInfo> {
// Context Objects
Context context;
MainActivity display_data;
// Primitive Variables
public List<StudentInfo> productList;
public static LayoutInflater inflater = null;
// DB Objects
DBHelper db;
public StudentListAdapter(@NonNull Context context, int resource, List<StudentInfo> productList) {
super(context, resource, productList);
this.context = context;
this.productList = productList;
db = new DBHelper(context);
display_data = (MainActivity) this.context;
inflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
}
@Override
public StudentInfo getItem(int position) {
return productList.get(position);
}
@NonNull
@Override
public View getView(int position, @Nullable View convertView, @NonNull ViewGroup parent) {
ViewProHolder holder;
if (convertView == null) {
View view = inflater.inflate(R.layout.student_list_row, null);
holder = ViewProHolder.create((LinearLayout) view);
view.setTag(holder);
} else {
holder = (ViewProHolder) convertView.getTag();
}
try {
final StudentInfo item = getItem(position);
holder.txtName.setText(item.getStudentName());
StudentListAdapter

5. Create Add / Update Activity
10. Create new layout les under layout folder named activity_add_update.xml. This the layout of Add / Update student
data activity.
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
holder.txtStatus.setText(item.getStudentResult());
holder.txtGrade.setText(item.getStudentGrade());
// Update Student Data
holder.imgEdit.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Intent intent = new Intent(context, AddUpdateDetailsActivity.class);
intent.putExtra("sid", item.getStudentId());
intent.putExtra("sname", item.getStudentName());
intent.putExtra("sstatus", item.getStudentResult());
intent.putExtra("sgrade", item.getStudentGrade());
MainActivity.opration = 1;
display_data.startActivityForResult(intent, 1);
}
});
// Delete Student Data
holder.imgDelete.setOnClickListener(new View.OnClickListener() {
@Override
try {
AlertDialog.Builder alertDialog = new AlertDialog.Builder(context);
// Setting Dialog Title
alertDialog.setTitle("Confirm Delete...");
// Setting Dialog Message
alertDialog.setMessage("Are you sure you want delete this?");
// Setting Icon to Dialog
alertDialog.setIcon(R.drawable.ic_delete);
// Setting Positive "Yes" Button
alertDialog.setPositiveButton("YES", new DialogInterface.OnClickListener() {
public void onClick(DialogInterface dialog, int which) {
db.deleteStudentDetails(new StudentInfo(item.getStudentId()));
display_data.bindStudentData();
}
});
// Setting Negative "NO" Button
alertDialog.setNegativeButton("NO", new DialogInterface.OnClickListener() {
public void onClick(DialogInterface dialog, int which) {
dialog.cancel();
}
});
alertDialog.show();
} catch (Exception e) {
Log.e("Error ", e.getMessage());
e.printStackTrace();
}
}
});
Log.e("Error in adapter: ", e.getMessage());
}
return holder.view;
}
public static class ViewProHolder {
public final LinearLayout view;
TextView txtName, txtStatus, txtGrade;
ImageView imgEdit;
ImageView imgDelete;
public ViewProHolder(LinearLayout view, TextView tv_name, TextView tv_status, TextView im_icon,
ImageView im_edit, ImageView im_delete) {
this.view = view;
this.txtName = tv_name;
this.txtStatus = tv_status;
this.txtGrade = im_icon;
this.imgEdit = im_edit;
this.imgDelete = im_delete;
}
public static ViewProHolder create(LinearLayout view) {
// Widget GUI Init
TextView tv_name = view.findViewById(R.id.txtName);
TextView tv_status = view.findViewById(R.id.txtStatus);
TextView tv_grade = view.findViewById(R.id.txtGrade);
ImageView im_edit = view.findViewById(R.id.imgEdit);
ImageView im_delete = view.findViewById(R.id.imgDelete);
return new ViewProHolder(view, tv_name, tv_status, tv_grade, im_edit, im_delete);
}
}
}
1 <?xml version="1.0" encoding="utf-8"?>
activity_add_update.xml

2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_height="match_parent"
tools:context=".ui.AddUpdateDetailsActivity">
<TextView
android:id="@+id/tvHeading"
android:layout_width="wrap_content"
android:text="@string/strAddNewStudent"
android:gravity="center"
android:paddingTop="@dimen/_15sdp"
android:layout_marginBottom="@dimen/_10sdp"
android:textSize="30sp"
/>
<LinearLayout android:orientation="vertical"
android:paddingLeft="@dimen/_15sdp"
android:paddingRight="@dimen/_15sdp"
android:layout_height="wrap_content" android:layout_width="match_parent">
<EditText
android:id="@+id/etName"
android:ems="10"
android:inputType="textEmailAddress"
android:maxLines="1"
android:textSize="@dimen/_12sdp"
android:hint="@string/strStudentName"
android:textColor="@color/mainText"
android:textColorHint="@color/subText"
android:paddingBottom="@dimen/_5sdp"
android:background="@android:color/transparent" />
<View
android:background="@color/view"/>
<EditText
android:id="@+id/etStatus"
android:ems="10"
android:hint="@string/strStudentResult"
<View
<EditText
android:id="@+id/etGrade"
android:ems="10"
android:hint="@string/strStudentGrade"
<View
<Button
android:id="@+id/btnSave"
android:text="@string/strSave"
android:gravity="center"
android:background="@color/colorAccent"
android:textColor="@color/colorWhite"
android:layout_width="wrap_content"

11. Now create the AddUpdateDetailsActivity.java le under ui package. Using this class we can perform Add / Update
operations.
92
93
94
95
android:padding="@dimen/_10sdp"
android:layout_height="wrap_content" />
</LinearLayout>
</LinearLayout>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
public class AddUpdateDetailsActivity extends AppCompatActivity implements View.OnClickListener {
int strId;
String strName, strStatus, strGrade;
// DB Objects
public DBHelper db;
// Widget GUI Declare
TextView tvHeading;
EditText etName, etStatus, etGrade;
Button btnSave;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_add_update);
getSupportActionBar().setDisplayHomeAsUpEnabled(true);
getSupportActionBar().setDisplayShowHomeEnabled(true);
// Initialize Database Instance
db = new DBHelper(AddUpdateDetailsActivity.this);
etName = findViewById(R.id.etName);
etStatus = findViewById(R.id.etStatus);
etGrade = findViewById(R.id.etGrade);
tvHeading = findViewById(R.id.tvHeading);
btnSave = findViewById(R.id.btnSave);
// Set Title According To Operation
if (opration == 0) {
tvHeading.setText("Add Student Data");
} else {
tvHeading.setText("Update Student Data");
}
Intent intent = getIntent();
if (intent != null) {
strId = intent.getIntExtra("sid", 0);
strName = intent.getStringExtra("sname");
strStatus = intent.getStringExtra("sstatus");
strGrade = intent.getStringExtra("sgrade");
etName.setText(strName);
etStatus.setText(strStatus);
etGrade.setText(strGrade);
}
btnSave.setOnClickListener(this);
}
@Override
public boolean onSupportNavigateUp() {
onBackPressed();
return true;
}
@Override
if (v.getId() == R.id.btnSave) {
if (TextUtils.isEmpty(etName.getText())) {
Toast.makeText(this, "Name is empty..!", Toast.LENGTH_SHORT).show();
} else if (TextUtils.isEmpty(etStatus.getText())) {
Toast.makeText(this, "Status is empty..!", Toast.LENGTH_SHORT).show();
} else if (TextUtils.isEmpty(etGrade.getText())) {
Toast.makeText(this, "Grade is empty..!", Toast.LENGTH_SHORT).show();
} else {
// get values from edittext
strName = etName.getText().toString();
strStatus = etStatus.getText().toString();
strGrade = etGrade.getText().toString();
if (opration == 0) {
// Call insert method
addDetails();
} else {
// Call update method
updateDetails();
}
}
}
AddUpdateDetailsActivity.java

6. Setup Main Activity
12. Finally open MainActivity.java and add following code into this. MainActivity will show you all the student records in
form of list.
Using Floating Action Button you can add new student data in table.
Edit Button allows to edit perticular student data from the list.
By tapping Delete Button from the list you can delete particular student data.
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
}
// Call update method of SQLiteDatabase Class and close after
private void updateDetails() {
Intent intent = new Intent();
try {
db.updateStudentDetails(new StudentInfo(strId, strName, strStatus, strGrade));
showRecords();
intent.putExtra("msg", "Details updated successfully..!");
setResult(1, intent);
finish();
intent.putExtra("msg", "Update Failed..!");
finish();
}
}
// Call insert method of SQLiteDatabase Class and close after
public void addDetails() {
Intent intent = new Intent();
try {
db.addStudentDetails(new StudentInfo(strName, strStatus, strGrade));
showRecords();
intent.putExtra("msg", "Details added successfully..!");
finish();
intent.putExtra("msg", "added failed..!");
finish();
}
}
// Reading all contacts
public void showRecords() {
Log.e("Reading ", "Reading all records..");
List<StudentInfo> studentInfos = db.getStudentDetails();
for (StudentInfo cn : studentInfos) {
String log = "SId: " + cn.getStudentId() + " ,StudName: " + cn.getStudentName() + " StudStatus: " + cn.getStudentRes
)
+ " StudeGrade: " + cn.getStudentGrade();
// Writing records to log
Log.e("Student: ", log);
}
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
public class MainActivity extends AppCompatActivity {
public static int opration;
List<StudentInfo> mStudentInfoList;
// Widget GUI Declare
ListView lstView;
FloatingActionButton fab;
// DB Objects
DBHelper db;
// Adapter Object
StudentListAdapter adapter;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
// Initialize Database Instance
db = new DBHelper(MainActivity.this);
// Widget GUI Init
MainActivity.java

I hope you like this article. If you have followed this tutorial carefully then application run without any issue. Write us if there
is any issue to implement SQLite Database In Android.
Happy Coding
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104

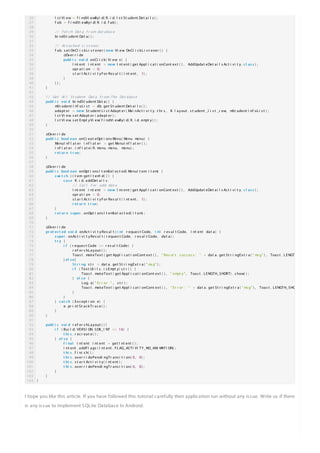

l s t Vi ew = f i ndVi ewByI d( R. i d. l s t St udent Det ai l s ) ;
f ab = f i ndVi ewByI d( R. i d. f ab) ;
/ / Fet ch Dat a f r om dat abas e
bi ndSt udent Dat a( ) ;
/ / At t ached Li s t ener
f ab. s et OnCl i c kLi s t ener ( newnew Vi ew. OnCl i c kLi s t ener ( ) {
@Over r i de
publ i cpubl i c voi dvoi d onCl i c k( Vi ew v) {
I nt ent i nt ent = newnew I nt ent ( get Appl i c at i onCont ext ( ) , AddUpdat eDet ai l s Ac t i vi t y . c l as sc l as s ) ;
opr at i on = 0;
s t ar t Ac t i vi t yFor Res ul t ( i nt ent , 1) ;
}
} ) ;
}
/ / Get Al l St udent Dat a Fr om The Dat abas e
publ i cpubl i c voi dvoi d bi ndSt udent Dat a( ) {
mSt udent I nf oLi s t = db. get St udent Det ai l s ( ) ;
adapt er = newnew St udent Li s t Adapt er ( Mai nAc t i vi t y. t hi s , R. l ayout . s t udent _l i s t _r ow, mSt udent I nf oLi s t ) ;
l s t Vi ew. s et Adapt er ( adapt er ) ;
l s t Vi ew. s et Empt yVi ew( f i ndVi ewByI d( R. i d. empt y) ) ;
}
@Over r i de
publ i cpubl i c bool eanbool ean onCr eat eOpt i ons Menu( Menu menu) {
MenuI nf l at er i nf l at er = get MenuI nf l at er ( ) ;
i nf l at er . i nf l at e( R. menu. menu, menu) ;
r et ur nr et ur n t r uet r ue ;
}
@Over r i de
publ i cpubl i c bool eanbool ean onOpt i ons I t emSel ec t ed( MenuI t em i t em) {
s wi t c hs wi t c h ( i t em. get I t emI d( ) ) {
c as ec as e R. i d. addDet ai l s :
/ / Cal l f or add dat a
I nt ent i nt ent = newnew I nt ent ( get Appl i c at i onCont ext ( ) , AddUpdat eDet ai l s Ac t i vi t y . c l as sc l as s ) ;
opr at i on = 0;
s t ar t Ac t i vi t yFor Res ul t ( i nt ent , 1) ;
r et ur nr et ur n t r uet r ue ;
}
r et ur nr et ur n s upers uper . onOpt i ons I t emSel ec t ed( i t em) ;
}
@Over r i de
pr ot ec t edpr ot ec t ed voi dvoi d onAc t i vi t yRes ul t ( i nti nt r eques t Code, i nti nt r es ul t Code, I nt ent dat a) {
s upers uper . onAc t i vi t yRes ul t ( r eques t Code, r es ul t Code, dat a) ;
t r yt r y {
i fi f ( r eques t Code == r es ul t Code) {
r ef er s hLayout ( ) ;
Toas t . makeText ( get Appl i c at i onCont ext ( ) , " Res ul t s uc c es s : " + dat a. get St r i ngExt r a( " ms g" ) , Toas t . LENGTH_SHO
} el s eel s e {
St r i ngSt r i ng s t r = dat a. get St r i ngExt r a( " ms g" ) ;
i fi f ( Text Ut i l s . i s Empt y( s t r ) ) {
Toas t . makeText ( get Appl i c at i onCont ext ( ) , " empt y" , Toas t . LENGTH_SHORT) . s how( ) ;
} el s eel s e {
Log. e( " Er r or " , s t r ) ;
Toas t . makeText ( get Appl i c at i onCont ext ( ) , " Er r or : " + dat a. get St r i ngExt r a( " ms g" ) , Toas t . LENGTH_SHORT
}
}
} c at c hc at c h ( Exc ept i on e) {
e. pr i nt St ac kTr ac e( ) ;
}
}
publ i cpubl i c voi dvoi d r ef er s hLayout ( ) {
i fi f ( Bui l d. VERSI ON. SDK_I NT >= 16) {
t hi st hi s . r ec r eat e( ) ;
} el s eel s e {
f i nalf i nal I nt ent i nt ent = get I nt ent ( ) ;
i nt ent . addFl ags ( I nt ent . FLAG_ACTI VI TY_NO_ANI MATI ON) ;
t hi st hi s . f i ni s h( ) ;
t hi st hi s . over r i dePendi ngTr ans i t i on( 0, 0) ;
t hi st hi s . s t ar t Ac t i vi t y( i nt ent ) ;
t hi st hi s . over r i dePendi ngTr ans i t i on( 0, 0) ;
}
}
}

SQLite Database Tutorial In Android

More Related Content

What's hot (20)

Similar to SQLite Database Tutorial In Android (20)

Recently uploaded (20)

SQLite Database Tutorial In Android
