Android Database Tutorial

Android Database Tools

The first tool is SQLiteOpenHelper – which is responsible for creating, opening, and upgrading a program’s
database. The other tool is SQLiteDatabase – which is responsible for communicating changes to the data
within the database. In this tutorial, first go about creating a database manager class that can be modified and
plugged into most apps. This program will make use of both the SQLiteOpenHelper and the SQLiteDatabase
classes. Afterwards, create a simple application that will instantiate and use our new database manager class.

Setting Up the SQLiteOpenHelper for Use

How our classes are layed out

The first thing is extend the SQLiteOpenHelper class so that it creates our database with the appropriate
structure that our application needs. The SQLiteOpenHelper class is abstract. This means we need to extend the
class with a concrete class, overriding the appropriate methods. We also need to make available to this class a
database name, table name, and column names. The best way to handle the variables is with constants.
Constants ensure that the correct names are always used.

The SQLiteOpenHelper class internal to our database manager class. All of database constants will be inside
the database manager class so they are accessible from both our SQLiteOpenHelper class and our main
database class. This setup may not be common practice; easier to work with. The SQLDatabase object,
responsible for communicating with the database, is also going to be in the database manager class. This way
all of our resources are available throughout the manager class.

How our database is structured

In this a single table with three columns: one column is the row id (id), and the other two columns are Strings
(table_row_one and table_row_two). All of these column names as well as a database version number (more on
database version later) are going to be constants.

Our base class containing database constants, a SQLDatabase object, and an internal class that extends
SQLiteOpenHelper.


AABDatabaseManager.java
import android.database.sqlite.SQLiteOpenHelper;

public class AABDatabaseManager
{
private SQLiteDatabase db; // a reference to the database manager class.
private final String DB_NAME = "database_name"; // the name of our database
private final int DB_VERSION = 1; // the version of the database

// the names for our database columns
private final String TABLE_NAME = "database_table";
private final String TABLE_ROW_ID = "id";
private final String TABLE_ROW_ONE = "table_row_one";
private final String TABLE_ROW_TWO = "table_row_two";

// TODO: write the constructor and methods for this class

// the beginnings our SQLiteOpenHelper class
private class CustomSQLiteOpenHelper extends SQLiteOpenHelper
{
// TODO: override the constructor and other methods for the parent class
}
}

Now customize the helper class to create our database according to specification.

Overriding the SQLiteOpenHelper methods.

SQLiteOpenHelper has to know how to design the database. By overriding the onCreate() method with the
proper code for creating the database. It’s as simple as creating a SQLite query string and passing it to the
SQLiteDatabase object (db). SQLite query structure is out of scope for discussion here so I will not go into
detail here.

The SQLite query String needs to read:


create table database_table ( id integer primary key auto increment not null, table_row_one text, table_row_two
text);

Our method override with the query String built from constants looks like this:

@Override
public void onCreate(SQLiteDatabase db)
{
// the SQLite query string that will create our 3 column database table.
String newTableQueryString =
"create table " +
TABLE_NAME +
" (" +
TABLE_ROW_ID + " integer primary key auto increment not null," +
TABLE_ROW_ONE + " text," +
TABLE_ROW_TWO + " text" +
");";

// execute the query string to the database.
db.execSQL(newTableQueryString);
}

We need to override the constructor as well. We pass the super constructor the context, the database name
constant, null, and the database version constant. The null argument has to do with a custom Cursor Factory.
The Cursor Factory is them creates the containers in which our data is passed out of the database. When data is
collected from the database, it comes in the form of a Cursor. Cursors are a form of Java collection similar to an
ArrayList. We are using the default Cursor Factory so we can just pass in null. Constructor override is:

public CustomSQLiteOpenHelper (Context context)
{
super(context, DB_NAME, null, DB_VERSION);
}

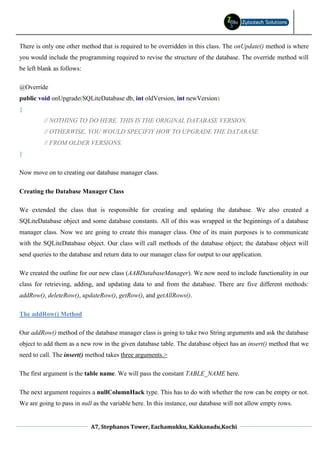

There is only one other method that is required to be overridden in this class. The onUpdate() method is where
you would include the programming required to revise the structure of the database. The override method will
be left blank as follows:

@Override
public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion)
{
// NOTHING TO DO HERE. THIS IS THE ORIGINAL DATABASE VERSION.
// OTHERWISE, YOU WOULD SPECIFIY HOW TO UPGRADE THE DATABASE
// FROM OLDER VERSIONS.
}

Now move on to creating our database manager class.

Creating the Database Manager Class

We extended the class that is responsible for creating and updating the database. We also created a
SQLiteDatabase object and some database constants. All of this was wrapped in the beginnings of a database
manager class. Now we are going to create this manager class. One of its main purposes is to communicate
with the SQLiteDatabase object. Our class will call methods of the database object; the database object will
send queries to the database and return data to our manager class for output to our application.

We created the outline for our new class (AABDatabaseManager). We now need to include functionality in our
class for retrieving, adding, and updating data to and from the database. There are five different methods:
addRow(), deleteRow(), updateRow(), getRow(), and getAllRows().

The addRow() Method

Our addRow() method of the database manager class is going to take two String arguments and ask the database
object to add them as a new row in the given database table. The database object has an insert() method that we
need to call. The insert() method takes three arguments.>

The first argument is the table name. We will pass the constant TABLE_NAME here.

The next argument requires a nullColumnHack type. This has to do with whether the row can be empty or not.
We are going to pass in null as the variable here. In this instance, our database will not allow empty rows.


The final argument for the database’s insert() method requires the type ContentValues. A ContentValues object
is a modified java collection that contains key/value pairs. We need to create a ContentValues object and pass it
two key/value pairs to satisfy the database requirement (the id column will fill in automatically, that leaves the
text_one and text_two columns). Once we have our ContentValues object, we can call the insert() method to
add the new data to the database. Database method calls inside of try/catch blocks to pass error messages to the
log for debugging. Let’s take a look at this code:

public void addRow(String rowStringOne, String rowStringTwo)
{
// this is a key value pair holder used by android's SQLite functions
ContentValues values = new ContentValues();

// this is how you add a value to a ContentValues object
// we are passing in a key string and a value string each time
values.put(TABLE_ROW_ONE, rowStringOne);
values.put(TABLE_ROW_TWO, rowStringTwo);

// ask the database object to insert the new data
try
{
db.insert(TABLE_NAME, null, values);
}
catch(Exception e)
{
Log.e("DB ERROR", e.toString()); // prints the error message to the log
e.printStackTrace(); // prints the stack trace to the log
}
}

The deleteRow() Method

The deleteRow() method is a little simpler. It is going to take one argument, long rowID. We use a Long instead
of an Integer because integers in SQLite are larger than integers in Java. Collecting data from a SQLite
database and storing it in a Java Integer type may result in data loss. Using Long when dealing with SQLite in
Java is recommended. Once we pass in our rowID argument, we are going to call the SQLiteDatabase object’s


delete() method, passing it three arguments. The first argument, again, is the table name we are deleting a row
from – our TABLE_NAME constant. The second argument we pass is the SQLite WHERE clause without the
word “where”. We need the “id” to equal the id we want to be deleted. Since this is a String argument, we can
build the String inside the method call like this: TABLE_ROW_ID + “=” + rowID. Here is the deleteRow()
method:

public void deleteRow(long rowID)
{
// ask the database manager to delete the row of given id
try
{
db.delete(TABLE_NAME, TABLE_ROW_ID + "=" + rowID, null);
}
catch (Exception e)
{
Log.e("DB ERROR", e.toString());
e.printStackTrace();
}
}

The updateRow() Method

The updateRow() method requires three arguments: the rowID, rowStringOne, and rowStringTwo. Like in the
addRow() method, create ContentValues object and give it two key/value pairs. Once everything is ready, we
send it to the database object inside of a try/catch block.

The SQLite database object has an update() method that takes four arguments. The first argument is the table
name. The next argument is the ContentValues object. The third argument is the SQLite WHERE clause. Again
we put this string together inside of the method call. The final argument is the WHERE clause arguments.
Typically, you could specify a String array of arguments to pass in for the WHERE conditions. For this case
there is only one argument, so we will pass in null. Here is the entire method:

public void updateRow(long rowID, String rowStringOne, String rowStringTwo)
{


// ask the database object to update the database row of given rowID
try {db.update(TABLE_NAME, values, TABLE_ROW_ID + "=" + rowID, null);}
catch (Exception e)
{
Log.e("DB Error", e.toString());
}
}

The getRowAsArray() and getAllRowsAsArrays() Methods

These next two methods are going to exemplify the use of Cursor objects. When we retrieve a single row or
multiple rows from the SQLiteDatabase object, we receive back a Cursor. These Cursor objects act as
containers and iterators for the rows of data that are returned. I chose to have our methods convert the data
inside the Cursor to ArrayLists. The getAllRowsAsArrays() method and not the getRowAsArray() method

Before we get started, cover the casting required for the ArrayList. Casting an ArrayList looks like this:
ArrayList<ObjectType>. Inside of the brackets is where you specify what type of objects will be stored inside
of the ArrayList. In this example, we have ArrayLists of unspecified objects inside of an ArrayList. If we were
to declare an ArrayList of Objects. We would write it: ArrayList<Object>().

ArrayList<ArrayList<Object>> dataArrays = new ArrayList<ArrayList<Object>>();

Let’s move on to the getRowsAsArrays() method. The first thing we do is create an ArrayList of ArrayLists of
Objects to store the data in the method. I just covered how to do that. The next thing we need to do is create our
Cursor object. I declare the Cursor object. Then, when I create it, I do so by calling the database object’s
query() method. Remember that the query() method returns a Cursor object. Our query() method takes seven
arguments. Fortunately, we only need to worry about the first two to collect data from all rows in the database.
The first argument is the table name to gather data from. The second argument is an array of the names
(Strings) of each column we want the query to return. If we want data from two columns, we need two column
names. If we want data from five columns, we would need five column names. In our case, we are going to
collect data from all three columns in our example table: the id, table_row_one, and table_row_two. We can


pass the value null five times for the next five arguments. That gives us all seven arguments for the
SQLiteDatabase object’s query() method.

Our getRowAsArray() method passes a third argument to the query() method. This argument, a String, satisfies
the WHERE clause by specifying “TABLE_ROW_ID=rowID”. This is similar to the deleteRow() method’s
WHERE clause that I covered earlier in this section. So when we write the getRowAsArray() method. We pass
in three arguments and four null arguments to the SQLiteDatabase query() method.

In this code the database query() method call into seven lines. I prefer to do this for readability – you may or
may not want to do the same.

public ArrayList<Object> getRowAsArray(long rowID)
{
ArrayList<Object> rowArray = new ArrayList<Object>();
Cursor cursor;

try
{
// this method call is spread out over seven lines as a personal preference
cursor = db.query
(
TABLE_NAME,
new String[] { TABLE_ROW_ID, TABLE_ROW_ONE,
TABLE_ROW_TWO },
TABLE_ROW_ID + "=" + rowID,
null, null, null, null, null
);
// TODO Move the data from the cursor to the arraylist.
}
catch (SQLException e)
{
}


return rowArray;
}

At this point we have a cursor object that has the data from all of the rows of the database table. The next thing
we are going to do is collect this data from the cursor and store it in an ArrayList. Since the cursor object filled
itself one item at a time, the cursor’s pointer is at the end of the cursor. After each letter is typed, the pointer
(the little arrow showing you where the next letter is going to go) points at the next available space to type a
new letter. Our cursor object inserted data into each space and now it’s pointer is at the end of the data that it
entered. We want to read the data from the beginning so we need to move the pointer there. We do this with the
Cursor’s moveToFirst () function.

Once the pointer is at the front of the data, we can iterate through the cursor and collect the data as we go. Let’s
iterate through the cursor with a do/while block. We are going to “do” the data collecting “while” the Cursor’s
moveToNext() method returns false. The moveToNext() method simply tries to move the pointer to the next row
of data. If there are any available rows ahead, it goes to the “next” one and returns true. If there are no more
rows, the method does nothing and returns false.

do
{
// TODO: put data from current cursor row into an array
// TODO: put the new array into the array of arrays
}
// try to move the cursor's pointer forward one position.
while (cursor.moveToNext());

With our pointer now on the first row of data, we need to collect the data from that row from within the do
block. The first thing is create a new ArrayList of Objects. In order to add the first piece of data I use one of the
cursor’s “get” methods. There is a “get” method for each of the cursor’s supported data types. We know the
data from the first column of data is the “id” of type Long. This means we need to use the cursor’s getLong()
method.

Each of these “get” methods takes a single argument that represents the column of data we want the data from.
When we created the cursor object, the second argument we passed to the query() method was an array of three
Strings. The position of each of these column name Strings in the array of Strings corresponds to the needed
argument in the Cursor’s get functions. If we want the TABLE_ROW_ID (“id”) column’s data, we look at the


array of Strings, see that it is in position zero in that array, and decide that we need to pass “0″ to getLong() to
get back the “id” of the first row.

All we have to do to get the “id” into the ArrayList is call the ArrayList’s add() method, passing in
cursor.getLong(0) as the argument. cursor.getLong(0) will pass the data into add() which will add the data to
the ArrayList. After that we do the same for the next two positions of data using getString() twice – passing in
“1″ and “2″ consecutively.

Here is the do while list that will collect the data from the ArrayList:

do
{
ArrayList<Object> dataList = new ArrayList<Object>();

dataList.add(cursor.getLong(0));
dataList.add(cursor.getString(1));

dataArrays.add(dataList);
}
// move the cursor's pointer up one position.

Placed this do/while block inside of an if block so that it only runs “if” !cursor.isAfterLast() returns true. That
is, once the cursor’s pointer was moved to the beginning of the cursor, “if” the pointer is not after the last row
(ie., the beginning is not the end), then run the do/while code block. Once our do/while code completes, we can
return our newly created ArrayList and we are done with writing this method.

Let’s take a look at the two methods we just discussed.

/**********************************************************************
* RETRIEVING ALL ROWS FROM THE DATABASE TABLE
*
* This is an example of how to retrieve all data from a database
* table using this class. You should edit this method to suit your
* needs.

*
* the key is automatically assigned by the database
*/
public ArrayList<ArrayList<Object>> getAllRowsAsArrays()
{
// create an ArrayList that will hold all of the data collected from
// the database.
ArrayList<ArrayList<Object>> dataArrays =
new ArrayList<ArrayList<Object>>();

// this is a database call that creates a "cursor" object.
// the cursor object store the information collected from the
// database and is used to iterate through the data.
Cursor cursor;

try
{
// ask the database object to create the cursor.
cursor = db.query(
TABLE_NAME,
new String[]{TABLE_ROW_ID, TABLE_ROW_ONE,
TABLE_ROW_TWO},
);

// move the cursor's pointer to position zero.
cursor.moveToFirst();

// if there is data after the current cursor position, add it
// to the ArrayList.
if (!cursor.isAfterLast())
{
do
{




}
}
}
{
}

// return the ArrayList that holds the data collected from
// the database.
return dataArrays;
}

/**********************************************************************
* RETRIEVING A ROW FROM THE DATABASE TABLE
*
* This is an example of how to retrieve a row from a database table
* using this class. You should edit this method to suit your needs.
*
* @param rowID the id of the row to retrieve
* @return an array containing the data from the row


*/
{
// create an array list to store data from the database row.
// I would recommend creating a JavaBean compliant object
// to store this data instead. That way you can ensure
// data types are correct.
Cursor cursor;

try
{
cursor = db.query
(
TABLE_NAME,
TABLE_ROW_TWO },
);

// move the pointer to position zero in the cursor.

// if there is data available after the cursor's pointer, add
// it to the ArrayList that will be returned by the method.
{
do
{
rowArray.add(cursor.getLong(0));


rowArray.add(cursor.getString(1));
}
}

// let java know that you are through with the cursor.
cursor.close();
}
{
}

// return the ArrayList containing the given row from the database.
return rowArray;
}

The AABDatabaseManager.java class

package com.anotherandroidblog.tools.database;

import java.util.ArrayList;

import android.content.ContentValues;
import android.content.Context;
import android.database.Cursor;
import android.database.SQLException;
import android.database.sqlite.SQLiteDatabase;
import android.database.sqlite.SQLiteOpenHelper;
import android.util.Log;

public class AABDatabaseManager


{
// the Activity or Application that is creating an object from this class.
Context context;

// a reference to the database used by this application/object
private SQLiteDatabase db;

// These constants are specific to the database. They should be
// changed to suit your needs.
private final String DB_NAME = "database_name";
private final int DB_VERSION = 1;

// These constants are specific to the database table. They should be
// changed to suit your needs.
private final String TABLE_NAME = "database_table";
private final String TABLE_ROW_ID = "id";
private final String TABLE_ROW_ONE = "table_row_one";
private final String TABLE_ROW_TWO = "table_row_two";

public AABDatabaseManager(Context context)
{
this.context = context;

// create or open the database
CustomSQLiteOpenHelper helper = new CustomSQLiteOpenHelper(context);
this.db = helper.getWritableDatabase();
}

/**********************************************************************
* ADDING A ROW TO THE DATABASE TABLE
*


* This is an example of how to add a row to a database table
* using this class. You should edit this method to suit your
* needs.
*
* @param rowStringOne the value for the row's first column
* @param rowStringTwo the value for the row's second column
*/
public void addRow(String rowStringOne, String rowStringTwo)
{

// ask the database object to insert the new data
try{db.insert(TABLE_NAME, null, values);}
catch(Exception e)
{
}
}

/**********************************************************************
* DELETING A ROW FROM THE DATABASE TABLE
*
* This is an example of how to delete a row from a database table
* using this class. In most cases, this method probably does
* not need to be rewritten.
*
* @param rowID the SQLite database identifier for the row to delete.


*/
public void deleteRow(long rowID)
{
// ask the database manager to delete the row of given id
try {db.delete(TABLE_NAME, TABLE_ROW_ID + "=" + rowID, null);}
catch (Exception e)
{
}
}

/**********************************************************************
* UPDATING A ROW IN THE DATABASE TABLE
*
* This is an example of how to update a row in the database table
*
* @param rowID the SQLite database identifier for the row to update.
* @param rowStringOne the new value for the row's first column
* @param rowStringTwo the new value for the row's second column
*/
public void updateRow(long rowID, String rowStringOne, String rowStringTwo)
{

// ask the database object to update the database row of given rowID
try {db.update(TABLE_NAME, values, TABLE_ROW_ID + "=" + rowID, null);}
catch (Exception e)
{


}
}

/**********************************************************************
* RETRIEVING A ROW FROM THE DATABASE TABLE
*
* This is an example of how to retrieve a row from a database table
*
* @param rowID the id of the row to retrieve
* @return an array containing the data from the row
*/
{
// create an array list to store data from the database row.
// I would recommend creating a JavaBean compliant object
// to store this data instead. That way you can ensure
// data types are correct.
Cursor cursor;

try
{
cursor = db.query
(
TABLE_NAME,
TABLE_ROW_TWO },


);

// move the pointer to position zero in the cursor.

// if there is data available after the cursor's pointer, add
// it to the ArrayList that will be returned by the method.
{
do
{
rowArray.add(cursor.getLong(0));
}
}

// let java know that you are through with the cursor.
cursor.close();
}
{
}

// return the ArrayList containing the given row from the database.
return rowArray;
}


/**********************************************************************
* RETRIEVING ALL ROWS FROM THE DATABASE TABLE
*
* This is an example of how to retrieve all data from a database
* table using this class. You should edit this method to suit your
* needs.
*
*/

public ArrayList<ArrayList<Object>> getAllRowsAsArrays()
{
// create an ArrayList that will hold all of the data collected from
// the database.
ArrayList<ArrayList<Object>> dataArrays = new ArrayList<ArrayList<Object>>();

Cursor cursor;

try
{
// ask the database object to create the cursor.
cursor = db.query(
TABLE_NAME,
new String[]{TABLE_ROW_ID, TABLE_ROW_ONE,
TABLE_ROW_TWO},
);

// move the cursor's pointer to position zero.


// if there is data after the current cursor position, add it
// to the ArrayList.
{
do
{


}
}
}
{
}

// return the ArrayList that holds the data collected from
// the database.
return dataArrays;
}

/**
* This class is designed to check if there is a database that currently
* exists for the given program. If the database does not exist, it creates


* one. After the class ensures that the database exists, this class
* will open the database for use. Most of this functionality will be
* handled by the SQLiteOpenHelper parent class. The purpose of extending
* this class is to tell the class how to create (or update) the database.
*
* @author Randall Mitchell
*

private class CustomSQLiteOpenHelper extends SQLiteOpenHelper
{
public CustomSQLiteOpenHelper(Context context)
{
super(context, DB_NAME, null, DB_VERSION);
}

@Override
public void onCreate(SQLiteDatabase db)
{
// This string is used to create the database. It should
// be changed to suit your needs.
String newTableQueryString = "create table " +
TABLE_NAME +" (" +
TABLE_ROW_ID + " integer primary key autoincrement not null," +
TABLE_ROW_ONE + " text," +TABLE_ROW_TWO + " text" + ");";
// execute the query string to the database.
db.execSQL(newTableQueryString);
}

@Override
public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion)
{
// NOTHING TO DO HERE. THIS IS THE ORIGINAL DATABASE VERSION.


// OTHERWISE, YOU WOULD SPECIFIY HOW TO UPGRADE THE
DATABASE.
}
}
}

The Application Explained

In the database there are three columns: id (integer), table_row_one (string), and table_row_two (string). Our
activity is going to have three forms for the user to adjust data within the database. The three forms handle
adding, deleting, and editing rows. There will also be instruction that tell the user on how to use each of the
forms. Below the three forms is a table that displays the database table data to the user. The table consists of
one column for each database table column and one row for each database row. Let’s take a look at each of the
forms.

Form for Adding Data

The first form is for adding data to the database. The form will have two form fields where the user can enter
values. The form fields correspond to table_row_one and table_row_two in the database. After the two form
fields, there is a “submit” button for the user to submit entered data. The application’s database object will
automatically assign an id to the new data.

Form for Deleting Data

The second form is used to delete a row from the database. It will have a single form field where the user will
enter a value that corresponds to an id in the database table. Next to the id field is a delete button for the user to
submit the form.

Form For Retrieving and Editing Data

The final form will allow the user to change a row of data. This form will have two buttons and three form
fields. The first form field is for the user to enter an id. After this form field is a “get” button that the user can
use to retrieve data into the next two form fields. Then the user can change the data in these fields and hit the
“update” button to update the data.


The Application XML

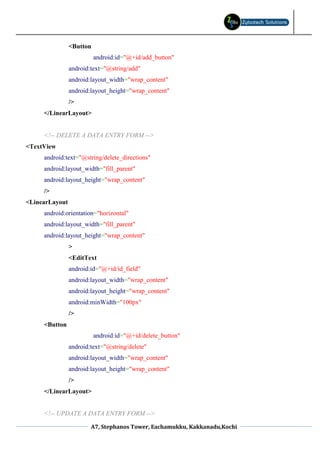

Here is the complete layout XML file (main.xml):

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
>


<TextView
android:text="@string/add_directions"
android:layout_height="wrap_content"
/>
<LinearLayout
android:orientation="horizontal"
>
<EditText
android:id="@+id/text_field_one"
android:layout_width="wrap_content"
android:minWidth="100px"
/>
<EditText
android:id="@+id/text_field_two"
/>

<TextView
android:text="@string/update_directions"
/>
<LinearLayout
>
<EditText
android:id="@+id/update_id_field"
/>
<Button
android:id="@+id/retrieve_button"
android:text="@string/retrieve"
/>
<EditText
android:id="@+id/update_text_field_one"
/>
<EditText
android:id="@+id/update_text_field_two"
/>
<Button


android:id="@+id/update_button"
android:text="@string/update"
/>

</LinearLayout>


<TableLayout
android:id="@+id/data_table"
>
<TableRow>
<TextView
android:text="@string/th_id"
/>
<TextView
android:text="@string/th_text_one"
/>
<TextView
android:text="@string/th_text_two"
/>
</TableRow>
</TableLayout>

</LinearLayout>

And here is the strings.xml resource file:

<?xml version="1.0" encoding="utf-8"?>
<resources>
<string name="app_name">Database Application</string>

<string name="add_directions">Fill in both fields with text and click the "add" button.</string>
<string name="add">add</string>

<string name="delete_directions">To delete a row, type the "id" of the row in the field provided and press
the "delete" button.</string>
<string name="delete">delete</string>

<string name="update_directions">To update a row, type the "id" of the row in the first field and type the
new information into the next two fields.</string>
<string name="retrieve">get</string>
<string name="update">update</string>

<string name="th_id">ID</string>
<string name="th_text_one">Text Field One</string>
<string name="th_text_two">Text Field Two</string>
</resources>

Now move on to the Activity class.

The Main Activity

The first thing we need to do is establish some object variables. There should be a variable for each of the form
fields buttons. We will also need declarations for our table object and our fancy new database manager object.
Let’s take a look at the beginning of our activity class:



import android.app.Activity;
import android.os.Bundle;


import android.widget.Button;
import android.widget.EditText;
import android.widget.TableLayout;
import android.widget.TableRow;
import android.widget.TextView;

public class DatabaseExampleActivity extends Activity
{
// the text fields that users input new data into
EditText textFieldOne, textFieldTwo, idField, updateIDField, updateTextFieldOne,
updateTextFieldTwo;

// the buttons that listen for the user to select an action
Button addButton, deleteButton, retrieveButton, updateButton;

// the table that displays the data
TableLayout dataTable;

// the class that opens or creates the database and makes sql calls to it
AABDatabaseManager db;

/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState)
{
// this try catch block returns better error reporting to the log
try
{
// Android OS specific calls
super.onCreate(savedInstanceState);
setContentView(R.layout.main);

// TODO complete the setup operations


}
catch (Exception e)
{
Log.e("ERROR", e.toString());
}

// TODO create the rest of the methods
}

The try/catch block is a method is used for improved error reporting in Android.

Connecting the Layout to Java

In our Java code, we need to connect our variables to the fields, buttons, and table that were all created in our
XML file. I am going to make a method that specifically handles this task: setupViews(). The method used in
Android to connect a variable to an XML object is to use the findViewByID() method. This method takes one
argument – the resource id of the view widget. The important thing to know about findViewByID() is that we
need to “cast” it to a specific widget type. We do this by placing the “type” in parenthesis in front of the
method call. We will use the assignment(=) operator to assign each variable to the type cast object returned by
findViewByID. There needs to be one statement for each of the view widgets we wish to work with in Java. Lets
take a look at the method code:

/**
* creates references and listeners for the GUI interface
*/
private void setupViews()
{
// THE DATA TABLE
dataTable= (TableLayout)findViewById(R.id.data_table);

// THE DATA FORM FIELDS
textFieldOne= (EditText)findViewById(R.id.text_field_one);
textFieldTwo= (EditText)findViewById(R.id.text_field_two);
idField= (EditText)findViewById(R.id.id_field);


updateIDField= (EditText)findViewById(R.id.update_id_field);
updateTextFieldOne= (EditText)findViewById(R.id.update_text_field_one);
updateTextFieldTwo= (EditText)findViewById(R.id.update_text_field_two);

// THE BUTTONS
addButton = (Button)findViewById(R.id.add_button);
deleteButton = (Button)findViewById(R.id.delete_button);
retrieveButton = (Button)findViewById(R.id.retrieve_button);
updateButton = (Button)findViewById(R.id.update_button);
}

This and several other methods will be called from within onCreate() as a means of setting up our Activity.

Enabling the Buttons

Create one method for enabling the buttons and then a method
for each of the buttons: addRow(), deleteRow(), retrieveRow(), and updateRow(). These methods will be called
when a particular button is pushed. Here is the addButtonListeners() method that ties each button to the correct
method:

/**
* adds listeners to each of the buttons and sets them to call relevant methods
*/
private void addButtonListeners()
{
addButton.setOnClickListener
(
new View.OnClickListener()
{
@Override public void onClick(View v) {addRow();}
}
);

deleteButton.setOnClickListener
(


{
@Override public void onClick(View v) {deleteRow();}
}
);

updateButton.setOnClickListener
(
{
@Override public void onClick(View v) {updateRow();}
}
);

retrieveButton.setOnClickListener
(
{
@Override public void onClick(View v) {retrieveRow();}
}
);

}

A few note worthy points. We attach OnClickListener objects to a button by using the button’s
setOnClickListener() method. It is common to create the OnClickListener objects inside of the method call as
seen here. When we create these generic listeners, we need to override their onClick() method with our desired
code. The desired code will simply be a call to the appropraite method.

Communicating with the Database Manager Object

We have each of the buttons in our application tied to OnClickListeners. When the user clicks a button, the
listener will call a specific method. We need to create those methods.


The addRow() Method

Our addRow() method collects the input from the first form’s fields. The is handled by calling the getText()
method of the TextView form fields combined with the toString() method of the getText() return type. It looks
like this: textFieldOne.getText().toString(). It uses this data as arguments in a call to the database manager’s
addRow() method. After the data is sent to the database, addRow()

/**
* adds a row to the database based on information contained in the
* add row form fields.
*/
private void addRow()
{
try
{
// ask the database manager to add a row given the two strings
// this is addRow() in the activity calling addRow() in the database object
db.addRow
(
textFieldOne.getText().toString(),
textFieldTwo.getText().toString()
);

// request the table be updated
updateTable();

// remove all user input from the Activity
emptyFormFields();
}
catch (Exception e)
{
Log.e("Add Error", e.toString());
}


}

The deleteRow() Method

The deleteRow() method is responsible for deleting a row from the database. The database manager that we
created earlier has a corresponding deleteRow() method. We collect and pass the value that the user enters into
the idField with idField.getText().toString(). Once the data row is deleted, we update our table widget and
empty our form fields. Here is our method code:

/**
* deletes a row from the database with the id number in the corresponding
* user entry field
*/
private void deleteRow()
{
try
{
// ask the database manager to delete the row with the give rowID.
db.deleteRow(Long.parseLong(idField.getText().toString()));

updateTable();

emptyFormFields();
}
catch (Exception e)
{
Log.e("Delete Error", e.toString());
}
}


The retrieveRow() Method

When the user fills in the id field of the last form with a valid id and presses the “get” button, retrieveRow() is
called. Let’s go over the code inside of retrieveRow(). First we declare a local ArrayList object and instantiates
it by calling the datatabase mananger’s getRowAsArray() method. The getRowAsArray() method in the database
manager takes a Long as its only argument – the row id. We collect the value from the id form field as a String.
order to covert the String to a Long, we use the Long class’ static method parseLong(String). The Long can
now be passed to getRowAsArray(). Here is that code:

ArrayList<Object> row;
row = db.getRowAsArray( Long.parseLong( updateIDField.getText().toString() ) );

Once we have our ArrayList populated with data, we can pass that data to the two remaining form fields. We do
this using the setText() method of the EditText widgets.

Because of the way we set up the database manager, Java doesn’t know what types of values are in the
ArrayList. This means we need to cast the ArrayList items of unkown type to String using a(String) cast.

Here is the code for our retrieveRow() method.

/**
* retrieves a row from the database with the id number in the corresponding
* user entry field
*/
private void retrieveRow()
{
try
{
// The ArrayList that holds the row data
// ask the database manager to retrieve the row with the given rowID
row = db.getRowAsArray(Long.parseLong(updateIDField.getText().toString()));

// update the form fields to hold the retrieved data
updateTextFieldOne.setText((String)row.get(1));
updateTextFieldTwo.setText((String)row.get(2));

}
catch (Exception e)
{
Log.e("Retrieve Error", e.toString());
}
}

The updateRow() Method

Our Activity’s updateRow() method calls the database mananger’s updateRow() method, passing it three
arguments. The first value passed is a row id. Here again, we use Long.parseLong(String), passing it the String
from the updateIDField() method. The next two arguments we pass updateRow() are String values that we
retrieve from updateTextFieldOne() and updateTextFieldTwo(). The database manager updates the given row
and we can update our table and empty our form fields. Here is updateRow()

/**
* updates a row with the given information in the corresponding user entry
* fields
*/
private void updateRow()
{
try
{
// ask the database manager to update the row based on the information
// found in the corresponding user entry fields
db.updateRow
(
Long.parseLong(updateIDField.getText().toString()),
updateTextFieldOne.getText().toString(),
updateTextFieldTwo.getText().toString()
);

updateTable();


emptyFormFields();
}
catch (Exception e)
{
Log.e("Update Error", e.toString());
}
}

The updateTable() Method

The table I set up has column headers inside of the first row of our table. When updateTable() is called, it
deletes all the table rows except the top row (of headers), and then recreates the rows based upon the current
state of the database.

Deleting the rows is handled by a while block. We can determine how many rows are in the table using it’s
getChildCount() method. The while block logic reads “while the child count is greater than one, delete the row
in the second position”. This will delete all rows except the first row. Don’t forget that the count starts at zero,
so the second position is “1″. This is our while block.

while (dataTable.getChildCount() > 1)
{
dataTable.removeViewAt(1);
}

Now, we have an empty table ready for use. We need to get that data ready to enter into the table. First, I
declare an ArrayList of ArrayLists of Objects and instantiate it making it the return value of the database
manager’s getAllRowsAsArray() method as follows.

ArrayList<ArrayList<Object>> data = db.getAllRowsAsArrays();

Then we can iterate through data and create table rows as we go. I set up an iteration block that will create a
row, fill it with data, and add it to our table with each iteration of the ArrayList. Inside of our block, I create
and instantiate a new TableRow object: “TableRow tableRow = new TableRow(this);“. I declare an ArrayList


of Objects and tie it to the row that the iterator is currently iterating. For each for item, I need to create a
separate TextView object and add it to the new TableRow. Finally, I add the TableRow to the data table using
the table’s addView() method.

Here is the updateTable() method:

private void updateTable()
{
// delete all but the first row. remember that the count
// starts at one and the index starts at zero
{
// while there are at least two rows in the table widget, delete
// the second row.
}

// collect all row data from the database and
// store it in a two dimensional ArrayList

// iterate the ArrayList, create new rows each time and add them
// to the table widget.
for (int position=0; position < data.size(); position++)
{
TableRow tableRow= new TableRow(this);

ArrayList<Object> row = data.get(position);

TextView idText = new TextView(this);
idText.setText(row.get(0).toString());
tableRow.addView(idText);

TextView textOne = new TextView(this);


textOne.setText(row.get(1).toString());
tableRow.addView(textOne);

TextView textTwo = new TextView(this);
textTwo.setText(row.get(2).toString());
tableRow.addView(textTwo);

dataTable.addView(tableRow);
}
}

That’s it for updating the table widget. The only thing left to cover is the little helper class for clearing the form
data. All it does is call each of the application’s form field’s setText() methods, passing in an empty String (“”).
Here is the code for that:

private void emptyFormFields()
{
textFieldOne.setText("");
textFieldTwo.setText("");
idField.setText("");
updateIDField.setText("");
updateTextFieldOne.setText("");
updateTextFieldTwo.setText("");
}

The entire code for the Activity is next.



import android.app.Activity;
import android.os.Bundle;
import android.view.View;


import android.widget.Button;
import android.widget.EditText;
import android.widget.TableLayout;
import android.widget.TableRow;
import android.widget.TextView;

public class DatabaseExampleActivity extends Activity
{
EditText textFieldOne, textFieldTwo, idField, updateIDField, updateTextFieldOne,
updateTextFieldTwo;

Button addButton, deleteButton, retrieveButton, updateButton;
TableLayout dataTable;
AABDatabaseManager db;
@Override
public void onCreate(Bundle savedInstanceState)
{
try
{
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
db = new AABDatabaseManager(this);
setupViews();
addButtonListeners();
updateTable();
}
catch (Exception e)
{
Log.e("ERROR", e.toString());
}
}
private void setupViews()
{


dataTable= (TableLayout)findViewById(R.id.data_table);
textFieldOne= (EditText)findViewById(R.id.text_field_one);
textFieldTwo= (EditText)findViewById(R.id.text_field_two);
idField= (EditText)findViewById(R.id.id_field);
updateIDField=(EditText)findViewById(R.id.update_id_field);
updateTextFieldOne= (EditText)findViewById(R.id.update_text_field_one);
updateTextFieldTwo= (EditText)findViewById(R.id.update_text_field_two);
addButton = (Button)findViewById(R.id.add_button);
deleteButton = (Button)findViewById(R.id.delete_button);
retrieveButton =(Button)findViewById(R.id.retrieve_button);
updateButton = (Button)findViewById(R.id.update_button);
}

private void addButtonListeners()
{
addButton.setOnClickListener
(
{
@Override public void onClick(View v) {addRow();}
}
);

deleteButton.setOnClickListener
(
{
@Override public void onClick(View v) {deleteRow();}
}
);

updateButton.setOnClickListener
(


{
@Override public void onClick(View v) {updateRow();}
}
);

retrieveButton.setOnClickListener
(
{
@Override public void onClick(View v) {retrieveRow();}
}
);

}
private void addRow()
{
try
{
// ask the database manager to add a row given the two strings
db.addRow
(
textFieldOne.getText().toString(),
textFieldTwo.getText().toString()
);

updateTable();

emptyFormFields();
}
catch (Exception e)
{
Log.e("Add Error", e.toString());


}
}

private void deleteRow()
{
try
{
// ask the database manager to delete the row with the give rowID.
db.deleteRow(Long.parseLong(idField.getText().toString()));

updateTable();

emptyFormFields();
}
catch (Exception e)
{
Log.e("Delete Error", e.toString());
}
}

private void retrieveRow()
{
try
{
// The ArrayList that holds the row data
// ask the database manager to retrieve the row with the given rowID
row = db.getRowAsArray(Long.parseLong(updateIDField.getText().toString()));

// update the form fields to hold the retrieved data


updateTextFieldOne.setText((String)row.get(1));
updateTextFieldTwo.setText((String)row.get(2));
}
catch (Exception e)
{
Log.e("Retrieve Error", e.toString());
}
}
private void updateRow()
{
try
{
db.updateRow
(
Long.parseLong(updateIDField.getText().toString()),
updateTextFieldOne.getText().toString(),
updateTextFieldTwo.getText().toString()
);
updateTable();
emptyFormFields();
}
catch (Exception e)
{
Log.e("Update Error", e.toString());
}
}
private void emptyFormFields()
{
textFieldOne.setText("");
textFieldTwo.setText("");
idField.setText("");
updateIDField.setText("");


updateTextFieldOne.setText("");
updateTextFieldTwo.setText("");
}

private void updateTable()
{
{
}
for (int position=0; position < data.size(); position++)
{
TableRow tableRow= new TableRow(this);

ArrayList<Object> row = data.get(position);

TextView idText = new TextView(this);
idText.setText(row.get(0).toString());
tableRow.addView(idText);

TextView textOne = new TextView(this);
textOne.setText(row.get(1).toString());
tableRow.addView(textOne);

TextView textTwo = new TextView(this);
textTwo.setText(row.get(2).toString());
tableRow.addView(textTwo);

dataTable.addView(tableRow);
}
}
}


Android database tutorial

More Related Content

What's hot (20)

Viewers also liked (15)

Similar to Android database tutorial (20)

More from info_zybotech (6)

Recently uploaded (20)

Android database tutorial
