PE File Format
 PE – Portable Executable
 PE is the native Win32 file format.
 32-bit DLL, COM, OCX, Control Panel Applets(.CPL), .NET, NT kernel
mode drivers are all PE File Format.

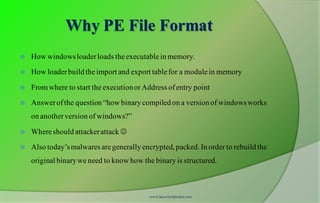

Why PE File Format
 How windowsloaderloads theexecutablein memory.
 How loaderbuild theimport and export tablefor a modulein memory
 Fromwhere to start the executionorAddress ofentry point
 Answerofthe question “how binary compiled on a version of windowsworks
on anotherversion of windows?”
 Whereshould attackerattack 
 Also today’smalwares aregenerally encrypted, packed. In order to rebuild the
original binarywe need to know how the binary is structured.

Basic Structure

Basic Structure Cont.

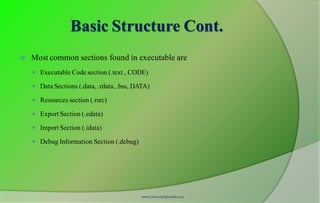

 Most common sections found in executable are
 Executable Code section (.text , CODE)
 Data Sections (.data, .rdata, .bss, DATA)
 Resources section (.rsrc)
 Export Section (.edata)
 Import Section (.idata)
 Debug Information Section (.debug)

Headers – DOS Header
 All PE files start with DOS header
 First 64 bytes of the file.
 Run program in DOS.
 Runs the DOS stub
 Usually the string
“This program must be run under Microsoft Windows”
 e_lfanew is the pointer to PE or NT header
 Structure defined in windows.inc or winnt.h

Header- DOS header cont.
e_magic = 4D, 5A (MZ)
e_lfanew is a DWORD which contains the offset of the PE header

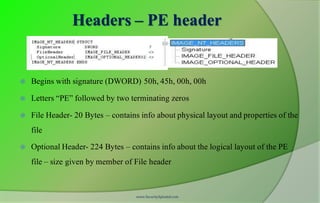

Headers – PE header
 Begins with signature (DWORD) 50h, 45h, 00h, 00h
 Letters “PE” followed by two terminating zeros
 File Header- 20 Bytes – contains info about physical layout and properties of the
file
 Optional Header- 224 Bytes – contains info about the logical layout of the PE
file – size given by member of File header

Headers – PE –> File header
 Machine
 NumberOfSections
 SizeOfOptionalHeader
 Characteristics

Header – PE –> Optional Header

Optional Header Cont.
 AddressOfEntryPoint
 ImageBase
 SectionAlignment
 FileAlignment
 SizeOfImage
 SizeOfHeaders
 Subsystem
 DataDirectory

Header – PE –> Optional –> Data
Directory
 Last 128 bytes of OptionalHeader
 Array of 16 Image_Data_Directory structures
 Each relating to an important data structure like the Import Table
 Members
 Virtual Address : RVA of the data structure
 iSize : size in bytes of the data structure

Data Directories

 IMAGE_DIRECTORY_ENTRY_EXPORT
 IMAGE_DIRECTORY_ENTRY_IMPORT
 IMAGE_DIRECTORY_ENTRY_RESOURCE
 IMAGE_DIRECTORY_ENTRY_TLS
 IMAGE_DIRECTORY_ENTRY_IAT

Headers - Section Header
 Array of IMAGE_SECTION_HEADER
 Equal to the numberofsections – FileHeader member.
 Each structure size = 40 bytes

Section Header cont.
 Name – Virtually can be anything in text
 VirtualSize – Size of section in memory
 VirtualAddress – section entry offset in memory (RVA)
 SizeOfRawData – Size of section on disk
 PointerToRawData – section entry offset on disk
 Characteristics – Type of section (execuatble, data etc.)
 Section Alignment and File Alignment are two important values from
optional header that control the entry point of next section.

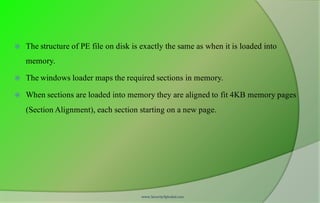

 The structure of PE file on disk is exactly the same as when it is loaded into
memory.
 The windows loader maps the required sections in memory.
 When sections are loaded into memory they are aligned to fit 4KB memory pages
(Section Alignment), each section starting on a new page.

Type of PE file sections
 Executable code
 Data
 Resources
 Export section
 Import section
 Thread Local Storage (TLS)
 Base Relocations (reloc.)

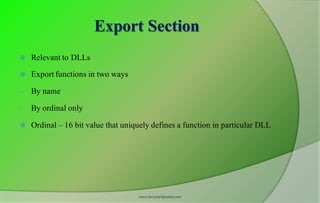

Export Section
 Relevant to DLLs
 Export functions in two ways
- By name
- By ordinal only
 Ordinal – 16 bit value that uniquely defines a function in particular DLL

nName
nBase
NumberOfFunctions
NumberOfNames
AddressOfFunctions
AddressOfNames
AddressOfNameOrdinals

Export by Ordinal only
Export Forwarding

Import Section
 Contains information about all functions imported by executable from
DLLs
 Loader maps all the DLLs used by the application into its address space
 Finds the addresses of all the imported functions and makes them
available to the executable being loaded.

Import Directory
 20 byte structure IMAGE_IMPORT_DESCRIPTOR
 Number of structures = Number of DLLs imported
 Last structure filed with zeros

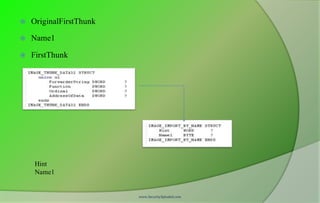

 OriginalFirstThunk
 Name1
 FirstThunk
Hint
Name1

 Each IMAGE_THUNK_DATA str corresponds to one imported function from
the dll.
 Arrays pointed by OriginalFirstThunk and FirstThunk run parallelly.
 OriginalFirstThunk – Import Name Table – Never modified
 FirstThunk – Import Address Table – Contain actual function addresses

Functions exported by ordinal only
- No IMAGE_IMPORT_BY_NAME structure
-IMAGE_THUNK_DATA contains the ordinal of the function
-MSB used to identify the same
- MSB is set, rest 31 bits are treated as an ordinal value.
-Bound Imports
