The document presents an overview of the Microsoft on-premises data gateway, covering topics such as installation, architecture, and troubleshooting. It emphasizes the use of Power BI, Azure Logic Apps, and various data sources, while providing critical installation guidelines and network connection details. Troubleshooting tips include avoiding installation on domain controllers and checking firewall settings.
ESPC17 - The Microsoft On-premises Data Gateway
- 1. THE MICROSOFT ON-PREMISES DATA GATEWAY MAARTEN EEKELS CTO PORTIVA & MICROSOFT MVP, NETHERLANDS
- 2. ABOUT ME 20+ yrs in IT, 13 yrs in SharePoint CTO Portiva DIWUG board member Speaker, vlogger Contact meekels@portiva.nl www.eekels.net
- 3. AGENDA • Installation • Architecture • Flow & PowerApps • Azure Logic Apps • PowerBI • Troubleshooting
- 4. INSTALLATION TYPE • Recommended vs personal mode • You can run one gateway in each mode per computer • This dialog shows in PowerBI installer only
- 8. INSTALLATION – AZURE LOGIC APPS

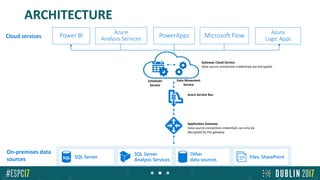

- 9. ARCHITECTURE Files, SharePointSQL Server SQL Server Analysis Services Other data sources Cloud services PowerApps Microsoft FlowPower BI Azure Service Bus Application Gateway Data source connection credentials can only be decrypted by the gateway Gateway Cloud Service Data source connection credentials are encrypted Azure Logic Apps Azure Analysis Services Data Movement Service Scheduler Service On-premises data sources
- 10. DEMO
- 11. TROUBLESHOOTING THE GATEWAY • Don’t install on a domain controller! • Enterprise gateway service logs: C:UsersPBIEgwServiceAppDataLocal Microsofton-premises data gateway Gateway*.log • Test-NetConnection -ComputerName watchdog.servicebus.windows.net -Port 9350 • Check firewall settings: TCP 443 (default), 5671, 5672, 9350 thru 9354, and Azure Datacenter IPs
