Decision Trees - The Machine Learning Magic Unveiled
1 like232 views
This document provides an overview of decision trees in machine learning, including classification problems, the construction of decision trees, and concepts like entropy, information gain, and Gini impurity. It discusses tree induction techniques and algorithms such as ID3, C4.5, and CART, addressing issues like overfitting and model evaluation. Additionally, it highlights the advantages of decision trees for business applications and their robustness in handling various data types.
![How to Calculate the Entropy
• We saw the knowledge is related in some way to the probability
to have a specific balls configuration
• How can we get the “opposite” of a probability (defined in the
range [0, 1])?
• The log function does the job! ☺
• x(0, 1] log(x) 0
• The multi-class entropy formula is
Entropy(S) = −
𝑖=1
𝑛
𝑝𝑖 log2 𝑝𝑖 (Shannon)
• pi is the probability an object from the i-th class appearing in the
training set S
• The max value for Entropy is log2(num of classes)
• 2 classes max = 1; 4 classes max = 2; 8 classes max = 3
• Using this formula for our boxes we have
• Entropy first box = - 1 log2(1) = 0
• Entropy second box = - 5/6 log2(5/6) - 1/6 log2(1/6) = 0.65
• Entropy third box = - 3/6 log2(3/6) - 3/6 log2(3/6) = - log2(1/2) = 1
p
log2(p)
x
y = log2(x)](https://image.slidesharecdn.com/decisiontrees-themachinelearningmagicunveiled-180219204001/85/Decision-Trees-The-Machine-Learning-Magic-Unveiled-13-320.jpg)
Decision Trees - The Machine Learning Magic Unveiled
- 1. Decision Trees The Machine Learning “Magic” Unveiled Luca Zavarella
- 2. Sponsors

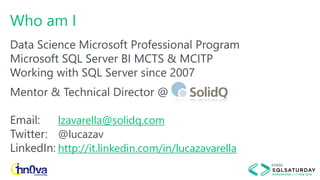

- 3. Who am I Data Science Microsoft Professional Program Microsoft SQL Server BI MCTS & MCITP Working with SQL Server since 2007 Mentor & Technical Director @ Email: lzavarella@solidq.com Twitter: @lucazav LinkedIn: http://it.linkedin.com/in/lucazavarella
- 4. Agenda • The Classification Problem • What’s a Decision Tree • Entropy • Information Gain • Gini Gain • Tree Induction • Overfitting and Pruning • Model Evaluation • Conclusions
- 5. Let’s start
- 6. The Classification Problem Classifying something according to shared qualities or characteristics • Detecting spam email messages based upon the message header and content • Categorizing cells as malignant or benign based upon the results of Magnetic Resonance Imaging • Determine if a banking transaction is fraudulent or not In a formal way • Classification is the task of inferring a target function f (classification model) that maps each attribute set x to one to the predefined class labels y Classification Model Attribute set (X) Class label (y) Input Output Predictors (x) Target (y)
- 7. Classification To Predict A Class Label • Once the classification model has been defined, the function f is available to map a new item set of predictors to a label class • You can predict the target variable for an unknown item set Classification Model Defined Attribute set (X never seen before) Class label (???) Input Output
- 8. Entire data set How to Build a Classification Model Induction Training set Id x1 x2 x3 y 1 Blue No 125K Yes 2 Red No 30K No 3 Green Yes 25K No 4 Blue Yes 110K Yes 5 Yellow No 78K Yes 6 Brown No 50K No … … … … … Learn Model Classification Model Learning Algorithm Apply Model Deduction Test set Id x1 x2 x3 y y scored 106 Green Yes 43K No ?? 107 Blue Yes 35K No ?? 108 Red Yes 80K Yes ?? 109 Red No 70K No ?? Evaluation Neural Networks Support Vector Machines Decision Trees
- 9. What is a Decision (Classification) Tree • It’s a tree-shaped diagram used to break down complex problems • Each leaf node is assigned a class label • Non-terminal nodes (root + internal ones) contain attribute test conditions to separate records having different characteristics • Each branch is the result of a split and a possible outcome of a test 1 Root Node Internal Nodes / Decision Nodes Leaf Nodes volatile acidity free sulfur dioxide alcohol quality2 0.27 45 8.8 High 0.3 14 9.5 High 0.22 28 11 High 0.27 11 12 High 0.23 17 9.7 High 0.18 16 10.8 High 0.16 48 12.4 High 0.42 41 9.7 High 0.17 28 11.4 High 0.48 30 9.6 Low 0.66 29 12.8 Low 0.34 17 11.3 Low 0.31 34 9.5 High 0.66 29 12.8 Low 0.31 19 11 High Sub-Tree Splitting Branch
- 10. Binary vs Multi-branches Tree • Multi-branches • Two or more branches leave each non- terminal node • These branches cover all the outcomes of the test • Exactly one branch enters in one non-root node • Binary • Two branches leave each non-terminal node • These two branches cover all the outcomes of the test • Exactly one branch enters in one non-root node
- 11. How to Make “Strategic” Splits • Which attribute is the best one to segment the instances? • The one that generates groups that are as homogeneous as possible with respect to the target variable Target variable Pure Impure Impure • We need a purity measure
- 12. Purity Measure: Entropy • Supposing to draw a ball from the three boxes below, what’s the knowledge about? 1. We’ll know for sure the ball coming out is red ▪ High knowledge (for sure the ball will be red) 2. We know with 83% certainty that the ball is red; and 17% certainty it is blue ▪ Give us some knowledge 3. We know with 50% certainty that the ball is red; and 50% certainty it is blue ▪ Give us the least amount of knowledge • Entropy is in some way the opposite of knowledge • It’s a measure of disorder; it’s the degree of disorganization in a system • How mixed (impure) the group is with respect to the target variable High knowledge Medium knowledge Low knowledge Low entropy Medium entropy High entropy
- 13. How to Calculate the Entropy • We saw the knowledge is related in some way to the probability to have a specific balls configuration • How can we get the “opposite” of a probability (defined in the range [0, 1])? • The log function does the job! ☺ • x(0, 1] log(x) 0 • The multi-class entropy formula is Entropy(S) = − 𝑖=1 𝑛 𝑝𝑖 log2 𝑝𝑖 (Shannon) • pi is the probability an object from the i-th class appearing in the training set S • The max value for Entropy is log2(num of classes) • 2 classes max = 1; 4 classes max = 2; 8 classes max = 3 • Using this formula for our boxes we have • Entropy first box = - 1 log2(1) = 0 • Entropy second box = - 5/6 log2(5/6) - 1/6 log2(1/6) = 0.65 • Entropy third box = - 3/6 log2(3/6) - 3/6 log2(3/6) = - log2(1/2) = 1 p log2(p) x y = log2(x)
- 14. From Entropy to Information Gain • How informative is an attribute with respect to our target? • An attribute segments a set of instances into several subsets • Entropy tell us how impure is one individual subset • Information Gain (IG) measures how much an attribute improves/decreases entropy over the whole segmentation it creates • The greater the IG, the more relevant an attribute is IG A, S = 𝐸𝑛𝑡𝑟𝑜𝑝𝑦 𝑆 − 𝑗=1 𝑘 𝑝𝑗 ∙ 𝐸𝑛𝑡𝑟𝑜𝑝𝑦(𝑆𝑗) • IG is a function of the parent (S) and all the children sets (Sj): • k is the number of the values of the attribute x • pj is the probability an instance from training set S has the attribute x with value cj Parent set Entropy based on target attribute Child set 1 Entropy based on target attribute Attribute x = c1 Attribute x = c2 Attribute x = c3 Child set 2 Entropy based on target attribute Child set 3 Entropy based on target attribute
- 15. Let’s Calculate the Information Gain Entire population (18 instances= 14 red + 4 blue) Attribute = {c1,c2,c3} Parent entropy = -14/18 log(14/18) – 4/18 log(4/18) = 0.764 Entropy1 = 0 Child 1 (6 instances = 6 red) Child 2 (6 instances = 3 red + 3 blue) Entropy2 = 1 Child 3 (6 instances = 5 red + 1 blue) Entropy3 = -5/6 log(5/6) – 1/6 log(1/6) = 0.65 Attribute = c1 P(c1) = 6/18 = 0.33 Attribute = c2 P(c2) = 6/18 = 0.33 Attribute = c3 P(c3) = 6/18 = 0.33 IG = Parent entropy - P(c1) Entropy1 - P(c2) Entropy2 - P(c3) Entropy3 = 0.764 – 0.33 0 – 0.33 1 – 0.33 0.65 = 0.219 c1 c1 c1 c1 c1 c1 c3 c3 c3 c3 c3 c3 c2 c2 c2 c2 c2 c2 c1 c1 c1 c1 c1 c1 c2 c2 c2 c3 c3 c3 c3 c3 c2 c2 c2 c3
- 16. Information Gain for Numeric Attributes • Not all the attributes are categorical. They may be numeric • Each numeric value is a possible split point • E.g. temperature 18; temperature > 18 • Split points can be placed between values or directly at values • The solution is • Evaluate Information Gain for every possible split point • Choose the split point with the greatest IG • The IG found is the one for the whole attribute • Computationally more demanding • Sort all the values • Linear scanning of all the values, updating the IG for the split point • Choose the split point with the “best” value
- 17. Attribute Selection and Information Gain • For a dataset described by attributes and a target variable, we can get the most informative attribute with the respect of the target value thanks to the Information Gain • A rank of the most informative attributes can be done • The size of the data can be reduced keeping only the most informative attributes rowname attr_importance alcohol 0.084971929 density 0.054802674 citric.acid 0.033315593 chlorides 0.03302314 volatile.acidity 0.026740526 total.sulfur.dioxide 0.025815848 free.sulfur.dioxide 0.019255954 residual.sugar 0.009900215 sulphates 0.008109667 pH 0.006643071 fixed.acidity 0.003609548
- 18. DEMO 1 Attribute Selection with Informtaion Gain in R
- 19. Tree Induction with Information Gain • The divide et impera approach will take place 1. Apply attribute selection to the whole dataset • The attribute with the highest IG is chosen 2. Subgroups are created 3. For each subgroup apply the attribute selection again 4. …and so on recursively 5. Just stop 1. When the nodes are pure 2. When the variables to split on are over 3. Just before the events 1 or 2 can happen to avoid too much branches (overfitting) • This is the basis of the ID3 algorithm
- 20. Highly-branching Attributes in ID3 • Attributes with a large number of values are a problem • E.g. an ID or the Day attribute • Lot of values Small subsets Subset are purer • Information gain is biased toward choosing attributes with a large number of values • What are the issues? • Data is fragmented into too many small set • Attribute chosen is non-optimal for prediction • Tree is hard to read • Numeric attributes have this problem too • What’s the solution? • Convert them into discrete intervals (discretization) • Determine ideal intervals is not easy
- 21. Tree Induction with Gini Gain • Instead of Entropy, the impurity measure can be expressed by the Gini Impurity • pi is the probability an object from the i-th class appearing in the training set S • The max value for Gini Impurity is limited to 1 • 2 classes max = 0.5; 4 classes max = 0.75; 8 classes max = 0.875 • Gini Gain is the alternative to Information Gain for selecting an attribute A • Sj is the partition of S induced by the attribute A • k is the number of the values of the attribute A • pj is the probability an instance from training set S has the attribute A with value cj • The tree induction is similar to the one that use IG, but now it uses GG • This is the basis of the CART algorithm 𝐺𝑖𝑛𝑖(𝑆) = 1 − 𝑖=1 𝑛 𝑝𝑖 2 𝐺𝑖𝑛𝑖𝐺𝑎𝑖𝑛 𝐴, 𝑆 = 𝐺𝑖𝑛𝑖 𝑆 − 𝐺𝑖𝑛𝑖 𝐴, 𝑆 = 𝐺𝑖𝑛𝑖 𝑆 − 𝑗=1 𝑘 𝑝𝑗 ∙ 𝐺𝑖𝑛𝑖(𝑆𝑗)
- 22. Information Gain and Gini Gain Comparison • Many impurity measures (Entropy, Gini Impurity) are quite consistent with each other • The choice of impurity measure has little effect on the performance of decision tree induction algorithms • Information Gain • It favors smaller partitions with many distinct values • Gini Gain • It favors larger partitions • Split attributes may change Misclassification Error = 1 − max 𝑖 𝑝𝑖
- 23. ID3 Algorithm Evolution • ID3 stands for Iterative Dichotomizer • Introduced in 1986 by Ross Quinlan • The algorithm is too much simplistic • It doesn’t allow numeric attributes • It doesn’t allow missing values • It’s successor C4.5 • It is free • It solves all the gaps in ID3 • C4.5 successor C5.0 • Free GPL Edition stuck at release 2.07 • C50 package in R • Commercial Edition (now at release 2.11) • Multithreading • Memory optimized • Other new features (different costs per error types, …)
- 24. CART Algorithm • CART stands for Classification and Regression Trees • Introduced in 1984 by Breiman • Missing and numeric values are handled • It’s free • The package in R is Rpart (Recursive PARTitioning)
- 25. C5.0 vs CART Implementation Details • C5.0 • It gives a binary tree or multi-branches tree • It uses Information Gain to induce the tree • Missing values assigned according to the distribution of values in the attribute • CART • The resulting models are only binary trees • It uses Gini Gain to induce the tree • Handles missing values by surrogating tests to approximate outcomes
- 26. DEMO 2 Tree Induction with C5.0 and CART in R
- 27. Overfitting and Underfitting • The models seen in the demo explain all of the training data • Trees are really complex • They reduce the training set error • Will them generalize well to new data? • No! They’re too much fitted to training data (overfitting) • The test set error increases • How to avoid overfitting in decision trees? • Pre-pruning • Stop growing the tree earlier, before it perfectly classifies the training set • It is not easy to precisely estimate when to stop growing the tree • It can lead to underfitting, important structural information could not be captured • Post-pruning • Allows the tree to perfectly classify the training set, then prune the tree • More successful than the pre-pruning
- 28. Is my Model Good or Bad? • A way to present the prediction results of a classifier is the confusion matrix • It makes explicit how one class is being confused for another • We need some metrics to evaluate the goodness of the model • Accuracy: the number of correct predictions made divided by the total number of predictions made • (TP + TN) / (TP + FP + FN + TN) • Not a good metric for imbalanced class the Accuracy Paradox • Precision: the number of true positive predictions divided by the total number of positive predicted class values • TP / (TP + FP) • High precision relates to low False Positive rate • Recall: the number of true positive predictions divided by the number of actual positive class values • TP / (TP + FN) • Low recall indicates many False Negatives
- 29. DEMO 3 Model Evaluation and Pruning in R
- 30. Target Variable is Numeric? Regression Tree • Two approaches • Discretization of the target variable • Then use a classification learning algorithm • Adapt the classification algorithm to regression data • Split trying to minimize the standard deviation in each subset Sj • Use the Standard Deviation Reduction to induce the tree 𝑆𝐷𝑅 𝐴, 𝑆 = 𝑆𝐷 𝑆 − 𝑆𝐷 𝐴, 𝑆 = 𝑆𝐷 𝑆 − 𝑗=1 𝑘 𝑝𝑗 ∙ 𝑆𝐷(𝑆𝑗) • Evaluation metrics will change for Regressions • RMSE, MAE, etc.
- 31. Conclusions
- 32. Technical Advantages of Decision Trees • Few data cleaning • Robust to outliers • Missing values handling • They implicitly perform feature selection • Nonlinear models are handled • Classification and regression models are handled
- 33. Advantages of Decision Trees for Business • Easy to understand • Non-statistical background! ☺ • Important insights can be generated • Important variables for a decision are automatically emphasized through the process of developing the tree • They show the order decisions must be made
- 34. References • Tree Based Modeling from Scratch (https://goo.gl/INo6bC) • Shannon Entropy, Information Gain, and Picking Balls from Buckets (https://goo.gl/8JeJJm) • Data Science for Business (https://goo.gl/8bSm26) • How to Better Evaluate the Goodness-of-Fit of Regressions (https://goo.gl/K2dGnD) • Wine Quality Data Set (https://goo.gl/akGXCm)
