This document provides instructions on using shift and rotate instructions to manipulate data in a microcontroller. It explains how to use the shift and rotate instructions to shift data bits left or right by a specified number of positions. It also shows how to configure pins as inputs or outputs and use aliases to read switch states and control LEDs. Debounce subroutines are used to avoid false readings from switches.
![Practical Class 4 Programming Microcontrollers
Shift var , Right/Left [, shift]
[, shift]
Rotate var , Right/Left [, rotate]
[, shift]
$regfile = "m128def.dat"
$crystal = 8000000
'---------------------
Config Pine.4 = Input
Config Pine.5 = Input
Config Pine.6 = Input
Config Pine.7 = Input
Pine.4 = 1 : Pine.5 = 1
Pine.6 = 1 : Pine.7 = 1
Shift_r Alias Pine.4
Shift_l Alias Pine.5
Rotat_r Alias Pine.6
Rotat_l Alias Pine.7
Config Portd = Output
Leds Alias Portd
Portd = &B00000001
'---------------------
Do
Debounce Shift_r , 0 , Sr , Sub
Debounce Shift_l , 0 , Sl , Sub
Debounce Rotat_r , 0 , Rr , Sub
Debounce Rotat_l , 0 , Rl , Sub
Loop
End
'---------------------
Sr:
If Leds > 1 Then Shift Leds , Right , 1
Return
'---------------------
Sl:
If Leds < 128 Then Shift Leds , Left , 1
Return
'---------------------
Rr:
Rotate Leds , Right , 1
Return
'---------------------
Rl:
Rotate Leds , Left , 1
Return
'---------------------
Faculty of Electrical and Electronic Eng. 73 Automatic Control & Automation Dept.](https://image.slidesharecdn.com/04-lecture4-091222020722-phpapp01/85/Embedded-System-Microcontroller-Interactive-Course-using-BASCOM-AVR-Lecture4-3-320.jpg)
Embedded System Microcontroller Interactive Course using BASCOM-AVR - Lecture4
- 1. ﺍﻟﺘﺠﺎﺭﺏ ﺍﻟﻌﻤﻠﻴﺔ Programming Embedded Systems Microcontroller You Can Practice Microcontroller Programming Easily Now! WALID BALID, Tuesday, December 15, 2009
- 2. Exp.10: Shift & Rotate Instructions Rotate Shift Shift Right S6 Shift LeftS7 S14 Rotate Right S13 Rotate Right .Jumper JP9 JP6 72
- 3. Practical Class 4 Programming Microcontrollers Shift var , Right/Left [, shift] [, shift] Rotate var , Right/Left [, rotate] [, shift] $regfile = "m128def.dat" $crystal = 8000000 '--------------------- Config Pine.4 = Input Config Pine.5 = Input Config Pine.6 = Input Config Pine.7 = Input Pine.4 = 1 : Pine.5 = 1 Pine.6 = 1 : Pine.7 = 1 Shift_r Alias Pine.4 Shift_l Alias Pine.5 Rotat_r Alias Pine.6 Rotat_l Alias Pine.7 Config Portd = Output Leds Alias Portd Portd = &B00000001 '--------------------- Do Debounce Shift_r , 0 , Sr , Sub Debounce Shift_l , 0 , Sl , Sub Debounce Rotat_r , 0 , Rr , Sub Debounce Rotat_l , 0 , Rl , Sub Loop End '--------------------- Sr: If Leds > 1 Then Shift Leds , Right , 1 Return '--------------------- Sl: If Leds < 128 Then Shift Leds , Left , 1 Return '--------------------- Rr: Rotate Leds , Right , 1 Return '--------------------- Rl: Rotate Leds , Left , 1 Return '--------------------- Faculty of Electrical and Electronic Eng. 73 Automatic Control & Automation Dept.
- 4. Exp.11: Get RC Value Getrc SW2.Jumper JP14 74
- 5. Practical Class 4 Programming Microcontrollers pinx y var = Getrc(pinx , y) $regfile = "m128def.dat" $crystal = 8000000 '---------------------- Config Lcdpin = Pin , Db4 = Portc.4 , Db5 = Portc.5 , Db6 = Portc.6 , Db7 = Portc.7 , E = Portc.2 , Rs = Portc.3 Config Lcd = 20 * 4 '---------------------- Dim Rc_var As Word '---------------------- Cls : Cursor Off Lcd "RC Val= " Do Rc_var = Getrc(ping , 2) Locate 1 , 9 Lcd Rc_var Waitms 1000 Locate 1 , 8 : Lcd Spc(7) Loop End Faculty of Electrical and Electronic Eng. 75 Automatic Control & Automation Dept.
- 6. Exp.12: IR receiver, RC5-code RC5IR .RC5, RC5-ExtendedCLRM-2038S .RC5 SW2.Jumper JP18 76
- 7. Practical Class 4 Programming Microcontrollers Config Rc5 = Pinb.7 IR Getrc5(address , Command) $regfile = "m128def.dat" $crystal = 8000000 '--------------------- Config Lcdpin = Pin , Db4 = Portc.4 , Db5 = Portc.5 , Db6 = Portc.6 , Db7 = Portc.7 , E = Portc.2 , Rs = Portc.3 Config Lcd = 20 * 4 '--------------------- Config Rc5 = Pinb.7 '--------------------- Dim Address As Byte , Command As Byte Enable Interrupts '--------------------- Cls Do Gosub Remote_control Loop '--------------------- Remote_control: Getrc5(address , Command) If Address = 0 Then Command = Command And &B01111111 TV Cls Lcd "Command is: " ; Command Waitms 50 End If Return '--------------------- Faculty of Electrical and Electronic Eng. 77 Automatic Control & Automation Dept.
- 8. Exp.13: IR transmi er, RC5-code RC5IR RC5 RC5, RC5-Extended SW2.Jumper JP17 Rc5send Togbit , Address , Command RC5OC1A 78

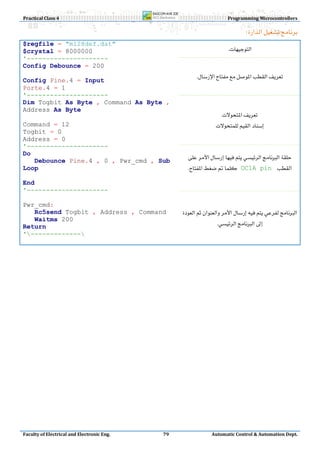

- 9. Practical Class 4 Programming Microcontrollers $regfile = "m128def.dat" $crystal = 8000000 '--------------------- Config Debounce = 200 Config Pine.4 = Input Porte.4 = 1 '--------------------- Dim Togbit As Byte , Command As Byte , Address As Byte Command = 12 Togbit = 0 Address = 0 '--------------------- Do Debounce Pine.4 , 0 , Pwr_cmd , Sub Loop OC1A pin End '--------------------- Pwr_cmd: Rc5send Togbit , Address , Command Waitms 200 Return '------------- Faculty of Electrical and Electronic Eng. 79 Automatic Control & Automation Dept.
- 10. Appendix: Exp.12 and Exp.13 RC5-code Detailed Article about Remote Control and IR Module What is infrared? 950nm Address 36KHZ 30KHZ – 60KHZ 36KHZ, 38KHZ38KHZ 36~38 36KHZ, 38KHZ 80
- 11. Practical Class 4 Programming Microcontrollers 27uS 36KHZ 21 1 2 What is IR Transmiting pr ot ocol s? t RC5 SIRCS NEC Sony SAMSUNG JAPAN Waveforms RC5 Transmi ing protocols? RC5 14 RC5 1.728mS 130mS Address Length - Command Length - Carrier Frequency - Start Bit - High-Bit-Time"1" - Low-Bit-Time"0" - Faculty of Electrical and Electronic Eng. 81 Automatic Control & Automation Dept.
- 12. 27µs demodulator 6432 32 "0" 32 x 27µs of silence27µs 32 32 x 27µs of silence "1" 27µs | +---| |---+ | | | | | | | | | | | | | |---+ | | +---| <-----> <-----> 1.7778ms 1.7778ms Logic 1 Logic 0 RC5 82
- 13. Practical Class 4 Programming Microcontrollers 14BitsRC5 Bit1 Bit2 Bit3 Bit4 Bit5 Bit6 Bit7 Bit8 Bit9 Bit10 Bit11 Bit12 Bit13 Bit14 start bits control Address Command Start Bits or AGC "Automatic Gain Control Bits1-2 - "1" Control Bit or Toggle Bit CHECK bitBit3 - – 11 Bits4-8 - 2^5=3232 SYSTEM ADDRESS EQUIPMENT 0 TV SET 1 1 TV SET 2 2 VIDEOTEXT 3 EXPANSION FOR TV 1 AND 2 4 LASER VIDEO PLAYER 5 VIDEO RECORDER 1 (VCR 1) 6 VIDEO RECORDER 2 (VCR 2) 7 RESERVED 8 SAT 1 9 EXPANSION FOR VCR 1 OR 2 10 SAT 2 11 RESERVED 12 CD VIDEO 13 RESERVED 14 CD PHOTO 15 RESERVED 16 AUDIO PREAMPLIFIER 1 17 RECEIVER / TUNER 18 TAPE / CASSETE RECORDER 19 AUDIO PREAMPLIFIER 2 20 CD 21 AUDIO RACK 22 AUDIO SAT RECEIVER 23 DCC RECORDER 24 RESERVED 25 RESERVED 26 WRITABLE CD 26-31 RESERVED Faculty of Electrical and Electronic Eng. 83 Automatic Control & Automation Dept.
- 14. Bits9-14 - 2^6=64 64 COMMAND (in decimal) DESCRIPTION of FUNCTION 0-9 NUMERIC KEYS 0 - 9 12 STANDBY 13 MUTE 14 PRESETS 16 VOLUME UP 17 VOLUME DOWN 18 BRIGHTNESS + 19 BRIGHTNESS - 20 COLOR SATURATION + 21 COLOR SATURATION - 22 BASS UP 23 BASS DOWN 24 TREBLE + 25 TREBLE - 26 BALANCE RIGHT 27 BALANCE LEFT 48 PAUSE 50 FAST REVERSE 52 FAST FORWARD- 53 PLAY 54 STOP 55 RECORD 63 SYSTEM SELECT 71 DIM LOCAL DISPLAY 77 LINEAR FUNCTION (+) 78 LINEAR FUNCTION (-) 80 STEP UP 81 STEP DOWN 82 MENU ON 83 MENU OFF 84 DISPLAY A/V SYS STATUS 85 STEP LEFT 86 STEP RIGHT 87 ACKNOWLEDGE 88 PIP ON/OFF 89 PIP SHIFT 90 PIP MAIN SWAP 91 STROBE ON/OFF 92 MULTI STROBE 93 MAIN FROZEN 94 3/9 MULTI SCAN 95 PIP SELECT 96 MOSAIC MULTI PIP 97 PICTURE DNR 98 MAIN STORED 99 PIP STROBE 100 RECALL MAIN PICTURE 101 PIP FREEZE 102 PIP STEP UP 103 PIP STEP DOWN 118 SUB MODE 119 OPTIONS BUS MODE 123 CONNECT 124 DISCONNECT 84
- 15. Practical Class 4 Programming Microcontrollers Interfacing IR Receiver to uC. IR uPuC "0"=On | "1" = off– 1 "1"inactivity 2 3 14 4 4.752mS 1.728mS CLRM-2038S IR Module CLRM-2038S CLRM-2038S 1 PCM 2 3 4 2.7V~5.5V 5 TTL, CMOS 6 NEC code,RC5 code 7 38KHZ 8 Faculty of Electrical and Electronic Eng. 85 Automatic Control & Automation Dept.
- 16. 12m 9 10 Optical switch · Audio, TV, VCR, CD, MD, DVD, etc · Air-conditioner, Fan, CATV, etc · Pins Confg. & Int ernal D agram i i CLRM-2038S CLRM-2038S CLRM-2038S 86
- 17. Practical Class 4 Programming Microcontrollers Rc5 receiver interface 4.7uF IRSAT Remote Control IRSAT IRSAT RC5 TV Remote Control with 33 Keys · China (mainland) · AA x 2 · 10 meters · 3μ AStandby current · 17x4.7x2.5cm · IRSAT Remote Control Key Commands IRSAT Faculty of Electrical and Electronic Eng. 87 Automatic Control & Automation Dept.
- 18. COMMAND (in Hex) DESCRIPTION of FUNCTION 0-9 NUMERIC KEYS 0 - 9 12 13 14 16 VOLUME UP 17 VOLUME DOWN 18 19 20 21 22 BASS UP 23 BASS DOWN 24 25 26 27 48 50 52 F1 53 F2 54 F3 55 F4 63 71 RC5 Sender RC5 OC1(A) 88
- 19. Practical Class 4 Programming Microcontrollers Bascom-AVR RC5 Timer1 RC5SEND $regfile = "m8def.dat" ' specify the used micro $crystal = 4000000 ' used crystal frequency Dim Togbit As Byte , Command As Byte , Address As Byte Command = 12 ' power on off Togbit = 0 ' make it 0 or 32 to set the toggle bit Address = 0 Do Waitms 200 Rc5send Togbit , Address , Command Loop End RC5 Receiver RC5 Bascom-AVR RC5 Timer0 getrc5 Faculty of Electrical and Electronic Eng. 89 Automatic Control & Automation Dept.

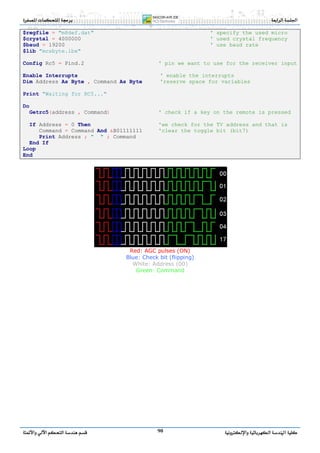

- 20. $regfile = "m8def.dat" ' specify the used micro $crystal = 4000000 ' used crystal frequency $baud = 19200 ' use baud rate $lib "mcsbyte.lbx" Config Rc5 = Pind.2 ' pin we want to use for the receiver input Enable Interrupts ' enable the interrupts Dim Address As Byte , Command As Byte 'reserve space for variables Print "Waiting for RC5..." Do Getrc5(address , Command) ' check if a key on the remote is pressed If Address = 0 Then 'we check for the TV address and that is Command = Command And &B01111111 'clear the toggle bit (bit7) Print Address ; " " ; Command End If Loop End Red: AGC pulses (ON) Blue: Check bit (flipping) White: Address (00) Green: Command 90
