Embedded Computers
 A computer as part of a digital system
 Performs processing to implement or control the
system’s function
 Components
 Processor core
 Instruction and data memory
 Input, output, and input/output controllers
 For interacting with the physical world
 Accelerators
 High-performance circuit for specialized functions
 Interconnecting buses

Verilog
Memory Organization
 Von Neumann architecture
 Single memory for instructions and data
 Harvard architecture
 Separate instruction and data memories
 Most common in embedded systems
CPU
…
Accelerator
Instruction
memory
Input
controller
Output
controller
I/O
controller
Data
memory

Verilog
Bus Organization
 Single bus for low-cost low-performance
systems
 Multiple buses for higher performance
CPU
Accelerator
Instruction
memory
Input
controller
Output
controller
I/O
controller
Data
memory

Verilog
Microprocessors
 Single-chip processor in a package
 External connections to memory and
I/O buses
 Most commonly seen in general purpose
computers
 E.g., Intel Pentium family, PowerPC, …

Verilog
Microcontrollers
 Single chip combining
 Processor
 A small amount of instruction/data memory
 I/O controllers
 Microcontroller families
 Same processor, varying memory and I/O
 8-bit microcontrollers
 Operate on 8-bit data
 Low cost, low performance
 16-bit and 32-bit microcontrollers
 Higher performance

Verilog
Processor Cores
 Processor as a component in an FPGA or
ASIC
 In FPGA, can be a fixed-function block
 E.g., PowerPC cores in some Xilinx FPGAs
 Or can be a soft core
 Implemented using programmable resources
 E.g., Xilinx MicroBlaze, Altera Nios-II
 In ASIC, provided as an IP block
 E.g., ARM, PowerPC, MIPS, Tensilica cores
 Can be customized for an application

Verilog
Digital Signal Processors
 DSPs are processors optimized for
signal processing operations
 E.g., audio, video, sensor data; wireless
communication
 Often combined with a conventional
core for processing other data
 Heterogeneous multiprocessor

Verilog
Instruction Sets
 A processor executes a program
 A sequence of instructions, each performing a
small step of a computation
 Instruction set: the repertoire of available
instructions
 Different processor types have different instruction
sets
 High-level languages: more abstract
 E.g., C, C++, Ada, Java
 Translated to processor instructions by a compiler

Verilog
Instruction Execution
 Instructions are encoded in binary
 Stored in the instruction memory
 A processor executes a program by
repeatedly
 Fetching the next instruction
 Decoding it to work out what to do
 Executing the operation
 Program counter (PC)
 Register in the processor holding the
address of the next instruction

Verilog
Data and Endian-ness
 Instructions operate on data from the data memory
 Byte: 8-bit data
 Data memory is usually byte addressed
 16-bit, 32-bit, 64-bit words of data
0
least sig. byte
Little endian Big endian
8-bit data
16-bit data
32-bit data
most sig. byte
least sig. byte
most sig. byte
m
m + 1
n
n + 2
n + 3
n + 1
0
least sig. byte
8-bit data
16-bit data
32-bit data
most sig. byte
least sig. byte
most sig. byte
m
m + 1
n
n + 2
n + 3
n + 1

Verilog
The Gumnut Core
 A small 8-bit soft core
 Can be used in FPGA designs
 Instruction set illustrates features typical of 8-
bit cores and processors in general
 Programs written in assembly language
 Each processor instruction written explicitly
 Translated to binary representation by an
assembler
 Resources available on companions web site

Verilog
Gumnut Storage

Verilog
Arithmetic Instructions
 Operate on register data and put result
in a register
 add, addc, sub, subc
 Can have immediate value operand
 Condition codes
 Z: 1 if result is zero, 0 if result is non-zero
 C: carry out of add/addc, borrow out of
sub/subc
 addc and subc include C bit in
operation

Verilog
Arithmetic Instructions
 Examples
 add r3, r4, r1
 add r5, r1, 2
 sub r4, r4, 1
 Evaluate 2x + 1; x in r3, result in r4
 add r4, r4, r3 ; double x
add r4, r4, 1 ; then add 1

Verilog
Logical Instructions
 Operate on register data and put result
in a register
 and, or, xor, mask (and not)
 Operate bitwise on 8-bit operands
 Can have immediate value operand
 Condition codes
 C: always 0

Verilog
Logical Instructions
 Examples
 and r3, r4, r5
 or r1, r1, 0x80 ; set r1(7)
 xor r5, r5, 0xFF ; invert r5
 Set Z if least-significant 4 bits of r2 are 0101
 and r1, r2, 0x0F ; clear high bits
sub r0, r1, 0x05 ; compare with 0101

Verilog
Shift Instructions
 Logical shift/rotate register data and
put result in a register
 shl, shr, rol, ror
 Count specified as a literal operand
 Condition codes
 C: the value of the last bit shifted/rotated
past the end of the byte

Verilog
Shift Instructions
 Examples
 shl r4, r1, 3
 ror r2, r2, 4
 Multiply r4 by 8, ignoring overflow
 shl r4, r4, 3
 Multiply r4 by 10, ignoring overflow
 shl r1, r4, 1 ; multiply by 2
shl r4, r4, 3 ; multiply by 8
add r4, r4, r1

Verilog
Memory Instructions
 Transfer data between registers and data
memory
 Compute address by adding an offset to a base
register value
 Load register from memory
 ldm r1, (r2)+5
 Store from register to memory
 stm r1, (r4)-2
 Use r0 if base address is 0
 ldm r3, 23  ldm r3, (r0)+23
 Condition codes not affected

Verilog
Memory Instructions
 Increment a 16-bit integer in memory
 Little-endian: address of lsb in r2, msb in next
location
 ldm r1, (r2) ; increment lsb
add r1, r1, 1
stm r1, (r2)
ldm r1, (r2)+1 ; increment msb
addc r1, r1, 0 ; with carry
stm r1, (r2)+1

Verilog
Input/Output Instructions
 I/O controllers have registers that govern
their operation
 Each has an address, like data memory
 Gumnut has separate data and I/O address spaces
 Input from I/O register
 inp r3, 157  inp r3, (r0)+157
 Output to I/O register
 out r3, (r7)  out r3, (r7)+0
 Condition codes not affected
 Further examples in Chapter 8

Verilog
Branch Instructions
 Programs can evaluate conditions and take
alternate courses of action
 Condition codes (Z, C) represent outcomes of
arithmetic/logical/shift instructions
 Branch instructions examine Z or C
 bz, bnz, bc, bnc
 Add a displacement to PC if condition is true
 Specifies how many instructions forward or
backward to skip
 Counting from instruction after branch

Verilog
Branch Example
 Elapsed seconds in location 100
 Increment, wrapping to 0 after 59
 ldm r1, 100
add r1, r1, 1
sub r0, r1, 60 ; Z set if r1 = 60
bnz +1 ; Skip to store if
add r1, r0, 0 ; Z is 0
stm r1, 100

Verilog
Jump Instruction
 Unconditionally skips forward or backward to
specified address
 Changes the PC to the address
 Example: if r1 = 0, clear data location 100 to
0; otherwise clear location 200 to 0
 Assume instructions start at address 10
 10: sub r0, r1, 0
11: bnz +2
12: stm r0, 100
13: jmp 15
14: stm r0, 200
15: ...

Verilog
Subroutines
 A sequence of instructions that perform
some operation
 Can call them from different parts of a
program using a jsb instruction
 Subroutine returns with a ret instruction

Verilog
Subroutine Example
 Subroutine to increment second count
 Address of count in r2
 ldm r1, (r2)
add r1, r1, 1
sub r0, r1, 60
bnz +1
add r1, r0, 0
stm r1, (r2)
ret
 Call to increment locations 100 and 102
 add r2, r0, 100
jsb 20
add r2, r0, 102
jsb 20

Verilog
Return Address Stack
 The jsb saves the return address for
use by the ret
 But what if the subroutine includes a jsb?
 Gumnut core includes an 8-entry push-
down stack of return addresses
return addr for first call
return addr for second call
return addr for first call
return addr for second call
return addr for third call

Verilog
Miscellaneous Instructions
 Instructions supporting interrupts
 See Chapter 8
 reti Return from interrupt
 enai Enable interrupts
 disi Disable interrupts
 wait Wait for an interrupt
 stby Stand by in low power mode until
an interrupt occurs

Verilog
The Gumnut Assembler
 Gasm: translates assembly programs
 Generates memory images for program
text (binary-coded instructions) and data
 See documentation on web site
 Write a program as a text file
 Instructions
 Directives
 Comments
 Use symbolic labels

Verilog

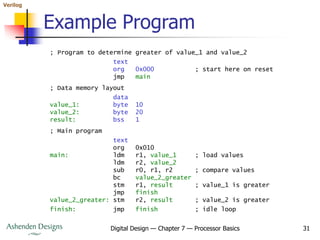

Example Program
; Program to determine greater of value_1 and value_2
text
org 0x000 ; start here on reset
jmp main
; Data memory layout
data
value_1: byte 10
value_2: byte 20
result: bss 1
; Main program
text
org 0x010
main: ldm r1, value_1 ; load values
ldm r2, value_2
sub r0, r1, r2 ; compare values
bc value_2_greater
stm r1, result ; value_1 is greater
jmp finish
value_2_greater: stm r2, result ; value_2 is greater
finish: jmp finish ; idle loop

Verilog
Gumnut Instruction Encoding
 Instructions are a form of information
 Can be encoded in binary
 Gumnut encoding
 18 bits per instruction
 Divided into fields representing different
aspects of the instruction
 Opcodes and function codes
 Register numbers
 Addresses

Verilog
Gumnut Instruction Encoding
1 1 0
1 1 1 fn disp
6 2 2 8
Branch
Arith/Logical
Register
Arith/Logical
Immediate
Shift
Memory, I/O
1 1 0
1 fn
rd rs rs2
4 3 3
3 3 2
0 fn rd rs immed
1 8
3 3 3
1 1 0 fn
rd rs count
3 3
1 2
3 3 3
1 0 fn rd rs offset
2 2 3 3 8
1 1 1 1 0
0
fn addr
5 1 12
Jump
1 1 1 1 1 1 fn
7 3 8
Miscellaneous

Verilog
Encoding Examples
 Encoding for addc r3, r5, 24
 Arithmetic immediate, fn = 001
0 fn rd rs immed
0 0
0 1 1
0 1 0
1 1 0 0 1
0 1 0
0 0
1 8
3 3 3
 Instruction encoded by 2ECFC
1 1 0
1 1 1 fn disp
6 2 2 8
1 1 0 0 0
1 1 1 1 1 1 1 1
1 1 0 0
1
Branch  bnc -4
 05D18

Verilog
Other Instruction Sets
 8-bit cores and microcontrollers
 Xilinx PicoBlaze: like Gumnut
 8051, and numerous like it
 Originated as 8-bit microprocessors
 Instructions encoded as one or more bytes
 Instruction set is more complex and irregular
 Complex instruction set computer (CISC)
 C.f. Reduced instruction set computer (RISC)
 16-, 32- and 64-bit cores
 Mostly RISC
 E.g., PowerPC, ARM, MIPS, Tensilica, …

Verilog
Instruction and Data Memory
 In embedded systems
 Instruction memory is usually ROM, flash,
SRAM, or combination
 Data memory is usually SRAM
 DRAM if large capacity needed
 Processor/memory interfacing
 Gluing the signals together

Verilog
Example: Gumnut Memory
inst_adr_o
inst_dat_i
rst_i
gumnut data
SRAM
inst_cyc_o
inst_stb_o
inst_ack_i
data_adr_o
data_dat_i
data_dat_o
data_cyc_o
data_stb_o
data_ack_i
data_we_o
adr
dat_o
dat_i
en
we
adr
dat_o
en
clk_i
clk_i
instruction
ROM
clk_i
D Q
clk
D
Q
clk

Verilog
always @(posedge clk) // Instruction memory
if (inst_cyc_o && inst_stb_o) begin
inst_dat_i <= inst_ROM[inst_adr_o[10:0]];
inst_ack_i <= 1'b1;
end
else
inst_ack_i <= 1'b0;

Verilog
always @(posedge clk) // Data memory
if (data_cyc_o && data_stb_o)
if (data_we_o) begin
data_RAM[data_adr_o] <= data_dat_o;
data_dat_i <= data_dat_o;
data_ack_i <= 1'b1;
end
else begin
data_dat_i <= data_RAM[data_adr_o];
data_ack_i <= 1'b1;
end
else
data_ack_i <= 1'b0;

Verilog
Example: Microcontroller Memory
A(15..8)
A(7..0)
CE
WE
OE
D
A(16)
D
LE
P2
Q
PSEN
ALE
8051 SRAM
RD
WR
P0

Verilog
32-bit Memory
 Four bytes per memory word
 Little-endian: lsb at least address
 Big-endian: msb at least address
0 1 2 3
4 5 6 7
8 9 10 11
 Partial-word read
 Read all bytes, processor selects those needed
 Partial-word write
 Use byte-enable signals

Verilog
Example: MicroBlaze Memory
D_in
A
SSRAM
en
wr
D_out
clk
D_in
A
SSRAM
en
wr
D_out
clk
D_in
A
SSRAM
en
wr
D_out
clk
D_in
A
SSRAM
en
wr
D_out
clk
0:7
8:15
16:23
24:31
0:7
2:16
8:15
16:23
24:31
Addr
Data_Write
AS
Read_Strobe
Ready
Clk
Data_Read
Write_Strobe
Byte_Enable(0)
Byte_Enable(1)
Byte_Enable(2)
Byte_Enable(3)
+V

Verilog
Cache Memory
 For high-performance processors
 Memory access time is several clock cycles
 Performance bottleneck
 Cache memory
 Small fast memory attached to a processor
 Stores most frequently accessed items,
plus adjacent items
 Locality: those items are most likely to be
accessed again soon

Verilog
Cache Memory
 Memory contents divided into fixed-
sized blocks (lines)
 Cache copies whole lines from memory
 When processor accesses an item
 If item is in cache: hit - fast access
 Occurs most of the time
 If item is not in cache: miss
 Line containing item is copied from memory
 Slower, but less frequent
 May need to replace a line already in cache

Verilog
Fast Main Memory Access
 Optimize memory for line access by cache
 Wide memory
 Read a line in one access
 Burst transfers
 Send starting address, then read successive locations
 Pipelining
 Overlapping stages of memory access
 E.g., address transfer, memory operation, data transfer
 Double data rate (DDR), Quad data rate (QDR)
 Transfer on both rising and falling clock edges

Verilog
Summary
 Embedded computer
 Processor, memory, I/O controllers, buses
 Microprocessors, microcontrollers, and
processor cores
 Soft-core processors for ASIC/FPGA
 Processor instruction sets
 Binary encoding for instructions
 Assembly language programs
 Memory interfacing

07 processor basics

More Related Content

What's hot (20)

Similar to 07 processor basics (20)

Recently uploaded (20)

07 processor basics

Editor's Notes
