Radically Simple Management & Assembly of API-based Applications
- 1. © 2014 IBM Corporation Radically Simple Management & Assembly of API-based Applications Rania Khalaf, Jim Laredo, Alek Slominski {rkhalaf, laredoj, aslom}@us.ibm.com
- 2. Please Note IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal without notice at IBM’s sole discretion. Information regarding potential future products is intended to outline our general product direction and it should not be relied on in making a purchasing decision. The information mentioned regarding potential future products is not a commitment, promise, or legal obligation to deliver any material, code or functionality. Information about potential future products may not be incorporated into any contract. The development, release, and timing of any future features or functionality described for our products remains at our sole discretion. Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will experience will vary depending upon many factors, including considerations such as the amount of multiprogramming in the user’s job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.
- 3. © 2013 IBM Corporation3 IBM Research APIs is a strategic business tool for value co- creation 3 All Fortune 1000 companies will have APIs by 2015
- 4. © 2013 IBM Corporation4 IBM Research Achieving fast and beautiful compositions Consumable, Agile Proven patterns, quickly assembled and delivered Resiliency and QoS from API providers Secure and scalable
- 5. 5 Example: My Smart Home •Demonstrate how home APIs can be composed together into recipes •Show how recipes can simplify home automation http://www.brickshelf.com/gallery/slovakiasteph/hillsidemod/lego_005.jpg
- 6. 6 Menu driven, single action Conversational, complex actions
- 7. © 2013 IBM Corporation7 IBM Research 7 Demo: The home owner
- 9. Limitation of these models Integration of two APIS through Trigger Action combinations No flow control logic Composition limited to mapping of outputs from the trigger into inputs on the action Optimized for ease of configuration

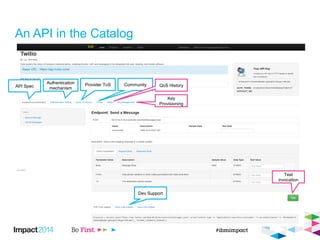

- 10. An API in the Catalog Key Provisioning Test invocation Dev Support API Spec Authentication mechanism Provider ToS Community QoS History
- 12. © 2013 IBM Corporation12 IBM Research 12 Demo: The developer
- 13. Engaging with your home through APIs 13
- 14. Lightweight Workflow Scripting Deploy to scalable runtime Contextual queries of service registry REST Interaction with APIs in cloud Rich semantic representation of cloud APIs Data collectionRetrieve instance state Analytics operations Hosted IDE Splice runtime API Metadata Cloud services
- 15. Creating Scripts: Login, author, deploy, invoke in minutes 1. Login to Orion IDE 3. Generate call template for service endpoints 4. Convenient buttons to deploy and invoke 2. Content assist for built-in activities.
- 17. Workflow and instance store Workflow and instance store Workflow and instance store Workflow and instance store Splice engineSplice engineSplice engineSplice engine workflow engine workflow engine Cloud capabilities Workflow and instance store Workflow and instance store Elasticity Use Auto Scaling Group management service (Netflix OSS) Versioning Fault isolation Avoid cascading failures, and transparently retry failed invocations (Netflix OSS) Resilience Tie together highly available persistence layer, elastic engine, and fault-isolation (Netflix OSS) Dynamic routing Enables canary, A/B testing, and staged deployment (Netflix OSS) Incoming calls v1 v2 Outgoing calls

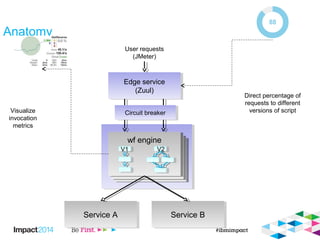

- 18. Edge service (Zuul) Edge service (Zuul) Splice engineSplice engineSplice engineSplice engine Anatomy wf enginewf engine Edge service (Zuul) Edge service (Zuul) Service AService A Service BService B User requests (JMeter) Direct percentage of requests to different versions of scriptVisualize invocation metrics V2V1 Circuit breakerCircuit breaker
- 19. Services Fabric BlueMix Recipe InstanceRecipe Instance APIs Recipes Recipe2App Recipe Architecture workflow as a service
- 20. Summary: API Choreography for the Cloud start = RECEIVEGET(null, ’mint'); geturs = SCRIPT(start, function() { var user1 = start.out.user[0]; var user2 = start.out.user[1]; if (user1 == user2) { /* ... */ } }); getlocation1 = GET(geturs, ...); getlocation2 = GET(geturs, ...); Script Scale Analyze APIs BlueMix App Recipe PatternAPI Endpoin t Endpoin t Endpoin t Endpoin t Pattern AssetPattern AssetPattern Asset Assets and Orchestratio ns Binding Configuration Pattern AssetPattern AssetPattern Asset Sample (Client, UI) Assets Properties Properties Endpoint Dependency Endpoint Dependency Recipe Cloud
- 21. Thank You
- 22. © 2013 IBM Corporation22 IBM Research Legal Disclaimer • © IBM Corporation 2014. All Rights Reserved. • The information contained in this publication is provided for informational purposes only. While efforts were made to verify the completeness and accuracy of the information contained in this publication, it is provided AS IS without warranty of any kind, express or implied. In addition, this information is based on IBM’s current product plans and strategy, which are subject to change by IBM without notice. IBM shall not be responsible for any damages arising out of the use of, or otherwise related to, this publication or any other materials. Nothing contained in this publication is intended to, nor shall have the effect of, creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software. • References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates. Product release dates and/or capabilities referenced in this presentation may change at any time at IBM’s sole discretion based on market opportunities or other factors, and are not intended to be a commitment to future product or feature availability in any way. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you will result in any specific sales, revenue growth or other results. • If the text contains performance statistics or references to benchmarks, insert the following language; otherwise delete: Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will experience will vary depending upon many factors, including considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed. Therefore, no assurance can be given that an individual user will achieve results similar to those stated here. • If the text includes any customer examples, please confirm we have prior written approval from such customer and insert the following language; otherwise delete: All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and performance characteristics may vary by customer. • Please review text for proper trademark attribution of IBM products. At first use, each product name must be the full name and include appropriate trademark symbols (e.g., IBM Lotus® Sametime® Unyte™). Subsequent references can drop “IBM” but should include the proper branding (e.g., Lotus Sametime Gateway, or WebSphere Application Server). Please refer to http://www.ibm.com/legal/copytrade.shtml for guidance on which trademarks require the ® or ™ symbol. Do not use abbreviations for IBM product names in your presentation. All product names must be used as adjectives rather than nouns. Please list all of the trademarks that you use in your presentation as follows; delete any not included in your presentation. IBM, the IBM logo, Lotus, Lotus Notes, Notes, Domino, Quickr, Sametime, WebSphere, UC2, PartnerWorld and Lotusphere are trademarks of International Business Machines Corporation in the United States, other countries, or both. Unyte is a trademark of WebDialogs, Inc., in the United States, other countries, or both. • If you reference Adobe® in the text, please mark the first use and include the following; otherwise delete: Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries. • If you reference Java™ in the text, please mark the first use and include the following; otherwise delete: Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both. • If you reference Microsoft® and/or Windows® in the text, please mark the first use and include the following, as applicable; otherwise delete: Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both. • If you reference Intel® and/or any of the following Intel products in the text, please mark the first use and include those that you use as follows; otherwise delete: Intel, Intel Centrino, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. • If you reference UNIX® in the text, please mark the first use and include the following; otherwise delete: UNIX is a registered trademark of The Open Group in the United States and other countries. • If you reference Linux® in your presentation, please mark the first use and include the following; otherwise delete: Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others. • If the text/graphics include screenshots, no actual IBM employee names may be used (even your own), if your screenshots include fictitious company names (e.g., Renovations, Zeta Bank, Acme) please update and insert the following; otherwise delete: All references to [insert fictitious company name] refer to a fictitious company and are used for illustration purposes only.
- 23. Workflow Services in Cloud Platforms 23 Simple Workflow Service Workflow FoundationService
- 25. Interact with my house: Scripts using open APIs 25
- 26. Definitions: Services API, Recipe, Recipe Instance, App A running service provide Application Programming Interface via endpoint Services API Definition Provide a reusable, configurable composition of services template for replicable business scenarios. Recipe Definition A Recipe that is being configured is Recipe Instance Recipe Instance has been deployed as one App (with one or multiple Recipe Assets) Recipe Instance, App Configured Configure Deploy Destroy RecipeInstance Registered Deleted Register Delete Recipe Destroyed Harvested Workflows /Scenarios Create Create App Deployed Create BlueMix Recipe PatternAPI Endpoint Endpoint Endpoint Endpoint Pattern AssetPattern AssetPattern Asset Assets and Orchestrations Binding Configuration Deploy App Pattern AssetPattern AssetPattern Asset Sample (Client, UI) Assets Properties Properties Endpoint Dependency Endpoint Dependency Service ServiceAPI Endpoint Endpoint Endpoint Endpoint Runtime
- 27. Recipe Instance CatalogAPI Catalog API B API A Bindings Binding Option 1 Binding Option 2 Configurations Configuration Property 1 Configuration Property 2 Configuration Property 3 RecipeCatalog Lockdown SmartHome Runtime Bluemix App Runtime (for PHP) App Runtime (for J2EE) API Mgmt A P I A P I A P I A P I Asset Pkg Asset Pkg Sample Pkg A PI Service Registry RecipeLoaded from Catalog Recipe Instance Ready for Deployment AppDeployed inBlueMix Recipe User
