The document describes techniques used to improve the quality of crowdsourced data from the GEO-Wiki project. It discusses preprocessing steps like blur detection, duplicate detection, and vote aggregation algorithms. Blur detection removed 2% of low-quality images, while duplicate detection based on perceptual hashing removed 6% of redundant votes. Benchmarking algorithms on expert-annotated data showed that majority voting performed comparably to more complex algorithms when there were many accurate volunteers and few spammers. Preprocessing improved results by reducing workload and increasing statistical significance.
![Blur detection algorithm [H Tang, 2012].
Input: image
Output: coefficient of blur in [0, 100]
Detection of blurry images
100%0%](https://image.slidesharecdn.com/baklanovvotesaggregationtechniquesingeo-wikicrowdsourcinggame-160427211610/85/Artem-Baklanov-Votes-Aggregation-Techniques-in-Geo-Wiki-Crowdsourcing-Game-a-Case-Study-7-320.jpg)
![pHash (perceptual hash) [Zauner, 2010].
Detection of duplicates](https://image.slidesharecdn.com/baklanovvotesaggregationtechniquesingeo-wikicrowdsourcinggame-160427211610/85/Artem-Baklanov-Votes-Aggregation-Techniques-in-Geo-Wiki-Crowdsourcing-Game-a-Case-Study-16-320.jpg)
![A publicly available code implements KOS and EM algorithm;;
both are implemented in conjunction with reputation
algorithm (also called Hard penalty).
https://github.com/ashwin90/Penalty-based-clustering
[EM] Dawid, A.P., Skene, A.M.: Maximum likelihood estimation of
observer error-rates using the em algorithm. Applied statistics pp.
20–28 (1979)
[Hard penalty] Jagabathula, S., et al.: Reputation-based worker
filtering in crowdsourcing. In: Advances in Neural Information
Processing Systems. pp. 2492–2500 (2014)
[KOS] Karger, D.R., Oh, S., Shah, D.: Iterative learning for reliable
crowdsourcing systems. In: Advances in neural information
processing systems. pp. 1953–1961 (2011)](https://image.slidesharecdn.com/baklanovvotesaggregationtechniquesingeo-wikicrowdsourcinggame-160427211610/85/Artem-Baklanov-Votes-Aggregation-Techniques-in-Geo-Wiki-Crowdsourcing-Game-a-Case-Study-22-320.jpg)
![Weighted MV Heuristic
• We use weighted MV with weights equal
to reliabilities of volunteers
Reliability= 2 Pcorrect answer
- 1
• The heuristic is combined with iterative
removal of a volunteer with the highest
penalty [Hard penalty]. Then recalculate
penalties, and obtain new results for the
weighted MV.](https://image.slidesharecdn.com/baklanovvotesaggregationtechniquesingeo-wikicrowdsourcinggame-160427211610/85/Artem-Baklanov-Votes-Aggregation-Techniques-in-Geo-Wiki-Crowdsourcing-Game-a-Case-Study-23-320.jpg)
![Before and after merging of duplicates
Votes per image Unique votes
Repetition of images
(average)
Before [1 … 269] [1 … 88] 4
After [1…6042] [1…942] 13
900 volunteers
saw the same
image 7 times](https://image.slidesharecdn.com/baklanovvotesaggregationtechniquesingeo-wikicrowdsourcinggame-160427211610/85/Artem-Baklanov-Votes-Aggregation-Techniques-in-Geo-Wiki-Crowdsourcing-Game-a-Case-Study-34-320.jpg)
Artem Baklanov - Votes Aggregation Techniques in Geo-Wiki Crowdsourcing Game: a Case Study
- 1. Vote Aggregation Techniques in the Geo-Wiki Crowdsourcing Game: A Case Study Michael Khachay, Oleg Nurmukhametov Artem Baklanov Krasovskii Institute of Mathematics and Mechanics Postdoctoral Research Scholar, ASA, IIASA Krasovskii Institute of Mathematics and Mechanics Steffen Fritz, Carl Salk, Linda See, and Dmitry Shchepashchenko IIASA
- 2. Young Scientists Summer Program Since 1977, IIASA’s annual 3-month Young Scientists Summer Program (YSSP) offers opportunities to talented young researchers.
- 3. Crowdsourcing = Crowd + Outsourcing Crowdsourcing is a new approach to perform tasks, when a group of distributed worldwide people in total can substitute an expert. Example: GEO-wiki project, ESM, IIASA
- 4. Geo-Wiki: Cropland Capture Game 5 millions votes 170 000 satellite images 3000 volunteers 6 months Goal: land cover map www.geo-wiki.org d
- 5. Preprocessing of images Blur detection Duplicate detection Benchmarking of algorithms for vote aggregation Outline of presentation Noise reduction Prediction
- 6. Preprocessing of images Duplicate detection Blur detection Benchmarking of algorithms for vote aggregation Outline of presentation Noise reduction Prediction
- 7. Blur detection algorithm [H Tang, 2012]. Input: image Output: coefficient of blur in [0, 100] Detection of blurry images 100%0%
- 9. Blurry images 80% 90% 95% 98% 99%
- 10. The table and figure are from Tong, Hanghang, et al. "Blur detection for digital images using wavelet transform." Multimedia and Expo, 2004. ICME'04. 2004 IEEE International Conference on. Vol. 1. IEEE, 2004. Blur detection algorithm
- 11. A key idea • A= a number of Roof-Structure and Gstep-Structure edge points that have lost their sharpness. • B= a number of Roof-Structure and Gstep-Structure edge points. • Blur coefficient = 100*A/B
- 12. Detection of blurry images Results Current campaign: Noise reduction in dataset. + for future campaigns: Less workload, more joy. Blur coefficient Number of images 0% (Excellent images) 74 000 (38%) 80% - 100% (Extremely bad images) 3 200 (2%) Extremely bad images were removed
- 13. Detection of duplicates Web Link Image unique identifier Link to image 1 http://cg.tuwien.ac.at/~sturn/crop/img_78.1875_52.9958_1000.jpg 2 http://cg.tuwien.ac.at/~sturn/crop/img_78.1875_52.9958_500.jpg 3 http://cg.tuwien.ac.at/~sturn/crop/img_78.1875_52.9958_300.jpg … … Binary file Image content
- 14. Detection of duplicates Find the 10 differences
- 15. Detection of duplicates The pixel-by-pixel differences Links: different Binary files: different Image content: similar
- 16. pHash (perceptual hash) [Zauner, 2010]. Detection of duplicates
- 17. pHash. High level description 1. Resize to 32x32 and grayscale;; 2. Perform DCT-2 transformation and keep top-left 8x8;; 3. Calculate the average value of alternating components;; 4. Set the 64 hash bits to 0 (or 1) on whether DCT values more (or less) the average value.
- 18. Detection of copies Method Copies count Time to completion Binary data comparison (MD5) 2 700 Fast (~10 min) Image content comparison (pHash) 10 000 (6%) Slow(~7 hours) Results Current campaign: Increase of statistically significance; Reduction of dimensionality. + for future campaigns: Less workload, more joy. Votes were merged.
- 19. Preprocessing of images Duplicate detection Blur detection Benchmarking of algorithms for vote aggregation Outline of presentation Noise reduction Prediction
- 20. A part of the dataset was annotated by an expert after the campaign took place: • 854 images;; • 1813 volunteers;; • 16 940 votes. We sample two subsets for training and testing 70/30 ratio Expert dataset

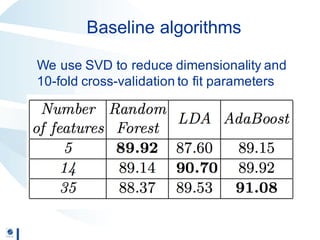

- 21. Baseline algorithms We use SVD to reduce dimensionality and 10-fold cross-validation to fit parameters
- 22. A publicly available code implements KOS and EM algorithm;; both are implemented in conjunction with reputation algorithm (also called Hard penalty). https://github.com/ashwin90/Penalty-based-clustering [EM] Dawid, A.P., Skene, A.M.: Maximum likelihood estimation of observer error-rates using the em algorithm. Applied statistics pp. 20–28 (1979) [Hard penalty] Jagabathula, S., et al.: Reputation-based worker filtering in crowdsourcing. In: Advances in Neural Information Processing Systems. pp. 2492–2500 (2014) [KOS] Karger, D.R., Oh, S., Shah, D.: Iterative learning for reliable crowdsourcing systems. In: Advances in neural information processing systems. pp. 1953–1961 (2011)
- 23. Weighted MV Heuristic • We use weighted MV with weights equal to reliabilities of volunteers Reliability= 2 Pcorrect answer - 1 • The heuristic is combined with iterative removal of a volunteer with the highest penalty [Hard penalty]. Then recalculate penalties, and obtain new results for the weighted MV.
- 24. Accuracy for ‘crowdsourcing’ algorithms Baseline: AdaBoost (35 features) 91.08
- 25. Accuracy for ‘crowdsourcing’ algorithms with image thresholding. Only images with at least 10 votes are left in the expert dataset: 404 images, 1777 volunteers.
- 26. Possible explanations Spammers Malicious Annotators Good Annotators Biased Annotators Biased Annotators ROCs for all 1813 volunteers on the expert dataset Raykar, V.C.: Eliminating Spammers and Ranking Annotators for Crowdsourced Labeling Tasks. JMLR 13, 491–518 (2012)
- 27. Volunteers’ ROCs Spammers Malicious Annotators Good Annotators Biased Annotators Biased Annotators Threshold = 12 votes, 262 volunteers.
- 28. Volunteers’ ROCs Spammers Malicious Annotators Good Annotators Biased Annotators Biased Annotators Threshold = 100 votes, 24 volunteers.
- 29. Accuracy Due to image processing step • accuracy of MV increased by 2%, • workload decreased by 6 %. Using threshold for voters and the heuristic, we increase accuracy to 95.5%.
- 30. Conclusions • Numerical experiments show that MV performs on a par with all algorithms. • Possible explanation: high accuracy of frequently voting volunteers coupled with the absence of spammers. • Image thresholding by number of votes helps to improve the results of all algorithms similarly. • To summarize, good annotators eliminate any advantages of state of the art algorithms over MV. • Image preprocessing is the only way to improve accuracy!
- 31. Future plans • Development of theory • More case studies in this field, hopefully with spammers and malicious voters! • Elaborate approach to ‘Maybe’ votes
- 33. The baseline Ø We apply SVD to the whole dataset to reduce dimensionality. Ø We find an appropriate choice for the number of features: 5, 14, 35. Ø Transform the feature space of the testing and training subsets accordingly. Ø On the basis of 10-fold cross-validation of the training subset, we fit parameters for the AdaBoost and Random Forest algorithms. For Linear Discriminant Analysis (LDA), we use default parameters. Ø The accuracy of the algorithms with fitted parameters was estimated using the testing subset.
- 34. Before and after merging of duplicates Votes per image Unique votes Repetition of images (average) Before [1 … 269] [1 … 88] 4 After [1…6042] [1…942] 13 900 volunteers saw the same image 7 times
- 35. Accuracy for ‘crowdsourcing’ algorithms with image thresholding. Only images with at least 4 votes are left in the expert dataset: 729 images, 1812 volunteers.
- 36. Volunteers’ ROCs Spammers Malicious Annotators Good Annotators Biased Annotators Biased Annotators Threshold = 44 votes, 52 volunteers.
