TTP and FlexRay
Time Triggered Protocols
• Global time by fault tolerant clock synchronisation
• Exact time point of a certain message is known
(determinism)
• Real time capable, for safety-critical systems
• Each node gets a time slot in the transmission
loop where only it can send a message
+ No arbitration necessary
+ No address field
– Less flexible
Requirements
1. General
• Higher bandwidth
• Fault tolerance
• Deterministic data transmission with guaranteed latency and minimal jitter.
• Support for distributed systems
• Unifications of bus systems within vehicles
• Composability
2. Automotive
• Configurable synchronous and asynchronous transmission
• Support of scaleable redundancy.
• Prompt error detection and error reporting.
• Fault-containment at the level of the physical layer.
• Media-access without arbitration.
• Support for a fiber-optics and electrical physical layer.
• Flexibility, expandability and easy configuration in automotive applications.
Requirements (Priorities)
TTP/C
1. Security
2. Composability
3. Flexibility
FlexRay
1. Flexibility
2. Composability
3. Security
System Structure
• The CNI (implemented as a Dual Ported RAM) is an interface
between the application layer and protocol layer of a TTP node.
• The TTP/C protocol runs on the TTP/C communication controller
• Applications run on the host subsystem.
Topology
TTP/C
FlexRay
Bus Star
Nodes
TTP FlexRay
Message Transmission
TTP
• Max data field length = 236B
• MEDL, TDMA round, Cluster
cycle
• Event channel on top of TTP –
specified no. of bytes in message
reserved
– Event triggered protocol can be
implemented at a higher level
– CNI continues to be defined in
temporal domain
– Error correction possible
– Async traffic protected by BG
FlexRay
• Max data field length = 12B
• Schedule determined at runtime
• Event channel in parallel – two
recurring intervals (synchronous
for high priority & asynchronous
for low priority)
• Asynchronous messages
controlled by Byteflight
“minislotting” protocol
• use TDMA strategy
• protect communication channel with Bus Guardian
Frames
TTP FlexRay
Fault Hypothesis (introduction)
• Fault mode + No. of faults + Fault arrival rate
• Level 1 and Level 2 faults.
• FCU ’s and the partitioning strategy
• Faults can affect – time,value and space
• Hybrid Fault Model – manifest,symmetric and asymmetric faults.
• Faults – active or passive
• Self – checking pairs
• Fail silence
• Slightly Off Specification (SOS) Faults
• Reconfiguration and Reconfiguration rate
•Never Give Up (NGU) Strategy
Fault Hypothesis (TTP/C)
• Fault modes:
1. Arbitrary active faults in controllers and the hub of TTA-star
2. Arbitrary passive faults in the guardians and buses of TTA-bus
3. Spatial proximity faults that take out nodes and a hub in TTA-star
• Maximum faults:
TTA adopts a single-fault hypothesis. In more detail, the fault hypothesis of
TTA assumes the following numbers of faults.
1. For TTA-bus: in each node either the controller or the bus guardian may fail
(but not both). One of the buses may fail. To retain single fault tolerance, at
least four controllers and their bus guardians must be nonfaulty, and both
buses must be nonfaulty. Provided at least one bus is nonfaulty, the system
may be able to continue operation with fewer nonfaulty components.
2. For TTA-star: to retain single fault tolerance, at least four controllers and
both hubs must be nonfaulty. Provided at least one hub is nonfaulty, the
system may be able to continue operation with fewer nonfaulty
components.
• Fault arrival rate:
At most one fault every two rounds
Fault Hypothesis (FlexRay)
inferences
• A node consisting of a microcontroller host, a communication controller,
and two bus guardians will be fabricated on a single chip. It appears that
all four components will use separate clock oscillators
• Fault modes:
1. Asymmetric (and presumably, therefore, also arbitrary) faults in controllers
for the purposes of clock synchronization
2. Fault modes for other services and components are not described
3. Spatial proximity faults may take out nodes and an entire hub
• Maximum faults:
1. It appears that a single-fault hypothesis is intended: in each node, at most
one bus guardian, or the controller, may be faulty. At most one of the
interconnects may be faulty.
2. For clock synchronization, fewer than a third of the nodes may be faulty.
• Fault arrival rate:
The fault arrival rate hypothesis is not described.
Clock Synchronisation
• Throughput of the bus = tightness of bus schedule
= quality of global clock synchronisation
= quality of local oscillators + synchronisation algorithm
• Two classes of synchronisation algorithm
– Average based (eg. Welch-Lynch)
 “fault tolerant midpoint”
 assume n clocks and the maximum number of simultaneous
faults to be tolerated is t (3t < n); the fault-tolerant midpoint is
the average of the t + 1’st and n – t ‘ th when arranged from
smallest to largest
– Event based (eg. Srikant-Touleg)
• Both averaging and event-based algorithms require at least 3a + 1
nodes to tolerate a arbitrary faults.
Clock Sychronisation (TTP/C)
• Welch-Lynch algorithm for t = 1
• does not use dedicated wires , exploits the fact that communication is time
triggered by a global schedule.
• TTP nodes that have accurate clocks are marked with SYF(synchronisation
frame) flag in the MEDL and time of these nodes are used for
synchronisation.
• Four registers per node used to maintain most recent accurate clock-
difference readings
• When the current slot has the synchronization field (CS) set in the MEDL,
each node runs the synchronization algorithm using the four clock readings
stored in its queue.(The largest and smallest discarded)
• As the TTP algorithm is designed to tolerate one arbitrary (Byzantine) fault in
every TDMA round, there must be at least four slots in every TDMA round
with the SYF flag set.
• Group membership service is used to exclude nodes with very faulty clocks
Clock Sychronisation
(FlexRay)
• Welch-Lynch algorithm
• No membership service
• No mechanism for detecting faulty nodes
• No reconfiguration to exclude them
• To tolerate two arbitrary faults at least
– seven nodes (3t + 1)
– five disjoint communication paths or three
broadcast channels (2t + 1, and t + 1)
Bus Guardian
TTP/C
• Share power supply and
physical space with controller
• Synchronised by start of
round signal from controller
• In TTA-Star BG is moved to
hub
FlexRay
• Two guardians per node
hence greater cost
• is a separate FCU that has an independent copy of the schedule
and knowledge of the global time
• mediates message transmission by an interface to an interconnect
• prevents ‘babbling idiot’ problem
Startup and Restart
• Failure of system must be detected by bus
• Restart must be automatic and fast
• Restart is initiated when an interface detects
no activity on any bus line for some interval –
interface will then send the ‘wake-up’ signal
• Components that detect faults in themselves
or are notified of a fault perform local restart
and self-test.
Startup and Restart
TTP/C
• Use I-frames and C-
State data in them
• If it does not receive
one it transmits one
itself on any one bus
• Problem of colliding
restarts
• Problem of bad restarts.
FlexRay
• Difficult to implement
with incomplete schedule
• Difficult to initialise the
Welch-Lynch algorithm if
faults are present at
startup and with no
clique avoidance
• Self stabilising
algorithms based on
randomization??
Services
• Basic purpose of these architectures is to build reliable
distributed application.
• Basic services
– clock synchronization
– time-triggered activation
– reliable message delivery
• Fault tolerant replication
– Approximate agreement
– Exact agreement
• the problem of distributing data consistently in presence of fault
is variously called interactive consistency
– Agreement: all nonfaulty receivers obtain the same message.
– Validity: if the transmitter is nonfaulty, then nonfaulty
receivers obtain the message actually sent.

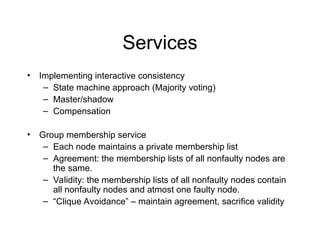

Services
• Implementing interactive consistency
– State machine approach (Majority voting)
– Master/shadow
– Compensation
• Group membership service
– Each node maintains a private membership list
– Agreement: the membership lists of all nonfaulty nodes are
the same.
– Validity: the membership lists of all nonfaulty nodes contain
all nonfaulty nodes and atmost one faulty node.
– “Clique Avoidance” – maintain agreement, sacrifice validity
Services
TTP/C
• Membership service =
Clique Avoidance + Implicit
Acknowledgement
FlexRay
• Only clock sychronisation
and reliable message
delivery
