Building Data Rich Interfaces with JavaFX
- 1. Building Data Rich Interfaces with JavaFXStephen ChinInovis
- 2. About the PresenterDirector SWE Inovis, Inc.Open-Source JavaFX HackerMBABelotti AwardUberScrumMasterXP CoachAgile Portfolio Process SpeakerPro JavaFX AuthorJava ChampionJavaOneRockstarJFXtrasWidgetFXFEST-JavaFXSilicon Valley JavaFX User Group FounderFamily ManMotorcyclist
- 3. 3AGENDAJavaFX Technology StackData BindingJavaFX 1.3 ControlsControl StylingJavaFX 1.3 LayoutsWeb Service IntegrationJFXtras Data-driven ControlsApropos DemoPro JavaFX Quiz with Prizes!
- 4. JavaFX Technology StackXControlsSwingHandlersXLayoutsWipeJFXtras ProjectControlsLayoutsMediaWeb ServicesBindingCSSJavaFX PlatformJVMSecurityAPIsDeployment…Java Platform
- 5. Evolution of Data BindingJavaFX BindingBind LibraryProperty Change ListenersCallbacks
- 6. Bind ExpressionsUnidirectional:property: bindobject.valueproperty: bindsequence[index]sequence: bindfor (v in values) convert(v)Bijective:property: bindvalue with inverseFunction:public bound function calculateTotal(subtotal, tax) { return subtotal * (1 + tax);}New in JavaFX 1.3 – All binding is lazy!
- 7. Binding to ControlsboundfunctiongetScore() {[ScoreLine {line: "Ski Jumping - Individual Norml"}ScoreLine {line: ""}ScoreLine {line: bind" {%-10smedal.type} "}ScoreLine {line: bind"{%-17smedal.name} {%-3smedal.country} {%3.1fmedal.score}"} ]}defsb = ScoreBoard {lightColor: bindmedal.lightColor lines: bindgetScore()onMousePressed: function(e) {if(e.primaryButtonDown) { medal = medals[(Sequences.indexOf(medals, medal) + 1) modsizeof medals] } else{FX.exit(); }}}
- 8. Dynamic BindingJFXtras extension for runtime binding to an existing JavaFX object via reflection.Example:classReflectionTarget {publicvarfieldA:String;}defreflectionTarget = ReflectionTarget {fieldA: “A"}defmirror = context.mirrorOf(reflectionTarget);defxbind = XBind.bindWithInverse(mirror, mirror.getType().getVariable("fieldA"));xbind.ref = "B";What is the value of: reflectionTarget.fieldA?8
- 9. Java to JavaFX BindingPrototype by Johannes Schneider:http://blog.cedarsoft.com/Java to JavaFXPropertyChangeEvents: Just make your Java Bean fire PropertyChangeEvents whenever a property has changedJavaFX to JavaVariable Setter: The corresponding setter of your Java object is calledPropertyChangeEvents: JavaFX binding updates trigger PropertyChangeEventsJavaFxBridge.bridge(javaModel).to(slider asFXObject).connecting(JavaFxBridge.bind("amount").to("value").withInverse());Will be included in the JFXtras 0.8 Release – Feedback on the syntax welcome!
- 10. JavaFX 1.3 Top 10 Features10
- 11. JavaFX 1.3 Top 10 4 Features11New ControlsLayout EnhancementsEnhanced CSSPreview FeaturesTOP SECRET
- 12. New Controls in JavaFX 1.3var list = ["apples", "bananas", "oranges", "pears", "cabbage"]; ScrollView { width: 250 height: 250 managed: false node: VBox { padding: Insets {top: 10, left: 10, bottom: 10, right: 10} spacing: 10 content: [ PasswordBox {promptText: "enter password"} Separator {} ChoiceBox { items: list } ListView { vertical: false items: list } ]}}PasswordBoxSeparatorChoiceBoxScrollViewHorizontalList
- 13. Preview Controls in JavaFX 1.3MenuBar { menus: for (i in [0..4]) Menu { text: "Menu {i}" items: for (j in [0..4]) MenuItem { text: "Menu Item {j}" } }}ToolBar { items: for (i in [0..4]) Button {text: "Button {i}"}}TreeView { root: TreeItem { expanded: true data: "Root" children: for (i in [0..4]) [TreeItem { data: "Item {i}" }]}}MenuBarMenuToolBarTreeView
- 14. Styling ControlsVBox { spacing: 20nodeHPos: HPos.CENTER content: [ Text {content: "Default Styling"} Button {text: "Button"}CheckBox {text: "CheckBox", selected: true} Slider {value: 50} ]layoutInfo: LayoutInfo { margin: Insets {bottom: 20, top: 20, left: 20, right: 20} }}14Source: Dean Iverson, http://pleasingsoftware.blogspot.com/2010/04/so-whats-it-all-good-for.html
- 15. Styling Controls – Button/CheckBox.button { -fx-base: dodgerblue; -fx-shape: "M 50,30 m 0,25 a 1,1 0 ""0,0 0,-50 a 1,1 0 1,0 0,50"; -fx-scale-shape: false;}.check-box:selected *.label { -fx-text-fill: red}.check-box:selected *.mark { -fx-background-color: red; -fx-shape: "M 0,0 H1 L 4,4 7,0 H8 V1 L 5,4 8,7""V8 H7 L 4,5 1,8 H0 V7 L 3,4 0,1 Z";}15Source: Dean Iverson, http://pleasingsoftware.blogspot.com/2010/04/so-whats-it-all-good-for.html
- 16. Styling Controls – Slider.slider *.track { -fx-base: derive( goldenrod, 50% );}.slider *.thumb { -fx-shape: "M 50,5 L 37,40 5,40 30,60 20,95 ""50,75 80,95 70,60 95,40 63,40 Z"; -fx-background-color: derive(goldenrod,-50%), goldenrod; -fx-background-radius: 0, 0; -fx-background-insets: 0, 2; -fx-padding: 10; -fx-effect: dropshadow( two-pass-box , rgba(0,0,0,0.6) , 4, 0.0 , 0 , 1 );}16Source: Dean Iverson, http://pleasingsoftware.blogspot.com/2010/04/so-whats-it-all-good-for.html
- 17. JavaFX 1.3 Layout EnhancementsGridLayoutBased on the JFXtrasXGridIn the JavaFX Preview PackageFillControls how Nodes expand to take available spaceGrow/ShrinkControls how available space is allocated between competing NodesPriority values:NEVERSOMETIMESALWAYS17
- 18. JavaFX 1.3 Layouts – Grid Grow/Fill Example18?
- 19. JUG Prize SpinnerWeb Service Integration
- 20. Calling a REST ServiceREST URL:http://api.meetup.com/rsvps.json/event_id={eventId}&key={apiKey}Output:{ "results": [ {"zip":"94044","lon":"-122.48999786376953","photo_url":"http:\/\/photos1.meetupstatic.com\/photos\/member\/1\/4\/b\/a\/member_5333306.jpeg","response":"no","name":"Andres Almiray","comment":"Can't make it :-("}]}
- 21. JUG Prize Spinner - JSONHandler in 3 Stepspublicclass Member {publicvarplace:Integer;publicvarphotoUrl:String;publicvarname:String;publicvarcomment:String;}varmemberParser:JSONHandler = JSONHandler { rootClass: "org.jfxtras.jugspinner.data.MemberSearch “ onDone: function(obj, isSequence): Void { members = (objasMemberSearch).results;}}req = HttpRequest { location: rsvpQueryonInput: function(is: java.io.InputStream) {memberParser.parse(is);}}1POJfxO2JSONHandler3HttpRequest
- 22. Advanced ControlsJFXtrasXTable and XShelf22
- 23. XShelfViewHigh PerformanceFeatures:ScrollbarImage TitleReflection EffectAspect RatioInfinite RepeatIntegrates With JFXtras Data ProvidersAutomatically Updates on Model Changes
- 25. XTableViewInsanely ScalableUp to 16 million rowsExtreme PerformancePools rendered nodesCaches imagesOptimized scene graphFeatures:Drag-and-Drop Column ReorderingDynamic Updating from ModelAutomatically Populates Column HeadersFully Styleable via CSS
- 26. XTableView Example – JUG Prize SpinnerdefwinnerTable = XTableView {rowType: Member {}.getJFXClass(); rows: bind winners columns: columns // optionalrowHeight: 50 // optional}columns = [XTableColumn{displayName: "#"id: "place"prefWidth: 10 renderer: TextRenderer {} }XTableColumn{displayName: "Photo" id: "photoUrl"prefWidth: 30renderer: ImageRenderer {missing: placeholderplaceholder: placeholder} }XTableColumn{displayName: "Name"id: "name"prefWidth: 300renderer: TextRenderer {}}]26
- 27. APROPOSAgile Project Portfolio Scheduler27
- 28. MarketingSalesFeature selling becomes impossible (Sales Enablement)Launch Cycle Time > Dev Cycle TimeMelting Change Managers: 50 changes once a month to 900 changes constantlyProduct ManagementOperationsDevelopment…in the weeds…Professional ServicesSupportInnovator’s DilemmaSupported Release proliferationSource: Based on Gat et al, Reformulating the Product Delivery Process, LSSC Conference, April 2010Source: Based on Gat et al, Reformulating the Product Delivery Process, LSSC Conference, April 2010The Agile Challenge in End-to-End Context
- 29. The Three Loops of Software GovernanceDev: Technical debtOperations/SupportMarketing/SalesProposedMarketingSalesValidatedAdoptedEnabledInternal Technical Debt LoopProduct ManagementOperationsScheduledBackloggedIn ProcessDevelopmentDeployedExternal Technical Debt LoopBottleneckProfessional ServicesSupportValidatedEnabledAdoptedSource: Based on Gat et al, Reformulating the Product Delivery Process, LSSC Conference, April 2010
- 30. Apropos Demo

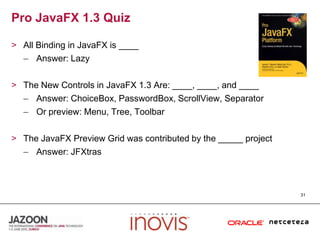

- 31. Pro JavaFX 1.3 QuizAll Binding in JavaFX is ____Answer: LazyThe New Controls in JavaFX 1.3 Are: ____, ____, and ____Answer: ChoiceBox, PasswordBox, ScrollView, SeparatorOr preview: Menu, Tree, ToolbarThe JavaFX Preview Grid was contributed by the _____ projectAnswer: JFXtras31
- 33. Apropos – Portfolio View33
- 34. Apropos – Scope View34
- 35. Apropos – Resource View35
- 36. Apropos – Analyze View36
- 37. Apropos – Roadmap View37
Editor's Notes
- #5: Mention the XGrid layout got added to the JavaFX Platform.
