BUILDING INFORMATION MODELING IMPORTANCIA
- 1. BIM Execution Planning March 6th , 2013
- 2. Living Document that provides structure to a BIM enabled process for the delivery of a building
- 3. What is included? • Project Information • Key Project Contacts • Organizational Roles/ Staffing • Project Goals/ BIM Uses • BIM Process Design • BIM Information Exchanges • BIM and Facility Data Requirements • Collaboration Procedures • Quality Control • Technological Infrastructure Needs • Model Structure • Project Deliverables • Delivery Strategy / Contract
- 4. You may be required to provide BIM, LOD and data like never before. AIR FORCE GSA BIM GUIDE AND GSA BIM REQUIREMENTS VETERAN AFFAIRS ARMY CORP public OWNERS
- 6. www.engr.psu.edu/bim ‘Industry Standard’ • In-depth • Basis for many BEP
- 8. BEP Steps
- 9. • Look to partner with like minded firms • Technical Skills • Collaboration driven • Discuss Workflows with team • Developing a plan as a team is critical • Flexible to individual firms’ Best Practice • Plan must be complete before design starts • Update as project evolves Team + Strategy
- 10. CONTRACT definition** Most Certainty Least Certainty BIM Capabilities •5 projects down •BIM, what is BIM? Project Scope •Early awareness and compliance. •Reaction based management to project or owner requirements Schedule •Typical schedule •Fast track projects •Fast track project •Drop dead end date does not adjust for owner delays Team Configuration •Co-Location or well connected team •Defined BEP •Dispersed or poorly connected team •Multiple Design Partners involved Client Requirements •Client provides minimum BIM requirements •Standard content or data parameters. •RFP with LOD 500 deliverable and Owner does not understand BIM. •No BIM Goals for the Project Pre-Existing Information provided •Available upfront and meets clearly defined standards •Different formats or inconsistent • Unavailable prior to Contract **criteria does not equate to higher costs
- 11. Existing Conditions Modeling Cost Estimation Phase Planning Site Analysis Programm- ing Design Authoring Design Reviews Engineering Analysis Energy Analysis Structural Analysis Sustainability Evaluation Code Validation Site Utilization Planning 3D Coordination Construction System Design Digital Fabrication 3D Control and Planning Record Modeling Cost Estimating Building Maintenance Scheduling Building Systems Analysis Space Management and Tracking Disaster Planning BIM uses… ADD SERVICES BASELINE USES
- 13. Design Platform *All project team members to be on same version and build of Revit *

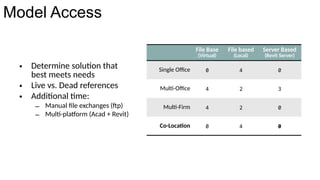

- 15. Model Access File Base (Virtual) File based (Local) Server Based (Revit Server) Single Office 0 4 0 Multi-Office 4 2 3 Multi-Firm 4 2 0 Co-Location 0 4 0 • Determine solution that best meets needs • Live vs. Dead references • Additional time: – Manual file exchanges (ftp) – Multi-platform (Acad + Revit)
- 16. Job Site Access Mobility External partners Project Team Access
- 17. LOD defines… • Objects that are modeled or not modeled • The detail, data, or dimensions of objects • How the Model can be used by others • How BIM Uses support Project goals • Contributes to BIM Execution Plan (BEP)
- 18. LOD and Model Progression
- 19. SOFTWARE DATA INPUT OUTPUT Excel space list planner + client design team Affinity space details, floorplans+ adjacency diagrams planner + designer design team + client Revit detailed floorplans, guideplates + schedules planner, designer, engineer + structural design team + client Design Review e-mark ups design team + client updated model E-Specs (future) construction details revit model spec package Process Mapping - Simple
- 20. Process Mapping - Complex
- 21. If you don’t plan a BIM Execution Plan, plan on not succeeding
- 22. BEP Resources • Penn State Project Execution Plan • AIA E203 Digital Practice
