CHOOSING THE RIGHT HTML5 FRAMEWORK
To Build Your Mobile Web Application
A RapidValue Solutions Whitepaper
Author: Pooja Prasad, Technical Lead, RapidValue Solutions
BACKBONE.JS
Sencha
Touch

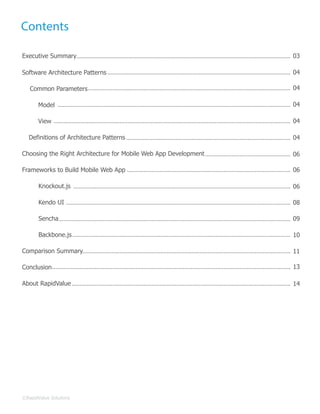

Contents
Executive Summary 03
04
04
04
04
06
04
06
06
08
09
10
11
13
14
©RapidValue Solutions 02
Common Parameters
Software Architecture Patterns
Knockout.js
Kendo UI
Sencha
Backbone.js
Definitions of Architecture Patterns
Model
View
Choosing the Right Architecture for Mobile Web App Development
Frameworks to Build Mobile Web App
Comparison Summary
Conclusion
About RapidValue

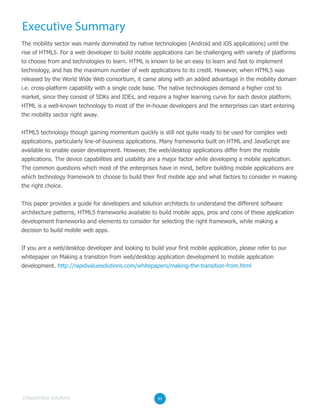

Executive Summary
The mobility sector was mainly dominated by native technologies (Android and iOS applications) until the
rise of HTML5. For a web developer to build mobile applications can be challenging with variety of platforms
to choose from and technologies to learn. HTML is known to be an easy to learn and fast to implement
technology, and has the maximum number of web applications to its credit. However, when HTML5 was
released by the World Wide Web consortium, it came along with an added advantage in the mobility domain
i.e. cross-platform capability with a single code base. The native technologies demand a higher cost to
market, since they consist of SDKs and IDEs, and require a higher learning curve for each device platform.
HTML is a well-known technology to most of the in-house developers and the enterprises can start entering
the mobility sector right away.
HTML5 technology though gaining momentum quickly is still not quite ready to be used for complex web
applications, particularly line-of-business applications. Many frameworks built on HTML and JavaScript are
available to enable easier development. However, the web/desktop applications differ from the mobile
applications. The device capabilities and usability are a major factor while developing a mobile application.
The common questions which most of the enterprises have in mind, before building mobile applications are
which technology framework to choose to build their first mobile app and what factors to consider in making
the right choice.
This paper provides a guide for developers and solution architects to understand the different software
architecture patterns, HTML5 frameworks available to build mobile apps, pros and cons of these application
development frameworks and elements to consider for selecting the right framework, while making a
decision to build mobile web apps.
If you are a web/desktop developer and looking to build your first mobile application, please refer to our
whitepaper on Making a transition from web/desktop application development to mobile application
development. http://rapidvaluesolutions.com/whitepapers/making-the-transition-from.html
03©RapidValue Solutions

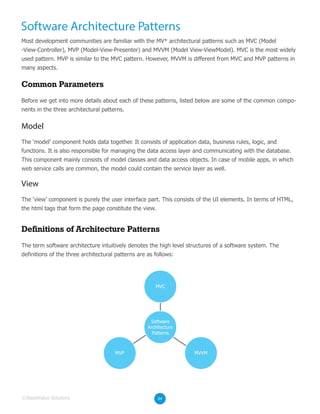

Software Architecture Patterns
Most development communities are familiar with the MV* architectural patterns such as MVC (Model
-View-Controller), MVP (Model-View-Presenter) and MVVM (Model View-ViewModel). MVC is the most widely
used pattern. MVP is similar to the MVC pattern. However, MVVM is different from MVC and MVP patterns in
many aspects.
Before we get into more details about each of these patterns, listed below are some of the common compo-
nents in the three architectural patterns.
The ‘model’ component holds data together. It consists of application data, business rules, logic, and
functions. It is also responsible for managing the data access layer and communicating with the database.
This component mainly consists of model classes and data access objects. In case of mobile apps, in which
web service calls are common, the model could contain the service layer as well.
Common Parameters
The term software architecture intuitively denotes the high level structures of a software system. The
definitions of the three architectural patterns are as follows:
Definitions of Architecture Patterns
Model
The ‘view’ component is purely the user interface part. This consists of the UI elements. In terms of HTML,
the html tags that form the page constitute the view.
View
MVC
MVP MVVM
Software
Architecture
Patterns

1
Source: Wikipedia definitions
Model–View–Controller (MVC) is a software architecture pattern which separates the representation of
information from the user's interaction with it1
. The controller component in MVC acts as a mediator
between the view and the model. Any change in the view that calls for a change in the data is updated in
the model by the controller and any change in the model is notified to the controller to update the view. The
MVC pattern is one of the first architectural patterns to emerge and is extensively used in Java platforms.
1. Model-View-Controller
Model–View–Presenter (MVP) is a derivative of the Model–View–Controller (MVC) software pattern, also used
mostly for building user interfaces1
. The presenter component in MVP is closely associated with the view
component because it holds a reference to the view. Apart from the role that a controller plays in MVC, a
presenter is responsible to make changes which are needed to take place for specific elements of the view
based on the changes made to other elements in the view. This kind of view logic based on user interaction
is handled through the presenter and these changes are unaware to the model component.
2. Model-View-Presenter
MVVM is targeted at UI development platforms which support event-driven programming such as HTML5,
Windows Presentation Foundation (WPF), Silverlight and the ZK framework. MVVM facilitates a clear separa-
tion of the development of the graphical user interface (either as markup language or GUI code) from the
development of the business logic or back-end logic known as the model (also known as the data model to
distinguish it from the view model)1
.
The view-model acts as a model for the view. This means, the view-model holds data for the view. This is
established through data-binding. The view is completely unaware of the changes made to the data that it is
bound to, and the view-model is completely unaware of view structure.
3. Model-View-ViewModel

Choosing the Right Architecture for Mobile Web
App Development
Implementing a MVC architecture pattern would be the easiest approach, since this is the most common
pattern known to the developer community. Considering the way mobile web apps are created, if we try to
break-down an application into a model, view and controller, the view would consist of a set of html
elements created in a defined structure. The model would take care of any data fetched from the database
or through the web services. The controller would be responsible for handling the changes based on the
user interaction at the view as well as the responses obtained from the model.
If we look into the above structuring in more detail, handling the user interactions at the view requires that
the controller has a reference to the view. There would also be cases where the data that is entered by the
user or displayed from the server requires presentation logic. This calls for addition of presenter component
and therefore relates more to a Model-View-Presenter pattern than MVC.
The benefit of using these patterns comes from the familiarity and years of experience in architecting solu-
tions using MVC/MVP. These two are more popular and commonly used patterns than MVVM.
MVVM architecture requires a paradigm shift in the way we perceive the application. This pattern establishes
separation of concerns and the open-close principle well. This basic capability takes MVVM to next level
(ahead in competition). MVVM has been in use in Microsoft applications and therefore is not completely new.
Adopting MVVM to build mobile web application gives developers the added benefit of enabling independent
testing of different architectural units.
There are several application development frameworks which are popular among developers. In this paper
we will address pros and cons of some of the popular frameworks used by developers which include Knock-
out.js, Kendo UI, Sencha Touch and Backbone.js.
Knockout.js (Knockout) is a standalone JavaScript library. The library works on top of jQuery and is not a
supplementary to jQuery. It is based on MVVM architectural pattern. This framework is used to build many
complex applications. Although it may be possible to develop complex applications using jQuery alone;
maintaining, adding new features and troubleshooting the app becomes time consuming and expensive.
This is where Knockout.js is most useful. It provides the application a structure making the app more
scalable and easily maintainable.
Frameworks to Build Mobile Web App
Knockout.js

What’s in Knockout?
Knockout is purely JavaScript which enables it to be used with any other web framework. Therefore
Knockout can be used with most JavaScript based UI frameworks. This makes the UI highly customizable
and provides developers with a large library of external plugins to work with.
Knockout adopts declarative binding (two way binding) which allows developers to associate DOM elements
to particular model data and its properties. All this is achieved using concise and readable syntax. Even
though Knockout is library agnostic, it works particularly well with jQuery. Knockout has minimal external
dependencies which makes it robust and supported across most modern browsers such as IE 6+, Firefox
2+, Chrome, Opera, Safari (Desktop/Mobile).
What’s missing in Knockout?
Knockout does not enforce that a particular folder structure be followed. Developer can write the code in
any file and follow any folder structure. This feature becomes important when multiple developers are
working on a complex app. Also it does not provide an out-of-box solution for app development since it is a
framework which depends on other UI frameworks like jQuery mobile for UI generation. Integrating
Knockout with other jQuery frameworks (although possible) is not fully smooth and requires some amount
of coding.
When should you use Knockout?
Developers can select Knockout when you require:
– High level of UI customization – this framework includes variety of widgets. Also number of
plugins available for jQuery is large compared to other frameworks and this can be leveraged with
Knockout.js.
– Moderate learning curve - this framework does not have a UI support, therefore developers
needs to use a UI framework that they are familiar with. Since Knockout is built on jQuery, it is easy
to learn. The only new thing to learn is data binding.
– MVVM architecture is preferred.
– An open source library – this helps developers to avail all the associated benefits provided in open
source.

Kendo UI is a jQuery based HTML5 commercial framework developed by Telerik. This framework includes
MVVM architectural pattern. It allows developers to build HTML5 apps without hand-coding JavaScript.
Kendo UI Mobile allows developers to build native-like apps and sites for mobile devices. It consists of rich
HTML5 widgets and a single codebase to target multiple phone and tablet platforms. Kendo UI Mobile
provides UI widgets for iOS, Android, BlackBerry and Windows Phone, and a complete application framework
to handle app navigation, views, layout templates, and more. Kendo UI does not deform the DOM. This
helps us to do a lot more with less number of supporting elements and with less coding.
Kendo UI supports seamless integration between the model data and the view. It also supports Unit testing
frameworks like QUnit and Jasmine.
Kendo UI
What’s in Kendo UI Mobile?
Kendo UI is paid and it does not have the same kind of backing of an open source community as Knockout
does. This increases the cost of overall development. Kendo also lacks variety in UI widgets. Therefore, it is
difficult to use for building complex mobile apps and requires high-level of customization. As the UI is
coupled with the framework developing new widgets is difficult too.
What’s missing in Kendo UI?
Developers can select Kendo UI when you require:
When should you use Kendo UI?
– An out-of-box and affordable solution - Since Kendo UI is a commercial development framework it
provides paid support.
– Native-like app experience - Kendo UI implements native packaging using PhoneGap. This framework
has its own IDE called Icenium. The IDE defines a folder structure for every app in case the
application is complex and provides a facility to publish iOS and Android apps directly to their
respective marketplaces.
– Faster development time - Kendo UI consists of easy-to-use jQuery-based widgets, in-built rich
components and JavaScript library which enhances mobile application development. The learning
curve involved is moderate and developers who have worked on Knockout could easily adapt to
Kendo UI.

Sencha
Sencha is a JavaScript framework which allows building cross-platform applications for web and mobile.
Sencha Touch is a JavaScript framework used to build apps for mobile devices.
Sencha Touch has built-in MVC support with the folder structure specified. This ensures an organized
approach to app building and helps in maintaining and scaling a particular app. Sencha Touch is an open
source library, therefore it has large number of developer communities supporting it. This framework’s key
strength includes graphical representation of data; making it a most preferred framework.
Sencha is consistent across most modern web browsers (IE6+, Chrome), Apple iOS and Google Android
platforms. It also supports unit testing with frameworks like QUnit and Jasmine.
What’s in Sencha Touch?
Although it is an open library it cannot be used easily with other frameworks. It is not backward compatible.
If a newer version of Sencha is released, to include those new features into the app requires features to be
rewritten.
What’s missing in Sencha Touch?
For developers to start using Sencha Touch, you need to have working knowledge of the JavaScript
language and CSS.
When should you use Sencha Touch?
Developers can select Sencha Touch when you require:
– A highly scalable mobile app, which mostly includes graphical representation of data. Building com-
plex mobile apps is easier with Sencha Touch as it enforces a folder structure making it easily scal-
able and maintainable app.
– Better user experience app - It includes native packaging for rich user experience.
– MVC architectural pattern is preferred.
– Learning curve is moderate.

Backbone.js
Backbone.js is an open source light weight JavaScript library (component of DocumentCloud) which provides
structure to web applications by providing models with key-value binding and custom events, collections. It
consists of a rich API of enumerable functions, views with declarative event handling, and also connects it all
to your existing API through RESTful JSON interface2
.
This framework includes MVC architectural pattern. However, in Backbone there is no such thing as a typical
controller. The role of a controller is partly played by the views which contain UI logic along with
representing data.
2
Source: http://backbonejs.org/
Backbone.js is another framework which is ideal for writing complex multi-screened apps as it lessens the
problem of code getting cluttered by providing an event-driven communication between views and models.
Developers can attach event listeners to any attribute of a model. This gives you nuanced control over what
you change in the view. Another feature of backbone is that the models in Backbone.js can be easily tied to
back-end. It provides excellent support for RESTful API in which models can map to a RESTful endpoint
directly. It enforces maintainability i.e. if conventions are followed; less code needs to be written. This helps
to maintain a clean code base, inspite of having multiple people collaborating on the code. Backbone is a
good alternative for apps looking for an MVC based solution which needs to be scalable and maintainable.
What’s in Backbone.js?
Backbone.js does not have a UI framework built into it. It depends on other UI frameworks for the actual UI
rendering .Therefore it does not offer an out-of-box solution.
What’s missing in Backbone.js?
Developers can select Backbone.js when you require:
When should you use Backbone.js?
– Single-page applications (SPA).
– MVC architectural pattern is preferred.
– A scalable and easily maintainable apps which needs wealth of plugins and extensions.

Comparison Summary
The following table summarizes some of the features supported by the four HTML5 application development
frameworks.
Framework KnockOut.js Kendo UI Sencha Touch Backbone.js
MVVM Supported Yes Yes No No
MVC Supported No No Yes Yes
No No Yes Yes
Open Source Yes No Yes Yes
Offline Supported Yes Yes Yes Yes
Ability to Customize
UI Widgets
Not Applicable Medium Low Not Applicable
Browsers
Supported
Device Platforms
Folder Structure
Specified
IE 6+, Firefox 2+,
Chrome, Opera, Safari
Android 2.2+,
iOS 4.0+,
BlackBerry OS 7.0+
Any device in which the
chosen UI framework is
supported
Any device in which the
chosen UI framework is
supported
Internet Explorer 7+,
Google Chrome,
Firefox ESR+,
Safari 5+ (OS X),
Opera 11+
IE 10 for Windows
phone 8, Chrome, Safari
Android 2.0+, iOS 3+,
BB 6+, BB 10
IE 6+, Firefox 2+,
Chrome, Opera, Safari
User Experience Good Rich Rich Good
Not Available Not AvailableNative Packaging Yes (With cordova
using Icenium IDE)
Yes
Yes Yes Yes YesPhoneGap Support
Yes Yes Yes YesTemplating
No Yes Yes NoIntegrated UI
framework
Yes Yes Yes YesUnit Testing
Framework
Support

Advantages – Any JavaScript
based UI
framework can be
used which makes
it highly
customizable
– IDE supported
– Provides
guidelines for
structure
– Good UX/UI,
based on
Knockout
– Separation of view
and data
– Free version
available
– Rich UX/UI
– Partly structured
– Easy to maintain
Apps
– Unit testing
supported
– Any UI possible
– Easy Unit testing
and data
– Any UI possible
– Easy Unit testing
and data
Limitations – No folder structure
enforced
– Cannot be used
without the help
of another UI
framework
– No folder structure
enforced
– Cannot be used
without the help
of another UI
framework
Paid model of licens-
ing
Difficult to integrate
with other frameworks

Conclusion
There are two technology trends which are increasingly growing; they are mobile application development
and standards-based HTML5 web development. Developing a native mobile application requires knowledge
of specific platforms and skills, which include Java for Android and Objective-C for iPhone. HTML5
development has gained traction lately because it is standards-based. Many app development framework
vendors are working to incorporate and comply with these early specifications.
Different frameworks work for different developers. When adopting a framework for mobile web app
development, developers should look for two main parameters – a framework which is developer-friendly,
and which has a wide reach.
Among all the frameworks discussed in this paper, if you need a framework to build complex mobile web app
with highly customizable features, then you should select Knockout.js. If you need to develop an application
which is more native-like and you require an out-of-box solution which is affordable, you should choose
Kendo UI. Both of these frameworks are based on MVVM architectural patterns.
Sencha Touch is the right choice when you need to develop native-like app with graphical representation of
data. Whereas, Backbone.js is recommended when you want to develop a scalable and easily maintainable
app and which needs wealth of plugins and extensions. Both of these frameworks are based on MVC
architectural pattern.
RapidValue has a team of domain experts and mobility consultants to help you build innovative and
comprehensive mobile applications for your enterprise. If you’d like more information on this topic or need
guidance on building your first mobile application, please write to marketing@rapidvaluesolutions.com, we’ll
be happy to hear from you.

About RapidValue
A global leader in digital transformation for enterprise providing end-to-end mobility,
omni-channel, IoT and cloud solutions. Armed with a large team of experts in
consulting, UX design, application development, integration and testing, along with
experience delivering projects worldwide, in mobility and cloud, we offer a wide range
of services across industry verticals. We deliver services to the world’s top brands,
fortune 1000 companies, Multinational companies and emerging start-ups. We have
www.rapidvaluesolutions.com www.rapidvaluesolutions.com/blog
+1 877.643.1850 contactus@rapidvaluesolutions.com
July 2013
offices in the United States, the United Kingdom and India.

Choosing the Right HTML5 Framework to Build your Mobile Web Application Whitepaper

More Related Content

What's hot (20)

Viewers also liked (7)

Similar to Choosing the Right HTML5 Framework to Build your Mobile Web Application Whitepaper (20)

More from RapidValue (20)

Recently uploaded (20)

Choosing the Right HTML5 Framework to Build your Mobile Web Application Whitepaper
