CloudSim is a toolkit for modeling and simulating cloud computing systems and application provisioning environments. It allows modeling of data centers, virtual machines, and resource provisioning policies. The main components in CloudSim are users, datacenters, and brokers. Users generate workload and brokers act as intermediaries between users and datacenters. To run a simulation, users first initialize CloudSim, create datacenters and VMs, create cloudlets and bind them to VMs, create a broker, and start the simulation. Key steps include initializing CloudSim, creating VMs and adding them to a list, creating cloudlets and adding them to a list, binding cloudlets to VMs, and starting the simulation.
CloudSim : Introduction and Basic Programming Syntax
- 1. CloudSim : Introduction and Basic Programming Syntax Vikas Chouhan (IIT Roorkee)

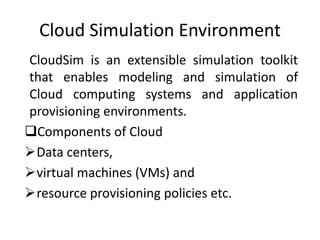

- 2. Cloud Simulation Environment CloudSim is an extensible simulation toolkit that enables modeling and simulation of Cloud computing systems and application provisioning environments. Components of Cloud Data centers, virtual machines (VMs) and resource provisioning policies etc.

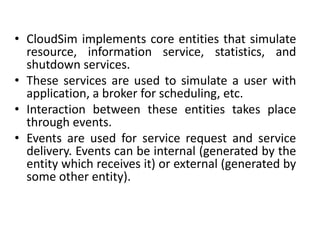

- 3. • CloudSim implements core entities that simulate resource, information service, statistics, and shutdown services. • These services are used to simulate a user with application, a broker for scheduling, etc. • Interaction between these entities takes place through events. • Events are used for service request and service delivery. Events can be internal (generated by the entity which receives it) or external (generated by some other entity).

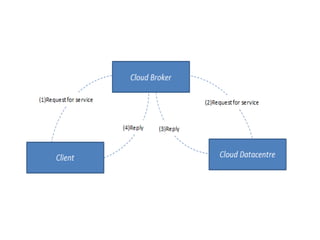

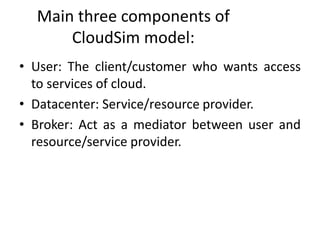

- 4. Main three components of CloudSim model: • User: The client/customer who wants access to services of cloud. • Datacenter: Service/resource provider. • Broker: Act as a mediator between user and resource/service provider.
- 6. Steps of CloudSim Simulation First step: Initialize the CloudSim package. It should be called before creating any entities. Second step: Create Datacenters (Datacenters are the resource providers in CloudSim. We need at list one of them to run a CloudSim simulation) Third step: Create Broker
- 7. Fourth step: Create virtual machine • create VMs • add the VMs to the vmList • submit vm list to the broker Fifth step: Create Cloudlets • Create cloudlets • add the cloudlets to the list • submit cloudlet list to the broker • bind the cloudlets to the vms. This way, the broker will submit the bound cloudlets only to the specific VM
- 8. Sixth step: Starts the simulation Seventh step: Stop the simulation Final step: Print results when simulation is over.
- 9. How to create integer List List <Integer> intList; intList = new ArrayList <Integer>();
- 10. How to create cloudletlist private static List<Cloudlet> cloudletList; cloudletList = new ArrayList<Cloudlet>(); How to create vmlist private static List<Vm> vmlist; vmlist = new ArrayList<Vm>();

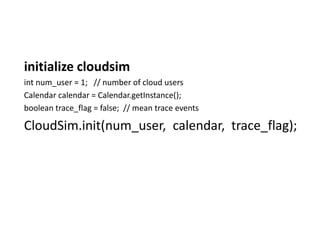

- 11. initialize cloudsim int num_user = 1; // number of cloud users Calendar calendar = Calendar.getInstance(); boolean trace_flag = false; // mean trace events CloudSim.init(num_user, calendar, trace_flag);
- 12. How to create vm //VM description int vmid = 0; // vertual machine id int mips = 250; // processing speed long size = 10000; //image size (MB) int ram = 512; //vm memory (MB) long bw = 1000; // bandwidth int pesNumber = 1; //number of cpus String vmm = "Xen"; //VMM name //create VMs Vm vm1 = new Vm(vmid, brokerId, mips, pesNumber, ram, bw, size, vmm, new CloudletSchedulerTimeShared());

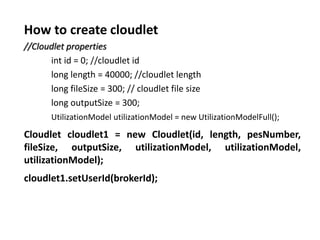

- 13. How to create cloudlet //Cloudlet properties int id = 0; //cloudlet id long length = 40000; //cloudlet length long fileSize = 300; // cloudlet file size long outputSize = 300; UtilizationModel utilizationModel = new UtilizationModelFull(); Cloudlet cloudlet1 = new Cloudlet(id, length, pesNumber, fileSize, outputSize, utilizationModel, utilizationModel, utilizationModel); cloudlet1.setUserId(brokerId);
- 14. How to bind cloudlet to vm bindCloudletToVm ( int CloudletId , int vmId ); broker.bindCloudletToVm(cloudlet1.getCloudletId(),vm1.getId());

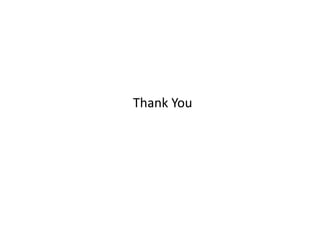

- 15. Thank You
