- 3. HELLO! Varad Bende TE Biotech Department of Biotechnology Jawaharlal Nehru Engineering College , Aurangabad MS 431003 Let us put a glance over Columns used in HPLC.
- 5. • The Brain of HPLC • Resolves a mixture into its different components • Available in different material packings and sizes according to the requirements
- 7. Analyte of Interest • Chemical Properties • Physical Properties Type of chromatography Purpose of chromatography Amount of Sample Precision needed
- 8. Advanced Chromatography Technologies Agela Technologies Agilent Applied Biosystems Beckman Coulter Bio-Rad Biotage ChiralTech Eksigent ES Industries Grace Discovery Sciences Hamilton Imtakt J & K Scientific Kromasil Life Technologies MAC-MOD Peeke Scientific PerkinElmer Phenomenex Restek Shiseido Shodex Sigma-Aldrich SiliCycle Thermo Fisher Scientific Tosoh Bioscience Valco Waters Zirchrom (Reference - www.labmanager.com)
- 9. Particle Size 2.5 to 10 μm 2.5 , 3.5 , 5 μm 2.7 μm Packing Material C4 C8 C18 Phenyl Amide C18 Cyano PFP T3 Phenyl C18+ C18 T3 C8 Technology Ethylene Bridged Hybrid • Charged Surface Hybrid(CSH) • High Strength Silica (HSS) Solid Core Technology Dimensions 75μm*5mm to 30*300 mm 1*5 mm to 50*250 mm 2..1*30 mm to 4.6*150 mm Cost ₹ 43,500 to 1,90,000 ₹ 34,000 to 11,00,000 ₹ 32,000 to 76,000 Specificatios • Analytical and Preparative • Robust • High pH stability (1-12) • BioSeparation • Analytical and Preparative • Reverse phase • Designed for selectivity • Highest analyte mass loading • High efficiency • Reverse Phase • Compatible with UPLC
- 12. Infinity Lab •2.1 * 50 mm to 4.6 * 250 mm •Particle Size 4 μm •Cost ₹ 20,000 to 1,00,000 •Packing Materials - C8 C18 PhenylHexyl •Long life • 2.1 * 50 mm to 4.6 * 250 mm • Particle Size 3.5 and 5 μm • Cost ₹ 20,000 to 1,00,000 • Packing Materials - C8 C18 PhenylHexyl PAH • Excellent chromatography with mixtures of polar and nonpolar analytes • Particle Size 3.5 and 5 μm • Cost ₹ 24,000 to 56,000 • Packing Materials - C8 C18 PhenylHexyl
- 14. Material Packings - C8 C18 Amide Cyano Silica Particle size – 2.7 – 5μm Cost 26,000 to 3,00,000 High purity silica Modern bonding processes Analytical and Preparative
- 15. TM • Packing Material – C5 C8 C18 • Particle Size – 3-5 um • Cost - 30,000 to 50,000 • Aqueous compatible
- 16. SupelcoSIL TM • Packing Material – C8 C18 Phenyl • Particle size – 40,000 to 70,000 • Silica Based • Micro to Preparative scale • High Quality
- 18. • Ultra-pure silica-based HPLC columns • Particle Size - 3 to 5μm • Available in C4 C5 C8 C18 PhenylHexyl Silica CN Amino • Cost – 5,000 to 50,000 • Wide pH stability for long column lifetime and method flexibility • Easy method scalability from Fast LC to Preparative and Bulk Purification
- 19. • Uses Core Shell Technology along with Ethane Cross Linking • 2.6 , 4 , 5μm • C8 C18 Polar • Analytical and preparative • Aqueous Stability • Improved peak shapes
- 20. • Accucore • Acclaim • BetaBasic • BioBasic • Hypersil BDS • Hypersil GOLD • Syncronis • Hypercarb • HyperRez • HyPURITY
- 21. Accucore™ LC Columns Particle Size - 2.6µm solid-core particles Material - C8 C18 PhenylHexyl C30 etc Dimensions - 2 * 50 mm to 4.6 * 150 mm Price - 20,000 to 50,000 Synchronis™ LC Columns • Highly pure, high surface area silica • Dense bonding and double endcapping • Stringent manufacturing and testing protocols- manufactured, packaged and tested in ISO9000 accredited facilities Columns: C18, C8, Phenyl, Amino, Silica Acclaim™ LCColumns Particle Size - 2.2µm Porous silica particles with advanced and innovative column bonding technologies Material - C8 C18 PhenylHexyl C30 etc Dimensions - 2 * 50 mm to 4.6 * 150 mm Price - 20,000 to 50,000
- 23. • Hybrid Silica based HPLC Columns • Multi-layered, organic/inorganic hybrid particle • Double Endcapped • Wider pH and Temperature Range • Material - C18 C8 Phenyl Silica • Particle Size - 3 , 5 , 10 , 50μm • Dimensions – 2*20 mm to 4.6*250 mm (30*250 mm in Preparative) • Cost – 20,000 to 50,000 (Upto 10,00,000 in Preparative)

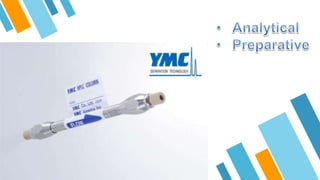

- 24. CoreShell Columns by YMC • Particle Size – 2.7μm • Dimensions - 2.6*40 to 4.6*150 • Material - C8 and C18 • Cost - 21,000 to 40,000 • Coreshell Technology • Ultra fast separation with outstanding resolution • Excellent peak shape for basic and coordination compounds • Wide pH application range • Low column bleed, ideal for LC/MS
- 25. YMC Pro Columns • Particle size - 2 , 3 , 4μm • Materials - C8 C18 • High performance , reliable columns designed for the most demanded HPLC • Novel lewis acid/lewis base endcapping • Sharp and symmetrical peaks
- 26. Analyte of Interest • Chemical Properties • Physical Properties Type of chromatography Purpose of chromatography Amount of Sample Precision needed
- 28. • Waters • Agilent • Phenomenex • Sigma Aldrich • GE Life Sciences • Altech • Shimadzu • Fisher Scientific • YMC • Perkin Elmer (Reference – www.labx.com)
- 29. YMC, Japan • Waters • ThermoFisher Massachusetts USA• Phenomenex • Agilent California USA GE Healthcare UK Sigma Aldrich Missouri USA ACE Scottland
- 32. www.labmanager.com Web Resources www.labmanager.com www.labx.com www.waters.com www.crawfordscientific-secure.com http://www.agilent.com www.thermofisher.com www.ymc.co.jp www.phenomenex.com www.sigmaaldrich.com
- 33. THANKS! Any questions? You can find me at » varad93@rediffmail.com
