- 1. Class No.14 Data Structures http://ecomputernotes.com
- 2. Recursive Call Recall that a stack is used during function calls. The caller function places the arguments on the stack and passes control to the called function. Local variables are allocated storage on the call stack. Calling a function itself makes no difference as far as the call stack is concerned. http://ecomputernotes.com
- 3. Stack Layout during a call Here is stack layout when function F calls function F (recursively): During execution of F After call At point of call http://ecomputernotes.com Parameters(F) Local variables(F) Return address(F) Parameters(F) Parameters(F) Local variables(F) Return address(F) Parameters(F) Local variables(F) Return address(F) Parameters(F) Local variables(F) Return address(F) sp sp sp
- 4. Recursion: preorder preorder(14) 14 ..preorder(4) 4 ....preorder(3) 3 ......preorder(null) ......preorder(null) ....preorder(9) 9 ......preorder(7) 7 ........preorder(5) 5 ..........preorder(null) ..........preorder(null) ........preorder(null) ......preorder(null) http://ecomputernotes.com 14 4 9 7 3 5 15 16 17 18 20
- 5. Recursion: preorder ..preorder(15) 15 ....preorder(null) ....preorder(18) 18 ......preorder(16) 16 ........preorder(null) ........preorder(17) 17 ..........preorder(null) ..........preorder(null) ......preorder(20) 20 ........preorder(null) ........preorder(null) http://ecomputernotes.com 14 4 9 7 3 5 15 16 17 18 20
- 6. Recursion: inorder inorder(14) ..inorder(4) ....inorder(3) ......inorder(null) 3 ......inorder(null) 4 ....inorder(9) ......inorder(7) ........inorder(5) ..........inorder(null) 5 ..........inorder(null) 7 ........inorder(null) 9 ......inorder(null) 14 http://ecomputernotes.com 14 4 9 7 3 5 15 16 17 18 20
- 7. Recursion: inorder ..inorder(15) ....inorder(null) 15 ....inorder(18) ......inorder(16) ........inorder(null) 16 ........inorder(17) ..........inorder(null) 17 ..........inorder(null) 18 ......inorder(20) ........inorder(null) 20 ........inorder(null) http://ecomputernotes.com 14 4 9 7 3 5 15 16 17 18 20

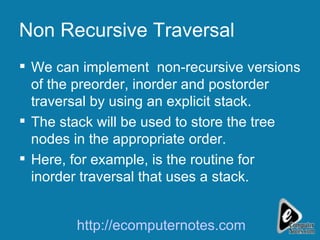

- 8. Non Recursive Traversal We can implement non-recursive versions of the preorder, inorder and postorder traversal by using an explicit stack. The stack will be used to store the tree nodes in the appropriate order. Here, for example, is the routine for inorder traversal that uses a stack. http://ecomputernotes.com
- 9. Non Recursive Traversal void inorder(TreeNode<int>* root) { Stack<TreeNode<int>* > stack; TreeNode<int>* p; p = root; do { while( p != NULL ) { stack.push( p ); p = p->getLeft(); } // at this point, left tree is empty http://ecomputernotes.com
- 10. Non Recursive Traversal void inorder(TreeNode<int>* root) { Stack<TreeNode<int>* > stack; TreeNode<int>* p; p = root; do { while( p != NULL ) { stack.push( p ); p = p->getLeft(); } // at this point, left tree is empty http://ecomputernotes.com
- 11. Non Recursive Traversal void inorder(TreeNode<int>* root) { Stack<TreeNode<int>* > stack; TreeNode<int>* p; p = root; do { while( p != NULL ) { stack.push( p ); p = p->getLeft(); } // at this point, left tree is empty http://ecomputernotes.com
- 12. Non Recursive Traversal if( !stack.empty() ) { p = stack.pop(); cout << *(p->getInfo()) << " "; // go back & traverse right subtree p = p->getRight(); } } while ( !stack.empty() || p != NULL ); } http://ecomputernotes.com
- 13. Non Recursive Traversal if( !stack.empty() ) { p = stack.pop(); cout << *(p->getInfo()) << " "; // go back & traverse right subtree p = p->getRight(); } } while ( !stack.empty() || p != NULL ); } http://ecomputernotes.com
- 14. Non Recursive Traversal if( !stack.empty() ) { p = stack.pop(); cout << *(p->getInfo()) << " "; // go back & traverse right subtree p = p->getRight(); } } while ( !stack.empty() || p != NULL ); } http://ecomputernotes.com

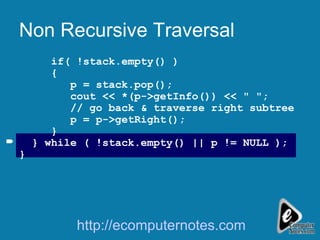

- 15. Non Recursive Traversal if( !stack.empty() ) { p = stack.pop(); cout << *(p->getInfo()) << " "; // go back & traverse right subtree p = p->getRight(); } } while ( !stack.empty() || p != NULL ); } http://ecomputernotes.com
- 16. Nonrecursive Inorder push(14) ..push(4) ....push(3) 3 4 ..push(9) ....push(7) ......push(5) 5 7 9 14 push(15) 15 push(18) ..push(16) 16 ..push(17) 17 18 push(20) 20 http://ecomputernotes.com 14 4 9 7 3 5 15 16 17 18 20

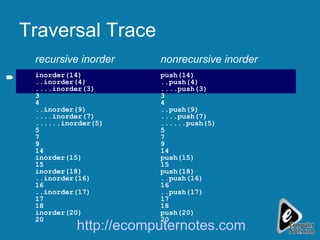

- 17. Traversal Trace recursive inorder inorder(14) ..inorder(4) ....inorder(3) 3 4 ..inorder(9) ....inorder(7) ......inorder(5) 5 7 9 14 inorder(15) 15 inorder(18) ..inorder(16) 16 ..inorder(17) 17 18 inorder(20) 20 nonrecursive inorder push(14) ..push(4) ....push(3) 3 4 ..push(9) ....push(7) ......push(5) 5 7 9 14 push(15) 15 push(18) ..push(16) 16 ..push(17) 17 18 push(20) 20 http://ecomputernotes.com
- 18. Traversal Trace recursive inorder inorder(14) ..inorder(4) ....inorder(3) 3 4 ..inorder(9) ....inorder(7) ......inorder(5) 5 7 9 14 inorder(15) 15 inorder(18) ..inorder(16) 16 ..inorder(17) 17 18 inorder(20) 20 nonrecursive inorder push(14) ..push(4) ....push(3) 3 4 ..push(9) ....push(7) ......push(5) 5 7 9 14 push(15) 15 push(18) ..push(16) 16 ..push(17) 17 18 push(20) 20 http://ecomputernotes.com
- 19. Traversal Trace recursive inorder inorder(14) ..inorder(4) ....inorder(3) 3 4 ..inorder(9) ....inorder(7) ......inorder(5) 5 7 9 14 inorder(15) 15 inorder(18) ..inorder(16) 16 ..inorder(17) 17 18 inorder(20) 20 nonrecursive inorder push(14) ..push(4) ....push(3) 3 4 ..push(9) ....push(7) ......push(5) 5 7 9 14 push(15) 15 push(18) ..push(16) 16 ..push(17) 17 18 push(20) 20 http://ecomputernotes.com
- 20. Traversal Trace recursive inorder inorder(14) ..inorder(4) ....inorder(3) 3 4 ..inorder(9) ....inorder(7) ......inorder(5) 5 7 9 14 inorder(15) 15 inorder(18) ..inorder(16) 16 ..inorder(17) 17 18 inorder(20) 20 nonrecursive inorder push(14) ..push(4) ....push(3) 3 4 ..push(9) ....push(7) ......push(5) 5 7 9 14 push(15) 15 push(18) ..push(16) 16 ..push(17) 17 18 push(20) 20 http://ecomputernotes.com
- 21. Level-order Traversal There is yet another way of traversing a binary tree that is not related to recursive traversal procedures discussed previously. In level-order traversal, we visit the nodes at each level before proceeding to the next level. At each level, we visit the nodes in a left-to-right order. http://ecomputernotes.com
- 22. Level-order Traversal Level-order: 14 4 15 3 9 18 7 16 20 5 17 http://ecomputernotes.com 14 4 9 7 3 5 15 18 16 20 17
