[CONTEXT'12] Towards a lightweight mobile semantic based approach for enhancing interaction with smart objects
0 likes243 views
This document proposes a lightweight semantic approach to enhance interaction between users and smart objects. It presents an event-condition-action model to define rules for smart object behavior. Ontologies are used to describe smart objects, spaces, and rules semantically. This allows detecting incompatibilities between rules and optimizing rule execution through reasoning. Future work involves implementing the approach on Android, validating response times against non-semantic solutions, and handling multi-user scenarios.
[CONTEXT'12] Towards a lightweight mobile semantic based approach for enhancing interaction with smart objects
- 1. Grupo de Procesado de Datos y Simulación ETSI de Telecomunicación Universidad Politécnica de Madrid Towards a lightweight mobile semantic-based approach for enhancing interaction with smart objects CONTEXT 2012 Josué Iglesias, Ana M. Bernardos, Luca Bergesio, Jesús Cano, José R. Casar josue@grpss.ssr.upm.es
- 2. contents introduction and motivation smart spaces management scenario ECA-based interaction model semantic enhancement ontology models incompatibilities detection reasoning support conclusions and future works Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 3. contents introduction and motivation smart spaces management scenario ECA-based interaction model semantic enhancement ontology models incompatibilities detection reasoning support conclusions and future works Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 4. introduction and motivation smart object “any kind of device with sensing or/and pro- cessing capabilities that is capable of reacting or adapting its functionalities depending on external stimulus or users’ requirements, while preserving their traditional physical interaction paradigm” Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es

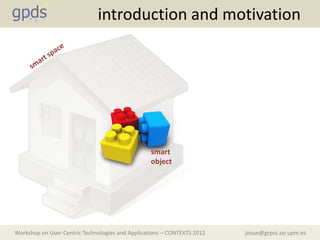

- 5. introduction and motivation smart object Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 6. introduction and motivation smart object Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 7. introduction and motivation smart smart spaces management object Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es

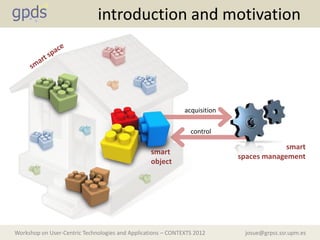

- 8. introduction and motivation acquisition control smart smart spaces management object Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 9. introduction and motivation common strategy to enable capabilities to intelligently coordinate smart objects acquisition control smart smart spaces management object Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es

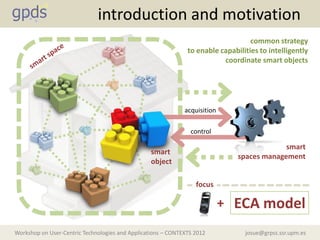

- 10. introduction and motivation common strategy to enable capabilities to intelligently coordinate smart objects acquisition control smart smart spaces management object focus + ECA model Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 11. introduction and motivation smart spaces management scenario mediator Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 12. introduction and motivation smart spaces management scenario mediator Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es

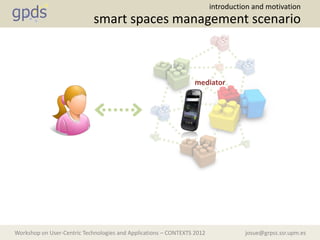

- 13. introduction and motivation smart spaces management scenario mediator Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es

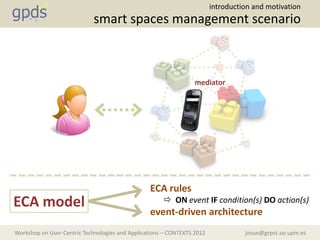

- 14. introduction and motivation smart spaces management scenario mediator ECA rules ECA model ON event IF condition(s) DO action(s) event-driven architecture Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 15. contents introduction and motivation smart spaces management scenario ECA-based interaction model semantic enhancement ontology models incompatibilities detection reasoning support conclusions and future works Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es

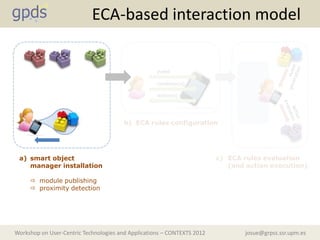

- 16. ECA-based interaction model event condition(s) action(s) b) ECA rules configuration a) smart object c) ECA rules evaluation manager installation (and action execution) module publishing proximity detection Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 17. ECA-based interaction model event condition(s) action(s) b) ECA rules configuration a) smart object c) ECA rules evaluation manager installation (and action execution) module publishing proximity detection Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 18. ECA-based interaction model event condition(s) action(s) b) ECA rules configuration a) smart object c) ECA rules evaluation manager installation (and action execution) module publishing proximity detection Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 19. ECA-based interaction model event condition(s) action(s) b) ECA rules configuration a) smart object c) ECA rules evaluation manager installation (and action execution) module publishing proximity detection Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 20. ECA-based interaction model event condition(s) action(s) b) ECA rules configuration a) smart object c) ECA rules evaluation manager installation (and action execution) module publishing real implementation proximity detection Android-based Google Nexus S (v2.3) NFC tags (proximity detection) cloud server (smart object module store) Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 21. contents introduction and motivation smart spaces management scenario ECA-based interaction model semantic enhancement ontology models incompatibilities detection reasoning support conclusions and future works Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 22. semantic enhancement ontology models event condition(s) action(s) b) ECA rules configuration a) smart object c) ECA rules evaluation manager installation (and action execution) module publishing semantic models proximity detection smart object ontology smart space ontology + ruleBase ECA rule ontology Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 23. semantic enhancement ontology models Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 24. semantic enhancement ontology models Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 25. semantic enhancement ontology models Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 26. semantic enhancement ontology models Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es

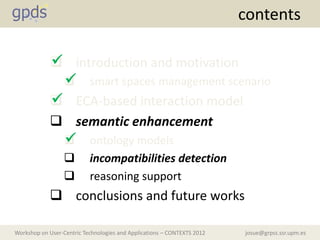

- 27. contents introduction and motivation smart spaces management scenario ECA-based interaction model semantic enhancement ontology models incompatibilities detection reasoning support conclusions and future works Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 28. semantic enhancement incompatibilities detection event condition(s) action(s) b) ECA rules configuration a) smart object c) ECA rules evaluation manager installation (and action execution) module publishing semantic models proximity detection smart object ontology smart space ontology + ruleBase ECA rule ontology Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 29. semantic enhancement incompatibilities detection Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 30. semantic enhancement incompatibilities detection exclusive resource incompatibility Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 31. semantic enhancement incompatibilities detection exclusive resource incompatibility configuration incompatibility -10º < objectX.hasTemperature < 35º <condition> = objectX.hasRangeTemperature < 55º ON <event> IF objectX.hasTemperature < 20º AND objectX.hasTemperature > 30º DO <action> Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 32. semantic enhancement incompatibilities detection ON user.locationAt(roomA) smart object FixedObject(tvSet) IF user.uses(carX) DO <action> intelligentTray.detects(MobileObject) interaction incompatibility intelligentTray.detects(tvSet) Car.locatedAt(Outdoor) Indoor(roomA) exclusive resource incompatibility configuration incompatibility -10º < objectX.hasTemperature < 35º <condition> = objectX.hasRangeTemperature < 55º ON <event> IF objectX.hasTemperature < 20º AND objectX.hasTemperature > 30º DO <action> Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 33. semantic enhancement incompatibilities detection ON user.locationAt(roomA) smart object FixedObject(tvSet) IF user.uses(carX) DO <action> intelligentTray.detects(MobileObject) interaction incompatibility intelligentTray.detects(tvSet) Car.locatedAt(Outdoor) Indoor(roomA) exclusive resource incompatibility configuration incompatibility -10º < objectX.hasTemperature < 35º <condition> = objectX.hasRangeTemperature < 55º functional incoherence ON <event> ON event1 IF condition1 DO turnRadioON IF objectX.hasTemperature < 20º AND objectX.hasTemperature > 30º ON event1 IF condition1 DO turnRadioOFF DO <action> Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 34. contents introduction and motivation smart spaces management scenario ECA-based interaction model semantic enhancement ontology models incompatibilities detection reasoning support conclusions and future works Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 35. semantic enhancement reasoning support event condition(s) action(s) b) ECA rules configuration a) smart object c) ECA rules evaluation manager installation (and action execution) module publishing semantic models proximity detection smart object ontology smart space ontology + ruleBase ECA rule ontology Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 36. semantic enhancement reasoning support Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 37. semantic enhancement reasoning support ECA-rules context-based dynamic (de)activation smart objects status device status Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 38. semantic enhancement reasoning support ECA-rules context-based dynamic (de)activation smart objects status device status ECA-rules conditions execution order prioritization offline condition(s) online condition(s) ON (<offlineEvent1>=TRUE OR <onlineEvent1>) IF (<offlineConditionA>=FALSE AND <onlineConditionA>) DO <action> resource usage (battery, CPU load, free memory, etc.) Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 39. contents introduction and motivation smart spaces management scenario ECA-based interaction model semantic enhancement ontology models incompatibilities detection reasoning support conclusions and future works Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 40. conclusions and future works • smartphones smart spaces mediator • semantic formalism enhancement • incompatibilities / incoherencies detection • execution optimization androJena (Android-based devices) ontology models management rule execution validation (response times) semantic vs ad-hoc solutions multiuser scenario incompatible / incoherent rules Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
- 41. any question? Workshop on User-Centric Technologies and Applications – CONTEXTS 2012 josue@grpss.ssr.upm.es
