Continuous delivery-with-maven
206 likes61,123 views
The document outlines strategies for implementing continuous delivery using Maven and Jenkins, emphasizing the importance of practices such as eliminating manual bottlenecks and automating testing and deployment. It provides a detailed description of the Maven release process, build lifecycles, and how to effectively manage code quality measures. Ultimately, the guide encourages developers to embrace a mindset of frequent delivery to enhance business value and ensure confidence in deployment through automated testing.
![Split unit and integration tests
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.11</version>
<configuration>
<skip>true</skip>
</configuration>
<executions>
<execution>
<id>unit-tests</id>
<phase>test</phase>
<goals>
<goal>test</goal>
</goals>
<configuration>
<skip>false</skip>
<includes>
<include>**/When*.*</include>
</includes>
<excludes>
<exclude>%regex[.*integration.*When.*]</exclude>
</excludes>
</configuration>
</execution>
<execution>
<id>integration-tests</id>
<phase>integration-test</phase>
<goals>
<goal>test</goal>
</goals>
<configuration>
<skip>false</skip>
<includes>
<include>%regex[.*integration.*]</include>
</includes>
</configuration>
</execution>
Using package conventions
</executions>
</plugin>](https://image.slidesharecdn.com/continuous-delivery-with-maven-121002134347-phpapp02/85/Continuous-delivery-with-maven-34-320.jpg)
![Split unit and integration tests
<groupId>org.apache.maven.plugins</groupId>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.11</version>
<version>2.11</version>
<configuration>
<configuration>
<skip>true</skip>
<skip>true</skip>
</configuration>
</configuration>
<executions>
<execution>
<id>unit-tests</id>
<phase>test</phase>
<goals>
<goal>test</goal>
</goals>
<configuration>
<skip>false</skip>
<includes>
<include>**/When*.*</include>
</includes>
<excludes>
<exclude>%regex[.*integration.*When.*]</exclude>
</excludes>
</configuration>
</execution>
<execution>
<id>integration-tests</id>
<phase>integration-test</phase>
<goals>
<goal>test</goal>
</goals>
<configuration>
<skip>false</skip>
<includes>
<include>%regex[.*integration.*]</include>
</includes>
</configuration>
</execution>
Using package conventions
</executions>
</plugin>](https://image.slidesharecdn.com/continuous-delivery-with-maven-121002134347-phpapp02/85/Continuous-delivery-with-maven-35-320.jpg)
![Split unit and integration tests
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<execution>
<version>2.11</version>
<configuration>
<id>unit-tests</id>
<skip>true</skip>
<phase>test</phase>
</configuration>
<goals>
<executions>
<execution>
<goal>test</goal>
<id>unit-tests</id>
</goals>
<phase>test</phase>
<goals>
<configuration>
<goal>test</goal>
<skip>false</skip>
</goals>
<includes>
<configuration>
<skip>false</skip>
<include>**/When*.*</include>
<includes>
</includes>
<include>**/When*.*</include>
<excludes>
</includes>
<excludes>
<exclude>%regex[.*integration.*When.*]</exclude>
<exclude>%regex[.*integration.*When.*]</exclude>
</excludes>
</excludes>
</configuration>
</configuration>
</execution>
</execution>
<execution>
<id>integration-tests</id>
Excluding integration tests from the test phase
<phase>integration-test</phase>
<goals>
<goal>test</goal>
</goals>
<configuration>
<skip>false</skip>
<includes>
<include>%regex[.*integration.*]</include>
</includes>
</configuration>
</execution>
Using package conventions
</executions>
</plugin>](https://image.slidesharecdn.com/continuous-delivery-with-maven-121002134347-phpapp02/85/Continuous-delivery-with-maven-36-320.jpg)
![Split unit and integration tests
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-surefire-plugin</artifactId>
<version>2.11</version>
<configuration>
<skip>true</skip>
</configuration>
<executions>
<execution>
<id>unit-tests</id>
Run only integration tests in the integration-test phase
<phase>test</phase>
<goals>
<goal>test</goal>
</goals>
<execution>
<configuration>
<id>integration-tests</id>
<skip>false</skip>
<includes>
<phase>integration-test</phase>
<include>**/When*.*</include>
<goals>
</includes>
<goal>test</goal>
<excludes>
<exclude>%regex[.*integration.*When.*]</exclude>
</goals>
</excludes>
<configuration>
</configuration>
<skip>false</skip>
</execution>
<execution>
<includes>
<id>integration-tests</id>
<include>%regex[.*integration.*]</include>
<phase>integration-test</phase>
<goals>
</includes>
<goal>test</goal>
</configuration>
</goals>
</execution>
<configuration>
<skip>false</skip>
<includes>
<include>%regex[.*integration.*]</include>
</includes>
</configuration>
</execution>
Using package conventions
</executions>
</plugin>](https://image.slidesharecdn.com/continuous-delivery-with-maven-121002134347-phpapp02/85/Continuous-delivery-with-maven-37-320.jpg)
Continuous delivery-with-maven
- 1. Real-World Strategies for Continuous Delivery with Maven and Jenkins John Ferguson Smart
- 2. Consulta nt Trainer Mentor Author Speaker Coder John Fer guson S mar t
- 3. Continuous Delivery Getting value to the business. Fast. 3
- 4. But what is Continuous Delivery? A build tool? A CI tool? Automated tests? Automated quality? Automated deployment?
- 5. Yes...and No
- 6. Continuous Delivery is an attitude
- 7. Deliver business value more frequently
- 8. Value can also come in the form of fast feedback
- 9. Give power back to the business
- 10. The ‘eternal beta’ strategy
- 11. Principles of Continuous Delivery
- 12. Principle #1 Every build is a potential release
- 13. Principle #2 Eliminate manual bottlenecks
- 14. Principle #3 Automate wherever possible
- 15. Principle #4 Have automated tests you can trust
- 16. Build Pipelines The conveyer belts of Continuous Delivery
- 17. Compile and unit test Package and deploy DEV Acceptance tests Deploy to QA QA Deploy to PROD PROD
- 18. Compile and unit test Each commit is a potential release Package and deploy DEV Acceptance tests Deploy to QA QA Deploy to PROD PROD
- 19. Compile and unit test Package and deploy DEV Acceptance tests We reuse the same binaries Deploy to QA QA Deploy to PROD PROD
- 20. Compile and unit test Package and deploy DEV Acceptance tests Automated tests give us confidence in our build Deploy to QA QA Deploy to PROD PROD
- 21. Compile and unit test Package and deploy DEV Acceptance tests Automated, repeatable deployments QA Deploy to QA Deploy to PROD PROD
- 22. Continuous Delivery with Maven Why does it have to be so hard?!
- 23. The Maven lifecycle compile test-compile test package integration-test verify install deploy
- 24. The Maven lifecycle Compile and unit test mvn test compile test-compile test Integration tests mvn verify compile test-compile test package integration-test verify
- 25. The Maven lifecycle Compile and unit test mvn test compile test-compile test compile test-compile Integration tests mvn verify test package integration-test verify Deploy to repository compile mvn deploy test-compile test package integration-test verify deploy
- 26. The Maven Release Process 1.0.0-SNAPSHOT 1.0.0-SNAPSHOT mvn release 1.0.0

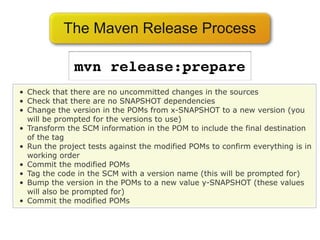

- 27. The Maven Release Process mvn release:prepare • Check that there are no uncommitted changes in the sources • Check that there are no SNAPSHOT dependencies • Change the version in the POMs from x-SNAPSHOT to a new version (you will be prompted for the versions to use) • Transform the SCM information in the POM to include the final destination of the tag • Run the project tests against the modified POMs to confirm everything is in working order • Commit the modified POMs • Tag the code in the SCM with a version name (this will be prompted for) • Bump the version in the POMs to a new value y-SNAPSHOT (these values will also be prompted for) • Commit the modified POMs
- 28. The Maven Release Process mvn release:prepare compile test-compile test package 1.0.0 integration-test verify 1.0.1-SNAPSHOT 1.0.0-SNAPSHOT 1.0.1-SNAPSHOT
- 29. The Maven Release Process mvn release:perform compile test-compile test 1.0.0 package integration-test verify install deploy 1.0.0
- 30. The Maven Release Process Maven: You build a new release when a snapshot build is good enough Continuous Delivery: Any build is a potential release
- 31. Options? Make Maven work for you
- 32. Beware duplication! Build and unit test mvn test Integration tests mvn verify Code coverage... mvn site
- 33. Minimize build jobs for the main build Default build mvn install compile test integration-test verify install
- 34. Split unit and integration tests <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-surefire-plugin</artifactId> <version>2.11</version> <configuration> <skip>true</skip> </configuration> <executions> <execution> <id>unit-tests</id> <phase>test</phase> <goals> <goal>test</goal> </goals> <configuration> <skip>false</skip> <includes> <include>**/When*.*</include> </includes> <excludes> <exclude>%regex[.*integration.*When.*]</exclude> </excludes> </configuration> </execution> <execution> <id>integration-tests</id> <phase>integration-test</phase> <goals> <goal>test</goal> </goals> <configuration> <skip>false</skip> <includes> <include>%regex[.*integration.*]</include> </includes> </configuration> </execution> Using package conventions </executions> </plugin>
- 35. Split unit and integration tests <groupId>org.apache.maven.plugins</groupId> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-surefire-plugin</artifactId> <artifactId>maven-surefire-plugin</artifactId> <version>2.11</version> <version>2.11</version> <configuration> <configuration> <skip>true</skip> <skip>true</skip> </configuration> </configuration> <executions> <execution> <id>unit-tests</id> <phase>test</phase> <goals> <goal>test</goal> </goals> <configuration> <skip>false</skip> <includes> <include>**/When*.*</include> </includes> <excludes> <exclude>%regex[.*integration.*When.*]</exclude> </excludes> </configuration> </execution> <execution> <id>integration-tests</id> <phase>integration-test</phase> <goals> <goal>test</goal> </goals> <configuration> <skip>false</skip> <includes> <include>%regex[.*integration.*]</include> </includes> </configuration> </execution> Using package conventions </executions> </plugin>
- 36. Split unit and integration tests <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-surefire-plugin</artifactId> <execution> <version>2.11</version> <configuration> <id>unit-tests</id> <skip>true</skip> <phase>test</phase> </configuration> <goals> <executions> <execution> <goal>test</goal> <id>unit-tests</id> </goals> <phase>test</phase> <goals> <configuration> <goal>test</goal> <skip>false</skip> </goals> <includes> <configuration> <skip>false</skip> <include>**/When*.*</include> <includes> </includes> <include>**/When*.*</include> <excludes> </includes> <excludes> <exclude>%regex[.*integration.*When.*]</exclude> <exclude>%regex[.*integration.*When.*]</exclude> </excludes> </excludes> </configuration> </configuration> </execution> </execution> <execution> <id>integration-tests</id> Excluding integration tests from the test phase <phase>integration-test</phase> <goals> <goal>test</goal> </goals> <configuration> <skip>false</skip> <includes> <include>%regex[.*integration.*]</include> </includes> </configuration> </execution> Using package conventions </executions> </plugin>
- 37. Split unit and integration tests <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-surefire-plugin</artifactId> <version>2.11</version> <configuration> <skip>true</skip> </configuration> <executions> <execution> <id>unit-tests</id> Run only integration tests in the integration-test phase <phase>test</phase> <goals> <goal>test</goal> </goals> <execution> <configuration> <id>integration-tests</id> <skip>false</skip> <includes> <phase>integration-test</phase> <include>**/When*.*</include> <goals> </includes> <goal>test</goal> <excludes> <exclude>%regex[.*integration.*When.*]</exclude> </goals> </excludes> <configuration> </configuration> <skip>false</skip> </execution> <execution> <includes> <id>integration-tests</id> <include>%regex[.*integration.*]</include> <phase>integration-test</phase> <goals> </includes> <goal>test</goal> </configuration> </goals> </execution> <configuration> <skip>false</skip> <includes> <include>%regex[.*integration.*]</include> </includes> </configuration> </execution> Using package conventions </executions> </plugin>
- 38. Compile Default build Unit Test mvn deploy Package Integration Test
- 39. Compile Default build Unit Test mvn install Package Integration Test Jenkins Artifactory Plugin
- 40. Compile Default build Unit Test mvn install Package Integration Test mvn deploy:deploy
- 41. Eliminate waste
- 42. Run code coverage with the integration tests compile test-compile Integration tests mvn verify test package integration-test verify Test coverage mvn cobertura compile test-compile Duplication! test package integration-test cobertura Creates its own instrumented JAR files
- 43. JACOCO Java Code Coverage Code coverage on the fly Doesn’t mess with your JAR files
- 44. Run code coverage with the integration tests <plugin> <groupId>org.jacoco</groupId> <artifactId>jacoco-maven-plugin</artifactId> <version>0.5.10.201208310627</version> <executions> <execution> <id>jacoco-initialize</id> <goals> <goal>prepare-agent</goal> </goals> Measure code coverage </execution> after the integration tests <execution> <id>jacoco-site</id> <phase>post-integration-test</phase> <goals> <goal>report</goal> </goals> </execution> </executions> </plugin>
- 45. <plugin> Run code coverage with the integration tests <groupId>org.jacoco</groupId> <artifactId>jacoco-‐maven-‐plugin</artifactId> <executions> <execution> <goals> <goal>prepare-‐agent</goal> </goals> </execution> <execution> <id>check</id> <goals> <goal>check</goal> Define minimum coverage </goals> <phase>post-‐integration-‐test</phase> <configuration> <check> <classRate>95</classRate> <instructionRate>95</instructionRate> <methodRate>90</methodRate> <branchRate>95</branchRate> <complexityRate>95</complexityRate> <lineRate>95</lineRate> </check> </configuration> </execution>
- 46. Run code coverage with the integration tests Integration tests/test compile test-compile mvn install test coverage package integration-test verify Uninstrumented JAR Coverage checks and report
- 47. Minimal overhead Build Time Normal build With JaCoCo
- 48. Reuse binaries wherever possible Default build 1.0.203 Deploy to TEST Acceptance Tests 1.0.201 1.0.202 1.0.203 Deploy to UAT
- 49. Have a separate acceptance test suite Acceptance Tests TEST UAT PROD
- 50. Take code quality seriously Checkstyle Findbugs
- 51. Take code quality seriously Code quality metrics mvn site
- 52. Take code quality seriously Pick and choose your metrics Code quality metrics mvn pmd:check mvn findbugs:check mvn checkstye:checkstyle Fail the build if there are violations
- 53. Avoid the Maven Release Plugin Don’t sweat the version numbers
- 54. Developers always work on a SNAPSHOT version 1.0-SNAPSHOT This number is pretty arbitrary
- 55. Jenkins sets a release candidate version at the start of the build pipeline 1.0-SNAPSHOT 1.0.203 This number is a build counter
- 56. This version goes through the build pipeline 1.0.203 Unit tests Acceptance tests Code quality metrics Deploy to TEST
- 57. This version goes through the build pipeline 1.0.203 1.0.204 1.0.205 Unit tests Acceptance tests Code quality metrics Deploy to TEST Acceptance Tests 1.0.203 1.0.204 1.0.205
- 58. Create a new release branch Update the version number Build and test release candidate Did it work? No Yes Drop release branch Push release branch Notify everyone Deploy release candidate
- 59. Create a new release branch Update the version number Build and test release candidate 1.0.203 Did it work? No Yes Drop release branch Push release branch Notify everyone Deploy release candidate
- 60. Create a new release branch Update the version number Versions Plugin Build and test release candidate mvn versions:set -DnewVersion=1.0.203 Did it work? No Yes Drop release branch Push release branch Notify everyone Deploy release candidate
- 61. Create a new release branch Update the version number Build and test release candidate Did mvn verify ... it work? No Yes Drop release branch Push release branch Notify everyone Deploy release candidate
- 62. And make it visible The Build Pipeline plugin
- 63. Let’s see it in action! TEST UAT PROD Jenkins
- 64. Let’s see it in action!
- 65. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 66. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 67. initial-build Links to binary artifacts in Artifactory Release candidate number
- 68. initial-build Links to binary artifacts in Artifactory
- 69. initial-build Use a parameterized build to configure the major build version Users can override the default major version
- 70. initial-build Create a new branch Update the version in the pom files Build the binaries
- 71. initial-build Conditional build step plugin If the build succeeds... Commit the changes and push the branch to the repository
- 72. initial-build If the build fails... Delete the branch
- 73. initial-build Deploy the release candidate to Artifactory
- 74. initial-build Deploy to the test environment Target platform
- 75. initial-build <plugin> <groupId>com.jelastic</groupId> <artifactId>jelastic-maven-plugin</artifactId> <version>1.6</version> <configuration> <email>${jelastic.username}</email> <password>${jelastic.password}</password> <context>${jelastic.context}</context> <environment>${jelastic.environment}</environment> <api_hoster>app.jelastic.servint.net</api_hoster> </configuration> </plugin>
- 76. initial-build Archive binary Update the build description
- 77. initial-build Archive binary Pass the release branch to the next build job
- 78. initial-build Don’t start a new build pipeline if one is currently running.
- 79. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 80. initial-build code-quality Pass in the release we want to build against deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 81. initial-build code-quality deploy-to-test Build from the release candidate branch acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 82. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 83. initial-build code-quality Copy the WAR file from the initial build deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 84. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat ...deploy this WAR file acceptance-tests deploy-to-prod
- 85. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod the acceptance tests ...and run
- 86. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat What platform do we run the acceptance test against acceptance-tests deploy-to-prod
- 87. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat What platform do we run the acceptance test against acceptance-tests deploy-to-prod
- 88. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 89. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat What platform do we run the acceptance test against acceptance-tests deploy-to-prod
- 90. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat What platform do we run the acceptance test against acceptance-tests deploy-to-prod
- 91. initial-build code-quality deploy-to-test acceptance-tests deploy-to-uat Build promotion status acceptance-tests deploy-to-prod
- 92. initial-build Copy the WAR file from the initial build... code-quality deploy-to-test acceptance-tests deploy-to-uat ...and deploy it to UAT acceptance-tests deploy-to-prod
- 93. A build promotioninitial-build deploy to production process to code-quality deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 94. A build promotioninitial-build deploy to production process to code-quality deploy-to-test acceptance-tests deploy-to-uat acceptance-tests deploy-to-prod
- 95. Build pipeline for an overview of the process
- 96. Thank You John Ferguson Smart Email: john.smart@wakaleo.com Web: hHp://www.wakaleo.com TwiHer: wakaleo
