Controlling a knee CPM machine using PID and iterative
learning control algorithm
Dechrit Maneetham1
, Petrus Sutyasadi2
1
Mechatronics, Rajamangala University of Technology Thanyaburi, Thailand
2
Mechatronics, Politeknik Mekatronika Sanata Dharma, Indonesia
Article Info ABSTRACT
Article history:
Received Jul 18, 2019
Revised Dec 30, 2019
Accepted Feb 14, 2020
A conventional continuous passive motion (CPM) machine uses simple
controller such as On/Off controller. Some better CPMs use PID controller.
These kind of CPMs can not distinguish load different due to the different size
of the patient leg. This may cause the CPM no longer follow the trajectory
or the angle commands. Meanwhile, each patient may have different scenario
of therapy from the others. When progress on the patient exists, the range
of the flexion may be increased step by step. Therefore, the treatment can be
different in term of the range of flexion from time to time. This paper proposes
CPM with hybrid proportional integral derivative (PID) and iterative learning
controller (ILC). The system has capability in learning the trajectory tracking.
Therefore, the CPM will be able to follow any load or trajectory changes
applied to it. The more accurate CPM machine can follow the trajectory
command, the better its performance for the treatment. The experiment showed
that the system was stable due to the PID controller. The tracking performance
also improved with the ILC even there exist some disturbances.
Keywords:
CPM
ILC
Learning algorithm
PID
Rehabilitation machine
This is an open access article under the CC BY-SA license.
Corresponding Author:
Dechrit Maneetham,
Faculty of Technical Education, Mechatronics Engineering,
Rajamangala University of Technology Thanyaburi,
Rangsit-Nakhon Nayok Rd, Khlong Hok, Khlong Luang District, Pathum Thani, Thailand.
Email: dechrit_m@rmutt.ac.th
1. INTRODUCTION
A continuous passive motion (CPM) machine is a mechanism that works according to rehabilitation
theory of a continuous and repetitive passive motion [1]. This movement has the purpose in medical practice
to recover injured limbs motoric function [2]. the function of a CPM is it may reduce the therapist’s workload
at the hospital [3]. CPM is expected can be programmed to do a repetitive movement in flexing and bending
the patient’s muscle.
Some accidents on the knee may cause problem in the anterior cruciate ligament (ACL). The accidents
usually make strong impact or hyperextension. In this case, sometimes surgical reconstruction of the ACL must
be conducted [4]. ACL injuries are common for some active people [5]. ACL is the most important component
for the knee movement. The main function of ACL is to control posterior translation of the femur when
the tibia is fixed [6]. Patient with ACL rupture usually need a surgical treatment using tissue autografts or
allografts [7] to restore the pivoting spots [8].
After the surgery, early treatment that usually conducted is passive rehabilitation to minimize swelling
and pain, but mostly to bring back the range of motion. Passive rehabilitation is moving the limbs while
the muscle remains relax. If it is not done by a therapist, it can be done by a CPM machine [9]. According to

 ISSN: 1693-6930
TELKOMNIKA Telecommun Comput El Control, Vol. 18, No. 2, April 2020: 1047 - 1053
1048
some researches, by using CPM machine, significant range of motion gain from 7 to 22 degrees has been
reported [10–16]. Another reported that during the hospital stay, CPM machine increase the speed of knee
flexion recovery [16-19].
Some CPM machine use On/Off control. However, some researchers using proportional integral and
derivative (PID) controller, a linear and simple controller to control the CPM machine [20-22]. To handle
the non-linear dynamics of the CPM, PID with Neural Network algorithm was also proposed [23]. However,
variation of loads may affect the trajectory tracking of the CPM. Iterative learning control (ILC) is a relatively
new algorithm that is able to learn and fix a trajectory tracking control problem of a repetitive works [24-26].
CPM machine works in repetitive way. This paper explains the development of a knee CPM machine and its
control algorithm using PID-ILC. The goal is having a knee CPM with capability to track the trajectory
reference in the presence of various load from the patient’s leg.
2. RESEARCH METHOD
A knee CPM machine was designed and manufactured for the prototype. The machine was actuated
by a dc motor. To control the motor, a PID-ILC controller was developed and implemented to the system.
The mechanical, electronic, and the controller design are explain in this chapter.
2.1. Mechanical design
The structure is made from stainless steel and aluminium. The drawing of the design is shown in
Figure 1. The 3D design of the CPM prototype is shown in Figure 2. The final result of the hardware is shown
in Figure 3. The controller and the dc motor driver including the adaptor are put in one box. The the shank
support has sponge and covered with vinyl sheet. It also has vinyl strap to hold the patient leg during machine
operation. In this case we measure and control the angle of the hip joint (b). The angle was measured from
the convertion of the encoder value. Figure 4 shows the hardware test on an adult’s leg. It shows also the ratio
or the proportion of the hardware size to an adult’s leg. The straps used to hold the leg so it can follow
the CPM movement.
Figure 1. Mechanical design of the CPM (dimension in mm)
a : Knee joint
b : Hip joint
z : Ball screw rotation
x : Slider translation
1 : DC Motor
2 : Shank support
3 : Thight support
Figure 2. There dimensional drawing of the CPM

TELKOMNIKA Telecommun Comput El Control 
Controlling a knee CPM machine using PID and iterative … (Dechrit Maneetham)
1049
Figure 3. CPM Prototype
Figure 4. Leg test on the CPM
2.2. Electronic design
The CPM movement is generated by a rotational movement produced by a DC motor. By using a
crank slider mechanism, the rotational movement is translated into linear motion. The rotation of the motor is
read by using a rotary encoder attached directly to the dc motor shaft at the back. The information of the actual
position of the motor is sent to the microcontroller. The position information then will be compared to
the trajectory defined and then the error will be manipulated using proportional, integral, and derivative term
inside the PID controller. The performance along the trajectory was recorded. The performance in each
particular point of the quantized trajectory is compared to the previous one and manipulated using proportional
and derivative term inside the ILC controller. The manipulated variable from the ILC was sent and add up to
the PID output. The correction signal from the ILC will refine the control signal of the PID. The controller
uses Arduino UNO board, and the DC motor driver uses VNH2SP chip that has many advantages such as
polarity, over voltage, and over current protection. The detail of the electronic diagram is shown on Figure 5.
Figure 5. Electronic diagram of the dc motor control

 ISSN: 1693-6930
1050
2.3. PID and ILC controller design
Proportional Integral and Derivative (PID) controller was invented in 1910, owned by Elmer Sperry’s
ship autopilot. The popularity of the controller even grown more since the tuning methods was introduced by
Ziegler and Nichols in 1942 [27-28]. PID controller is a controller that calculates the difference between
the desired values or Set Point (SP) to the actual value or the output. The difference between SP and output is
called the error signal. The error signal then to be processed based on proportional, integral, and derivative
terms to get the manipulated variable or the control signal. However, despite of its popularity, even PID
controller only consist of three gain to be tuned, it still hard to do. There are still a large number of badly tuned
PID controllers on a process plant [29].
Iterative Learning Control (ILC) is a controller that improves the trajectory tracking by leaning from
previous task. The previous task means a complete tracking of the whole trajectory from start to end.
The conditions that should be fulfilled before using the ILC are:
− It is a repetitive work on a same trajectory.
− The starting and ending position should be the same.
− The system should be stable.
The accuracy of the tracking is improved from one repetition to the next repetition. The system should
be a stable system before the ILC is implemented. This is done by the PID controller. In combining PID and
ILC then the PID gains should be set to low values but stable. Even the tracking is poor due to the low gain,
ILC will adjust the manipulated control signal until the desired trajectory is achieved [30]. Control signal of
ILC is determined from
𝑢𝑗 = 𝑢𝑗−1 + 𝑘 𝑑 𝑒̇𝑗−1(𝑡) + 𝑘 𝑝 𝑒𝑗−1(𝑡) (1)
the hybrid PID-ILC is formed by adding signal from ILC to the PID algorithm. Thus, the controller becomes:
𝑢 𝑃𝐼𝐷 = 𝑘 𝑝 𝑒𝑗(𝑡) + 𝑘 𝑑 𝑒̇𝑗(𝑡) + 𝑘𝑖 ∫ 𝑒𝑗(𝑡)𝑑𝑡 + 𝑢𝑗 (2)
with the variables are:
uj : ILC control signal,
ej : error signal,
j : iteration number,
kp : proportional gain,
kd : derivative gain,
ki : integral gain.
The block diagram of the PID-ILC controller is shown in Figure 6.
Figure 6. Block diagram of hybrid PID-ILC
3. RESULTS AND ANALYSIS
The CPM was given a triangle wave trajectory input. The variables being controlled are the amplitude
of the wave that indicates the angle of the hip joint on the CPM. The PID constant setting is usually done when
the CPM has no load on it. Loads may disturb the control system of the CPM. Additional load from patient’s
leg can change the trajectory tracking response. Theoritically Iterative Learning Control fixes the trajectory
tracking within particular time in repetitive way. Figure 7 shows from the experiment that even the PID

1051
controller has been tuned properly, but some load applied have changed the trajectory tracking. It did not affect
much on the rise time, but the stedy state error was increased significantly. The amplitude reduced 6 degrees.
Three degrees less from the maximum position and three degrees from the minimum position.
Figure 8 shows that PID-ILC controller is able to return the trajectory tracking to the trajectory
reference. On the first repetition, the PID-ILC produced small overshoot, but later it was able to manage
the oscillation to meet the trajectory reference. After four repetitions, the system was able to return to
the trajectory reference. Another experiment is with lower PID constant gains set. In the beginning, the system
could not track the trajectory reference. However, after several iteration, the system was able to track
the trajectory even with initial low PID gain. Figure 9 shows the system response with PID control only and
the gains were set low. There are steady state errors. Figure 10 shows combining with ILC, the PID controller
after seven iterations the system was able to track the trajectory reference.

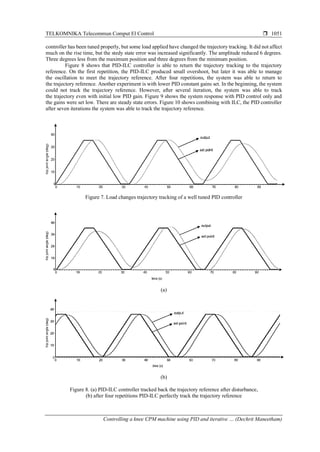

Figure 7. Load changes trajectory tracking of a well tuned PID controller
(a)
(b)
Figure 8. (a) PID-ILC controller tracked back the trajectory reference after disturbance,
(b) after four repetitions PID-ILC perfectly track the trajectory reference

 ISSN: 1693-6930
1052
Figure 9. PID controller with low gains
Figure 10. PID-ILC response system
4. CONCLUSION
The CPM machine has been developed and controlled successfully using PID-ILC controller.
The mechanical part is able to support the patient leg. All the joints movement are smooth. The proposed hybrid
controller successfully controls the system. The system is able to track and follow the trajectory given in
the presence of disturbance or load. Well tuned PID controller has 6 degrees steady state error in the appearance
of load. However, the PID-ILC able to return the trajectory reference after the 4th repetition. PID-ILC is able
to recover the steady state error of a low gain PID controller after 7 repetition. The capability of tracking
the trajectory reference will guarantee the system to follow any set of particular patient rehabilitation scenario
REFERENCES
[1] Fu Y., Wang P., Wang S., Liu H., and Zhang F., “Design and development of a portable exoskeleton based CPM
machine for rehabilitation of hand injuries,” 2007 IEEE International Conference on Robotics and Biomimetics
(ROBIO), pp. 1476-1481, 2007.
[2] Fu Y., Zhang F., Ma X., Meng Q., “Development of a CPM machine for injured fingers,” Proceedings of the 2005
IEEE Engineering in Medicine and Biologi, vol. 5, pp. 5017-5020, 2005.
[3] Tangjitsitcharoen S., and Lohasiriwat H., “Redesign of a continuous passive motion machine for total knee
replacement therapy,” Journal of Health Research, vol. 33, no. 2, pp. 106-118, 2019.
[4] Hiemstra L. A., Webber S., and MacDonald P. B., “Knee strength deficits after hamstring tendon and patellar
tendon anterior cruciate ligament reconstruction,” Medicine and Science in Sports Medicine, vol. 32, no. 8,
pp.1472-1479, 2000.
[5] Mikkelsen C., Werner S., & Eriksson E., “Close kinetic chain alone compared to combined open and closed kinetic
chain exercises for quadriceps strengthening after anterior cruciate ligament reconstruction with respect to return to
sports: A prospective matched follow-up study,” Knee Surgery Sports Traumatology Arthroscopy, vol. 8, no. 6,
pp. 337–342, 2000.
[6] Delay B. S., Smolinski R. J., Wind W. M., & Bowman D. S., “Current practices and opinions in ACL reconstruction
and rehabilitation,” American Journal of Knee Surgery, vol. 14, no. 2, pp. 85–91, 2001.
[7] Woo S. L. Y., Wu C., Dede O., Vercillo F., and Noorani S., “Biomechanics and anterior cruciate ligament
reconstruction,” Journal of Orthopaedic Surgery and Research, vol. 1, no. 2, September 2006.
[8] Lee D. Y. H., Karim S. A., Chang H. C., “Return to sports after anterior cruciate ligament reconstruction – a review
of patients with minimum 5-year follow-up,” Annals of the Academy of Medicine, Singapore, vol. 37, no. 4,
pp. 273-278, 2008.
[9] Rashid M. R., Ahmad I. N., Haron R., and Adnan R., “Treatment effectiveness of continuous passive motion machine
during post-operative treatment of anterior cruciate ligament patients,” 2012 IEEE Symposium on Humanities,
Science and Engineering Research, pp. 469-473, 2012.
[10] McInnes J., Larson M. G., Daltroy L. H., et al., “A controlled evaluation of continuous passive motion in patients
undergoing total knee arthroplasty,” JAMA, vol. 268, no. 11, pp. 1423– 1428, September 1992.
[11] Pope R. O., Corcoran S., McCaul K., Howie D. W., “Continuous passive motion after primary total knee arthroplasty:
does it offer any benefits?” The Bone & Joint Journal, vol. 79, no. 6, pp. 914– 917, 1997.

1053
[12] Shih K. Z., Liu T. K., “The role of continuous passive motion following total knee arthroplasty,” Journal of the
Formosan Medical Association, vol, 89, no. 12, pp. 1077– 1080, 1990.
[13] Ververeli P. A., Sutton D. C., Hearn S. L., et al., “Continuous passive motion after total knee arthroplasty: analysis
of cost and benefits,” Clinical Orthopaedics and Related Research, no. 321, pp. 208– 215, 1995.
[14] Wasilewski S. A., Woods L. C., Torgerson W. R. J., Healy W. L., “Value of continuous passive motion in total knee
arthroplasty,” Orthopedics, vol. 13, no. 3, pp. 291– 295, 1990.
[15] Harms M., Engstrom B., “Continuous passive motion as an adjunct to treatment in the physiotherapy management of
total knee arthroplasty patient,” Physiotherapy, vol. 77, no. 4, pp. 301– 307, 1991.
[16] Johnson D. P., Eastwood D. M., “Beneficial effects of continuous passive motion after total condylar knee
arthroplasty,” Annals of the Royal College of Surgeons of England, vol. 74, no. 6, pp. 412-416, 1992.
[17] Romness D. W., Rand J. A., “The role of continuous passive motion following total knee arthroplasty,” Clinical
Orthopaedics and Related Research, no. 226, pp. 34– 37, 1988.
[18] Goletz T. H., Henry J. H., “Continuous passive motion after total knee arthroplasty,” Southern Medical journal,
vol. 79, no. 9, pp. 1116–1120, 1986.
[19] Vince K. G., Kelly M. A., Beck J., Insall J. N., “Continuous passive motion after total knee arthroplasty,” The Journal
of Arthroplasty, vol. 2, no.4, pp. 281–284, 1987.
[20] Uetsuji S., Kingsuvangul N., Boonyasurakul B., and Charoensuk W., “Hand exoskeleton for continuous passive
motion postoperative rehabilitation,” 2017 10th
Biomedical Engineering International Conference (BMEiCON),
pp. 1-5, 2017.
[21] Eski I., Kirnap A., and Kirnap M., “PID controller design for human elbow therapy,” International Journal of Applied
Mathematics, Electronics and Computers, no. 4, pp. 282–285, 2016.
[22] Ortega A. B., Becerra F. A. G., Valdés L. G. V., dan Arcega R. O. D., “A generalized proportional integral controller
for an ankle rehabilitation machine based on an XY table,” 2013 International Conference on Mechatronics,
Electronics and Automotive Engineering, Morelos, pp. 152-157, 2013.
[23] Tu Diep Cong Thand., “Control Novel Model of Knee CPM Device, science & technology development,” Science
and Technology Develogment, vol 12, no. 4, pp 18-29, 2009.
[24] S. Arimoto, S. Kawamura, and F. Miyazaki, “Bettering operation of robots by learning,” Journal of Robotic Systems,
vol. 1, no. 2, pp.123-140, 1984.
[25] Ibid, “Bettering operation of dynamic systems by learning: A newcontrol theory for servomechanism or mechatronics
systems," The 23rd
IEEE Conference on Decision and Control, pp. 1064-1069, 1984.
[26] S. Kawamura, F. hliyazaki and S. Arimoto, “Iterative learning control for robotic systems,” 2009 IEEE International
Conference on Control and Automation, Christchurch, pp. 1092-1097, 2009.
[27] Ziegler Z. G., and Nichols N. B., “Optimum settings for automatic controllers,” Trans. ASME, vol. 64,
pp. 759–768, 1942.
[28] Ang K. H., Chong G., and Li Y., “PID Control System Analysis, Design, and Technology,” IEEE Transactions on
Control Systems Technology, vol. 13, no. 4, pp. 559-576, 2005.
[29] Skogestad S., “Simple analytic rules for model reduction and PID controller tuning,” Journal of Process Control vol.
13, no. 4, pp. 291–309, 2003.
[30] Sutyasadi P., and Parnichkun M., “Trotting control of a quadruped robot using PID-ILC,” in IECON 2015 - 41st
Annual Conference of the IEEE Industrial Electronics Society, pp. 004400-004405, 2015.

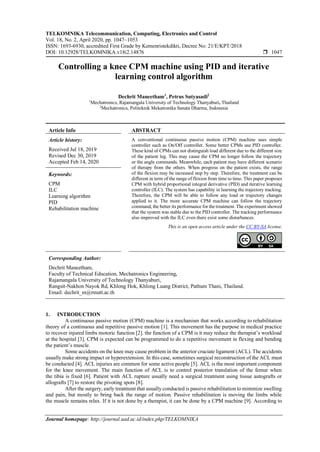

Controlling a knee CPM machine using PID and iterative learning control algorithm

More Related Content

What's hot (20)

Similar to Controlling a knee CPM machine using PID and iterative learning control algorithm (20)

More from TELKOMNIKA JOURNAL (20)

Recently uploaded (20)

Controlling a knee CPM machine using PID and iterative learning control algorithm
