The document describes a master's thesis on software-defined radio (SDR) presented at the IX International Symposium on Telecommunications. It covers trends in telecommunications, the implementation of SDR using FPGAs, and details the design of a QPSK modulator and Costas loop, including simulation results. Overall, it emphasizes the future potential of SDR and cognitive radio in enhancing wireless communication systems.
![8/17
1
Out1
Uni Bi
Unipolar u Bipolar 1
Uni Bi
Unipolar u Bipolar
In1
In2
Out1
Sum
In1
Ig
Qg
S/P konverzija
Ig
Qg
Ig_iz
Qg_iz
RRC filteri
soutx10
+x3
+1
Pseudo slucajni generator
Sin
Cos
Numericki kontrolisani oscilator
In1Out1
Naduzorkovanje1
In1Out1
Naduzorkovanje
a[1]:[13]
b[1]:[13]
r [2]:[26]X
Multiplier1
a[1]:[13]
b[1]:[13]
r [2]:[26]X
Multiplier
Input Output
Konverzija
Q13 u B14_
o13:0
DB
BIT
BIT
BIT
SBF_2_13
SBF_2_13 SBF_2_13
SBF_2_13
SBF_2_26
SBF_2_26
UINT_14
SBF_1_13
SBF_1_13
SBF_1_13
SBF_1_13
SBF_1_13 double
Pseudorandom
generator
S/P & Unipolar to
Bipolar conversion
Upsampling i RRC
filtering
Numerically controlled
oscillator
Multiplication by a
carrier signal and
summation
Scaling and conversion
in UINT_ 14](https://image.slidesharecdn.com/designandimplementationofsdrbasedqpsktransceiverusingfpga-170215230803/85/Design-and-implementation-of-sdr-based-qpsk-transceiver-using-fpga-9-320.jpg)
![9/17
Conversion to SBF1_13
Multiplication of recieved signal with the
recovered carrier signal and scaling
LP filtering and NCO
Phase detector
Loop filter (proportional
integrator)
2
Out2
1
Out1
In1Out1
Skaliranje1
In1Out1
Skaliranje
In1
Sin
Cos
Numericki kontrolisani oscilator1
In2
In7
Out1
Out5
Nisko propusni filteri
a[1]:[13]
b[1]:[13]
r [2]:[26]X
Multiplier3
a[1]:[13]
b[1]:[13]
r [2]:[26]X
Multiplier2
Input Output
Konverzija
B14 u Q2
In1 Out1
Filter petlje
In1
In2
Fazna greska
Ig
Qg
Detekcija faze
i13:0
ADB_D
1
In1](https://image.slidesharecdn.com/designandimplementationofsdrbasedqpsktransceiverusingfpga-170215230803/85/Design-and-implementation-of-sdr-based-qpsk-transceiver-using-fpga-10-320.jpg)
Design and implementation of sdr based qpsk transceiver using fpga
- 1. 25/10/2012, Sarajevo MASTER THESIS Student: Tarik Kazaz Mentor: Prof. Dr. Mesud Hadžialić IX International Symposium on Telecommunications – BIHTEL 2012

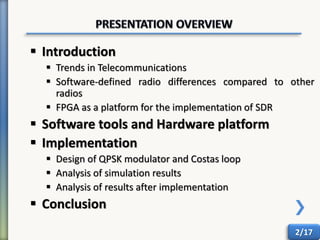

- 2. Introduction Trends in Telecommunications Software-defined radio differences compared to other radios FPGA as a platform for the implementation of SDR Software tools and Hardware platform Implementation Design of QPSK modulator and Costas loop Analysis of simulation results Analysis of results after implementation Conclusion 2/17

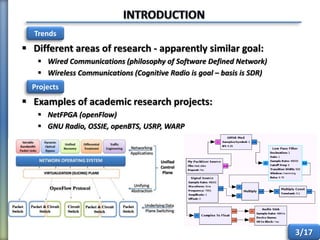

- 3. Different areas of research - apparently similar goal: Wired Communications (philosophy of Software Defined Network) Wireless Communications (Cognitive Radio is goal – basis is SDR) 3/17 Trends Examples of academic research projects: NetFPGA (openFlow) GNU Radio, OSSIE, openBTS, USRP, WARP Projects

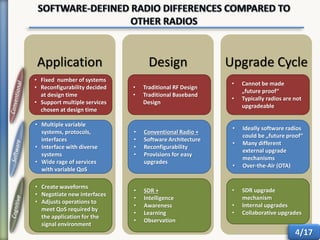

- 4. Application Design Upgrade Cycle 4/17 • Multiple variable systems, protocols, interfaces • Interface with diverse systems • Wide rage of services with variable QoS • Fixed number of systems • Reconfigurability decided at design time • Support multiple services chosen at design time • Create waveforms • Negotiate new interfaces • Adjusts operations to meet QoS required by the application for the signal environment • Traditional RF Design • Traditional Baseband Design • Conventional Radio + • Software Architecture • Reconfigurability • Provisions for easy upgrades • SDR + • Intelligence • Awareness • Learning • Observation • Cannot be made „future proof“ • Typically radios are not upgradeable • Ideally software radios could be „future proof“ • Many different external upgrade mechanisms • Over-the-Air (OTA) • SDR upgrade mechanism • Internal upgrades • Collaborative upgrades

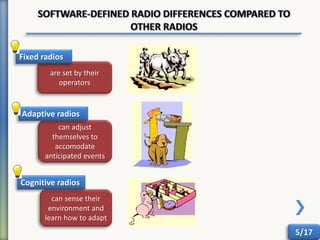

- 5. 5/17 are set by their operators can adjust themselves to accomodate anticipated events can sense their environment and learn how to adapt Fixed radios Adaptive radios Cognitive radios
- 6. 5/17 are set by their operators can adjust themselves to accomodate anticipated events can sense their environment and learn how to adapt Fixed radios Adaptive radios Cognitive radios Cognitive radios require: • Sensing • Adaptation • Learning

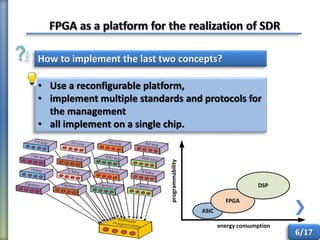

- 7. 6/17 How to implement the last two concepts? • Use a reconfigurable platform, • implement multiple standards and protocols for the management • all implement on a single chip. ASIC FPGA DSP energy consumption programmability

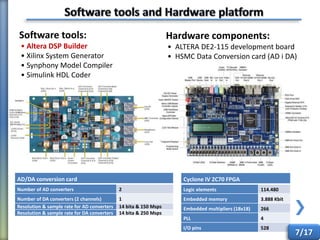

- 8. Software tools: • Altera DSP Builder • Xilinx System Generator • Synphony Model Compiler • Simulink HDL Coder Hardware components: • ALTERA DE2-115 development board • HSMC Data Conversion card (AD i DA) Jampers Cyclone IV 2C70 FPGA Logic elements 114.480 Embedded memory 3.888 Kbit Embedded multipliers (18x18) 266 PLL 4 I/O pins 528 AD/DA conversion card Number of AD converters 2 Number of DA converters (2 channels) 1 Resolution & sample rate for AD converters 14 bita & 150 Msps Resolution & sample rate for DA converters 14 bita & 250 Msps 7/17
- 9. 8/17 1 Out1 Uni Bi Unipolar u Bipolar 1 Uni Bi Unipolar u Bipolar In1 In2 Out1 Sum In1 Ig Qg S/P konverzija Ig Qg Ig_iz Qg_iz RRC filteri soutx10 +x3 +1 Pseudo slucajni generator Sin Cos Numericki kontrolisani oscilator In1Out1 Naduzorkovanje1 In1Out1 Naduzorkovanje a[1]:[13] b[1]:[13] r [2]:[26]X Multiplier1 a[1]:[13] b[1]:[13] r [2]:[26]X Multiplier Input Output Konverzija Q13 u B14_ o13:0 DB BIT BIT BIT SBF_2_13 SBF_2_13 SBF_2_13 SBF_2_13 SBF_2_26 SBF_2_26 UINT_14 SBF_1_13 SBF_1_13 SBF_1_13 SBF_1_13 SBF_1_13 double Pseudorandom generator S/P & Unipolar to Bipolar conversion Upsampling i RRC filtering Numerically controlled oscillator Multiplication by a carrier signal and summation Scaling and conversion in UINT_ 14

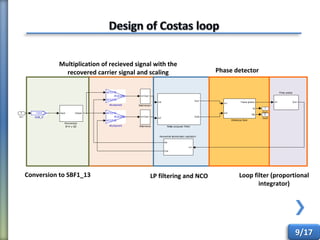

- 10. 9/17 Conversion to SBF1_13 Multiplication of recieved signal with the recovered carrier signal and scaling LP filtering and NCO Phase detector Loop filter (proportional integrator) 2 Out2 1 Out1 In1Out1 Skaliranje1 In1Out1 Skaliranje In1 Sin Cos Numericki kontrolisani oscilator1 In2 In7 Out1 Out5 Nisko propusni filteri a[1]:[13] b[1]:[13] r [2]:[26]X Multiplier3 a[1]:[13] b[1]:[13] r [2]:[26]X Multiplier2 Input Output Konverzija B14 u Q2 In1 Out1 Filter petlje In1 In2 Fazna greska Ig Qg Detekcija faze i13:0 ADB_D 1 In1
- 11. Signals at the output of PN generatora I channel signal after S/P conversion I channel signal after unipolar to bipolar conversion Q channel signal after S/P conversion Q channel signal after unipolar to bipolar conversion 10/17
- 12. 11/17 I channel signal after RRC filtering I channel signal after multiplication with carrier signal Q channel signal after RRC filtering Q channel signal after multiplication with carrier signal
- 13. 12/17 Eye diagram Constellation diagram
- 14. 13/17 I channel signal after multiplication with carrier signal (receiving side) I channel signal after LP filtering Q channel signal after multiplication with carrier signal (receiving side) Q channel signal after LP filtering
- 15. 14/17 I channel signal waveforms after RRC filtering Spectrum of I channel signal Eye diagram for I channel Spectrum of carrier signal (output of NCO)

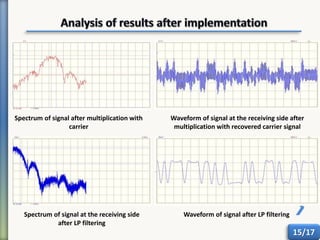

- 16. 15/17 Spectrum of signal after multiplication with carrier Waveform of signal at the receiving side after multiplication with recovered carrier signal Spectrum of signal at the receiving side after LP filtering Waveform of signal after LP filtering
- 17. 16/17 Eye diagram (I channel) at the receiving side after LP filtering
- 18. 17/17 SDR and Cognitive radio are the future of wireless communications SDR concept extends the capabilities of conventional radio systems The advent of FPGA integrated circuits has extended the implementation of SDR Design and implementation of SDR system from higher level of abstraction (model) has its advantages and disadvantages Simplicity of implementation Troubleshooting based on results of simulation Restricts to existing blocks Understanding the many blocks Non universal skills
