The document is a comprehensive overview of Apache Pulsar and its capabilities, focusing on cloud-native streaming with Java. It discusses various topics including the infrastructure of Pulsar, messaging patterns, and integration with frameworks like Spring and Kafka, along with practical code examples. Additionally, it highlights the importance of real-time data streaming in modern applications and data workflows.
![https://github.com/tspannhw/pulsar-airquality-function
public class AirQualityFunction implements Function<byte[], Void> {
@Override
public Void process(byte[] input, Context context) {
if ( input == null || context == null ) {
return null;
}
//context.getInputTopics().toString()
if ( context.getLogger() != null && context.getLogger().isDebugEnabled() ) {
context.getLogger().debug("LOG:" + input.toString());
}
context.newOutputMessage(“NewTopicName”, JSONSchema.of(Observation.class))
.key(UUID.randomUUID().toString())
.property(“Language”, “java”)
.value(observation)
.send();
}
}](https://image.slidesharecdn.com/devnexusapachepulsardevelopment101withjava-230406182218-7b41fe44/85/DevNexus-Apache-Pulsar-Development-101-with-Java-38-320.jpg)
![© 2023 Cloudera, Inc. All rights reserved. 43
ENABLING ANALYTICS AND INSIGHTS ANYWHERE
Driving enterprise business value
REAL-TIME
STREAMING
ENGINE
ANALYTICS &
DATA WAREHOUSE
DATA SCIENCE/
MACHINE LEARNING
CENTRALIZED DATA
PLATFORM
STORAGE & PROCESSING
ANALYTICS & INSIGHTS
Stream
Ingest
Ingest – Data
at Rest
Deploy
Models
BI
Solutions
SQL Predictive
Analytics
• Model Building
• Model Training
• Model Scoring
Actions &
Alerts
[SQL]
Real-Time
Apps
STREAMING DATA
SOURCES
Clickstream Market data
Machine logs Social
ENTERPRISE DATA
SOURCES
CRM
Customer
history
Research
Compliance
Data
Risk Data
Lending](https://image.slidesharecdn.com/devnexusapachepulsardevelopment101withjava-230406182218-7b41fe44/85/DevNexus-Apache-Pulsar-Development-101-with-Java-43-320.jpg)
DevNexus: Apache Pulsar Development 101 with Java
- 1. © 2023 Cloudera, Inc. All rights reserved. Apache Pulsar Development 101 (Cloud Native Streaming With Java) Tim Spann Principal Developer Advocate 5-April-2023
- 2. © 2023 Cloudera, Inc. All rights reserved. TOPICS

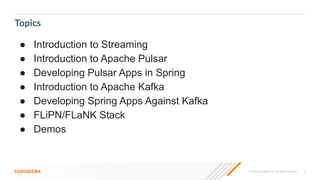

- 3. © 2023 Cloudera, Inc. All rights reserved. 3 Topics ● Introduction to Streaming ● Introduction to Apache Pulsar ● Developing Pulsar Apps in Spring ● Introduction to Apache Kafka ● Developing Spring Apps Against Kafka ● FLiPN/FLaNK Stack ● Demos
- 4. © 2023 Cloudera, Inc. All rights reserved.
- 5. © 2023 Cloudera, Inc. All rights reserved. 5 FLiPN-FLaNK Stack Tim Spann @PaasDev // Blog: www.datainmotion.dev Principal Developer Advocate. Princeton Future of Data Meetup. ex-Pivotal, ex-Hortonworks, ex-StreamNative, ex-PwC https://github.com/tspannhw/EverythingApacheNiFi https://medium.com/@tspann Apache NiFi x Apache Kafka x Apache Flink x Java
- 6. © 2023 Cloudera, Inc. All rights reserved. 6 FLiP Stack Weekly This week in Apache NiFi, Apache Kafka, Apache Flink, Apache Pulsar, Apache Iceberg, Python, Java and Open Source friends. https://bit.ly/32dAJft
- 7. © 2023 Cloudera, Inc. All rights reserved. STREAMING
- 8. © 2023 Cloudera, Inc. All rights reserved. 8 STREAMING FROM … TO .. WHILE .. Data distribution as a first class citizen IOT Devices LOG DATA SOURCES ON-PREM DATA SOURCES BIG DATA CLOUD SERVICES CLOUD BUSINESS PROCESS SERVICES * CLOUD DATA* ANALYTICS /SERVICE (Cloudera DW) App Logs Laptops /Servers Mobile Apps Security Agents CLOUD WAREHOUSE UNIVERSAL DATA DISTRIBUTION (Ingest, Transform, Deliver) Ingest Processors Ingest Gateway Router, Filter & Transform Processors Destination Processors
- 9. © 2023 Cloudera, Inc. All rights reserved. 9
- 10. Streaming for Java Developers Multiple users, frameworks, languages, devices, data sources & clusters • Expert in ETL (Eating, Ties and Laziness) • Deep SME in Buzzwords • No Coding Skills • R&D into Lasers CAT AI • Will Drive your Car? • Will Fix Your Code? • Will Beat You At Q-Bert • Will Write my Next Talk STREAMING ENGINEER • Coding skills in Python, Java • Experience with Apache Kafka or Pulsar • Knowledge of database query languages such as SQL • Knowledge of tools such as Apache Flink, Apache Spark and Apache NiFi JAVA DEVELOPER • Frameworks like Spring, Quarkus and micronaut • Relational Databases, SQL • Cloud • Dev and Build Tools
- 11. © 2023 Cloudera, Inc. All rights reserved. APACHE PULSAR
- 14. Streaming Consumer Consumer Consumer Subscription Shared Failover Consumer Consumer Subscription In case of failure in Consumer B-0 Consumer Consumer Subscription Exclusive X Consumer Consumer Key-Shared Subscription Pulsar Topic/Partition Messaging
- 15. Tenants / Namespaces / Topics Tenants (Compliance) Tenants (Data Services) Namespace (Microservices) Topic-1 (Cust Auth) Topic-1 (Location Resolution) Topic-2 (Demographics) Topic-1 (Budgeted Spend) Topic-1 (Acct History) Topic-1 (Risk Detection) Namespace (ETL) Namespace (Campaigns) Namespace (ETL) Tenants (Marketing) Namespace (Risk Assessment) Pulsar Cluster
- 16. Messages - The Basic Unit of Pulsar Component Description Value / data payload The data carried by the message. All Pulsar messages contain raw bytes, although message data can also conform to data schemas. Key Messages are optionally tagged with keys, used in partitioning and also is useful for things like topic compaction. Properties An optional key/value map of user-defined properties. Producer name The name of the producer who produces the message. If you do not specify a producer name, the default name is used. Sequence ID Each Pulsar message belongs to an ordered sequence on its topic. The sequence ID of the message is its order in that sequence.

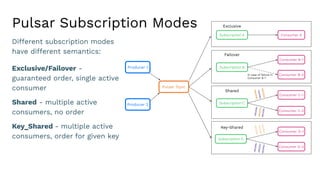

- 17. Pulsar Subscription Modes Different subscription modes have different semantics: Exclusive/Failover - guaranteed order, single active consumer Shared - multiple active consumers, no order Key_Shared - multiple active consumers, order for given key Producer 1 Producer 2 Pulsar Topic Subscription D Consumer D-1 Consumer D-2 Key-Shared < K 1, V 10 > < K 1, V 11 > < K 1, V 12 > < K 2 ,V 2 0 > < K 2 ,V 2 1> < K 2 ,V 2 2 > Subscription C Consumer C-1 Consumer C-2 Shared < K 1, V 10 > < K 2, V 21 > < K 1, V 12 > < K 2 ,V 2 0 > < K 1, V 11 > < K 2 ,V 2 2 > Subscription A Consumer A Exclusive Subscription B Consumer B-1 Consumer B-2 In case of failure in Consumer B-1 Failover
- 18. Flexible Pub/Sub API for Pulsar - Shared Consumer consumer = client.newConsumer() .topic("my-topic") .subscriptionName("work-q-1") .subscriptionType(SubType.Shared) .subscribe();
- 19. Flexible Pub/Sub API for Pulsar - Failover Consumer consumer = client.newConsumer() .topic("my-topic") .subscriptionName("stream-1") .subscriptionType(SubType.Failover) .subscribe();
- 20. Data Offloaders (Tiered Storage) Client Libraries Apache Pulsar Ecosystem hub.streamnative.io Connectors (Sources & Sinks) Protocol Handlers Pulsar Functions (Lightweight Stream Processing) Processing Engines … and more! … and more!
- 24. Schema Registry Schema Registry schema-1 (value=Avro/Protobuf/JSON) schema-2 (value=Avro/Protobuf/JSON) schema-3 (value=Avro/Protobuf/JSON) Schema Data ID Local Cache for Schemas + Schema Data ID + Local Cache for Schemas Send schema-1 (value=Avro/Protobuf/JSON) data serialized per schema ID Send (register) schema (if not in local cache) Read schema-1 (value=Avro/Protobuf/JSON) data deserialized per schema ID Get schema by ID (if not in local cache) Producers Consumers
- 25. Building Real-Time Requires a Team

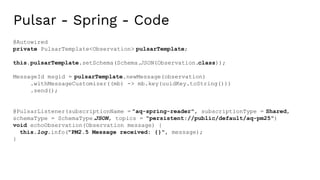

- 27. Pulsar - Spring - Code @Autowired private PulsarTemplate<Observation> pulsarTemplate; this.pulsarTemplate.setSchema(Schema. JSON(Observation.class)); MessageId msgid = pulsarTemplate.newMessage(observation) .withMessageCustomizer((mb) -> mb.key(uuidKey.toString())) .send(); @PulsarListener(subscriptionName = "aq-spring-reader", subscriptionType = Shared, schemaType = SchemaType. JSON, topics = "persistent://public/default/aq-pm25") void echoObservation(Observation message) { this.log.info("PM2.5 Message received: {}", message); }
- 28. Pulsar - Spring - Configuration spring: pulsar: client: service-url: pulsar+ssl://sn-academy.sndevadvocate.snio.cloud:6651 auth-plugin-class-name: org.apache.pulsar.client.impl.auth.oauth2.AuthenticationOAuth2 authentication: issuer-url: https://auth.streamnative.cloud/ private-key: file:///scr/sndevadvocate-tspann.json audience: urn:sn:pulsar:sndevadvocate:my-instance producer: batching-enabled: false send-timeout-ms: 90000 producer-name: airqualityjava topic-name: persistent://public/default/airquality
- 30. Spring - Kafka https://www.baeldung.com/spring-kafka @Bean public KafkaTemplate<String, Observation> kafkaTemplate() { KafkaTemplate<String, Observation> kafkaTemplate = new KafkaTemplate<String, Observation>(producerFactory()); return kafkaTemplate; } ProducerRecord<String, Observation> producerRecord = new ProducerRecord<>(topicName, uuidKey.toString(), message); kafkaTemplate.send(producerRecord);
- 31. Spring - MQTT https://roytuts.com/publish-subscribe-message-onto-mqtt-using-spring/ @Bean public IMqttClient mqttClient( @Value("${mqtt.clientId}") String clientId, @Value("${mqtt.hostname}") String hostname, @Value("${mqtt.port}") int port) throws MqttException { IMqttClient mqttClient = new MqttClient( "tcp://" + hostname + ":" + port, clientId); mqttClient.connect(mqttConnectOptions()); return mqttClient; } MqttMessage mqttMessage = new MqttMessage(); mqttMessage.setPayload(DataUtility.serialize(payload)); mqttMessage.setQos(0); mqttMessage.setRetained(true); mqttClient.publish(topicName, mqttMessage);

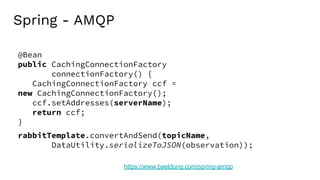

- 32. Spring - AMQP https://www.baeldung.com/spring-amqp rabbitTemplate.convertAndSend(topicName, DataUtility.serializeToJSON(observation)); @Bean public CachingConnectionFactory connectionFactory() { CachingConnectionFactory ccf = new CachingConnectionFactory(); ccf.setAddresses(serverName); return ccf; }

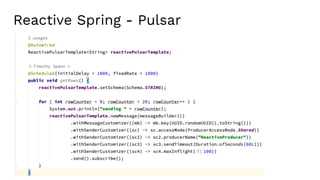

- 33. Reactive Spring - Pulsar
- 34. Reactive Spring - Pulsar
- 35. Demo
- 36. © 2023 Cloudera, Inc. All rights reserved. 36 REST + Spring Boot + Pulsar + Friends
- 37. © 2023 Cloudera, Inc. All rights reserved. APACHE PULSAR JAVA FUNCTION
- 38. https://github.com/tspannhw/pulsar-airquality-function public class AirQualityFunction implements Function<byte[], Void> { @Override public Void process(byte[] input, Context context) { if ( input == null || context == null ) { return null; } //context.getInputTopics().toString() if ( context.getLogger() != null && context.getLogger().isDebugEnabled() ) { context.getLogger().debug("LOG:" + input.toString()); } context.newOutputMessage(“NewTopicName”, JSONSchema.of(Observation.class)) .key(UUID.randomUUID().toString()) .property(“Language”, “java”) .value(observation) .send(); } }
- 39. © 2023 Cloudera, Inc. All rights reserved. APACHE KAFKA
- 40. © 2023 Cloudera, Inc. All rights reserved. 40 Apache Kafka • Highly reliable distributed messaging system • Decouple applications, enables many-to-many patterns • Publish-Subscribe semantics • Horizontal scalability • Efficient implementation to operate at speed with big data volumes • Organized by topic to support several use cases Source System Source System Source System Kafka Fraud Detection Security Systems Real-Time Monitoring Source System Source System Source System Fraud Detection Security Systems Real-Time Monitoring Many-To-Many Publish-Subscribe Point-To-Point Request-Response
- 41. © 2023 Cloudera, Inc. All rights reserved. STREAM TEAM
- 42. © 2023 Cloudera, Inc. All rights reserved. 42 CSP Community Edition • Kafka, KConnect, SMM, SR, Flink, and SSB in Docker • Runs in Docker • Try new features quickly • Develop applications locally ● Docker compose file of CSP to run from command line w/o any dependencies, including Flink, SQL Stream Builder, Kafka, Kafka Connect, Streams Messaging Manager and Schema Registry ○ $>docker compose up ● Licensed under the Cloudera Community License ● Unsupported ● Community Group Hub for CSP ● Find it on docs.cloudera.com under Applications
- 43. © 2023 Cloudera, Inc. All rights reserved. 43 ENABLING ANALYTICS AND INSIGHTS ANYWHERE Driving enterprise business value REAL-TIME STREAMING ENGINE ANALYTICS & DATA WAREHOUSE DATA SCIENCE/ MACHINE LEARNING CENTRALIZED DATA PLATFORM STORAGE & PROCESSING ANALYTICS & INSIGHTS Stream Ingest Ingest – Data at Rest Deploy Models BI Solutions SQL Predictive Analytics • Model Building • Model Training • Model Scoring Actions & Alerts [SQL] Real-Time Apps STREAMING DATA SOURCES Clickstream Market data Machine logs Social ENTERPRISE DATA SOURCES CRM Customer history Research Compliance Data Risk Data Lending
- 44. © 2023 Cloudera, Inc. All rights reserved. 44 EVENT-DRIVEN ORGANIZATION Modernize your data and applications CDF Event Streaming Platform Integration - Processing - Management - Cloud Stream ETL Cloud Storage Application Data Lake Data Stores Make Payment µServices Streams Edge - IoT Dashboard
- 45. © 2023 Cloudera, Inc. All rights reserved. DATAFLOW APACHE NIFI
- 46. 46 © 2023 Cloudera, Inc. All rights reserved. WHAT IS APACHE NIFI? Apache NiFi is a scalable, real-time streaming data platform that collects, curates, and analyzes data so customers gain key insights for immediate actionable intelligence.
- 47. © 2023 Cloudera, Inc. All rights reserved. 47 CLOUDERA FLOW AND EDGE MANAGEMENT Enable easy ingestion, routing, management and delivery of any data anywhere (Edge, cloud, data center) to any downstream system with built in end-to-end security and provenance Advanced tooling to industrialize flow development (Flow Development Life Cycle) ACQUIRE • Over 300 Prebuilt Processors • Easy to build your own • Parse, Enrich & Apply Schema • Filter, Split, Merger & Route • Throttle & Backpressure FTP SFTP HL7 UDP XML HTTP EMAIL HTML IMAGE SYSLOG PROCESS HASH MERGE EXTRACT DUPLICATE SPLIT ENCRYPT TALL EVALUATE EXECUTE GEOENRICH SCAN REPLACE TRANSLATE CONVERT ROUTE TEXT ROUTE CONTENT ROUTE CONTEXT ROUTE RATE DISTRIBUTE LOAD DELIVER • Guaranteed Delivery • Full data provenance from acquisition to delivery • Diverse, Non-Traditional Sources • Eco-system integration FTP SFTP HL7 UDP XML HTTP EMAIL HTML IMAGE SYSLOG
- 48. © 2023 Cloudera, Inc. All rights reserved. 48 APACHE NIFI Enable easy ingestion, routing, management and delivery of any data anywhere (Edge, cloud, data center) to any downstream system with built in end-to-end security and provenance ACQUIRE PROCESS DELIVER • Over 300 Prebuilt Processors • Easy to build your own • Parse, Enrich & Apply Schema • Filter, Split, Merger & Route • Throttle & Backpressure • Guaranteed Delivery • Full data provenance from acquisition to delivery • Diverse, Non-Traditional Sources • Eco-system integration Advanced tooling to industrialize flow development (Flow Development Life Cycle) FTP SFTP HL7 UDP XML HTTP EMAIL HTML IMAGE SYSLO G FTP SFTP HL7 UDP XML HTTP EMAIL HTML IMAGE SYSLO G HASH MERGE EXTRACT DUPLICATE SPLIT ROUTE TEXT ROUTE CONTENT ROUTE CONTEXT CONTROL RATE DISTRIBUTE LOAD GEOENRICH SCAN REPLACE TRANSLATE CONVERT ENCRYPT TALL EVALUATE EXECUTE
- 49. © 2023 Cloudera, Inc. All rights reserved. 49 Cloudera DataFlow: Universal Data Distribution Service Process Route Filter Enrich Transform Distribute Connectors Any destination Deliver Ingest Active Passive Connectors Gateway Endpoint Connect & Pull Send Data born in the cloud Data born outside the cloud UNIVERSAL DATA DISTRIBUTION WITH CLOUDERA DATAFLOW (CDF) Connect to Any Data Source Anywhere then Process and Deliver to Any Destination
- 50. © 2023 Cloudera, Inc. All rights reserved. JAVA DEV FOR NIFI
- 51. © 2023 Cloudera, Inc. All rights reserved. 51 Custom Processors in Java https://www.datainmotion.dev/2019/03/getting-started-with-custom-processor.html https://www.datainmotion.dev/2019/03/posting-images-to-imgur-via-apache-nifi.html
- 52. © 2023 Cloudera, Inc. All rights reserved. 52 https://github.com/tspannhw/nifi-tensorflow-processor public class TensorFlowProcessor extends AbstractProcessor { public static final PropertyDescriptor MODEL_DIR = new PropertyDescriptor.Builder().name(MODEL_DIR_NAME) .description("Model Directory").required(true).expressionLanguageSupported(true) .addValidator(StandardValidators.NON_EMPTY_VALIDATOR).build(); @Override public void onTrigger(final ProcessContext context, final ProcessSession session) throws ProcessException { FlowFile flowFile = session.get(); if (flowFile == null) { flowFile = session.create(); } try { flowFile.getAttributes(); }
- 53. © 2023 Cloudera, Inc. All rights reserved. APACHE SPARK

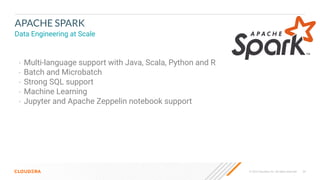

- 54. © 2023 Cloudera, Inc. All rights reserved. 54 APACHE SPARK Data Engineering at Scale • Multi-language support with Java, Scala, Python and R • Batch and Microbatch • Strong SQL support • Machine Learning • Jupyter and Apache Zeppelin notebook support
- 55. © 2023 Cloudera, Inc. All rights reserved. 55 APACHE ICEBERG A Flexible, Performant & Scalable Table Format • Donated by Netflix to the Apache Foundation in 2018 • Flexibility – Hidden partitioning – Full schema evolution • Data Warehouse Operations – Atomic Consistent Isolated Durable (ACID) Transactions – Time travel and rollback • Supports best in class SQL performance – High performance at Petabyte scale
- 56. © 2023 Cloudera, Inc. All rights reserved. APACHE FLINK

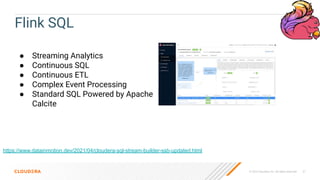

- 57. © 2023 Cloudera, Inc. All rights reserved. 57 Flink SQL https://www.datainmotion.dev/2021/04/cloudera-sql-stream-builder-ssb-updated.html ● Streaming Analytics ● Continuous SQL ● Continuous ETL ● Complex Event Processing ● Standard SQL Powered by Apache Calcite
- 58. © 2023 Cloudera, Inc. All rights reserved. 58 Flink SQL -- specify Kafka partition key on output SELECT foo AS _eventKey FROM sensors -- use event time timestamp from kafka -- exactly once compatible SELECT eventTimestamp FROM sensors -- nested structures access SELECT foo.’bar’ FROM table; -- must quote nested column -- timestamps SELECT * FROM payments WHERE eventTimestamp > CURRENT_TIMESTAMP-interval '10' second; -- unnest SELECT b.*, u.* FROM bgp_avro b, UNNEST(b.path) AS u(pathitem) -- aggregations and windows SELECT card, MAX(amount) as theamount, TUMBLE_END(eventTimestamp, interval '5' minute) as ts FROM payments WHERE lat IS NOT NULL AND lon IS NOT NULL GROUP BY card, TUMBLE(eventTimestamp, interval '5' minute) HAVING COUNT(*) > 4 -- >4==fraud -- try to do this ksql! SELECT us_west.user_score+ap_south.user_score FROM kafka_in_zone_us_west us_west FULL OUTER JOIN kafka_in_zone_ap_south ap_south ON us_west.user_id = ap_south.user_id; Key Takeaway: Rich SQL grammar with advanced time and aggregation tools
- 59. 59 © 2022 Cloudera, Inc. All rights reserved. SQL STREAM BUILDER (SSB) SQL STREAM BUILDER allows developers, analysts, and data scientists to write streaming applications with industry standard SQL. No Java or Scala code development required. Simplifies access to data in Kafka & Flink. Connectors to batch data in HDFS, Kudu, Hive, S3, JDBC, CDC and more Enrich streaming data with batch data in a single tool Democratize access to real-time data with just SQL
- 60. © 2023 Cloudera, Inc. All rights reserved. DEMO
- 61. © 2023 Cloudera, Inc. All rights reserved. 61
- 62. © 2023 Cloudera, Inc. All rights reserved. RESOURCES AND WRAP-UP
- 63. © 2023 Cloudera, Inc. All rights reserved. 63 ● https://spring.io/guides/gs/spring-boot/ ● https://spring.io/projects/spring-amqp/ ● https://spring.io/projects/spring-kafka/ ● https://github.com/spring-projects/spring-integration-kafka ● https://github.com/spring-projects/spring-integration ● https://github.com/spring-projects/spring-data-relational ● https://github.com/spring-projects/spring-kafka ● https://github.com/spring-projects/spring-amqp Spring Things

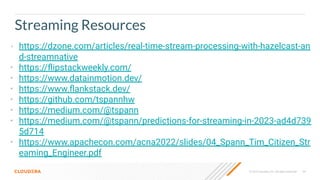

- 64. © 2023 Cloudera, Inc. All rights reserved. 64 Streaming Resources • https://dzone.com/articles/real-time-stream-processing-with-hazelcast-an d-streamnative • https://flipstackweekly.com/ • https://www.datainmotion.dev/ • https://www.flankstack.dev/ • https://github.com/tspannhw • https://medium.com/@tspann • https://medium.com/@tspann/predictions-for-streaming-in-2023-ad4d739 5d714 • https://www.apachecon.com/acna2022/slides/04_Spann_Tim_Citizen_Str eaming_Engineer.pdf
- 65. © 2023 Cloudera, Inc. All rights reserved. 65 Later Today https://devnexus.com/presentations/introducing-spring-for-apache-pulsar Introducing Spring for Apache Pulsar
- 66. © 2023 Cloudera, Inc. All rights reserved. 66 Time to Learn Apache NiFi https://www.catscloudsanddata.com/
- 68. © 2023 Cloudera, Inc. All rights reserved. 68 Upcoming Events April 26 May 10
- 69. © 2023 Cloudera, Inc. All rights reserved. 69 Resources
