Distributed systems

MSc IT Part – I, Semester-1 Page No:- ________
DISTRIBUTED SYSTEMS Date:- ____________
Sonali. Parab.
PRACTICAL NO:1
Aim: Write a program for implementing Client Server communication model.
Practical 1 A
A client server based program using TCP to find if the number entered is prime.
Code: client.java
importjava.net.*;
importjava.io.*;
class Client
{
public static void main(String args[])
{
try{
Socket cs = new Socket("LocalHost",8001);
BufferedReaderbr = new BufferedReader(new
InputStreamReader(System.in));
System.out.println("Enter a number : ");
int a = Integer.parseInt(br.readLine());
DataOutputStream out = new DataOutputStream(cs.getOutputStream());
out.writeInt(a);
DataInputStream in = new DataInputStream(cs.getInputStream());
System.out.println(in.readUTF());
cs.close();
}
catch (Exception e) {
System.out.println(e.toString());
}
}
}

Sonali. Parab.
Code: server.java
importjava.net.*;
importjava.io.*;
class Server
{
public static void main(String args[]) {
try{
ServerSocketss = new ServerSocket(8001);
System.out.println("Server Running Succesfully... ");
Socket s = ss.accept();
System.out.println("Client Request Accepted..");
DataInputStream in = new DataInputStream(s.getInputStream());
int x= in.readInt();
DataOutputStreamotc = new DataOutputStream(s.getOutputStream());
for(int i=2; i<=x; i++) {
if(x%i==0) {
if(i==x)
otc.writeUTF(x + " is a Prime");
else
otc.writeUTF(x + " is not a Prime");
break;
}
}
}
catch (Exception e) {
System.out.println(e.toString());
}
}

Sonali. Parab.
}
OUTPUT: Client
Fig 1.1: Client Output
OUTPUT: Server
Fig 1.2: Server Output

Sonali. Parab.
Practical 1 B: A client server TCP based chatting application
Code:ChatClient.java
importjava.net.*;
importjava.io.*;
classChatClient
{
{
try{
Socket s = new Socket("Localhost",8000);
BufferedReaderbr = new BufferedReader(new InputStreamReader(System.in));
DataOutputStream out = new DataOutputStream(s.getOutputStream());
String msg;
System.out.println("To stop chatting with server type STOP");
System.out.print("Client Says: ");
while((msg = br.readLine()) != null)
{
out.writeBytes(msg+"n");
if(msg.equals("STOP"))
break;
System.out.println("Server Says : "+in.readLine());
System.out.print("Client Says : ");
}
br.close();
in.close();
out.close();
s.close();

Sonali. Parab.
}
catch(Exception e)
{
e.printStackTrace();
}
}
}

Sonali. Parab.
Code:ChatServer.java
importjava.net.*;
importjava.io.*;
classChatServer
{
try{
ServerSocketss = new ServerSocket(8000);
System.out.println("Waiting for client to connect..");
Socket s = ss.accept();
System.out.println("Client Connected");
DataOutputStream out = new DataOutputStream(s.getOutputStream());
String receive, send;
while((receive = in.readLine()) != null)
{
if(receive.equals("STOP"))
break;
System.out.println("Client Says : "+receive);
System.out.print("Server Says : ");
send = br.readLine();
out.writeBytes(send+"n");
}
br.close();
in.close();
out.close();

Sonali. Parab.
s.close();
}
catch(Exception e)
{
}
}
}

Sonali. Parab.
OUTPUT: Client
Fig 1.3: Client Window
OUTPUT: Server
Fig 1.4: Server Window

Practical 1C: A client server based program using UDP to find if the number
entered is evenor odd.
Sonali. Parab.
Code: udpClientEO.java
importjava.io.*;
importjava.net.*;
public class udpClientEO
{
{
try{
DatagramSocket ds = new DatagramSocket(1000);
String num = br.readLine();
byte b[] = new byte[1024]; b=num.getBytes();
DatagramPacketdp = new
DatagramPacket(b,b.length,InetAddress.getLocalHost(),2000); ds.send(dp);
byteb1[] = new byte[1024];
DatagramPacketdp1 = new DatagramPacket(b1,b1.length);
ds.receive(dp1);
String str = new String(dp1.getData(),0,dp1.getLength());
System.out.println(str);
}
catch(Exception e)
{
}
}
}

Sonali. Parab.
Code: udpServerEO.java
importjava.io.*;
importjava.net.*;
public class udpServerEO
{
{
try{
byte b[] = new byte[1024];
DatagramPacketdp = new DatagramPacket(b,b.length);
ds.receive(dp);
String str = new String(dp.getData(),0,dp.getLength());
int a= Integer.parseInt(str);
String s= new String();
if (a%2 == 0)
s = "Number is even";
else
s = "Number is odd";
byteb1[] = new byte[1024]; b1 = s.getBytes();
DatagramPacketdp1 = new
DatagramPacket(b1,b1.length,InetAddress.getLocalHost(),1000);
ds.send(dp1);
}
catch(Exception e)
{
}
}
}

Sonali. Parab.
Output : Client
Output : Server

Practical 1D: A client server based program using UDP to find the factorial of the entered
number.
Sonali. Parab.
Code: udpClientFact.java
import java.io.*;
import java.net.*;
public class udpClientFact
{
try{
BufferedReader br = new BufferedReader(new
String num = br.readLine();
byte b[] = new byte[1024];b=num.getBytes();
DatagramPacket dp = new
DatagramPacket(b,b.length,InetAddress.getLocalHost(),2000);
ds.send(dp); byte b1[] = new byte[1024];
DatagramPacket dp1 = new DatagramPacket(b1,b1.length);
ds.receive(dp1);
String str = new String(dp1.getData(),0,dp1.getLength());
}
catch(Exception e) {
}
}}

Sonali. Parab.
Code: udpServerFact.java
import java.io.*;
import java.net.*;
public class udpServerFact
{
public static void main(String args[]){
try {
byte b[] = new byte[1024];
DatagramPacket dp = new DatagramPacket(b,b.length);
ds.receive(dp);
String str = new String(dp.getData(),0,dp.getLength());
int a= Integer.parseInt(str); int f = 1, i;
String s= new String();
for(i=1;i<=a;i++)
f=f*i;
s=Integer.toString(f);
String str1 = "The Factorial of " + str + " is : " + f; byte b1[] = new
byte[1024]; b1 = str1.getBytes();
DatagramPacket dp1 = new
DatagramPacket(b1,b1.length,InetAddress.getLocalHost(),1000);
ds.send(dp1);
}
catch(Exception e) {
}
}
}

Sonali. Parab.
Output: Client
Output: Server

Sonali. Parab.
Practical 1E: A multicast Socket example.
Code: BroadcastClient.java
import java.net.*;
import java.io.*;
public class BroadcastClient
{
public static final int PORT = 1234;
public static void main(String args[])throws Exception
{
MulticastSocket socket;
DatagramPacket packet;
InetAddress address;
address = InetAddress.getByName("239.1.2.3"); socket = new
MulticastSocket(PORT);
//join a Multicast group and wait for a message socket.joinGroup(address);
byte[] data = new byte[100];
packet = new DatagramPacket(data,data.length);
for(;;)
{
// receive the packets
socket.receive(packet);
String str = new String(packet.getData());
System.out.println("Message received from "+ packet.getAddress() + "
Message is : "+str);
}
}
}

Sonali. Parab.
Code: BroadcastServer.java
import java.net.*;
import java.io.*;
import java.util.*;
public class BroadcastServer
{
public static final int PORT = 1234;
{
MulticastSocket socket;
DatagramPacket packet;
InetAddress address;
address = InetAddress.getByName("239.1.2.3");
socket = new MulticastSocket();
// join a Multicast group and send the group messages
socket.joinGroup(address);
byte[] data = null;
for(;;)
{
Thread.sleep(10000);
System.out.println("Sending ");
String str = ("This is Neha Calling ");
data = str.getBytes();
packet = new DatagramPacket(data, str.length(),address,PORT);
//Sends the packet
socket.send(packet);
}
}
}

Sonali. Parab.
Output: Client
Output: Server

Sonali. Parab.
PRACTICAL NO: 2
Aim: Write a program to show the object communication using RMI.
Practical 2A: A RMI based application program to display current date and time.
Code:
1. InterDate.java
importjava.rmi.*;
public interface InterDate extends Remote
{
public String display() throws Exception;
}
2. ServerDate.java
importjava.rmi.*;
importjava.rmi.server.*;
importjava.util.*;
public class ServerDate extends UnicastRemoteObject implements InterDate
{
publicServerDate() throws Exception
{
}
public String display() throws Exception
{
String str = "";
Date d = new Date();
str = d.toString();
returnstr;
}
public static void main(String args[]) throws Exception
{
ServerDates1 = new ServerDate();
Naming.bind("DS",s1);
System.out.println("Object registered.....");
}
}

Sonali. Parab.
3. ClientDate.java
importjava.rmi.*;
importjava.io.*;
public class ClientDate
{
{
String s1;
InterDateh1 = (InterDate)Naming.lookup("DS");
s1 = h1.display();
System.out.println(s1);
}
}

Sonali. Parab.
Output:
Fig 2.2:Server Window

Sonali. Parab.

Practical 2B: A RMI based application program that converts digits to words, e.g. 123 will
be converted to one two three.
Sonali. Parab.
Code:
1. InterConvert.java
importjava.rmi.*;
public interface InterConvert extends Remote
{
public String convertDigit(String no) throws Exception;
}
2. ServerConvert.java
importjava.rmi.*;
importjava.rmi.server.*;
public class ServerConvert extends UnicastRemoteObject implements InterConvert
{
publicServerConvert() throws Exception
{
}
public String convertDigit(String no) throws Exception
{
String str = "";
for(int i = 0; i <no.length(); i++)
{
int p = no.charAt(i);
if( p == 48)
{
str += "zero ";
}
if( p == 49)
{
str += "one ";
}
if( p == 50)
{
str += "two ";
}
if( p == 51)
{
str += "three ";
}

Sonali. Parab.
if( p == 52)
{
str += "four ";
}
if( p == 53)
{
str += "five ";
}
if( p == 54)
{
str += "six ";
}
if( p == 55)
{
str += "seven ";
}
if( p == 56)
{
str += "eight ";
}
if( p == 57)
{
str += "nine ";
}
}
returnstr;
}
{
ServerConverts1 = new ServerConvert();
Naming.bind("Wrd",s1);
System.out.println("Object registered....");
}
}

Sonali. Parab.
3. ClientConvert.java
importjava.rmi.*;
importjava.io.*;
public class ClientConvert
{
{
InterConverth1 = (InterConvert)Naming.lookup("Wrd");
System.out.println("Enter a number : t");
String no = br.readLine();
String ans = h1.convertDigit(no);
System.out.println("The word representation of the entered digit is : " +ans);
}
}

Sonali. Parab.
Output:
Fig 2.4 Client Window


Sonali. Parab.
Fig 2.6: Client Convert Window

Sonali. Parab.
Practical No: 03
Aim: Show the implementation of Remote Procedure Call.
Practical 3A: A program to implement simple calculator operations like addition,
subtraction, multiplication and division.
Code:
1. RPCClient.java
import java.io.*;
import java.net.*;
class RPCClient
{
RPCClient()
{
try
{
InetAddress ia = InetAddress.getLocalHost();
DatagramSocket ds = new DatagramSocket();
DatagramSocket ds1 = new DatagramSocket(1300);
System.out.println("nRPC Clientn");
System.out.println("Enter method name and parameter like add 3 4n");
while (true)
{
String str = br.readLine();

Sonali. Parab.
byte b[] = str.getBytes();
DatagramPacket dp = new DatagramPacket(b,b.length,ia,1200);
ds.send(dp);
dp = new DatagramPacket(b,b.length);
ds1.receive(dp);
String s = new String(dp.getData(),0,dp.getLength());
System.out.println("nResult = " + s + "n");
}
}
catch (Exception e)
{
}
}
public static void main(String[] args)
{
new RPCClient();
}
}

Sonali. Parab.
2. RPCServer.java
import java.util.*;
import java.net.*;
class RPCServer
{
DatagramSocket ds;
DatagramPacket dp;
String str,methodName,result;
int val1,val2;
RPCServer()
{
try
{
ds=new DatagramSocket(1200);
byte b[]=new byte[4096];
while(true)
{
dp=new DatagramPacket(b,b.length);
ds.receive(dp);
str=new String(dp.getData(),0,dp.getLength());
if(str.equalsIgnoreCase("q"))
{
System.exit(1);
}
else
{

StringTokenizer st = new StringTokenizer(str," ");
Sonali. Parab.
int i=0;
while(st.hasMoreTokens())
{
String token=st.nextToken();
methodName=token;
val1 = Integer.parseInt(st.nextToken());
val2 = Integer.parseInt(st.nextToken());
}
}
if(methodName.equalsIgnoreCase("add"))
{
result= "" + add(val1,val2);
}
dName.equalsIgnoreCase("sub"))
{
result= "" + sub(val1,val2);
}
else if(methodName.equalsIgnoreCase("mul"))
{
result= "" + mul(val1,val2);
}
else if(methodName.equalsIgnoreCase("div"))
{

Sonali. Parab.
result= "" + div(val1,val2);
}
byte b1[]=result.getBytes();
DatagramSocket ds1 = new DatagramSocket();
DatagramPacket dp1 = new
DatagramPacket(b1,b1.length,InetAddress.getLocalHost(), 1300);
System.out.println("result : "+result+"n");
ds1.send(dp1);
}
}
catch (Exception e)
{
}
}
public int add(int val1, int val2)
{
return val1+val2;
}
public int sub(int val3, int val4)
{
return val3-val4;
}
public int mul(int val3, int val4)
{
return val3*val4;

Sonali. Parab.
}
public int div(int val3, int val4)
{
return val3/val4;
}
{
new RPCServer();
}
}

Sonali. Parab.
Output: Client
Output: Server

Practical 3 B: A program that finds the square, square root, cube and cube root of the
entered number.
Sonali. Parab.
Code: RPCNumClient.java
import java.io.*;
import java.net.*;
class RPCNumClient
{
RPCNumClient()
{
try
{
DatagramSocket ds = new DatagramSocket();
DatagramSocket ds1 = new DatagramSocket(1300);
System.out.println("nRPC Clientn");
System.out.println("1. Square of the number - squaren2. Square root
of
the number - squarerootn3. Cube of the number - cuben4. Cube root of the number -
cuberoot");
System.out.println("Enter method name and the numbern");
while (true)
{
String str = br.readLine();
byte b[] = str.getBytes();
DatagramPacket dp = new
DatagramPacket(b,b.length,ia,1200);
ds.send(dp);
dp = new DatagramPacket(b,b.length);
ds1.receive(dp);
String s = new String(dp.getData(),0,dp.getLength());
System.out.println("nResult = " + s + "n");
}
}
catch (Exception e)
{
}
}
{
new RPCNumClient();
}
}

Sonali. Parab.
Practical No: 4
Practical 4A: Implementing “Big” Web Service.
1) Creating a Web Service
A. Choosing a Container:
1. Choose File > New Project. Select Web Application from the Java Web.
2. Name the project CalculatorWSApplication. Select a location for the project. Click Next.

Sonali. Parab.
3. Select your server and Java EE version and click Finish.
B. Creating a Web Service from a Java Class
1. Right-click the CalculatorWSApplication node and choose New > Web Service.

2. Name the web service CalculatorWS and type org.me.calculator in Package. Leave Create
Web Service from Scratch selected. If you are creating a Java EE 6 project on GlassFish or
WebLogic, select Implement Web Service as a Stateless Session Bean.
3. Click Finish. The Projects window displays the structure of the new web service and the
source code is shown in the editor area.
Sonali. Parab.

Sonali. Parab.
2) Adding an Operation to the Web Service
The goal of this exercise is to add to the web service an operation that adds two numbers
received from a client. The NetBeans IDE provides a dialog for adding an operation to a web
service. You can open this dialog either in the web service visual designer or in the web
service context menu.
A. To add an operation to the web service:
1. Change to the Design view in the editor.
2. Click Add Operation in either the visual designer or the context menu. The Add Operation
dialog opens.

3. In the upper part of the Add Operation dialog box, type add in Name and type int in the
Return Type drop-down list.
4. In the lower part of the Add Operation dialog box, click Add and create a parameter of
type int named i.
Sonali. Parab.

5. Click Add again and create a parameter of type int called j. You now see the two integers
as parameters.
6. Click OK at the bottom of the Add Operation dialog box. You return to the editor.
7. The visual designer now displays the following:
Sonali. Parab.

Sonali. Parab.
8. Click Source. And code the following.
@WebMethod(operationName = "add")
public int add(@WebParam(name = "i") int i, @WebParam(name = "j") int j)
{
int k = i + j;
return k;
}

Sonali. Parab.
3) Deploying and Testing the Web Service
After you deploy a web service to a server, you can use the IDE to open the server's test
client, if the server has a test client. The GlassFish and WebLogic servers provide test clients.
A. To test successful deployment to a GlassFish or WebLogic server:
1. Right-click the project and choose Deploy. The IDE starts the application server, builds the
application, and deploys the application to the server.
2. In the IDE's Projects tab, expand the Web Services node of the CalculatorWSApplication
project. Right-click the CalculatorWS node, and choose Test Web Service.

3. The IDE opens the tester page in your browser, if you deployed a web application to the
GlassFish server.
4. If you deployed to the GlassFish server, type two numbers in the tester page, as shown
below
Sonali. Parab.
5.Output

4) Consuming the Web Service
Now that you have deployed the web service, you need to create a client to make use of the
web service's add method.
1. Client: Java Class in Java SE Application
1. Choose File > New Project. Select Java Application from the Java category. Name the
project CalculatorWS_Client_Application. Leave Create Main Class selected and accept all
other default settings. Click Finish.
2. Right-click the CalculatorWS_Client_Application node and choose New > Web Service
Client. The New Web Service Client wizard opens.
Sonali. Parab.

3. Select Project as the WSDL source. Click Browse. Browse to the CalculatorWS web
service in the CalculatorWSApplication project. When you have selected the web service,
click OK.
Sonali. Parab.
4. Do not select a package name. Leave this field empty.
5. Leave the other settings at default and click Finish. The Projects window displays the new
web service client, with a node for the add method that you created:

6. Double-click your main class so that it opens in the Source Editor. Drag the add node
below the main() method.
You now see the following:
{
Sonali. Parab.
// TODO code application logic here
}
private static int add(int i, int j)
{
org.me.calculator.CalculatorWS_Service service = new
org.me.calculator.CalculatorWS_Service();
org.me.calculator.CalculatorWS port = service.getCalculatorWSPort();
return port.add(i, j);
}
7. In the main() method body, replace the TODO comment with code that initializes values
for i and j, calls add(), and prints the result.
{
int i = 13;
int j =29;
int result = add(i, j);
System.out.println("Result = " + result);
}

8. Surround the main() method code with a try/catch block that prints an exception.
Sonali. Parab.
{
try
{
int i = 13;
int j = 29;
int result = add(i, j);
System.out.println("Result = " + result);
}
catch (Exception ex)
{
System.out.println("Exception: " + ex); }
}
9. Right-click the project node and choose Run.
The Output window now shows the sum:
compile:
run:
Result = 42
BUILD SUCCESSFUL (total time: 1 second)

Sonali. Parab.
Practical 5B: Implementing Web Service that connects to MySQL database.
Building Web Service:-
 JAX-WS is an important part of the Java EE platform.
 JAX-WS simplifies the task of developing Web services using Java technology.
 It provides support for multiple protocols such as SOAP, XML and by providing a facility
for supporting additional protocols along with HTTP.
 With its support for annotations, JAX-WS simplifies Web service development and
reduces the size of runtime files.
 Here basic demonstration of using IDE to develop a JAX-WS Web Service is given.
 After creating the web service, create web service clients that use the Web service over a
network which is called consuming a web service.
 The client is a servlet in a web application.
 Let’s build a Web Service that returns the book name along with its cost for a particular
ISBN.
To begin building this service, create the data store. The server will access the data stored in a
MySQL table to serve the client.
1) Creating MySQL DB Table
Type Following Queries in MySQL command line client window
Create database bookshop ;
Use bookshop;

Sonali. Parab.
 Create a table named Books that will store valid books information
Type following queries in MySQL command line client to create table and describe them
Create table books(isbn varchar(20),bookname varchar(20),bookprice varchar(20));
Desc bookshop;
 Insert valid records in the Books table
Type Insert Queries with suitable book names,prices and isbn numbers in command line
client to enter valid book records
Eg. Insert into books values(“123-456-042”,“Hitchhiker’s Guide to Galaxy”,”422”);
2) Creating a web service

Sonali. Parab.
i. Choosing a container
 Web service can be either deployed in a Web container or in an EJB container.
 If a Java EE 6 application is created, use a Web container because EJBs can be placed
directly in a Web application.
ii. Creating a web application
 To create a Web application, select File - New Project.
 New Project dialog box appears. Select Java Web available under the Categories section
and Web Application available under the Projects section. Click Next.

 New Web Application dialog box appears. Enter BookWS as the project name in the
Project Name textbox and select the option Use Dedicated Folder for Storing Libraries
 New Web Service dialog box appears. Enter the name BookWS in the Web Service Name
textbox, webservice in the Package textbox, select the option Create Web Service from
scratch and also select the option implement web service as a stateless session bean as shown
in the diagram.
Sonali. Parab.

 Click Finish. The Projects window displays the structure of the new web service and the
Sonali. Parab.
source code is shown in the editor area.
i. Adding an operation to the web service
 Change the source view of the BookWS.java to design view by clicking Design available
just below the name of the BookWS.java tab.
 The window changes as shown in the diagram.

Sonali. Parab.
Click Add Operation available in the design view of the web service.
 Add Operation dialog appears. Enter the name getBookDetails in the Name textbox and
java.lang.String in the Return Type textbox as shown in the diagram.
 In Add Operation dialog box, click Add and create a parameter of the type String named
isbn as shown in the diagram.

 Click Ok. The design view displays the operation added as shown in the diagram.
 Click Source. The code spec expands due to the operation added to the web service as
Sonali. Parab.
shown in the diagram
Modify the code spec of the web service BookWS.java.
Code Spec
package webservice;
import java.sql.*;
import javax.jws.WebMethod;
import javax.jws.WebParam;
import javax.jws.WebService;
import javax.ejb.Stateless;
@WebService()
@Stateless()
public class BookWS {
/**
* Web service operation
*/
@WebMethod(operationName = "getBookDetails")
public String getBookDetails(@WebParam(name = "isbn")
String isbn) {
//TODO write your implementation code here:
Connection dbcon = null;

Statement stmt = null;
ResultSet rs = null;
String query = null;
try
{
Class.forName("com.mysql.jdbc.Driver").newInstance();
dbcon = DriverManager.getConnection("jdbc:mysql://localhost/bookshop","root","1");
stmt = dbcon.createStatement();
query = "select * from books where isbn = '" +isbn+ "'";
rs = stmt.executeQuery(query);
rs.next();
String bookDetails = "<h1>The name of the book is <b>" +rs.getString("bookname") + "</b>
and its cost is <b>" +rs.getString("bookprice") + "</b></h1>.";
return bookDetails;
}
catch(Exception e)
{
System.out.println("Sorry failed to connect to the database.." + e.getMessage());
}
return null;
}
}
Sonali. Parab.

Sonali. Parab.
4) Adding the MySQL connector
 We need to add a reference of MySQL connector to our web service. It is via this
connector that our web service will be able to communicate with the database.
 Right click on the libraries and select Add JAR/Folder as shown in the diagram.
 Choose the location where mysql-coonector-java-5.1.10-bin is located, select it and click
on open as shown.

Sonali. Parab.
5) Deploying and testing the web service
 When a web service is deployed to a web container, the IDE allows testing the web
service to see if it functions as expected.
 The tester application provided by GlassFish, is integrated into the IDE for this purpose
as it allows the developer to enter values and test them.
 No facility for testing whether an EJB module is deployed successfully is currently
available.
 To test the BookWS application, right click the BookWS project and select Deploy as
shown in the diagram.
The IDE starts the server, builds the application and deploys the application to the server.
 Follow the progress of these operations in the BookWS (run-deploy) and GlassFish v3
Domain tabs in the Output view.

 Now expand the web services directory of the BookWS project, right-click the BookWS
Sonali. Parab.
Web service and select Test web service as shown in the diagram.
 The IDE opens the tester page in the web browser, if the web application is deployed
using GlassFish server as shown in the figure.

Sonali. Parab.
 Enter the ISBN number as shown in the diagram.
 Click getBookDetails. The book name and its cost are displayed as shown in the
diagram.

Sonali. Parab.
6) Consuming the web service
 Once the web service is deployed, the next most logical step is to create a client to make
use of the web service’s getBookDetails() method.
 To create a web application, select File -> New Project.
 New project dialog box appears, select java web available under the categories section
and web application available under the projects section. Click Next.

 New web application dialog box appears. Enter BookWSServletClient as the project
name in the Project Name textbox and select the option Use Dedicated Folder for Storing
Libraries.
 Click Next. Server and settings section of the new web application, dialog box appears.
Choose the default i.e. GlassFish v3 Domain as the web serevr, the Java EE 6 web as the
Java EE version and the context path
Sonali. Parab.

Sonali. Parab.
 Click Finish.
 The web application named BookWSServletClient is created.
ii. Adding the web service to the client application
 Right-click the BookWSServletClient project and select New -> Web Service Client as
shown in the diagram.

 New Web Service Client dialog box appears. In the Project section, click Browse and
browse through the web service which needs to be consumed. Click ok. The name of the
web service appears in the New Web Service Client as shown in the diagram.
Sonali. Parab.
 Leave the other settings as it is. Click Finish.
 The Web Service Reference directory is added to the BookWSServletClient application
as shown in the diagram. It displays the structure of the newly created client including the
getBookDetails() method created earlier.

Sonali. Parab.
Creating a servlet
 Create retreiveBookDetails.java using NetBeans IDE.
 Right click source package directory, select New -> Servlet.
 New Servlet dialog box appears. Enter retreiveBookDetails in the Class Name textbox
and enter servlet in the package textbox.

 Click Next. Configure Servlet Deployment section of the New Servlet dialog box appears.
Sonali. Parab.
Keep the defaults.
 Click Finish.
 This creates the servlet named retreiveBookDetails.java in the servlet package.
 retreiveBookDetails.java is available with the default skeleton created by the NetBeans
IDE which needs to be modified to hold the application logic.


 In the retreieveBookDetails.java source code, remove the following comments available
Sonali. Parab.
in the body of the processRequest() method.
/*TODO output your page here*/
 Replace the following code spec:
out.println("<h1>Servlet retreiveBookDetails at " + request.getContextPath () + "</h1>");
With the code spec of the getBookDetails() operation of the web service by dragging and
dropping the getBookDetails operation as shown in the diagram.
 Now change the following code spec:
 Add this code
out.println(getBookDetails(request.getParameter("isbn")));
to processRequest() method between
out.println(“<body>”); and out.println(“</body>”)

Sonali. Parab.
iv. Creating an HTML form
 Once the web service is added and the servlet is created, the form to accept ISBN from
the user needs to be coded.
 Since NetBeans IDE by default [as a part of Web Application creation] makes available
index.jsp file. Modify it to hold the following code spec.
<%@page contentType="text/html" pageEncoding="UTF-8"%>
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>SOAP Cleint - Get Book Details</title>
</head>
<body bgcolor="white">
<form name="frmgetBookDetails" method="post" action="retreiveBookDetails">
<h1>
ISBN : <input type="text" name="isbn"/><br><br>
</h1>
<input type="submit" value="Submit"/>
</form>
</body>
</html>

Sonali. Parab.
V.Building the Web Application
 Build the web application.
 Right click BookWSServletClient project and select Build.
 Once the Build menu item is clicked the details about the compilation and building of the
BookWSServletClient Web application appears in the output – BookWSServletClient
(dist) window.

Sonali. Parab.
vi. Running the Application
 Once the compilation and building of the web application is done run the application.
 Right click the BookWSServerCleint project and select run.
 Once the run processing completes in NetBeans IDE a web browser is automatically
launched and the BookWSServletCleint application is executed as shown in the diagram.

Sonali. Parab.
PRACTICAL NO: 5
Aim: Write a program to execute any one mutual exclusion algorithm.
Code:
1. Server.java
import java.io.*;
import java.net.*;
class Server
{
{
ServerSocket ss=new ServerSocket(4722);
System.out.println("Server is Started (listen mode) ....");
Socket s1 = ss.accept();
System.out.println("1st client connected ....");
BufferedReader br1 = new BufferedReader(new
InputStreamReader(s1.getInputStream()));
PrintStream ps1 = new PrintStream(s1.getOutputStream());
ps1.println("Hi client... connection established.. Enter commit or abort : ");
ps1.flush();
Socket s2 = ss.accept();

Sonali. Parab.
System.out.println("2nd client connected ....");
BufferedReader br2 = new BufferedReader(new
InputStreamReader(s2.getInputStream()));
PrintStream ps2 = new PrintStream(s2.getOutputStream());
ps2.println("Hi client... connection established.. Enter commit or abort : ");
ps2.flush();
String str1 = br1.readLine();
String str2 = br2.readLine();
if(str1.equalsIgnoreCase("commit") && str2.equalsIgnoreCase("commit"))
{
System.out.println("1st client said : " + str1 );
System.out.println("2nd client said : " + str2 );
System.out.println("Result : doCommit");
ps1.println("Result : doCommit");
ps1.flush();
ps2.println("Result : doCommit");
ps2.flush();
}
else
{
System.out.println("1st client said : " + str1 );
System.out.println("2nd client said : " + str2 );
System.out.println("Result : doAbort");
ps1.println("Result : doAbort");

Sonali. Parab.
ps1.flush();
ps2.println("Result : doAbort");
ps2.flush();
}
}
}
Code: 2. Cient1.java
import java.io.*;
import java.net.*;
class Client1
{
{
BufferedReader brd = new BufferedReader(new
String serverMsg, clientMsg;
Socket s=new Socket("localhost",4722);
InputStreamReader(s.getInputStream()));
PrintStream ps = new PrintStream(s.getOutputStream());

Sonali. Parab.
serverMsg = br.readLine();
System.out.println(serverMsg);
clientMsg = brd.readLine();
ps.println(clientMsg);
ps.flush();
}
}
Code: 3. Client2.java
import java.io.*;
import java.net.*;
class Client2
{
{
BufferedReader brd = new BufferedReader(new
String serverMsg, clientMsg;
Socket s=new Socket("localhost",4722);

Sonali. Parab.
InputStreamReader(s.getInputStream()));
PrintStream ps = new PrintStream(s.getOutputStream());
clientMsg = brd.readLine();
ps.println(clientMsg);
ps.flush();
}
}

Sonali. Parab.

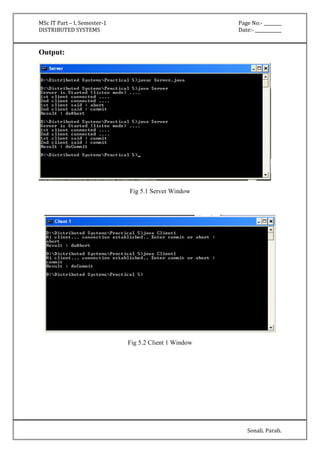

Output:
Fig 5.1 Server Window
Fig 5.2 Client 1 Window

Sonali. Parab.
Fig 5.3 Client 2 Window

Sonali. Parab.
PRACTICAL NO: 06
Aim: Write a program to implement any one election algorithm
Code:
1. Election.c
#include<stdio.h>
#include<conio.h>
#include<process.h>
structproc
{
int live;
int identifier;
}
process[10];
intn,cordinator=1;
/******************* DISPLAY PROCESSES **********************/
void display()
{
int i;
printf("n PROCESSES AREnn");
printf("Processes ");
for(i=1;i<=n;i++)
{
printf("P%dt",i);
}
printf("nlive ");

Sonali. Parab.
for(i=1;i<=n;i++)
{
printf("%dt",process[i].live);
}
printf("nidentifier ");
for(i=1;i<=n;i++)
{
printf("%dt",process[i].identifier);
}
/***************** BULLY ALGORITH******************/
void bully()
{
int ch,c,id,i=0,cordinator,init,max=-99;
cordinator=i;
for(i=1;i<=n;i++)
{
if(process[cordinator].identifier<process[i].identifier&&process[i].live==1)
cordinator=i;
}
printf("nn CURRENT CO-ORDINATOR IS=P%d",cordinator);
while(ch!=4)
{
printf("nnn *** BULLY ALGORITHM ***");
printf("n1.Crash a Processn2.Activate Processn3.Displayn4.Exit");
printf("nENTER UR CHOICE");

Sonali. Parab.
scanf("%d",&ch);
switch(ch)
{
case 1:
printf("n Enter the process id to crash");
scanf("%d",&id);
if(process[id].live==0)
{
printf("n Already crashed process");
}
else
{
process[id].live=0;
printf("n process P%d is crashed",id);
if(id==cordinator)
{
while(1)
{
printf("n Enter process id who intiates election");
scanf("%d",&init);
if(process[init].live==0)
{
printf("n the selected process is crashed");
}
else

Sonali. Parab.
{
for(i=1;i<=n;i++)
{
if(i!=init&&& rocess[i].identifier>process[init].identifier)
printf("n Election MSG sent from %d to %d",init,i);
}
for(i=1;i<=n;i++)
{
if(i!=init)
{
if(process[i].identifier>process[init].identifier&&process[i].live!=0)
{
printf("n OK from %d to %d",i,init);
}
}
}
for(i=1;i<=n;i++)
{
if(max<process[i].identifier && process[i].live!=0)
{
cordinator=i;
max=process[i].identifier;
}
}

Sonali. Parab.
printf("nn NEW CO-ORDINATOR
IS=P%d",cordinator);
break;
}
}
}
}
break;
case 2:
printf("n Enter process id to activate");
scanf("%d",&id);
{
printf("n Process %d is already active",id);
}
else
{
process[id].live=1;
printf("n Process %d activated",id);
}
if(process[id].identifier>process[cordinator].identifier)
{
cordinator=id;
printf("n NEW CO-ORDINATOR IS=P%dnn",id);
}
break;

Sonali. Parab.
case 3:
display();
break;
case 4:
break;
}
}
}
/************ RING ALGORITHM ***************/
void ring()
{
int ch,c,id,i=0,init,max=-99,last;
for(i=1;i<=n;i++)
{
if(process[cordinator].identifier<process[i].identifier&&process[i].live==1)
cordinator=i;
}
printf("nn CURRENT CO-ORDINATOR IS=P%d",cordinator);
while(ch!=4)
{
printf("nnn *** RING ALGORITHM ***");
printf("n1.Crash a Processn2.Activate Processn3.Displayn4.Exit");
printf("nENTER UR CHOICE");
scanf("%d",&ch);
switch(ch)
{

Sonali. Parab.
case 1:
printf("n Enter the process id to crash");
scanf("%d",&id);
{
printf("n Already crashed process");
}
else
{
process[id].live=0;
printf("n process P%d is crashed",id);
if(id==cordinator)
{
while(1)
{
printf("n Enter process id who intiates election");
scanf("%d",&init);
if(process[init].live==0)
{
printf("n the selected process is crashed");
}
else
{
last=init;
printf("nElection MSG sent from =%d",last);

Sonali. Parab.
for(i=init+1;i<=n;i++)
{
if(i!=init)
printf(" ->%d",i);
}
for(i=1;i<init;i++)
{
if(i!=init)
printf("->%d",i);
last=i;
}
for(i=init+1;i<=n;i++)
{
if(max<process[i].identifier && process[i].live==1)
{
cordinator=i;
max=process[i].identifier;
}
}
for(i=1;i<=init;i++)
{
if(max<process[i].identifier && process[i].live==1)
{
cordinator=i; max=process[i].identifier;
}

Sonali. Parab.
}
printf("nn NEW CO-ORDINATOR
IS=P%d",cordinator);
break;
}
}
}
}
break;
case 2:
printf("n Enter process id to activate");
scanf("%d",&id);
{
printf("n Process %d is already active",id);
}
else
{
process[id].live=1;
printf("n Process %d activated",id);
if(process[id].identifier>process[cordinator].identifier)
{
printf("n NEW CO-ORDINATOR IS=P%dnn",id);
cordinator=id;
}
}

Sonali. Parab.
break;
case 3:
display();
break;
case 4:
break;
}
}
}
void main()
{
intch,i,c;
clrscr();
printf("n ENTER NO. OF PROCESSES");
scanf("%d",&n);
for(i=1;i<=n;i++)
{
printf("nEnterP%d process live or not(0/1)",i);
scanf("%d",&process[i].live);
printf("nEnterP%d process identifier",i);
scanf("%d",&process[i].identifier);
}
display();
while(1)
{
printf("nnn**** ELECTION ALGORITHM ****");

printf("n1.BULLY ALGORITHMn2.RING ALGORITHMn3.EXIT");
Sonali. Parab.
printf("nn ENTER UR CHOICE");
scanf("%d",&ch);
switch(ch)
{
case 1:
bully();
break;
case 2:
ring();
break;
case 3:
exit(0);
}
}
}

Sonali. Parab.
Output:
Fig 6.1 Creating Processes
Fig 6.2 List of Processes
Fig 6.2 Algorithm Selection

Sonali. Parab.
1. Bully Algorithm
Fig 6.1.1 Displaying Current Coordinator
Fig 6.1.2 Operations of Bully Algorithm
Fig 6.1.3 Crashing an Active Process
Fig 6.1.4 Crashing a Crashed Process

Sonali. Parab.
Fig 6.1.5 Activating a Crashed Process
Fig 6.1.6 Activating Already Active Process
Fig 6.1.7 Crashing the Co-ordinator and Election

Sonali. Parab.
Fig 6.1.8 Displaying Process Status
Fig 6.1.9 Exiting Bully Algorithm and Entering Main Menu

Sonali. Parab.
2. Ring Algorithm
Fig 6.2.1 Displaying Co-ordinator
Fig 6.2.2 Operations of Algorithm
Fig 6.2.3 Crashing an Active Process
Fig 6.2.4 Crashing an Already Crashed Process

Sonali. Parab.
Fig 6.2.5 Activating a Crashed Process
Fig 6.2.6 Activating already active Process
Fig 6.2.7 Crashing the Co-ordinator and Election

Sonali. Parab.
Fig 6.2.8 Displaying Process Status
Fig 6.2.9 Exiting Ring Algorithm and Entering Main Menu

Sonali. Parab.
Practical No: 07
Aim: Show the implementation of any one clock synchronization algorithm.
Code:
1. SCServer.java
import java.io.*;
import java.net.*;
import java.sql.*;
public class SCServer
{
{
InetAddress lclhost;
lclhost=InetAddress.getLocalHost();
long maxtime,skewtime,datatime;
String maxtimestr,skewtimestr;
BufferedReader br;
ClntServer ser=new ClntServer(lclhost);
System.out.println("Enter the maximum time");
br = new BufferedReader(new InputStreamReader(System.in));
maxtimestr=br.readLine();
System.out.println("Enter the maximum skew time");
br = new BufferedReader(new InputStreamReader(System.in));
skewtimestr=br.readLine();
maxtime=Long.parseLong(maxtimestr);

Sonali. Parab.
skewtime=Long.parseLong(skewtimestr);
while(true)
{
datatime = System.currentTimeMillis();
long G = datatime-maxtime-skewtime;
System.out.println("G ="+G);
ser.setTimeStamp(new Timestamp(G));
ser.recPort(8001);
ser.recData();
}
}
}
class ClntServer
{
int recport;
Timestamp obtmp;
ClntServer(InetAddress lclhost)
{
this.lclhost = lclhost;
}
void recPort(int recport)
{
this.recport = recport;
}
void setTimeStamp(Timestamp obtmp)

Sonali. Parab.
{
this.obtmp = obtmp;
}
void recData()throws Exception
{
String msgstr="";
DatagramSocket ds;
DatagramPacket dp;
BufferedReader br;
byte buf[] = new byte[256];
ds = new DatagramSocket(recport);
dp = new DatagramPacket(buf,buf.length);
ds.receive(dp);
ds.close();
msgstr = new String(dp.getData(),0,dp.getLength());
System.out.println(msgstr);
Timestamp obtmp = new Timestamp(Long.parseLong(msgstr));
if(this.obtmp.before(obtmp) == true)
{
System.out.println("The Message is accepted");
}
else
{
System.out.println("The Message is rejected");
}
}

Sonali. Parab.
}
2. SCClient.java
import java.io.*;
import java.net.*;
public class SCClient
{
{
lclhost=InetAddress.getLocalHost();
while(true)
{
Client cntl=new Client(lclhost);
cntl.sendPort(9001);
cntl.sendData();
}
}
}
class Client
{
int senport;
Client(InetAddress lclhost)

Sonali. Parab.
{
this.lclhost=lclhost;
}
void sendPort(int senport)
{
this.senport=senport;
}
void sendData()throws Exception
{
DatagramPacket dp;
DatagramSocket ds;
BufferedReader br;
br=new BufferedReader(new InputStreamReader(System.in));
System.out.println("Enter the data");
String str=br.readLine();
ds = new DatagramSocket(senport);
dp = new
DatagramPacket(str.getBytes(),str.length(),lclhost,senport-1000);
ds.send(dp);
ds.close();
}
}

Sonali. Parab.
Output:
Fig 7.2 Client Window

Sonali. Parab.
Practical No: 08
Aim: Write a program to implement two phase commit protocol.
Code:
1. Server.java
import java.io.*;
import java.net.*;
import java.util.*;
public class Server
{
boolean closed=false,inputFromAll=false;
List<clientThread> t;
List<String> data;
Server()
{
t = new ArrayList<clientThread>();
data= new ArrayList<String>();
}
{
Socket clientSocket = null;
ServerSocket serverSocket = null;
int port_number=1111;

Sonali. Parab.
Server ser=new Server();
try
{
serverSocket = new ServerSocket(port_number);
}
catch (IOException e)
{
System.out.println(e);
}
while(!ser.closed)
{
try
{
clientSocket = serverSocket.accept();
clientThread th=new clientThread(ser,clientSocket);
(ser.t).add(th);
System.out.println("nNow Total clients are :
"+(ser.t).size());
(ser.data).add("NOT_SENT");
th.start();
}
{
}

Sonali. Parab.
}
try
{
serverSocket.close();
}
catch(Exception e1)
{
}
}
}
class clientThread extends Thread
{
DataInputStream is = null;
String line;
String destClient="";
String name;
PrintStream os = null;
Socket clientSocket = null;
String clientIdentity;
Server ser;
public clientThread(Server ser,Socket clientSocket)
{
this.clientSocket=clientSocket;
this.ser=ser;

Sonali. Parab.
}
public void run()
{
try
{
is = new DataInputStream(clientSocket.getInputStream());
os = new PrintStream(clientSocket.getOutputStream());
os.println("Enter your name.");
name = is.readLine();
clientIdentity=name;
os.println("Welcome "+name+" to this 2 Phase
Application.nYou will receive a vote Request now...");
os.println("VOTE_REQUESTnPlease enter COMMIT or
ABORT to proceed : ");
for(int i=0; i<(ser.t).size(); i++)
{
if((ser.t).get(i)!=this)
{
((ser.t).get(i)).os.println("---A new user
"+name+"
entered the Appilcation---");
}
}
while (true)

Sonali. Parab.
{
line = is.readLine();
if(line.equalsIgnoreCase("ABORT"))
{
System.out.println("nFrom '"+clientIdentity+"' :
ABORTnnSince aborted we will not wait for inputs
from other clients.");
System.out.println("nAborted....");
{
((ser.t).get(i)).os.println("GLOBAL_ABORT");
((ser.t).get(i)).os.close();
((ser.t).get(i)).is.close();
}
break;
}
if(line.equalsIgnoreCase("COMMIT"))
{
System.out.println("nFrom '"+clientIdentity+"' :
COMMIT");
if((ser.t).contains(this))
{
(ser.data).set((ser.t).indexOf(this), "COMMIT");

Sonali. Parab.
for(int j=0;j<(ser.data).size();j++)
{
if(!(((ser.data).get(j)).equalsIgnoreCase("NOT
SENT")))
{
ser.inputFromAll=true;
continue;
}
else
{
ser.inputFromAll=false;
System.out.println("nWaiting for inputs
from other clients.");
break;
}
}
if(ser.inputFromAll)
{
System.out.println("nnCommited....");
{
((ser.t).get(i)).os.println("GLOBAL_COMMIT"
);
((ser.t).get(i)).os.close();
((ser.t).get(i)).is.close();

Sonali. Parab.
}
break;
}
}//if t.contains
}//commit
}//while
ser.closed=true;
clientSocket.close();
}
catch(IOException e)
{
};
}
}

Sonali. Parab.
2. Client.java
import java.io.*;
import java.net.*;
public class Client implements Runnable
{
static Socket clientSocket = null;
static PrintStream os = null;
static DataInputStream is = null;
static BufferedReader inputLine = null;
static boolean closed = false;
{
int port_number=1111;
String host="localhost";
try
{
clientSocket = new Socket(host, port_number);
inputLine = new BufferedReader(new
os = new PrintStream(clientSocket.getOutputStream());
is = new DataInputStream(clientSocket.getInputStream());
}
catch (Exception e)

Sonali. Parab.
{
System.out.println("Exception occurred : "+e.getMessage());
}
if (clientSocket != null && os != null && is != null)
{
try
{
new Thread(new Client()).start();
while (!closed)
{
os.println(inputLine.readLine());
}
os.close();
is.close();
clientSocket.close();
}
{
System.err.println("IOException: " + e);
}
}
}
public void run()
{

Sonali. Parab.
String responseLine;
try
{
while ((responseLine = is.readLine()) != null)
{
System.out.println("n"+responseLine);
if (responseLine.equalsIgnoreCase("GLOBAL_COMMIT")==true
||
responseLine.equalsIgnoreCase("GLOBAL_ABORT")==true )
{
break;
}
}
closed=true;
}
{
System.err.println("IOException: " + e);
}
}
}

Sonali. Parab.
Output:
Fig 8.2 Client Window 1

Sonali. Parab.
Fig 8.3 Client Window 2

Distributed systems

More Related Content

What's hot (20)

Viewers also liked (6)

Similar to Distributed systems (20)

More from Sonali Parab (18)

Recently uploaded (20)

Distributed systems
