Functional programming for production quality code

Functional Programming for Production Quality Code
Jack Fox
jackfoxy.com  craftyThoughts
@foxyjackfox
Slides
http://www.slideshare.net/jackfoxy
Sample Code
https://github.com/jackfoxy/Svcc2014Demo

Functional Programming for Production Quality Code
o Success / Failure passing
o Partial Application
o Types, Summation Type, Generic Types
o Pattern Matching
o Modadic Bind
o Function Composition
o Units of Measure (design time types)
o Computation Expressions
o Typing your way into relational data

Ever seen this code?
if condition1 then
doThis()
if condition2 then
doThat()
if condition3 then
doSomeOtherThing()
if condition3 then
aTask()
if condition4 then
anotherTask()
if condition5 then
yetAnotherTask()
if condition5 then
finallyDone()
else handleError()
else handleError()
else handleError()
else handleError()
else handleError()
else handleError()
else handleError()

Functional Programming
Remember functions from high school math?
f(x) = y
one input
parameter
always maps
to the same output

Functional Programming
Remember functions from high school math?
f(x) = y
one input
parameter
always maps
to the same output
But I need multiple input parameters!

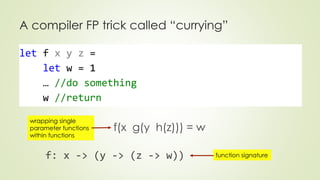

A compiler FP trick called “currying”
let f x y z =
let w = 1
… //do something
w //return
f(x g(y h(z))) = w
wrapping single
parameter functions
within functions
f: x -> (y -> (z -> w))
function signature

o You don’t really need to know currying
o Instead understand the inverse of currying
o Unwrap the parameters of a function
o Unwrapping is called “Partial Application”

Partial application
o If this is a function
let steamJob temperature barrelsOfSteam wellsToSteam =
…
somethingWeReturn
steamJob : temperature: int -> barrelsOfSteam: int -> wellsToSteam: WellState list -> int
o Then so is this
let mySteamJob = steamJob 500 10000
mySteamJob : (WellState list -> int)

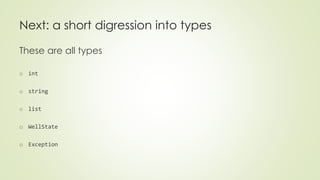

Next: a short digression into types
These are all types
o int
o string
o list
o WellState
o Exception

Summation type
o This is a type that takes the form of multiple types
o It can only be one of those types at a time
o In F# this type is called “discriminated union”
type Choice<'T1, 'T2> =
| Success of 'T1
| Failure of 'T2
note this in not the actual
Choice type in Fsharp.Core

Generic types
generic types in
type constructor
type Choice<'T1, 'T2> =
| Success of 'T1
| Failure of 'T2

Return Summation Type
(Discriminated Union)
let steamJob2 (temperature :int) (barrelsOfSteam : int) (wellsToSteam : WellState list) =
…
if … then
Success wellsToSteam
else
Failure (BadSteamJob
(sprintf "BadSteamJob temperature %i barrelsOfSteam %i wellsToSteam %A“
temperature barrelsOfSteam wellsToSteam) :> Exception )

Return Summation Type
let steamJob2 (temperature :int) (barrelsOfSteam : int) (wellsToSteam : WellState list) =
…
if … then
Success wellsToSteam
else
Failure (BadSteamJob
(sprintf "BadSteamJob temperature %i barrelsOfSteam %i wellsToSteam %A“
temperature barrelsOfSteam wellsToSteam) :> Exception )
steamJob : temperature:int -> barrelsOfSteam:int -> wellsToSteam:WellState list ->
Choice<WellState list, Exception>
generic constructor types
replaced with real types

let result = steamJob2 500 4000 wellsToSteam
match result with
| Success steamedWells -> printfn "%A" steamedWells
| Failure exn -> printfn "%s" exn.Message
steamJob : temperature:int -> barrelsOfSteam:int -> wellsToSteam:WellState list ->
Choice<WellState list, Exception>
Consuming a Summation Type

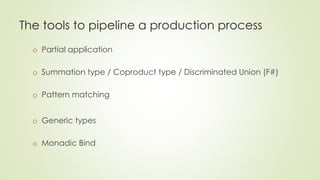

The tools to pipeline a production process
o Partial application
o Summation type / Coproduct type / Discriminated Union (F#)
o Pattern matching
o Generic types

o Pattern matching
o Generic types
o Monadic Bind

Monadic Bind
let bind nextFunction lastOutput =
match lastOutput with
| Success s -> nextFunction s
| Failure f -> Failure f
bind : nextFunction : ('a -> Choice<'b,'c>) -> lastOutput : Choice<'a,'c> -> Choice<'b,'c>
generic constructor types to
be replaced with real types

Monadic Bind
let bind nextFunction lastOutput =
match lastOutput with
| Success s -> nextFunction s
| Failure f -> Failure f
the generics line up between nextFunction and lastOutput
bind : nextFunction:('a -> Choice<'b,'c>) -> lastOutput:Choice<'a,'c> -> Choice<'b,'c>
resulting output lets us chain indefinitely

o Pattern matching
o Generic types
o Monadic Bind

Function Composition
f(x') = w'
g(x'') = w''
h(x''') = w'''
h( g( f(x) ) ) = w

Function Composition
let funcOne x =
funcOne : 'T1 -> 'T2
let funcTwo x =
funcTwo : 'T2 -> 'T3
let compose = funcOne >> funcTwo
( >> ) : ('T1 -> 'T2) -> ('T2 -> 'T3) -> 'T1 -> 'T3
compose: 'T1 -> 'T3

Putting it all together
let processWells =
steamJob step1Temp step1Bbl
>> bind (acidJob step2Solution step2Bbl)
>> bind (steamJob step3Temp step3Bbl)
>> bind (acidJob step4Solution step4Bbl)
let run() =
match processWells wellsToSteam with
| Success xs -> printfn "success %A" xs
| Failure exn -> printfn "%s" exn.Message

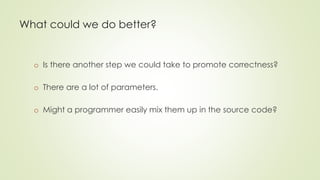

What could we do better?
o Is there another step we could take to promote correctness?
o There are a lot of parameters.
o Might a programmer easily mix them up in the source code?

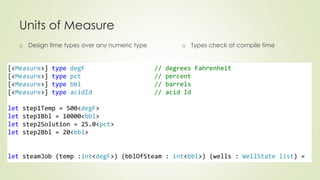

Units of Measure
o Design time types over any numeric type
o Types check at compile time
[<Measure>] type degF // degrees Fahrenheit
[<Measure>] type pct // percent
[<Measure>] type bbl // barrels
[<Measure>] type acidId // acid Id
let step1Temp = 500<degF>
let step1Bbl = 10000<bbl>
let step2Solution = 25.0<pct>
let step2Bbl = 20<bbl>
let steamJob (temp :int<degF>) (bblOfSteam : int<bbl>) (wells : WellState list) =

So Far…
o Pattern Matching
o Modadic Bind

Async (it’s just another computation expression)
async {
}
The brackets abstracted away a layer of complexity …
…but at a price.*
*We lose function composition.

Async (it’s frequently about plumbing)
async {
}
http://commons.wikimedia.org/wiki/File:PSM_V33_D306_Plumbing_arrangement_in_a_19th_century_new_york_house.jpg

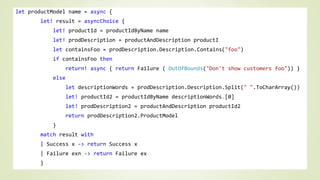

let productModel name = async {
let! result = asyncChoice {
let! productId = productIdByName name
let! prodDescription = productAndDescription productI
let containsFoo = prodDescription.Description.Contains("foo")
if containsFoo then
return! async { return Failure ( OutOfBounds("Don't show customers foo")) }
else
let descriptionWords = prodDescription.Description.Split(" ".ToCharArray())
let! productId2 = productIdByName descriptionWords.[0]
let! prodDescription2 = productAndDescription productId2
return prodDescription2.ProductModel
}
match result with
| Success x -> return Success x
| Failure exn -> return Failure ex
}

AsyncChoicebuilder *
member __.Bind …
member __.Combine (r1, r2) : Async<Choice<'T, 'Error>> =
async {
let! r1' = r1
match r1' with
| Choice1Of2 () ->
return! r2
| Choice2Of2 error ->
return Choice2Of2 error
} * ExtCore

asyncChoice {
let! productId = productIdByName name
let! prodDescription = productAndDescription productI
let containsFoo = prodDescription.Description.Contains("foo")
if containsFoo then
return! async { return Failure ( OutOfBounds("Don't show customers foo")) }
else
let descriptionWords = prodDescription.Description.Split(" ".ToCharArray())
let! productId2 = productIdByName descriptionWords.[0]
let! prodDescription2 = productAndDescription productId2
return prodDescription2.ProductModel
}
binds to value inside the builder
returns the value inside the
computation expression
choice builder’s combine
composes bound values
inside “choice”
“inbetween” regular
F# syntax and control
statements

Typing your way into relational data
o FSharp.Data.SqlClient
type ProductIdByName = SqlCommandProvider<"
SELECT ProductID from Production.Product
WHERE Name = @name
", connectionString, SingleRow = true>
write any T-SQL inline,
“red squigglies” from
compiler on syntax
and schema errors
optional parameter

FSharp.Data.SqlClient
let productIdByName name = async {
let! result =
async {
return type is a
record strongly typed
to result of query
use cmd = new ProductIdByName()
return! cmd.AsyncExecute(name = name)
}
|> Async.Catch
parameters indicated by
intellisense
in this case return type is
option
match result with
| Choice1Of2 (Some productID) -> return Success productID
| Choice1Of2 _ -> return Failure ( SelectNotFound() :> Exception )
| Choice2Of2 exn -> return Failure exn

Programmability over functions and sprocs
[<Literal>]
let connectionString = @"Data Source=.;Initial
Catalog=AdventureWorks2012;Integrated Security=SSPI"
type AdventureWorks = SqlProgrammabilityProvider<connectionString>
type Dbo = AdventureWorks.dbo
type BillOfMaterials = AdventureWorks.dbo.uspGetBillOfMaterials
let cmd = new BillOfMaterials()
cmd.AsyncExecute(1, DateTime.UtcNow) |> Async.RunSynchronously
return type strongly
typed to result
parameters indicated by
intellisense
intellisense dot
completion

SQL Enumeration
type ProductCategory = SqlEnumProvider<"
SELECT Name, ProductCategoryID
FROM Production.ProductCategory", connectionString>
let AccessoriesId = ProductCategory.Accessories
intellisense dot
completion

What we covered
o Pattern Matching
o Modadic Bind
o Typing your way into relational data

Questions?
Bibliography
o Railway oriented programming
http://fsharpforfunandprofit.com/posts/recipe-part2/
http://msdn.microsoft.com/en-us/library/dd233182.aspx
o The F# Computation Expression Zoo
http://tomasp.net/academic/papers/computation-zoo/computation-zoo.pdf
o ExtCore, an extended core library for F#
https://github.com/jack-pappas/ExtCore
o FSharp.Data.SqlClient
http://fsprojects.github.io/FSharp.Data.SqlClient/
Code: github.com/jackfoxy/Svcc2014Demo Slides: www.slideshare.net/jackfoxy
