This document provides an overview of the Arduino and Raspberry Pi microcontroller boards and development environments. It discusses the differences between the two boards, including that Arduino is a microcontroller and Raspberry Pi is a mini computer. Various starter kits for both boards are presented, along with example projects and resources for learning more. Electronic components, IDEs, and sample code for getting started are also reviewed.
![More info: http://goo.gl/FLMQ3O
The Innovation Lab [Makerspace @ SPC] built a retro video game console!](https://image.slidesharecdn.com/arduinopi-150422103323-conversion-gate01/85/Getting-Started-with-Raspberry-Pi-and-Arduino-31-320.jpg)
Getting Started with Raspberry Pi and Arduino

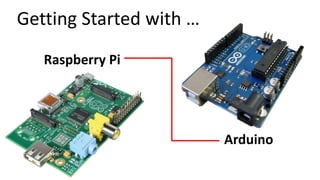

- 1. Raspberry Pi Arduino Getting Started with …

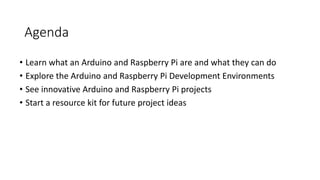

- 3. Agenda • Learn what an Arduino and Raspberry Pi are and what they can do • Explore the Arduino and Raspberry Pi Development Environments • See innovative Arduino and Raspberry Pi projects • Start a resource kit for future project ideas
- 5. • A mini-computer • Requires an operating system • Has a micro-SD card for storage • Built-in Ethernet • Plug in a keyboard and monitor • Can run Linux • Is very cool! Raspberry Pi

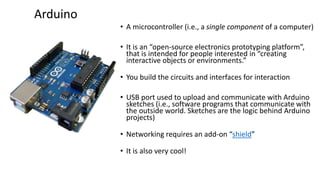

- 6. • A microcontroller (i.e., a single component of a computer) • It is an “open-source electronics prototyping platform”, that is intended for people interested in “creating interactive objects or environments.” • You build the circuits and interfaces for interaction • USB port used to upload and communicate with Arduino sketches (i.e., software programs that communicate with the outside world. Sketches are the logic behind Arduino projects) • Networking requires an add-on “shield” • It is also very cool! Arduino

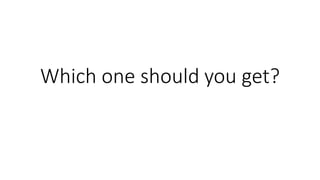

- 8. Which one should you get?

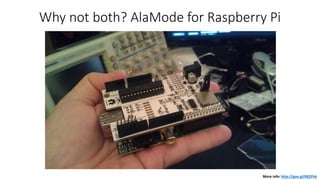

- 9. Why not both? AlaMode for Raspberry Pi More info: http://goo.gl/6B2Pnk

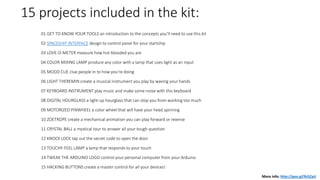

- 11. 15 projects included in the kit: 01 GET TO KNOW YOUR TOOLS an introduction to the concepts you'll need to use this kit 02 SPACESHIP INTERFACE design to control panel for your startship 03 LOVE-O-METER measure how hot-blooded you are 04 COLOR MIXING LAMP produce any color with a lamp that uses light as an input 05 MOOD CUE clue people in to how you're doing 06 LIGHT THEREMIN create a musical instrument you play by waving your hands 07 KEYBOARD INSTRUMENT play music and make some noise with this keyboard 08 DIGITAL HOURGLASS a light-up hourglass that can stop you from working too much 09 MOTORIZED PINWHEEL a color wheel that will have your head spinning 10 ZOETROPE create a mechanical animation you can play forward or reverse 11 CRYSTAL BALL a mystical tour to answer all your tough question 12 KNOCK LOCK tap out the secret code to open the door 13 TOUCHY-FEEL LAMP a lamp that responds to your touch 14 TWEAK THE ARDUINO LOGO control your personal computer from your Arduino 15 HACKING BUTTONS create a master control for all your devices! More info: http://goo.gl/Rz5ZaU

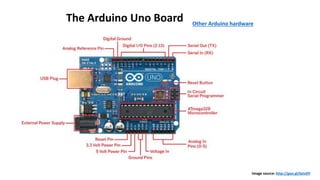

- 12. The Arduino Uno Board Image source: http://goo.gl/bzIvDY Other Arduino hardware
- 13. Image source: www.adafruit.com/product/64 Use a breadboard to build an electronic circuit without any soldering.

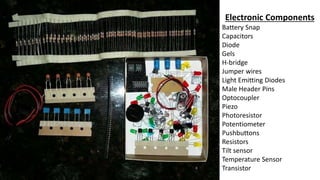

- 14. Electronic Components Battery Snap Capacitors Diode Gels H-bridge Jumper wires Light Emitting Diodes Male Header Pins Optocoupler Piezo Photoresistor Potentiometer Pushbuttons Resistors Tilt sensor Temperature Sensor Transistor
- 15. CanaKit Raspberry Pi 2 Ultimate Starter Kit is $80 or so. More info: http://goo.gl/CAuK7p

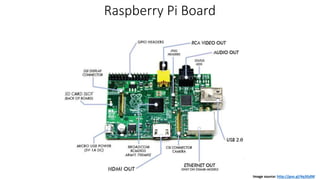

- 16. Raspberry Pi Board Image source: http://goo.gl/4q3GdM
- 17. Slotting the micro SD card on the Raspberry Pi. Flip it!
- 18. NOOBS (New Out of Box Software) Image source: http://goo.gl/3zqKmb Need help setting up NOOBS? Visit: https://www.raspberrypi.org/help/noobs-setup/

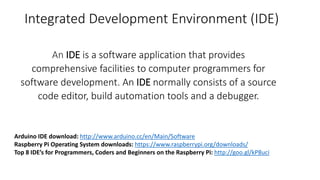

- 19. Integrated Development Environment (IDE) An IDE is a software application that provides comprehensive facilities to computer programmers for software development. An IDE normally consists of a source code editor, build automation tools and a debugger. Arduino IDE download: http://www.arduino.cc/en/Main/Software Raspberry Pi Operating System downloads: https://www.raspberrypi.org/downloads/ Top 8 IDE’s for Programmers, Coders and Beginners on the Raspberry Pi: http://goo.gl/kP8uci

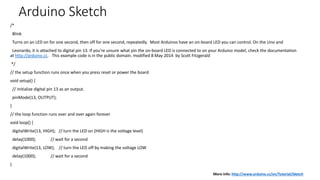

- 21. Arduino Sketch /* Blink Turns on an LED on for one second, then off for one second, repeatedly. Most Arduinos have an on-board LED you can control. On the Uno and Leonardo, it is attached to digital pin 13. If you're unsure what pin the on-board LED is connected to on your Arduino model, check the documentation at http://arduino.cc. This example code is in the public domain. modified 8 May 2014 by Scott Fitzgerald */ // the setup function runs once when you press reset or power the board void setup() { // initialize digital pin 13 as an output. pinMode(13, OUTPUT); } // the loop function runs over and over again forever void loop() { digitalWrite(13, HIGH); // turn the LED on (HIGH is the voltage level) delay(1000); // wait for a second digitalWrite(13, LOW); // turn the LED off by making the voltage LOW delay(1000); // wait for a second } More info: http://www.arduino.cc/en/Tutorial/Sketch
- 22. Check out “Arduino Lecture 1 - Introducing the Arduino” by Eoin Brazil
- 23. Introducing Dylan Harvey, an SPC iLab Volunteer.

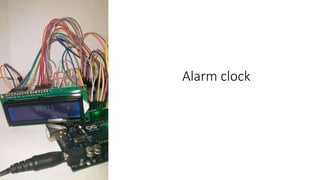

- 24. Alarm clock
- 25. Breadboard layout of the alarm clock
- 28. The hard part is keeping track of what is hooked into what …
- 30. Potentiometer used for controlling the LCD contrast Some important tips from Dylan 1. Keep track of your power rails on the bread board. I kept having to unplug and plug power wires into the correct connections. 2. You will need a 9v power source to power both the LCD and speaker. 3. It if at first it doesn't work check your power rails, then your pin connections on the Arduino. 4. LCD's are tricky, make sure to properly connect them.
- 31. More info: http://goo.gl/FLMQ3O The Innovation Lab [Makerspace @ SPC] built a retro video game console!
- 32. Select Arduino Projects • Live Electronics Systems with Maxuino • Create Interactive Electronic Instruments with MaxMSP • How Arduino And Raspberry Pi Can Enhance Your Connected Home • Burglar/Fire alarm • LCD AC Thermostat • Internet of Things Camera • Hanging Garden

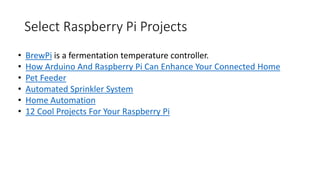

- 33. Select Raspberry Pi Projects • BrewPi is a fermentation temperature controller. • How Arduino And Raspberry Pi Can Enhance Your Connected Home • Pet Feeder • Automated Sprinkler System • Home Automation • 12 Cool Projects For Your Raspberry Pi

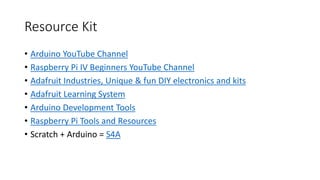

- 34. Resource Kit • Arduino YouTube Channel • Raspberry Pi IV Beginners YouTube Channel • Adafruit Industries, Unique & fun DIY electronics and kits • Adafruit Learning System • Arduino Development Tools • Raspberry Pi Tools and Resources • Scratch + Arduino = S4A
- 35. Raspberry Pi Resources • The Raspberry Pi Foundation — FAQs • The Raspberry Pi Foundation — Project Forums • Learn Raspberry Pi with Adafruit • Element 14 (Pi’s manufacturer) Raspberry Pi Community • The Raspberry Pi Wiki • Raspberry Pi Downloads
- 36. Arduino Resources • Arduino’s Official Getting Started Guide • Arduino Playground • Arduino Official Forums • Learn Arduino with Adafruit • r/arduino on Reddit
- 37. spcilab. .com Connect with the iLab … iLab@spcollege.edu /groups/spcilab spcilab. .com .com/innovation-lab-makerspace-spc
- 38. What are you doing?
