The document discusses high-performance geospatial analytics on the cloud using open-source tools like GeoMesa, NiFi, and Spark. It highlights the challenges of ingesting and managing geospatial data from various sources and demonstrates how cloud solutions enable scalable analysis and real-time streaming data management. Additionally, it outlines the integration of these tools for efficient data processing and visualization, addressing the complexities of big data in geospatial contexts.
High Performance and Scalable Geospatial Analytics on Cloud with Open Source
- 1. 1 High Performance and Scalable Geospatial Analytics on Cloud with Open Source James Hughes – CCRI Constantin Stanca – Hortonworks
- 2. 3 Summary • Loading Geospatial data into the cloud and GeoTools datastores never seems as easy as it should be. There's sensors network, GPS devices, Twitter streams, FTP servers and all sorts of other data that you need to parse, convert to SimpleFeatures, and then ingest. • GeoMesa, NiFi and Spark provides a fully open source solution to ease the pain of ingesting and analyzing data using ANY GeoTools data store. • DataPlane Services Cloud Manager (powered by Cloudbreak) helps you to deploy ephemeral geospatial analytics clusters to support increased computation requirements, all decoupled from storage. • We will show how real-time streaming data such as satellite AIS can be ingested and managed in real-time with NiFi. Also, show how geospatial data stored in S3, HDFS, or HBase, ORC or Parquet, can be queried at scale using GeoMesa, Spark and Zeppelin.
- 4. 5 Data Movement & System Complexity with Added Pressure of Big Data Acquire Data Store Data Acquire Data Store Data Store Data Store Data Store Data Process and Analyze Data Data Flow Acquire Data Acquire Data
- 5. 6 If That Was Not Enough … Spatial Data Types Points Locations Events Instantaneous Positions Lines Road networks Voyages Trips Trajectories Polygons Administrative Regions Airspaces
- 6. 7 If That Was Not Enough … Spatial Data Relationships equals disjoint intersects touches crosses within contains overlaps
- 7. 8 If That Was Not Enough … Topology Operations Algorithms Convex Hull Buffer Validation Dissolve Polygonization Simplification Triangulation Voronoi Linear Referencing and more... 8
- 8. 9 Requirements for a High Performance Geospatial Analytics Platform
- 9. 10 Traditional Approach • GIS, data crunching and web serving were three very separate worlds. • If a web app wanted access to the analysis there was a long process of ETL, DB work, imports and exports, and bribing various network and storage people for the resources you needed.
- 10. 11 Requirements for a High Performance Geospatial Analytics Platform • IoT sensors present an opportunity to understand the world right now • A map of the current state of the world enables faster reactions • The variety of sensors and data source present data management challenges • Adding new, varied data sources must be easy • Big data requires distributed storage / computation and scalable infrastructure • The data layer has to scale • Analysis has to be easy
- 11. 12 Scalable Geospatial Analytics on the Cloud
- 12. 13 How Cloud Helps to Address Geospatial Big Data Challenges • Challenges: • Big data problem (derive insights from all data) • Compute resources when they are needed (easy scale, easy access to data) • Solution: • Cloud provides elastically the needed compute resources, all decoupled from the storage, whether that is an object store, file system or NoSQL.
- 13. 14 Importance for Geospatial Analytics • Spatial streaming visualizations and analytics can present near real-time insights • Decision makers can respond more rapidly when they see live data feeds on a map • Spatial batch analytics can fuse multiple data sources together to understand a region • Patterns of life emerge • Advertisers can plan their next campaigns • Business can locate their new store sites
- 14. 15 Cloudbreak • Cloudbreak can be utilized to address Geospatial computational capacity needs • Easily spin auto-scalable clusters for different workloads and purposes, whether is a Geospatial Ingest Cluster with NiFi and GeoMesa, or Geospatial Analytics cluster with Spark and GeoMesa. • Data can reside in your object store or even in a persistent data store. • These ephemeral clusters can be scheduled for a period of time or only until the job is done so you pay only what you use.
- 16. 17 How GeoMesa Helps with Geospatial Data Type Challenges • Challenges: • Vector & raster data • Geospatial data types • Solution: • GeoMesa tools for streaming, persisting, managing, and analyzing spatio-temporal data at scale
- 17. 18 What Is GeoMesa? A suite of tools for streaming, persisting, managing, and analyzing spatio-temporal data at scale
- 18. 19 What Is GeoMesa? A suite of tools for streaming, persisting, managing, and analyzing spatio-temporal data at scale
- 19. 20 What Is GeoMesa? A suite of tools for streaming, persisting, managing, and analyzing spatio-temporal data at scale
- 20. 21 What Is GeoMesa? A suite of tools for streaming, persisting, managing, and analyzing spatio-temporal data at scale
- 21. 22 What Is GeoMesa? A suite of tools for streaming, persisting, managing, and analyzing spatio-temporal data at scale
- 23. 24 How Does HDP/HDF + GeoMesa Stream Data? • The GeoMesa Kafka DataStore allows data produces to write CRUD messages to a Kafka topic. • Consumers off that topic build up an in-memory representation of the current state of the world. • This allows for • live maps, • real time analytics, and • complex event processing.
- 24. 25 How Does HDP/HDF + GeoMesa Persist Data? GeoMesa integrates with HBase and Accumulo: • Key structures use space filling curves • Complex geospatial filters and processing can be ‘pushed down’ using Filters, Coprocessors, and Iterators GeoMesa’s File System Datastore provides the ability to store spatio-temporally indexed data on S3 cloud object store or storage formats like ORC or Parquet.
- 25. 26 Geospatial Data Flow Transformation with NiFi and GeoMesa
- 26. 27 Geo Data in Motion (Cloud) Geo Data in Motion (on-premises) Geo Data at Rest (on-premises) Edge Geo Data Geo Data in Motion Edge Analytics Geo Data at Rest (Cloud) Edge Geo Data Geo Data at Rest (on-premises) Closed Loop Analytics Machine Learning Deep Historical Analysis Geospatial Data Flow Transformation with NiFi and GeoMesa On-Prem Cloud Satellite AIS Spatial Data

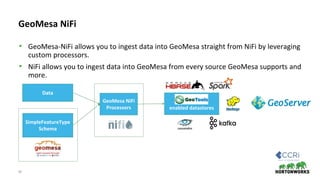

- 27. 28 GeoMesa NiFi • GeoMesa-NiFi allows you to ingest data into GeoMesa straight from NiFi by leveraging custom processors. • NiFi allows you to ingest data into GeoMesa from every source GeoMesa supports and more. Data SimpleFeatureType Schema GeoMesa NiFi Processors enabled datastores
- 28. 29 GeoMesa NiFi Processors • PutGeoMesaAccumulo: Ingest data into a GeoMesa Accumulo datastore with a GeoMesa converter or from geoavro • PutGeoMesaHBase: Ingest data into a GeoMesa HBase datastore with a GeoMesa converter or from geoavro • PutGeoMesaFileSystem: Ingest data into a GeoMesa File System datastore with a GeoMesa converter or from geoavro • PutGeoMesaKafka: Ingest data into a GeoMesa Kafka datastore with a GeoMesa converter or from geoavro • PutGeoTools: Ingest data into an arbitrary GeoTools datastore using a GeoMesa converter or avro • ConvertToGeoAvro: Use a GeoMesa converter to create geoavro
- 29. 30 Analyze Geospatial Data with GeoMesa and Spark
- 30. 31 How does HDP + GeoMesa analyze geospatial data? • GeoMesa integrates deeply with Spark to: • create spatial User Defined Types and User Defined Functions • (based on LocationTech JTS, a geometry library) • optimize spatial queries against GeoMesa DataSources • persist output data back to GeoMesa • leverage Zeppelin notebooks to allow for rapid innovation and creativity • Zeppelin allows analysts to visualize results easily
- 31. 32 DEMO Data Ingest and Interactive Insights with GeoMesa, NiFi, Spark and Zeppelin
- 32. 33 Demo • Introduce EE dataset • Data management / NiFi overview • Real-time view + historical recall • Spark Analysis
- 34. 35 Satellite AIS
- 35. 36 Setup ● Import GeoMesa dependency ● Create dataframe backed by GeoMesa relation ● Create SQL temporary view so we can query it
- 36. 37 Sub-select Data ● Create rough sub- selection of data ■ Bound by time ■ Bound by bounding box roughly around the Gulf of Mexico ● Create a new temporary view from this sub- selection ● Cache the data (pull into memory)
- 37. 38 Data Exploration ● Query for Tankers in the Gulf ● Get counts for each type of Tanker ● Group the counts by day ● Graph counts to see trends
- 38. 39 Data Exploration ● Restrict our search to just Trinity Bay
- 39. 40 Data Exploration ● Create a new temporary view of the number of ships in Trinity Bay
- 40. 41 Extra Data ● Pull in Gas price data ○ Acquired from EIA.gov ○ Two Gas Price Indexes ■ NYH: New York Harbor ■ GC: Gulf Coast ● Create temporary view so we can analyze with SQL
- 41. 42 Data Exploration ● Graph data over time period of Harvey ● Notice we don’t have daily values
- 42. 43 Data Exploration ● Create temporary view of gas price data around our time of interest
- 43. 44 Data Exploration ● Backfill the price data with the last value to give us day- continuous data ● Min/Max Normalize gas and ship counts ● Graph gas prices and ship counts together
- 44. 45 Resources
- 45. 46 Resources • GeoMesa Project: http://www.geomesa.org/ • GeoMesa-NiFi: http://www.geomesa.org/documentation/user/nifi.html • GeoMesa-Spark: http://www.geomesa.org/documentation/user/spark/index.html • Articles: • http://www.ccri.com/2017/03/20/new-geomesa-spark-sql-zeppelin-notebooks-support/ • http://www.ccri.com/2018/02/26/interactive-insights-hurricane-harveys-impact-energy- production-geomesa-jupyter-notebooks/
- 46. 47 Thank you
