Omaxe Heights is a residential apartment complex located in Lucknow, India developed by Omaxe Constructions Ltd. It consists of 11 buildings arranged in a circular planning layout, with 3BHK, 4BHK, and penthouse units. Amenities include tennis courts, swimming pools, a gym, and parking. The project occupies a 28,282 square meter site and was approved by the local development authority. It aims to provide modern housing for high- and middle-income residents in a secure setting with amenities like pools and courts. Some issues were reported with seepage, negative spaces from the circular design, and quality of certain materials.
HOUSING CASE STUDY
- 1. HOUSING CASE SUBMITTED BY - ZAFAR MEHDI STUDY
- 2. • Name : Omaxe Height • Type : Residential – Apartment • Developers: Omaxe Constructions Ltd. • Architect : C.P. KUKREJA • Planning Type : Circular • Locations: Vibhuti Khand , Gomti Nagar, Lucknow 227106 UTTAR PRADESH,INDIA • Total Building Units : 11 • Approved By Authority : LDA • Omaxe heights consists of 3BHK,4BHK Pent house,3BHK+servant room OMAXE HEIGHTS
- 3. LOCATION Vibhuti Khand , Gomti Nagar, Lucknow 227106 UTTAR PRADESH,INDIA DESTINATION DISTANCE(km) Amausi Airport 21.7 Charbagh Railway Station 11 Sahara Hospital 3.5 Wave Multiplex 1.6 SBI Bank 4.6 PROXIMITY

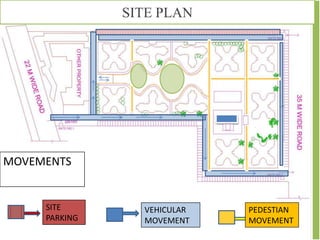

- 4. A VIEW FROM GOOGLE MAPS TOTAL SITE AREA : 28,282 METERE SQUARE 11 BUILDING BLOCK 3 ENTRY/EXIT SITE AREA
- 6. VIEW OF A UNIT BUILDING BLOCKS 3 BHK CLUSTER PLAN PLANNING
- 7. 3BHK PLAN

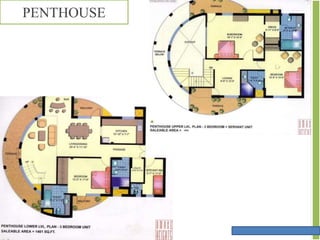

- 8. PENTHOUSE
- 9. TENNIS AND BASKETBALL COURT SWIMMING POOL +KIDS POOL A VIEW OF “SWIMMING POOL” FROM PENT HOUSE SITTING AREA PROVIDED BY SWIMMING POOL AREA: 23.5 M X 10 M AMENITIES
- 10. FACILITIES • LPG Supply through pipe lines. • 100% power backup. • 5KW power backup in each apartment. • Swimming Pool. • Basement parking up to two basement floors, slope of the ramp was 1:12. • On Site parking Provided along the 12m wide road. PARKING
- 11. SERVICES FIRE SAFETY --Power Control room in the basement. --Swimming pool filtration tank in the basement. --Exhaust fan in the basement to control humidity • Fire Escapes at the staircase in 30 M radius • Fire sprinklers in the basement • Hose reels at every floor • Fire reels on the ground
- 12. INFERENCES • MERIT • SECURITY GUARDS AT EVERY GATES,PROVIDED CCTV. • WELL VENTILATED AND PROPER LIGHTING. • AMINITIES LIKESWIMING POOL,GYM,SPA,BANQUET HALL,PLAY COURT. • BASEMENT PARKING. • ROOMS WERE FUNTIONAL. • DEMERIT • IN OCCURING SEEPAGE PROBLEMS. • CIRCULAR PLANNING CAUSING NEGATIVE SPACES. • PROBLEMS IN THE FITTINGS OF SPLIT AC. • THE GLASSESON THE BALCONY OF THE PENT HOUSES DUE TO HEAT ABSORPTION. • LOW QUALITY OF MATERIALS.
- 13. • HIGH RISE BUILDING. • DEVELOPMENT IN THE ASPECT OF MODERNISATION BUILDING BLOCKS IN LINEAR FORM. • .MADE FOR HIG AND MIG. FORMAL ENTRY • AMENITIES LIKE SWIMMING POOL , GYM, SPA,PLAYING COURT ,DANCE FLOOR , LOUNGE ETC. • SITE AREA 28282SQM • CONCRETE WALL • ALUMINIUM FRAME • GLASS WINDOW • CERAMIC AND VITRIFIED TILES USED FOR FLOORING. • AREA OF 3 BHK 104197746.1SQMM CONCLUSION
